RADIOSondyna
MODELTroubadour 4612E
TECHNOLOGYTube
YEAR1946
MADE INSWITZERLAND
WAVE BANDSLW/MW/SW
COVERAGELW 150 - 400 KHz, MW 515 - 1560 KHz, SW 6 - 218 MHz

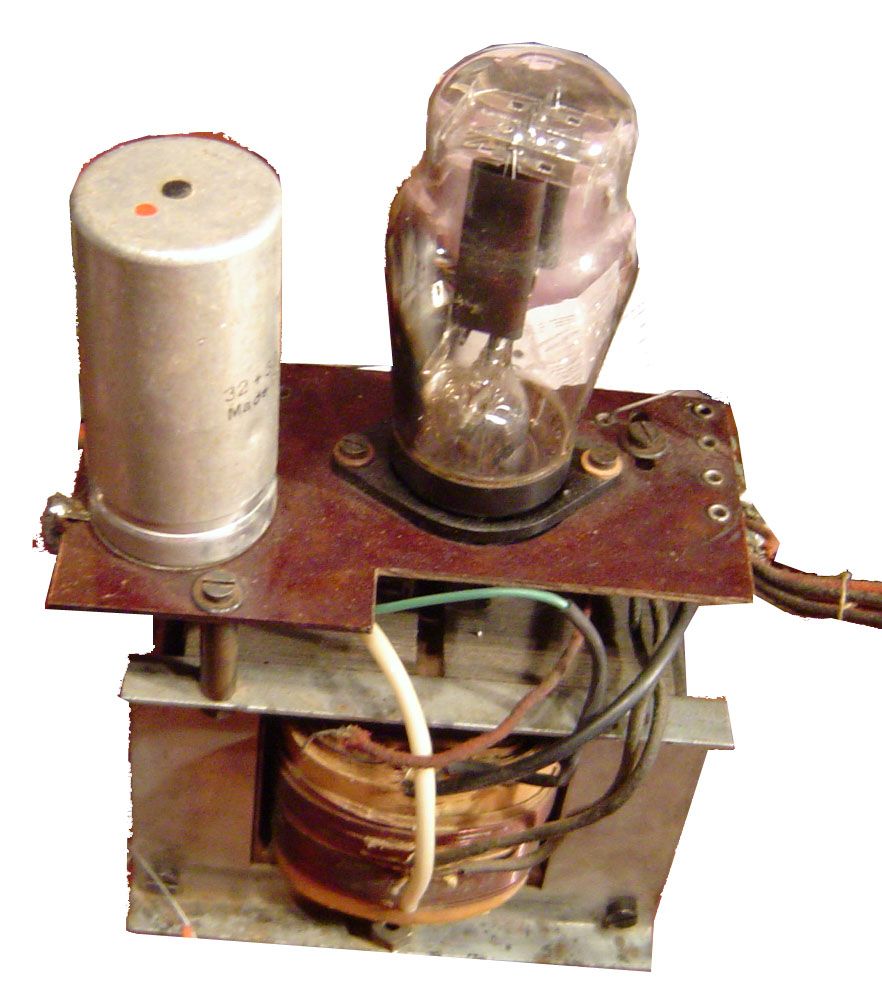

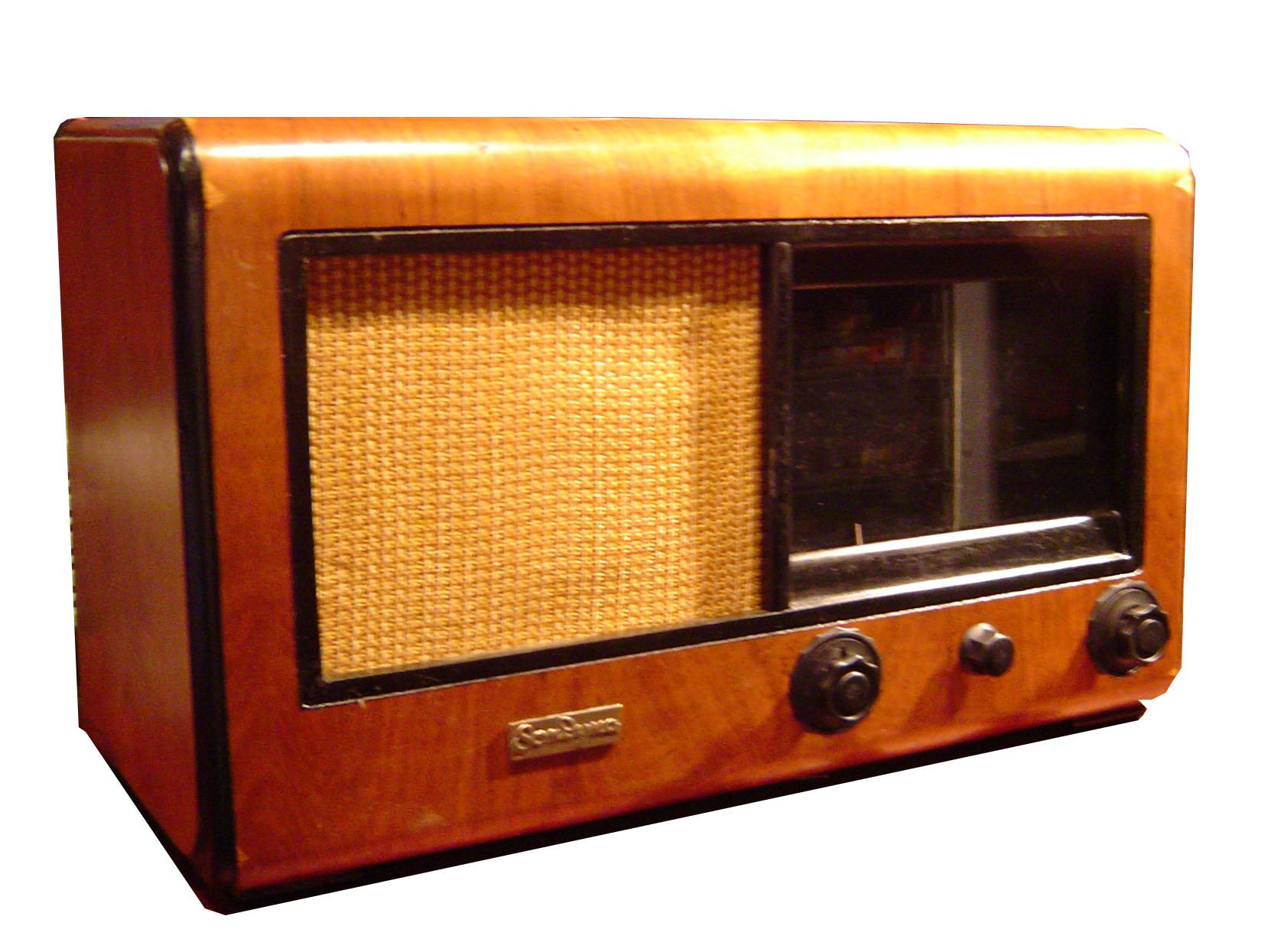

DESCRIPTIONLeft rectangle shaped cloth grille, 2 right front slide rule dial, 3 knobs, power supply separeted from radio chassis.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 51
TONENo
CIRCUITSuperheterodyne
IF470 KC
POWER SUPPLYAC
VOLTS110-220 V
CONSUMPTION?
AC CYCLES50-60 Hz
CHASSISSerial No. 18411
TUBES LOCATION
TUBE COMPLEMENT | AZ1 | EBL21 | ECH21 |

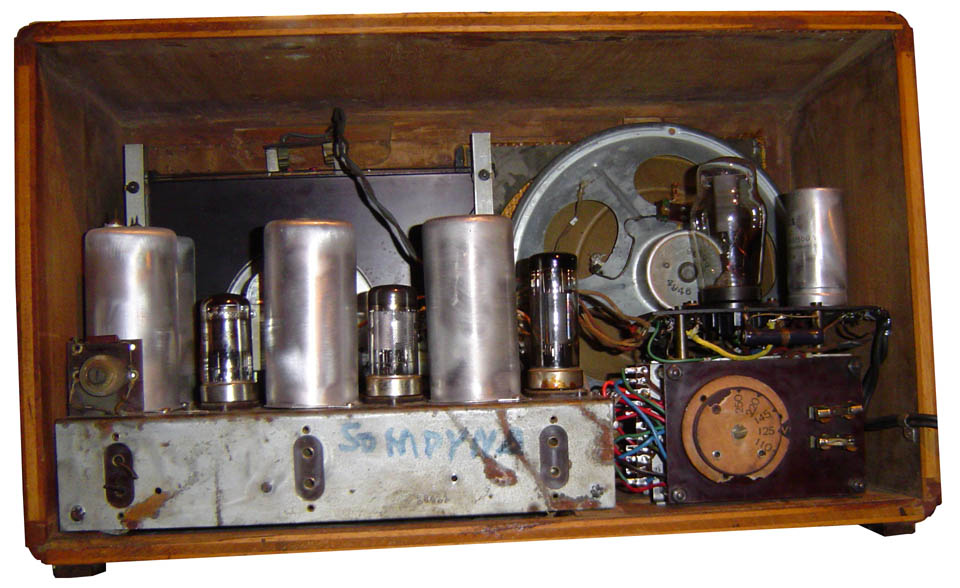

PICTURES(Click to enlarge image)

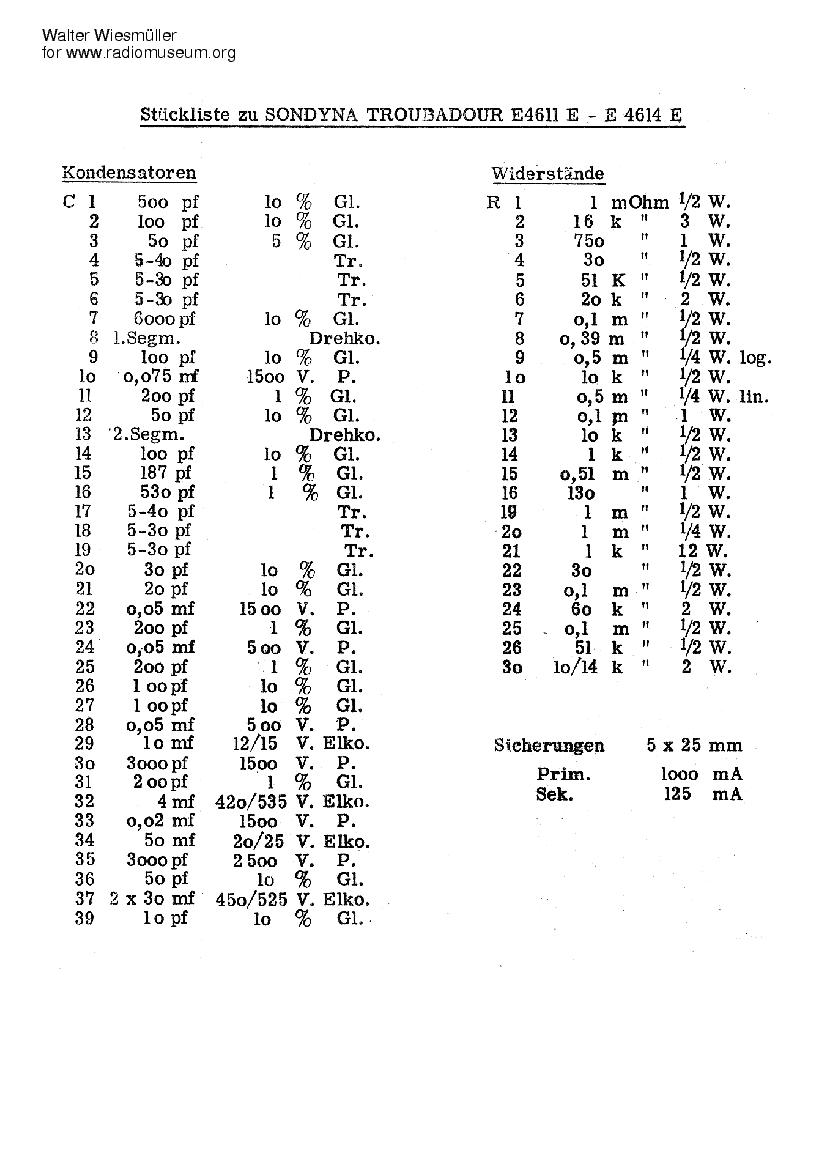

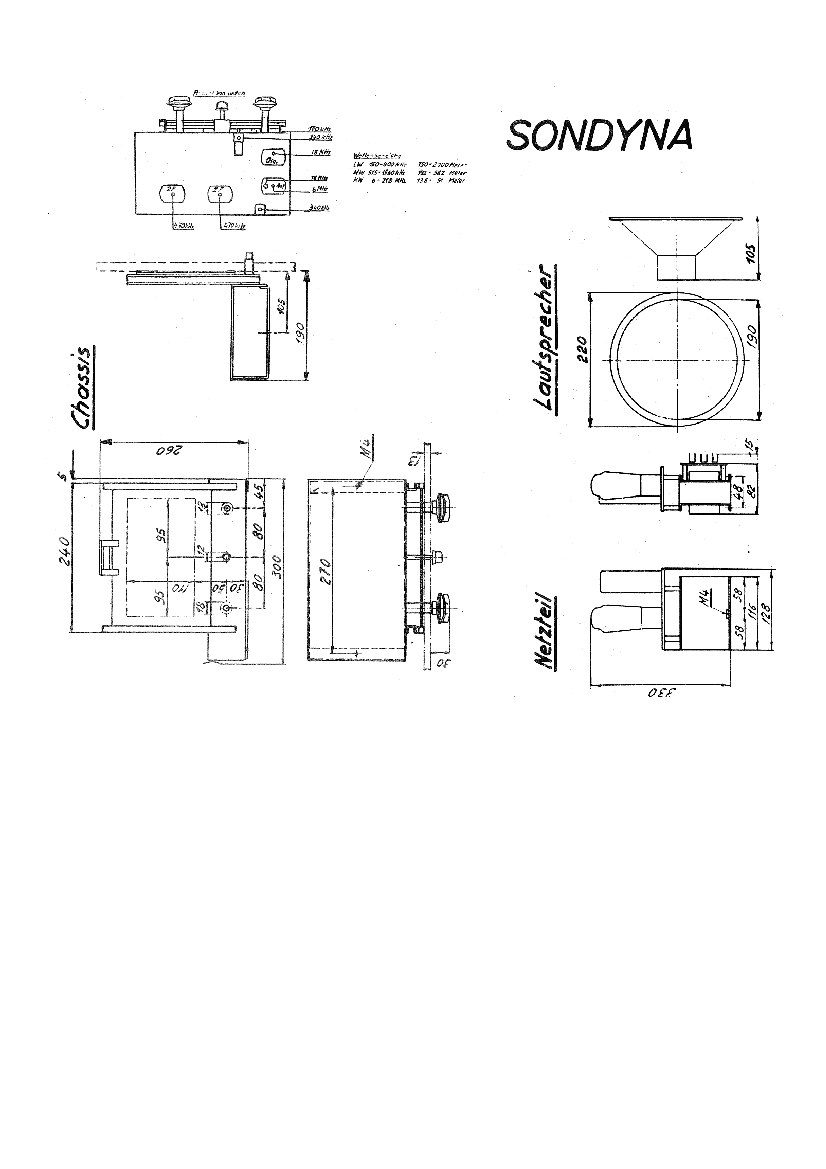

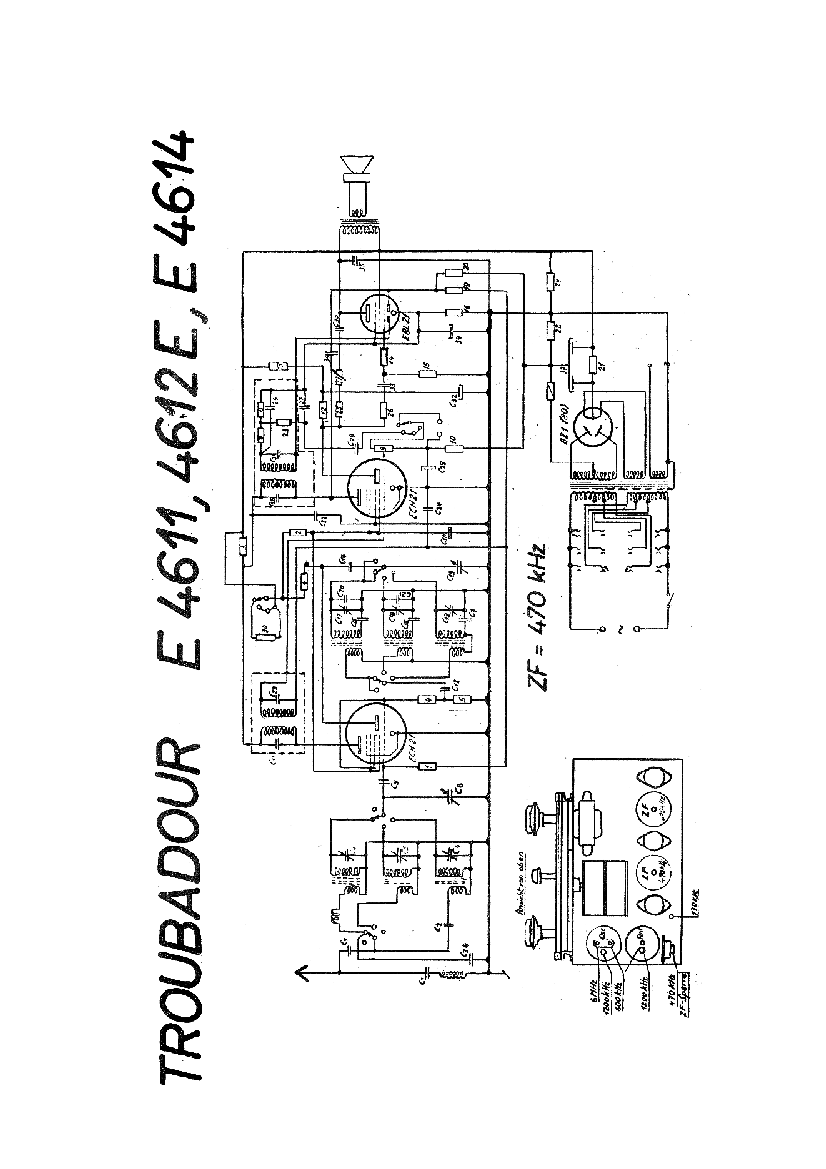

SCHEMATICS | Page1 | Page2 | Page3 |
FROMGeraldo Tonon, Bauru, SP.
ADDITIONAL INFORecaped, output xfrm rewired and bad IF coil replaced. Cabinet restored with French Polish.
