RADIOCrosley
MODEL855
TECHNOLOGYTube
YEAR1938
MADE INUNITED STATES
WAVE BANDSBC/SW1/SW2
COVERAGEBC 540 - 1625 KHz; SW1 1.625 - 4.700 MHz; SW2 5.250 - 15.300 MHz

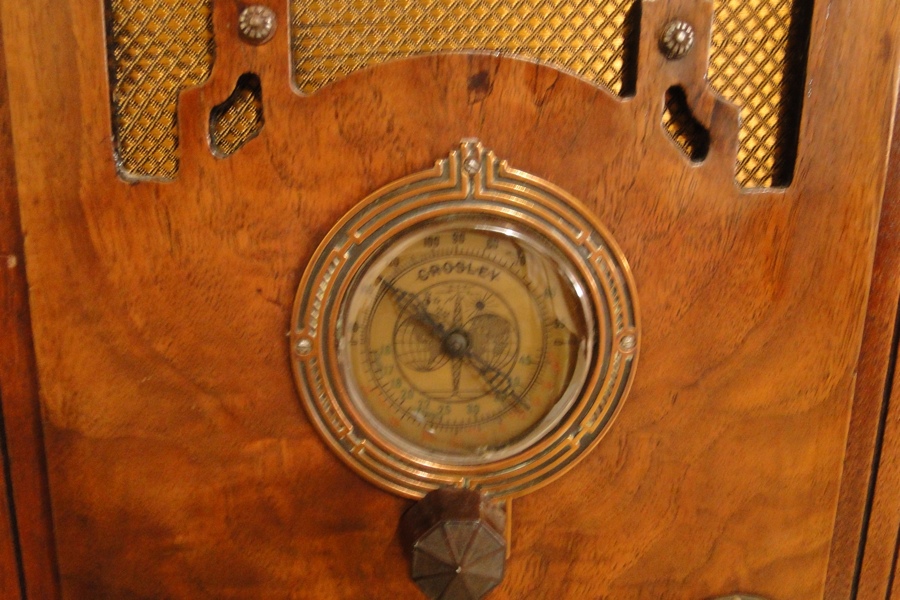

DESCRIPTIONShouldered cabinet, lower front round dial, upper cloth grill with 2 vertucal ornamental bars, 4 knobs.
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONEVariable
CIRCUITSuperheterodyne
IF450 KC
POWER SUPPLYAC
VOLTS110 Volts
CONSUMPTION60 W
AC CYCLES60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 6K7 | 6A8 | 6K7 | 6H6 | 6H6 | 6C5 | 6F6 | 5Z4 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 |
FROMFrom 2013 RadioActivity Flea Market on June 22, 2013.
