RADIOEmerson
MODELDR1-350
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1600 KHz; SW 5.8 - 18.3 MHz

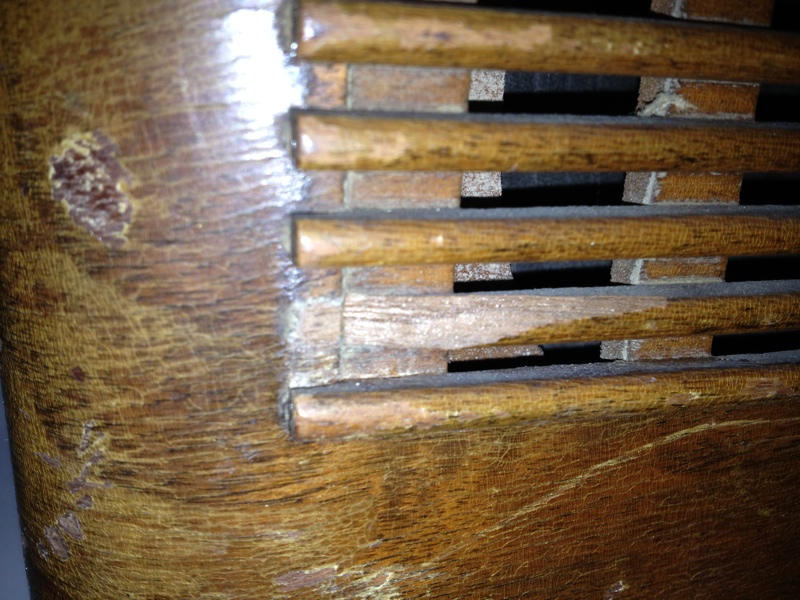

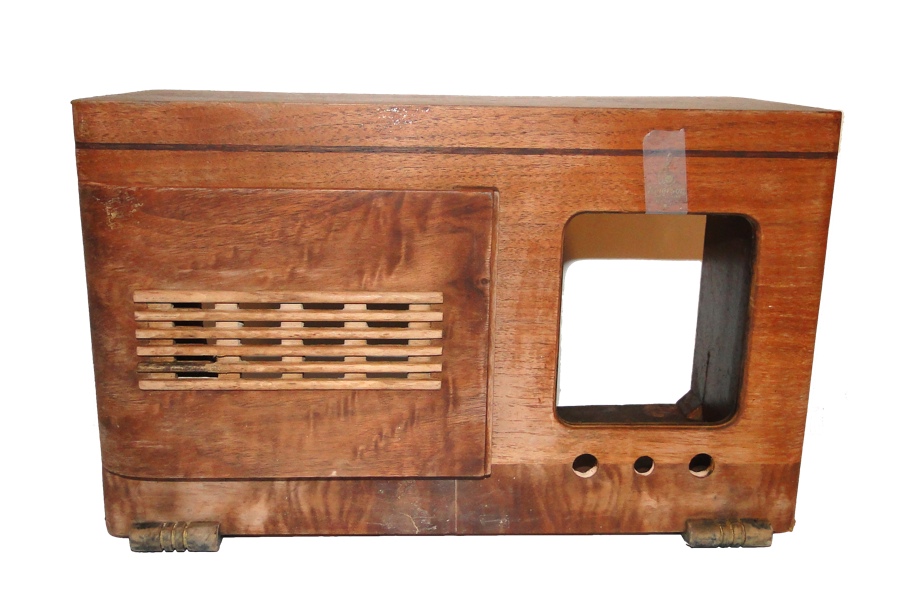

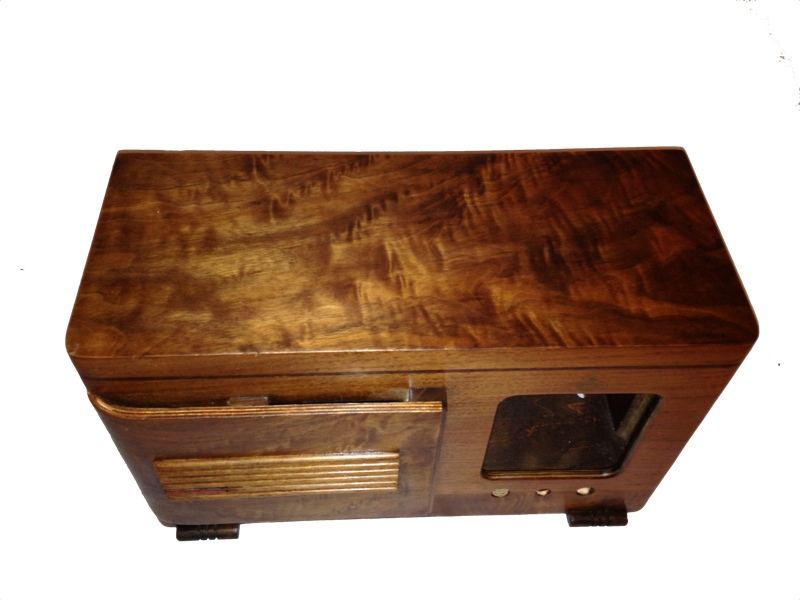

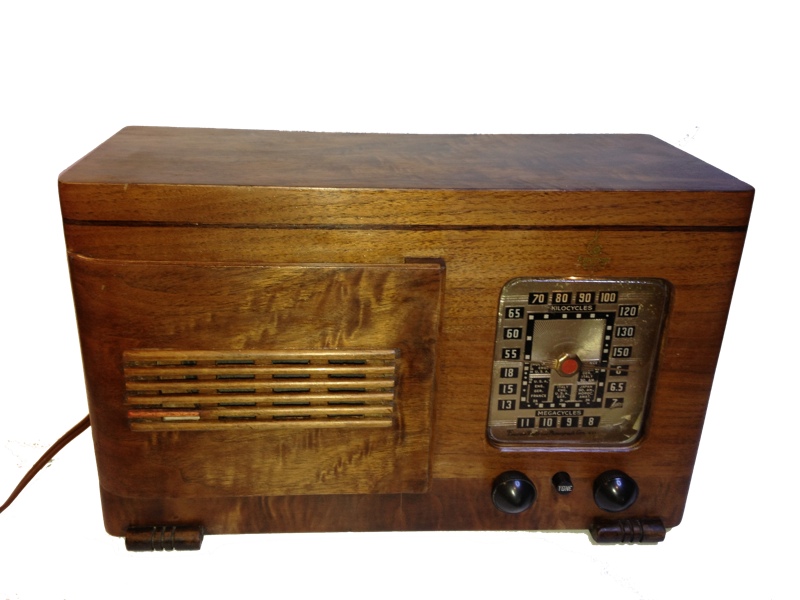

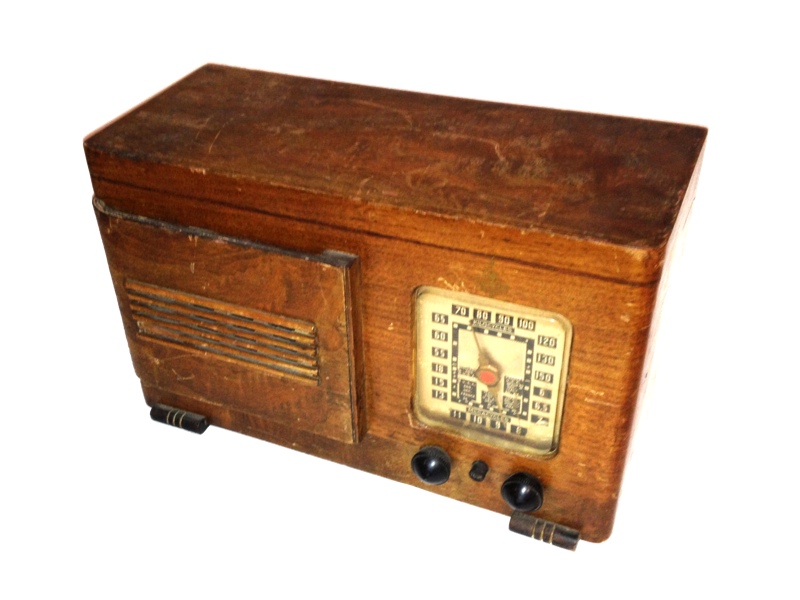

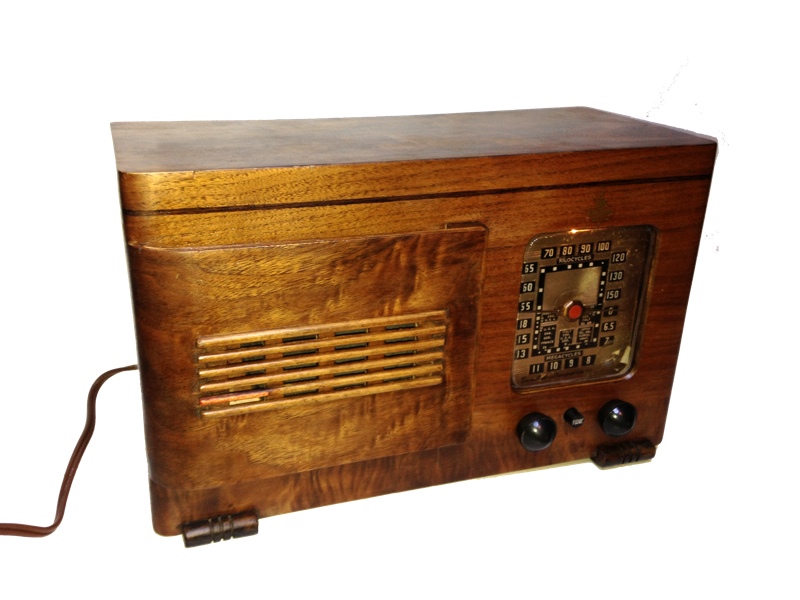

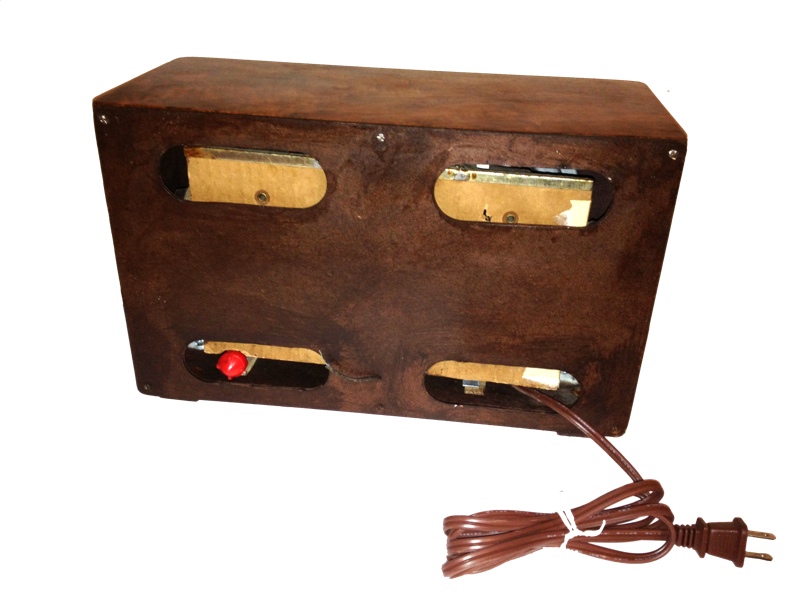

DESCRIPTIONTwo-tone wood cabinet, right front dial, left one raised section grill with horizontal bars, 2 right front knobs, 1 tone push button, 1 back wave switch knob.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONE2 Positions
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSISDR1

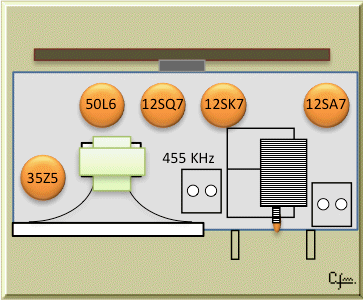

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

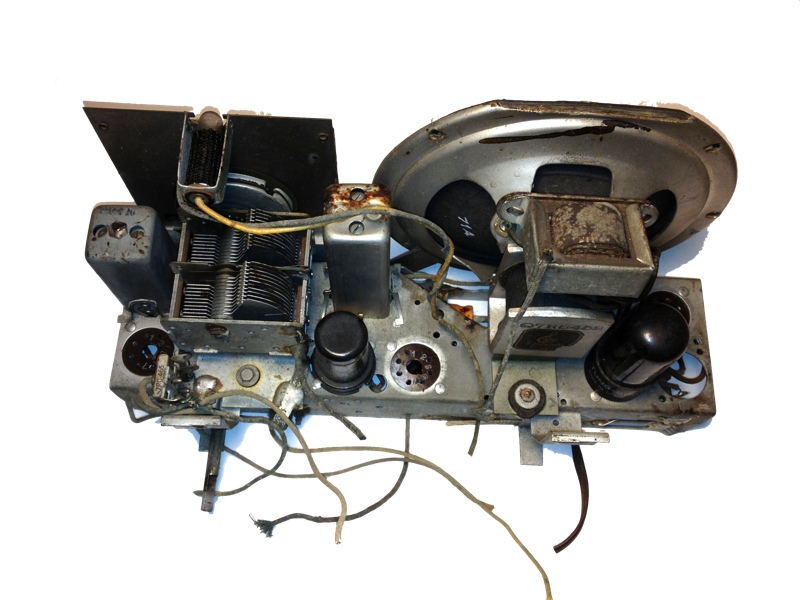

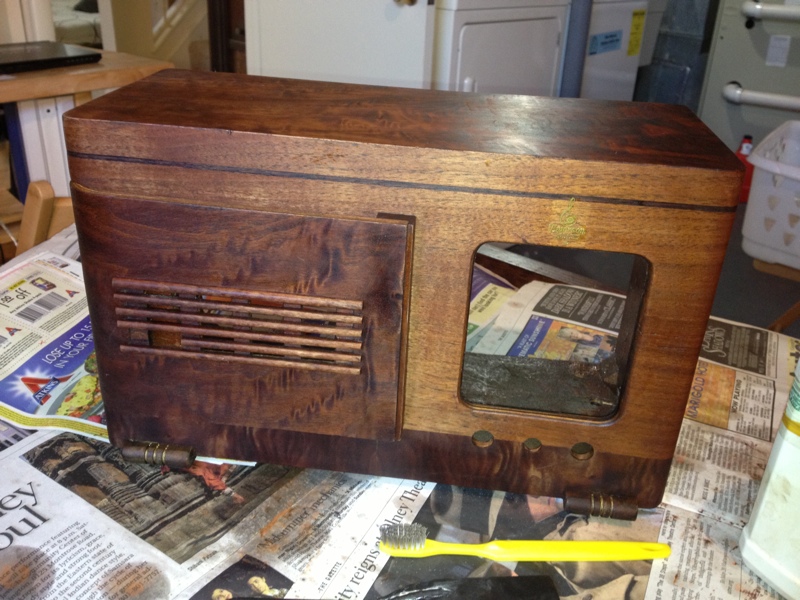

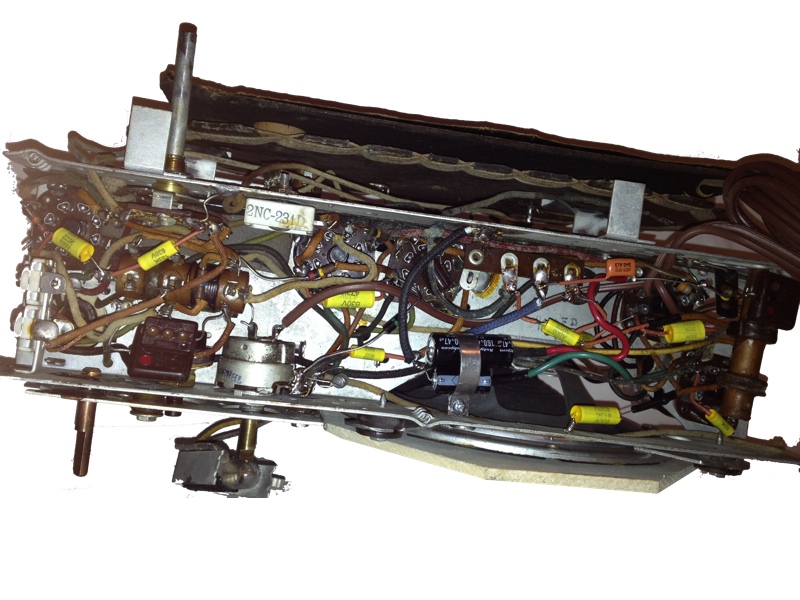

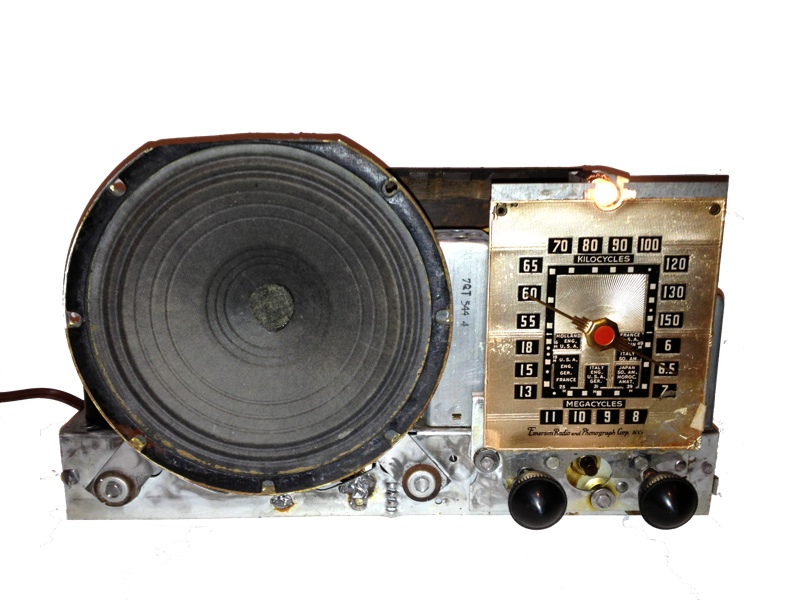

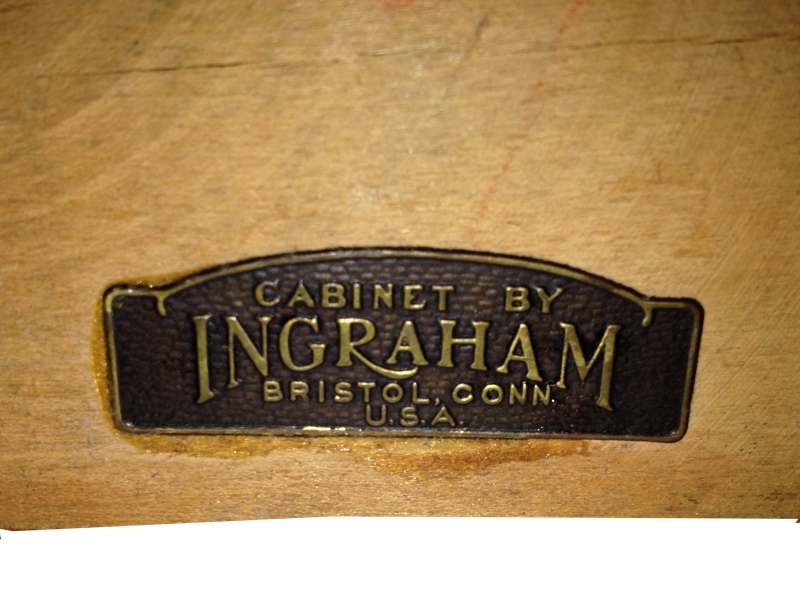

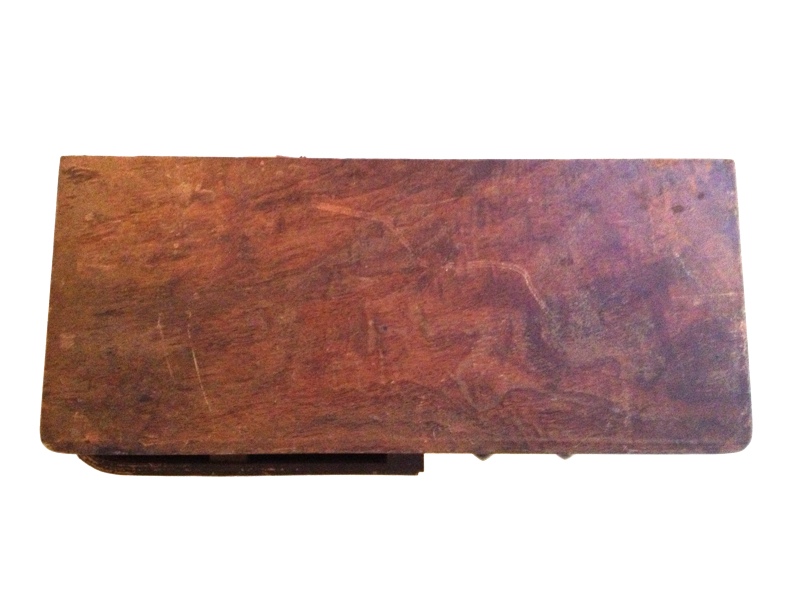

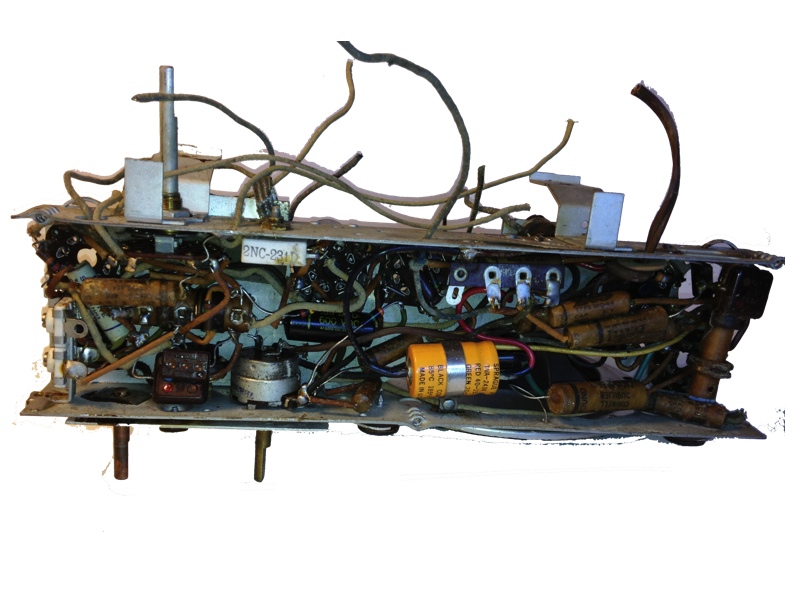

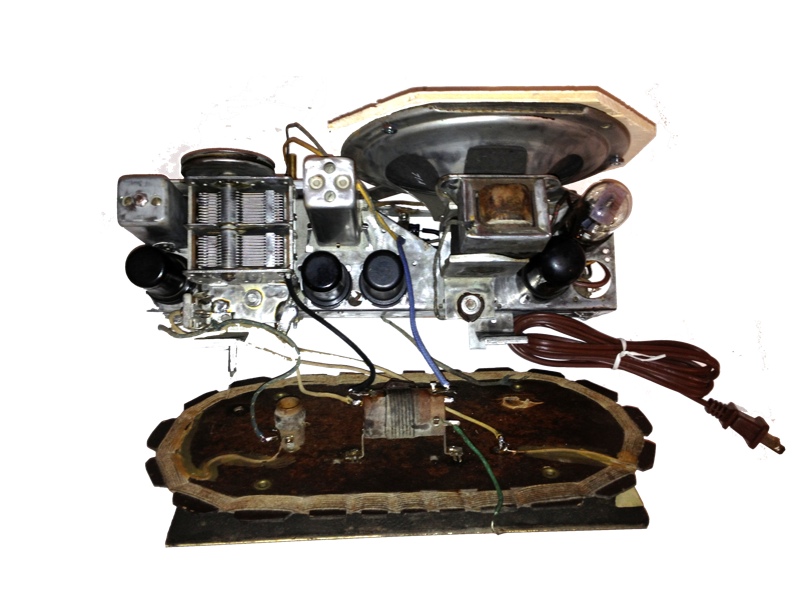

PICTURES(Click to enlarge image)

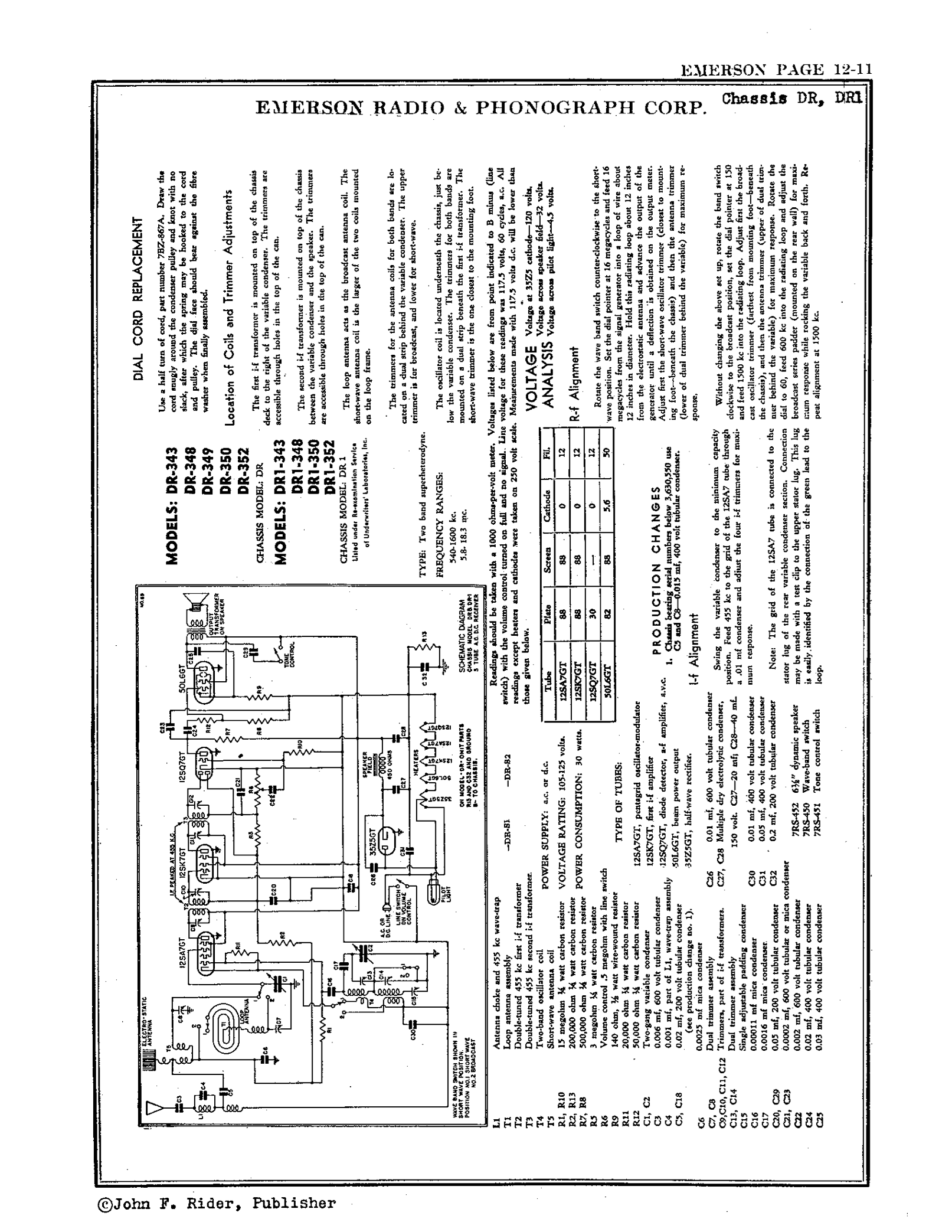

SCHEMATICS | Page1 |
FROMFrom ebay seller retro-radio1, on Jan 05, 2013
