RADIOAirline
MODEL84BR1517A
TECHNOLOGYTube
YEAR1948
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 530 - 1650 KHz

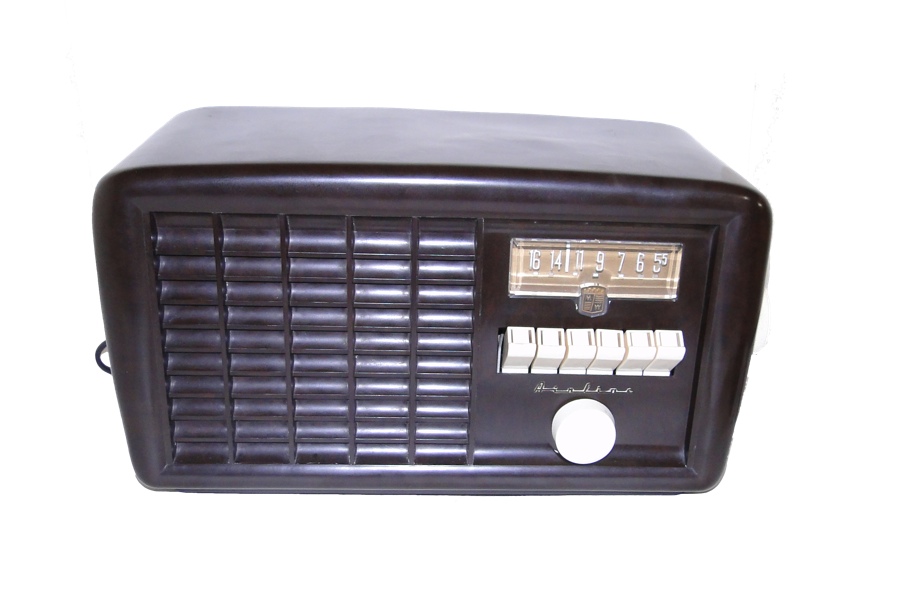

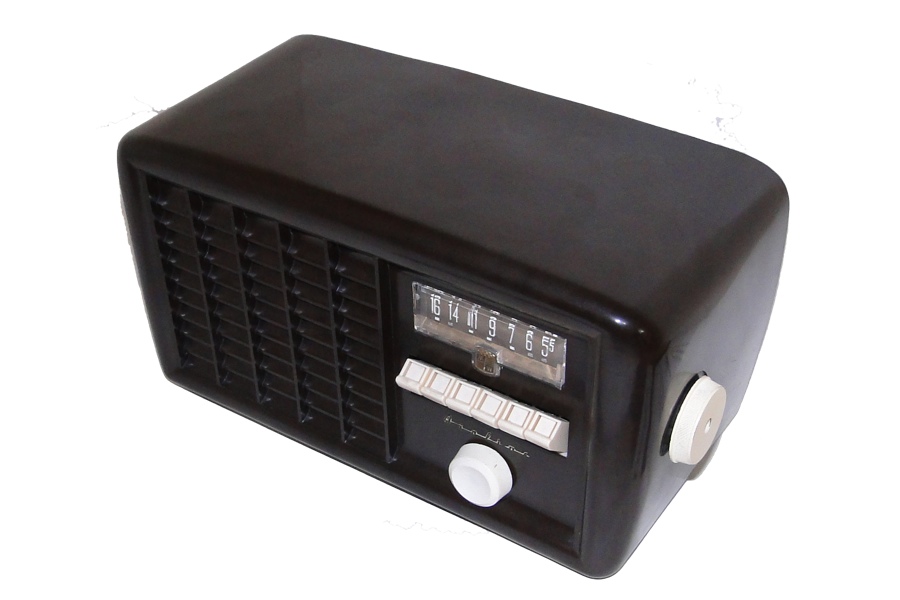

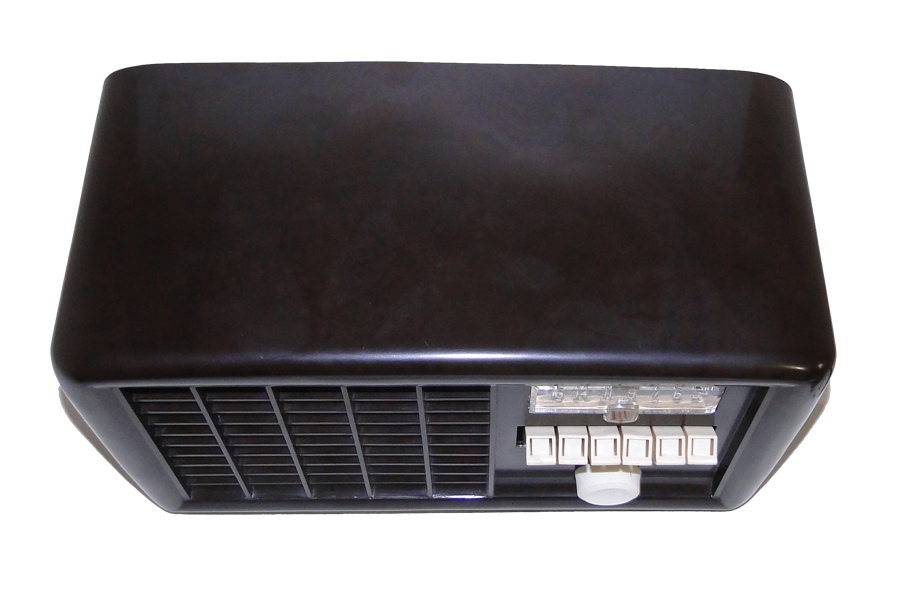

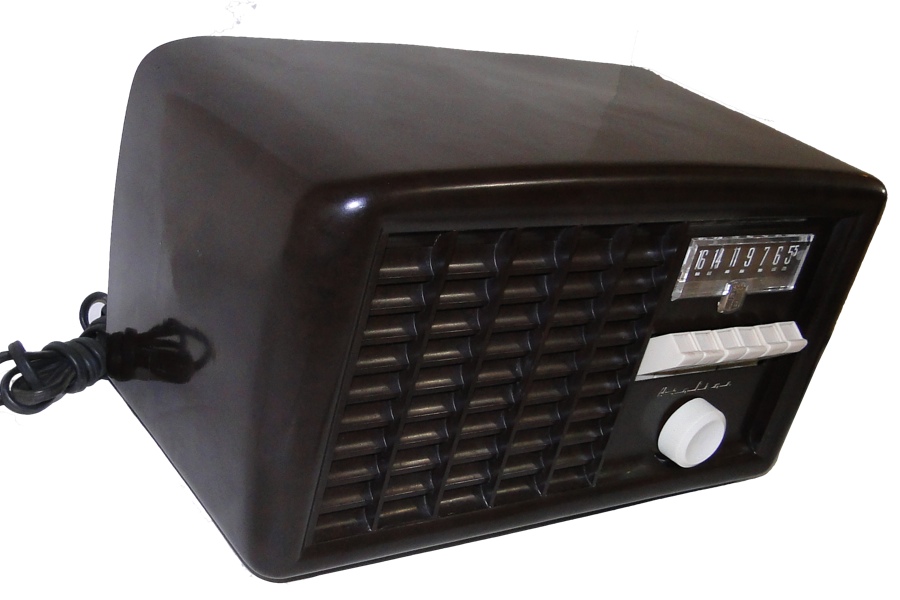

DESCRIPTIONWalnut plastic, upper right front slide rule dial, left lattice grill area, 6 pushbuttons, 2 knobs - 1 on side for tuning and 1 on lower right front as on-off/volume.
CABINET STYLETable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE1 x 46
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION35 W
AC CYCLES50-60 Hz
CHASSIS

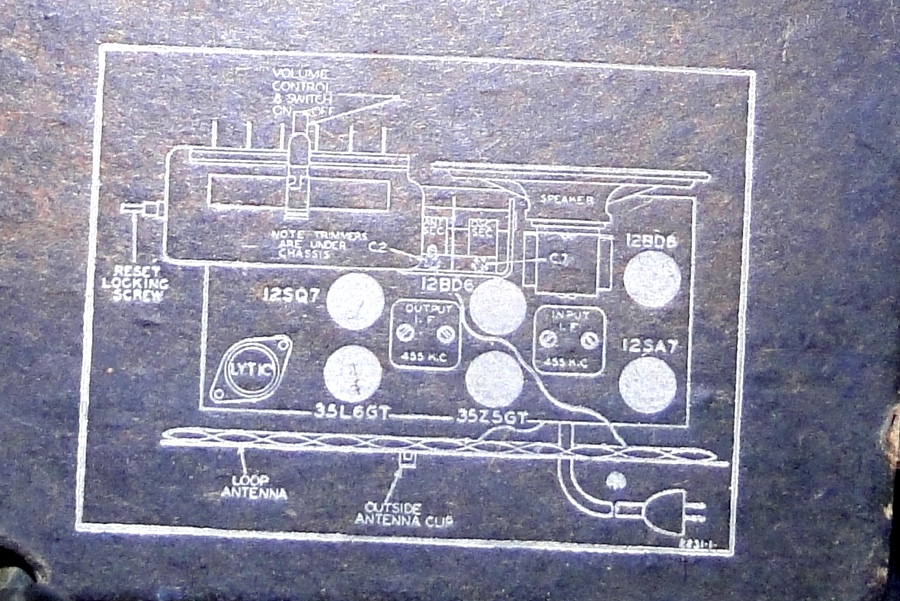

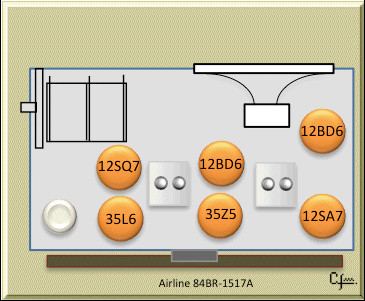

TUBES LOCATION
TUBE COMPLEMENT | 12BD6 | 12SA7 | 12BD6 | 12SQ7 | 35L6 | 35Z5 |
PICTURES(Click to enlarge image)

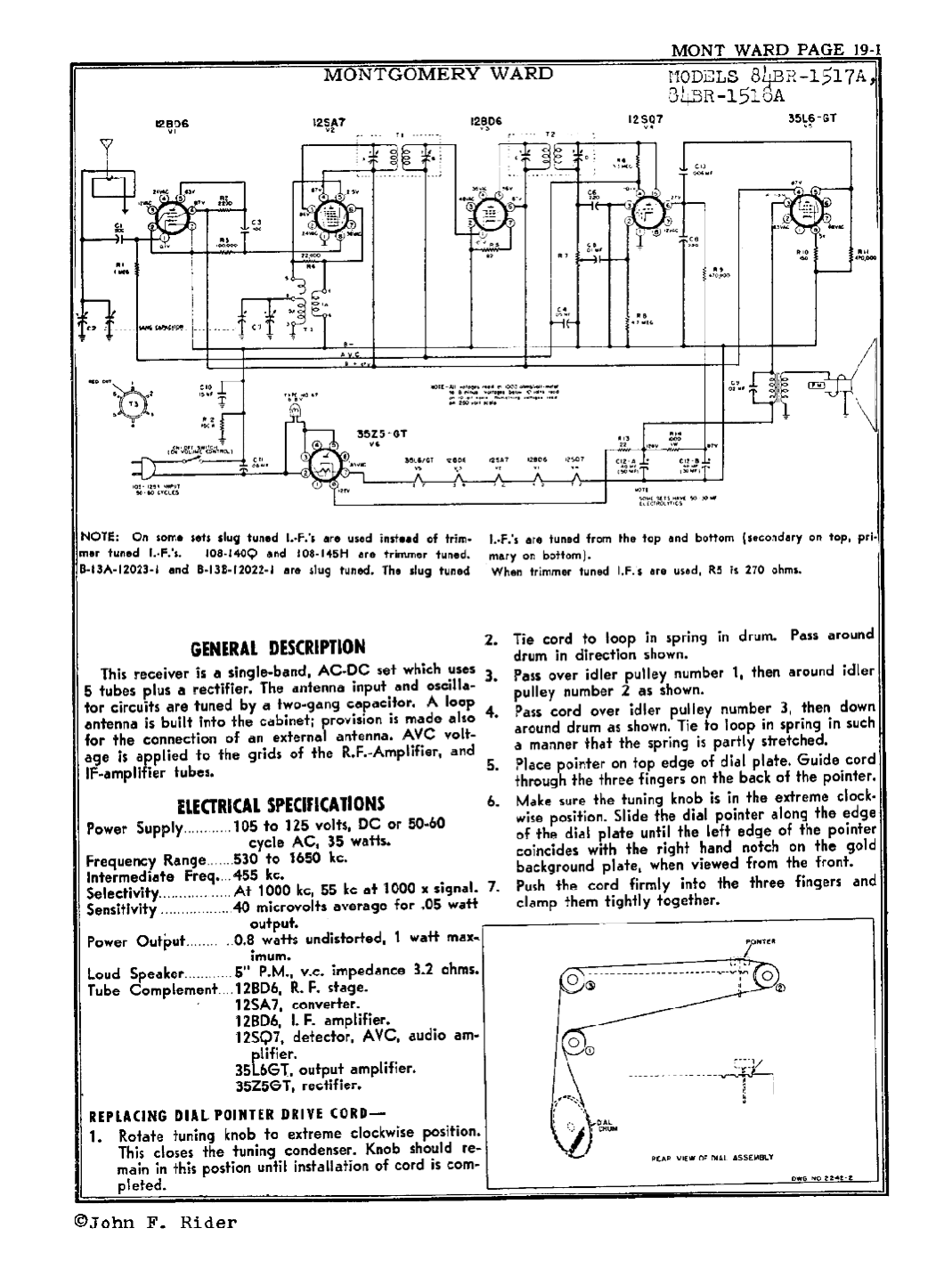

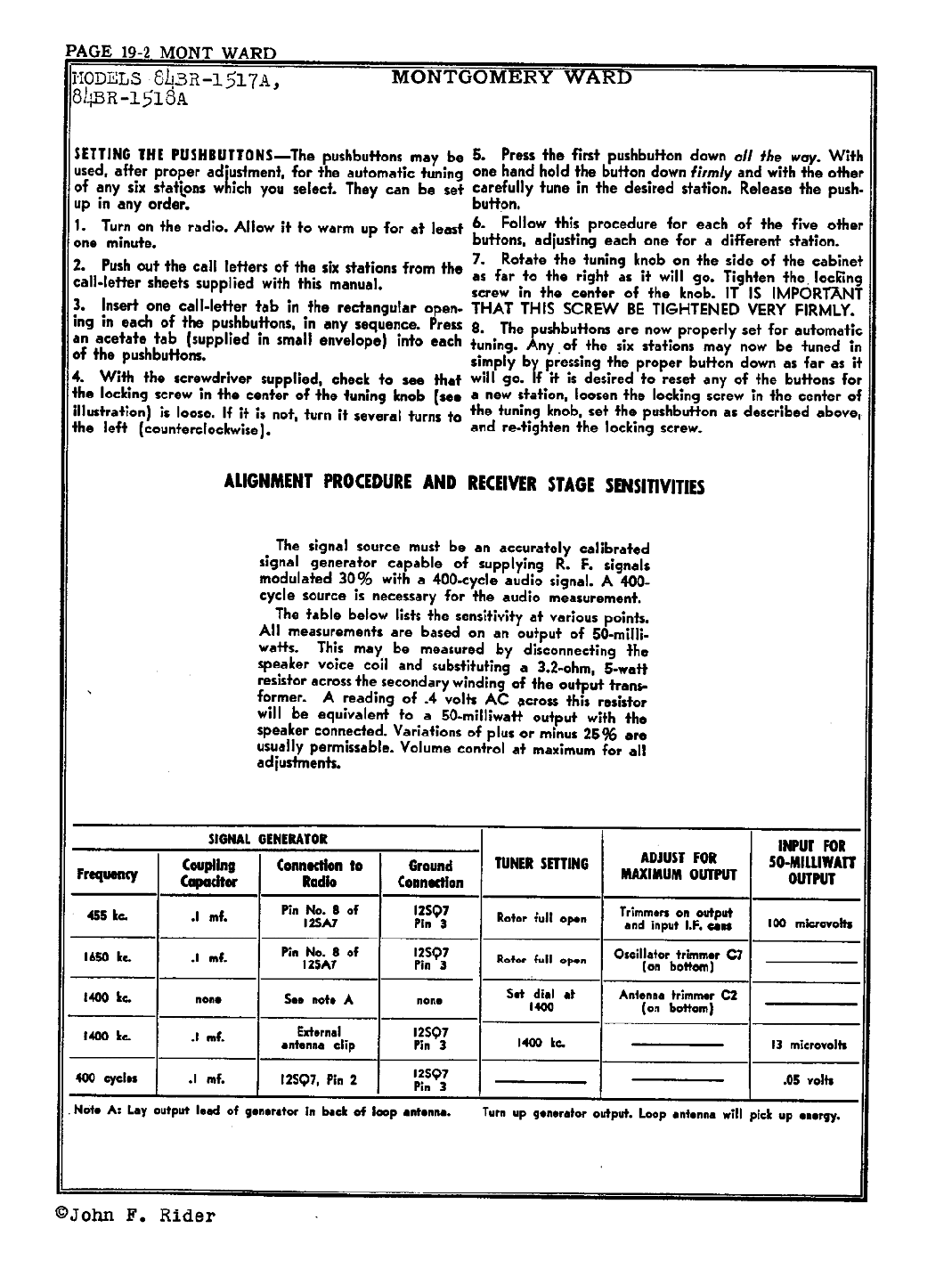

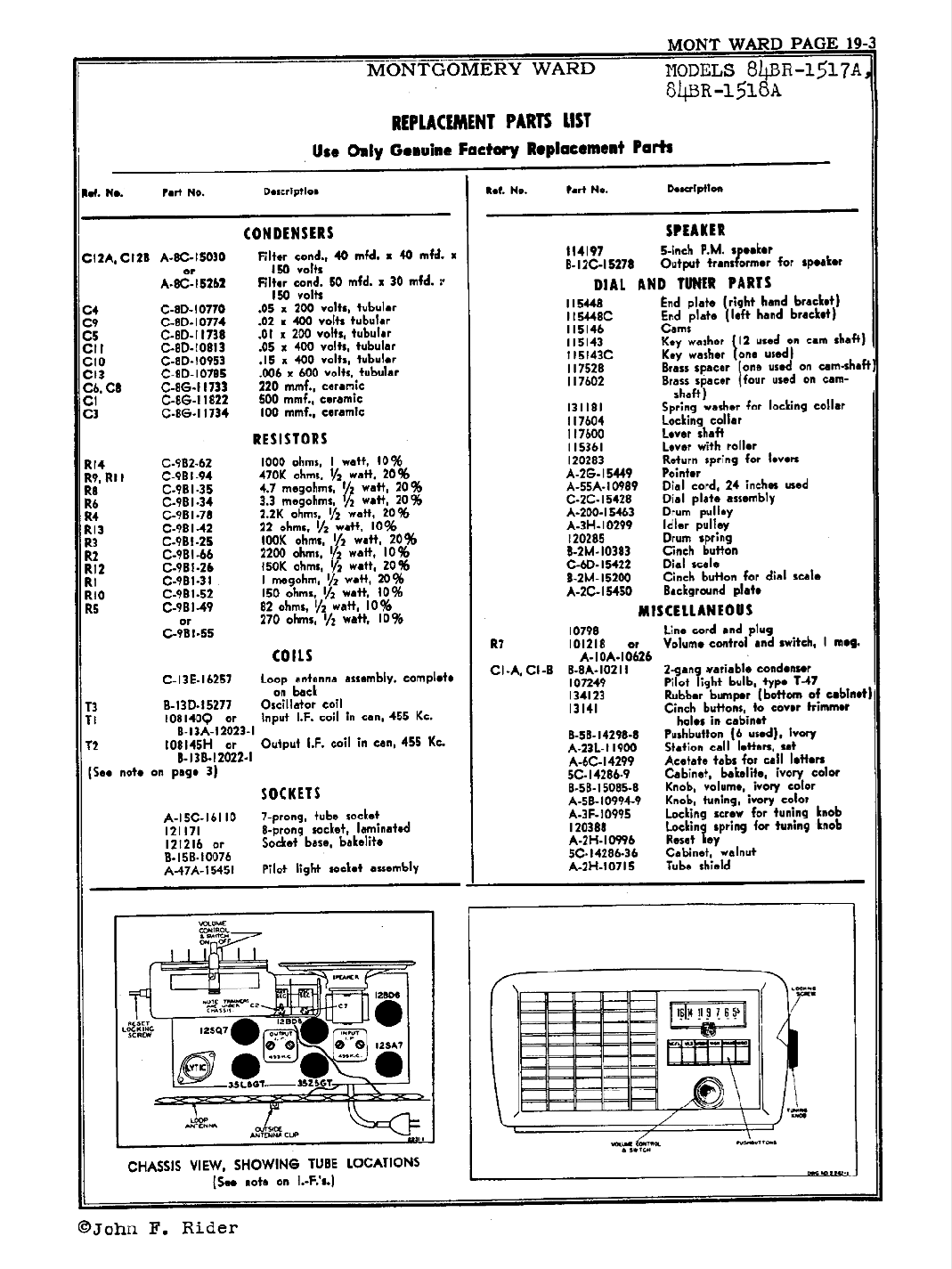

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom MAARC 2013 RadioActivity, June 22nd.
