RADIOFreshman Charles
MODELMasterpiece 5F2
TECHNOLOGYTube
YEAR1924
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC

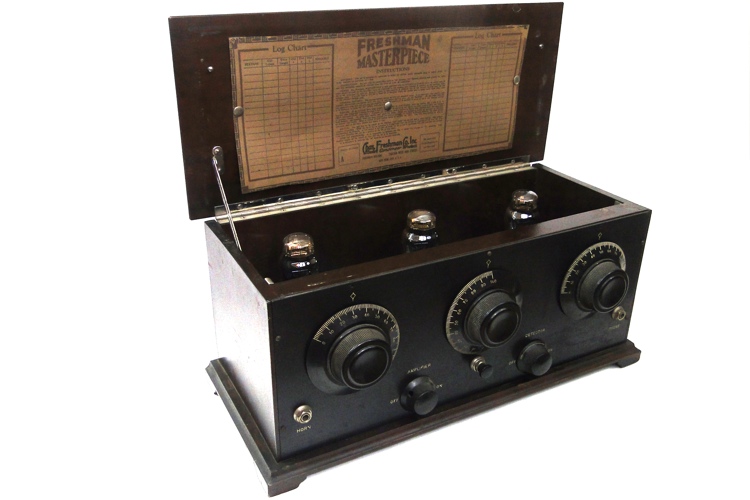

DESCRIPTIONRectangular case, 3 dial front panel, lift top, first style released in 1924
CABINET STYLETable Low Profile
CABINET MATERIALWood - Mahogany
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYDC
VOLTSA +5 V; B +45, +90, +135 V; C -9 V.
CONSUMPTION?
AC CYCLESNot applicable
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 01A | 01A | 01A | 01A | 12A |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom the RadioActivity 2012 Auction, annual event of the Mid Atlantic Antique Radio Club - MAARC June 21-23, 2012
