RADIOBOSCH
MODELA5
TECHNOLOGYTube
YEAR1931
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBroadcast 560 - 1600 KHz

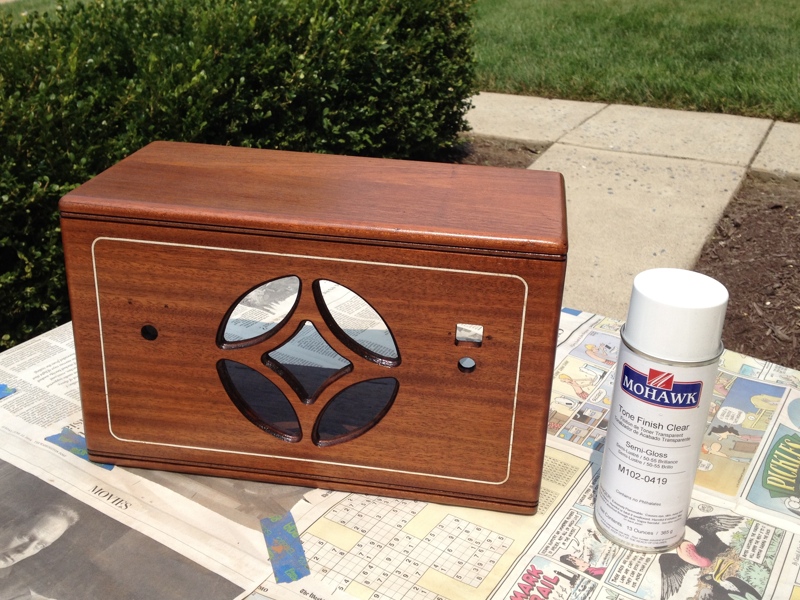

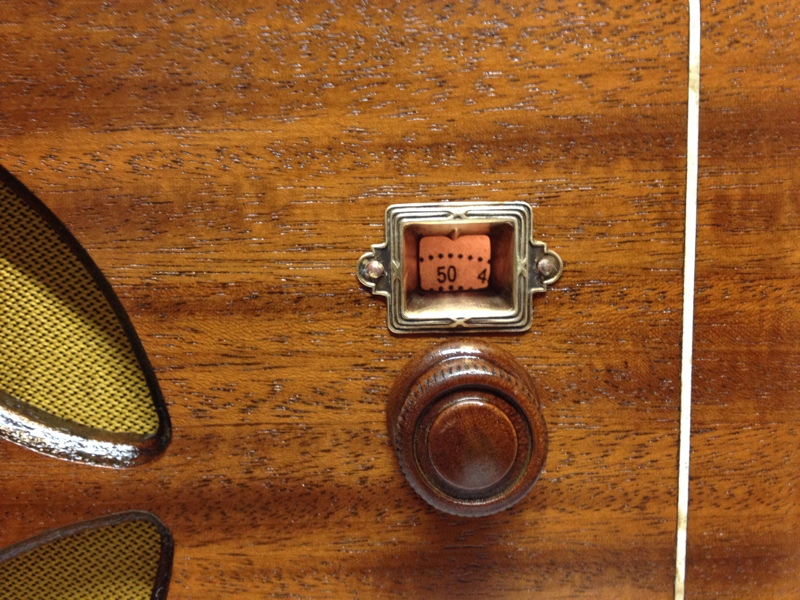

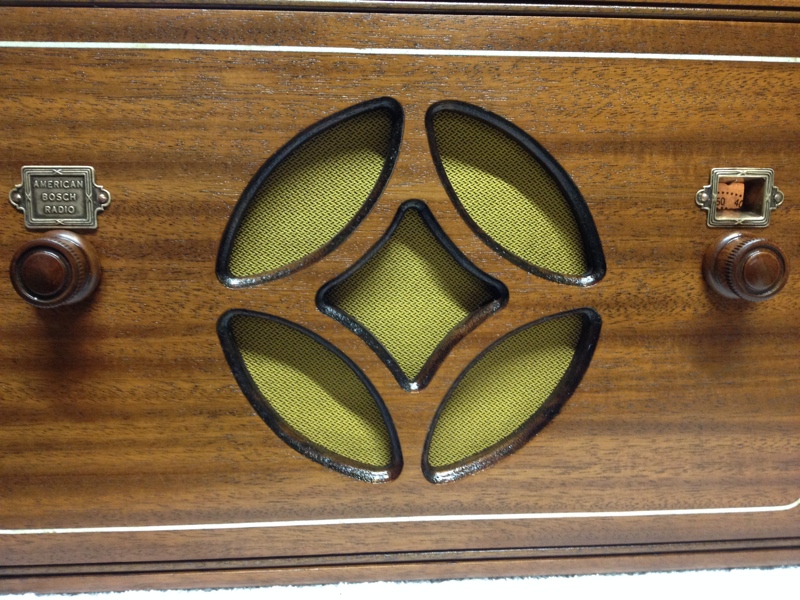

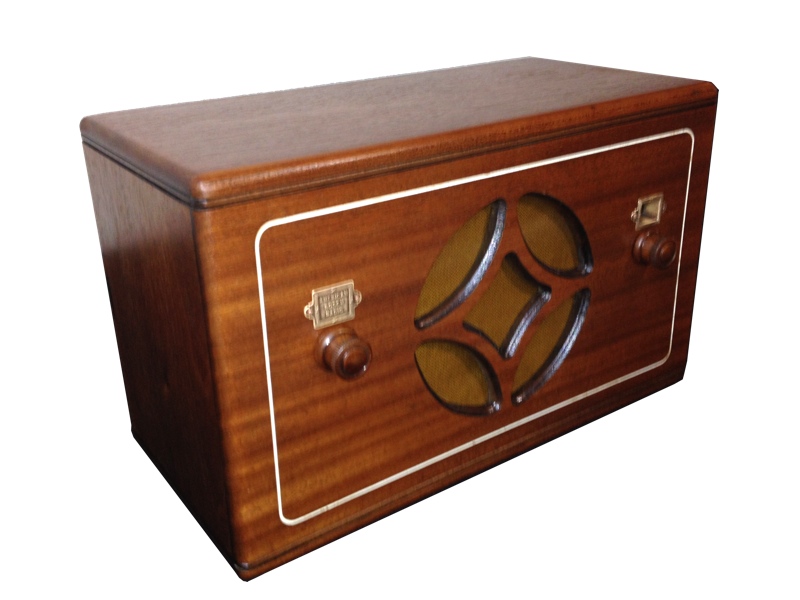

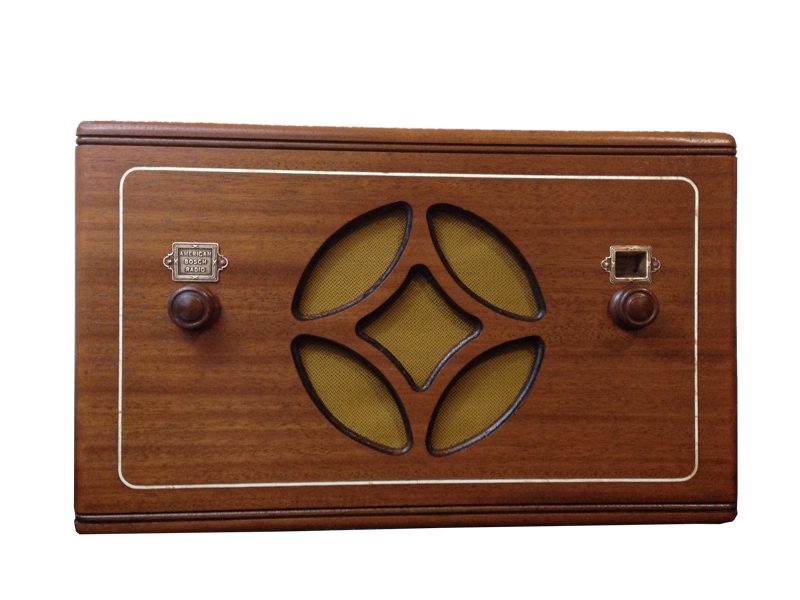

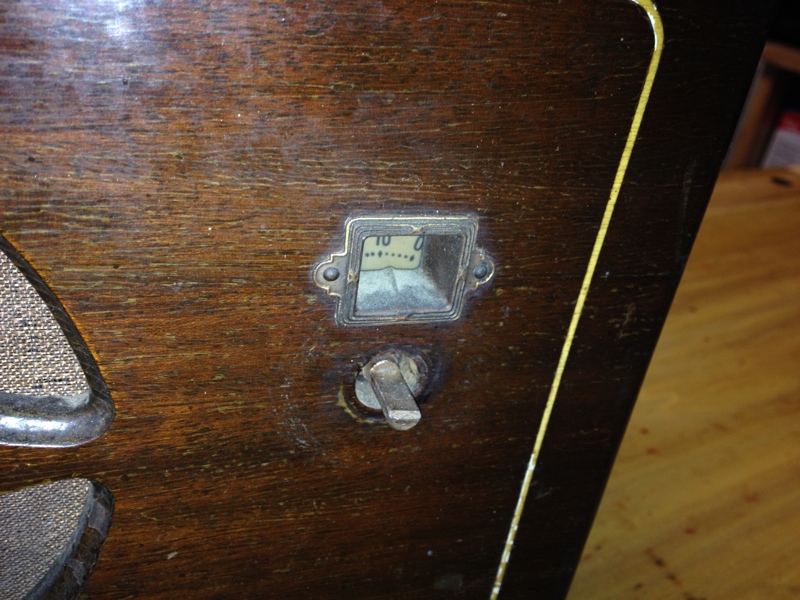

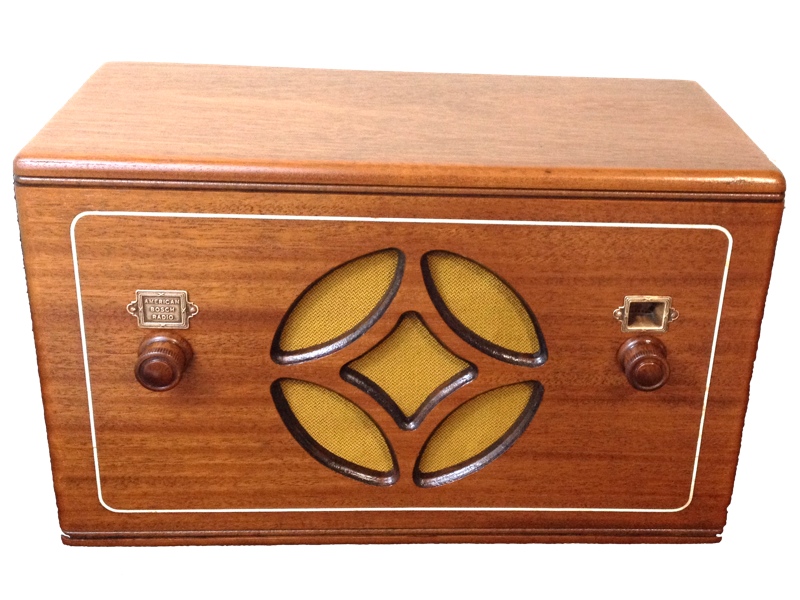

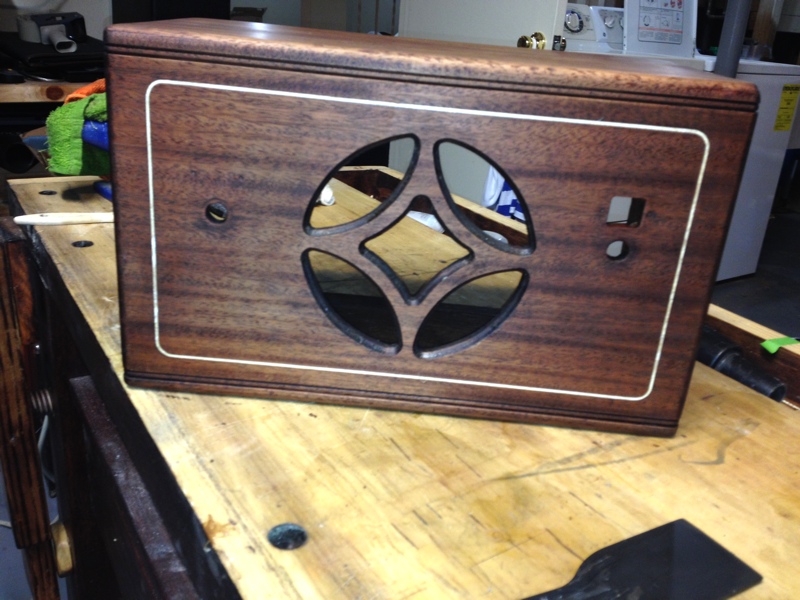

DESCRIPTIONThe set features a right side window dial, centered speaker grille with some awesome cut-outs, a beautiful gold pinstripe that frames the grille and two knobs.
CABINET STYLETable Low Profile

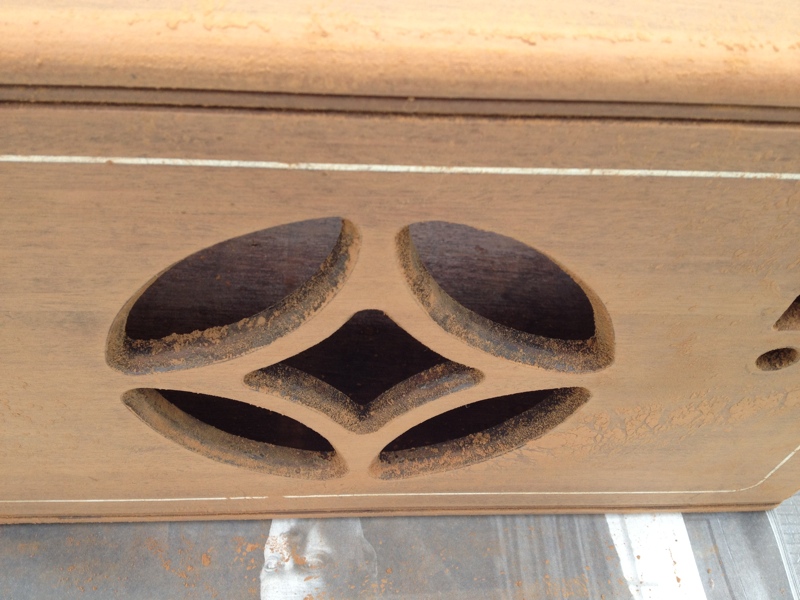

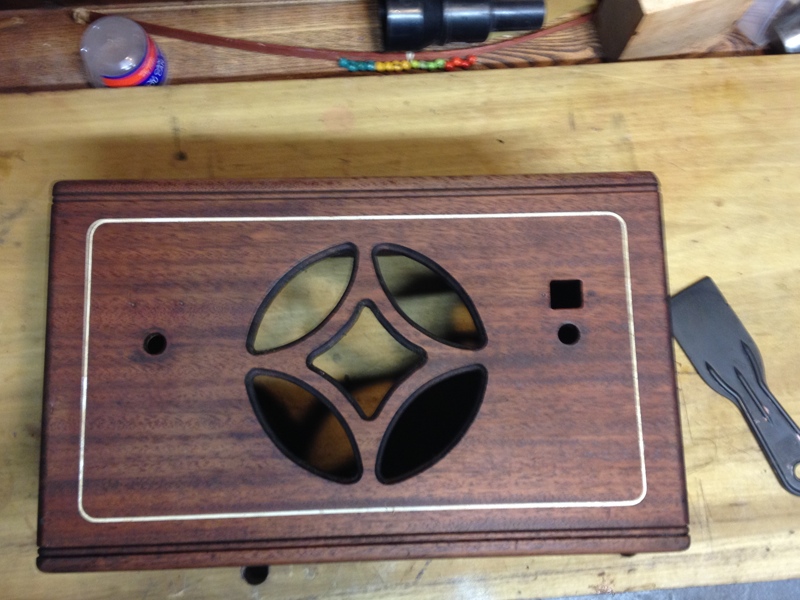

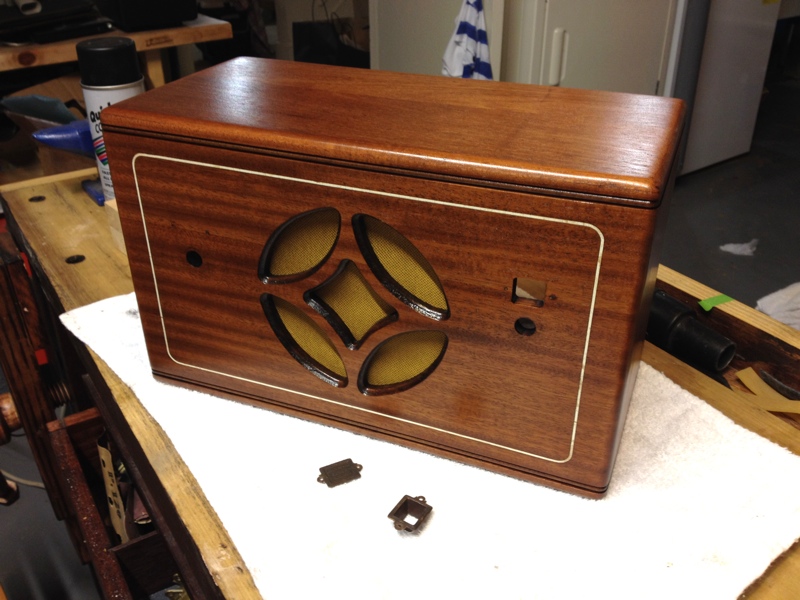

CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 41
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYAC
VOLTS110 Volts
CONSUMPTION?
AC CYCLES50-60 Hz

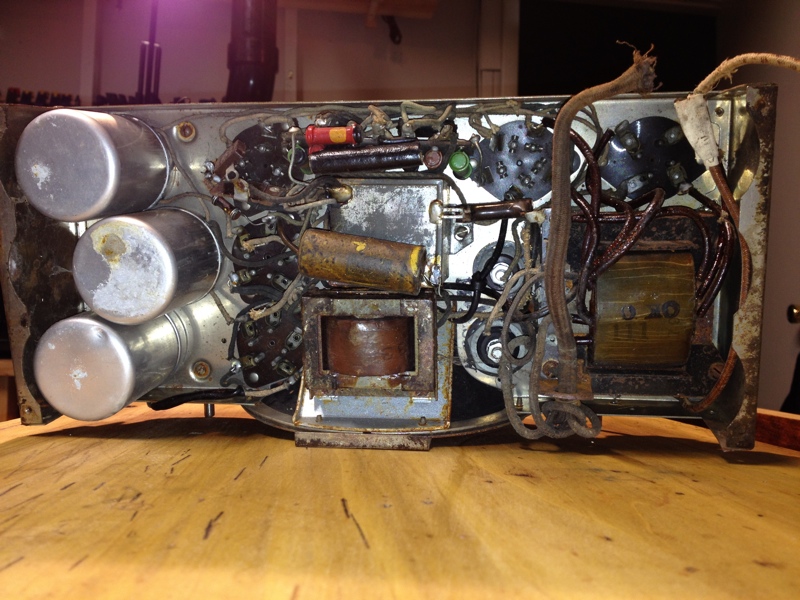

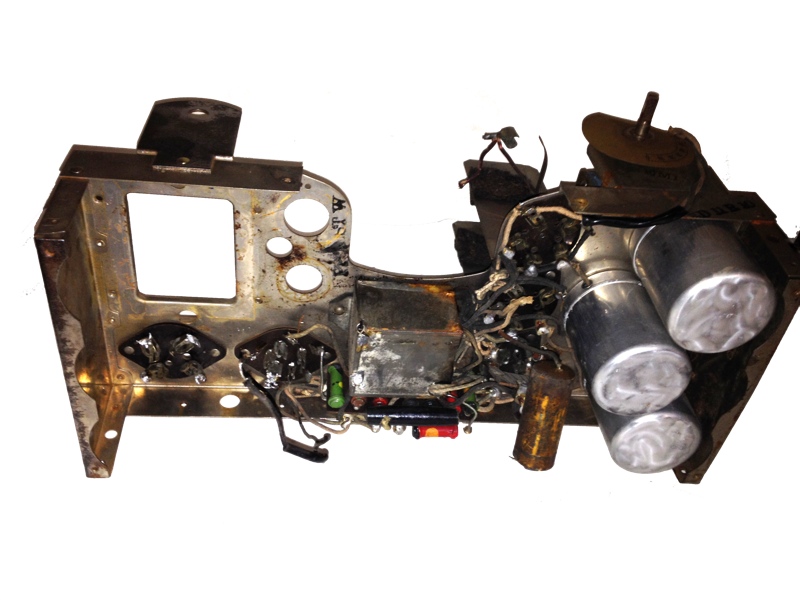

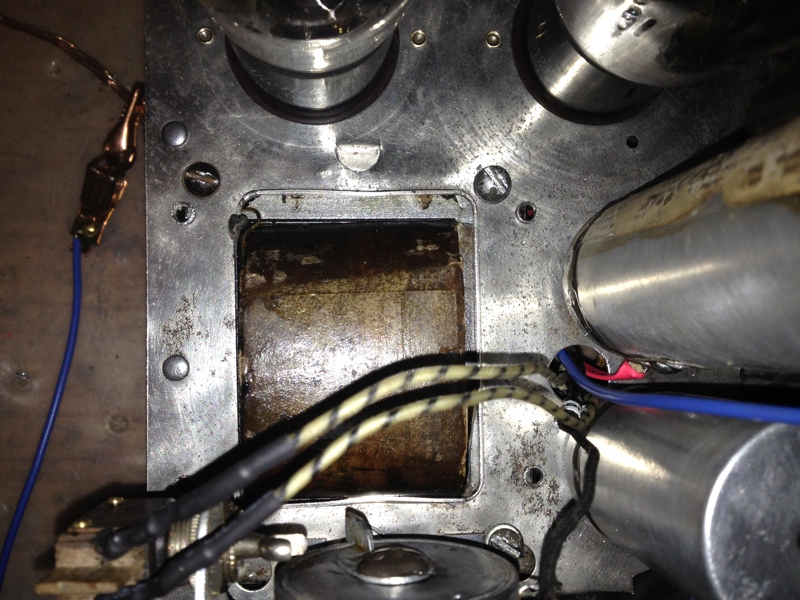

CHASSIS

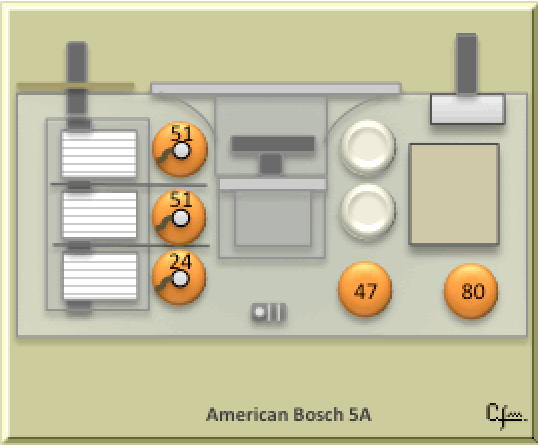

TUBES LOCATION
TUBE COMPLEMENT | 51 | 51 | 24 | 47 | 80 |

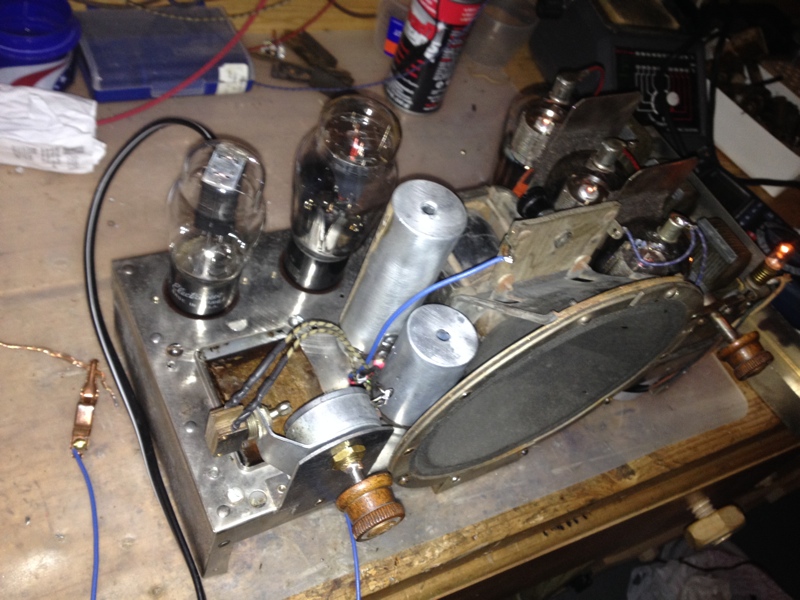

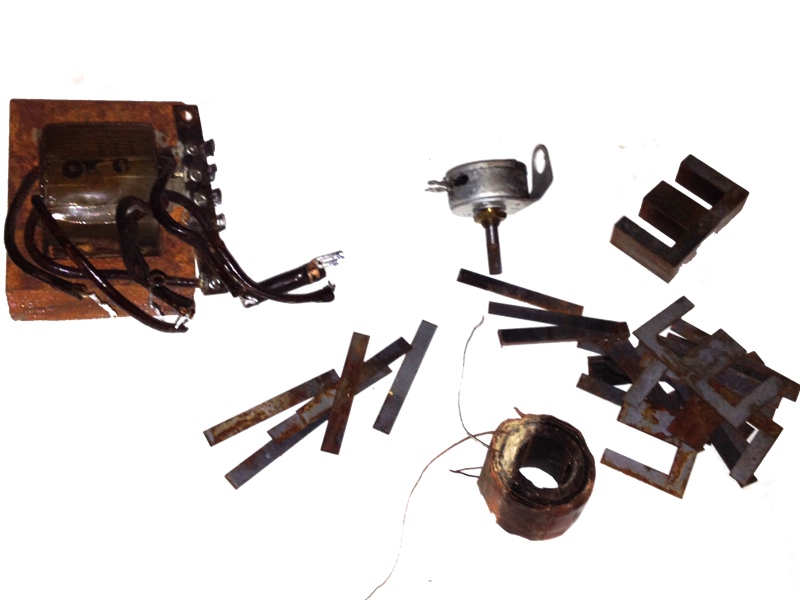

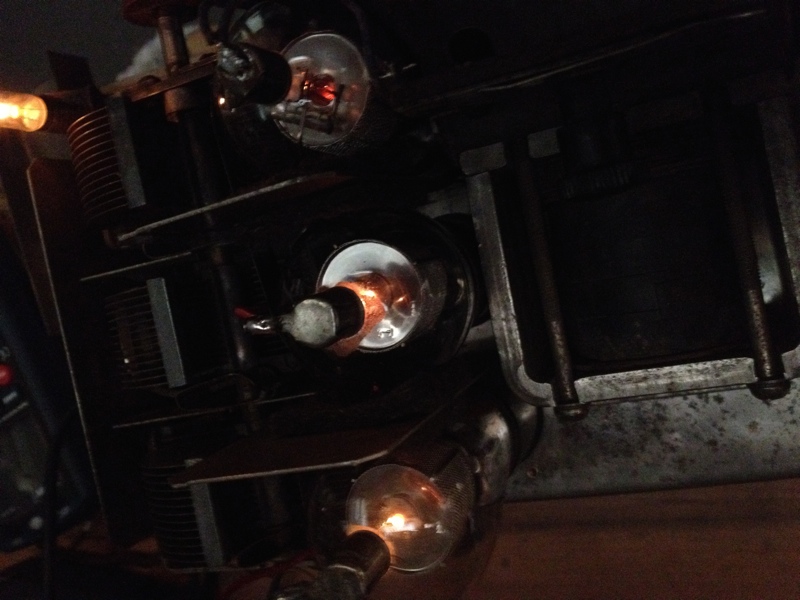

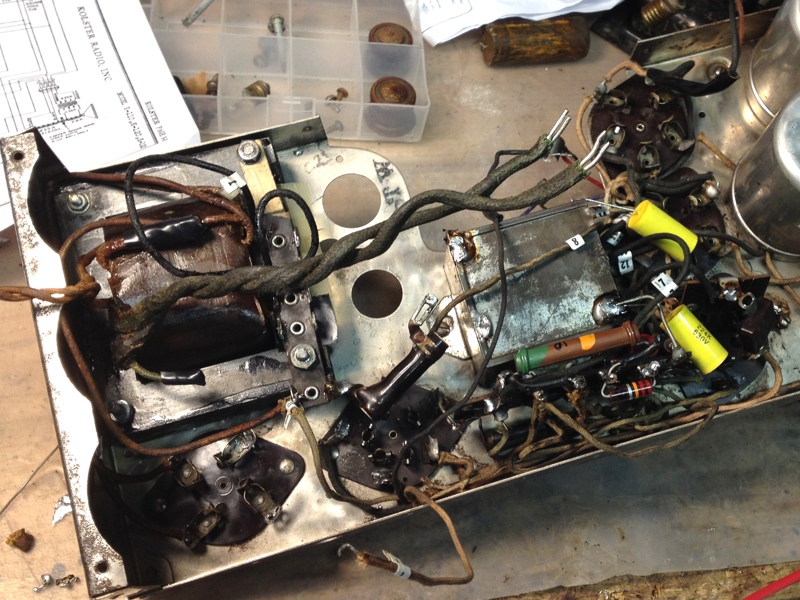

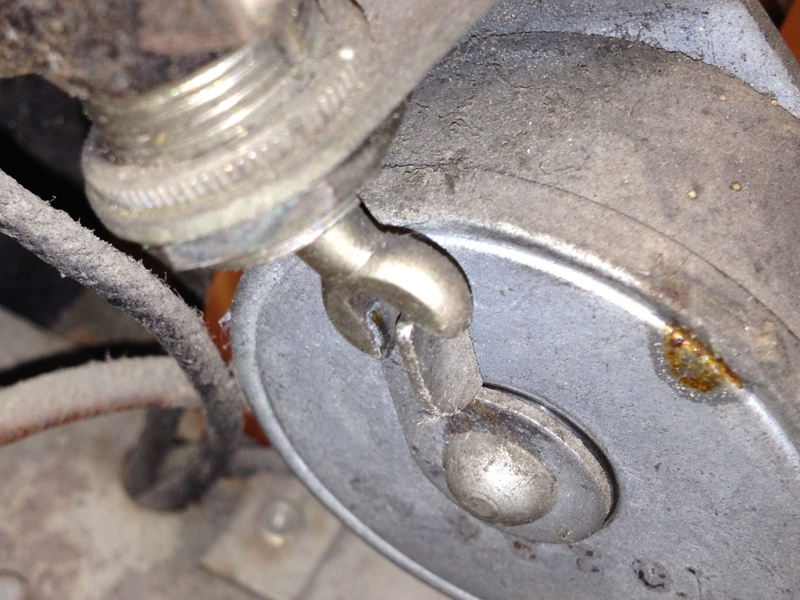

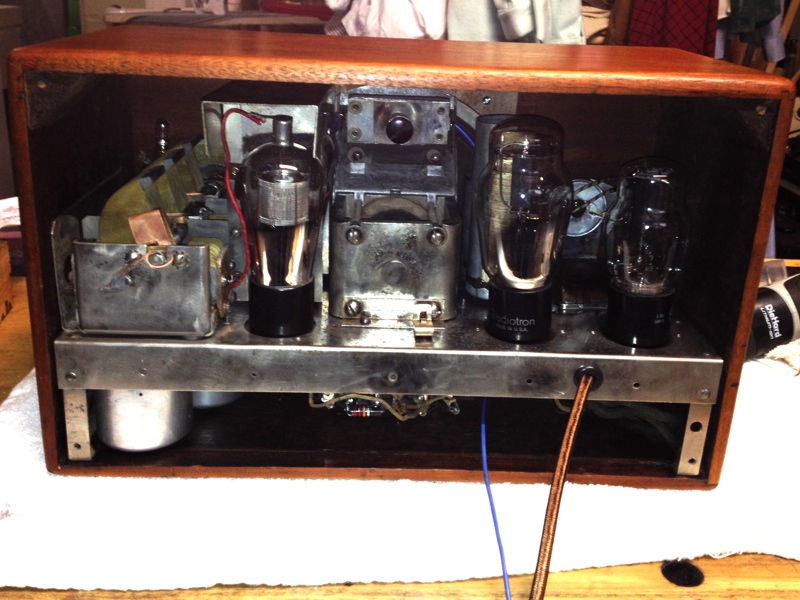

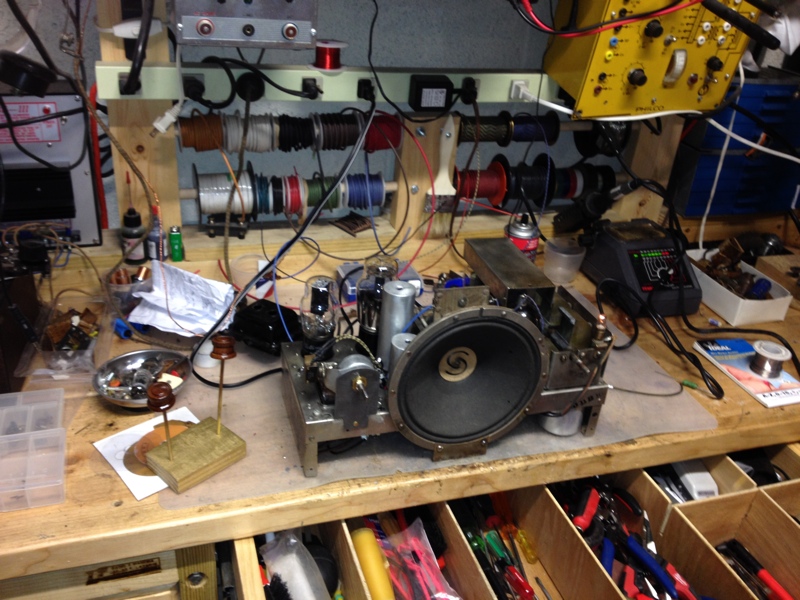

PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 |
FROM
