RADIORCA Victor
MODELBX511
TECHNOLOGYTube
YEAR1958
MADE INBRAZIL
WAVE BANDSBC
COVERAGE540 - 1700 Kc
DESCRIPTIONMidget case, right front upper round dial knob, right front lower on/off/volume knob, left horizontal grill bars.
CABINET STYLEMidget
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION30 W
AC CYCLES25-60 Hz
CHASSISSerial No. 22784
TUBES LOCATION
TUBE COMPLEMENT | 12AV6 | 12BA6 | 12BE6 | 35W4 | 50C5 |

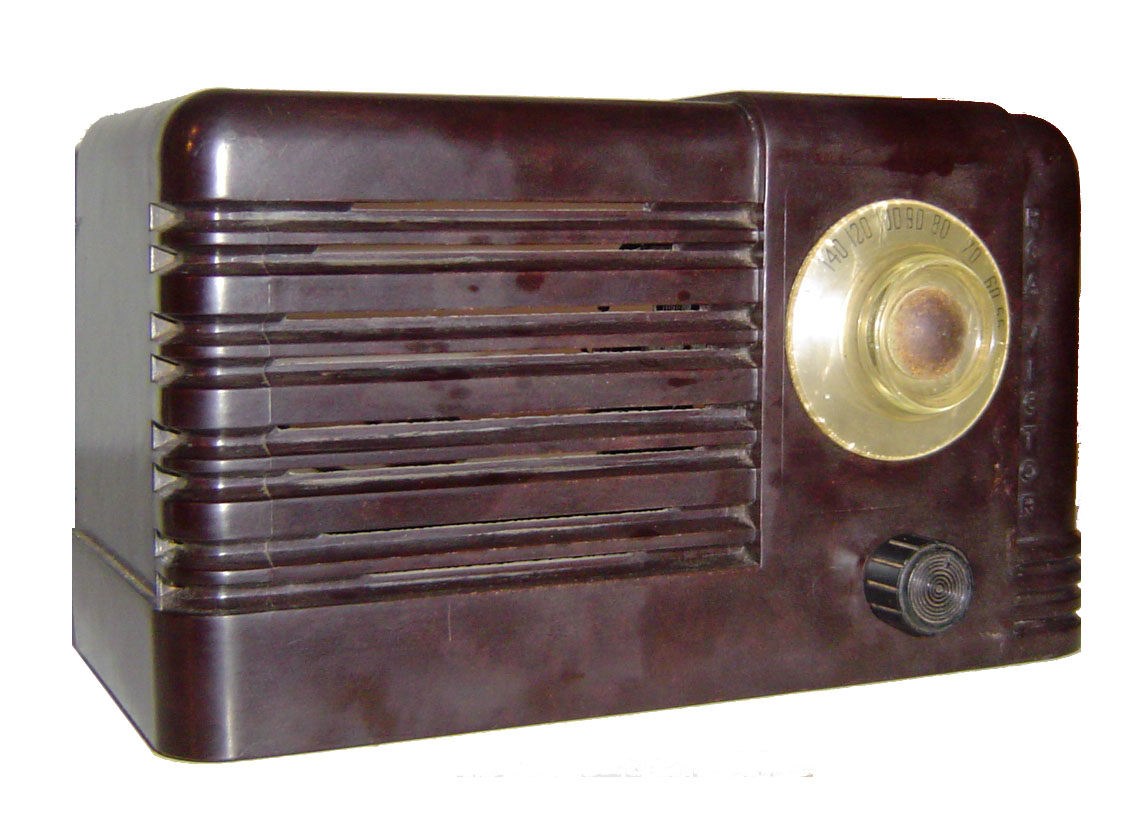

PICTURES(Click to enlarge image)

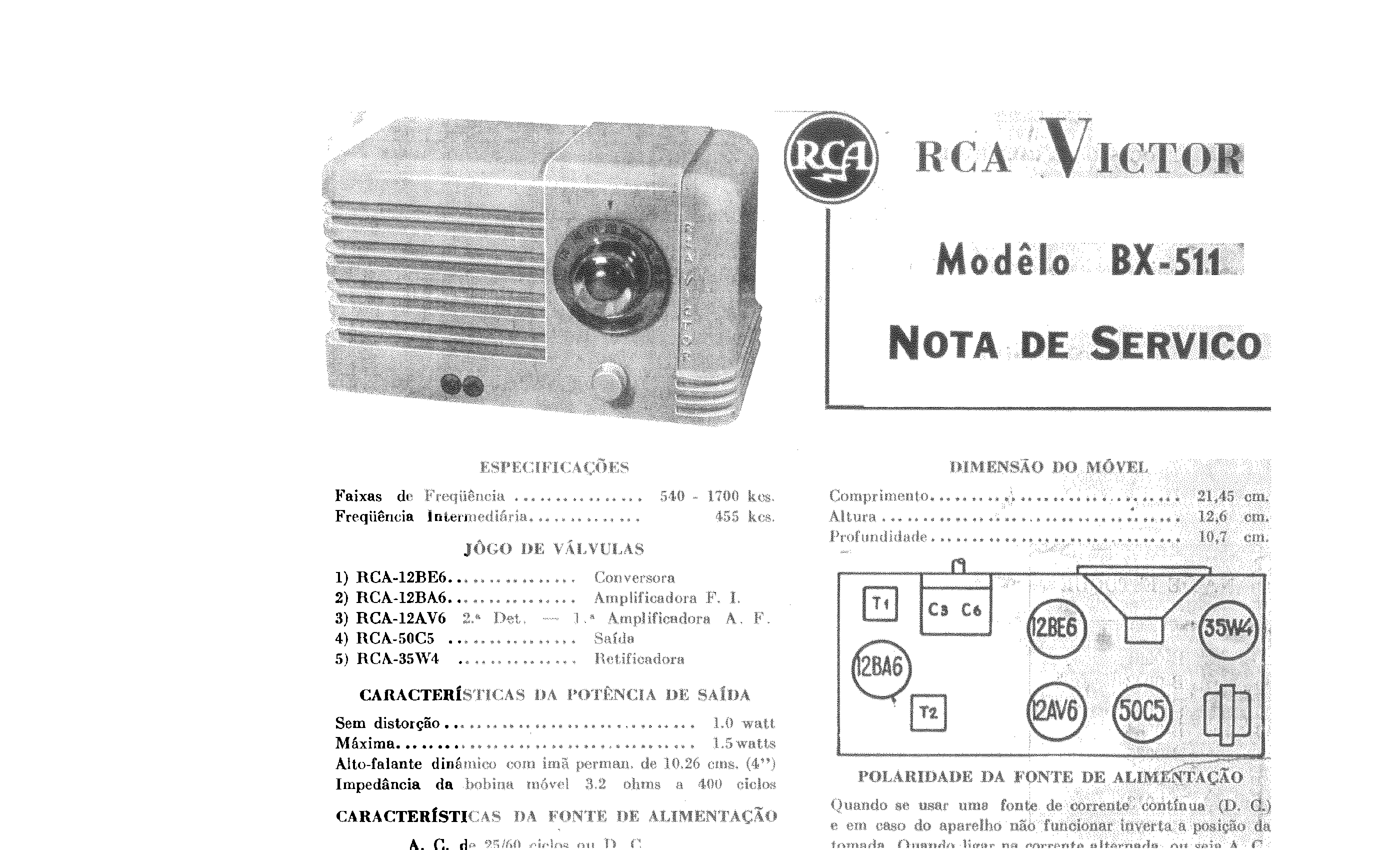

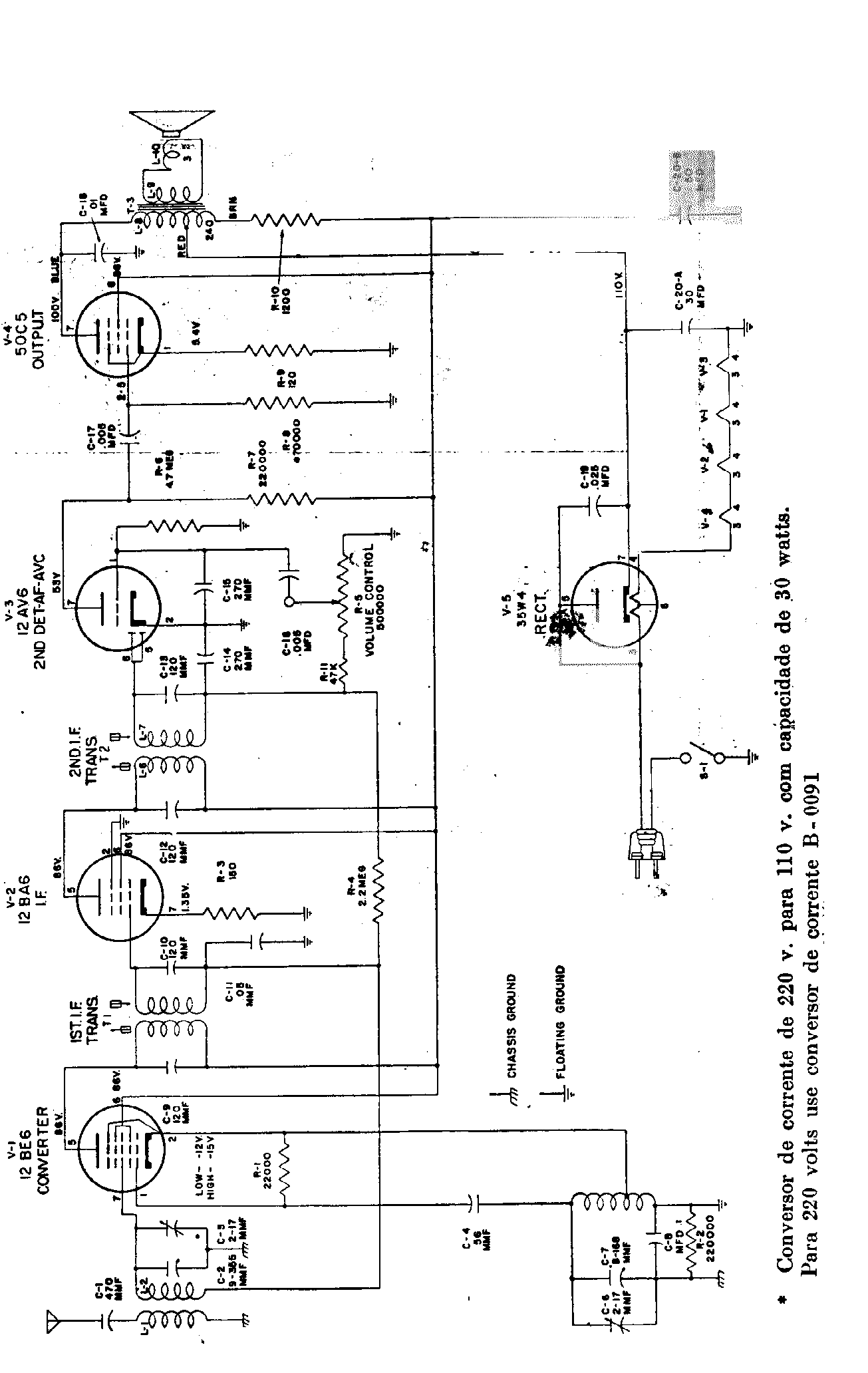

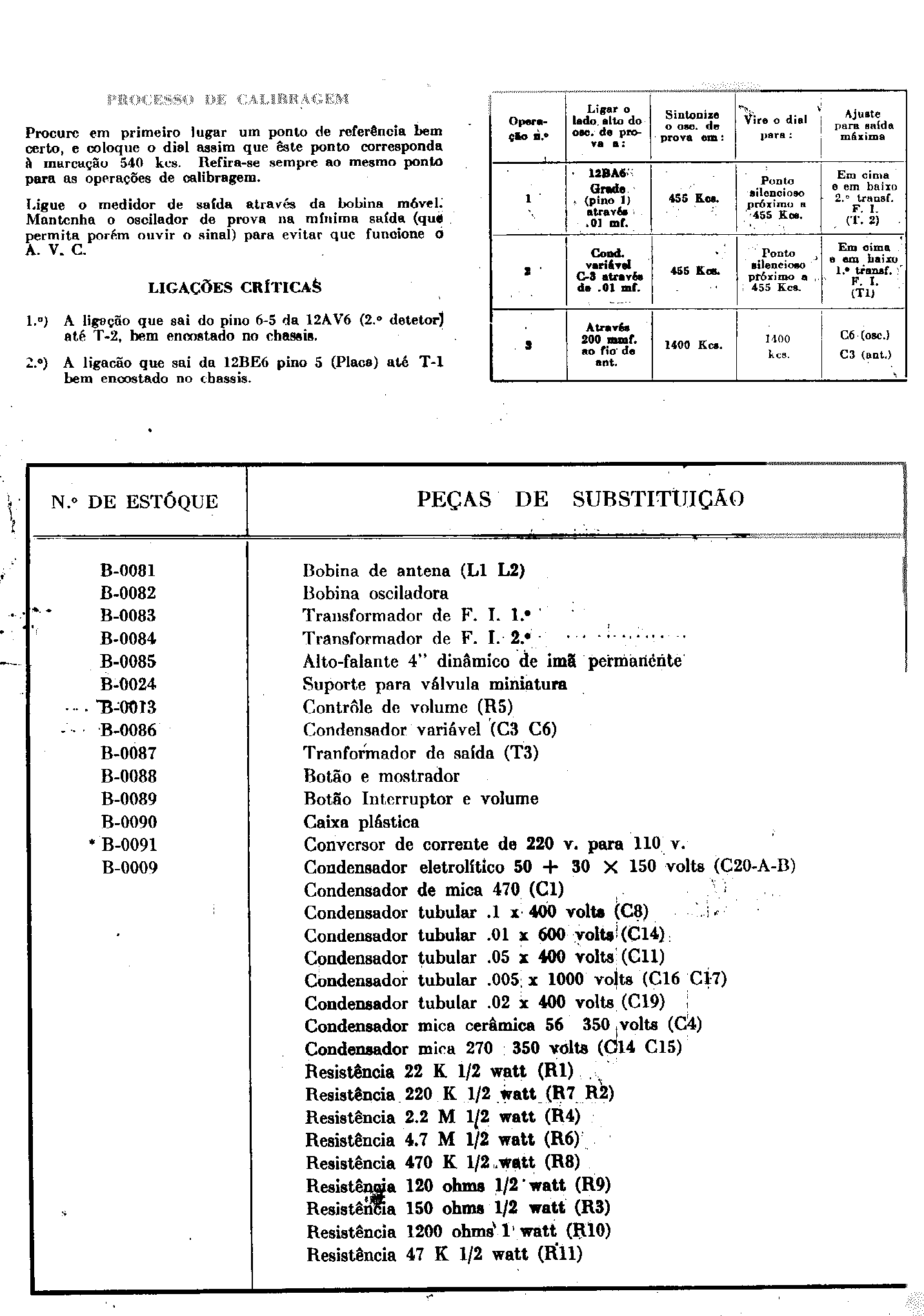

SCHEMATICS | Page1 | Page2 | Page3 |
FROMOtoniel, Gilberto Salomao Antique Fair, Brasilia, DF.
ADDITIONAL INFOTunning condenser badly torn. May not get straight again.
