RADIOAtwater Kent
MODEL60 Kiel Table
TECHNOLOGYTube
YEAR1929
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC

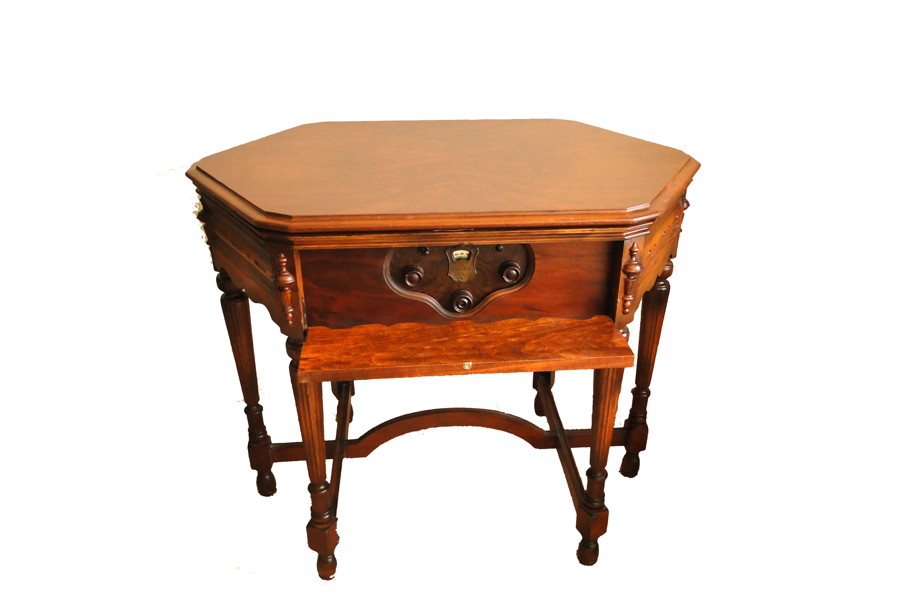

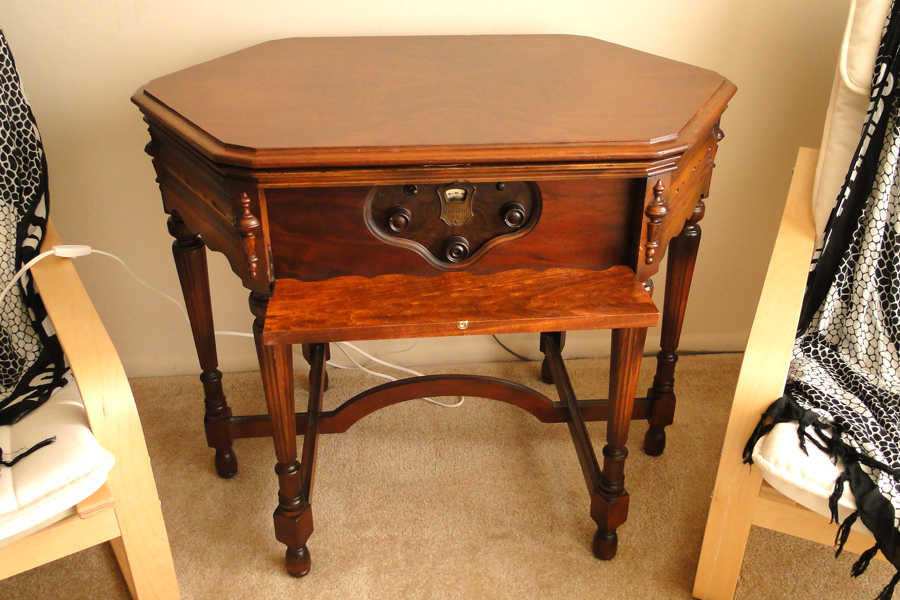

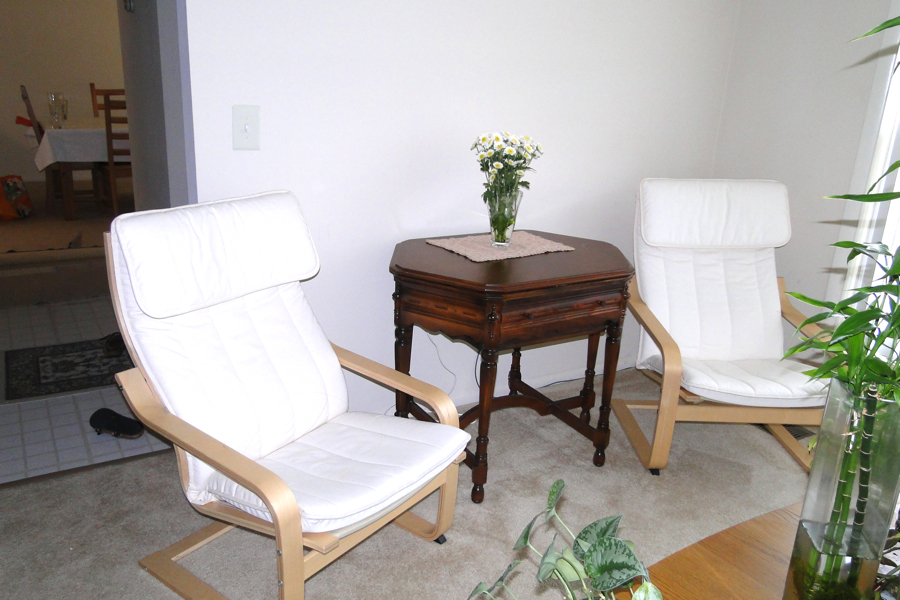

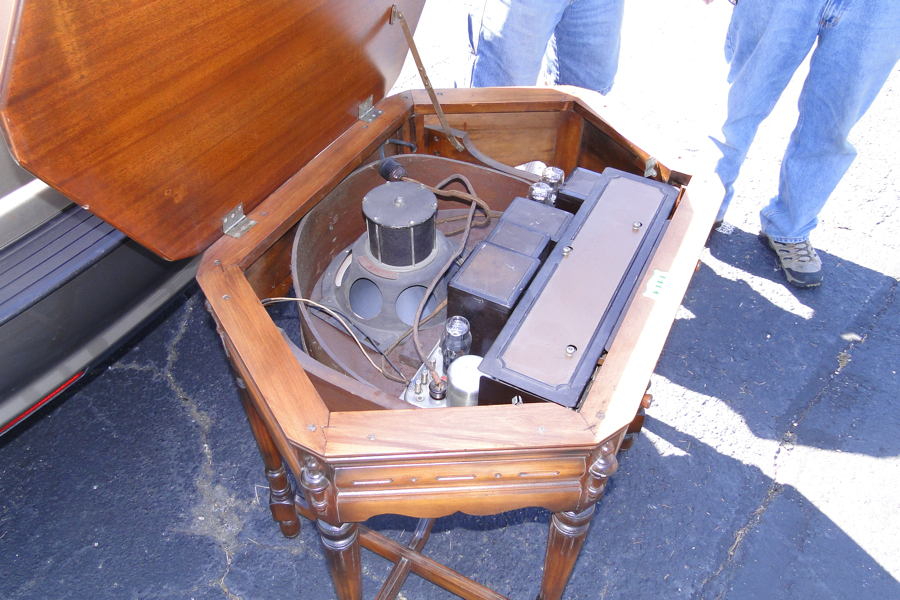

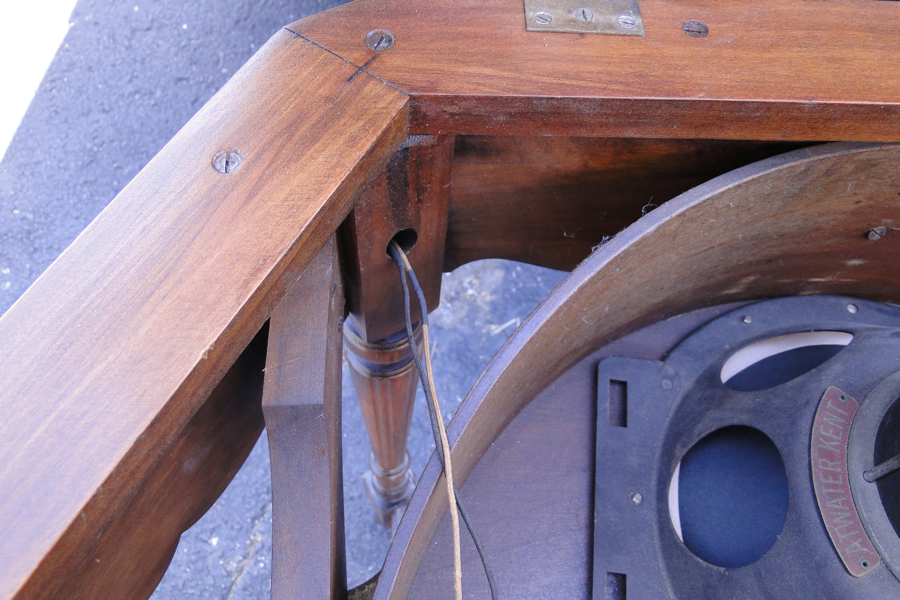

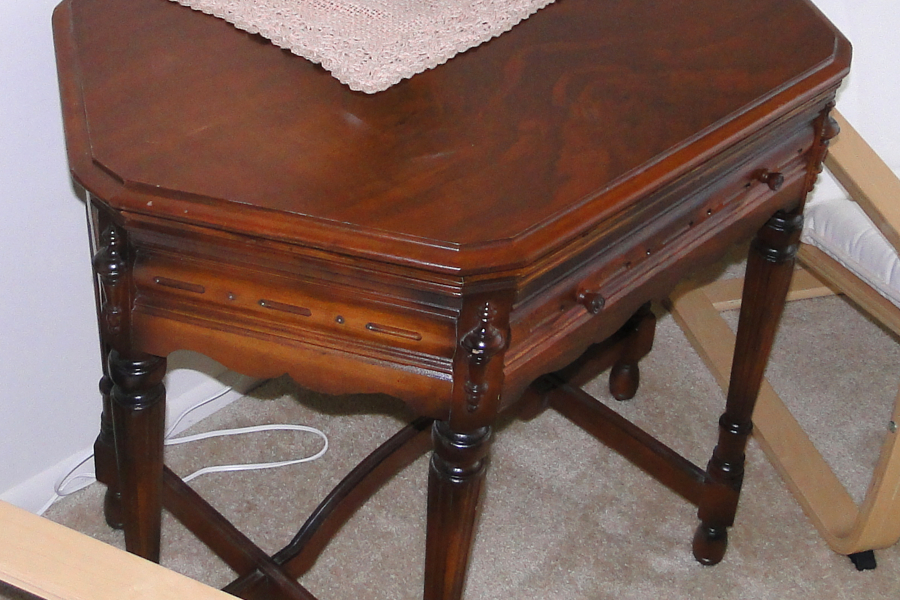

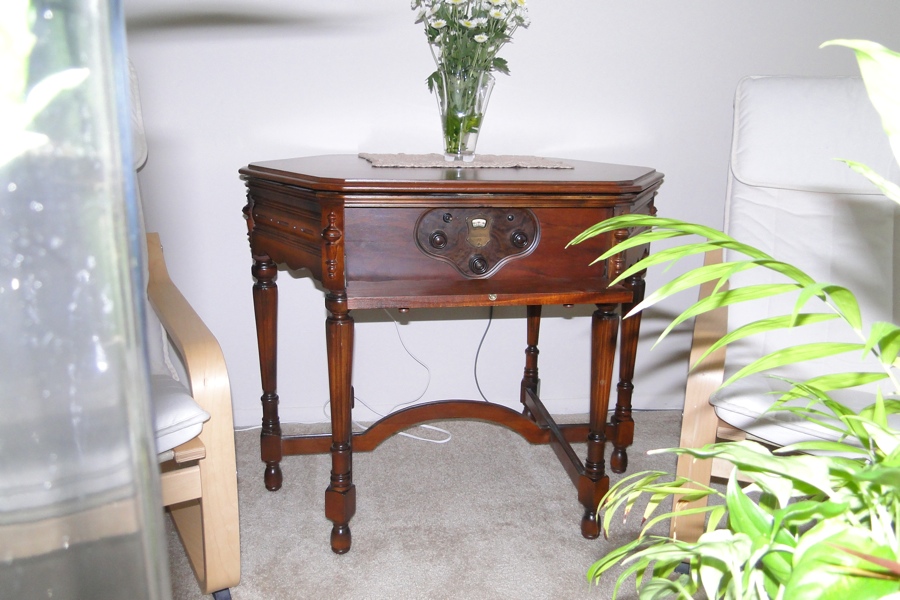

DESCRIPTIONKiel table with six legs, fold down front door, lift table top to access radio chassis and speaker, 3 knobs.
CABINET STYLEFurniture
CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYAC
VOLTS110 - 120 Volts
CONSUMPTION?
AC CYCLES50-60 Hz
CHASSIS60 early type
TUBES LOCATION

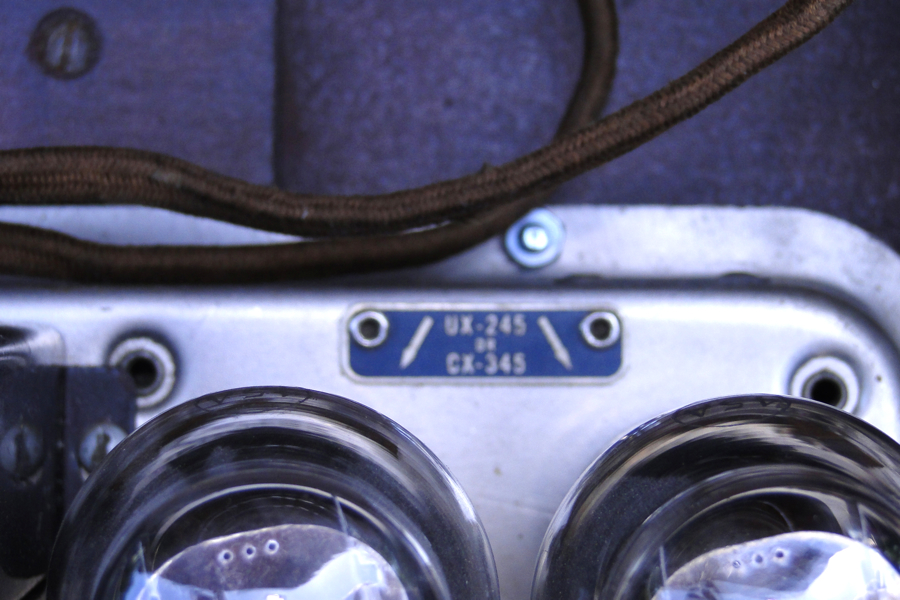

TUBE COMPLEMENT | 24 | 24 | 24 | 27 | 27 | 45 | 45 | 80 |
PICTURES(Click to enlarge image)

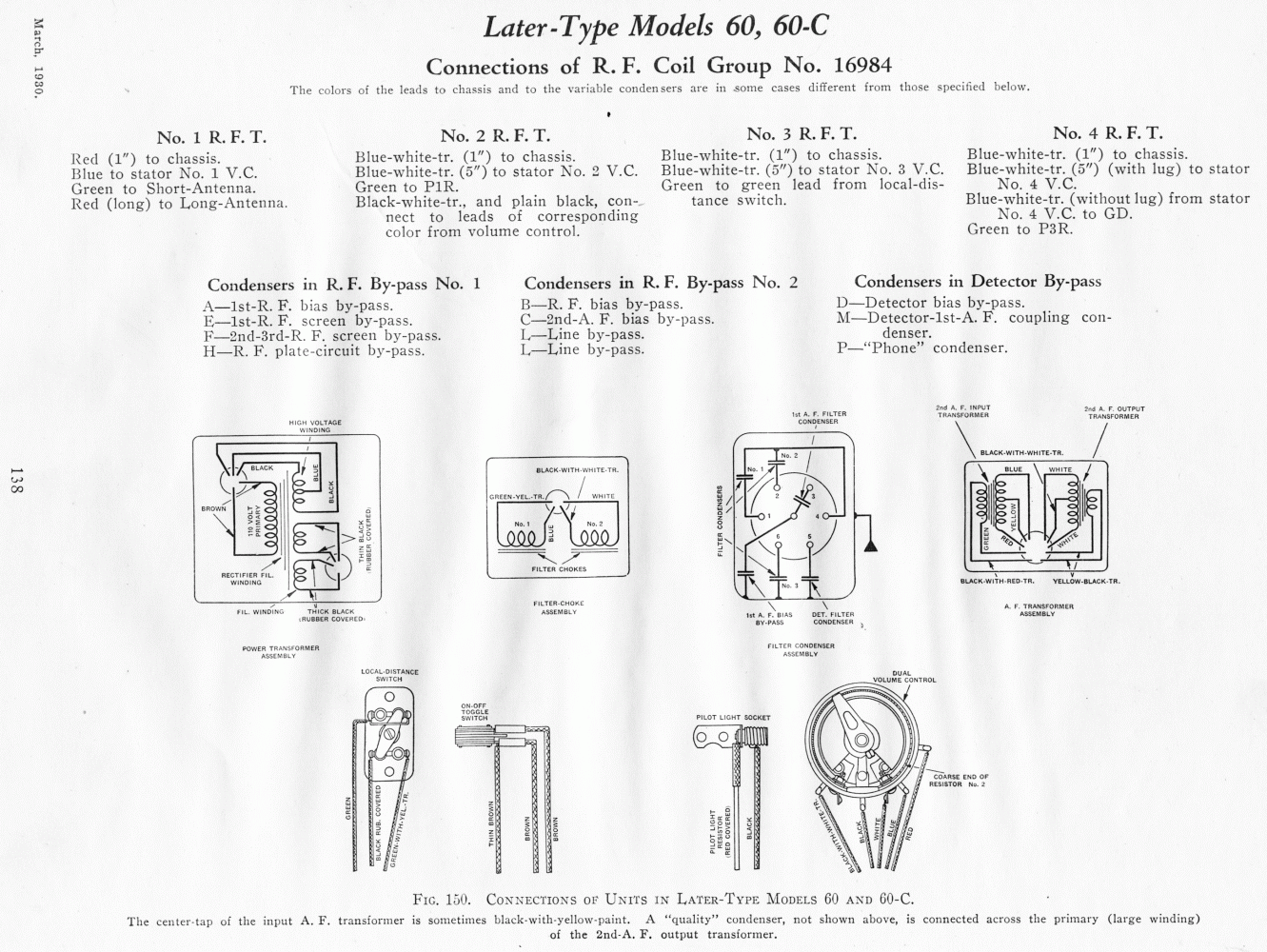

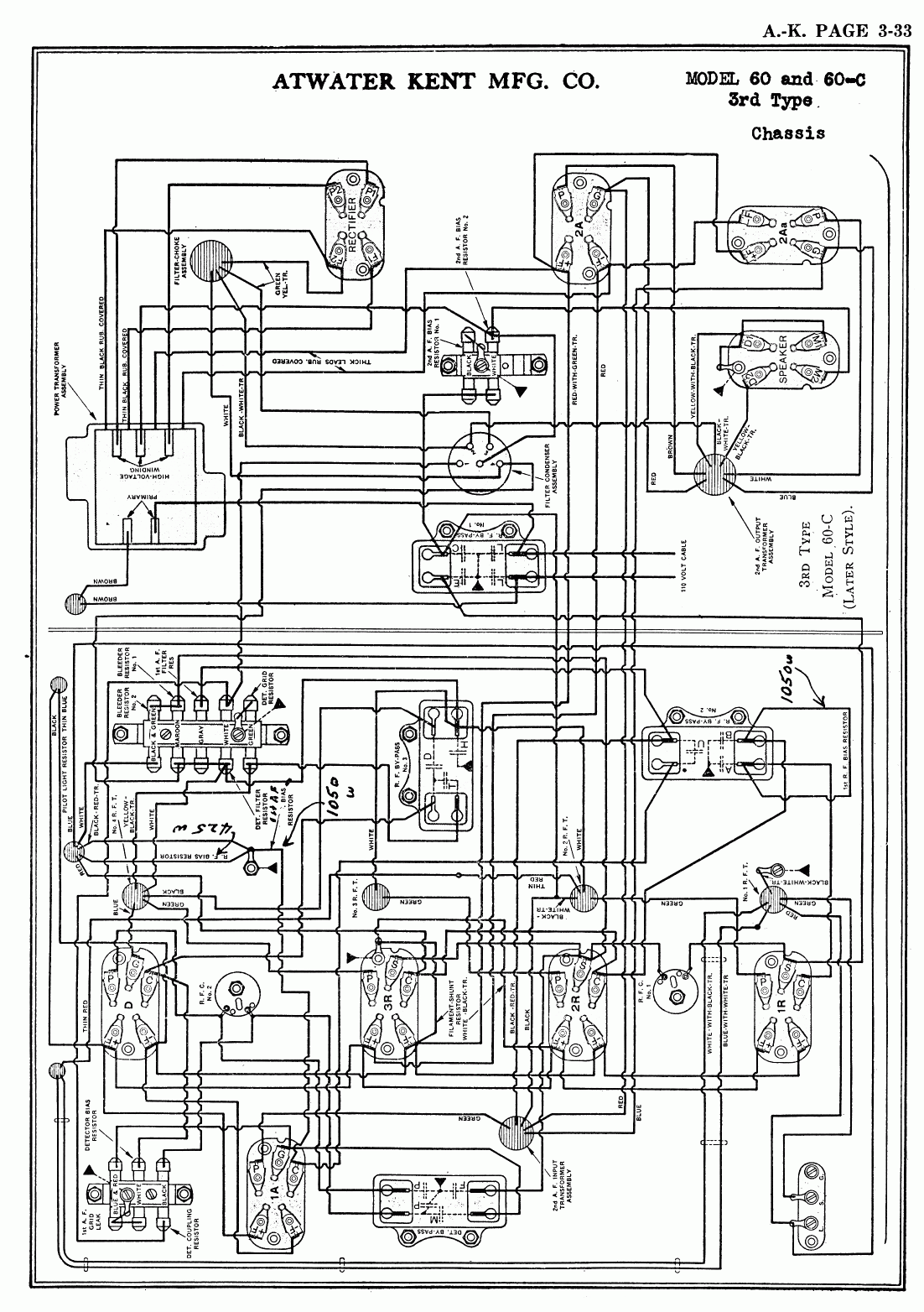

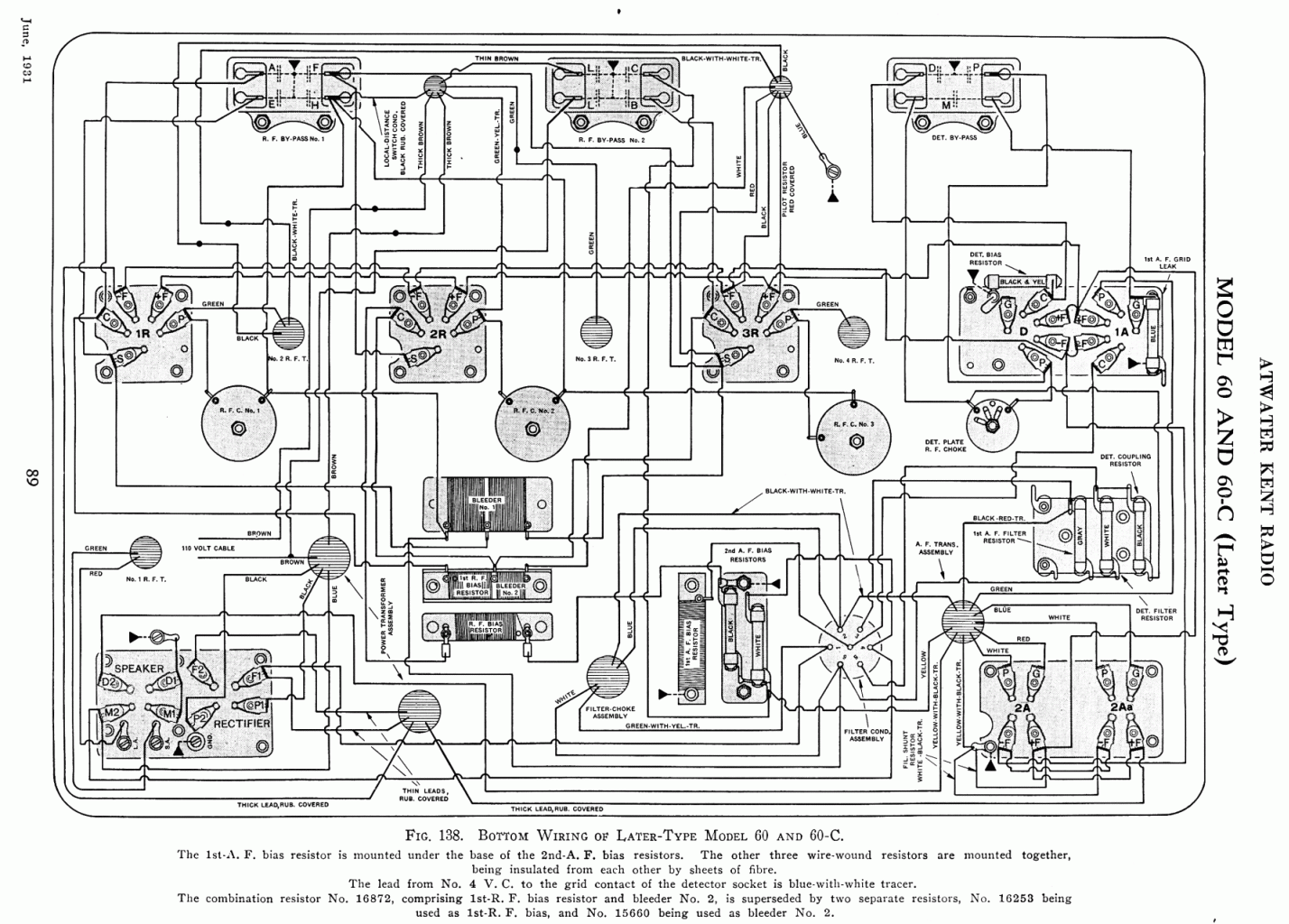

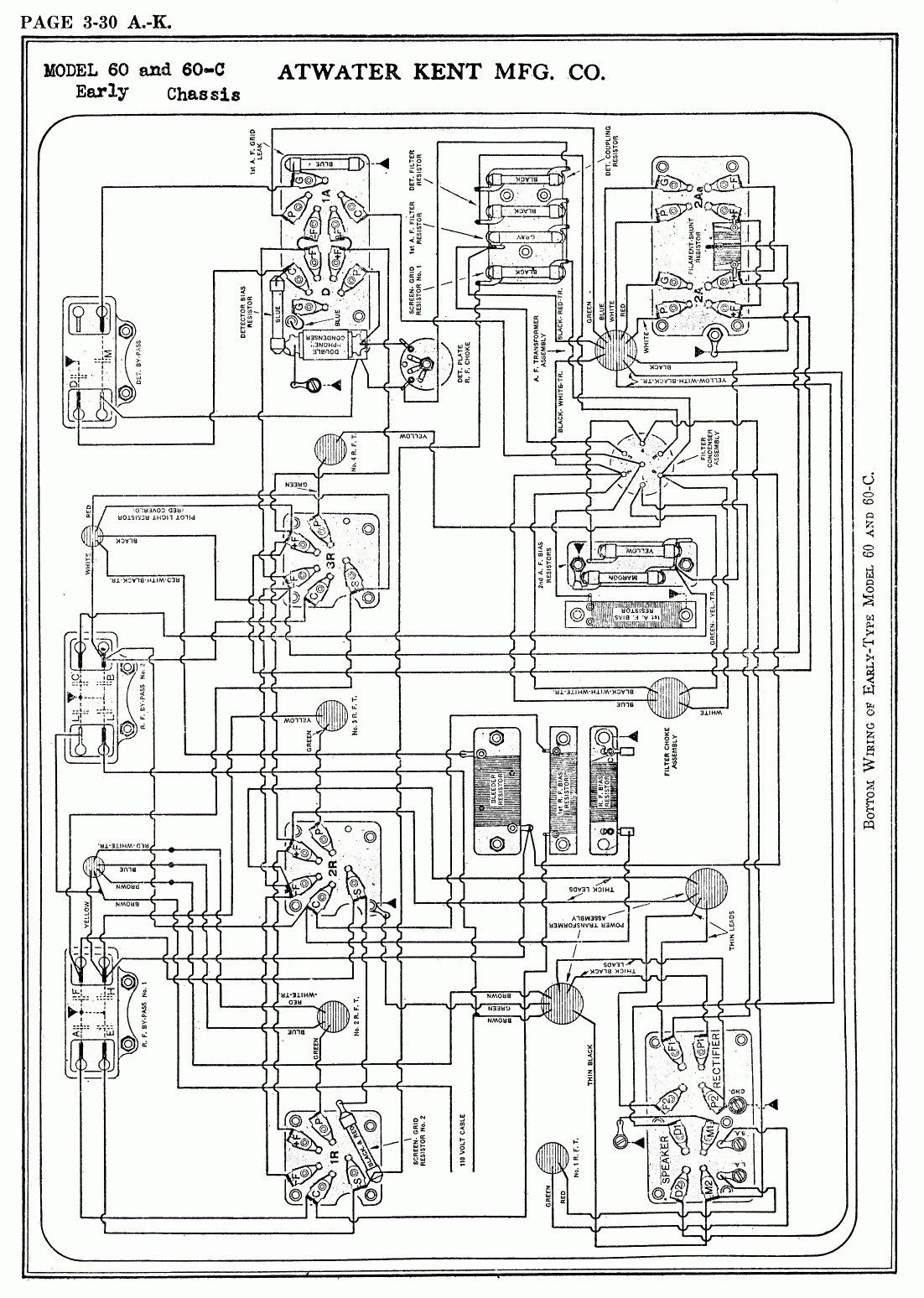

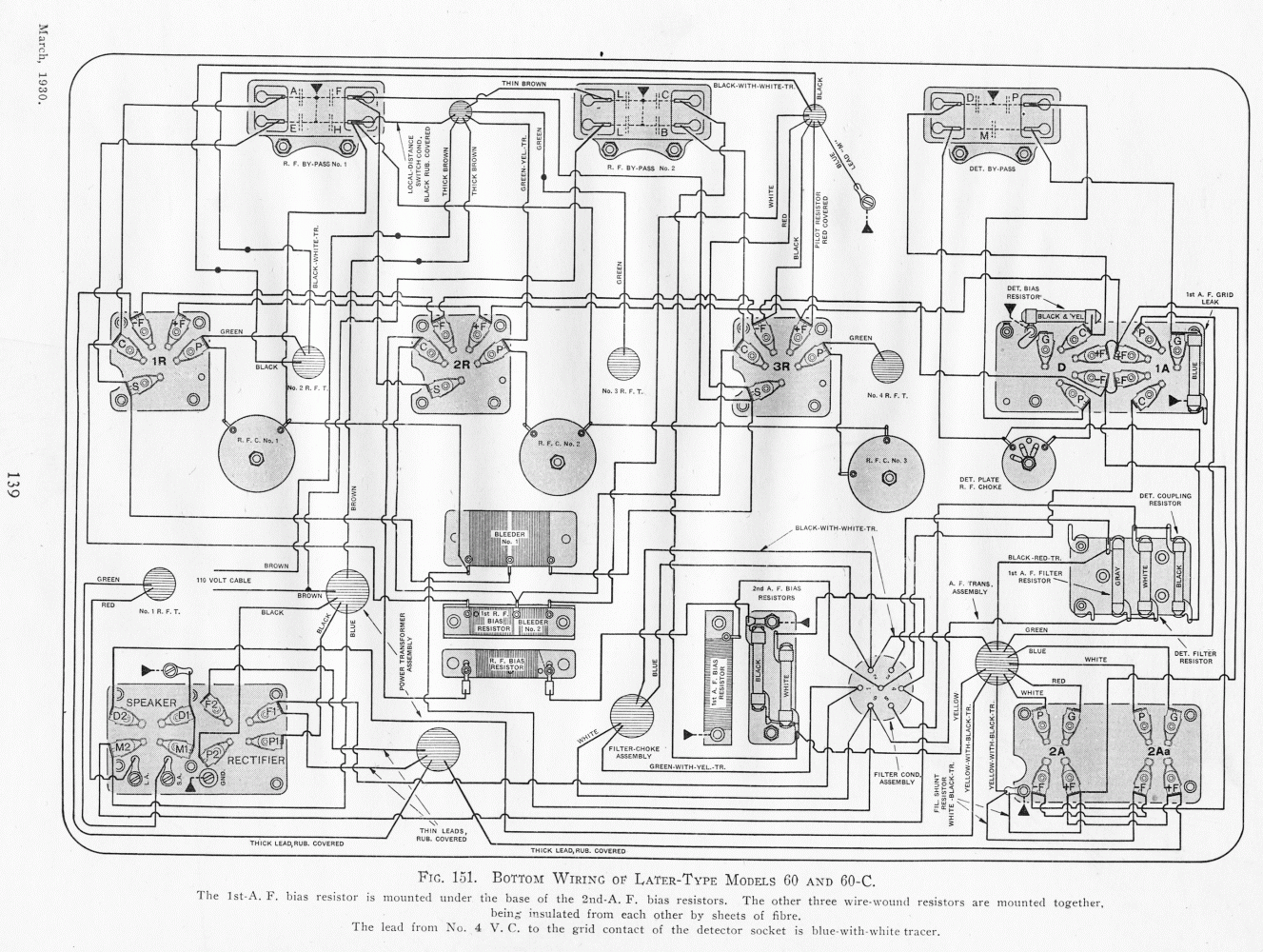

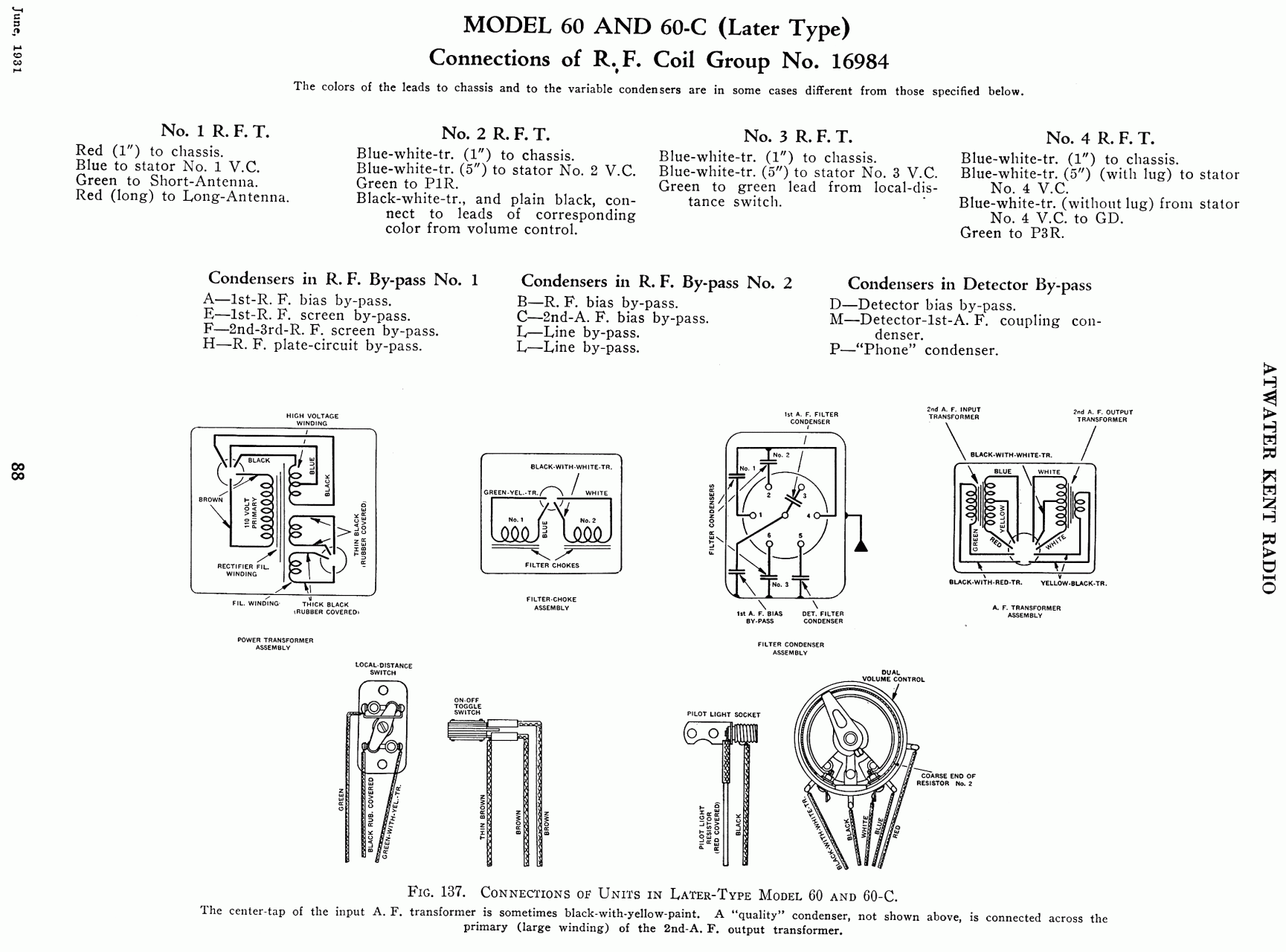

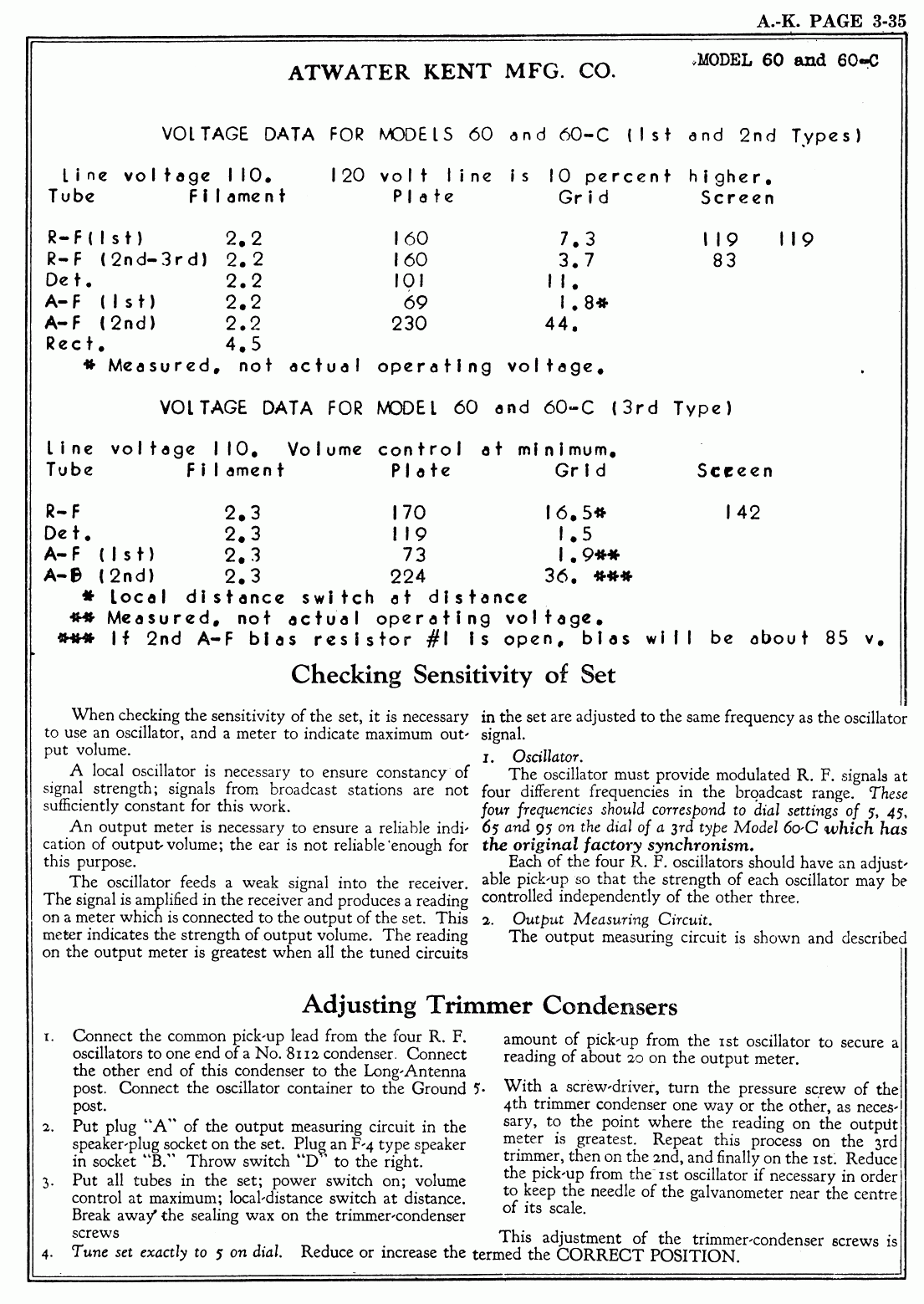

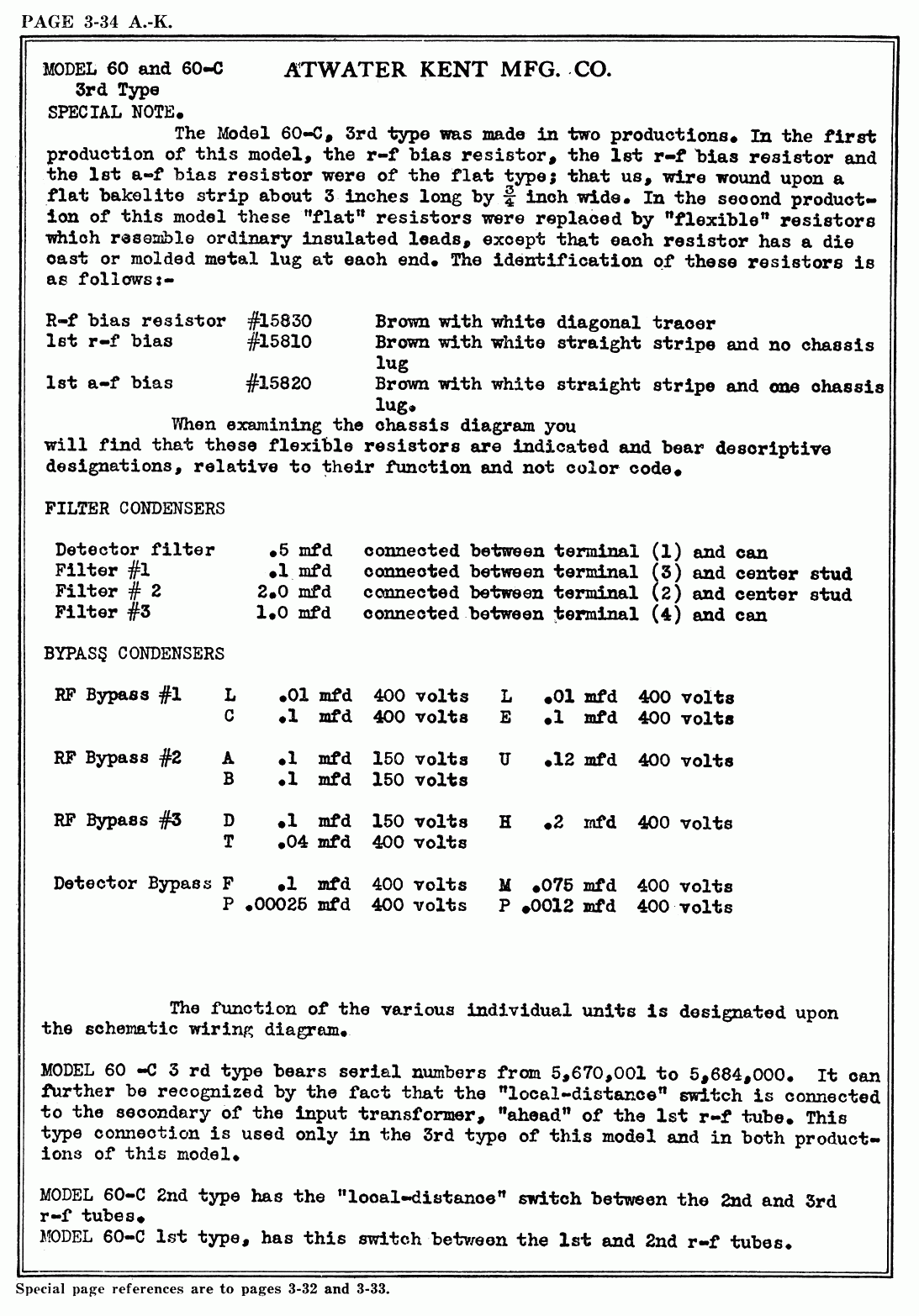

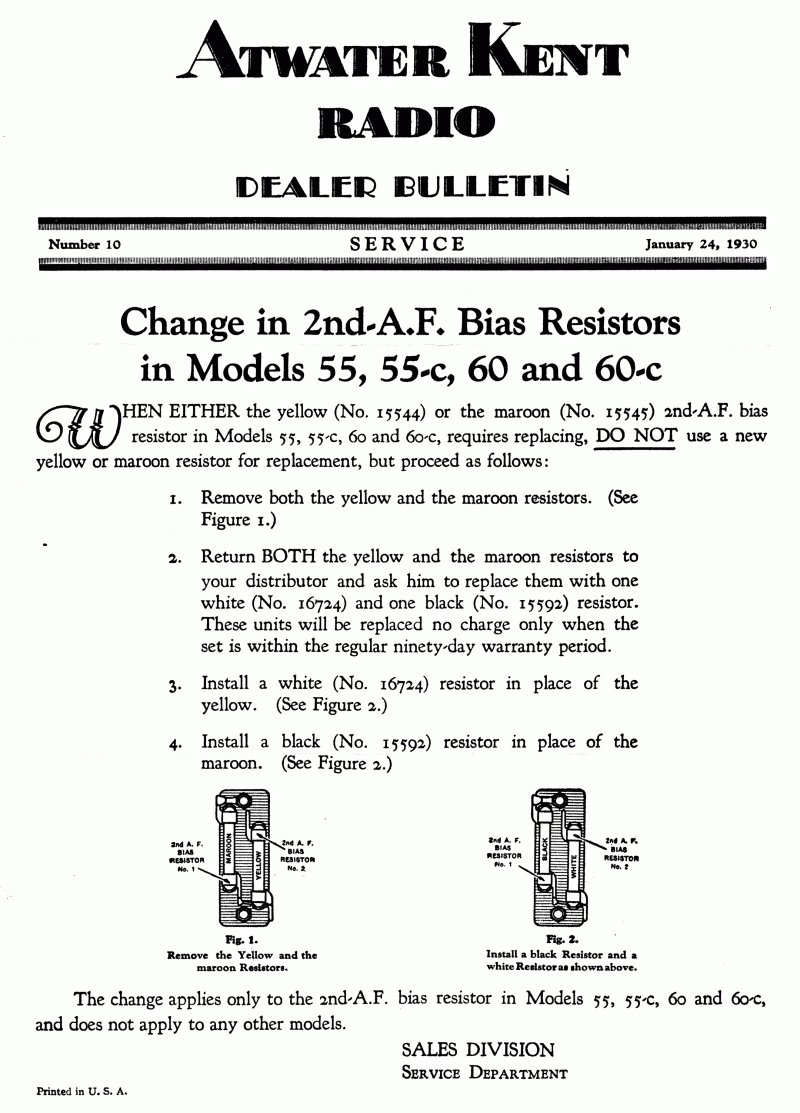

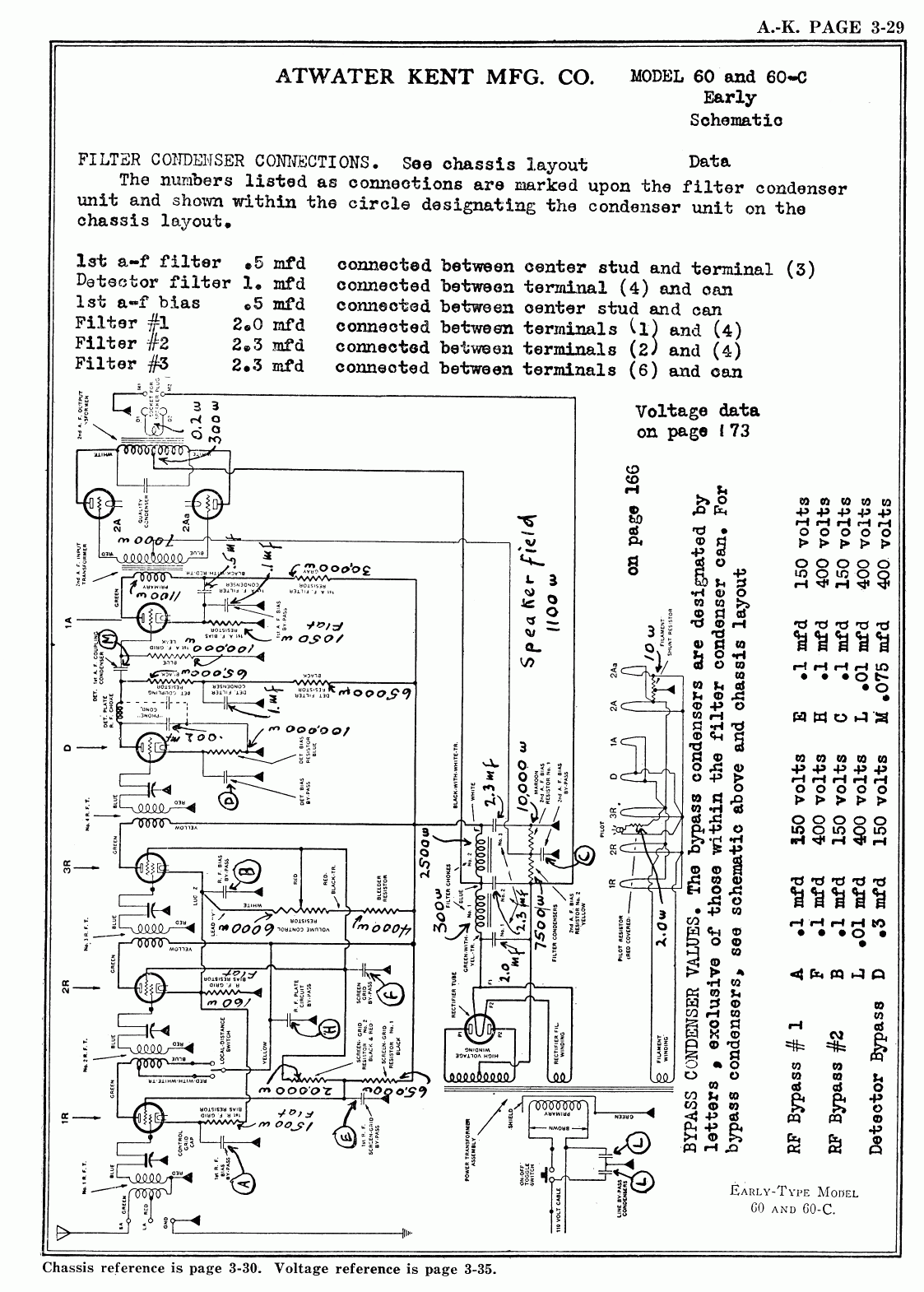

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 | Page7 | Page8 | Page9 | Page10 | Page11 | Page12 | Page13 | Page14 | Page15 | Page16 | Page17 |
FROMFrom Dan Koczur, winner of The International Radio Restoration Contest, 2012. I got it form 2013 RadioActivity on Jun 22nd.
ADDITIONAL INFOFrom Dab Koczur at the 2013 MAARC RadioActivity on June 22nd, 2013.
