RADIOEmerson
MODEL543
TECHNOLOGYTube
YEAR1947
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550 - 1620 KHz

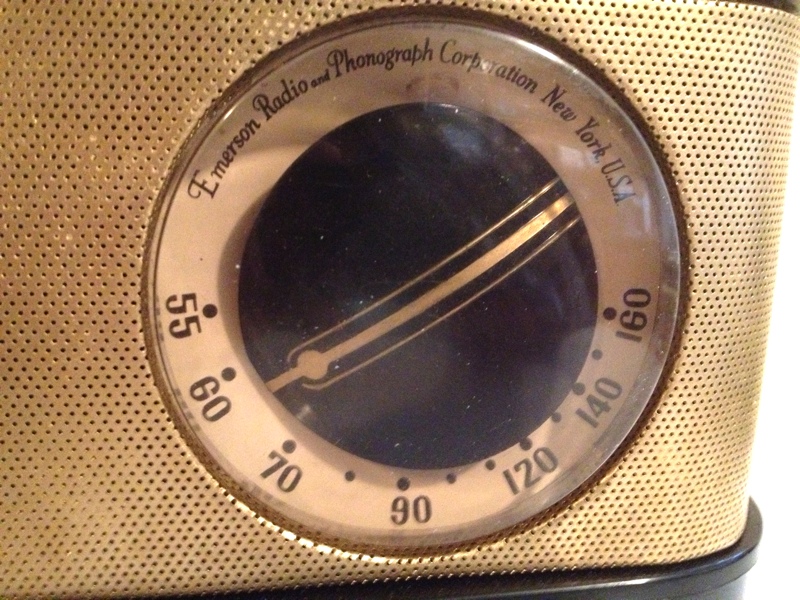

DESCRIPTIONRight round dial over metal wrap-around grill, 2 knobs, and handle in bakelite
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x ?
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSIS120046 Miniature Tubes
TUBES LOCATION
TUBE COMPLEMENT | 12BE6 | 12BA6 | 12AT6 | 50B5 | 35W4 |

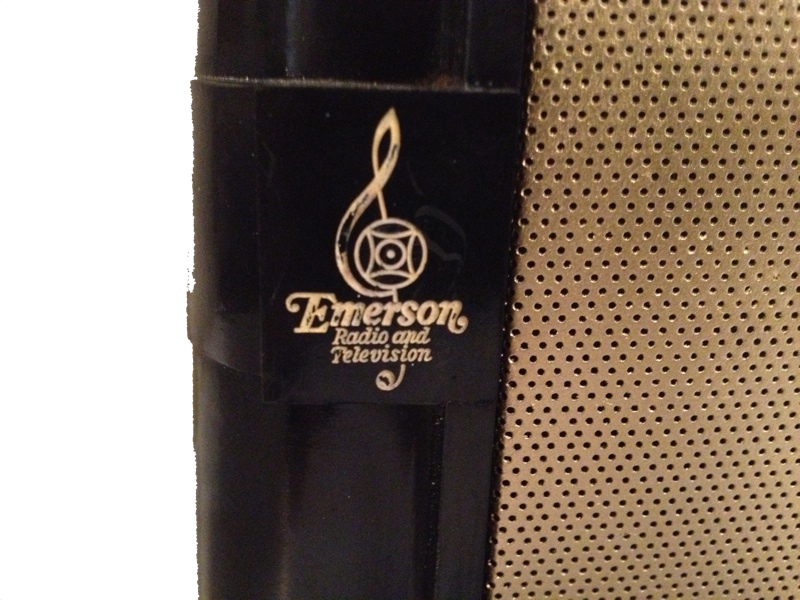

PICTURES(Click to enlarge image)

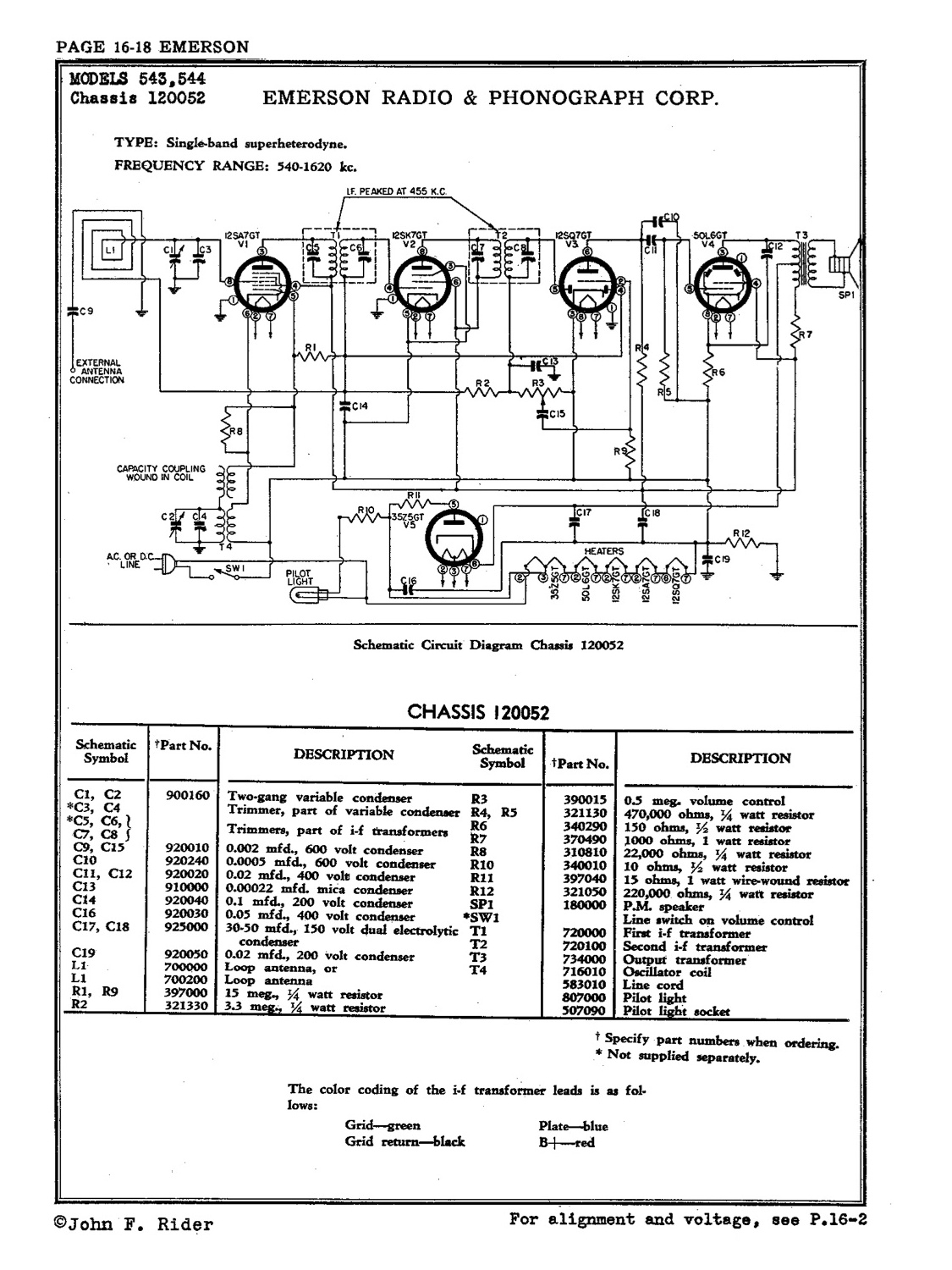

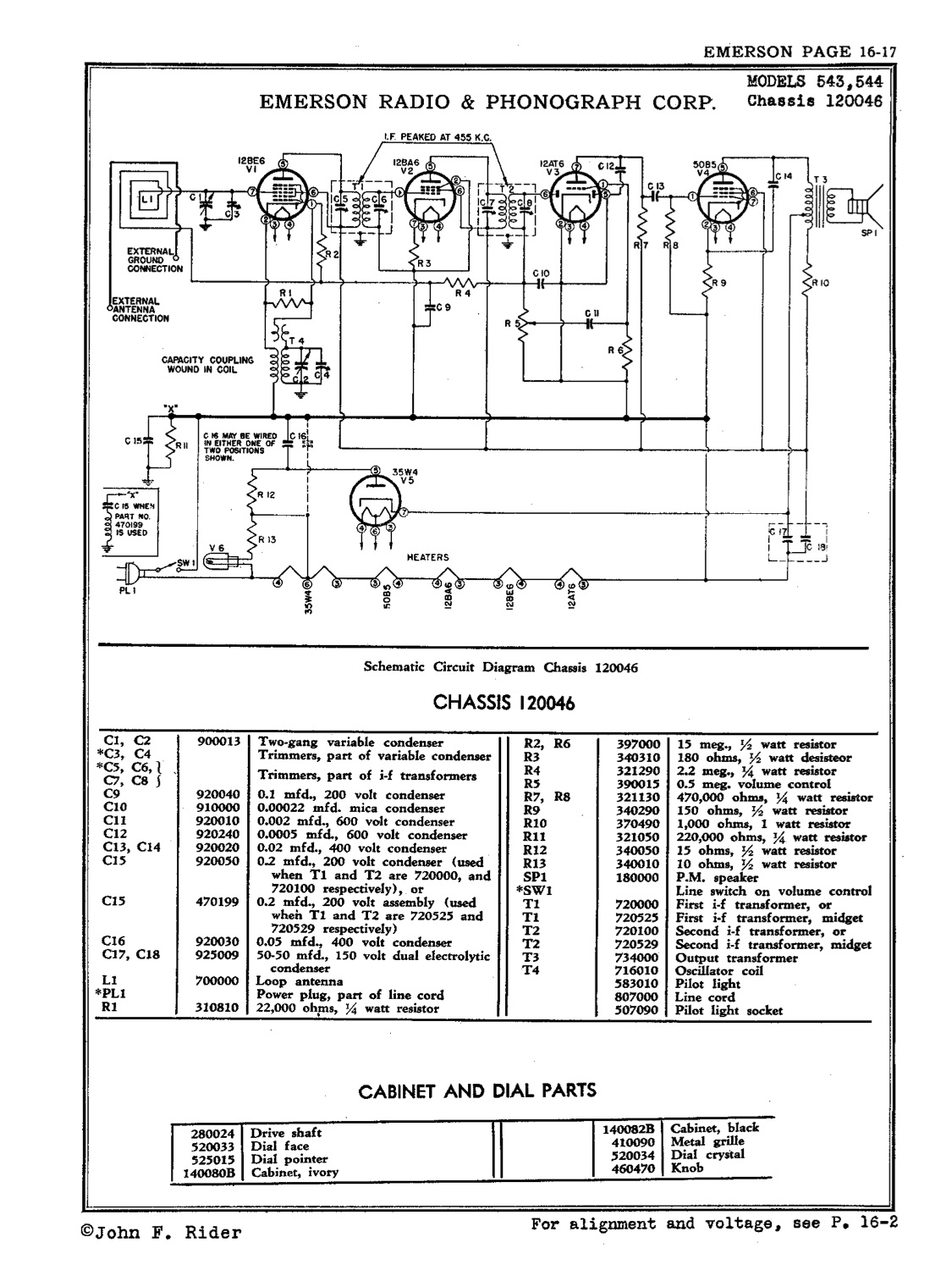

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom ebay seller k4ebw on February 16, 2013
