RADIOZenith
MODELL727
TECHNOLOGYTube
YEAR1959
MADE INUNITED STATES
WAVE BANDSBC/FM
COVERAGEAM 550 - 1600 Kc, FM 88 - 108 Mc
DESCRIPTIONFront left clock, center lattice grill, front right round dial, lower left on/off/volume knob, center band switch, right tunning knob.
CABINET STYLEClock Radio
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF456 KC
POWER SUPPLYAC
VOLTS120 V
CONSUMPTION35 W
AC CYCLES60 Hz
CHASSIS7L03
TUBES LOCATION
TUBE COMPLEMENT | 12AU6 | 12BA6 | 12BE6 | 12DT8 | 14GT8 | 35C5 |

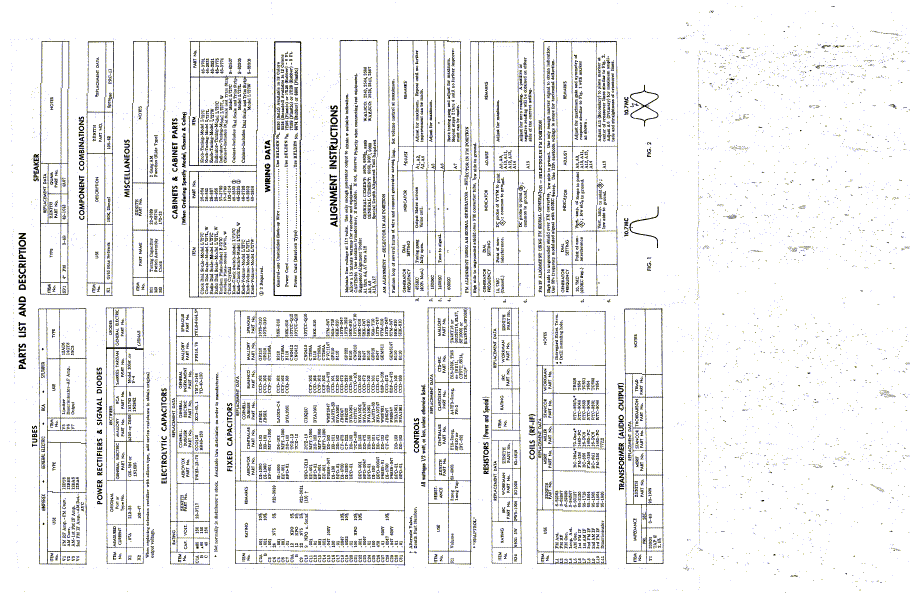

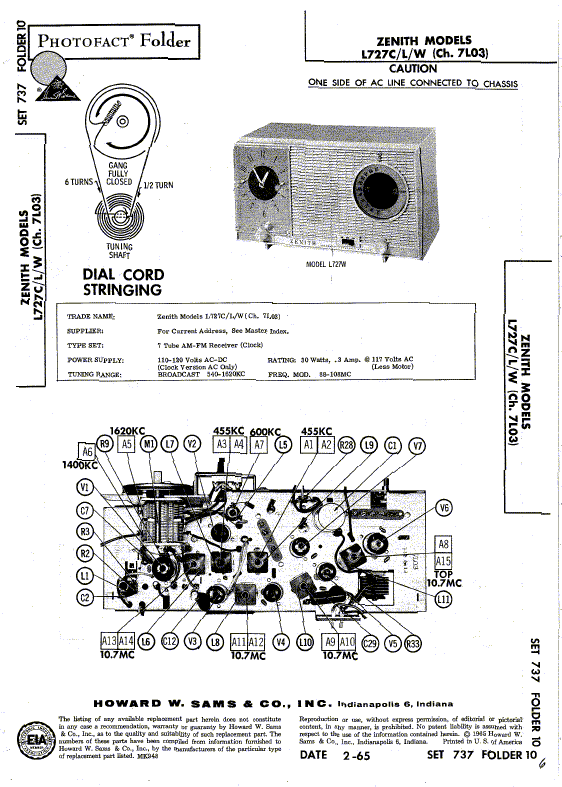

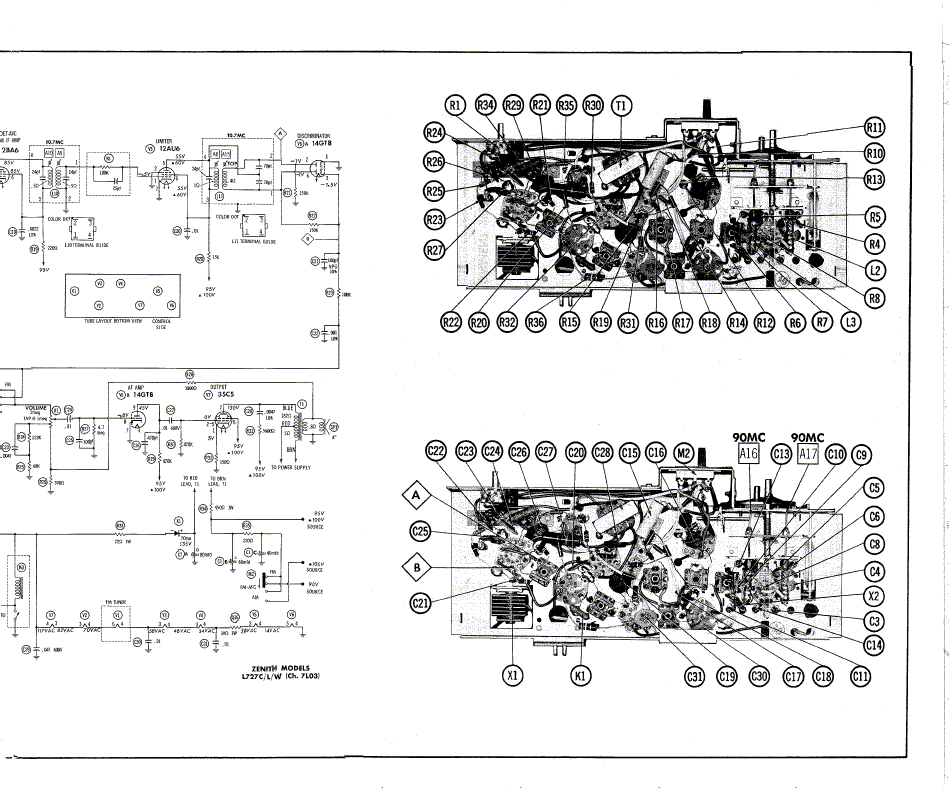

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMRumage sale in an elementary school at Ithaca, NY.
