RADIOAirline
MODEL74BR1501B
TECHNOLOGYTube
YEAR1947
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE540 - 1720 Kc

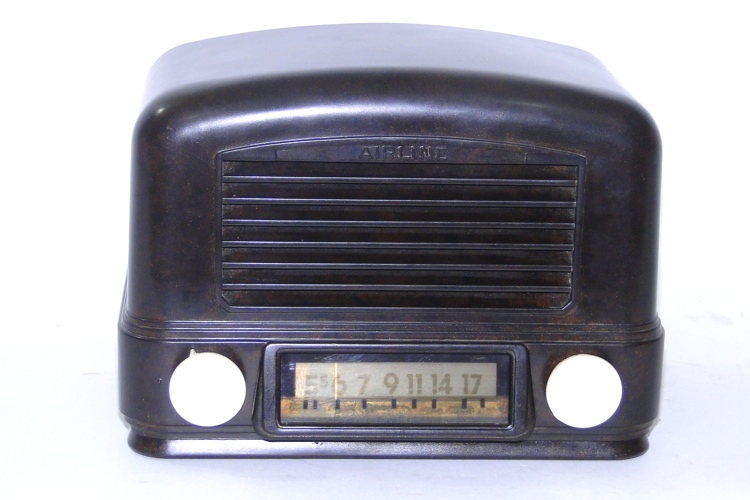

DESCRIPTIONLower front slide rule dial, upper front horizontal louvers, 2 frontal knobs.
CABINET STYLEMidget
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE0 x ?
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION28 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

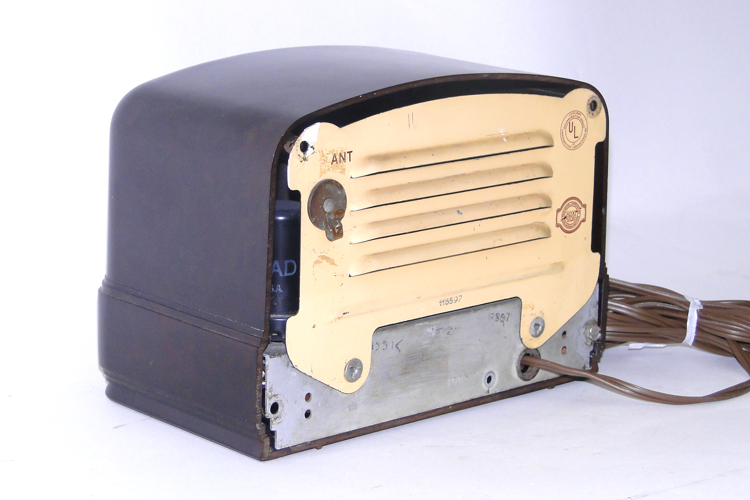

PICTURES(Click to enlarge image)

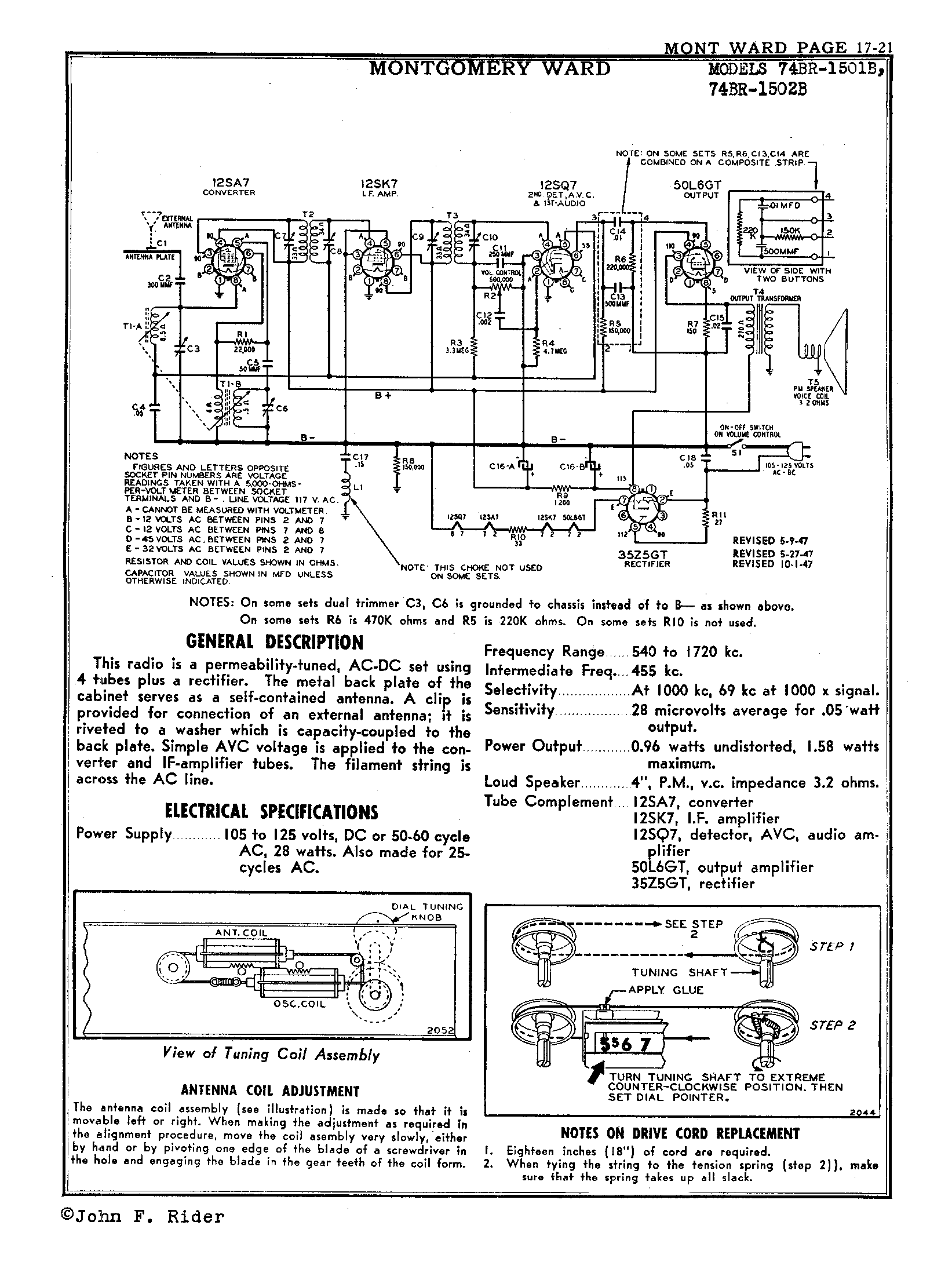

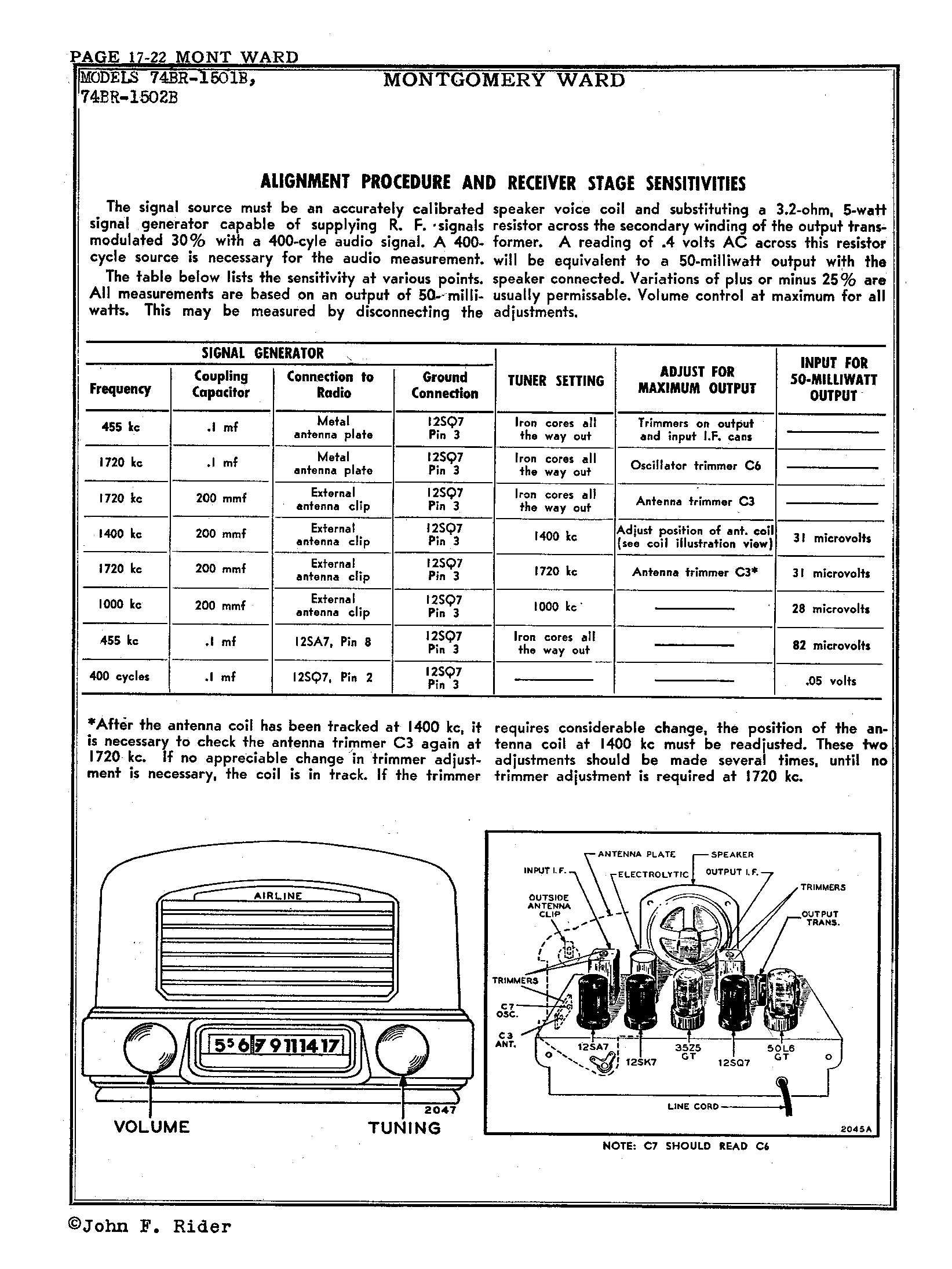

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom ebay USA.
