RADIOPhilco
MODEL570
TECHNOLOGYTube
YEAR1931
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550 - 1620 KHz

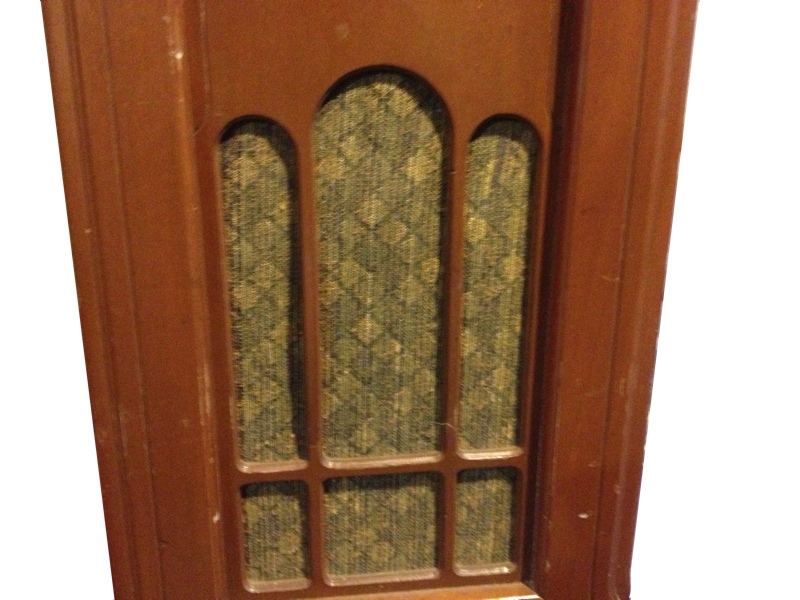

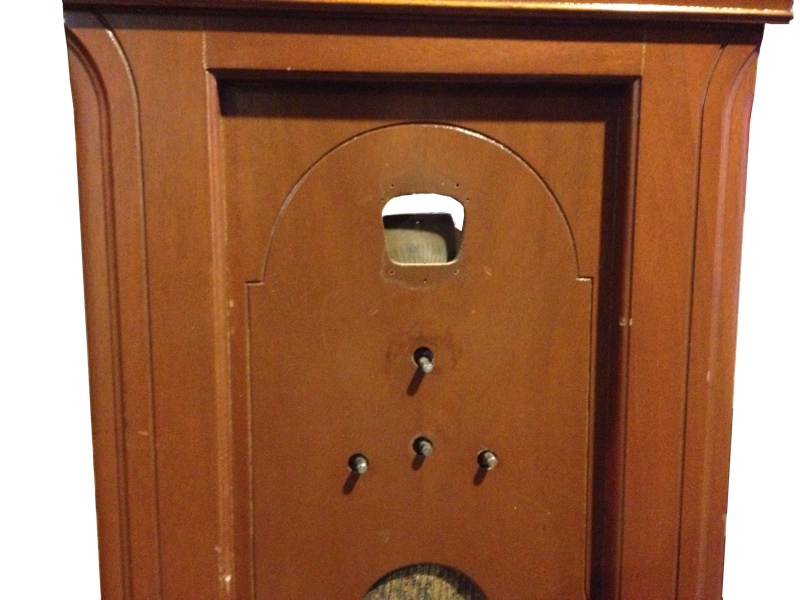

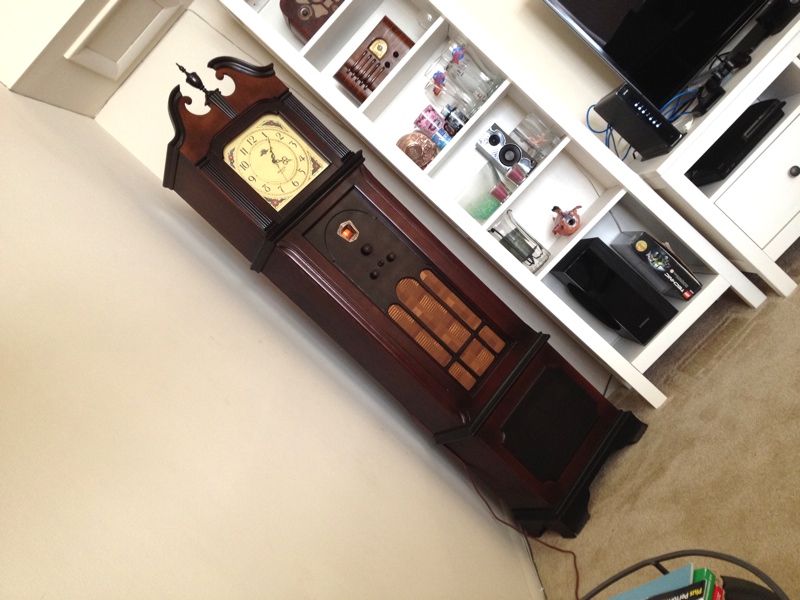

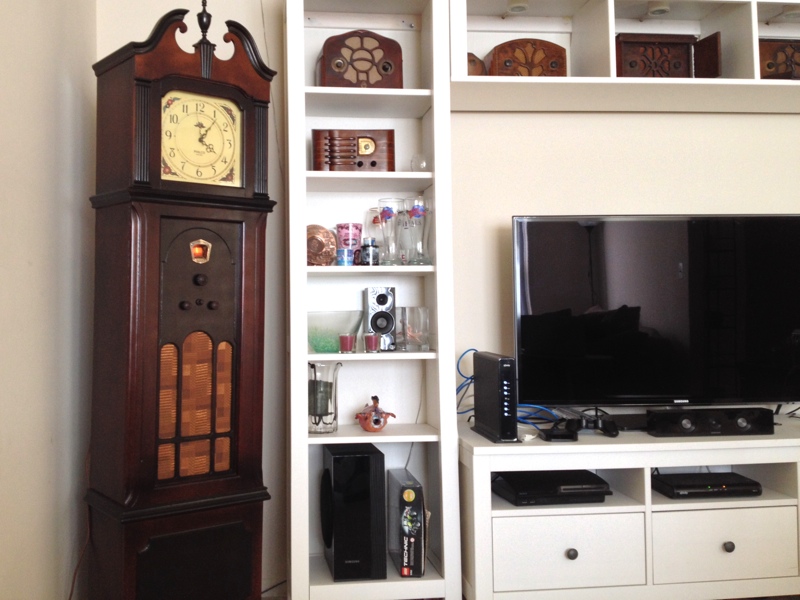

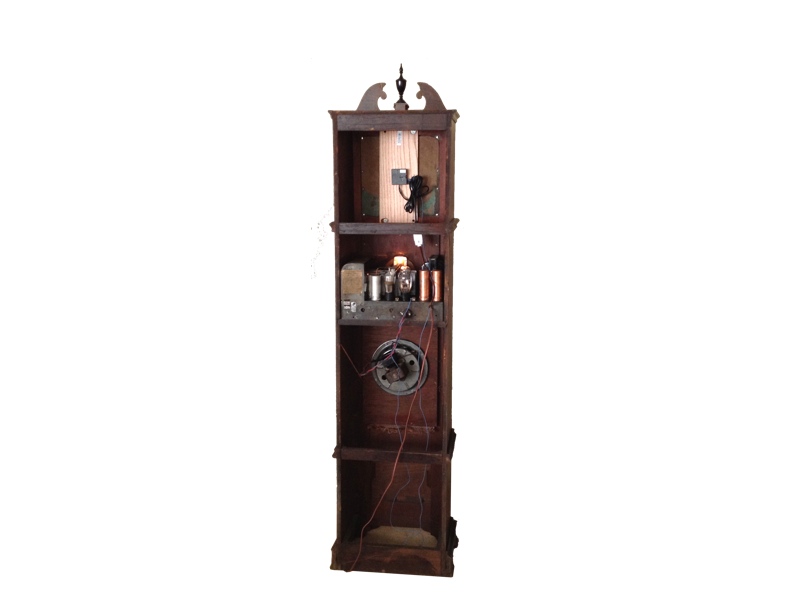

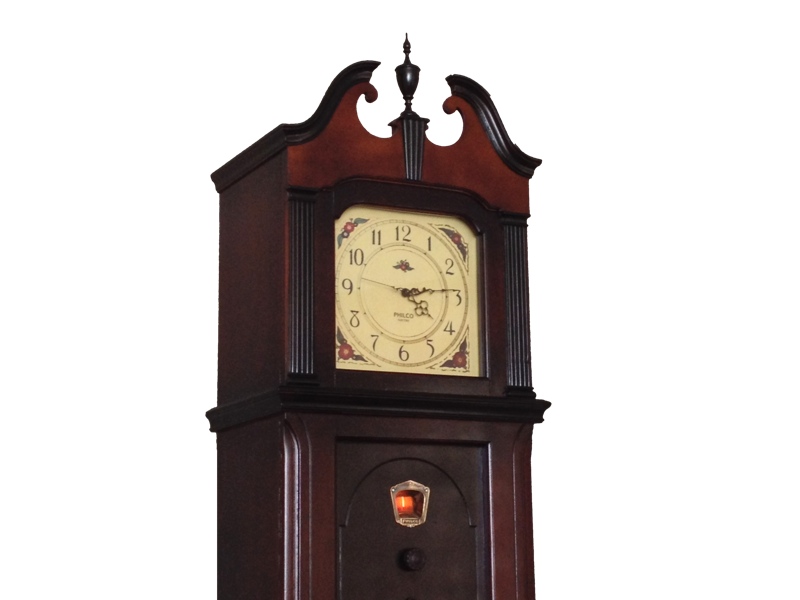

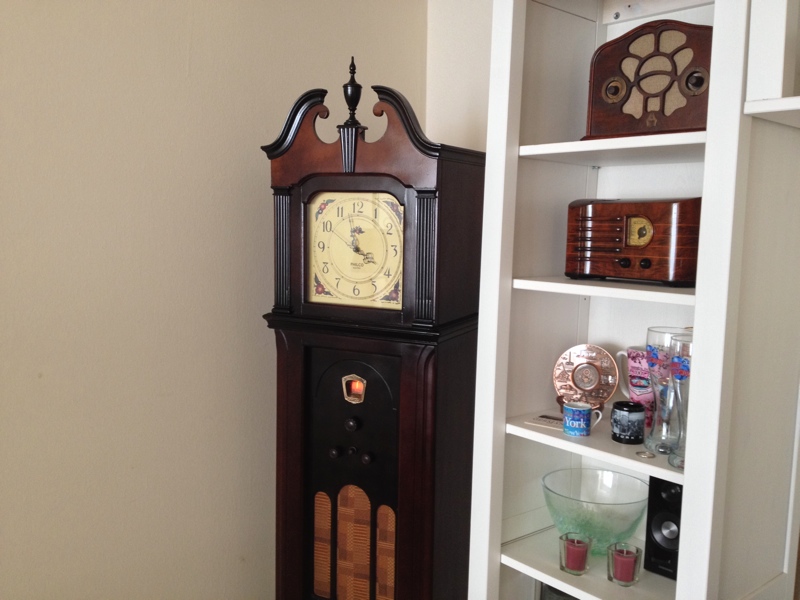

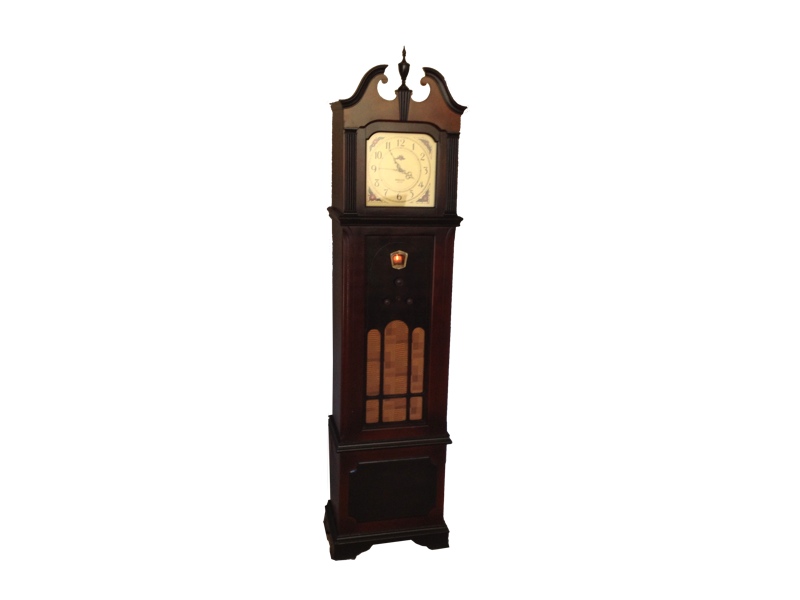

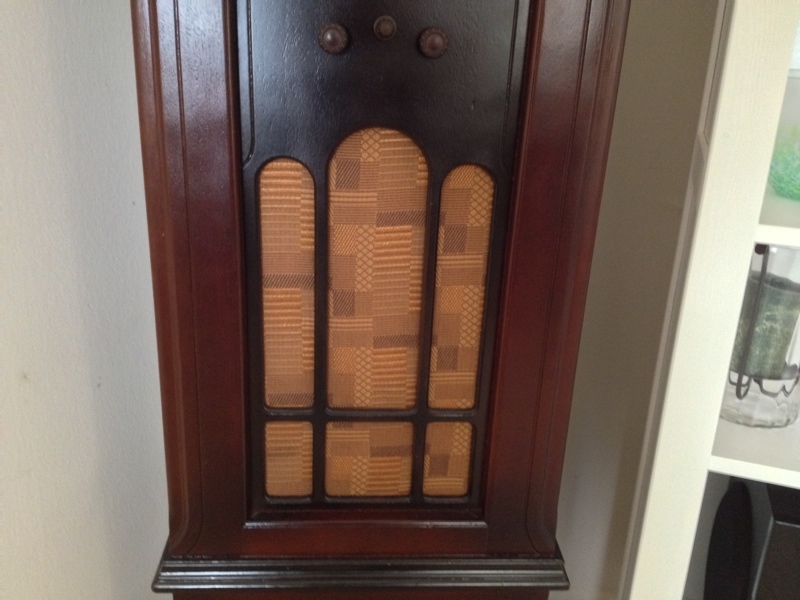

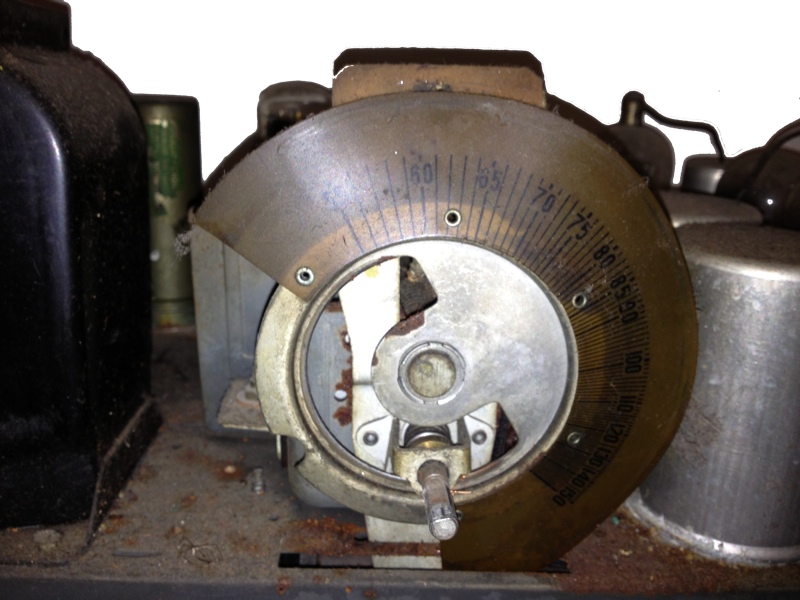

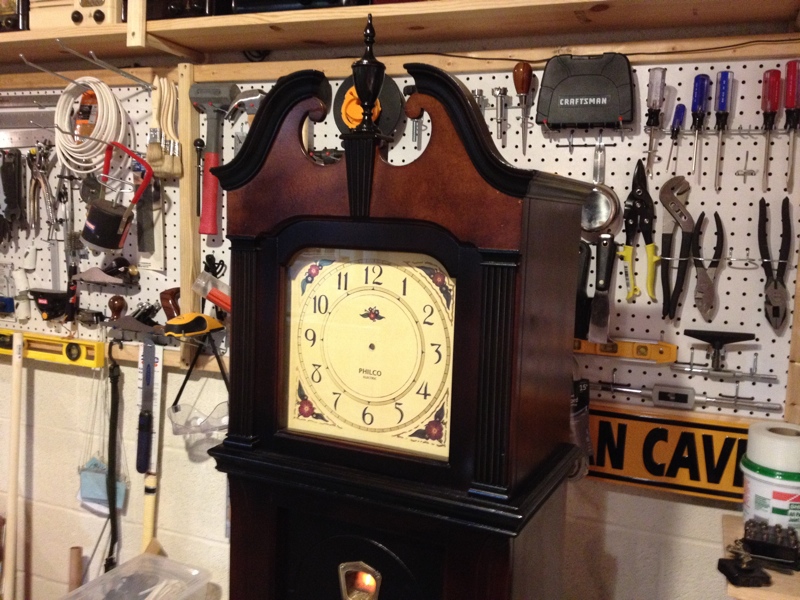

DESCRIPTIONGrandfather clock radio, center front window dial, lower cloth grill with cut-outs, upper clock, 4 knobs.
CABINET STYLEFurniture
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 41
TONE2 Positions
CIRCUITSuperheterodyne
IF260 KC
POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION80 W
AC CYCLES50-60 Hz

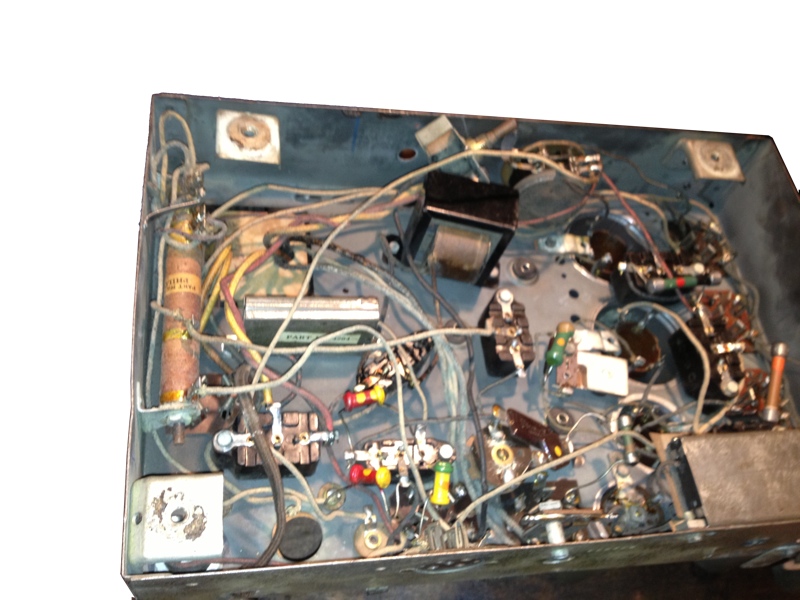

CHASSISSame chassis of Philco model 70

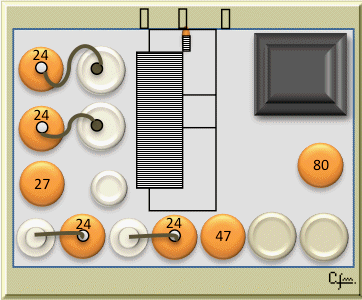

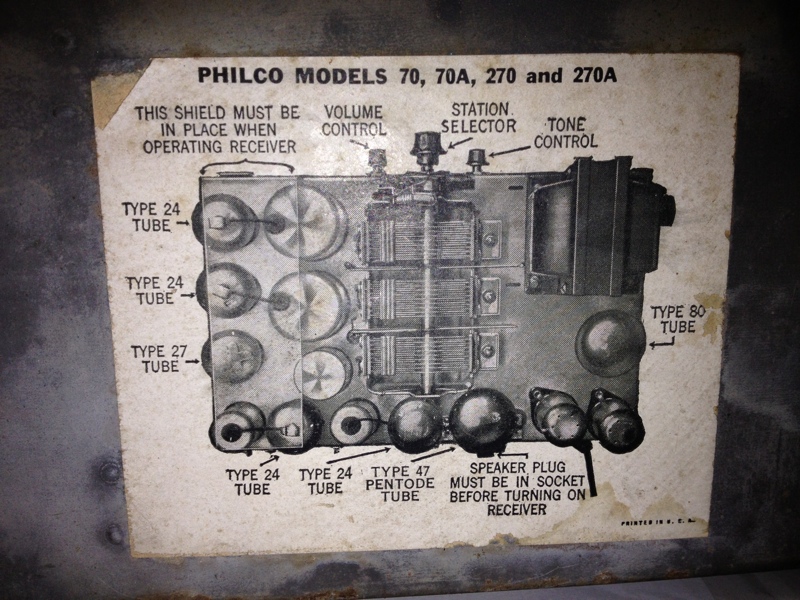

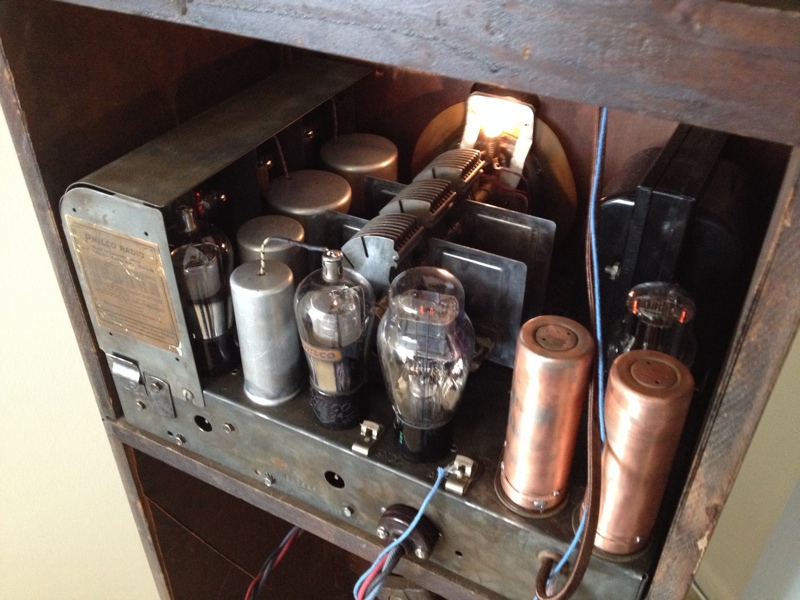

TUBES LOCATION
TUBE COMPLEMENT | 24 | 24 | 27 | 24 | 24 | 47 | 80 |
PICTURES(Click to enlarge image)

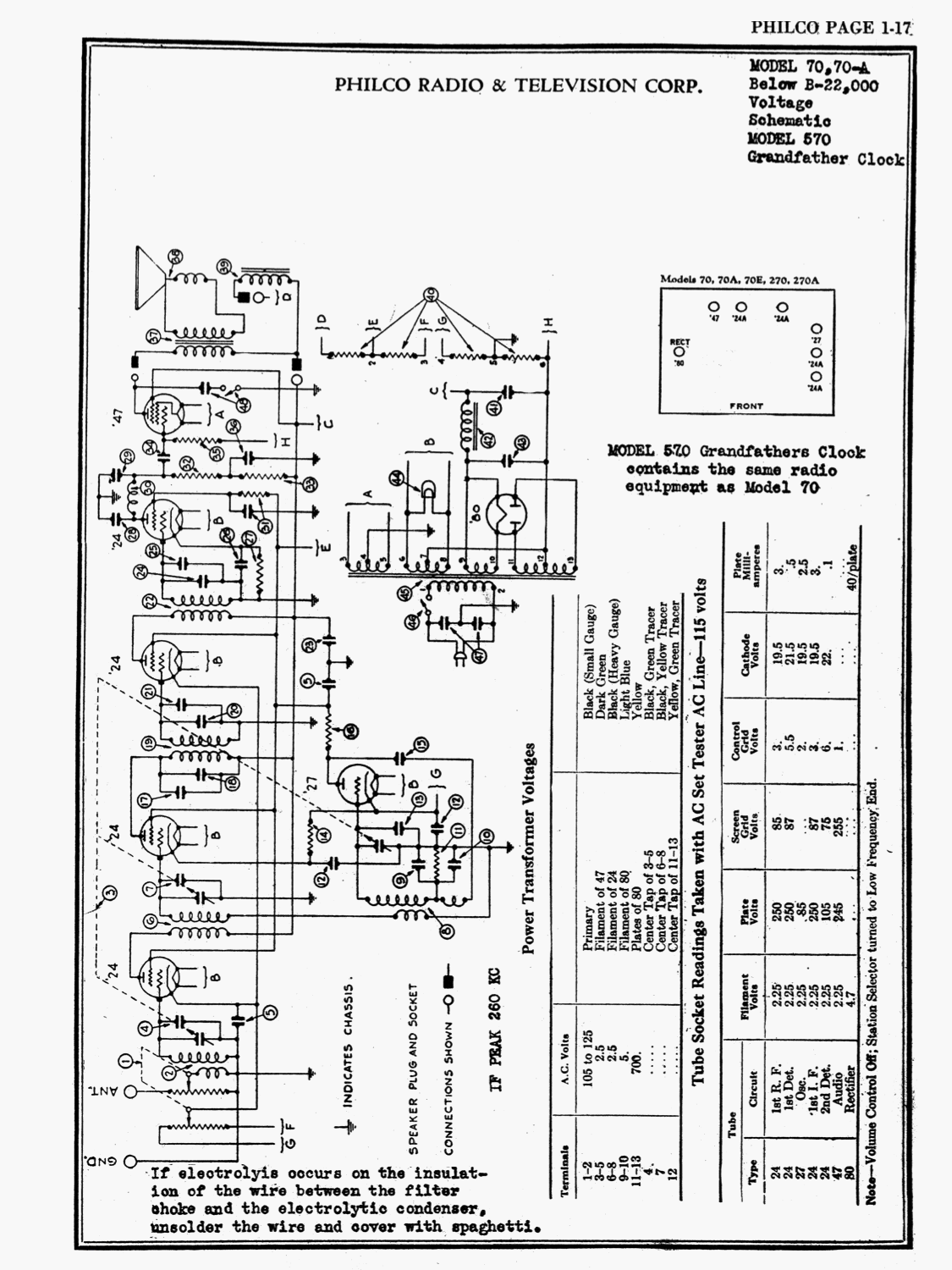

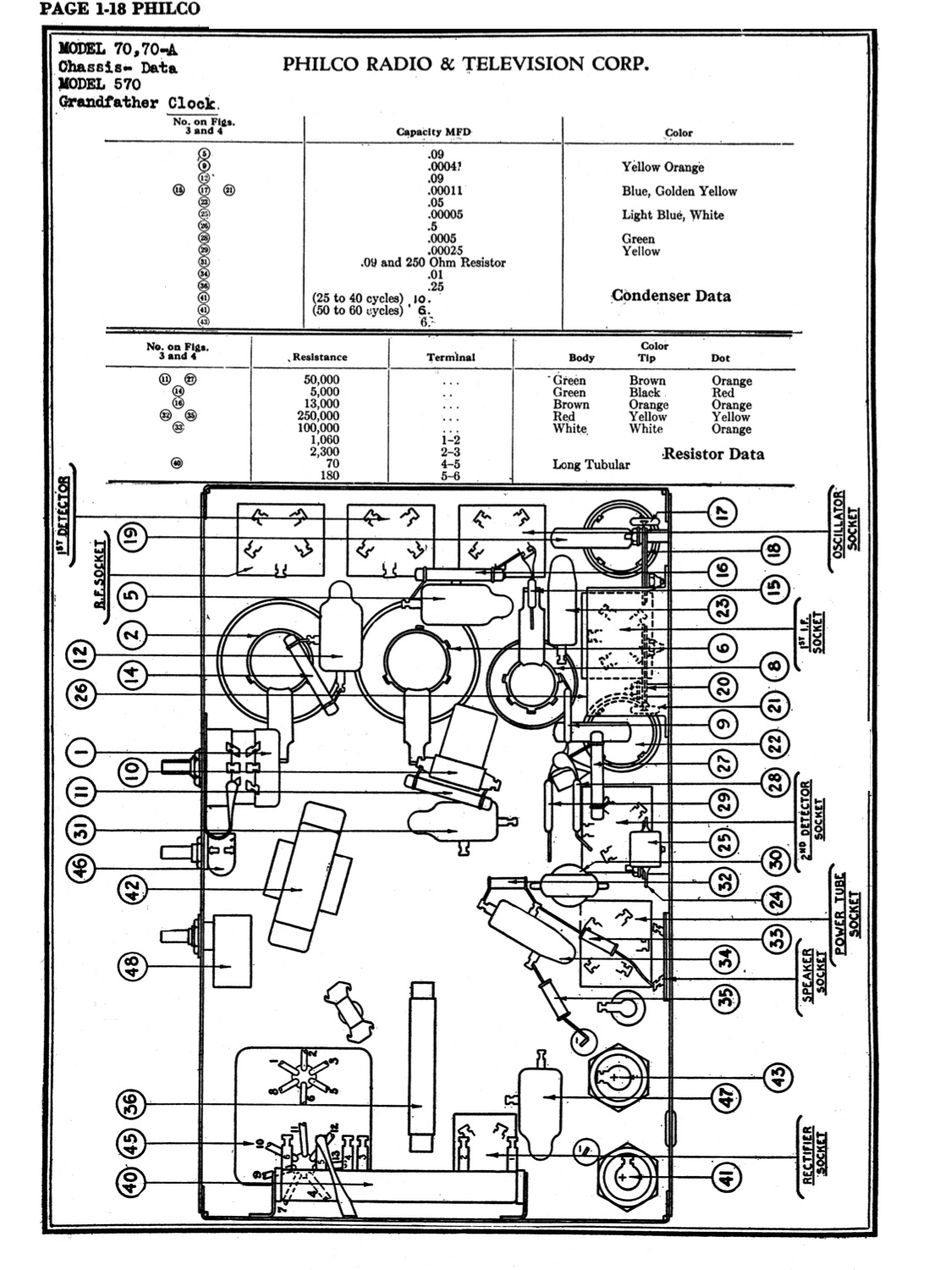

SCHEMATICS | Page1 | Page2 |
FROMFrom Kutztown PA Antique Radio Show & Swap Meet, September 20th, 2013.

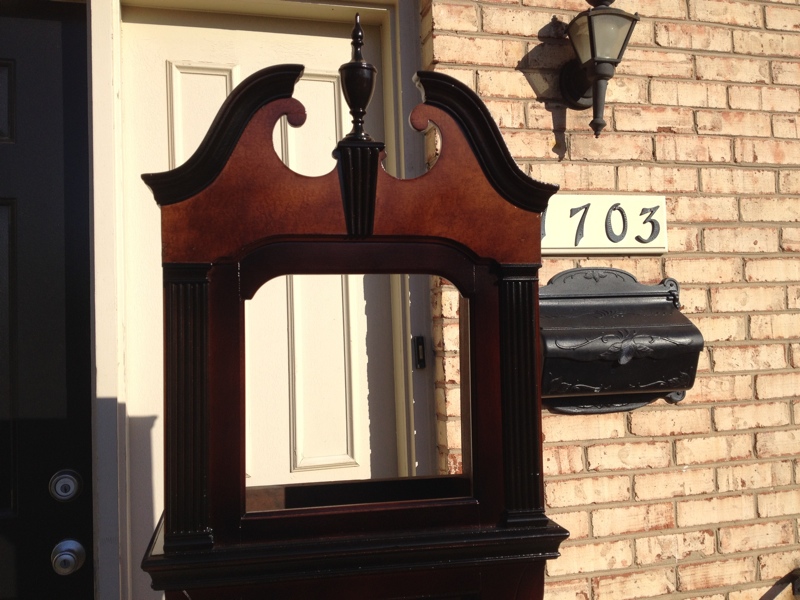

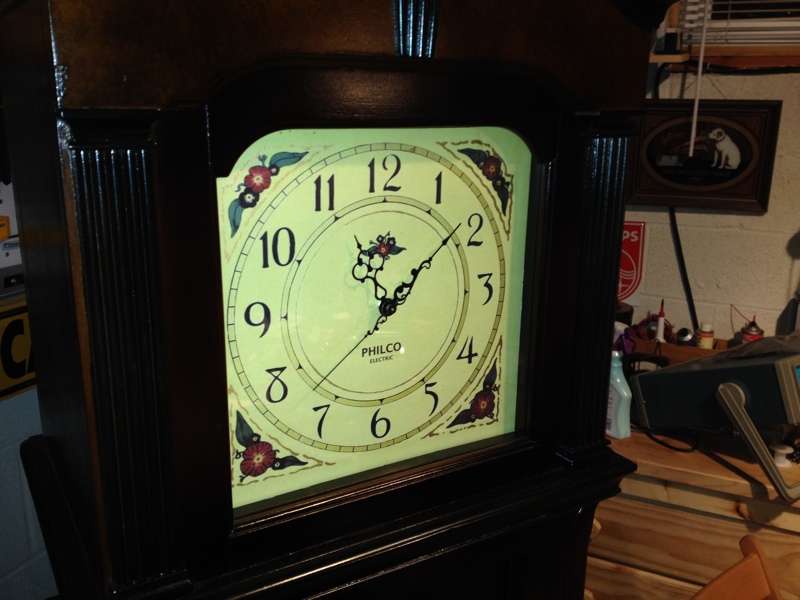

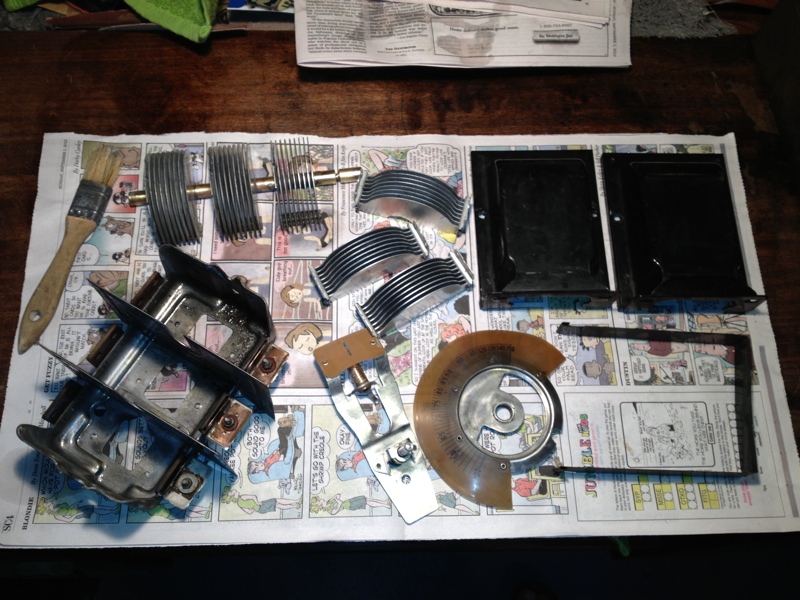

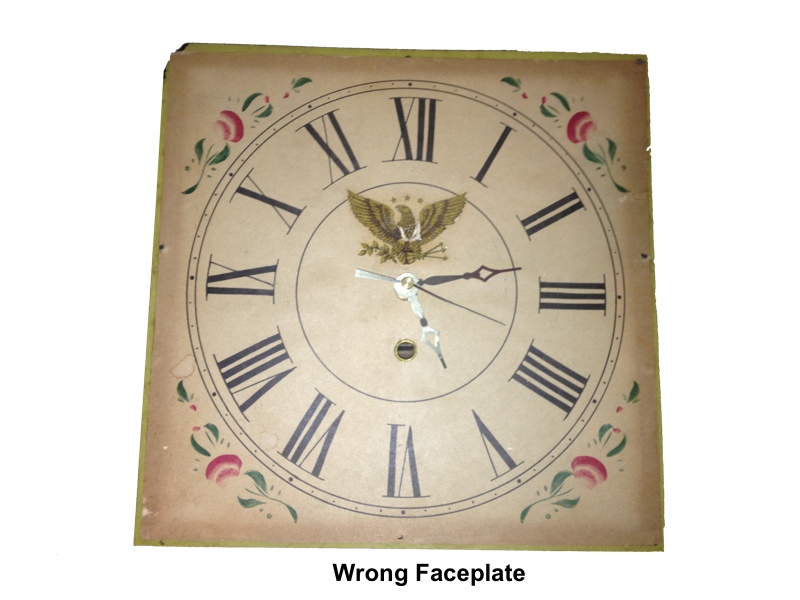

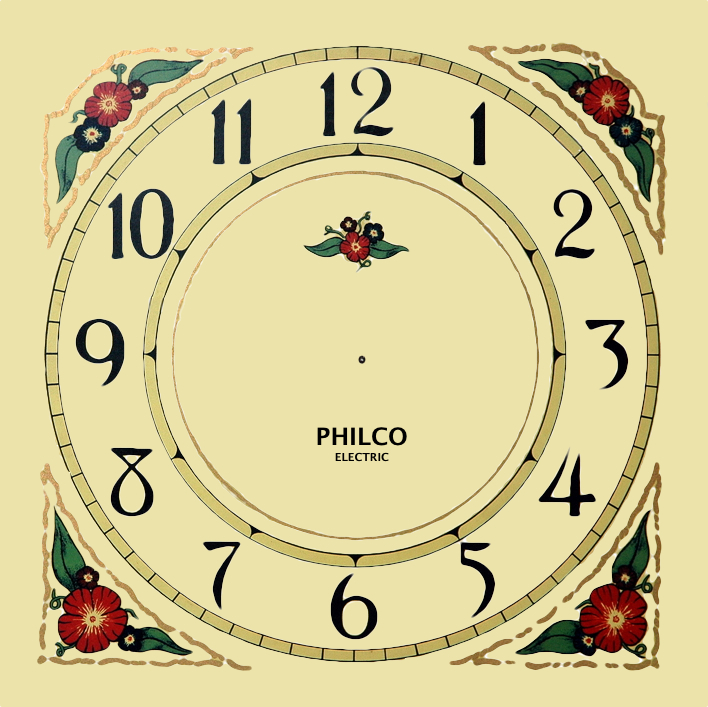

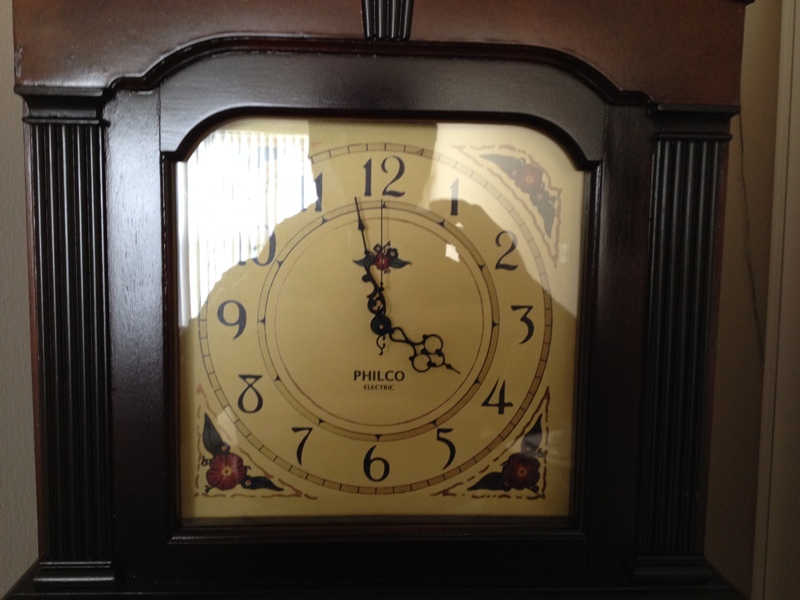

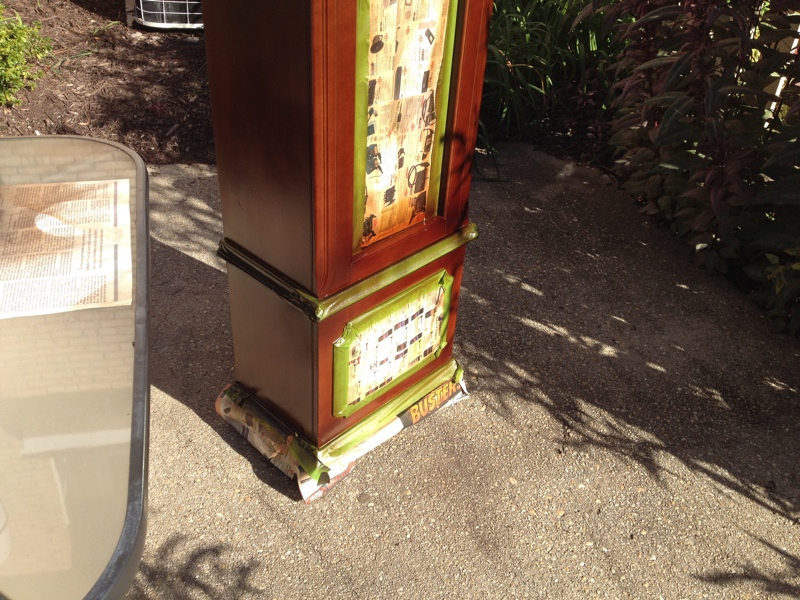

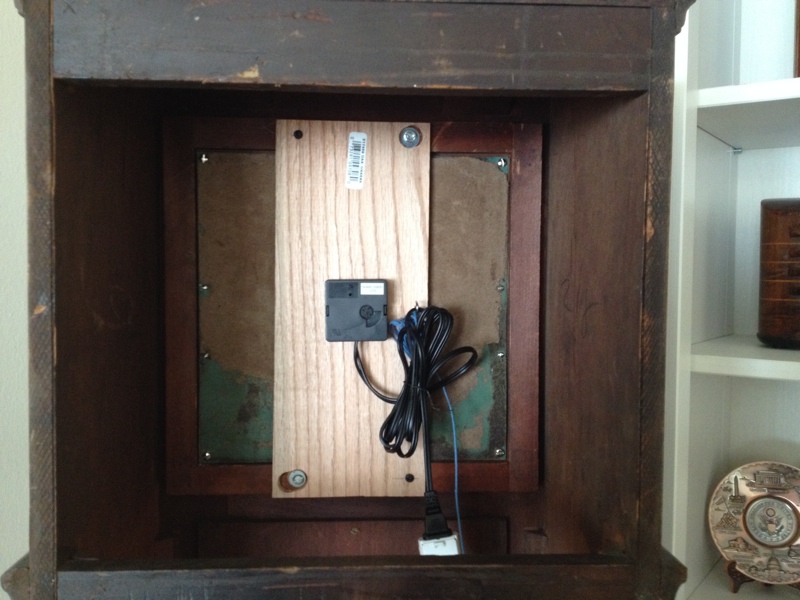

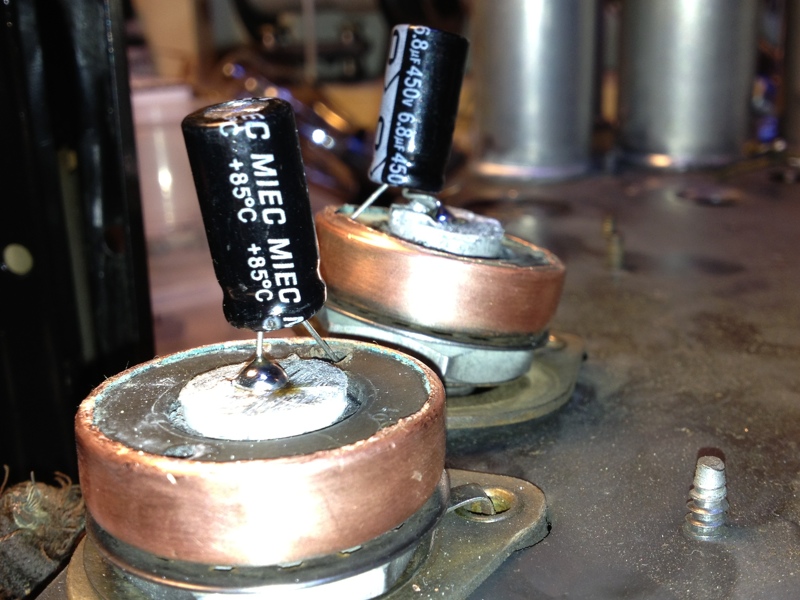

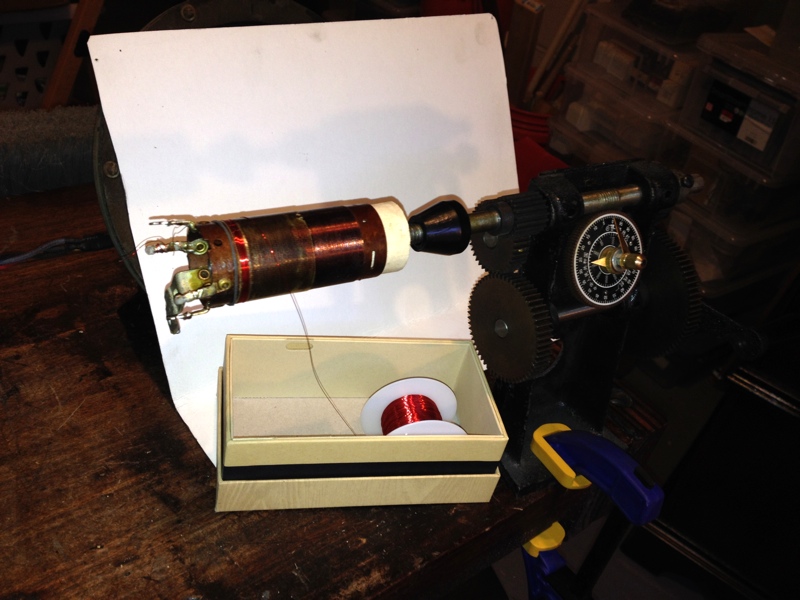

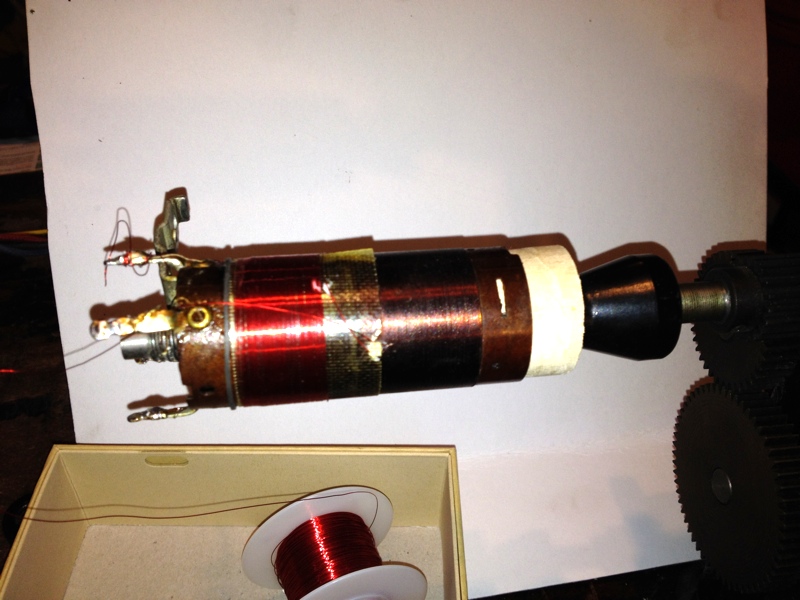

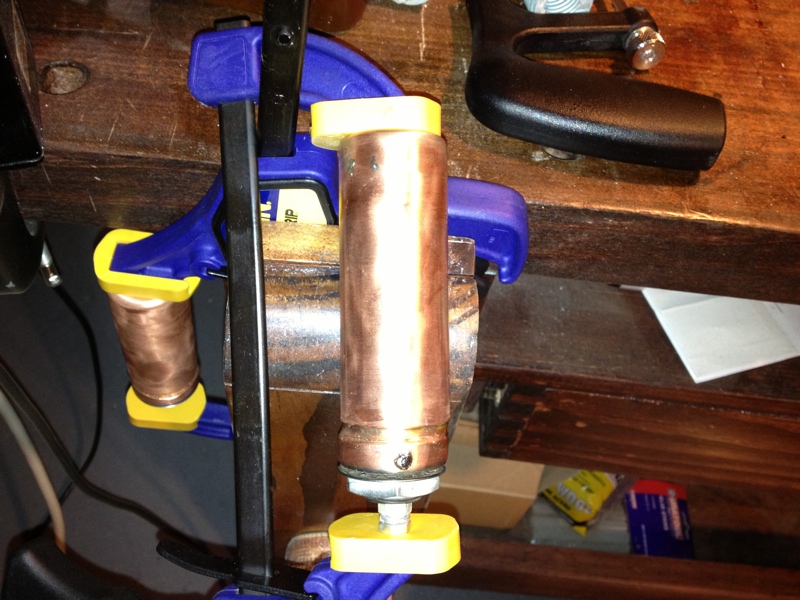

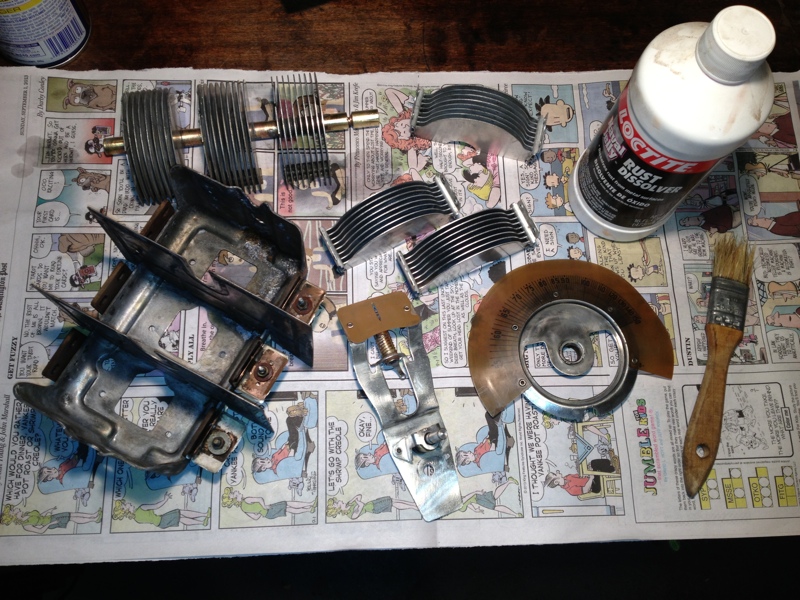

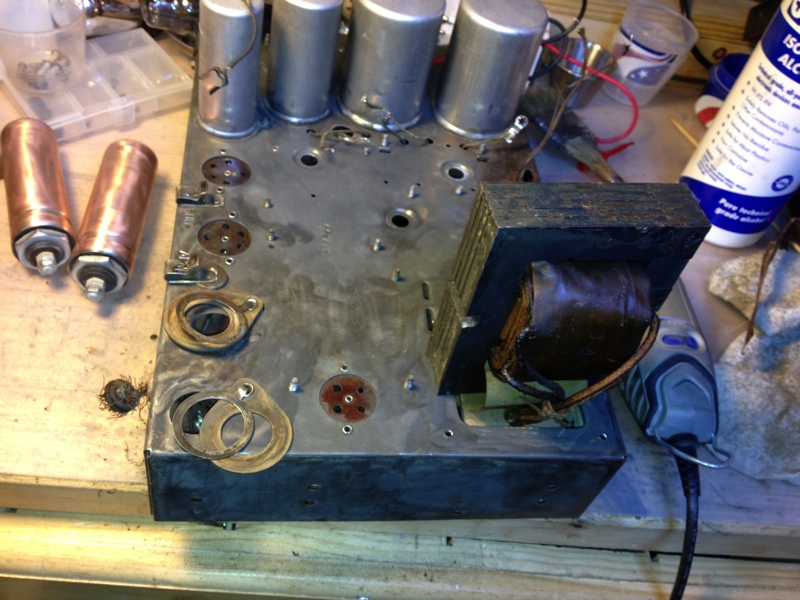

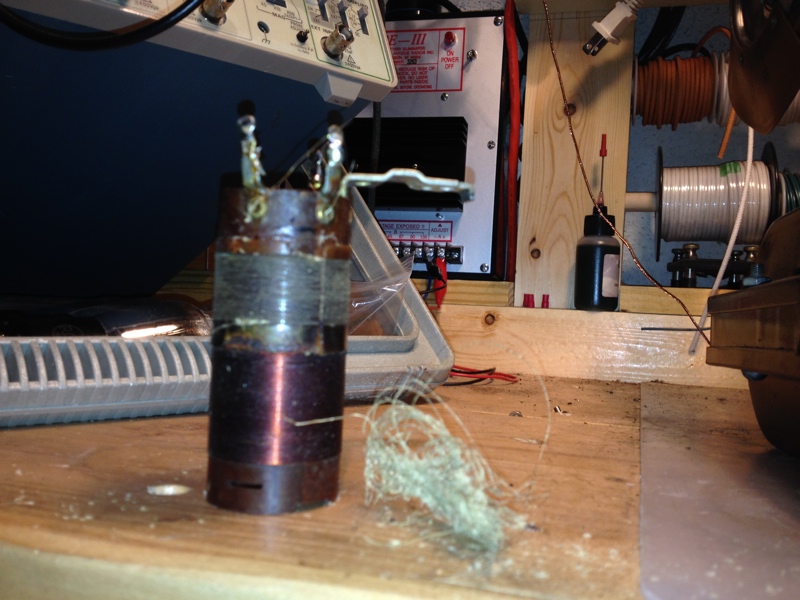

ADDITIONAL INFOThis set has been retored electronicaly and comesticaly, with a new faceplate and clock machine.
