RADIOMajestic
MODELInternational
TECHNOLOGYTube
YEAR1935
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE460 - 1600 KHz
DESCRIPTION

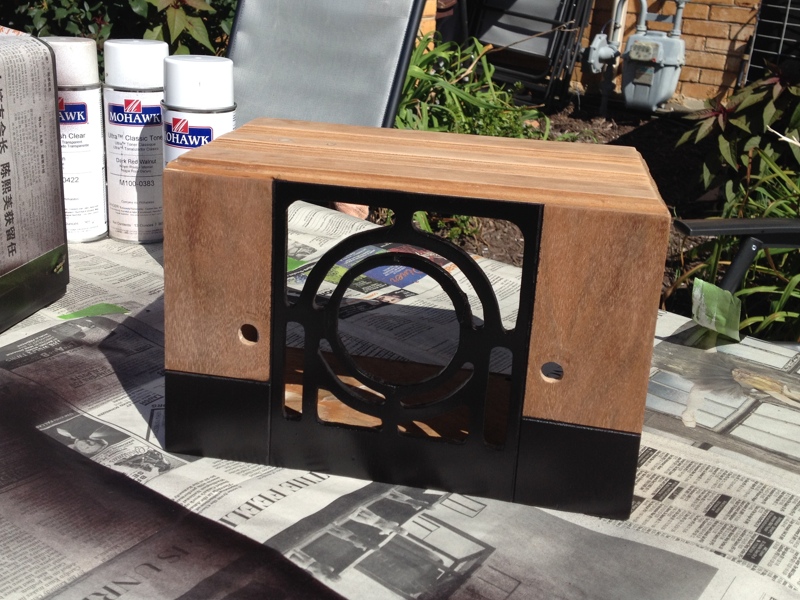

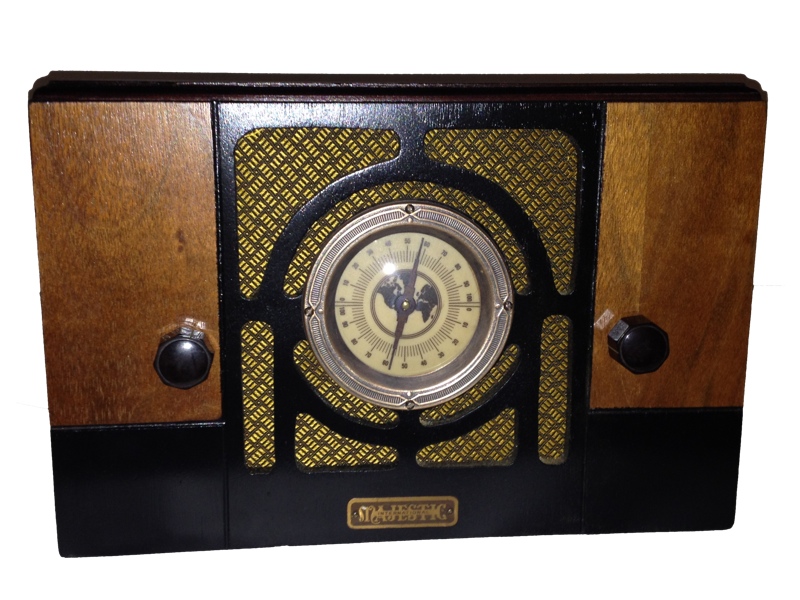

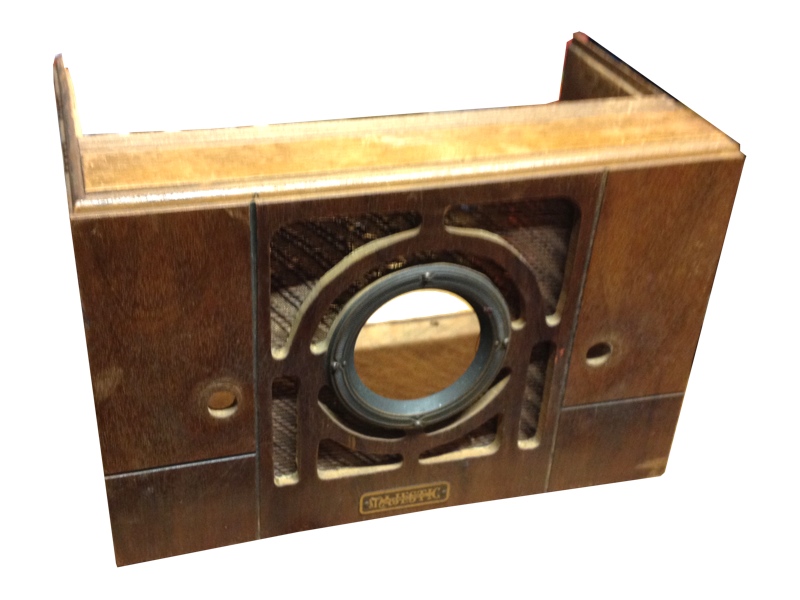

CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE2 x ?
TONENo
CIRCUITTRF
IF?
POWER SUPPLYAC
VOLTS110 Volts
CONSUMPTION?
AC CYCLES50-60 Hz

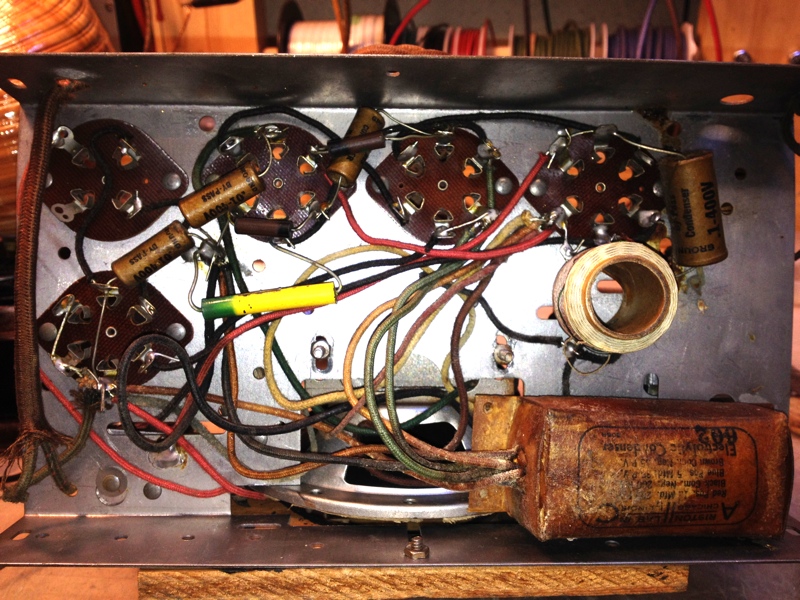

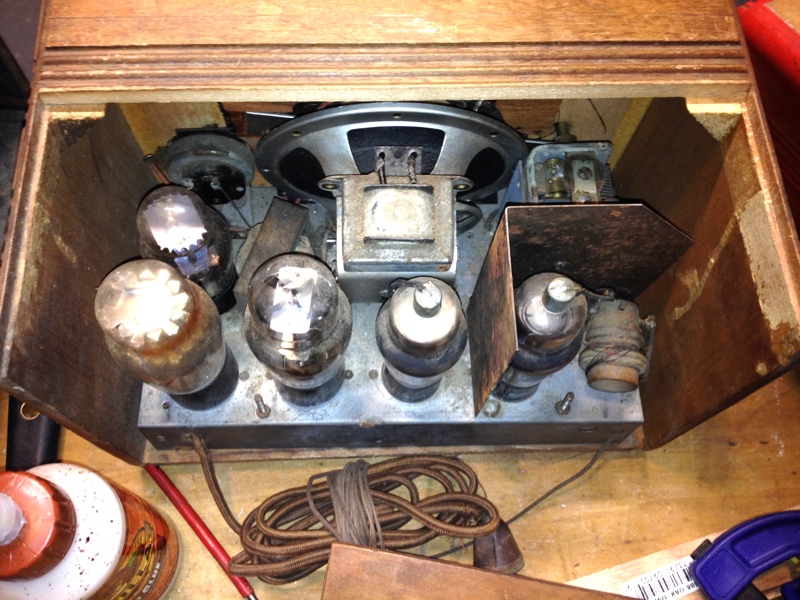

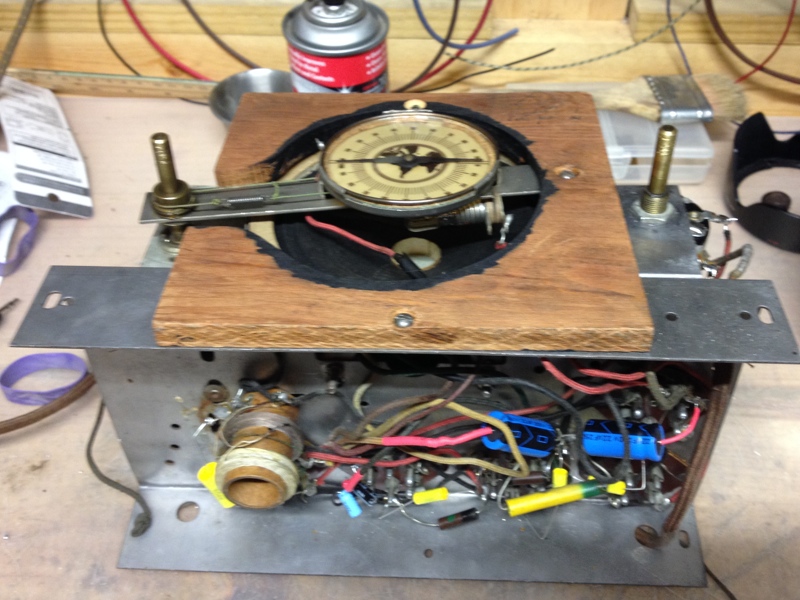

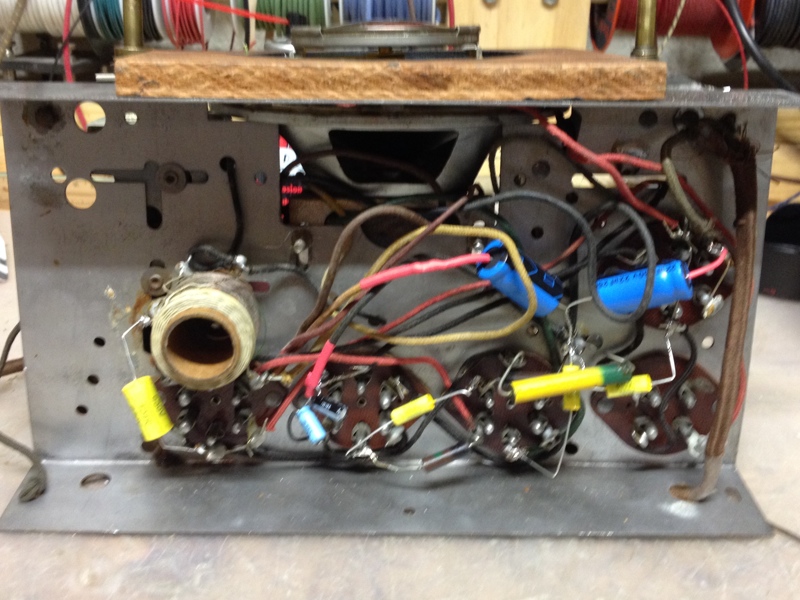

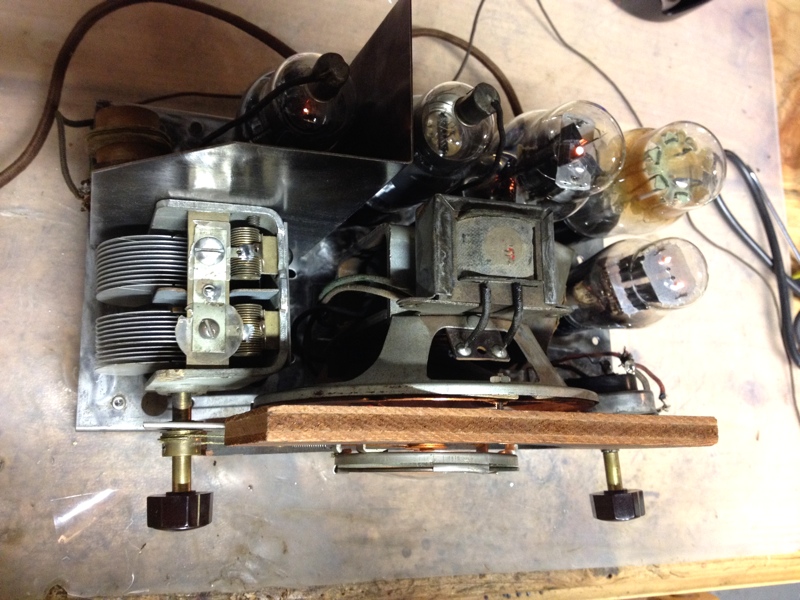

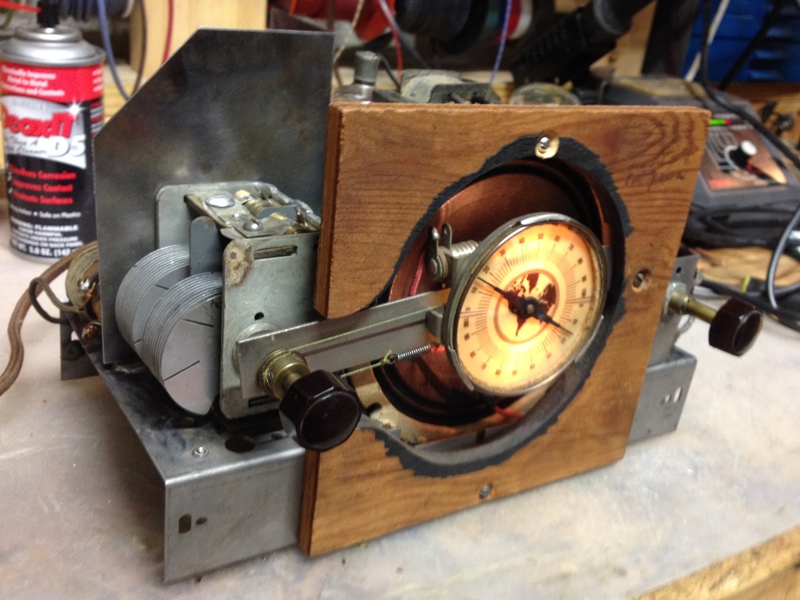

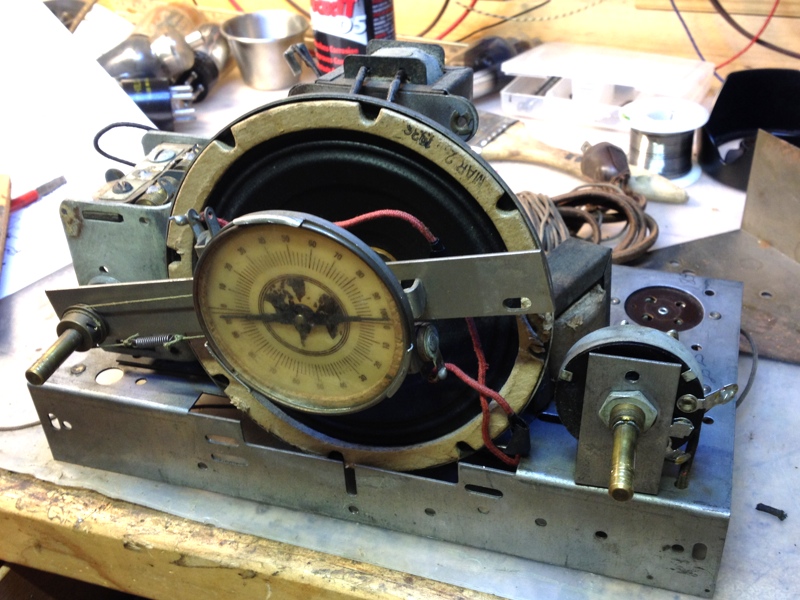

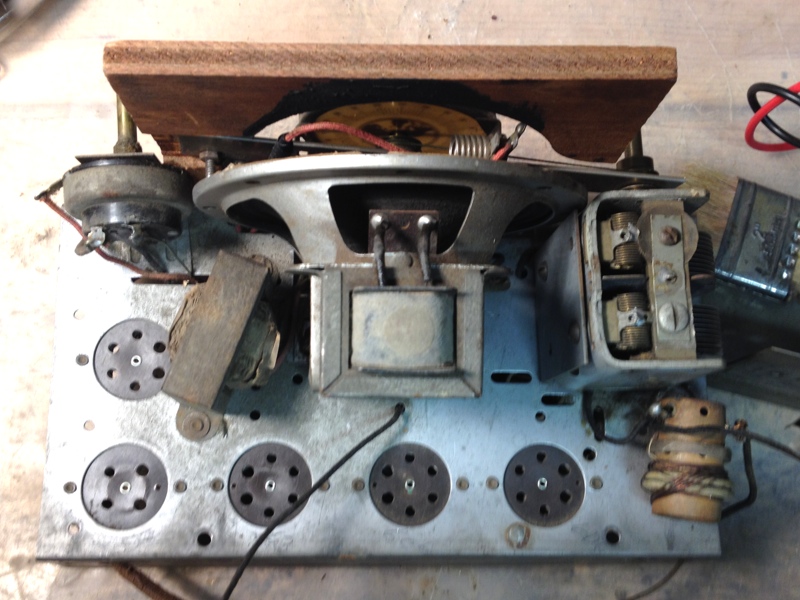

CHASSIS

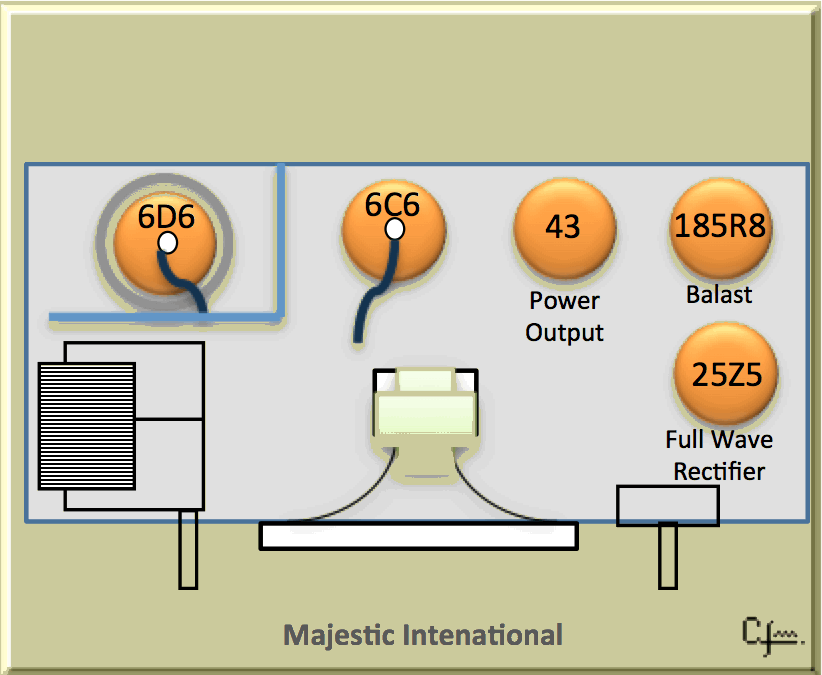

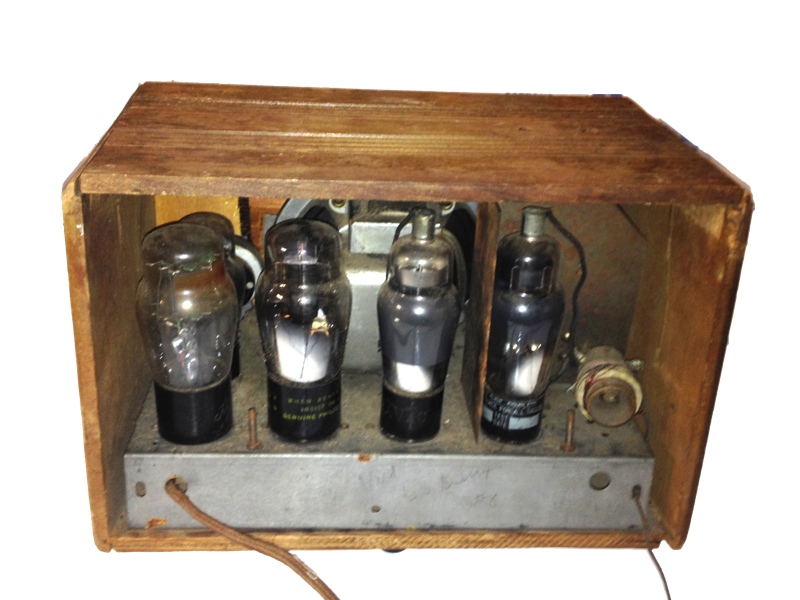

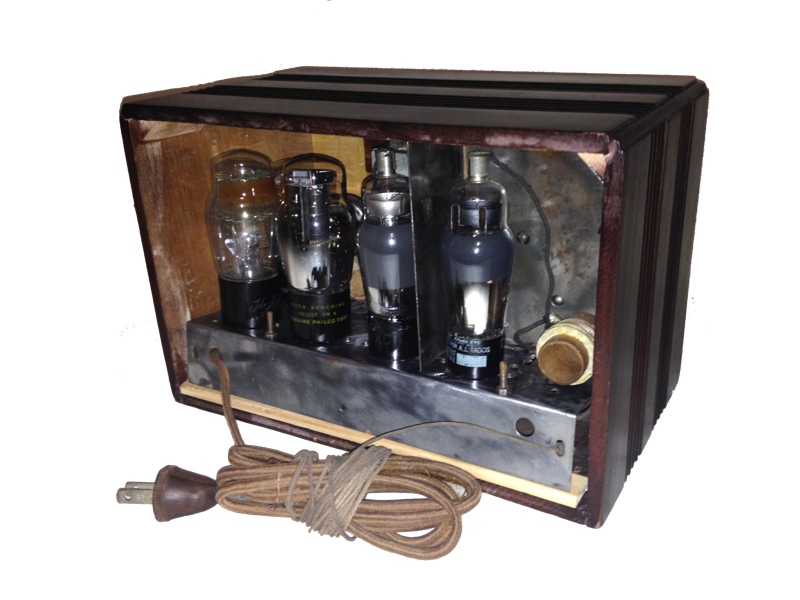

TUBES LOCATION
TUBE COMPLEMENT | 43 | 6D6 | 6C6 | 25Z5 |

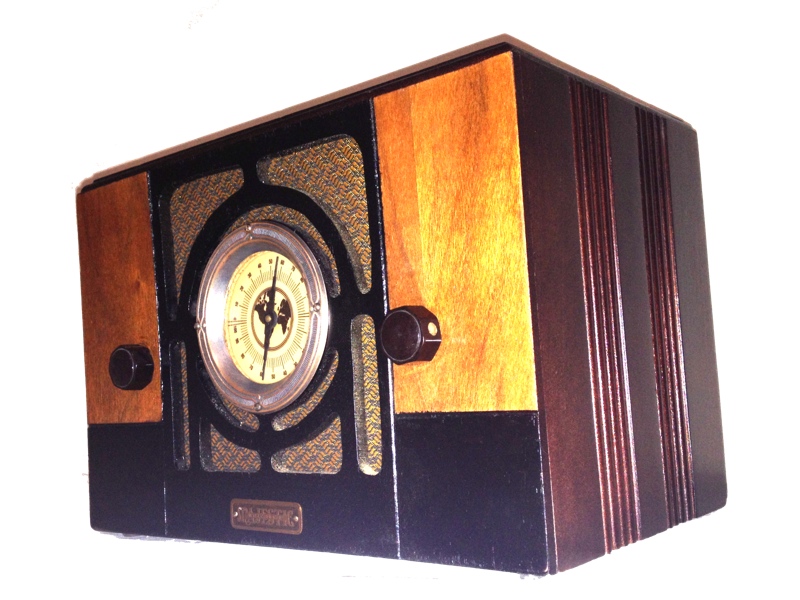

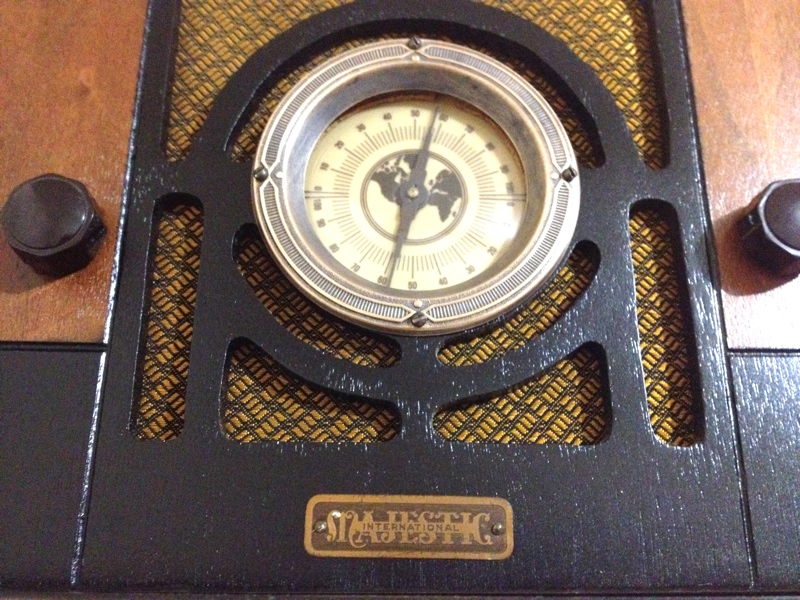

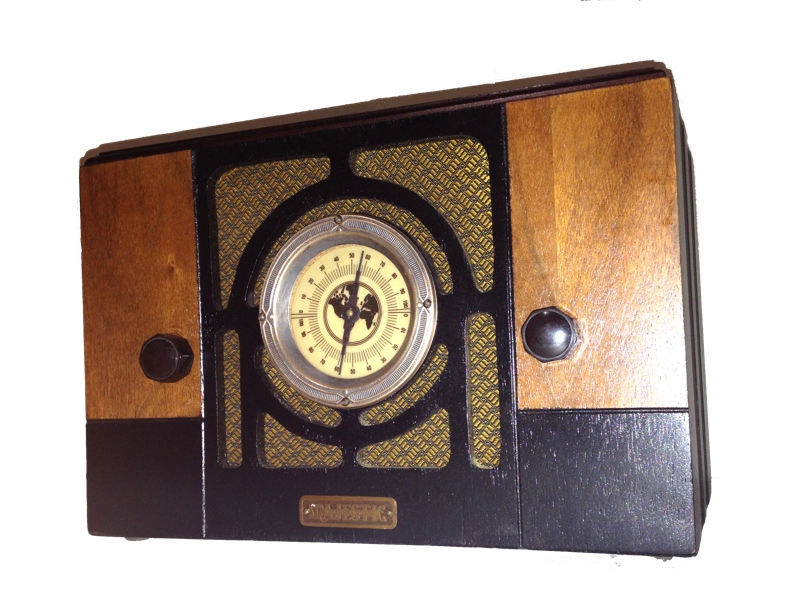

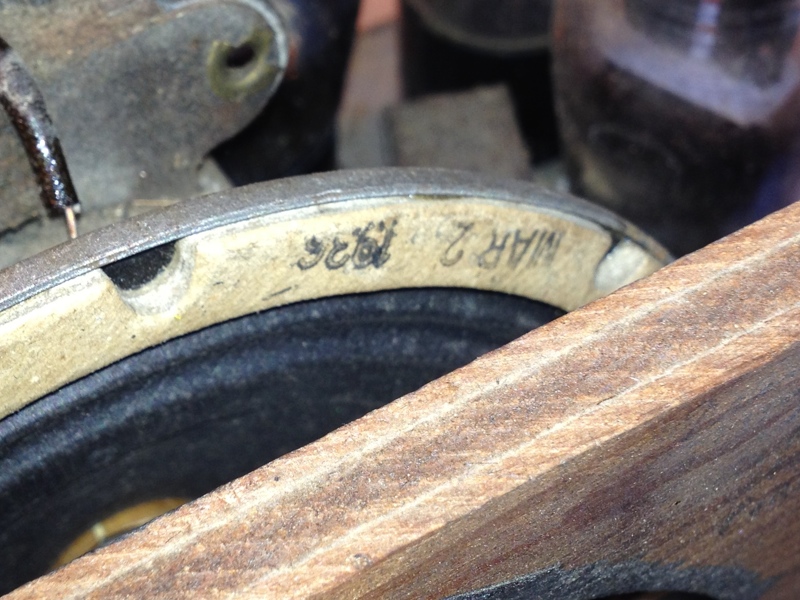

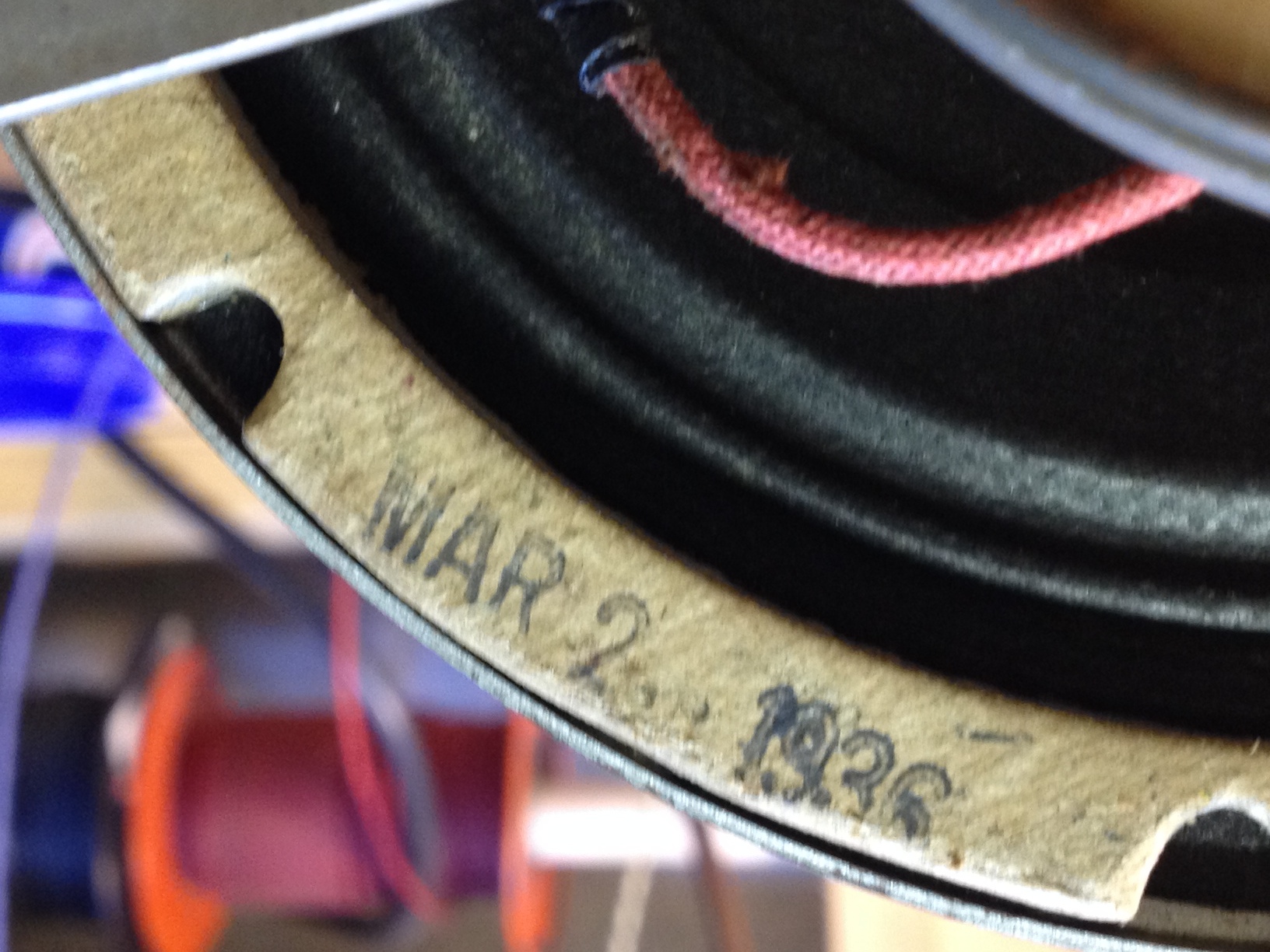

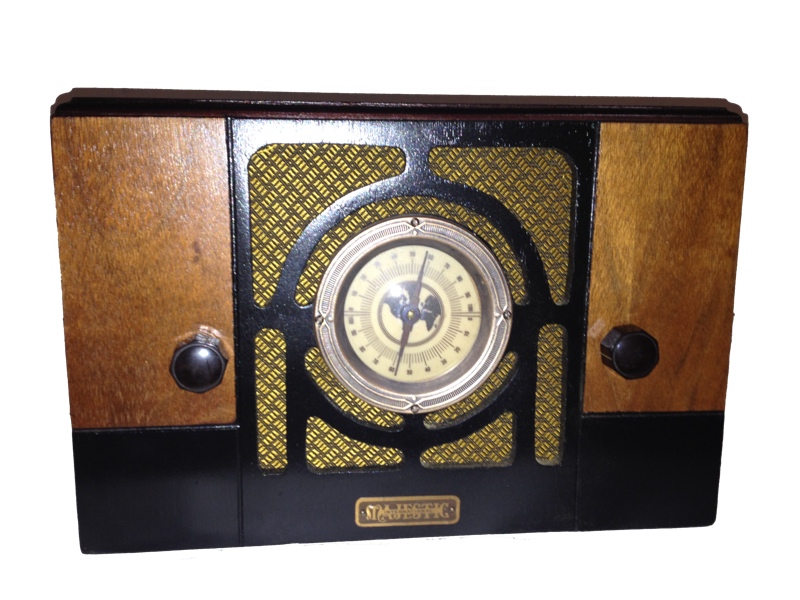

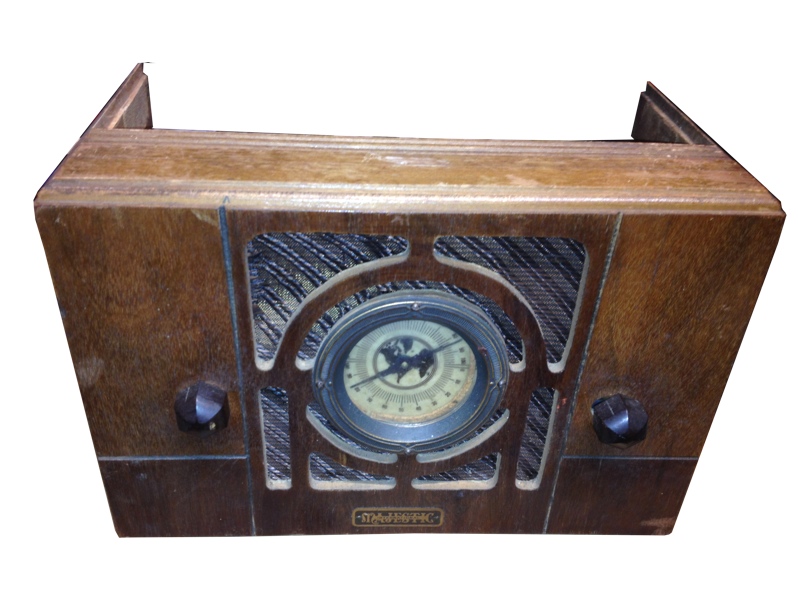

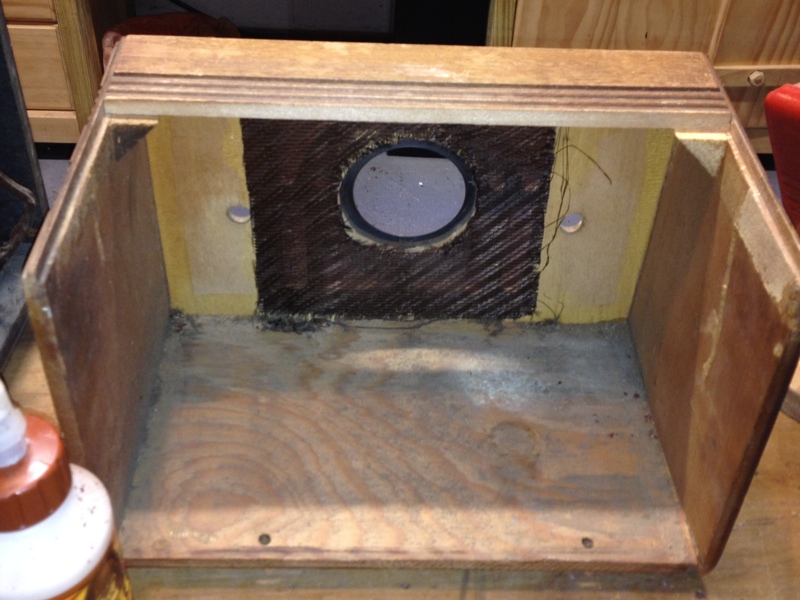

PICTURES(Click to enlarge image)

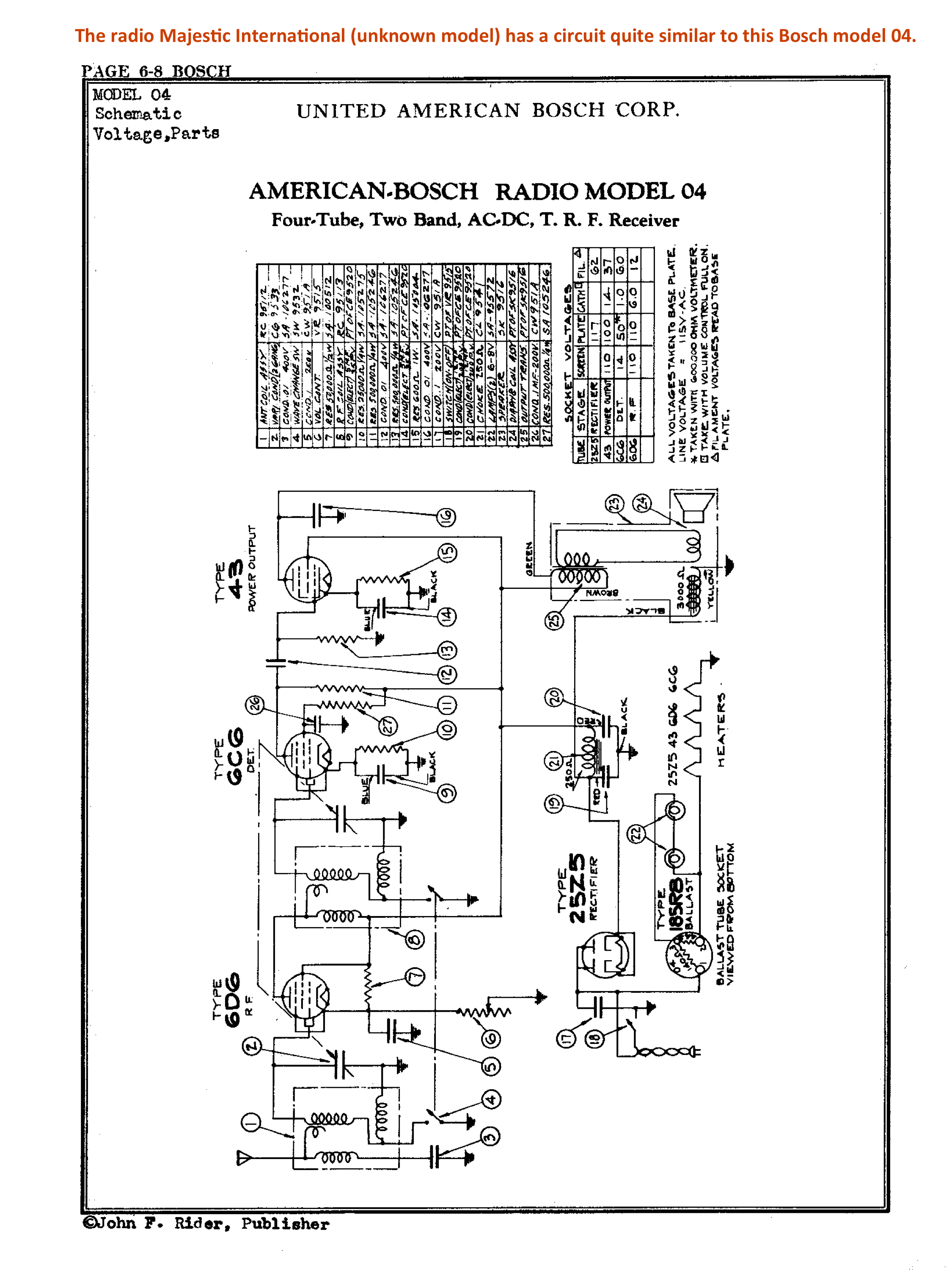

SCHEMATICS | Page1 |
FROMFrom Sep 2014 XXXI Kutztown Radio Show
ADDITIONAL INFOBesides the tubes there is a ballast 185R8
