| RADIO | Airline |
| MODEL | 93BR423B |
| TECHNOLOGY | Tube |
|
|
|

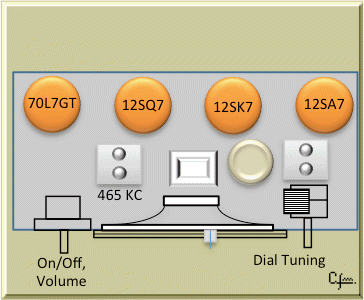

| YEAR | 1939 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | BC 540 - 1720 kHz |
| DESCRIPTION | Plastic cabinet, lower front slide rule dial, upper horizontal wrap-around louvers, 2 knobs |
| CABINET STYLE | Midget |
| CABINET MATERIAL | Bakelite |
| DIAL LAMP - N° x TYPE | 0 x None |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 465 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 105-125 Volts |
| CONSUMPTION | 35 W |
| AC CYCLES | 50-60 Hz |
| CHASSIS | BRC62420 |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 12SA7 | 12SK7 | 12SQ7 | 70L7 |
|
| PICTURES | (Click to enlarge image) |
|
|

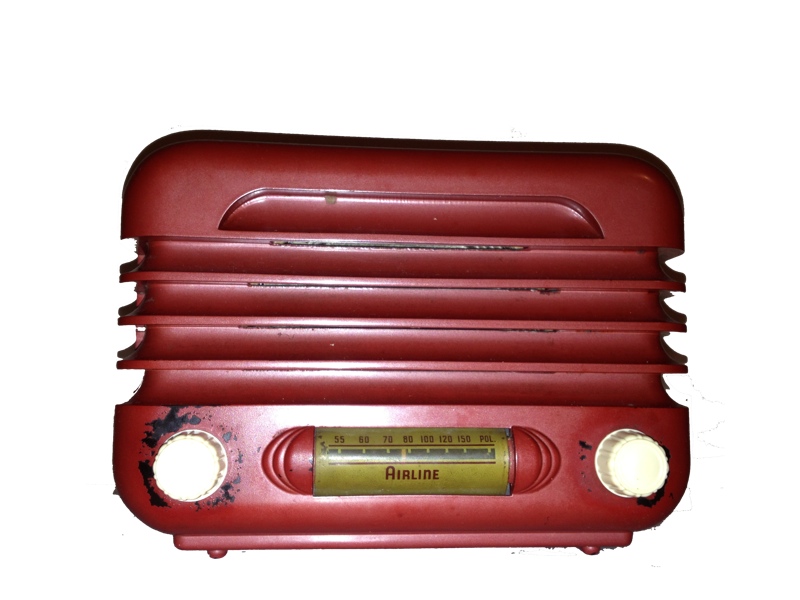

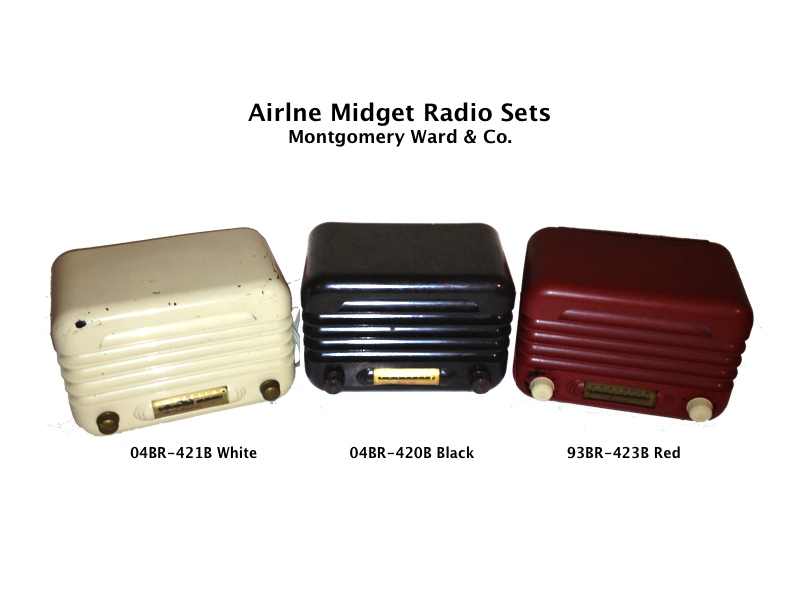

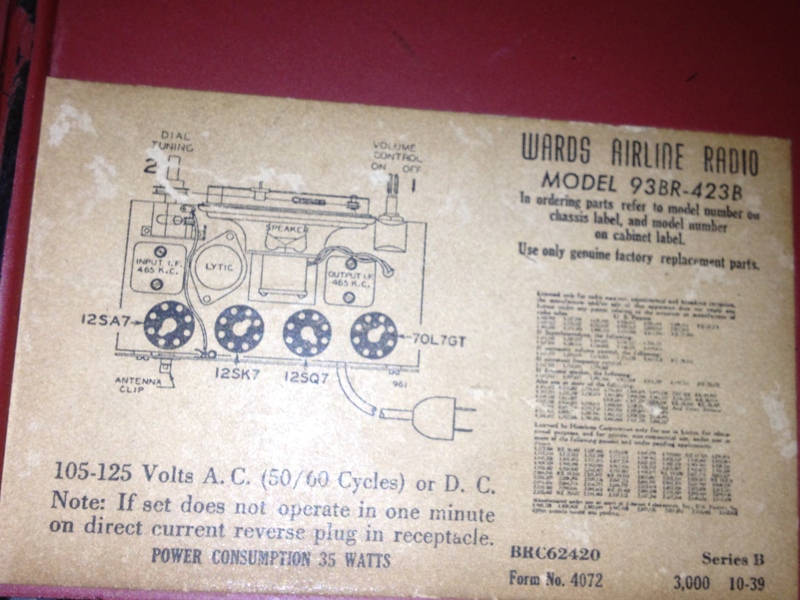

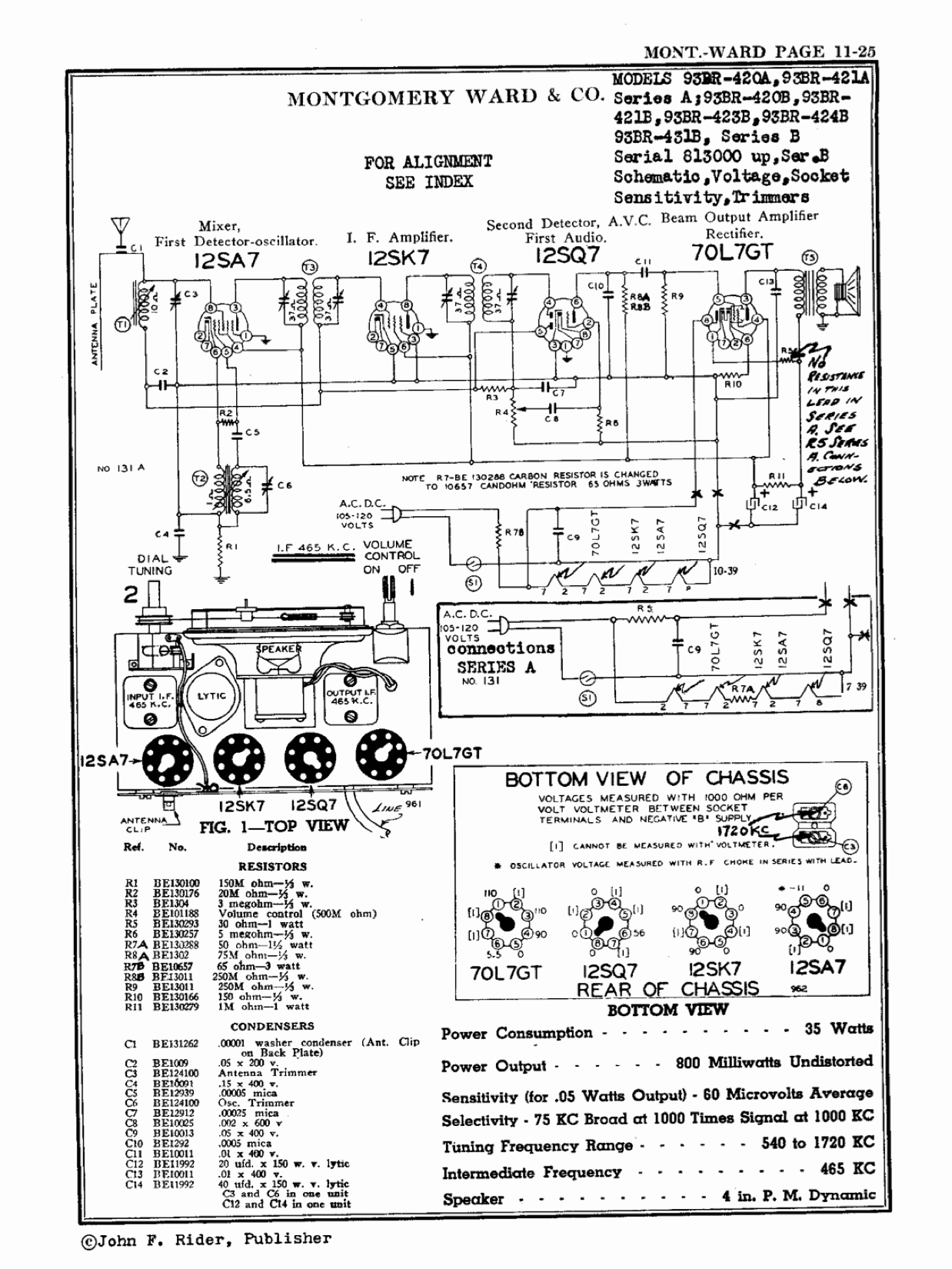

| SCHEMATICS |
| Page1
| Page2
|
|
| FROM | From Geoff, MAARC monthly meeting, February 18th, 2013. |
