RADIORCA Victor
MODEL5T
TECHNOLOGYTube
YEAR1936
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1820 KHz, SW 1.82 - 6.6 MHz

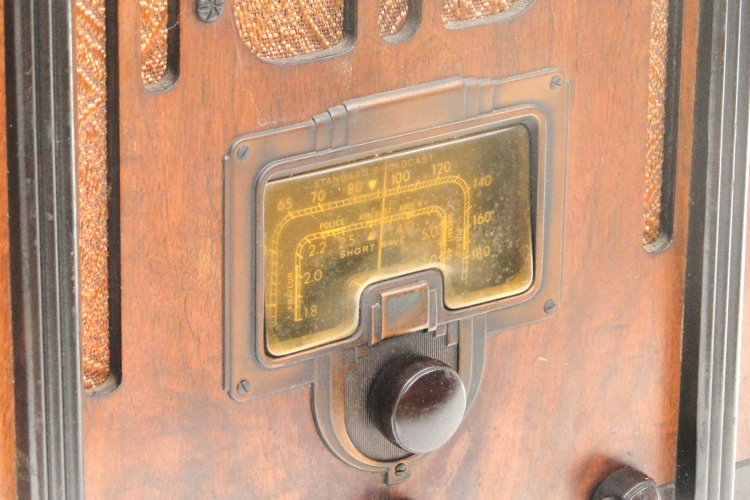

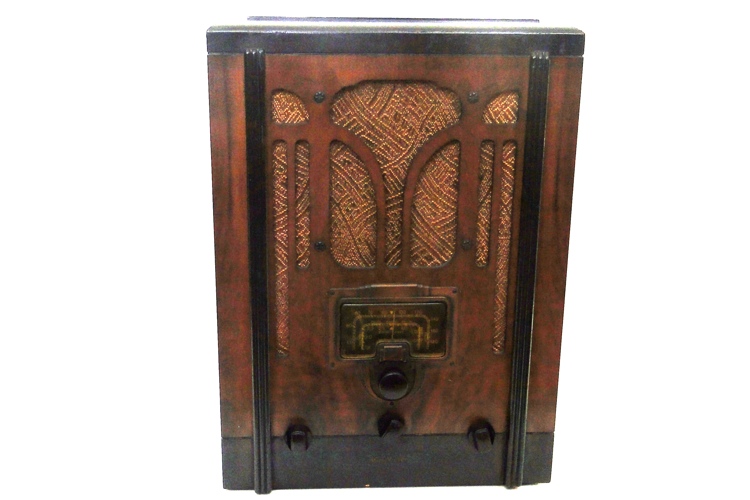

DESCRIPTIONCentralized rectangular front dial, upper cloth grill with nice cut-outs, 4 knobs => power switch, tone; tuning; volume; and range
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE3 x 46
TONE2 Positions
CIRCUITSuperheterodyne
IF460 KC
POWER SUPPLYAC
VOLTS105 - 125 Volts
CONSUMPTION80 W
AC CYCLES50-60 Hz

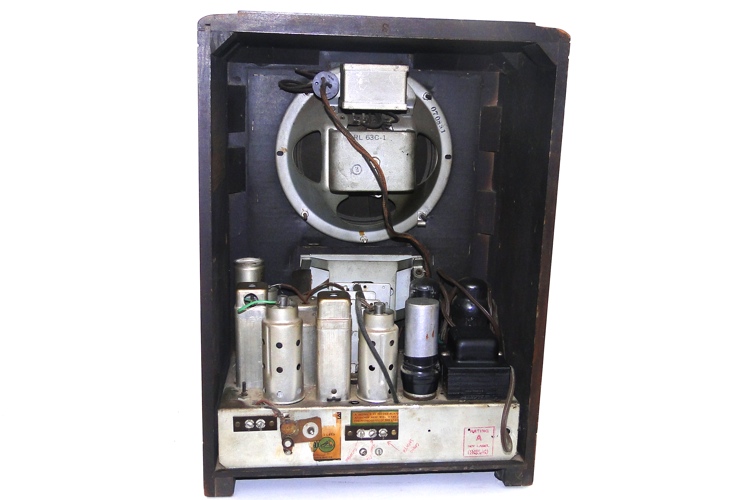

CHASSIS

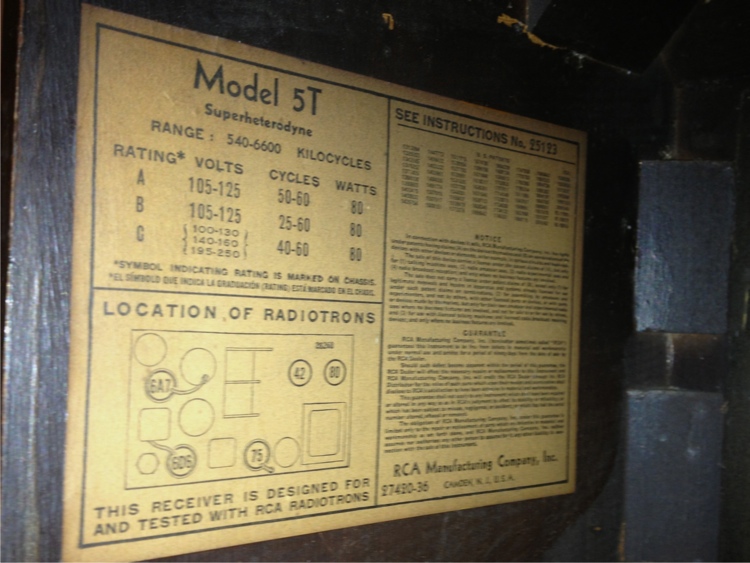

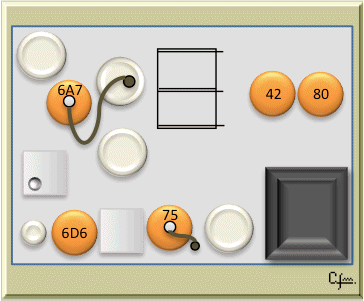

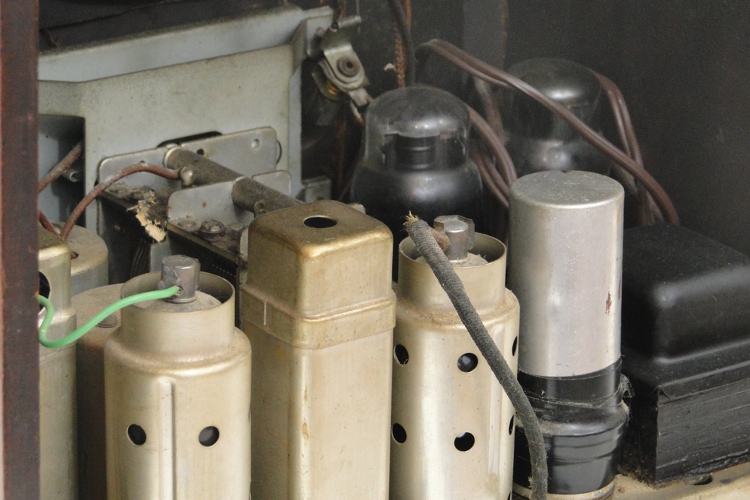

TUBES LOCATION
TUBE COMPLEMENT | 6A7 | 6D6 | 75 | 42 | 80 |

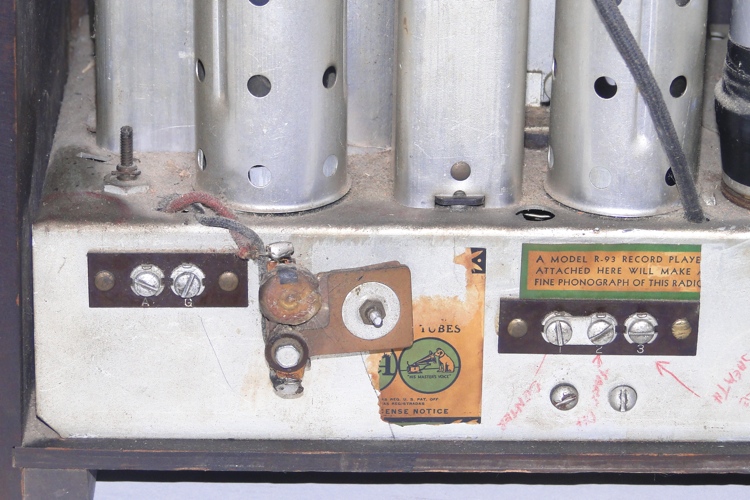

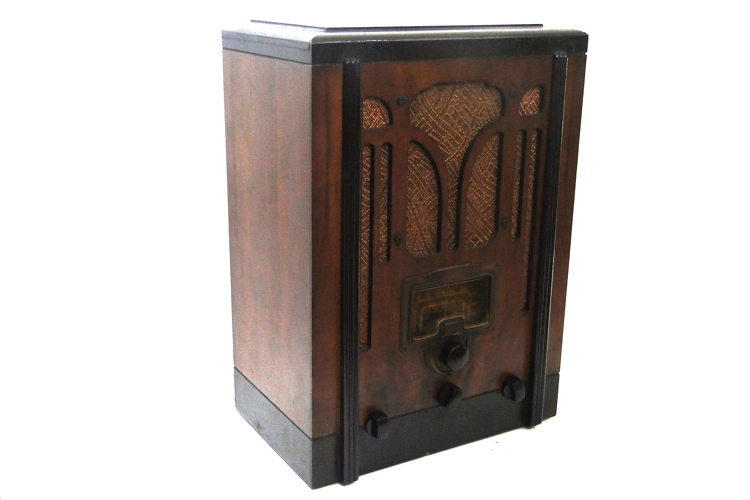

PICTURES(Click to enlarge image)

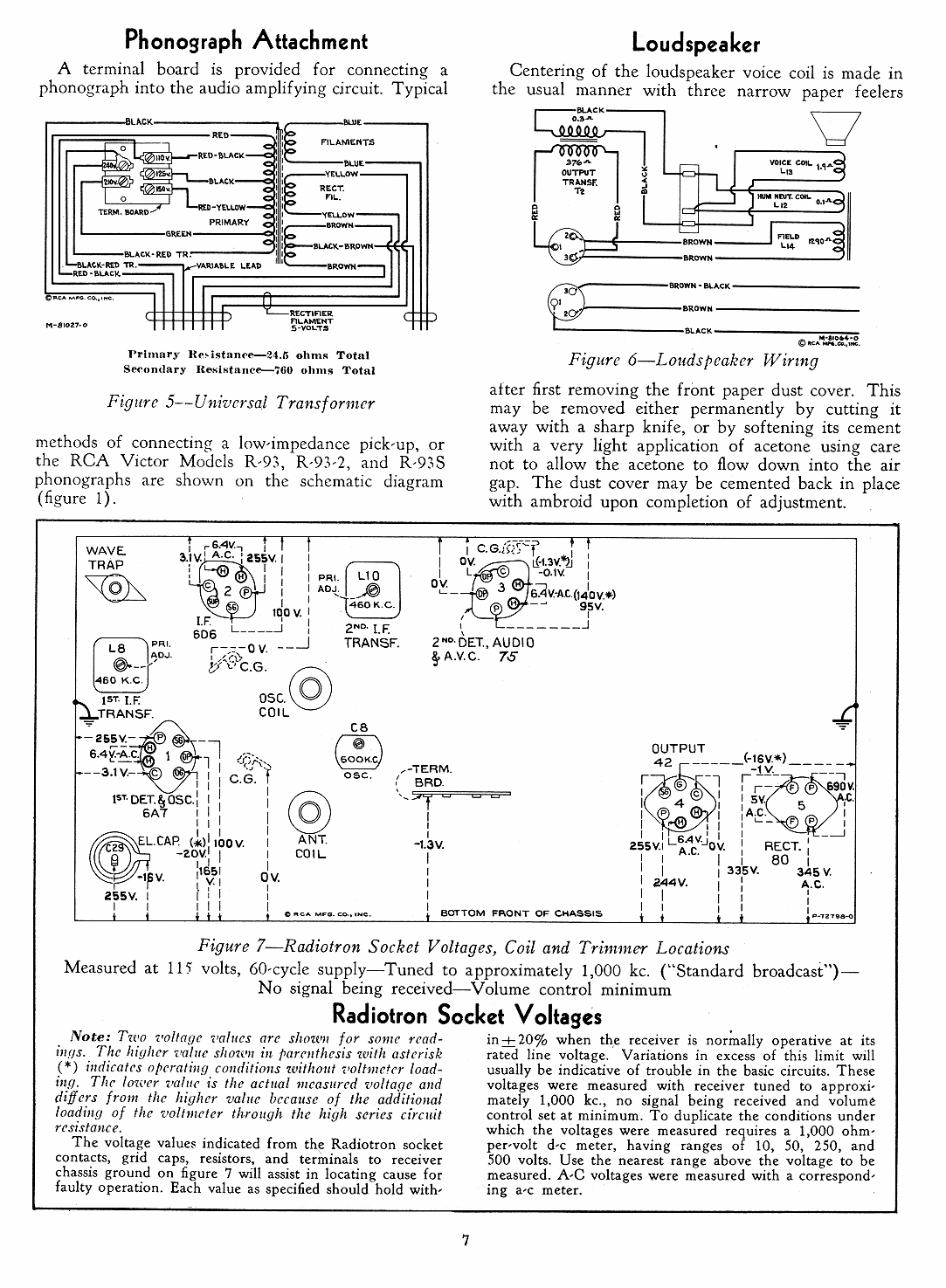

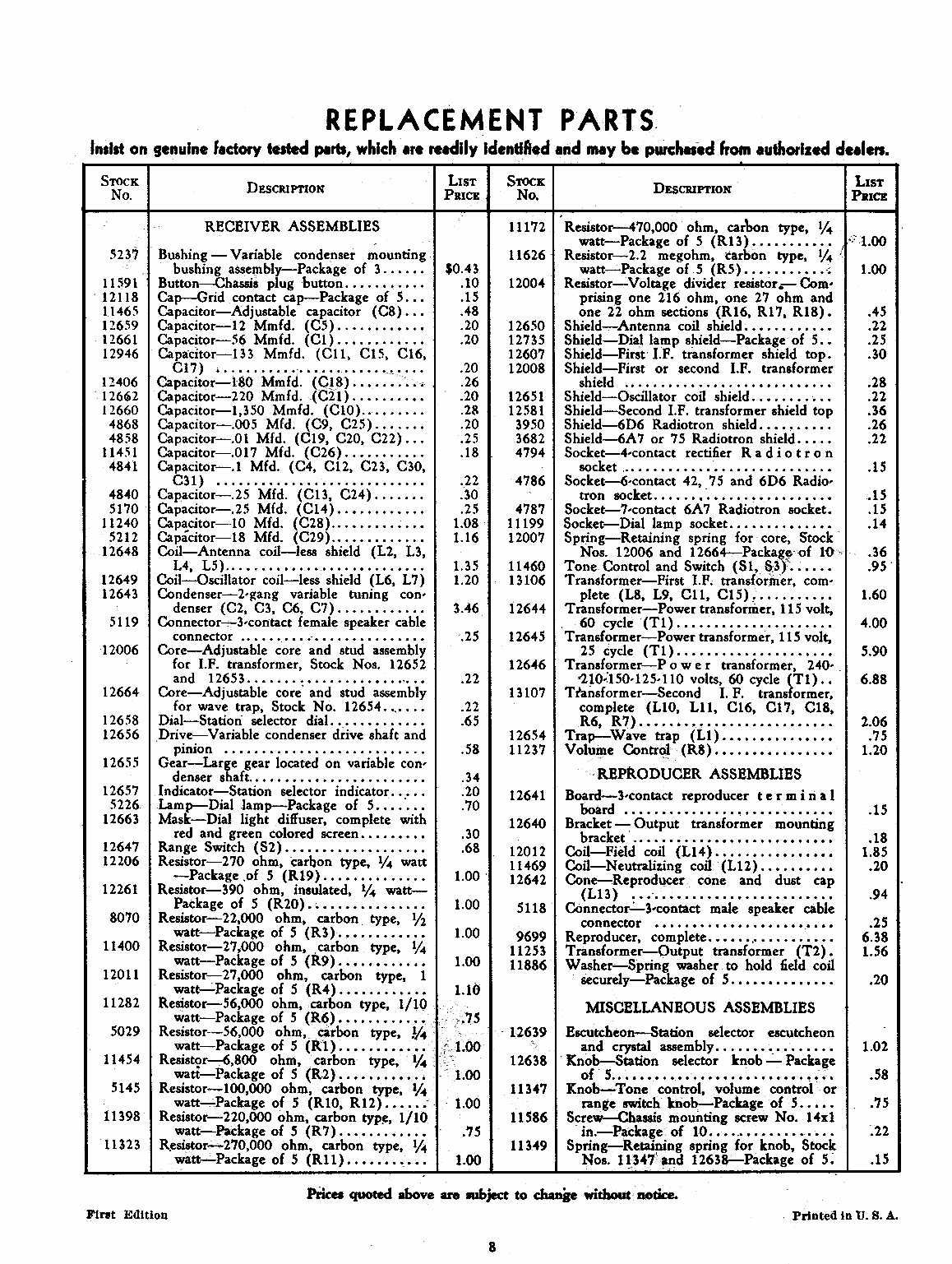

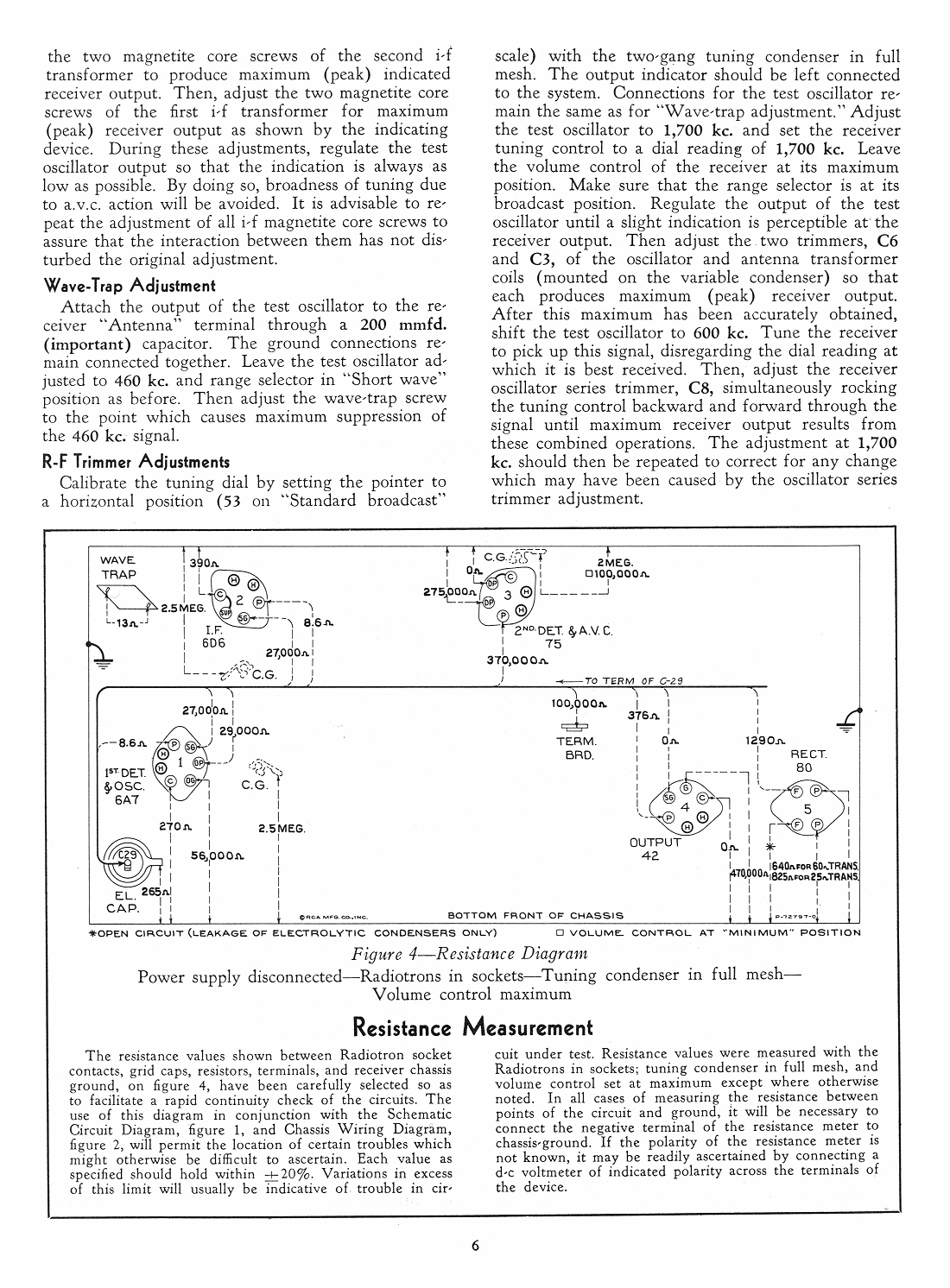

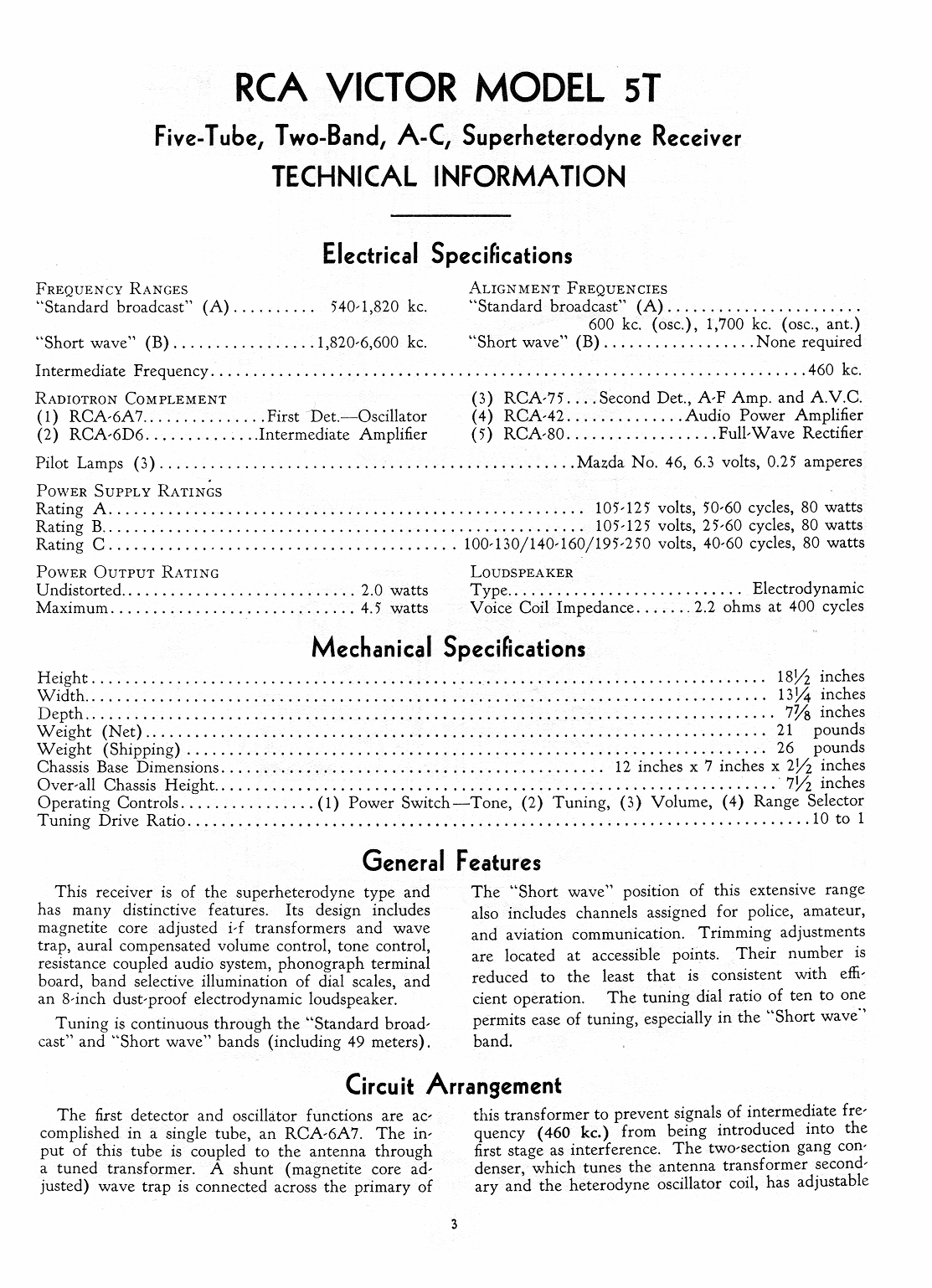

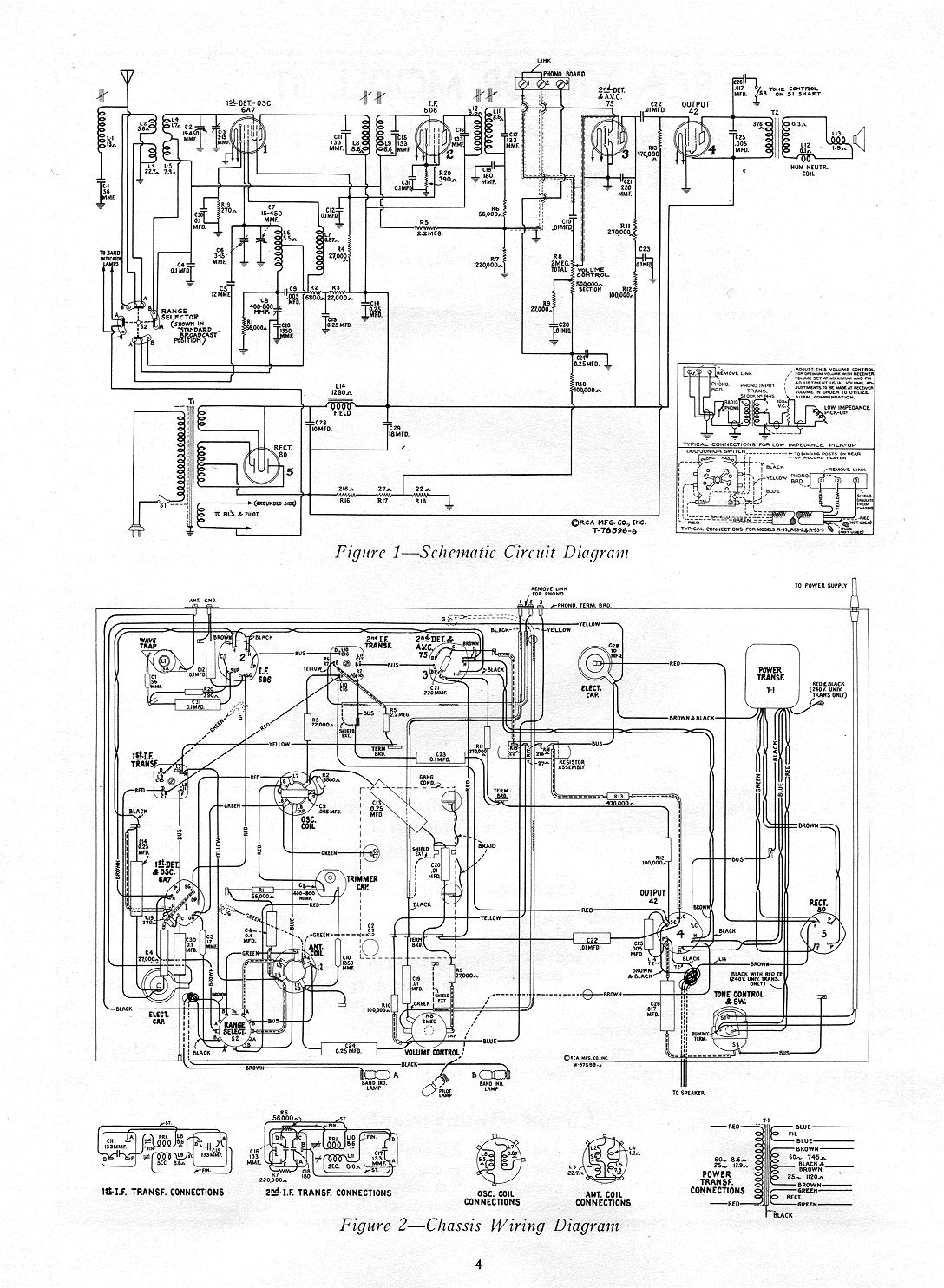

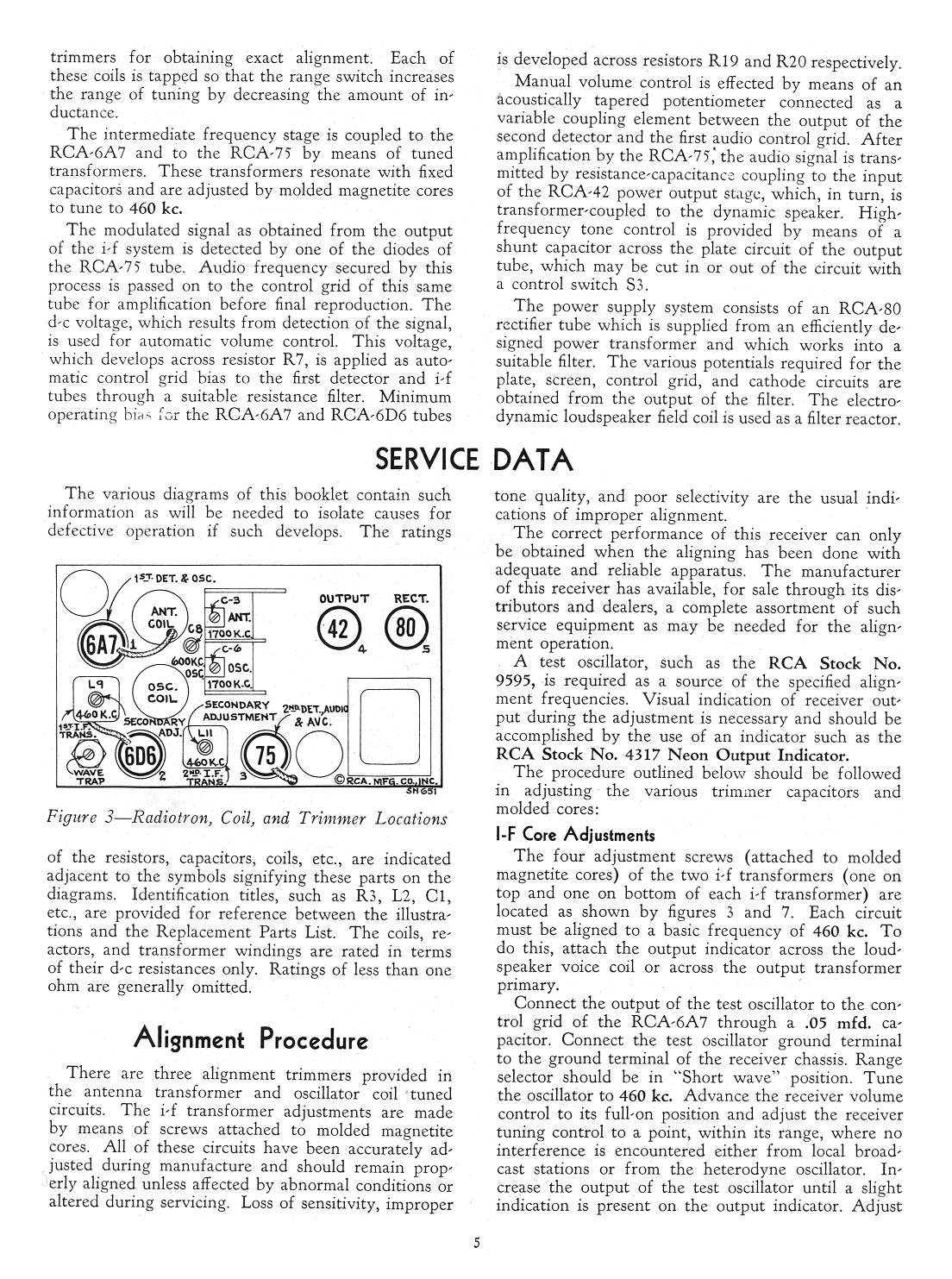

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 |
FROMFromm MAARC monthly meeting, May 2012.
