RADIORCA Victor
MODEL8X541
TECHNOLOGYTube
YEAR1949
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 Kc

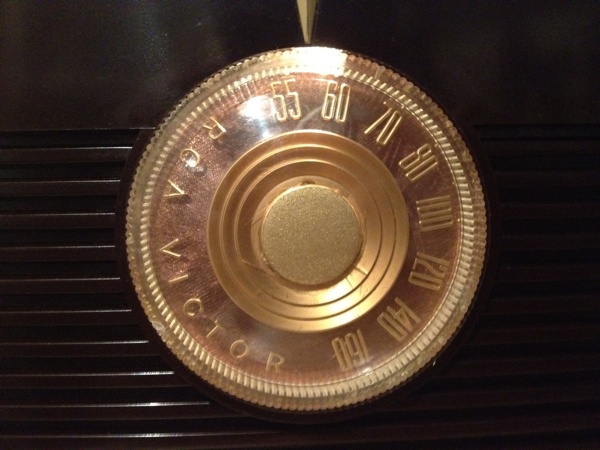

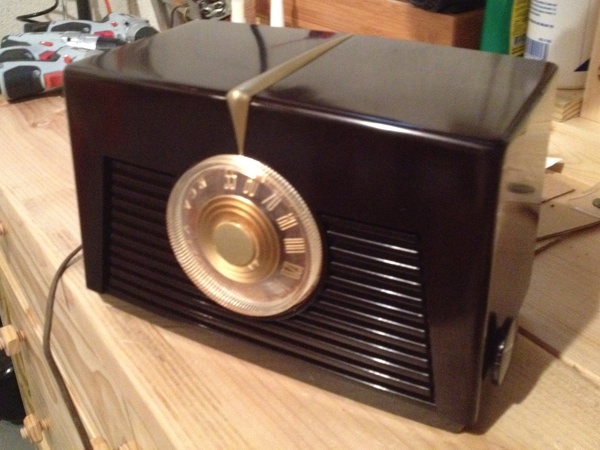

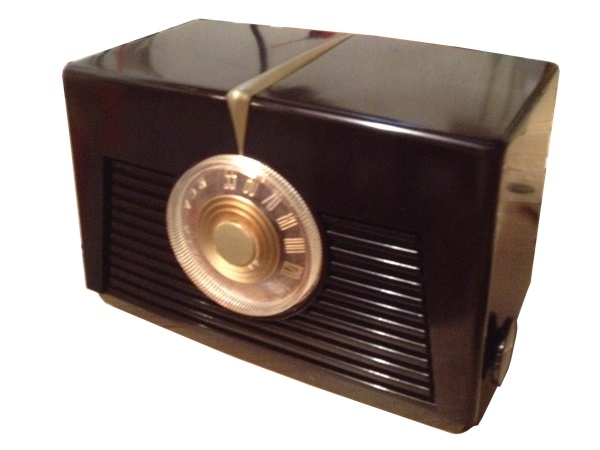

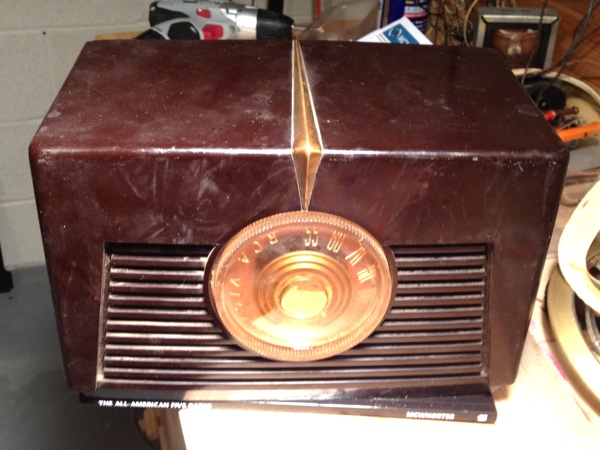

DESCRIPTIONCenter round dial knob, horizontal bar grill, top arrowed brass strip, lateral knobs, golden throuth
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS115 V
CONSUMPTION30 W
AC CYCLES50-60 Hz

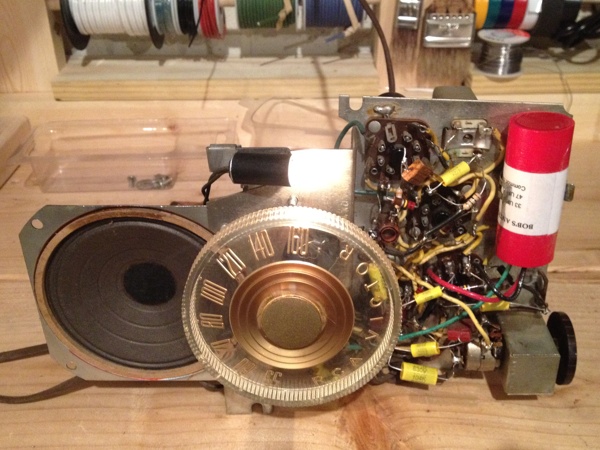

CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 35Z5 | 12SA7 | 12SK7 | 12SQ7 | 50L6 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom Carl Gentry, IL, ebay
