RADIOBelmont
MODEL625
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE530 - 1500 KHz

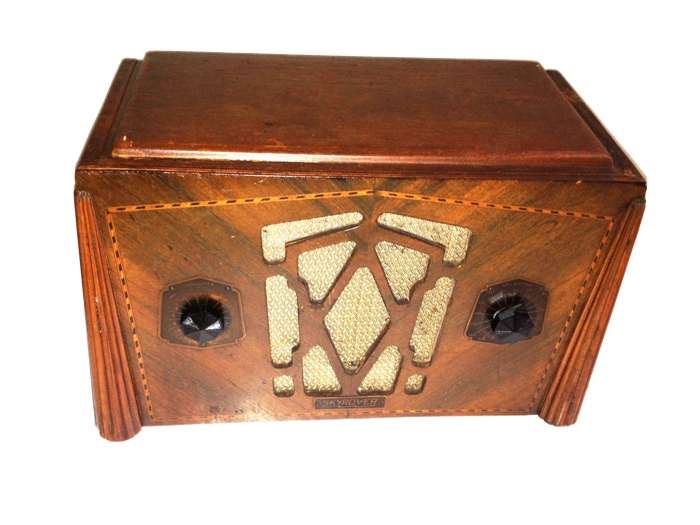

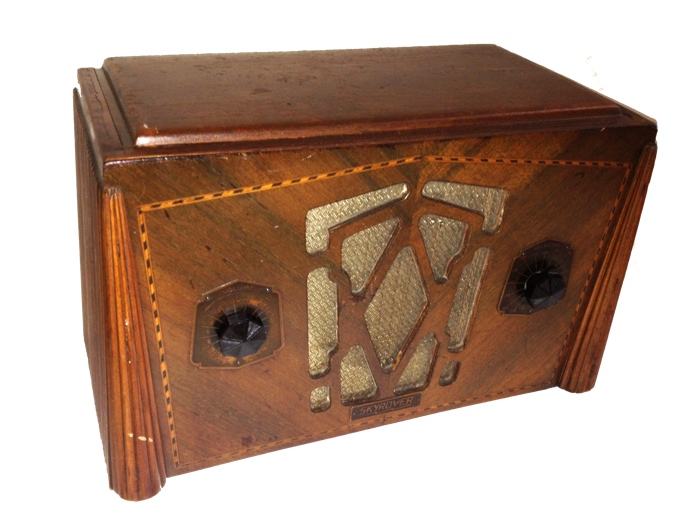

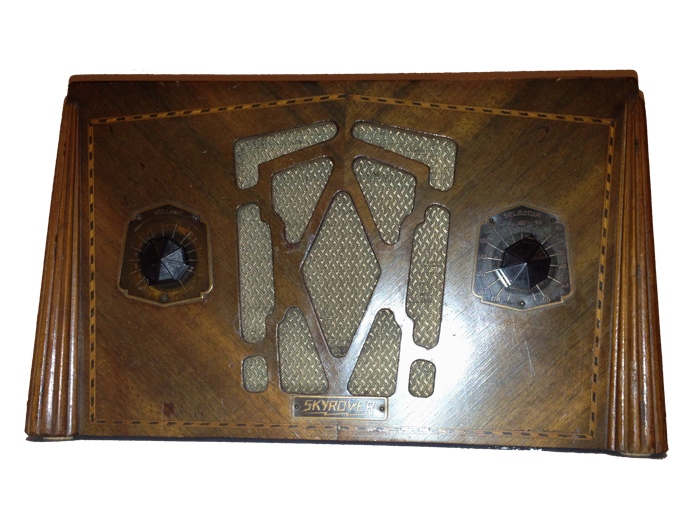

DESCRIPTIONDeco with right dial knob and left on/off volume knob. Center cloth grill with very decorative cut-outs, trapezoid cabinet with fluted columns at edges.
CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF175 KC
POWER SUPPLYAC/DC
VOLTS105 - 115 Volts
CONSUMPTION40 W
AC CYCLES25-40 and 50-60 Hz

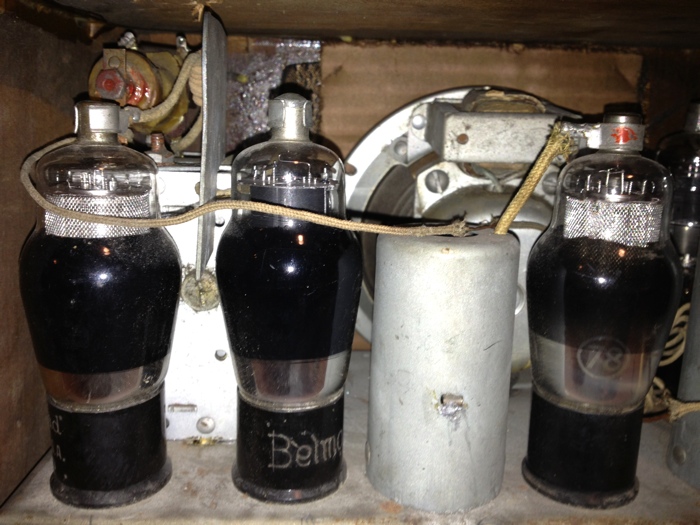

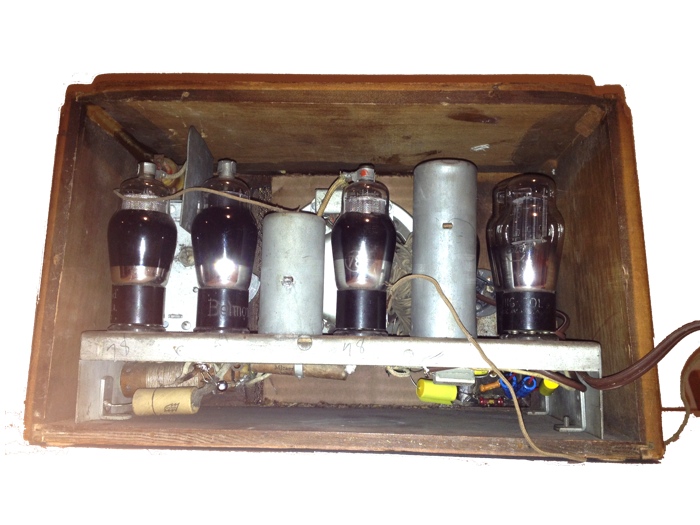

CHASSIS

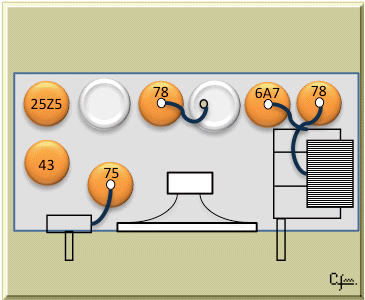

TUBES LOCATION
TUBE COMPLEMENT | 78 | 6A7 | 78 | 75 | 43 | 25Z5 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom Geoff, Dec MAARC meeting
