RADIOPhilco
MODEL91
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC/Police
COVERAGEBC 540 -1740 KHz, Police 1.5 - 3.2 MHz

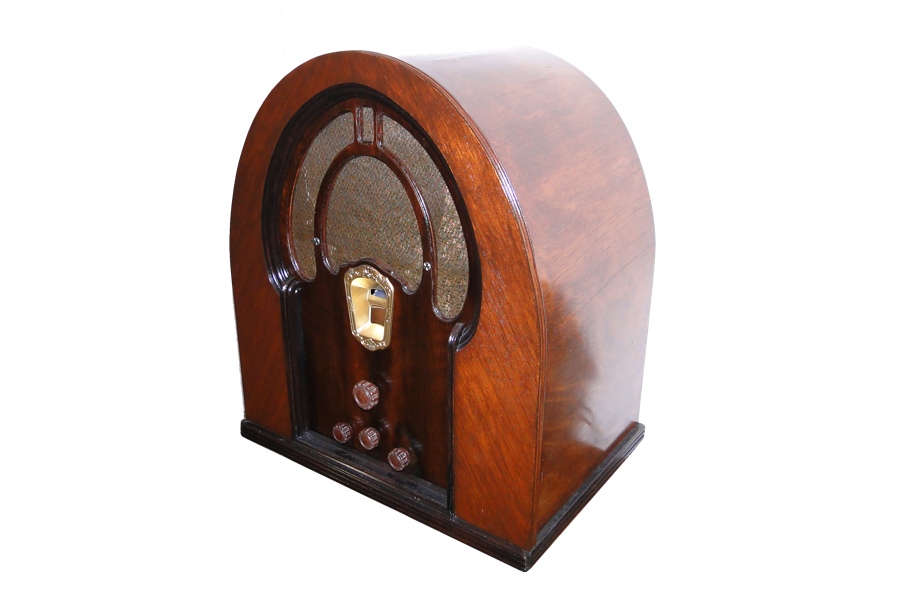

DESCRIPTIONCenter front escutcheon window dial, upper cloth grill with stylized cut-outs, 4 knobs, left knob tone control, central knob on/off/band switch, right knob volume control, and a upper dial knob.

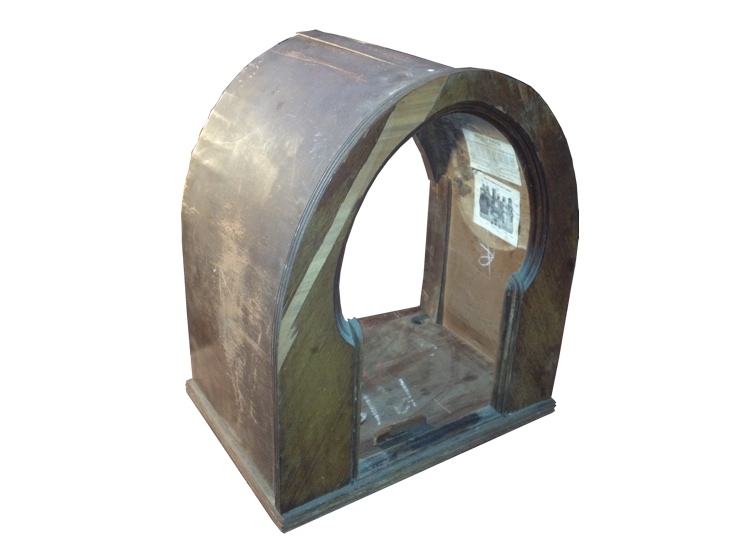

CABINET STYLECathedral
CABINET MATERIALWood
DIAL LAMP - N° x TYPE0 x ?
TONE?
CIRCUITSuperheterodyne
IF260 KC
POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION90 W
AC CYCLES50-60 Hz

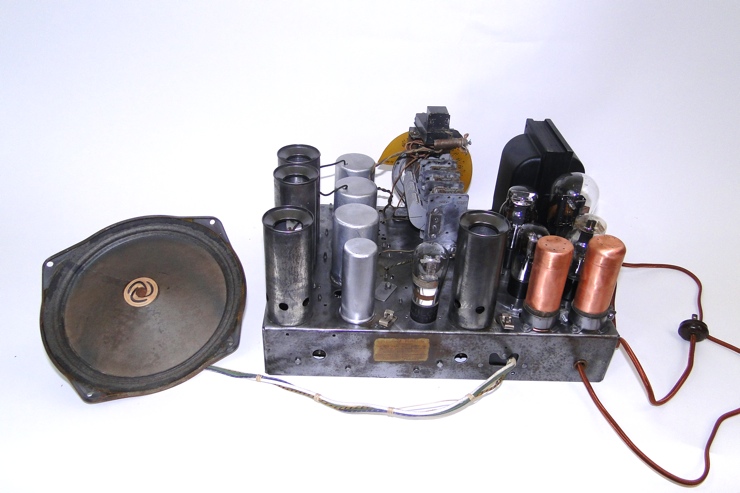

CHASSISCode 126 meaning dual band wave and single speaker.

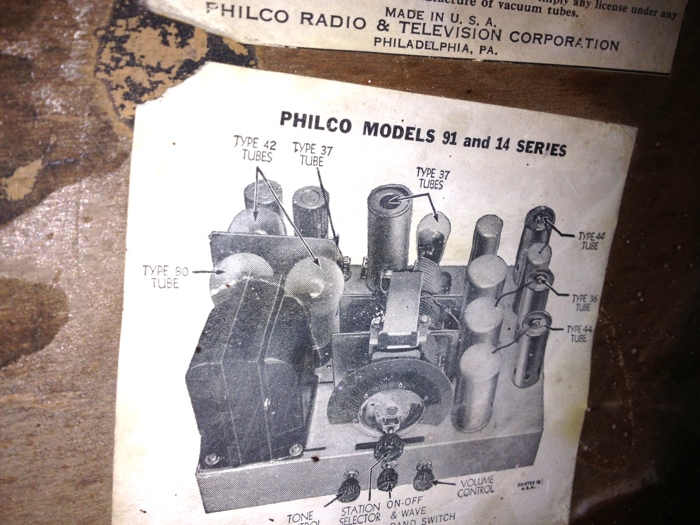

TUBES LOCATION
TUBE COMPLEMENT | 39/44 | 36 | 39/44 | 37 | 37 | 37 | 42 | 42 | 80 |

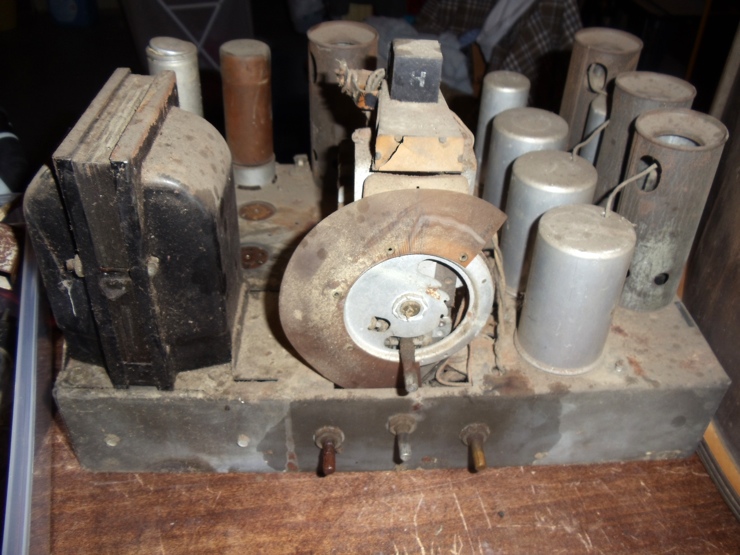

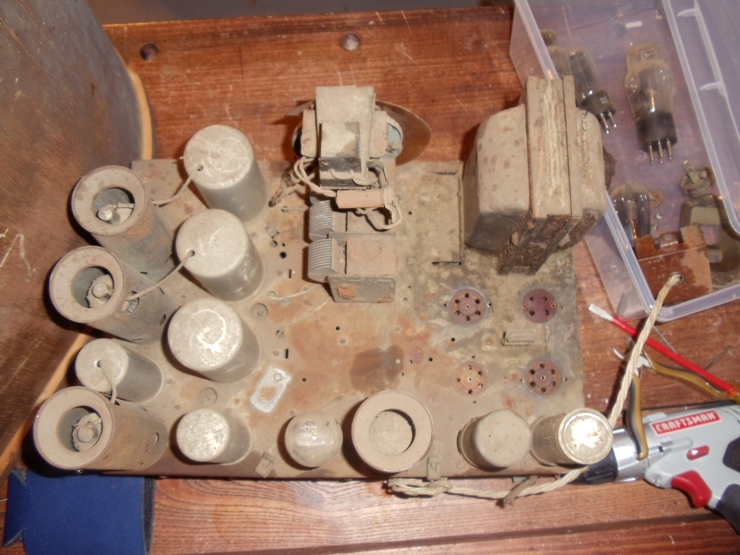

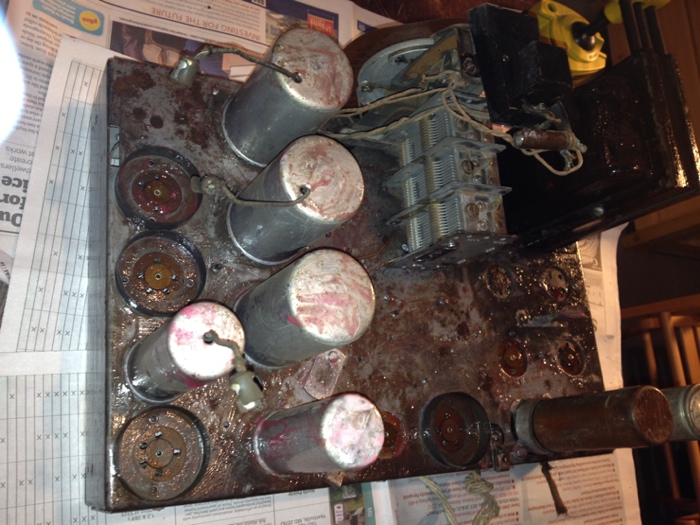

PICTURES(Click to enlarge image)

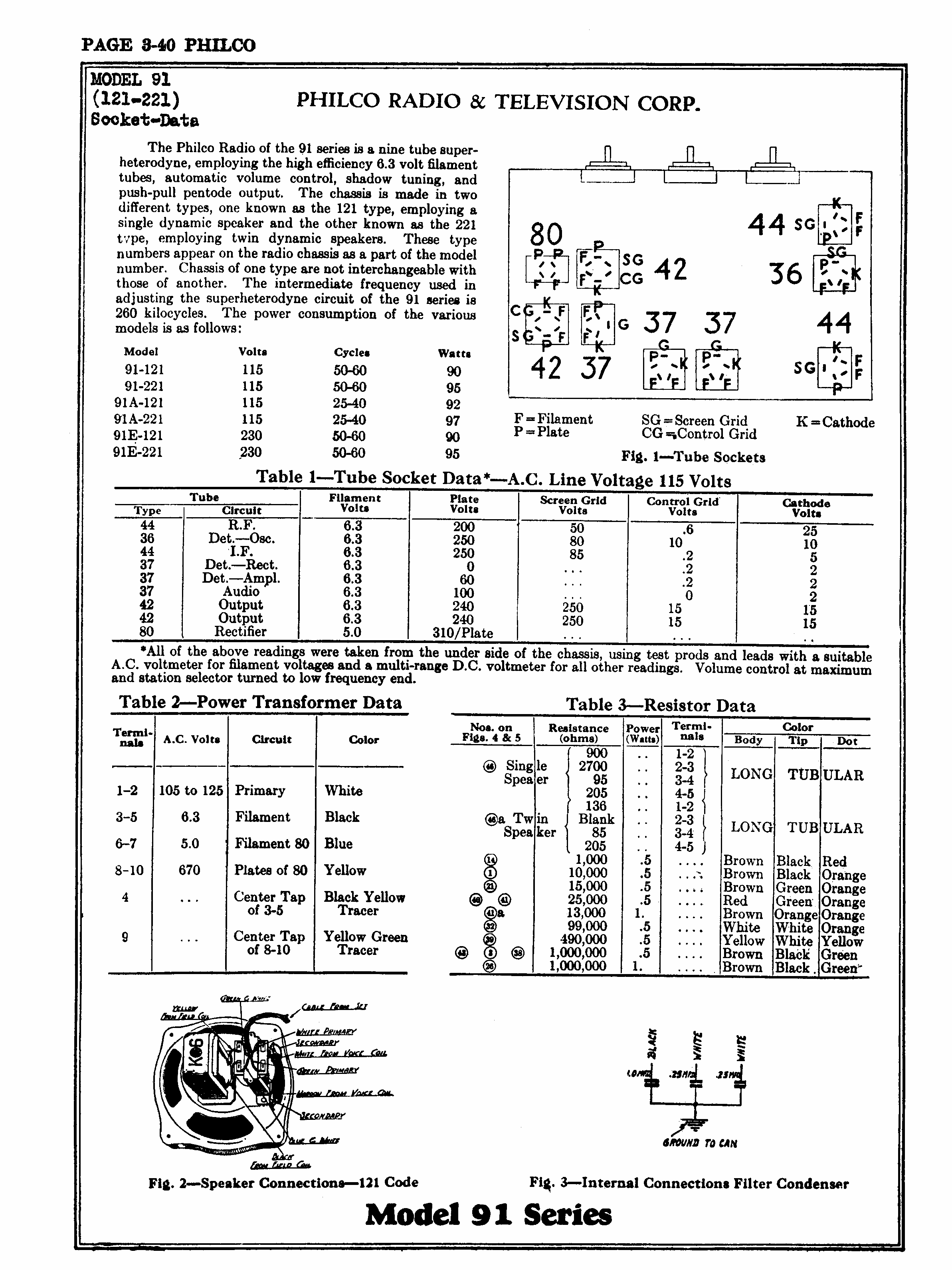

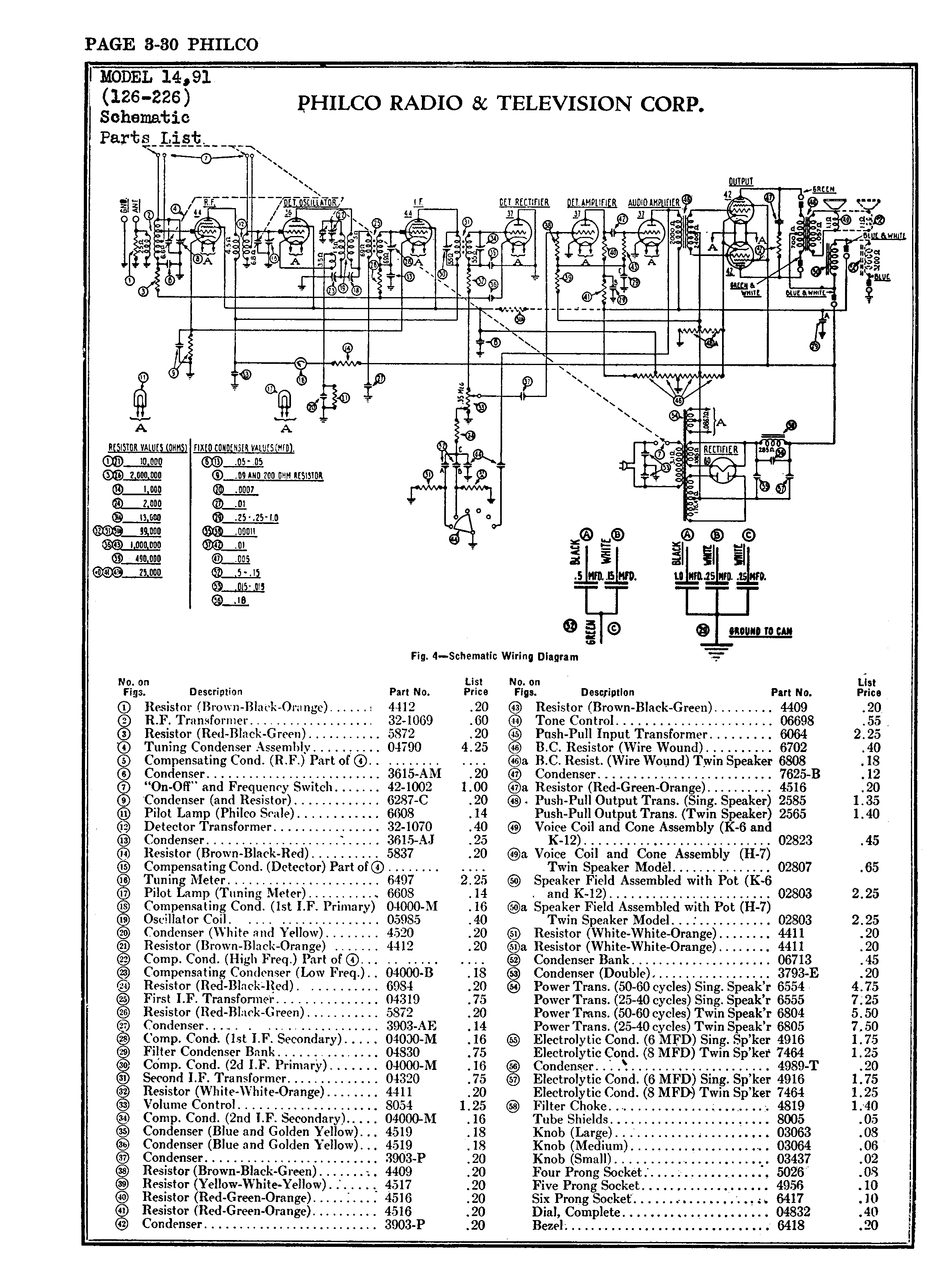

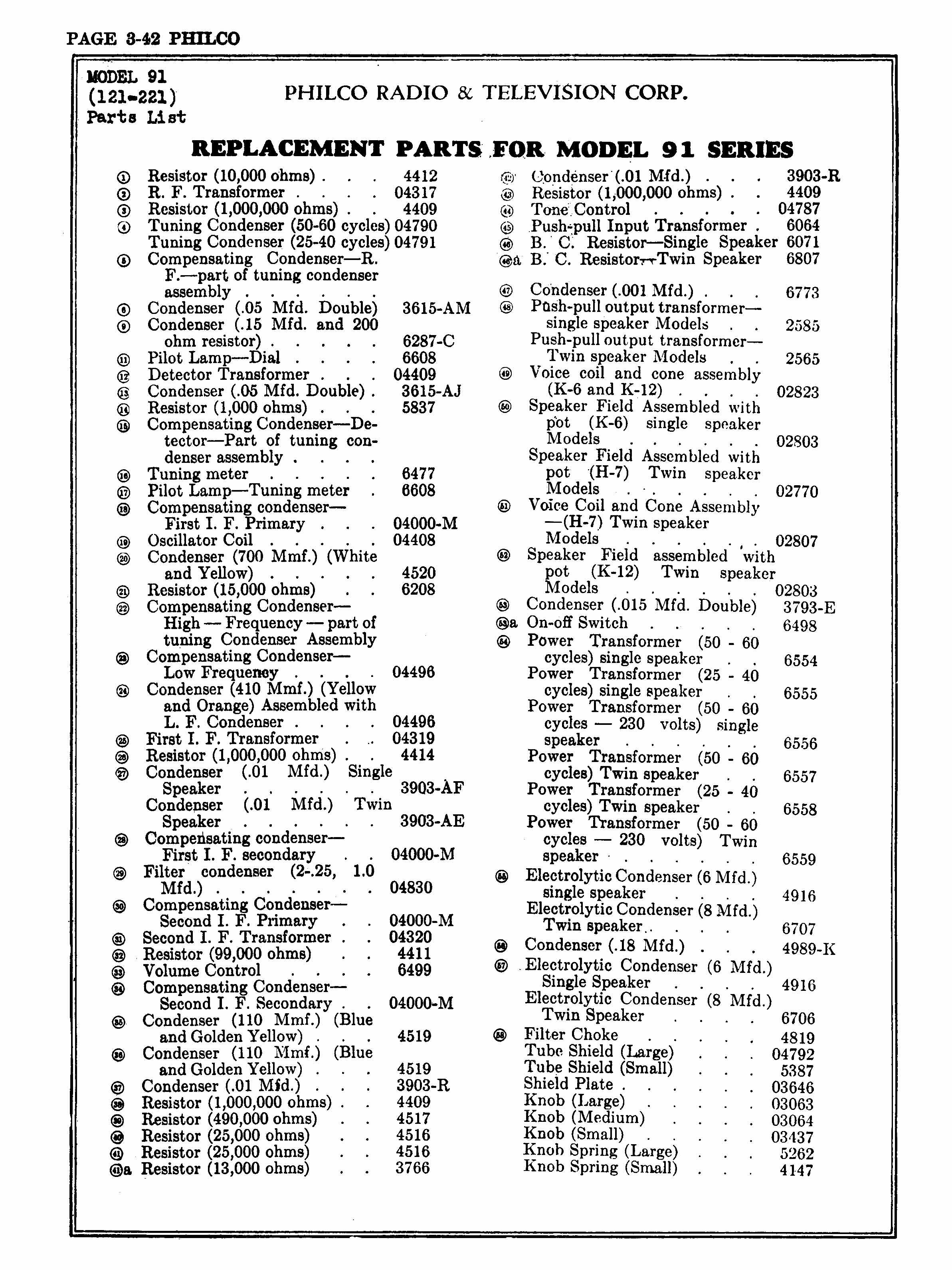

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 |
FROMBuford at Kutztown Radio Radio Show XXVII, Sep 2012 as a Lazarus set.
