RADIOArvin
MODEL444A Ivory
TECHNOLOGYTube
YEAR1946
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE540 - 1600 Kc
DESCRIPTIONRight front dial, left horizontal louvers, raised top, 2 right frontal knobs
CABINET STYLEMidget
CABINET MATERIALMetal
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS117 V
CONSUMPTION30 W
AC CYCLES50-60 Hz

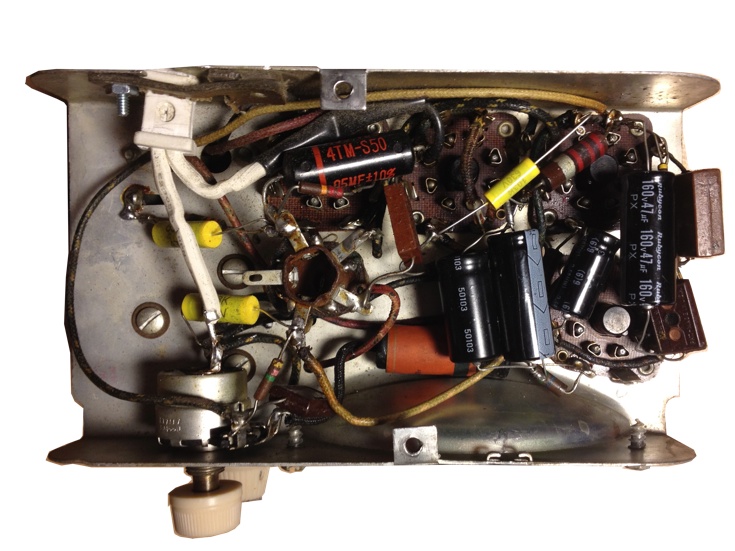

CHASSIS

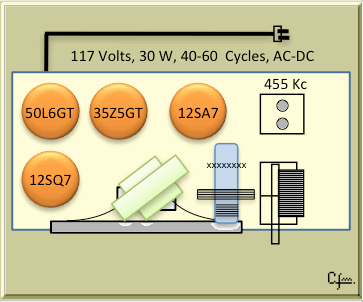

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SQ7 | 50L6 | 35Z5 |

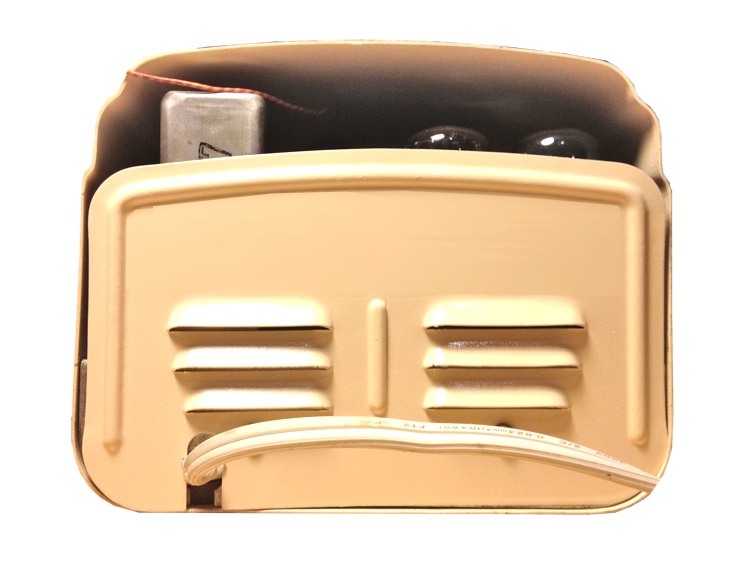

PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 |
FROMFrom ebay US, seller Robert Czerniak.
ADDITIONAL INFO25-10
