RADIOWestinghouse
MODELH-126
TECHNOLOGYTube
YEAR1945
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550-1700 Kc

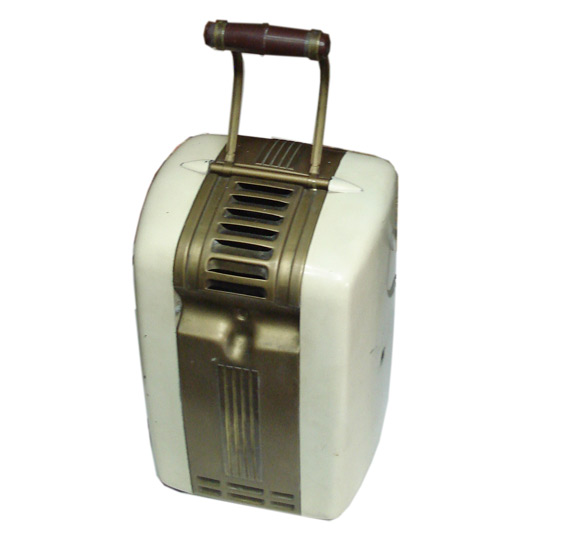

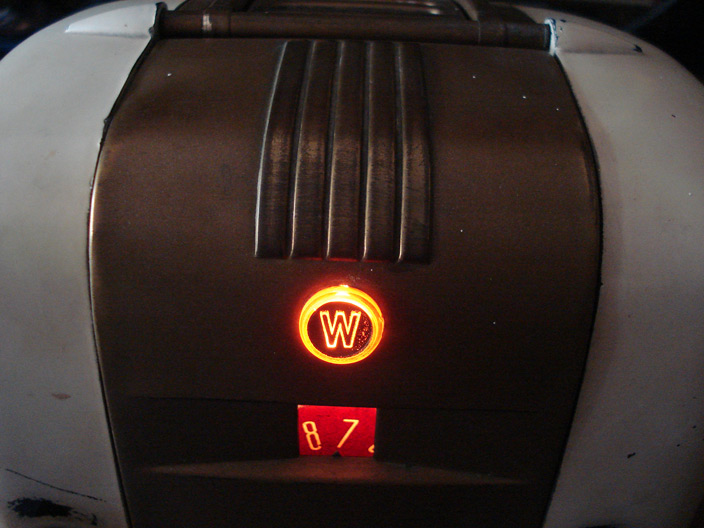

DESCRIPTIONIvory painted bakelite with metal center panel, upper front round dial, lower cloth grill with vertical bars, fold-down handle, 2 knobs.
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION35 W
AC CYCLES50-60 Hz
CHASSIS34X474 V-3460

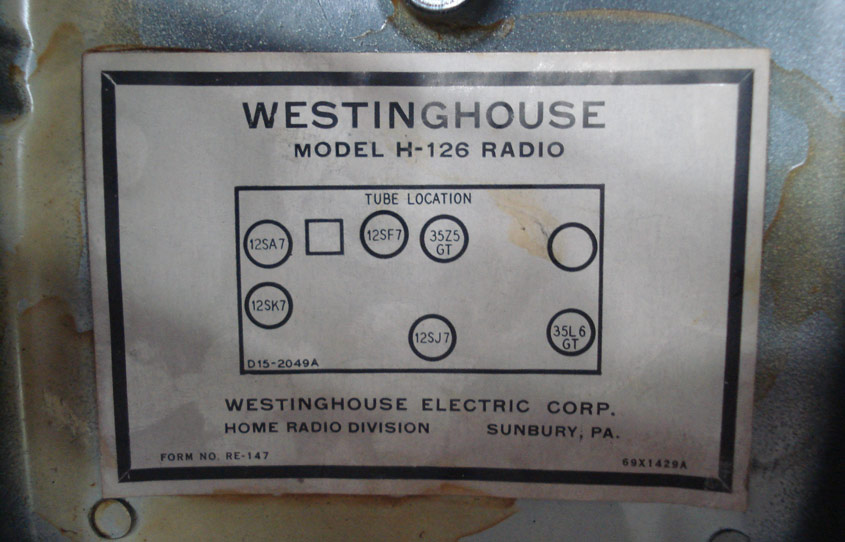

TUBES LOCATION
TUBE COMPLEMENT | 35Z5 | 12SK7 | 12SA7 | 12SF7 | 12SJ7 | 35L6 |
PICTURES(Click to enlarge image)

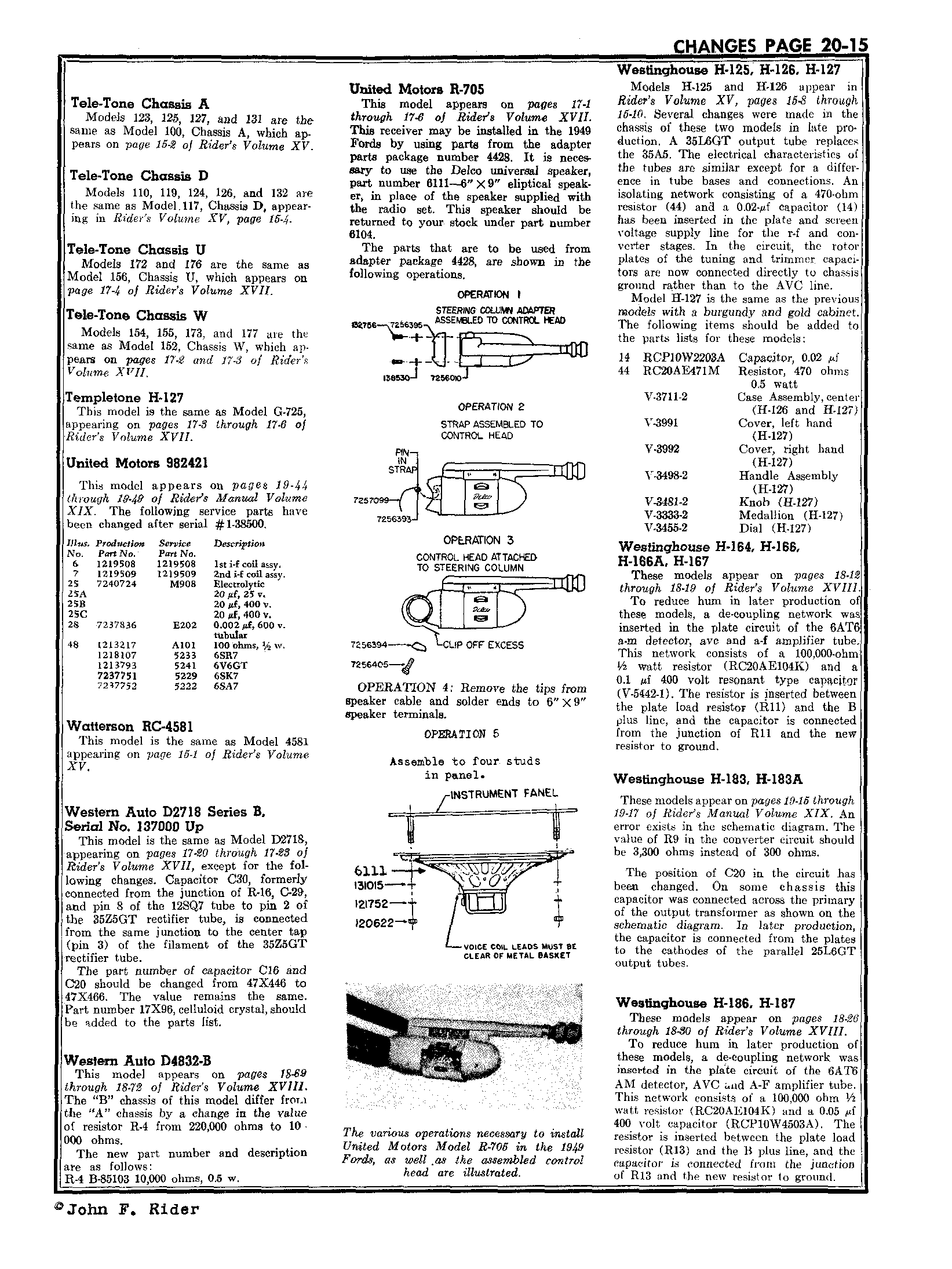

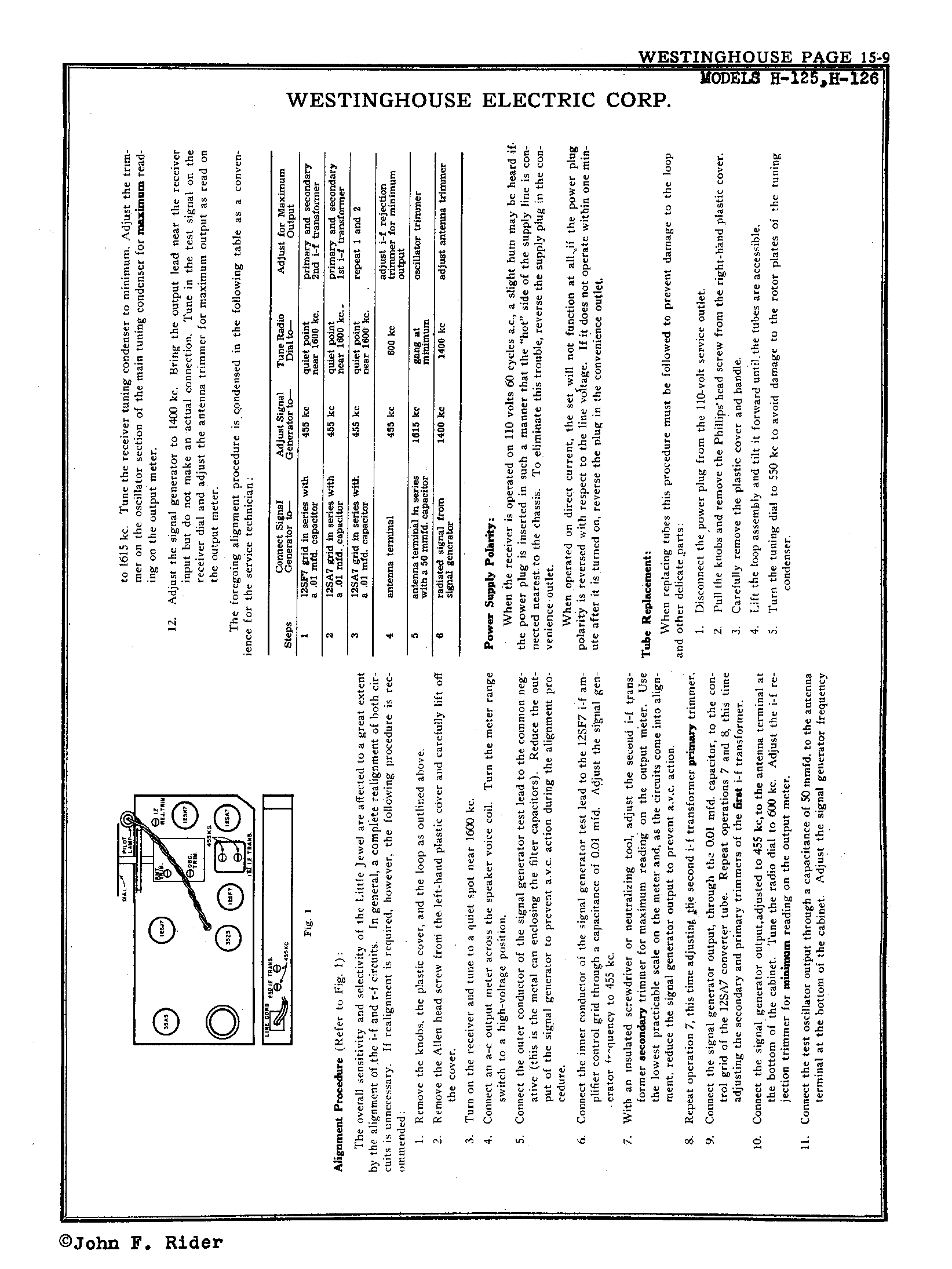

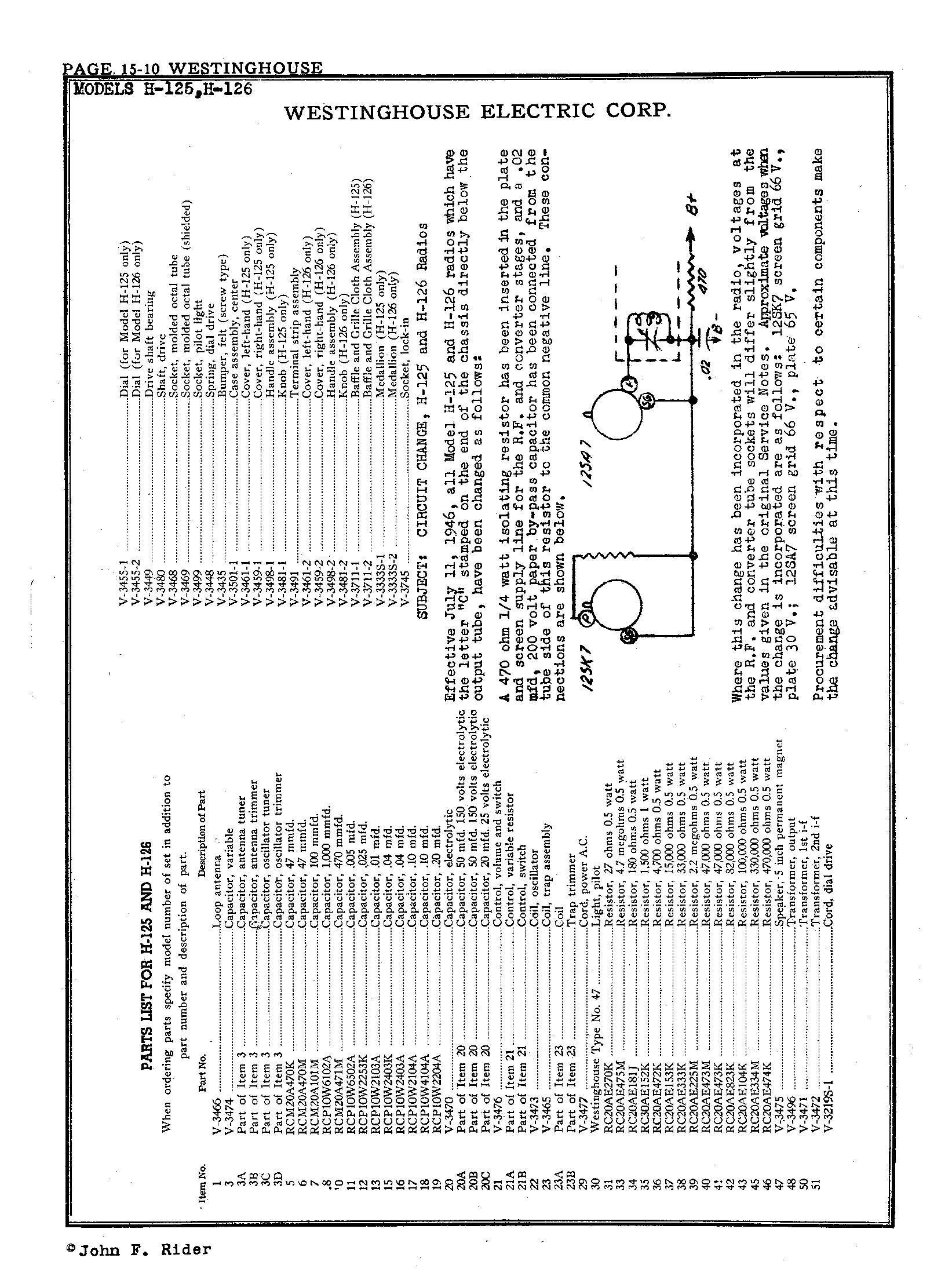

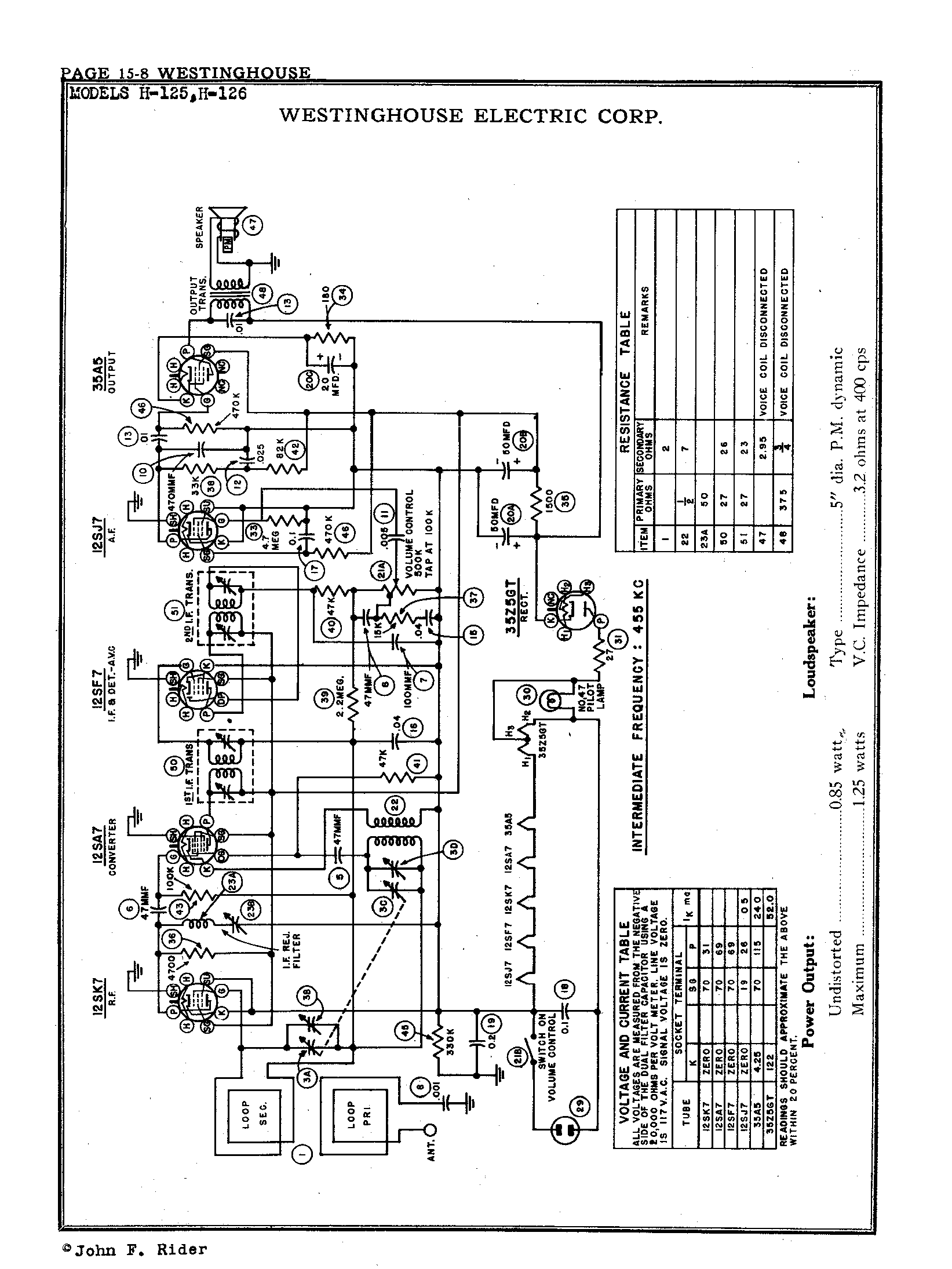

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom Magaly Quaglio, São Paulo, SP, Brazil.
ADDITIONAL INFOModel also known as "Little Jewell Refrigerator".
