RADIORCA Victor
MODELB531 Torradeira
TECHNOLOGYTube
YEAR1955
MADE INBRAZIL
WAVE BANDSBC/SW1/SW2
COVERAGEAM 550 - 1650 Kc, SW1 18 - 55 Mc, SW2 8.4 - 12 Mc

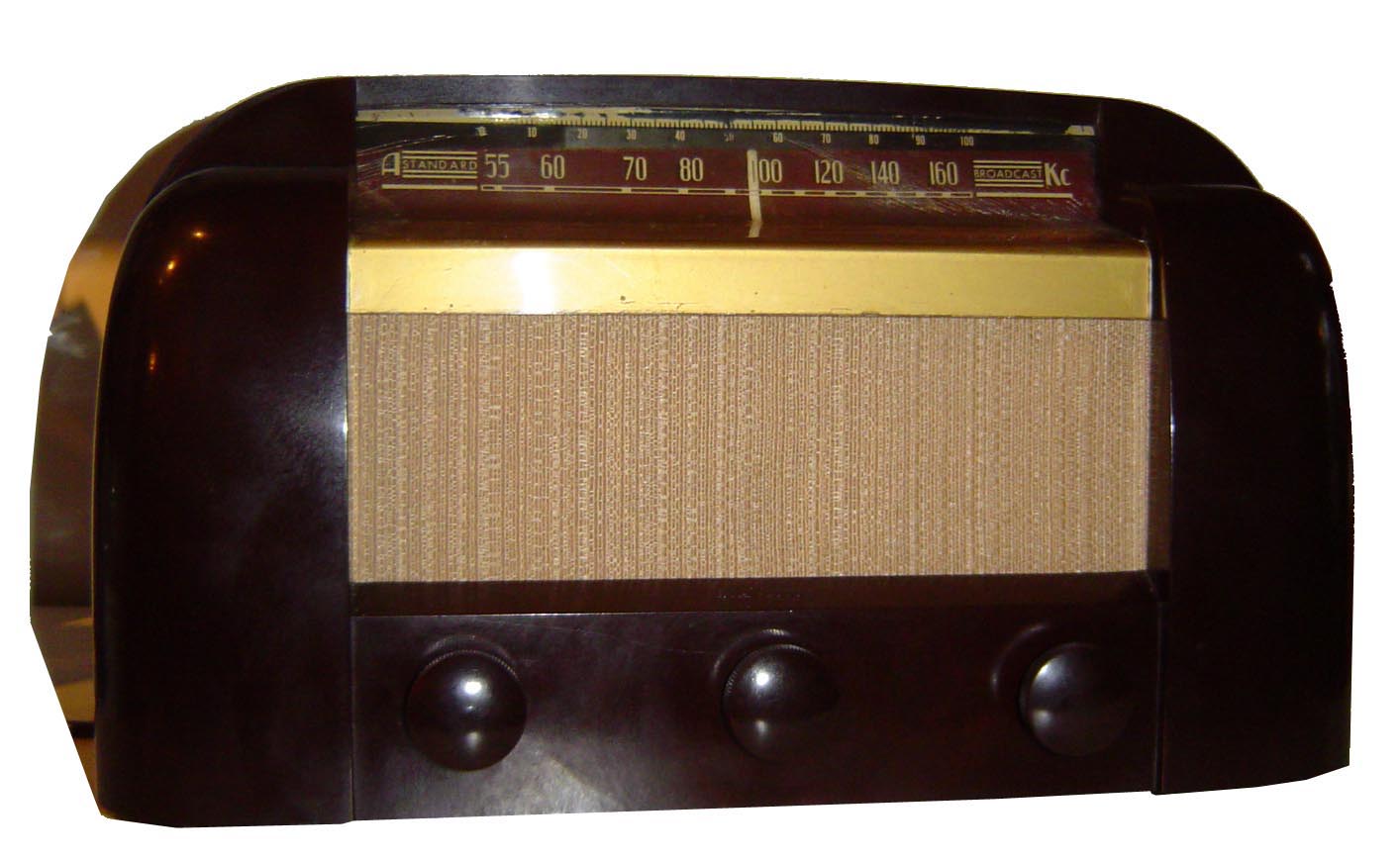

DESCRIPTIONUpper front curved slide rule dial, lower cloth grill, top rear hand-hold, lower left on/off/volume knob, center tuning knob, and right band switch. Model 66X1 is a similar set, made in USA, from 1946.
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE2 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC
VOLTS90, 115, 125, 200 or 220V
CONSUMPTION60 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 6BE6 | 6X4 | 6AQ5 | 6AV6 | 6BA6 |

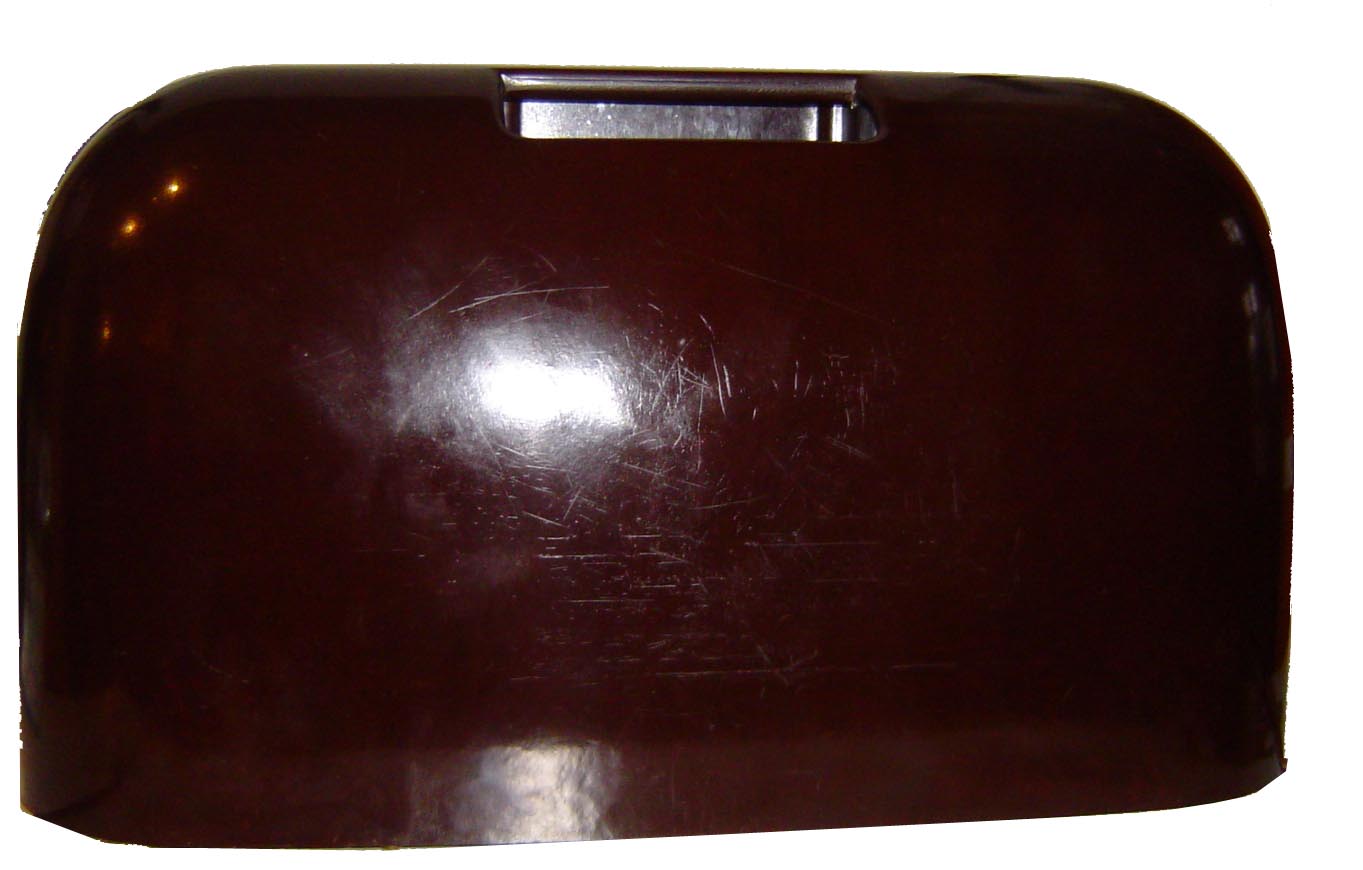

PICTURES(Click to enlarge image)
SCHEMATICS
FROMMercado Livre, Mauricio Marchini, Sao Paulo, SP.
