| RADIO | Zenith |
| MODEL | 6D510 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1940 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | BC 54- 1600 KHz |
| DESCRIPTION | Right front black dial over horizontal wrap-around grill bars, left grill, plastic handle, 2 knobs. |
| CABINET STYLE | Table |
| CABINET MATERIAL | Plastic |
| DIAL LAMP - N° x TYPE | 1 x 47 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 115 Volts |
| CONSUMPTION | 25 W |
| AC CYCLES | 50-60 Hz |
| CHASSIS | 6A01 |

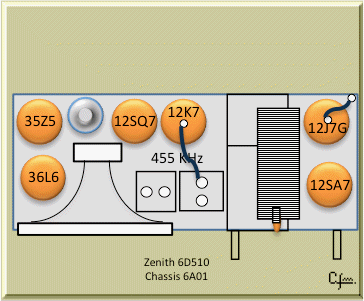

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 12J7 | 12SA7 | 12SK7 | 12SQ7 | 35L6 | 35Z5 |
|

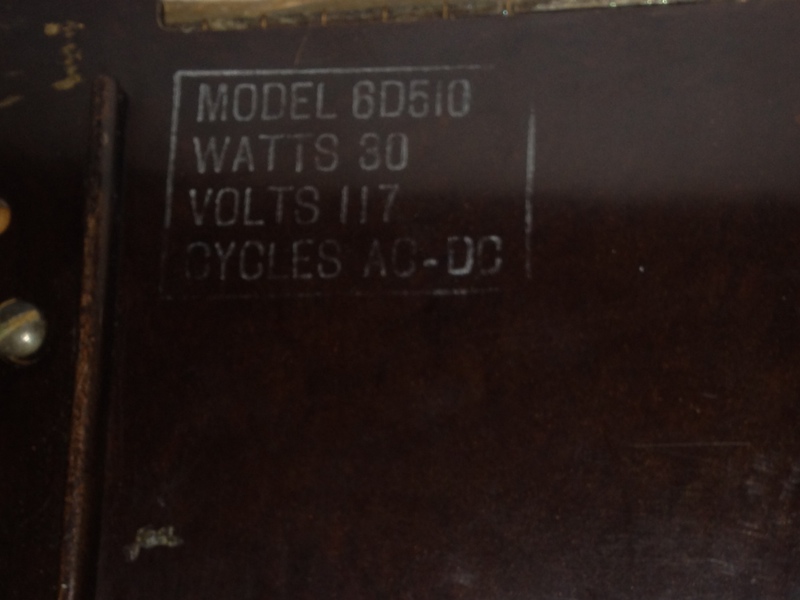

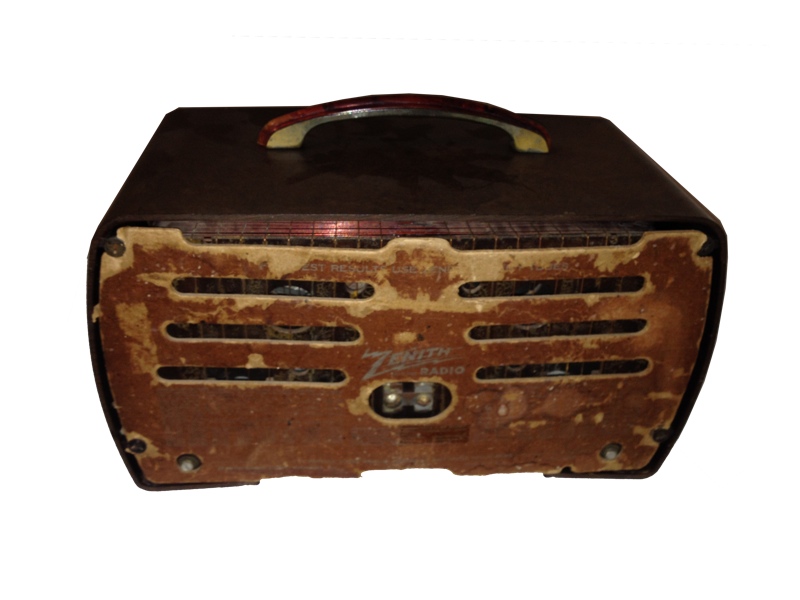

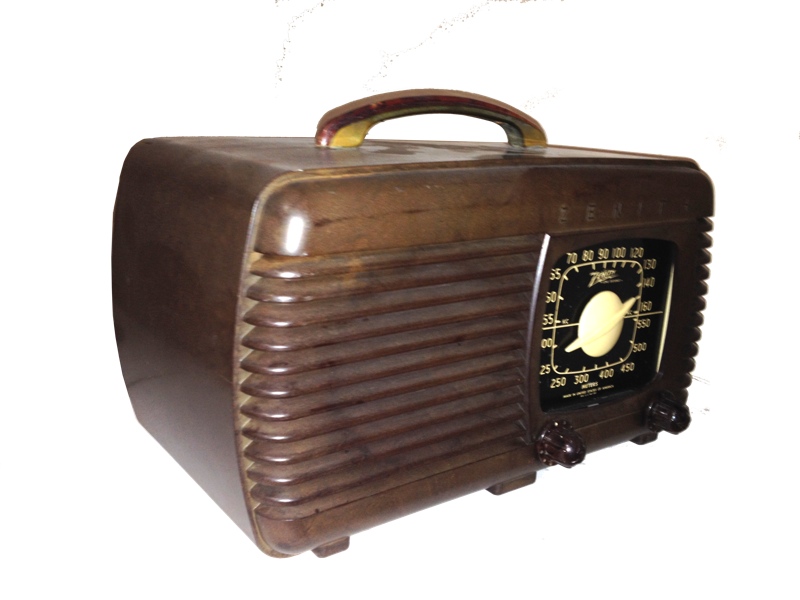

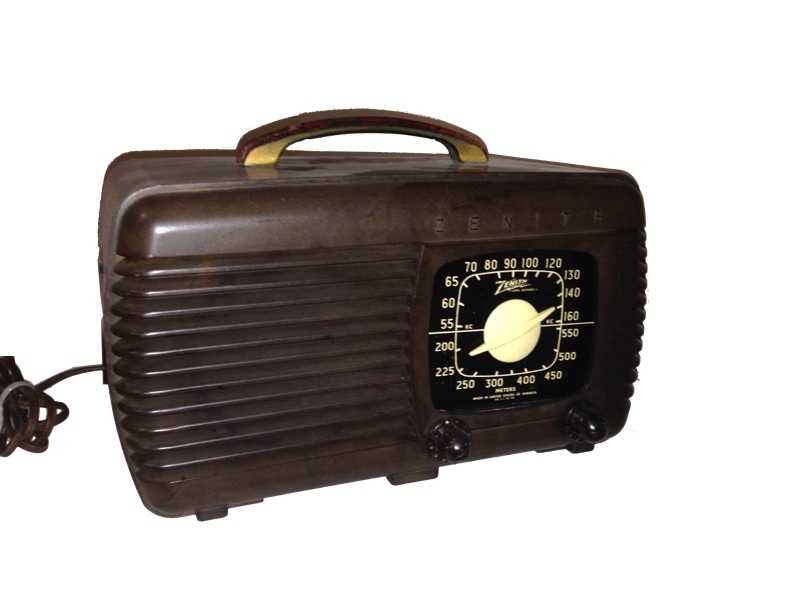

| PICTURES | (Click to enlarge image) |
|
|

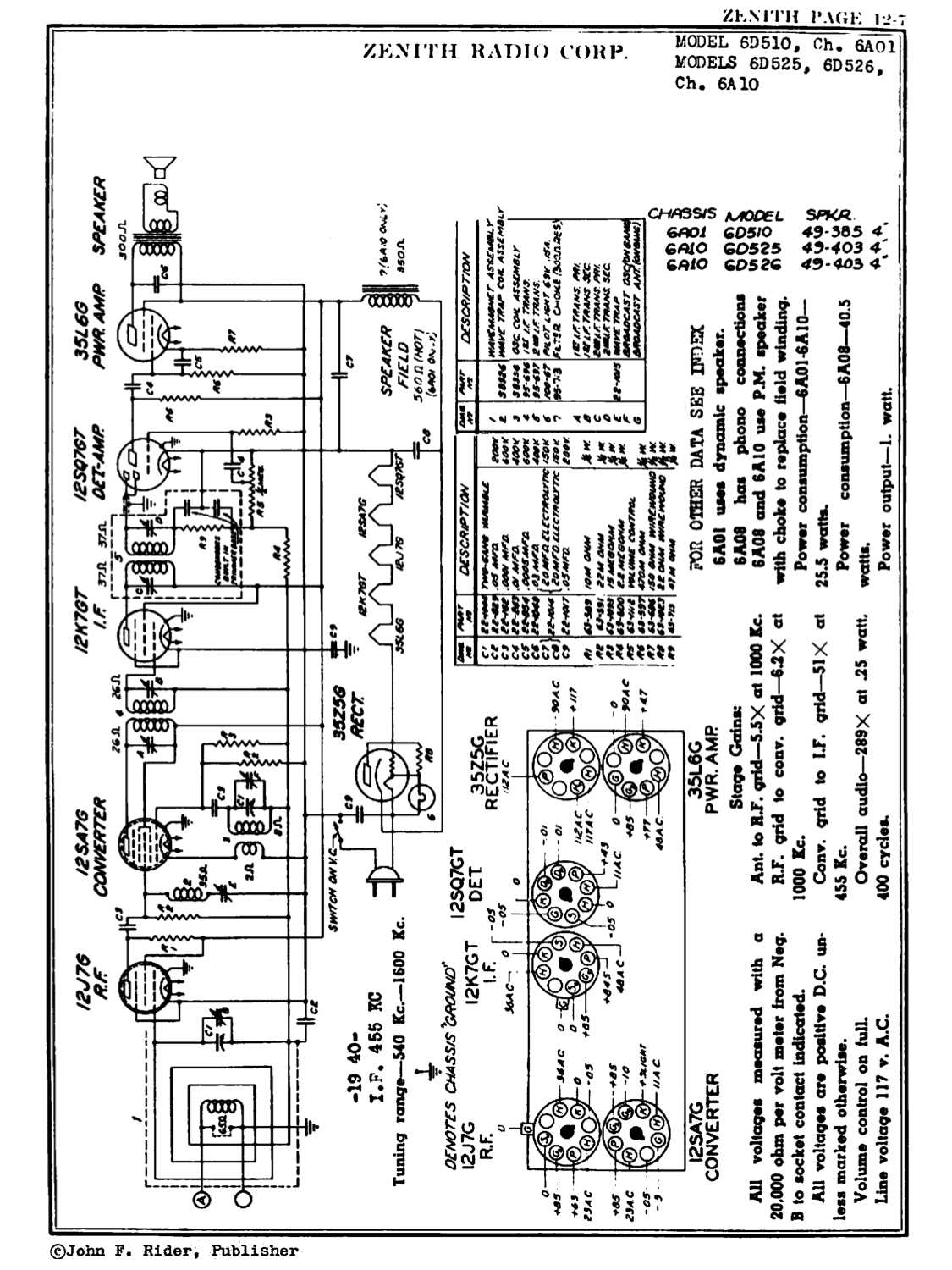

| SCHEMATICS |
| Page1
| Page2
|
|
| FROM | From ebay US on May 8, 2013. |
