RADIOPhilips
MODELBR326U
TECHNOLOGYTube
YEAR1954
MADE INBRAZIL
WAVE BANDSBC/SW1/SW2
COVERAGEBC 523 - 1630 Kc; SW1 4.58 - 16.5 Mc; SW2 10 - 12 Mc.

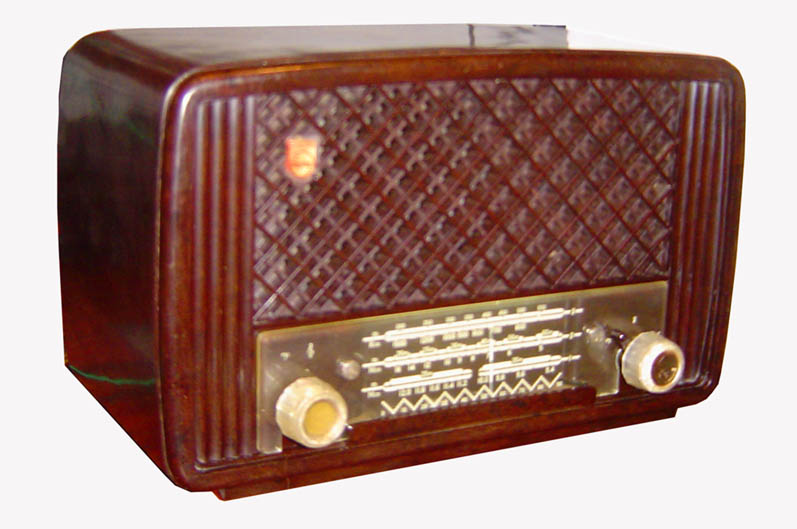

DESCRIPTIONLower front 3 band slide rule dial, frontal left on/off/volume with tone knob right behind it and right dial and back band knobs, upper losangle cut outs grill.
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 46
TONE2 Positions
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS100, 127, 220 V
CONSUMPTION35 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | UL41 | UBC41 | UF41 | UCH42 | UY41 |

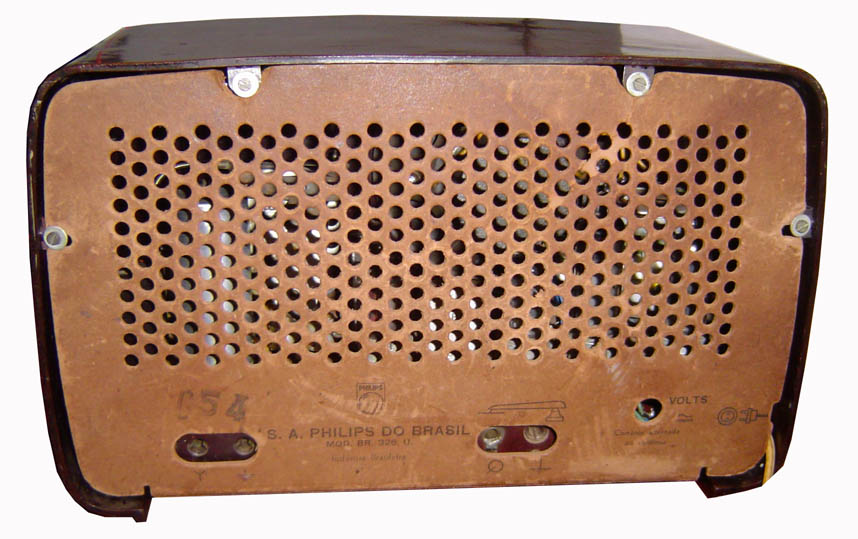

PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMGeraldo Tonon, Brasilia, DF, Brazil
