RADIOWestinghouse
MODELH-125
TECHNOLOGYTube
YEAR1945
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 570 - 1700 KHz

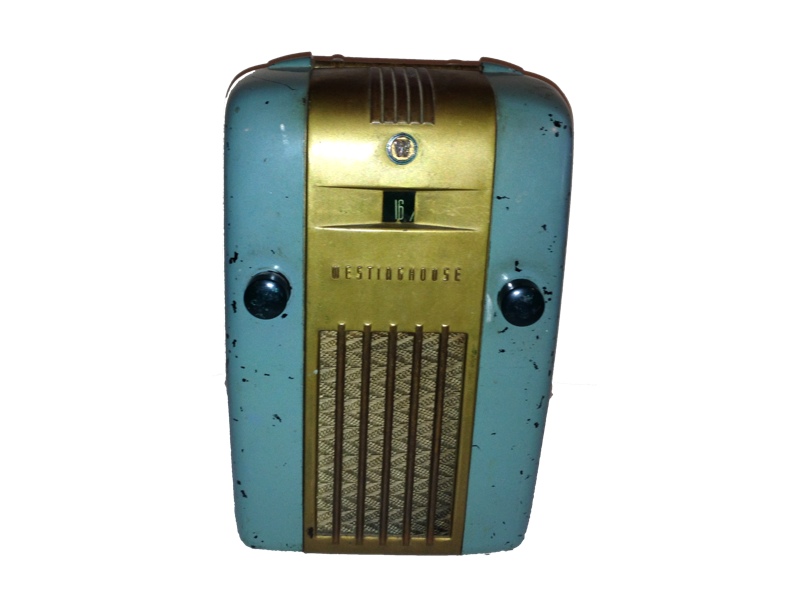

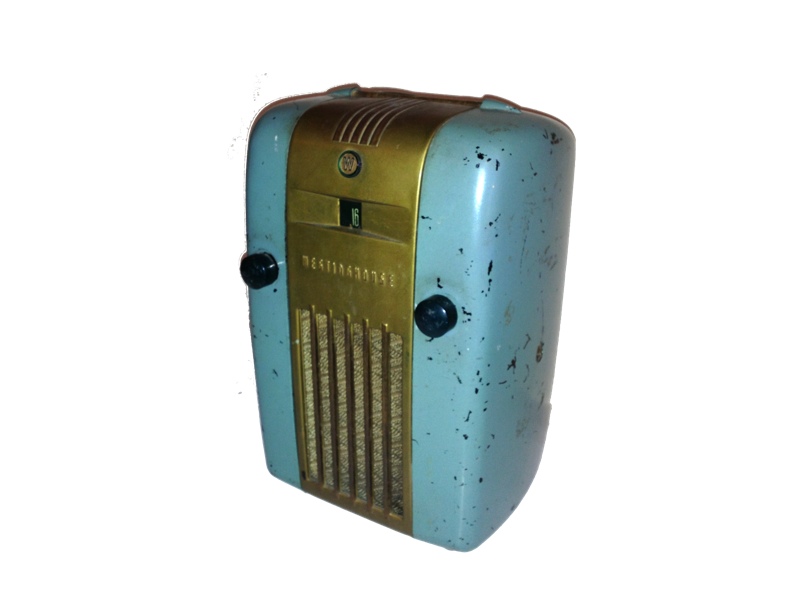

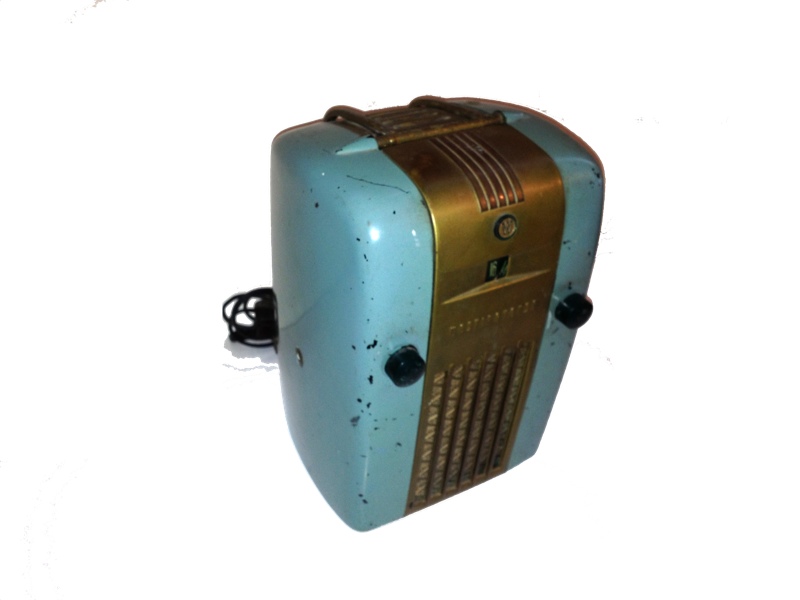

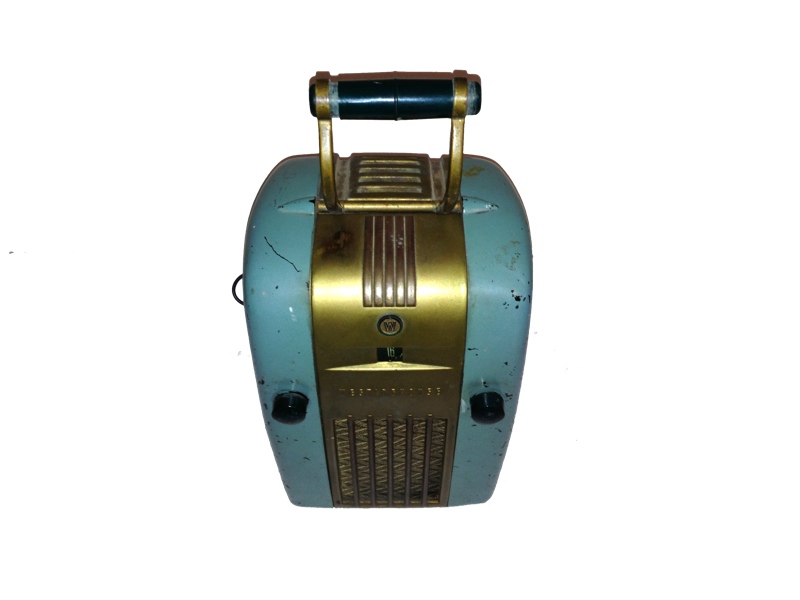

DESCRIPTIONLight green painted bakelite with metal center panel, upper front round dial, lower cloth grill with vertical bars, fold-down handle, 2 knobs.
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION35 W
AC CYCLES50-60 Hz

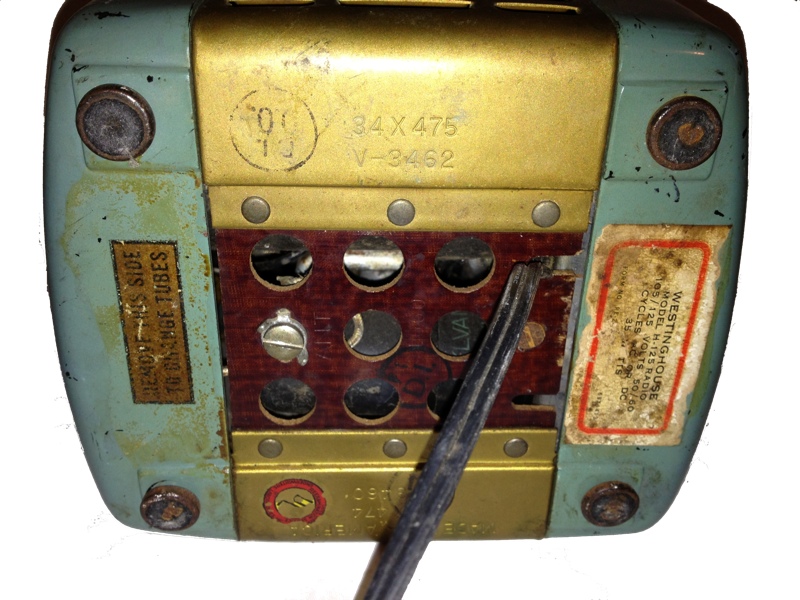

CHASSIS34X475 V-3462
TUBES LOCATION
TUBE COMPLEMENT | 12SK7 | 12SA7 | 12SF7 | 12SJ7 | 35L6 | 35Z5 |

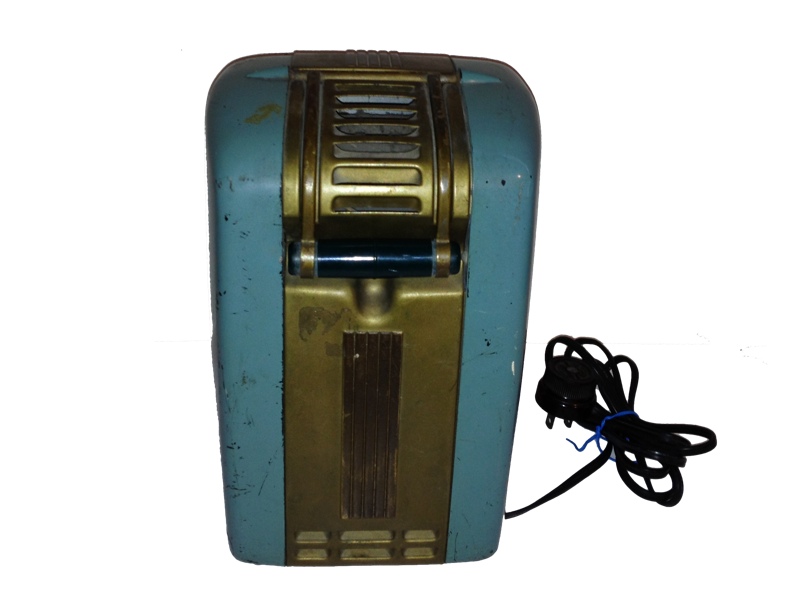

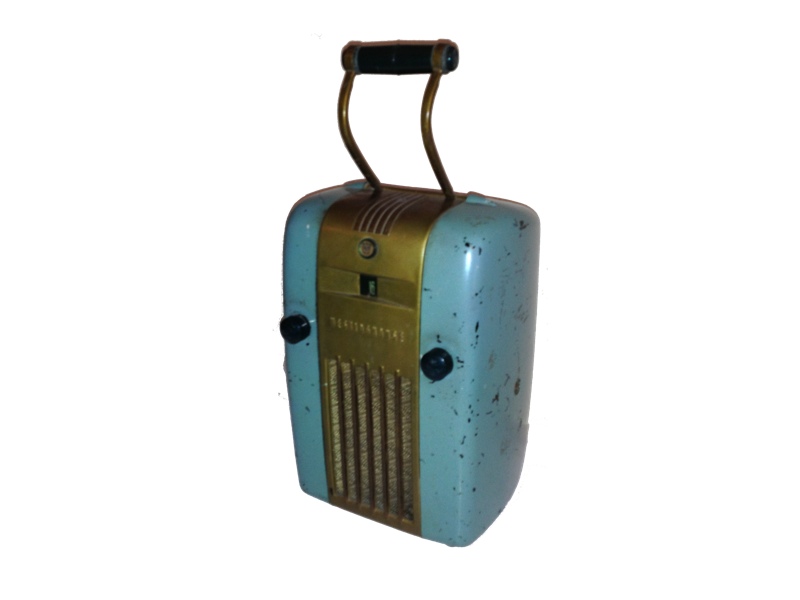

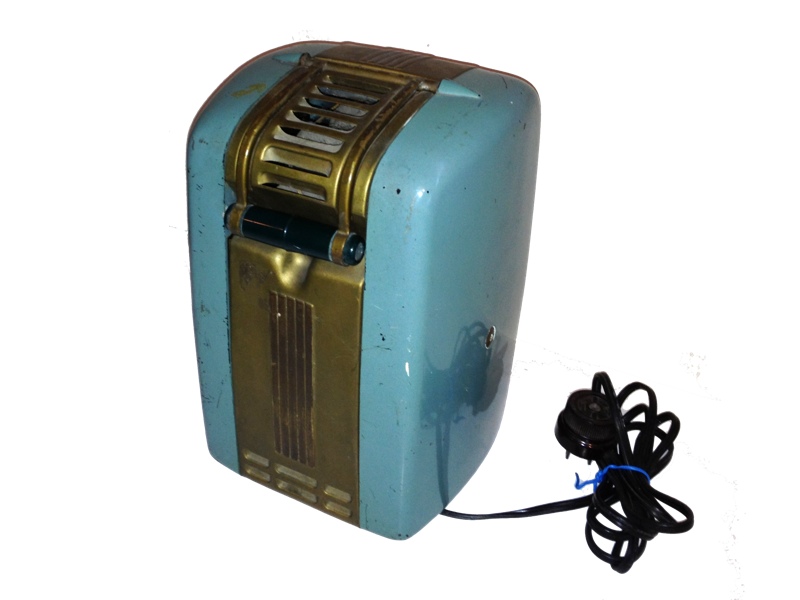

PICTURES(Click to enlarge image)

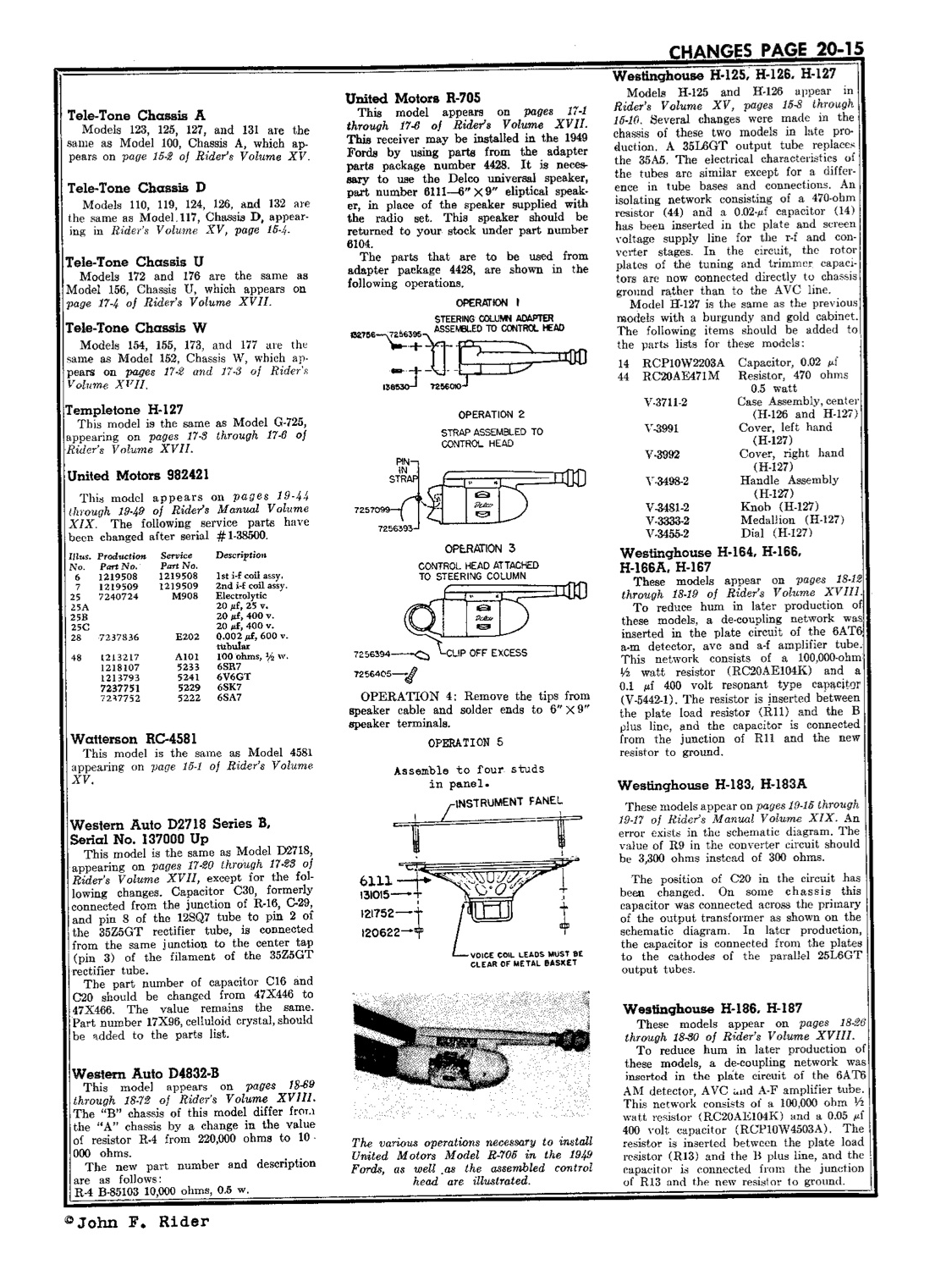

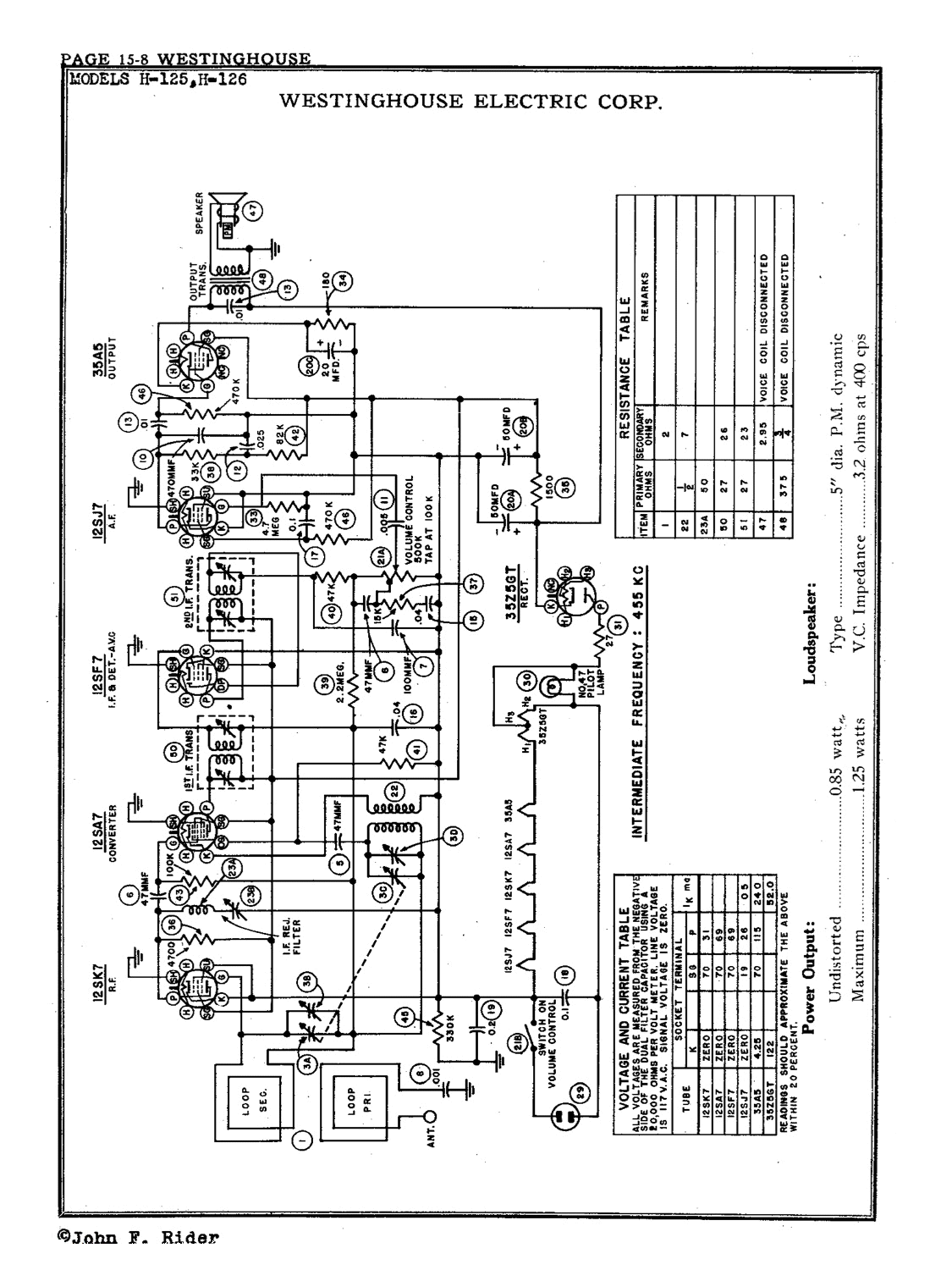

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 |
FROMFrom ebay US ihcadetman Feb 04, 2013
