RADIOZenith
MODELH500
TECHNOLOGYTube
YEAR1951
MADE INUNITED STATES
WAVE BANDSBC/SW1-SW6
COVERAGEBC 540 - 1600 Kc; SW1 4 - 8 Mc; SW2 2 - 4 Mc; SW3 17.4 - 18.2 Mc; SW4 14.8 - 15.6 Mc; SW5 11.5 - 12.1 Mc; SW6 9.4 - 9.8 Mc.
DESCRIPTIONThree power operated multiband superheterodyne portable receiver, with loop and telescopic antennas. Black collored leatherette cabinet

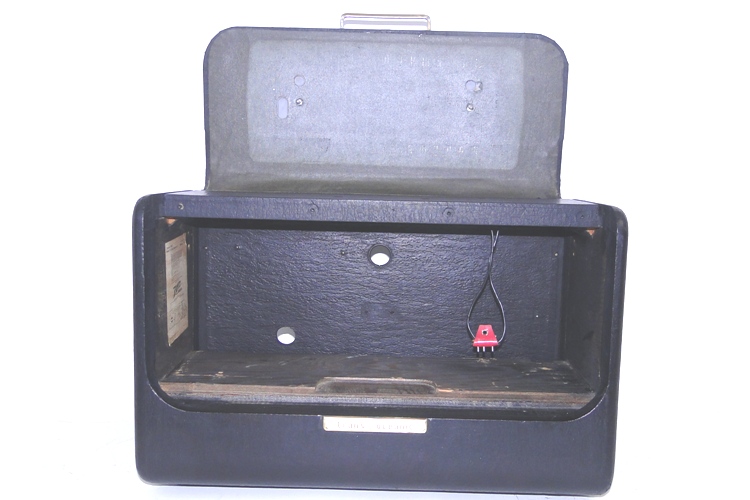

CABINET STYLEPortable
CABINET MATERIALWood & Leatherette
DIAL LAMP - N° x TYPE0 x None
TONE4 Positions
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC Battery
VOLTS110 - 120 V AC/DC, 9 V and 90 V battery
CONSUMPTION10-20 W
AC CYCLES50-60 Hz

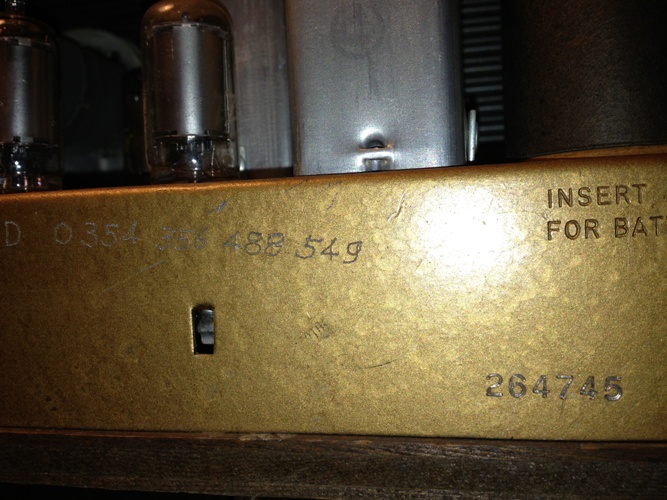

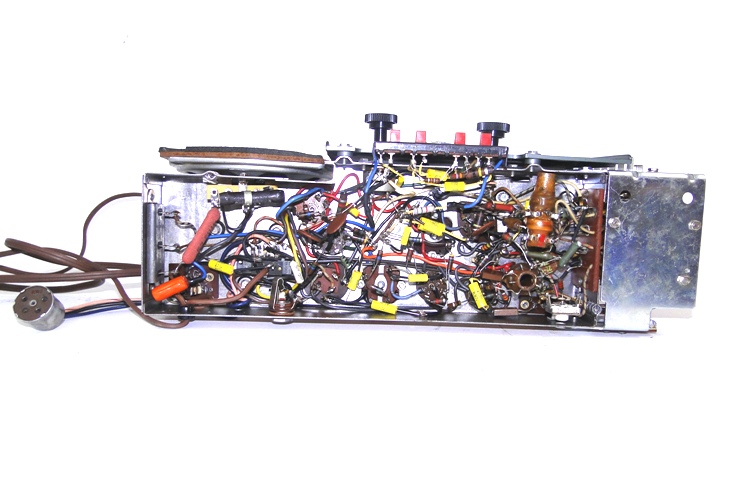

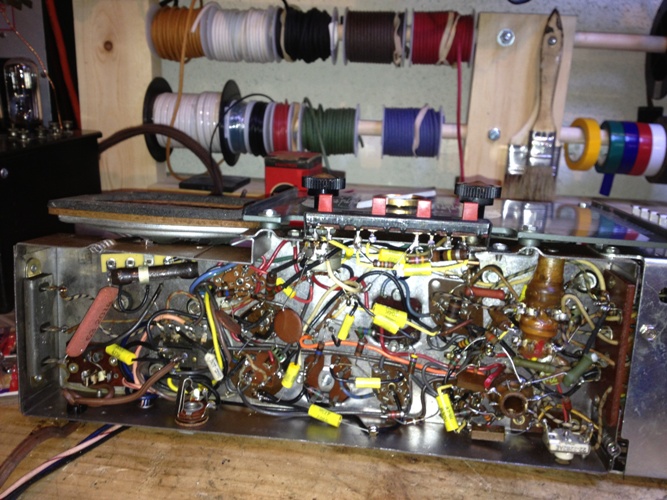

CHASSIS5H40

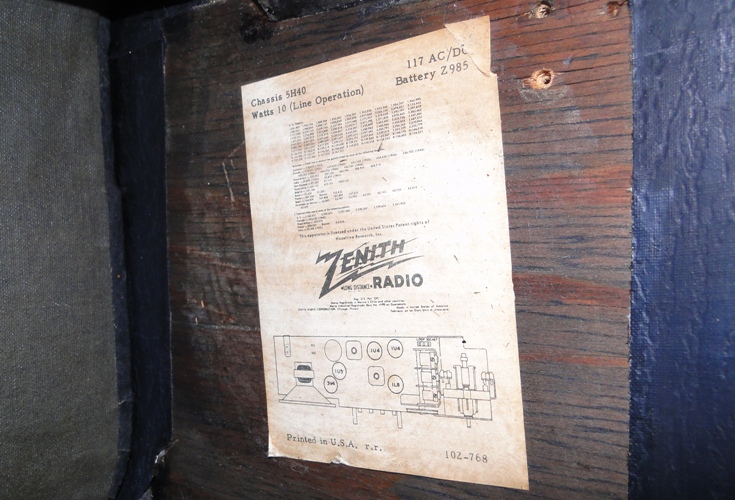

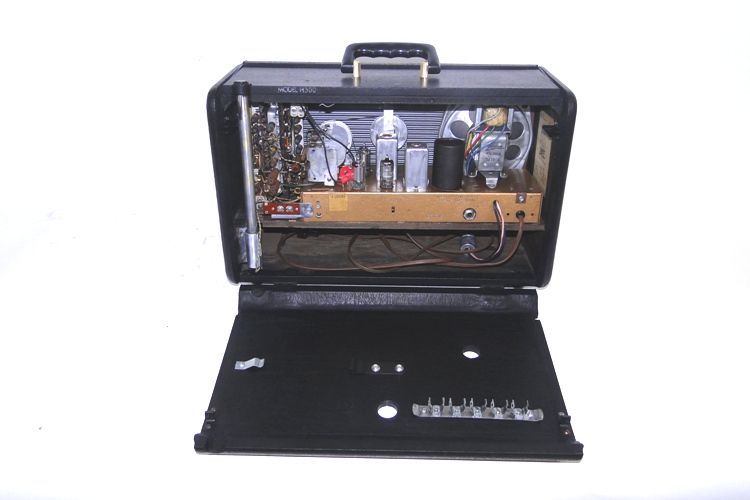

TUBES LOCATION
TUBE COMPLEMENT | 1U4 | 1L6 | 1U4 | 1U5 | 3V4 |

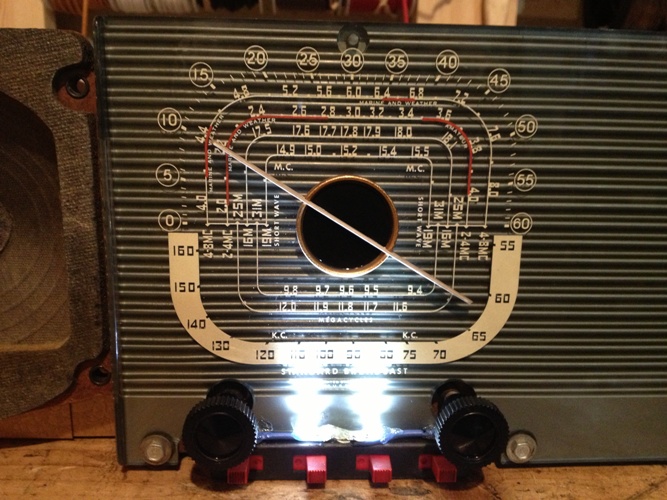

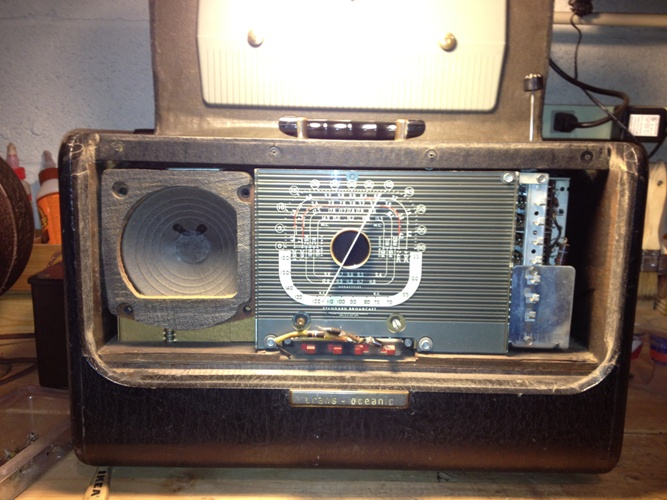

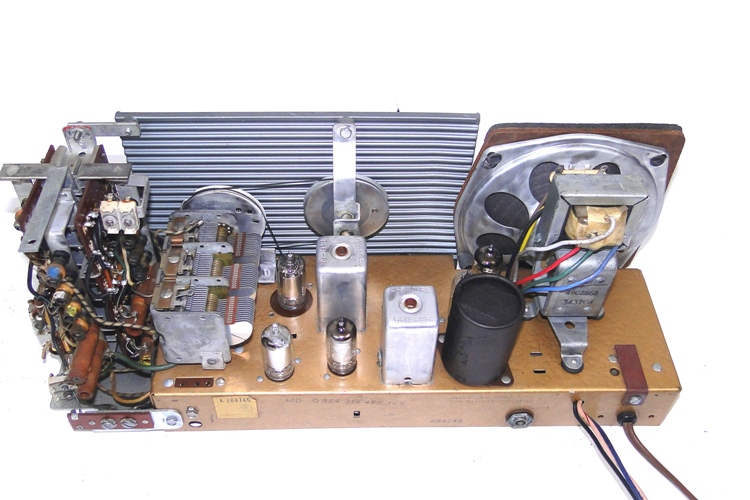

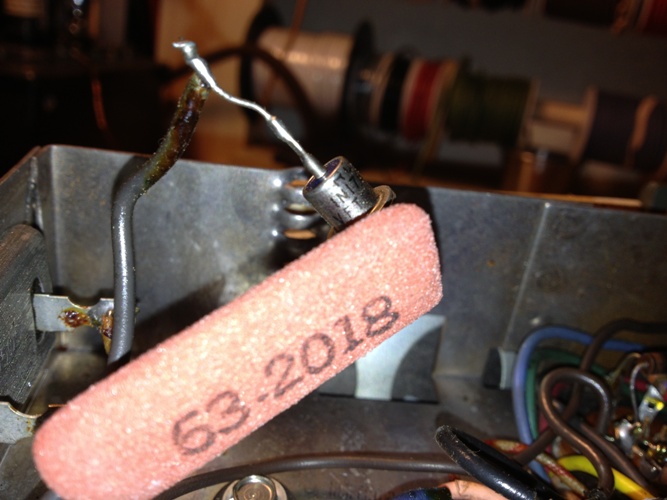

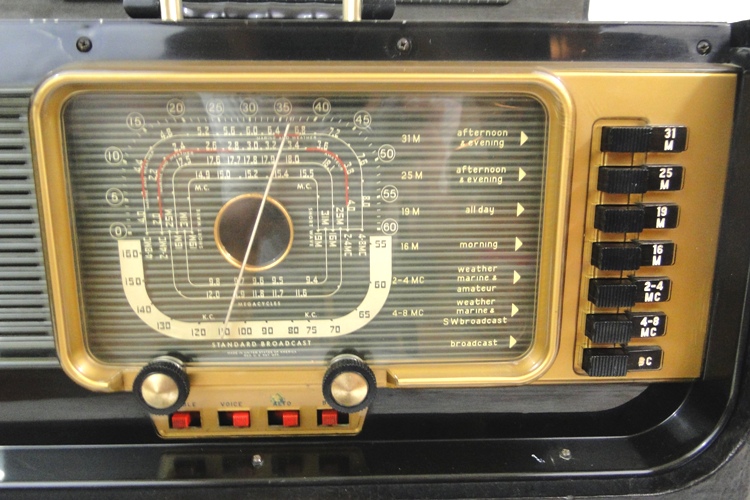

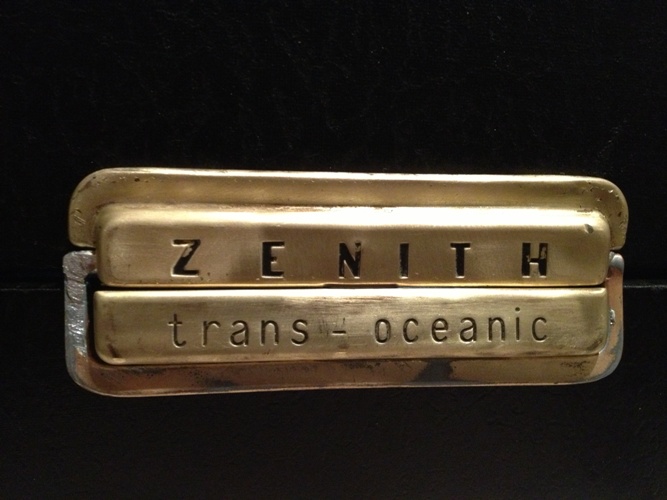

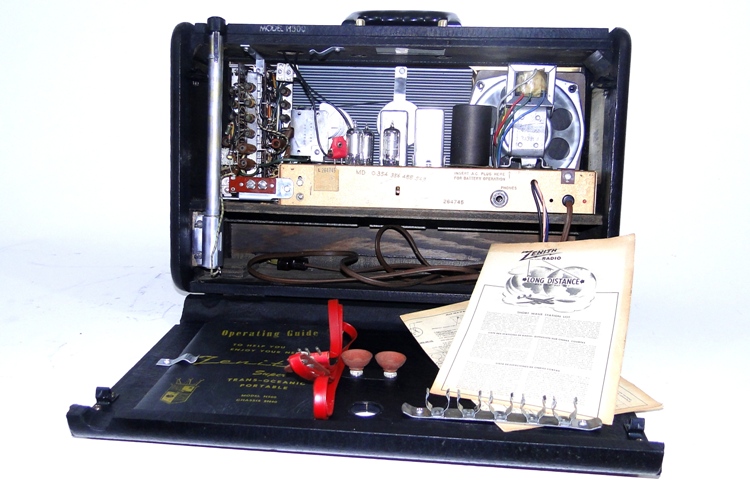

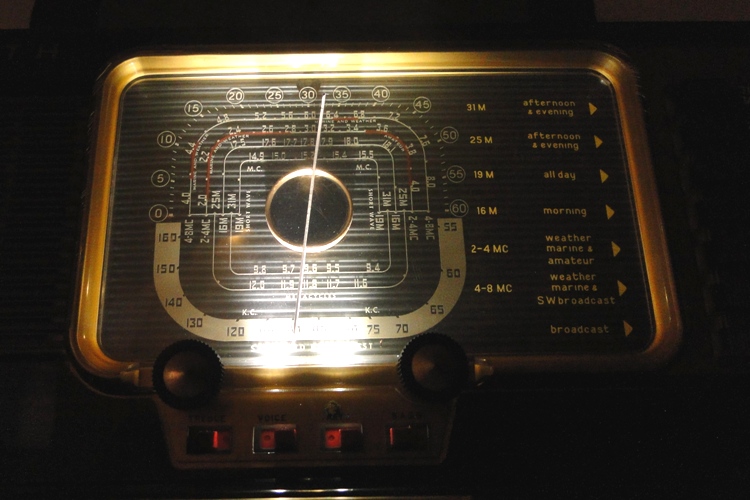

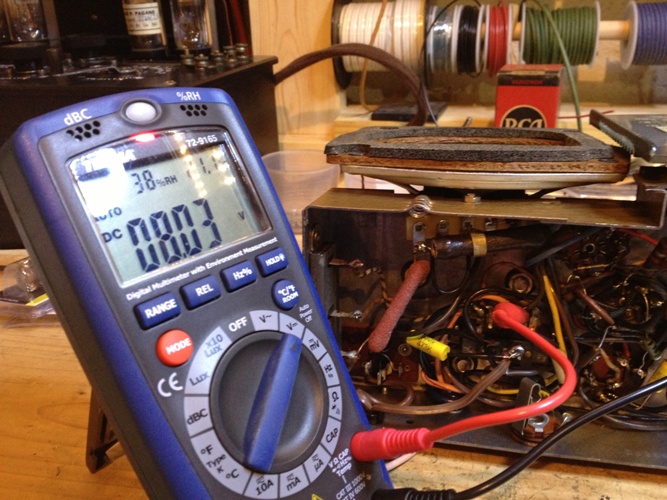

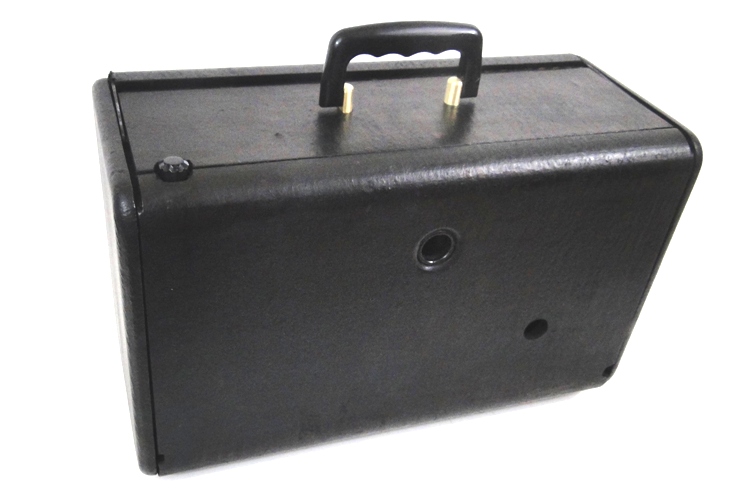

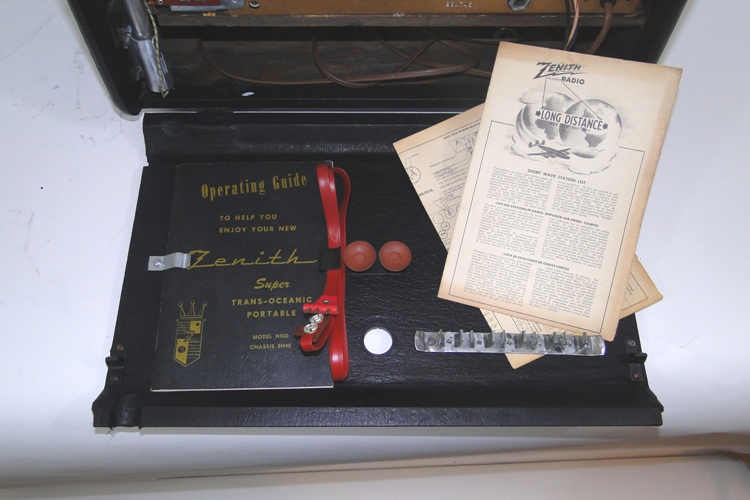

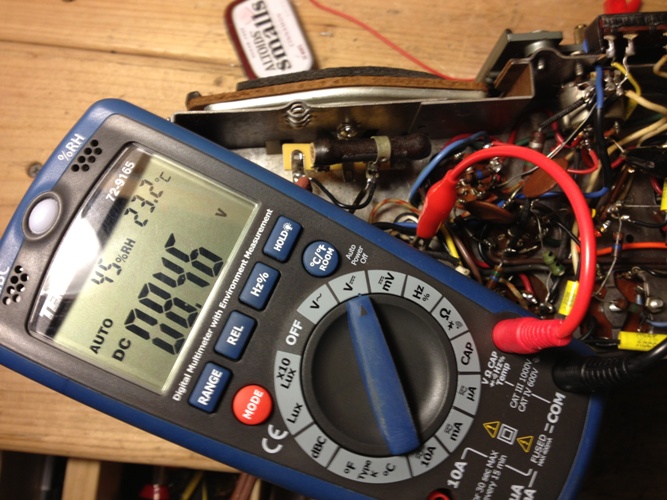

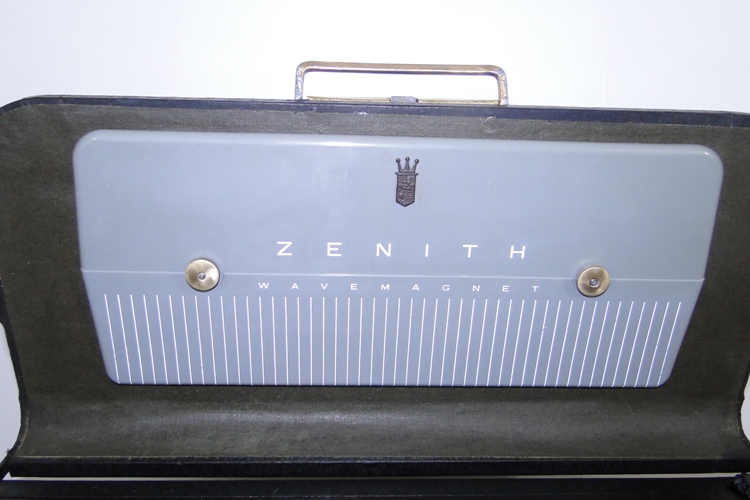

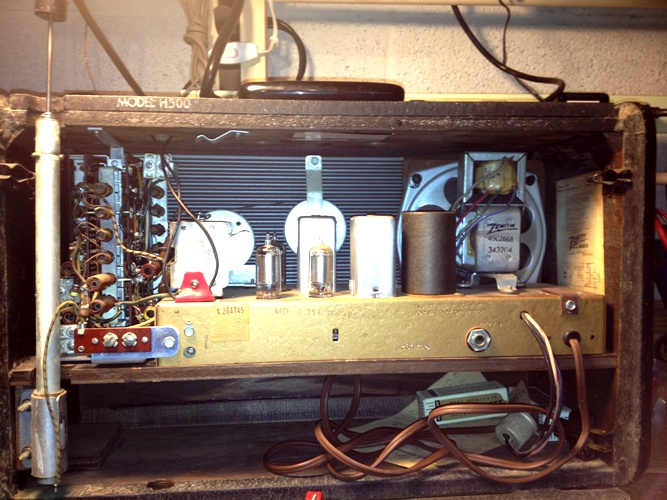

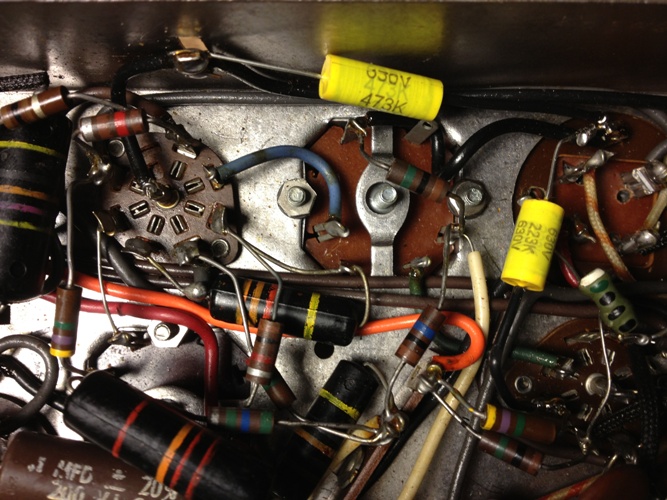

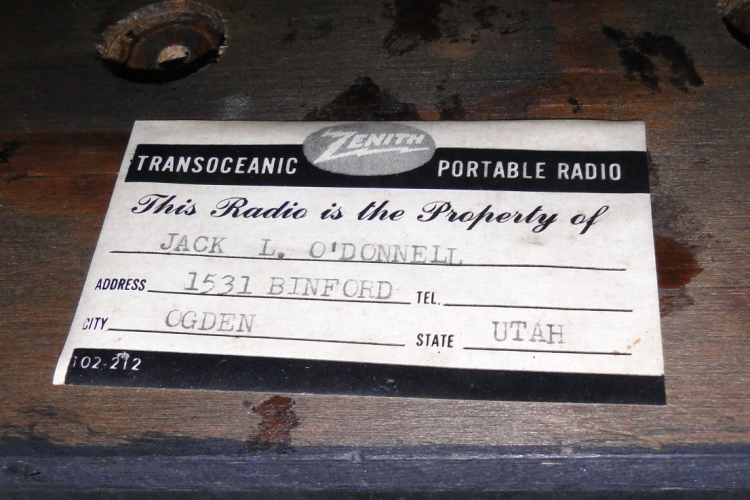

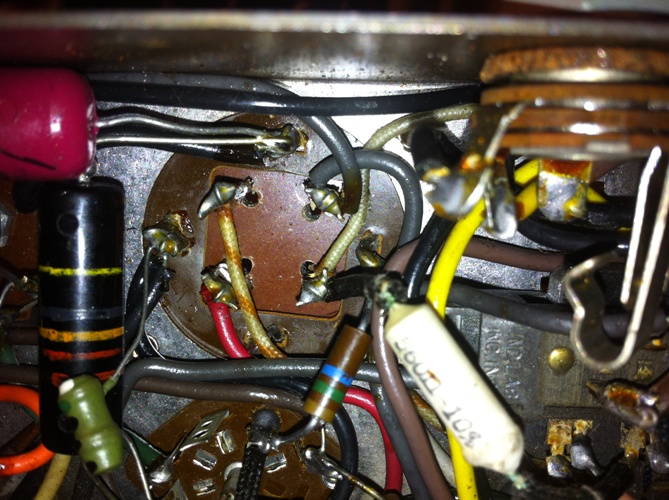

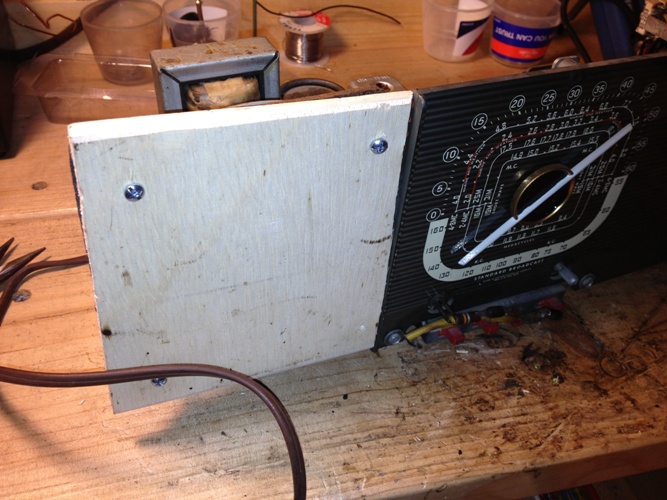

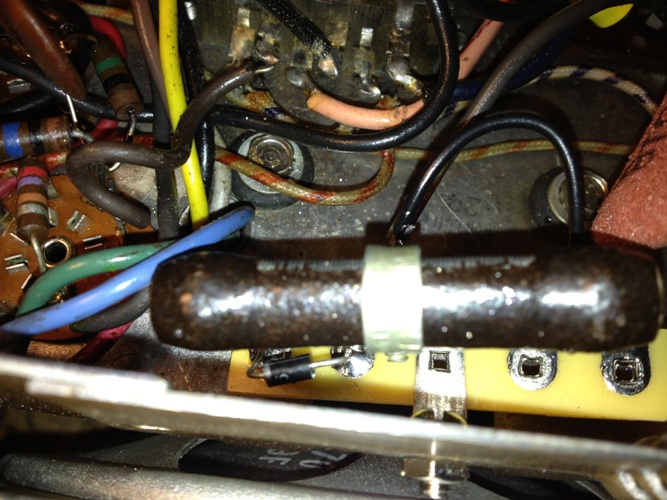

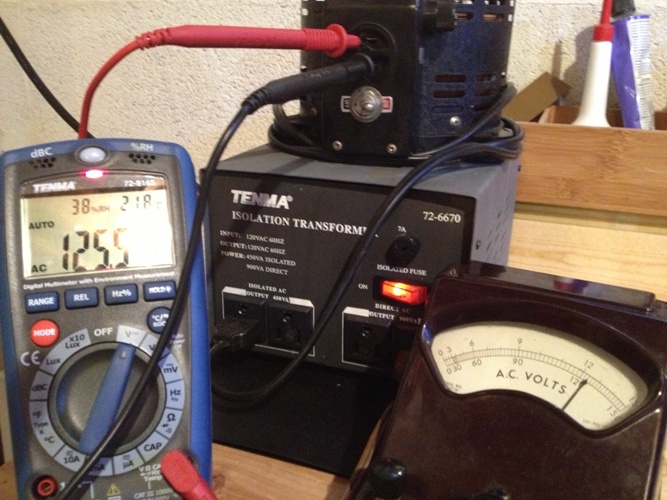

PICTURES(Click to enlarge image)

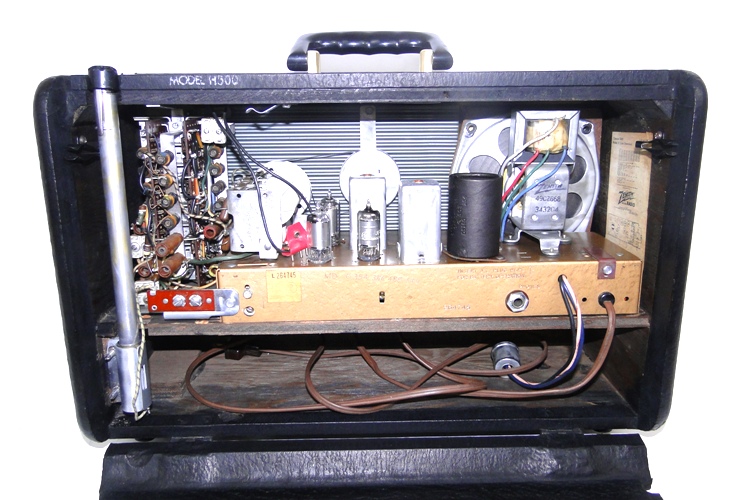

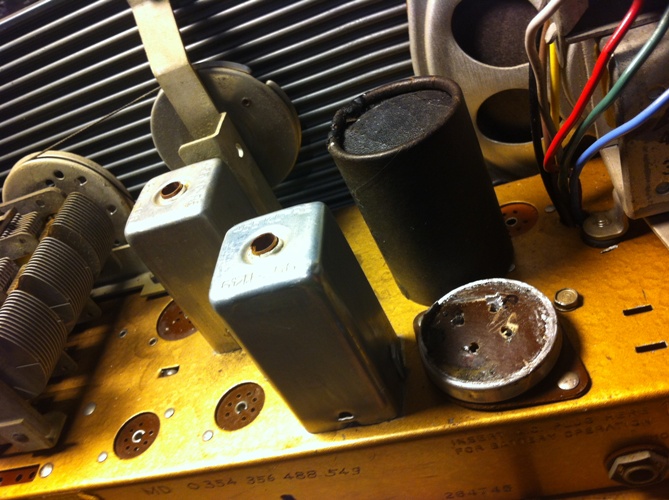

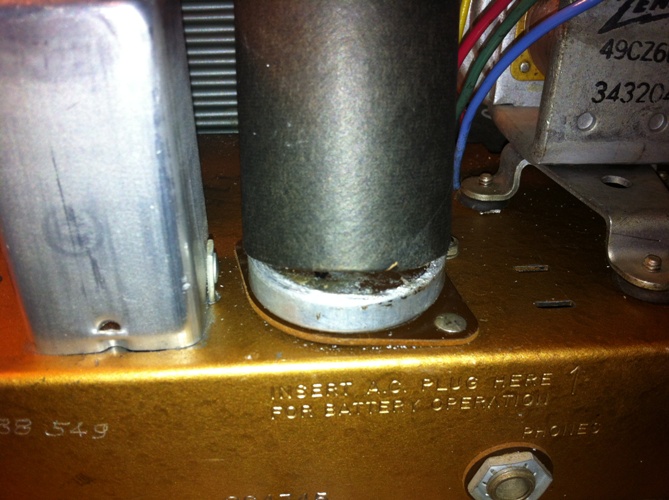

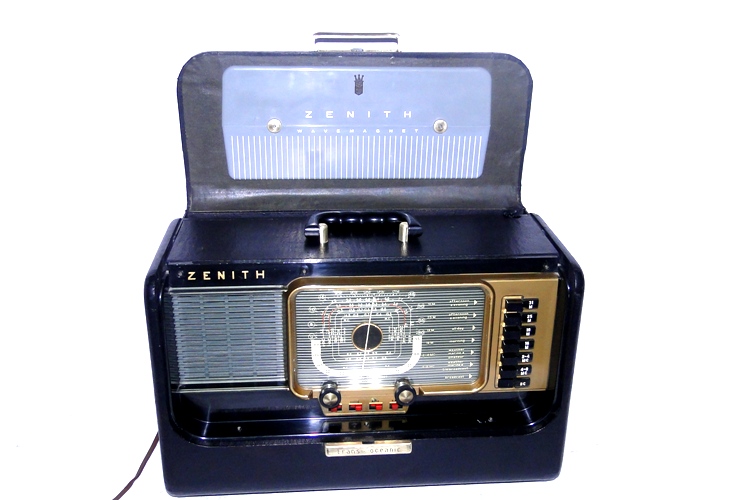

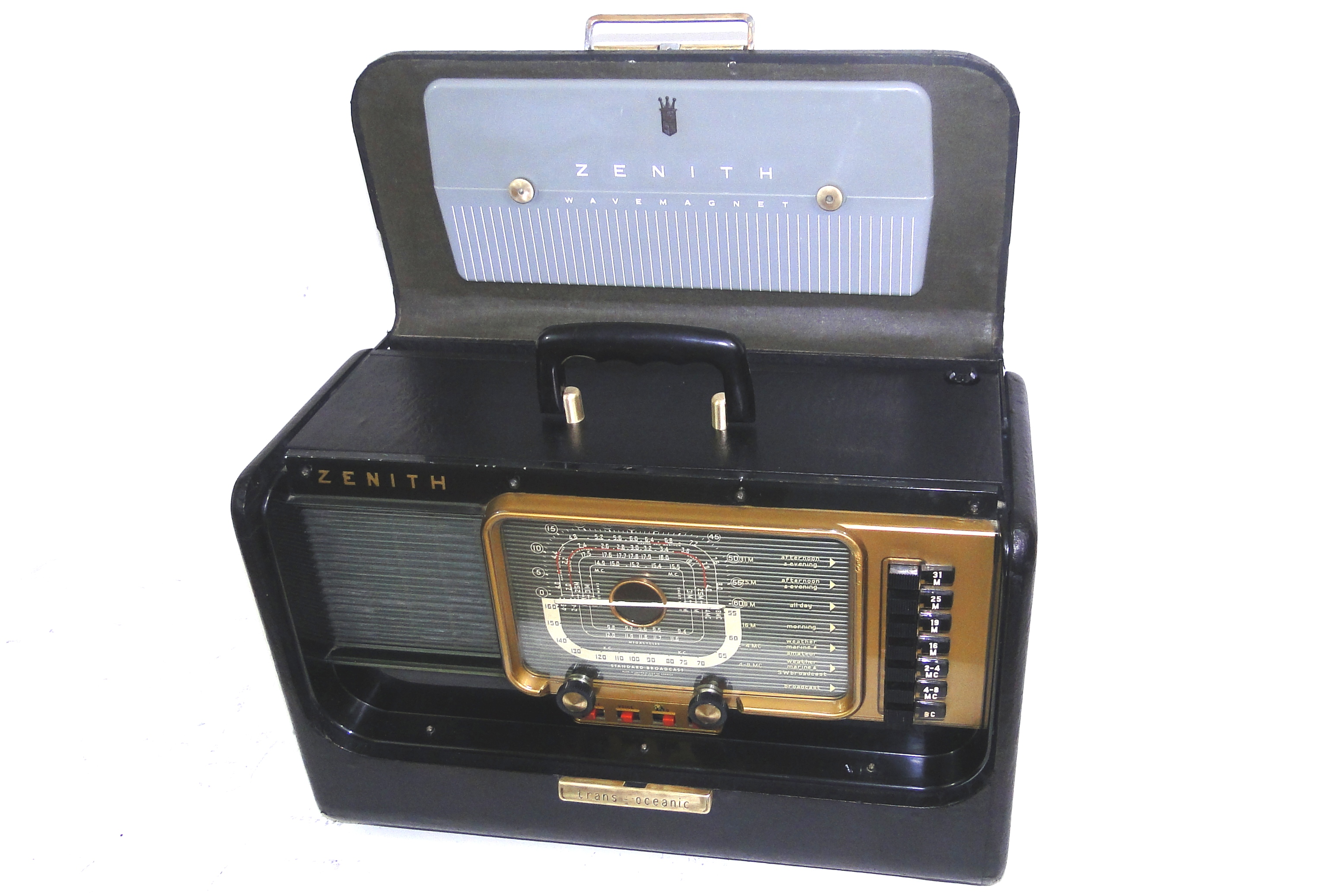

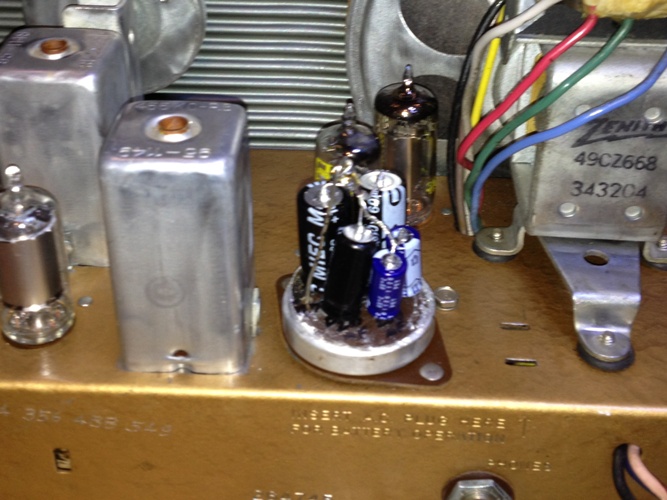

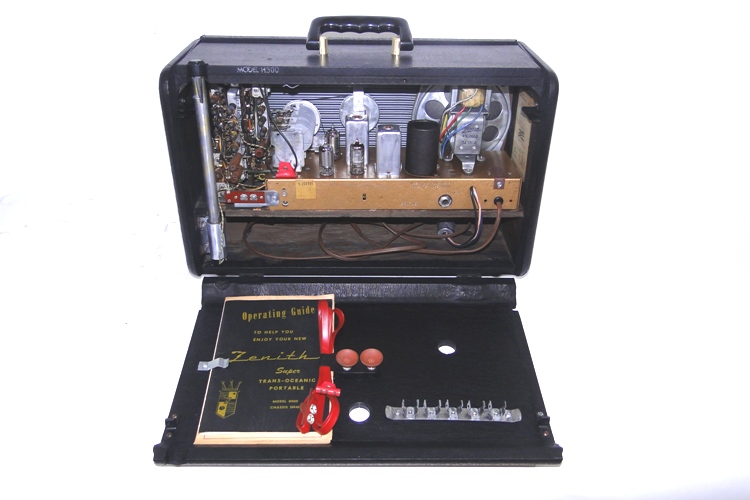

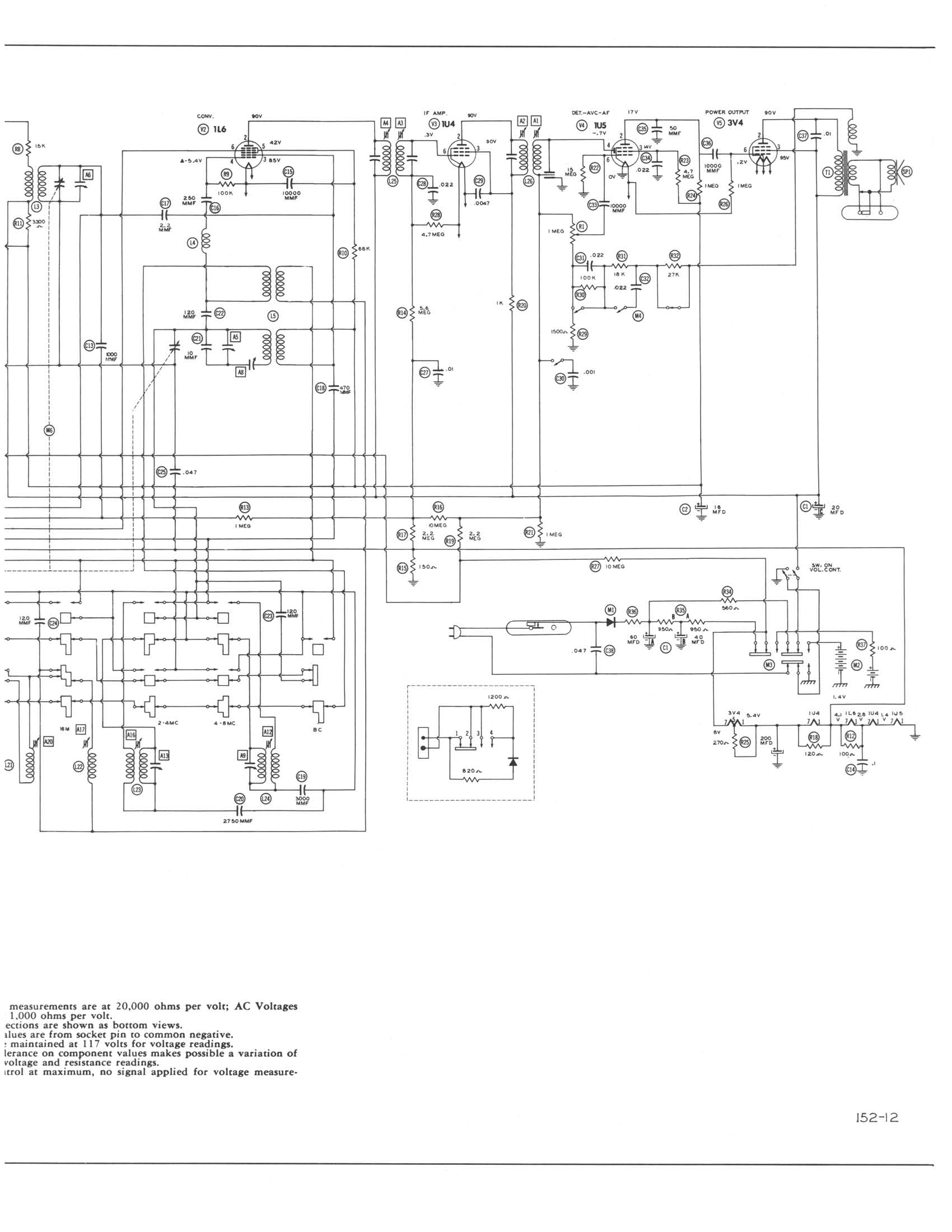

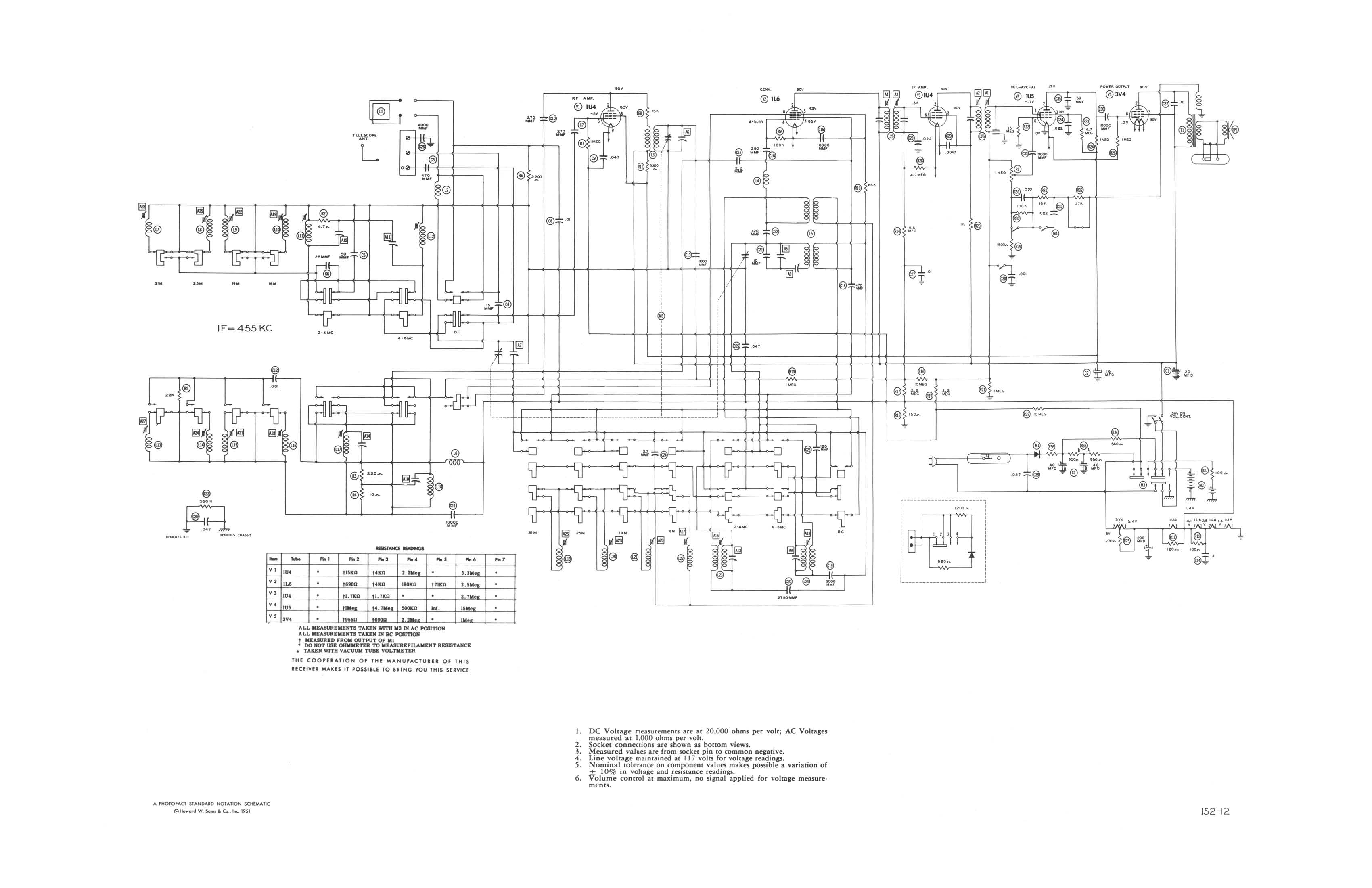

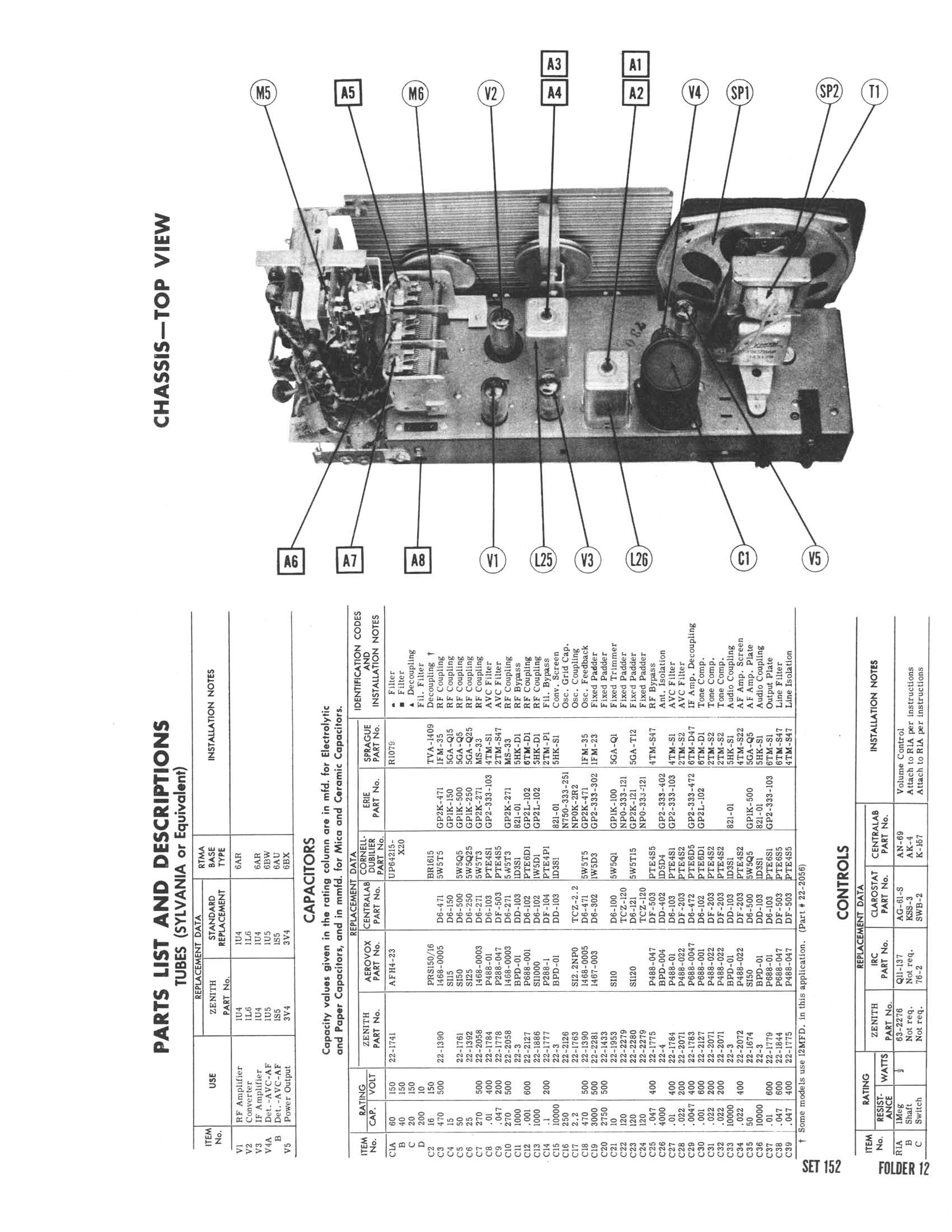

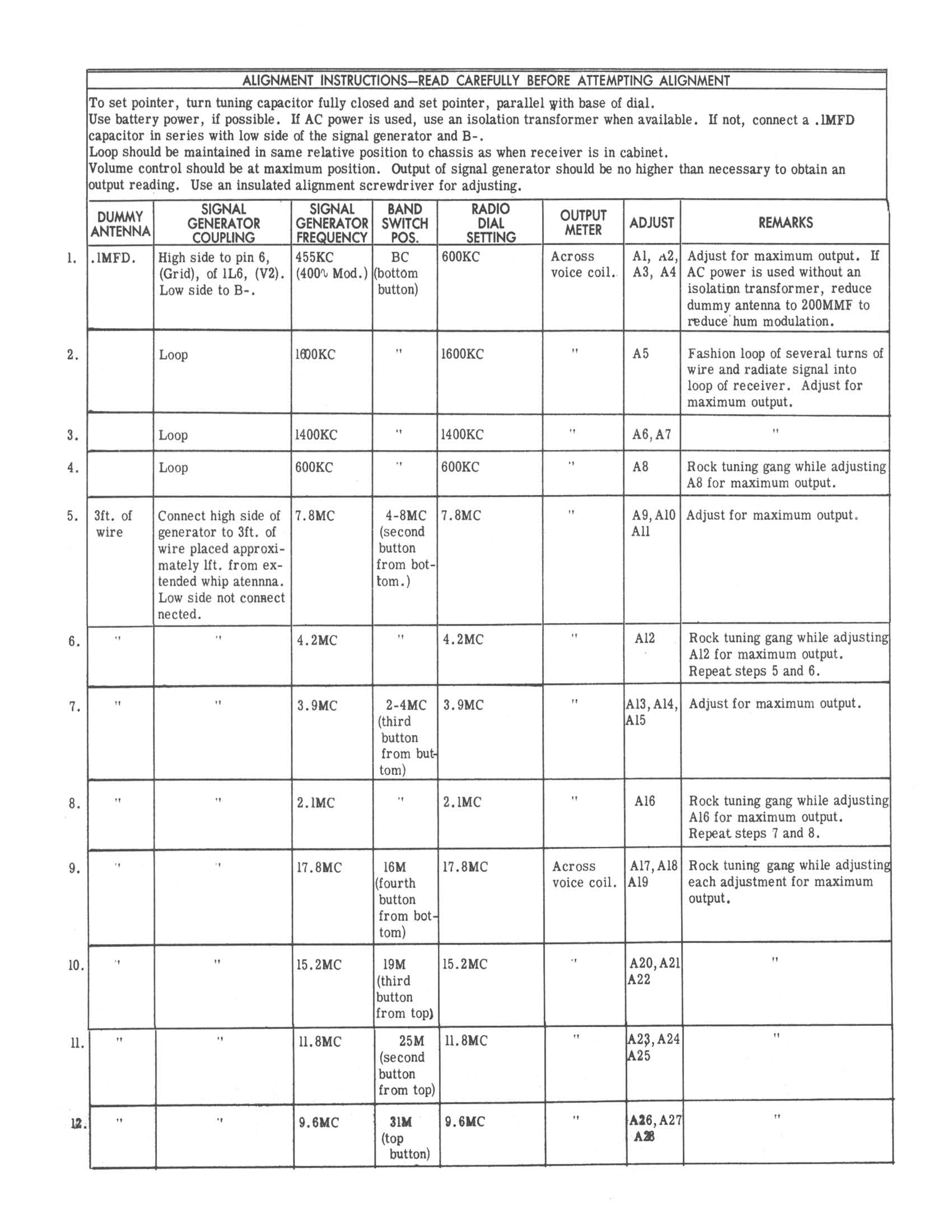

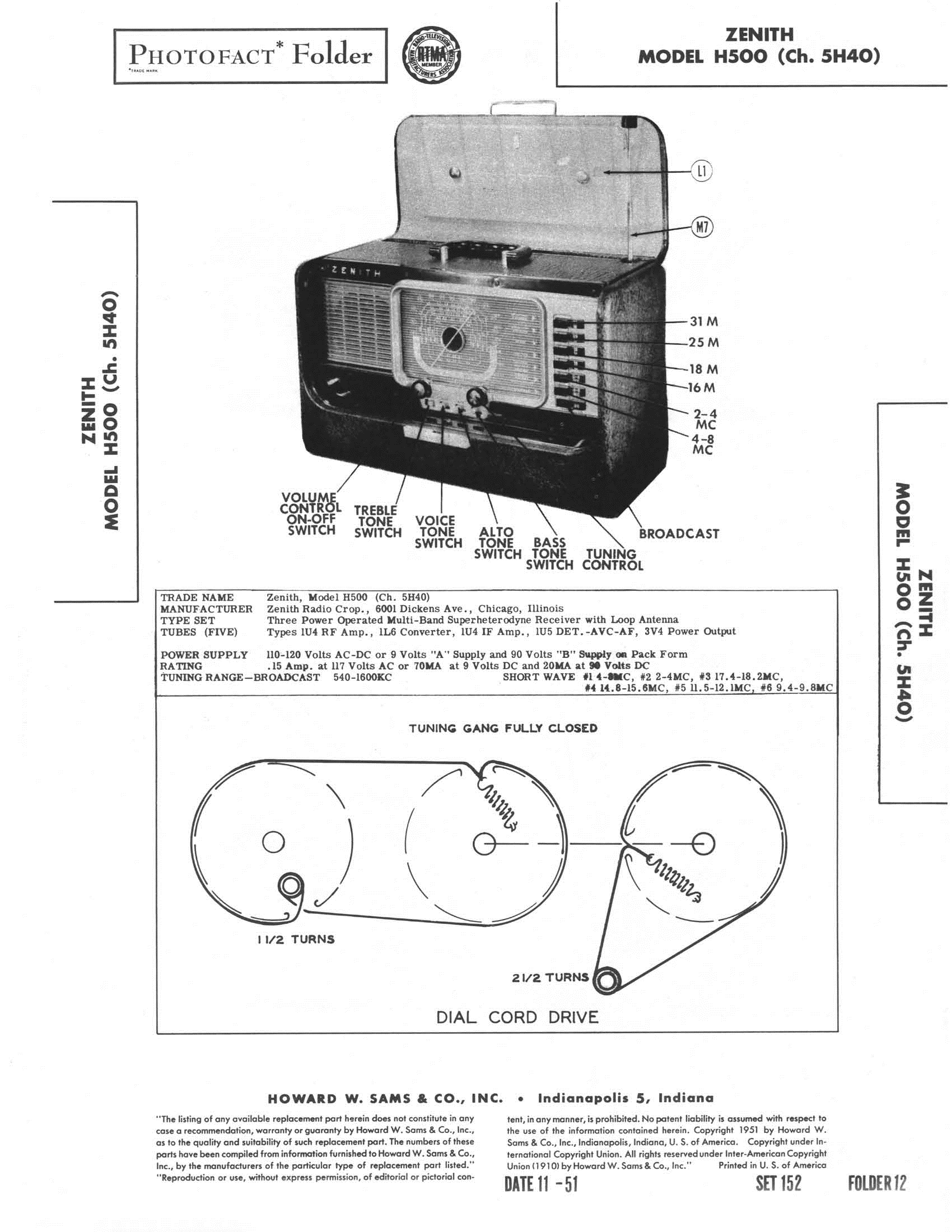

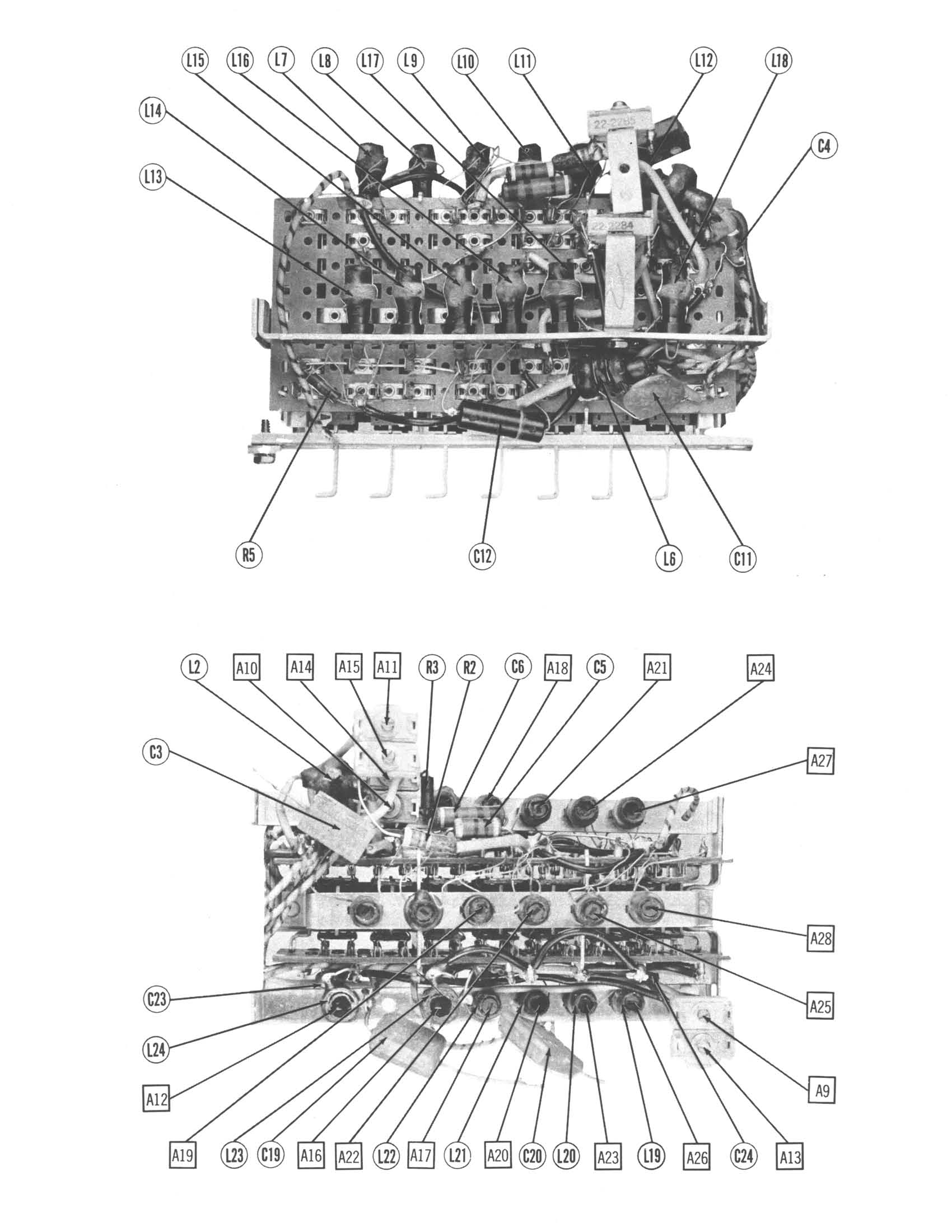

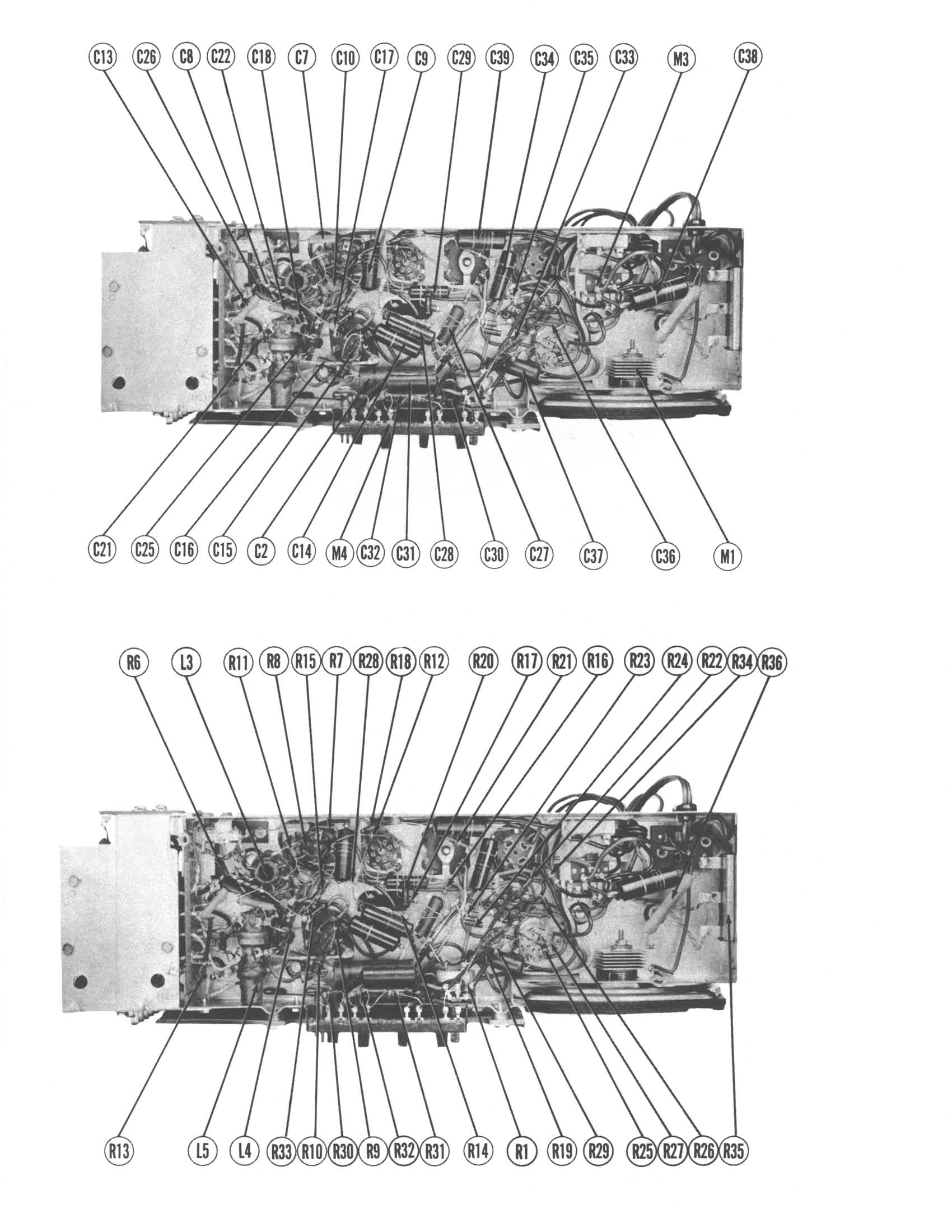

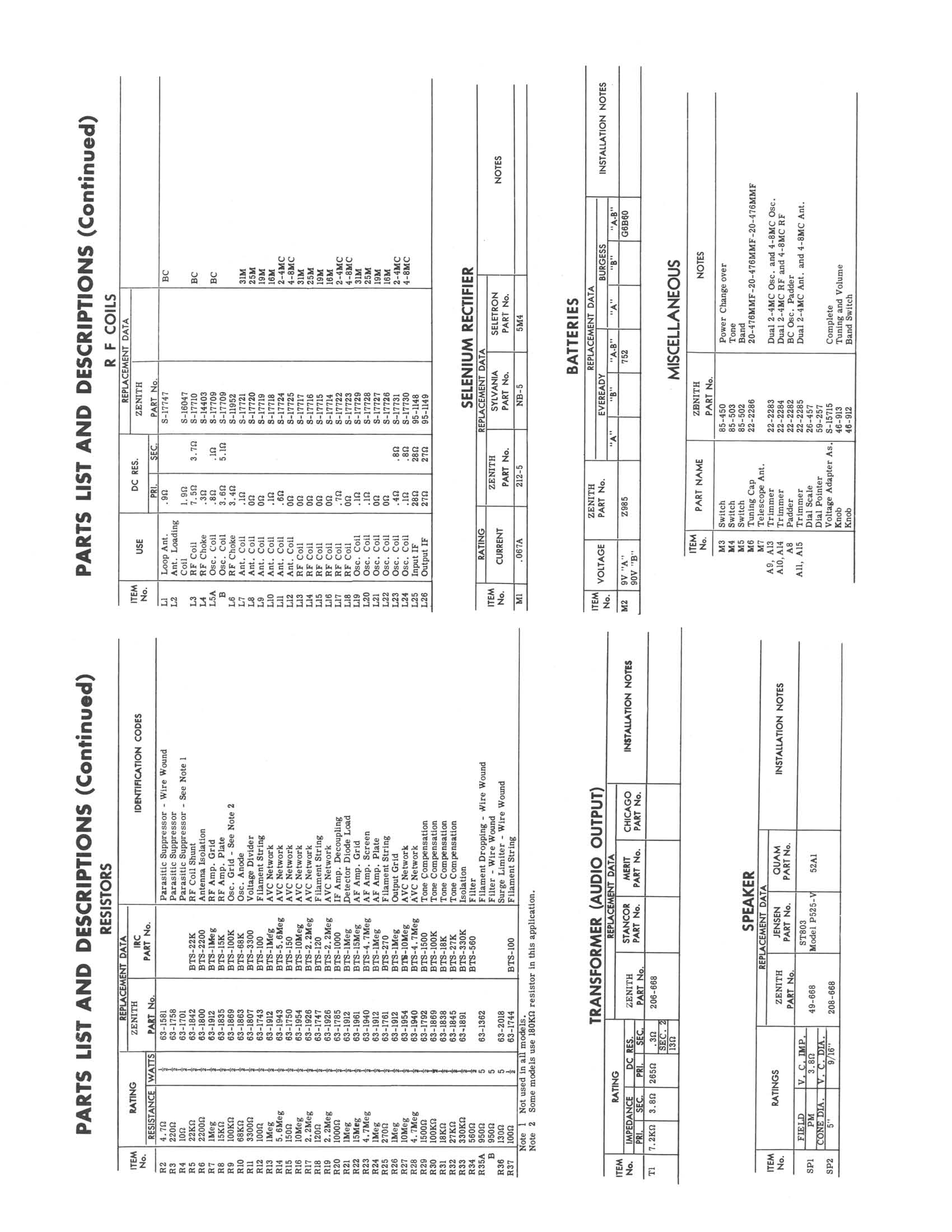

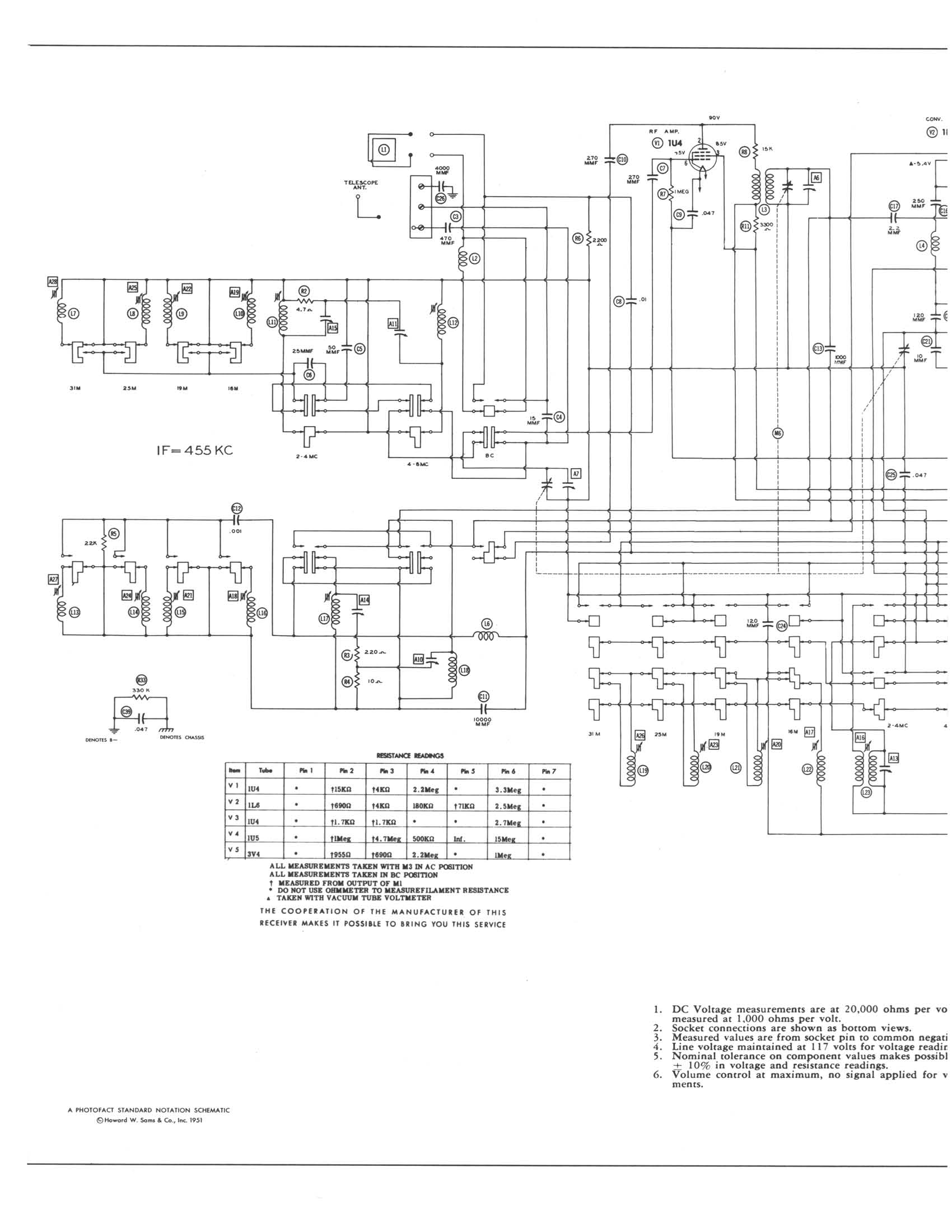

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 | Page7 | Page8 | Page9 |
FROMMAARC November 2012 Auction, Davidsonville, MD
