RADIOEmerson
MODELEP367
TECHNOLOGYTube
YEAR1940
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 KHz

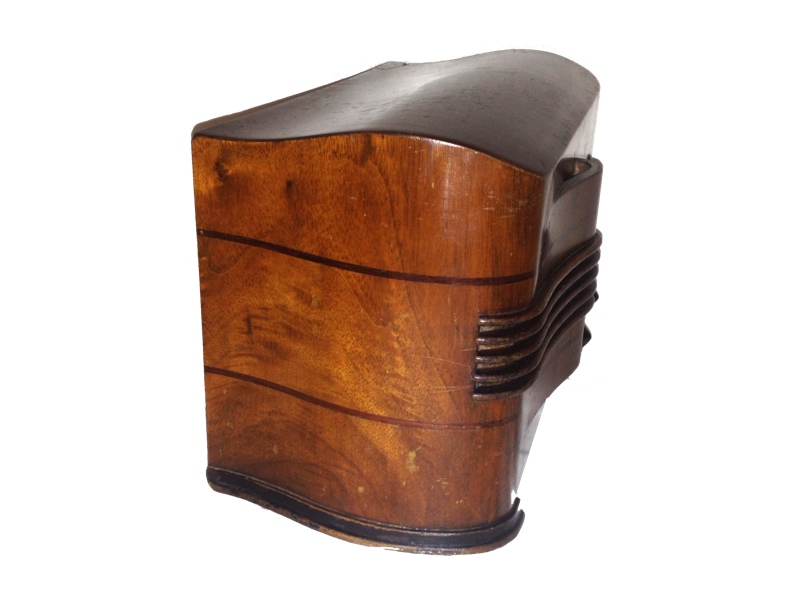

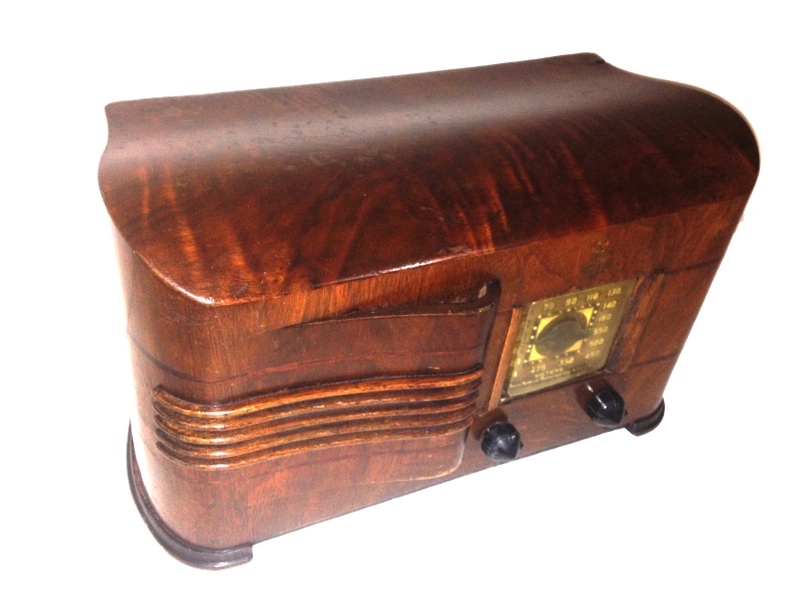

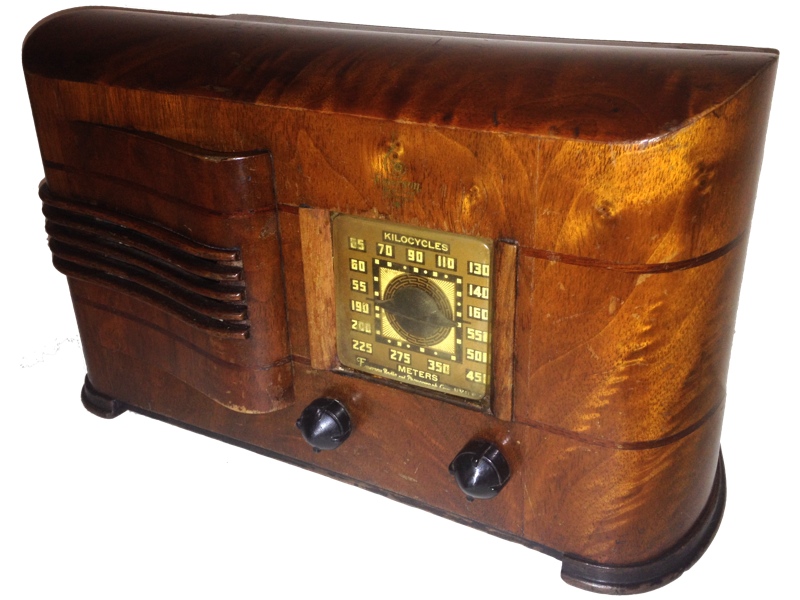

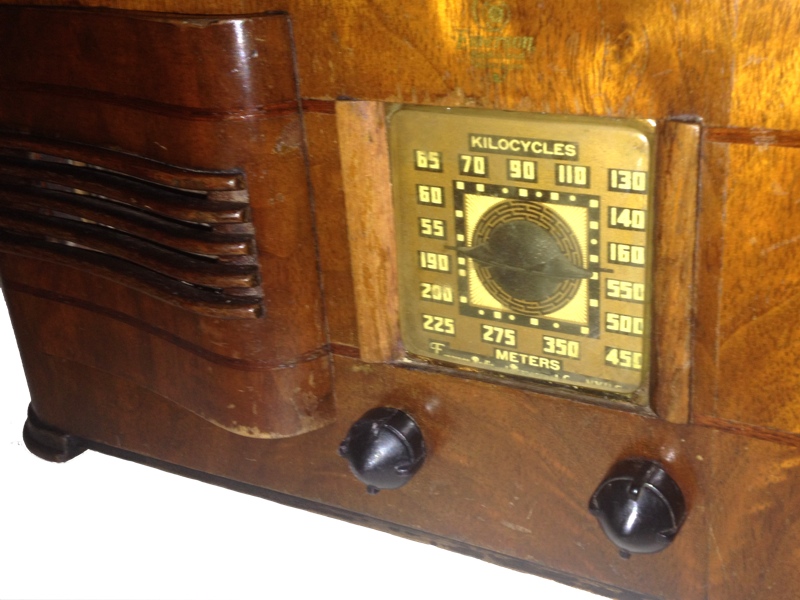

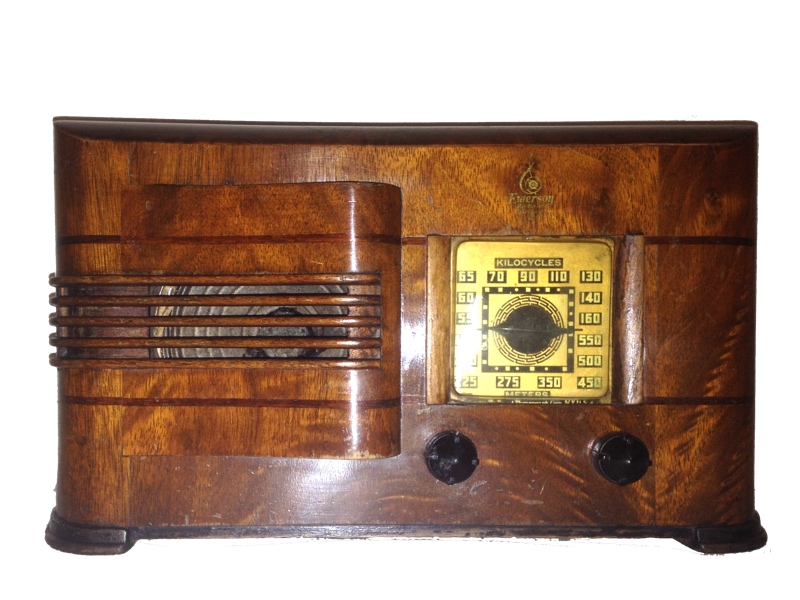

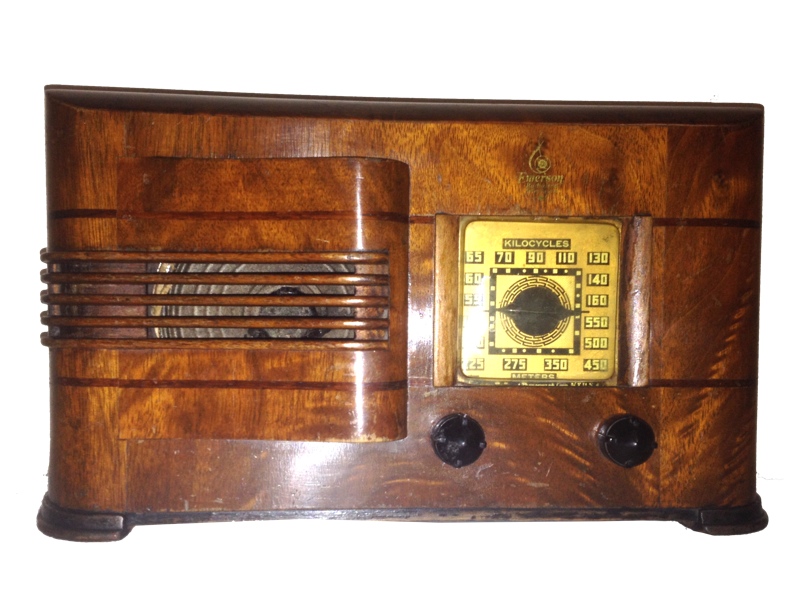

DESCRIPTIONTwo-tone wood cabinet, right front airplane dial, left one raised section grill with horizontal bars, 2 right front knobs
CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC

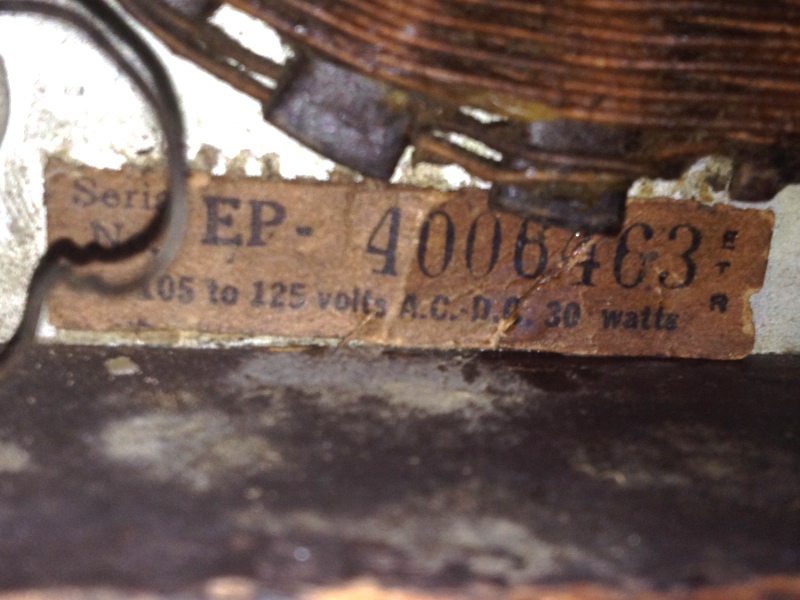

VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSISEP

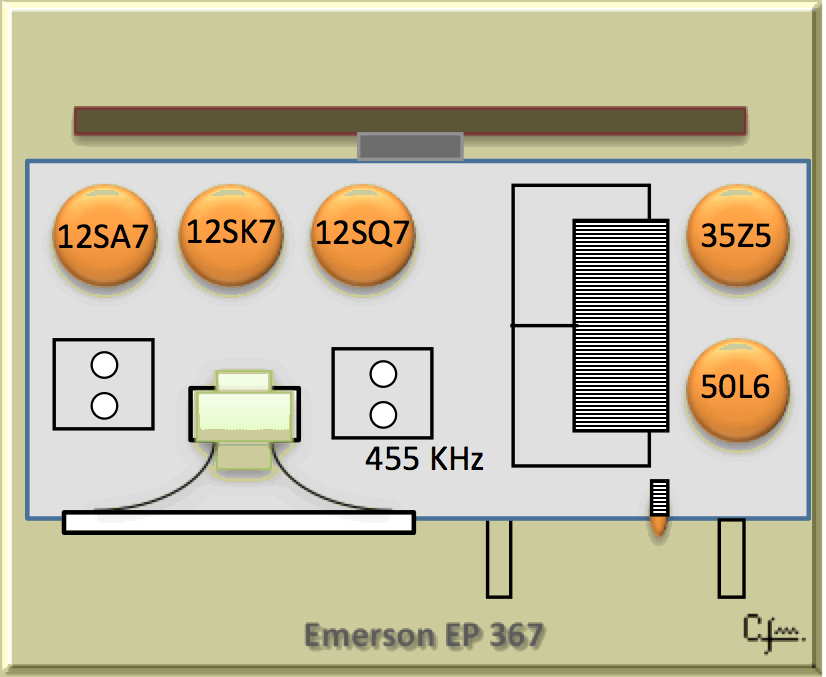

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

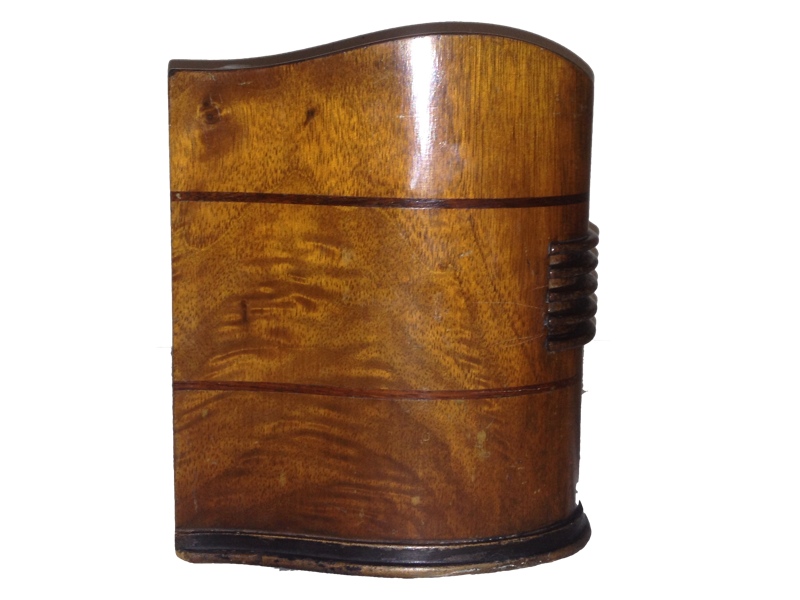

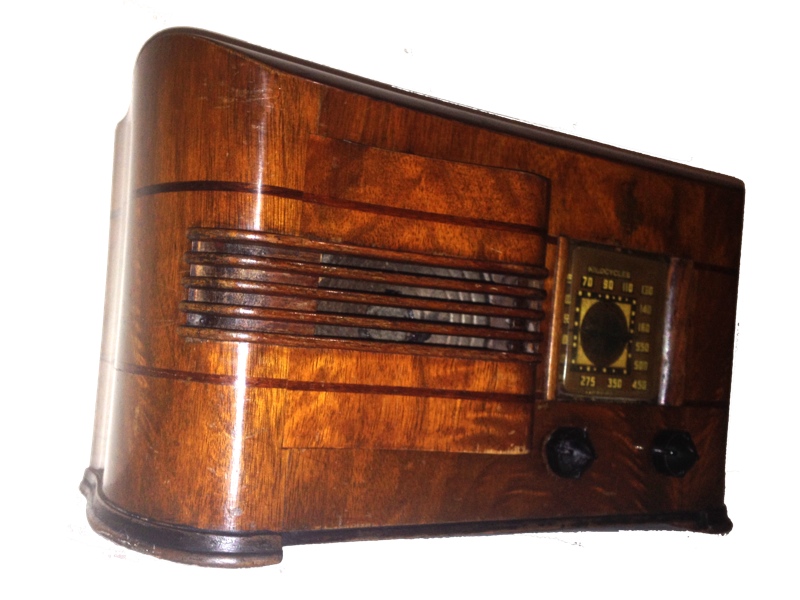

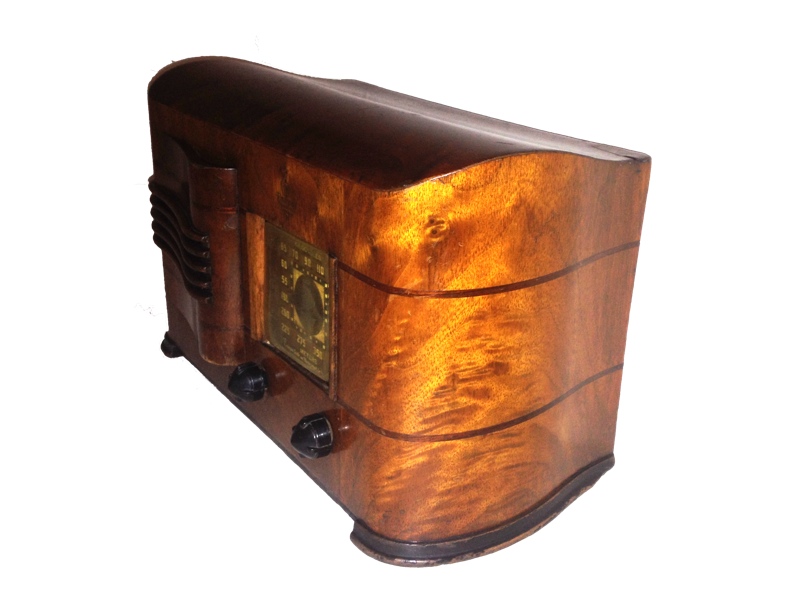

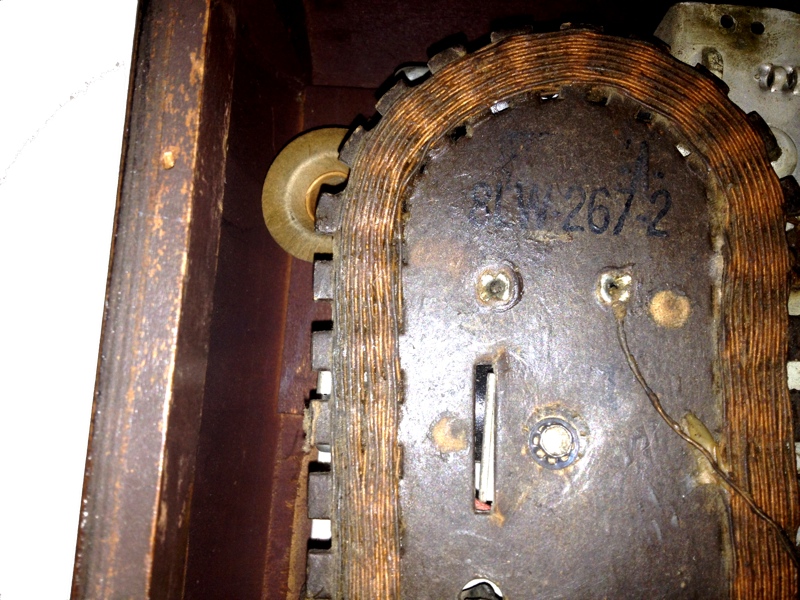

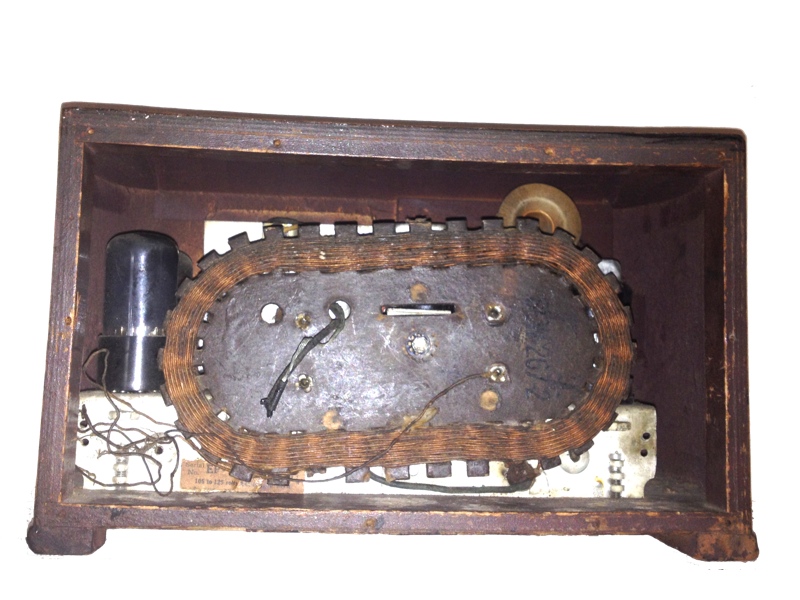

PICTURES(Click to enlarge image)

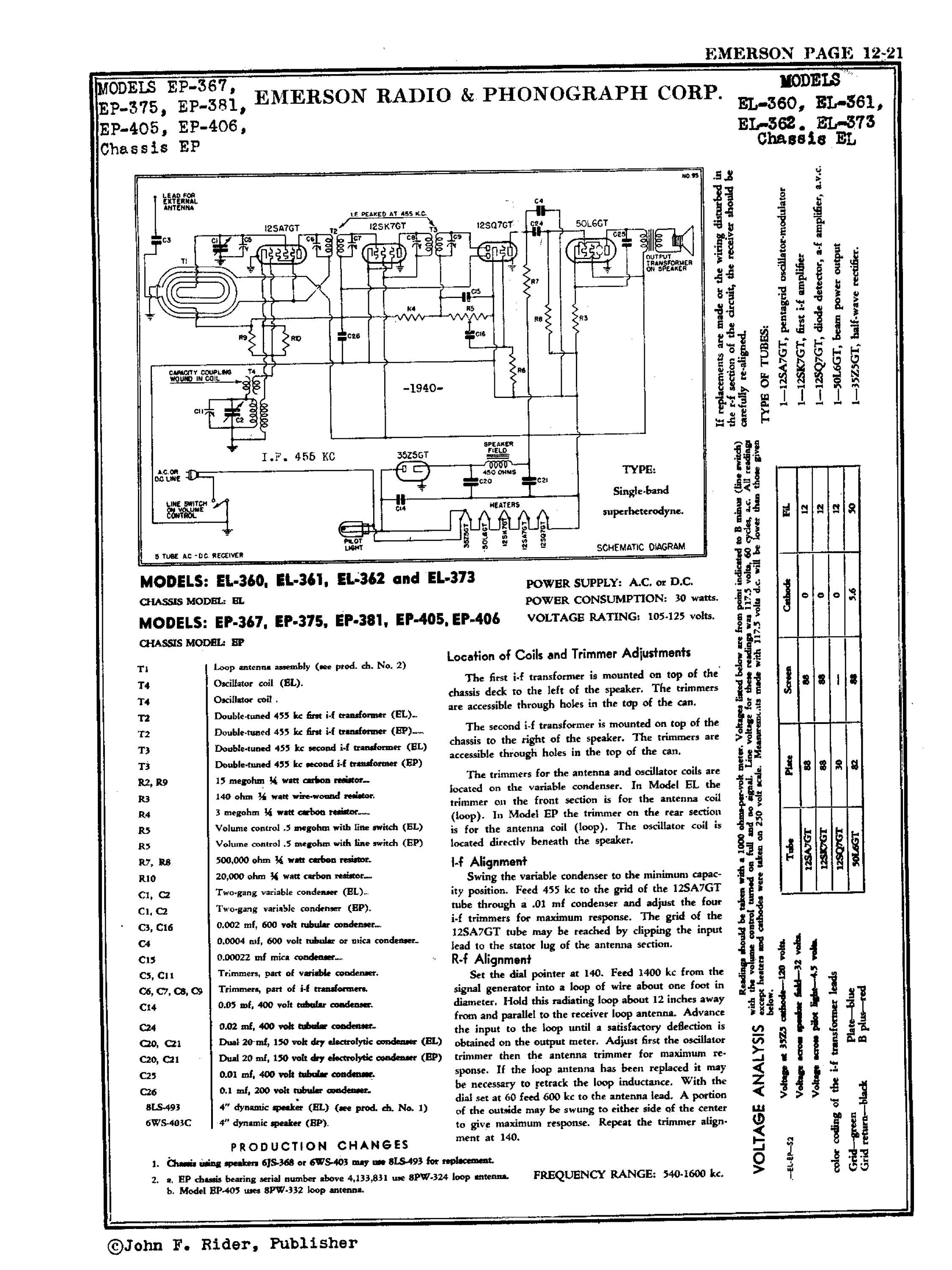

SCHEMATICS | Page1 |
FROMFrom eBay, about September 2014
