RADIOEmerson
MODELAX212
TECHNOLOGYTube
YEAR1938
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE540 - 1730 KHz

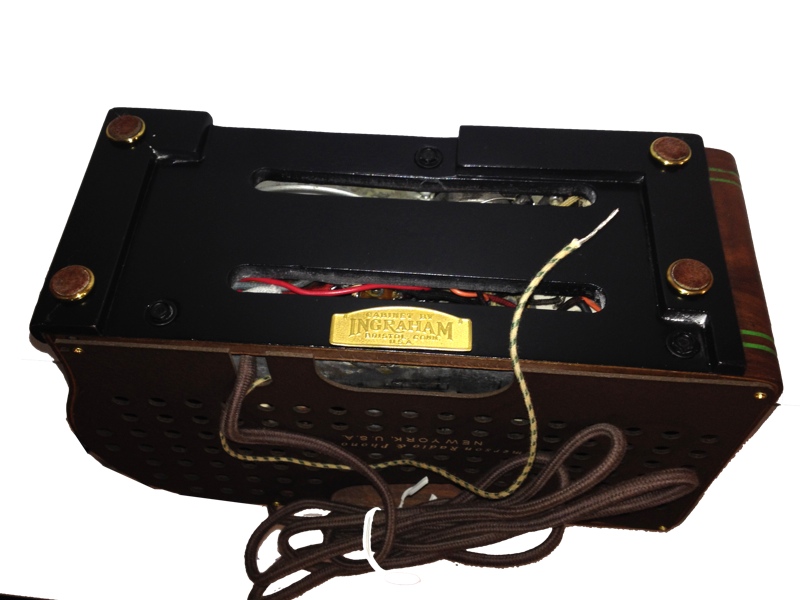

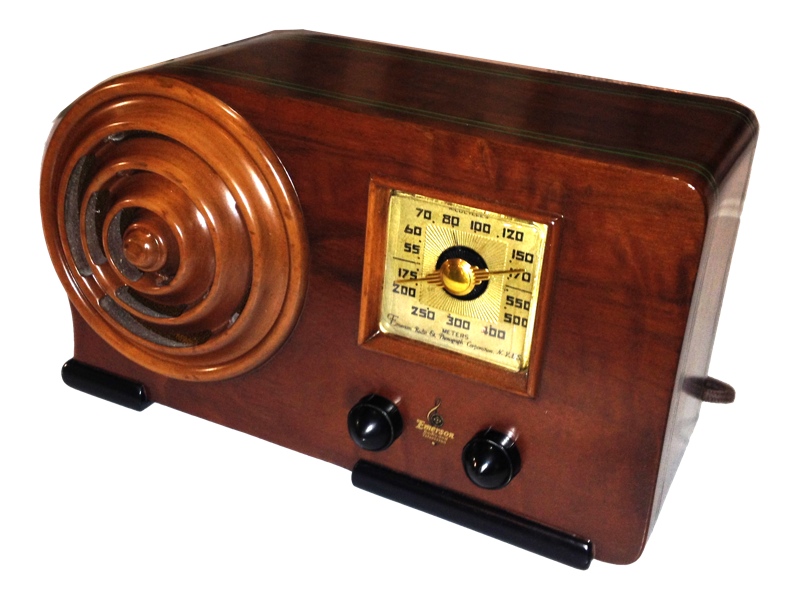

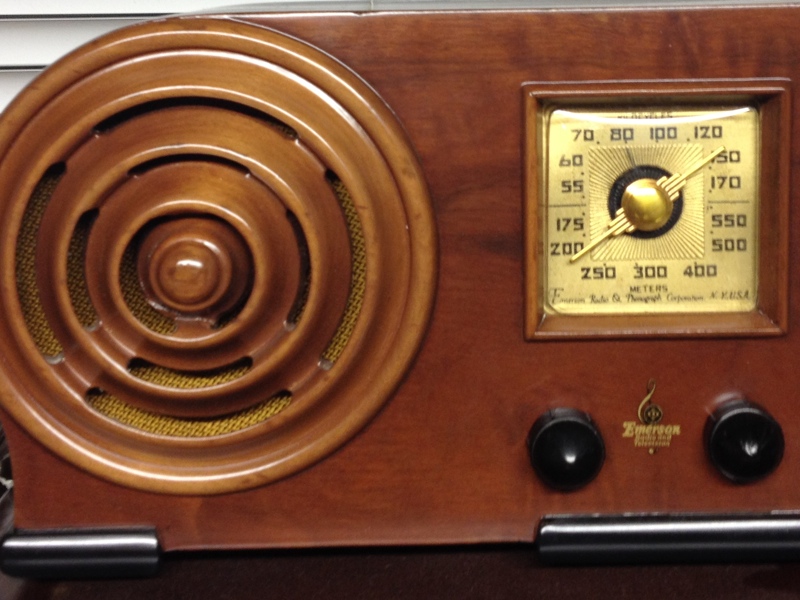

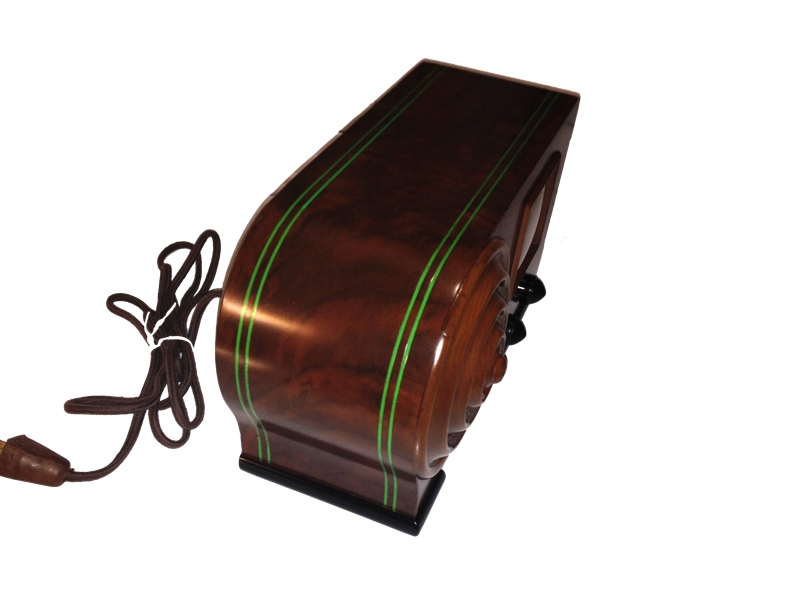

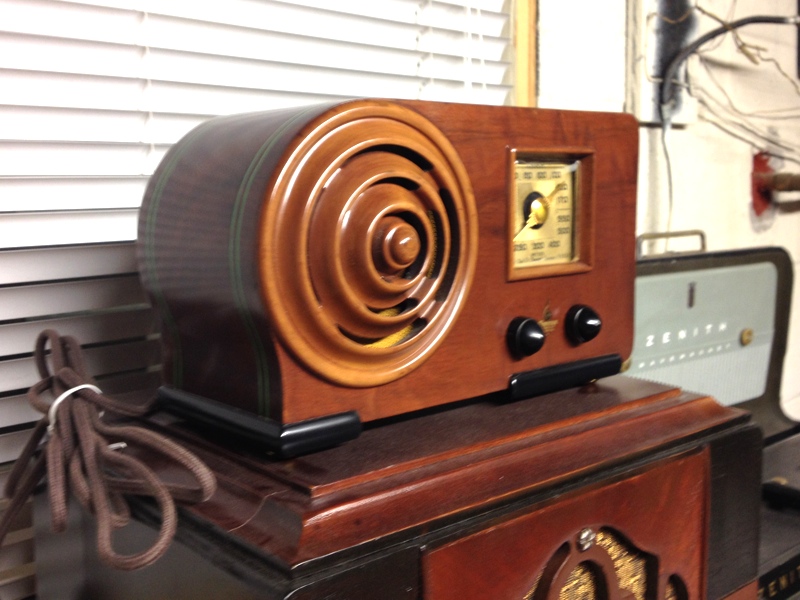

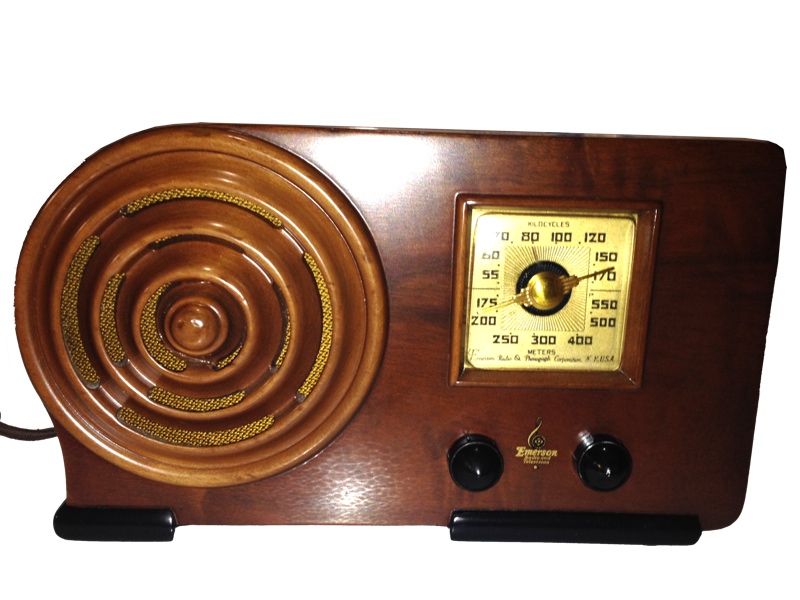

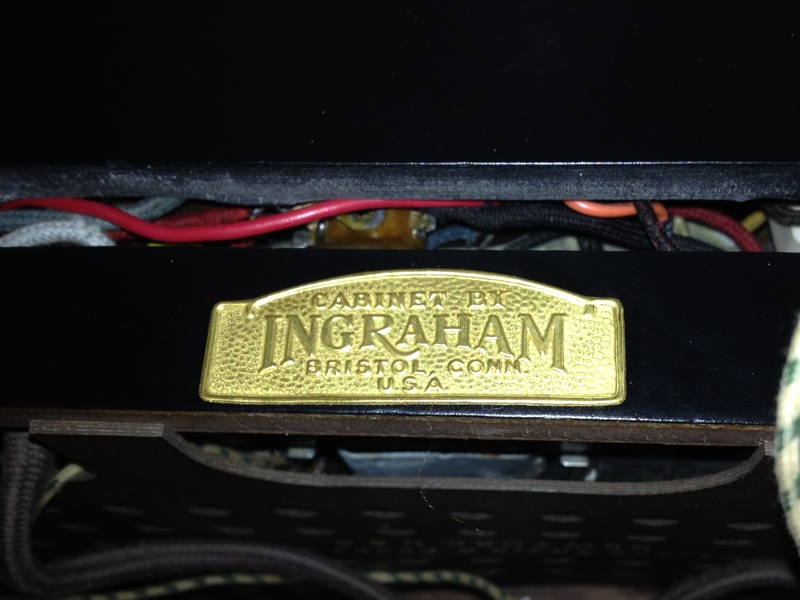

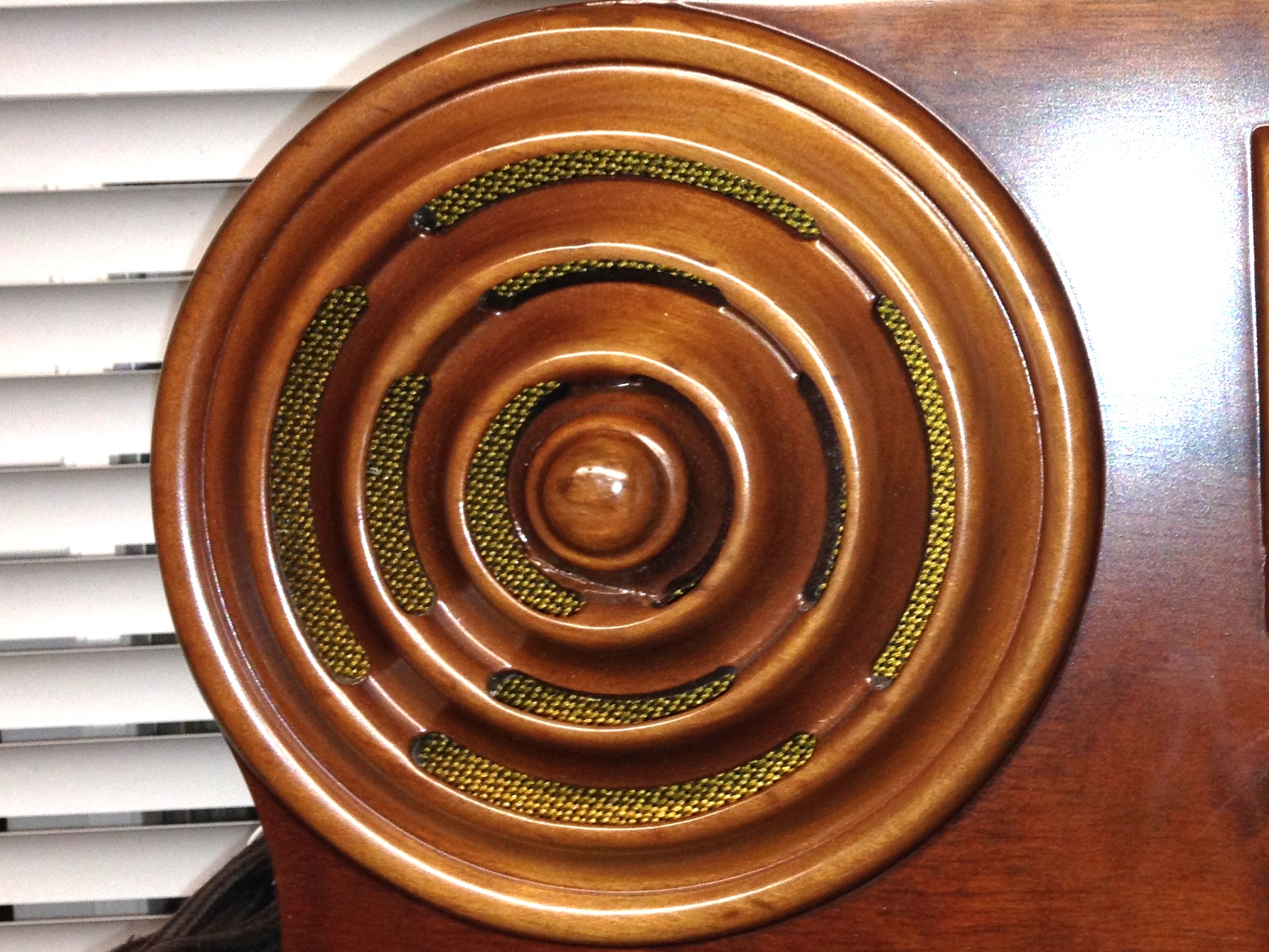

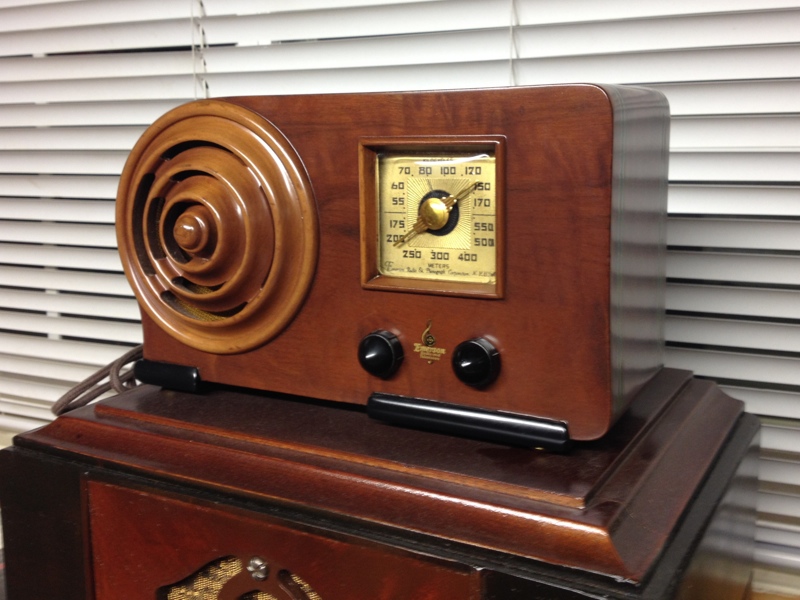

DESCRIPTIONCurley Maple Ingraham cabinet with "Bullseye" grille. Broadcast band only. Two right side knobs, left on/off/volume and right tuning.
CABINET STYLEMantle
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 44
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION45 W
AC CYCLES50-60 Hz
CHASSIS

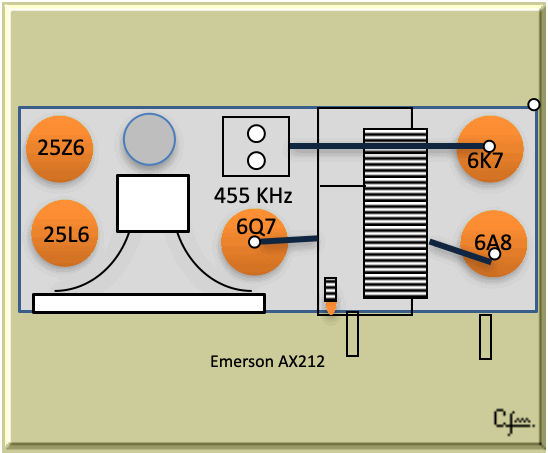

TUBES LOCATION
TUBE COMPLEMENT | 6A8 | 6K7 | 6Q7 | 25L6 | 25Z6 |

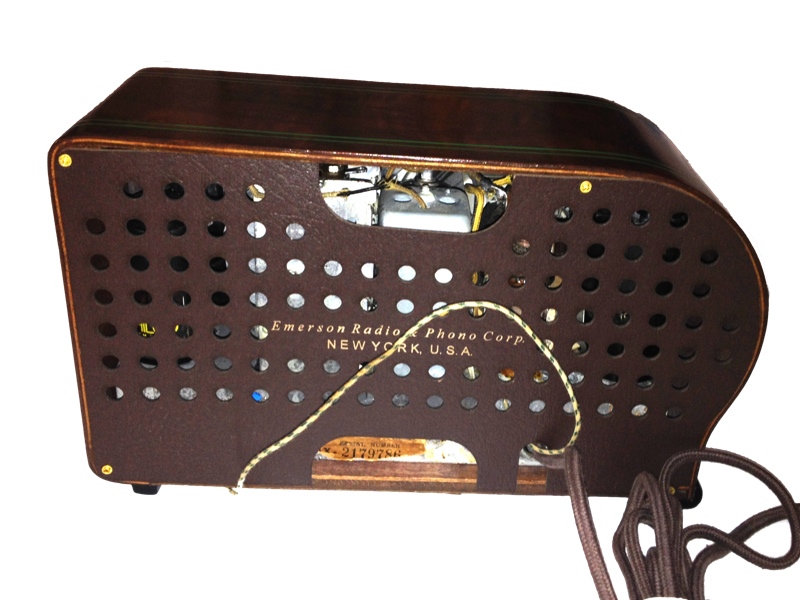

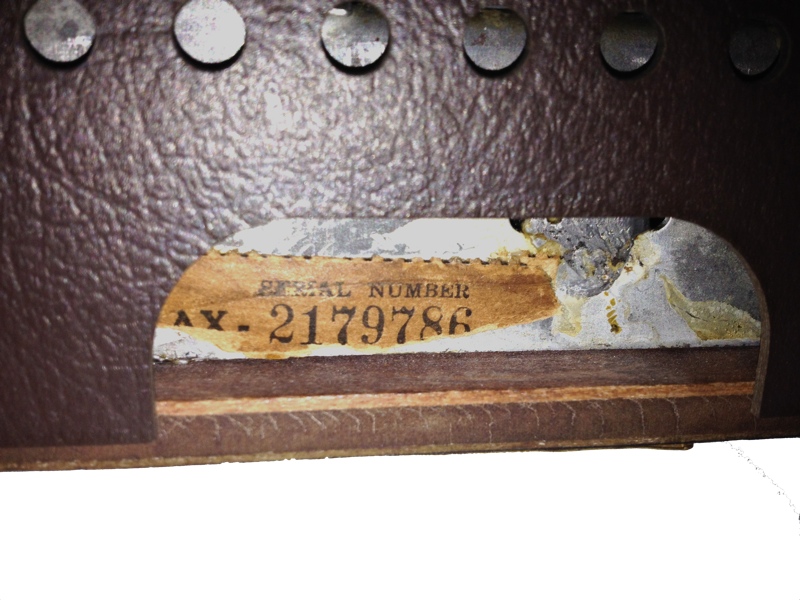

PICTURES(Click to enlarge image)

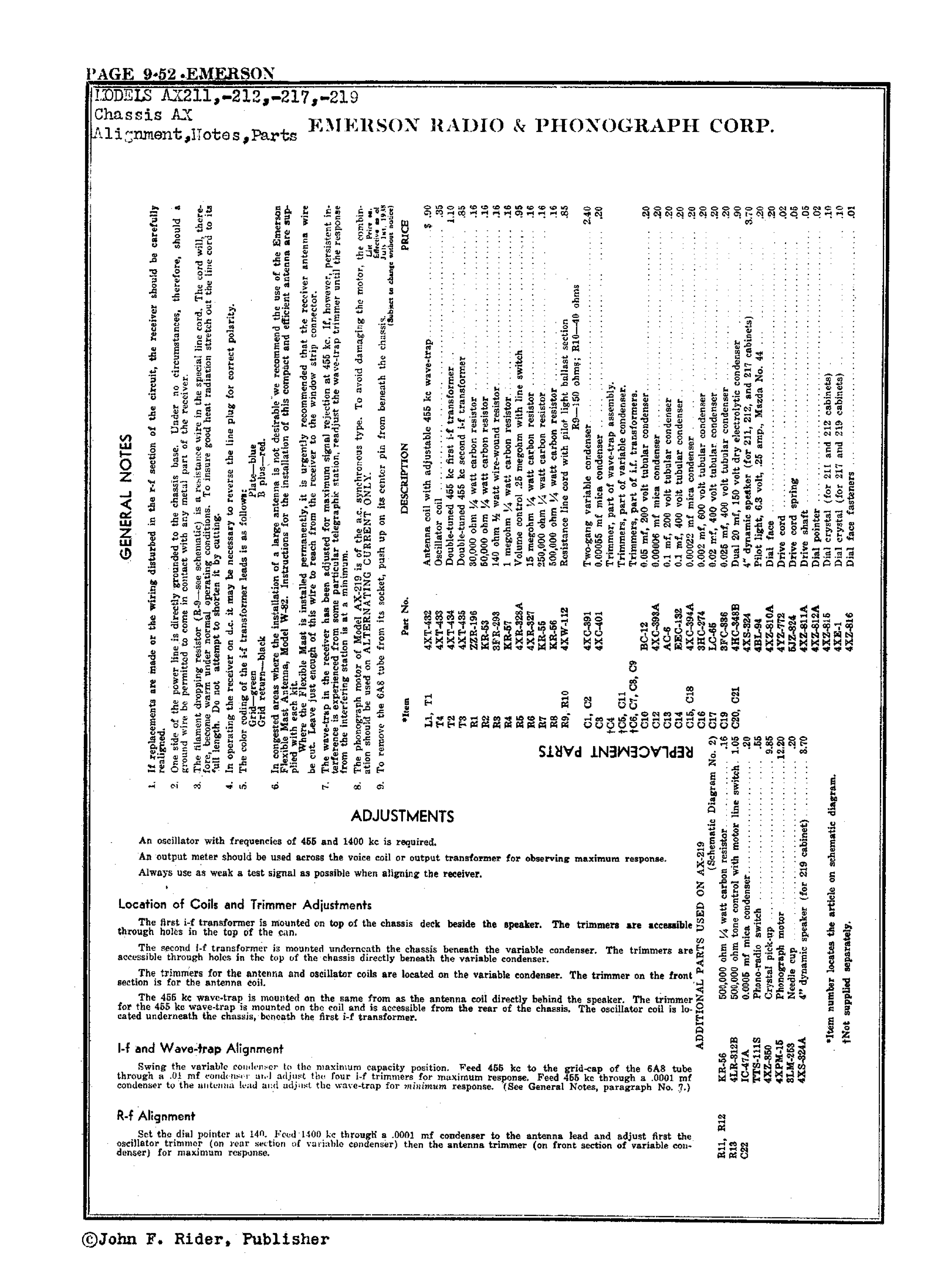

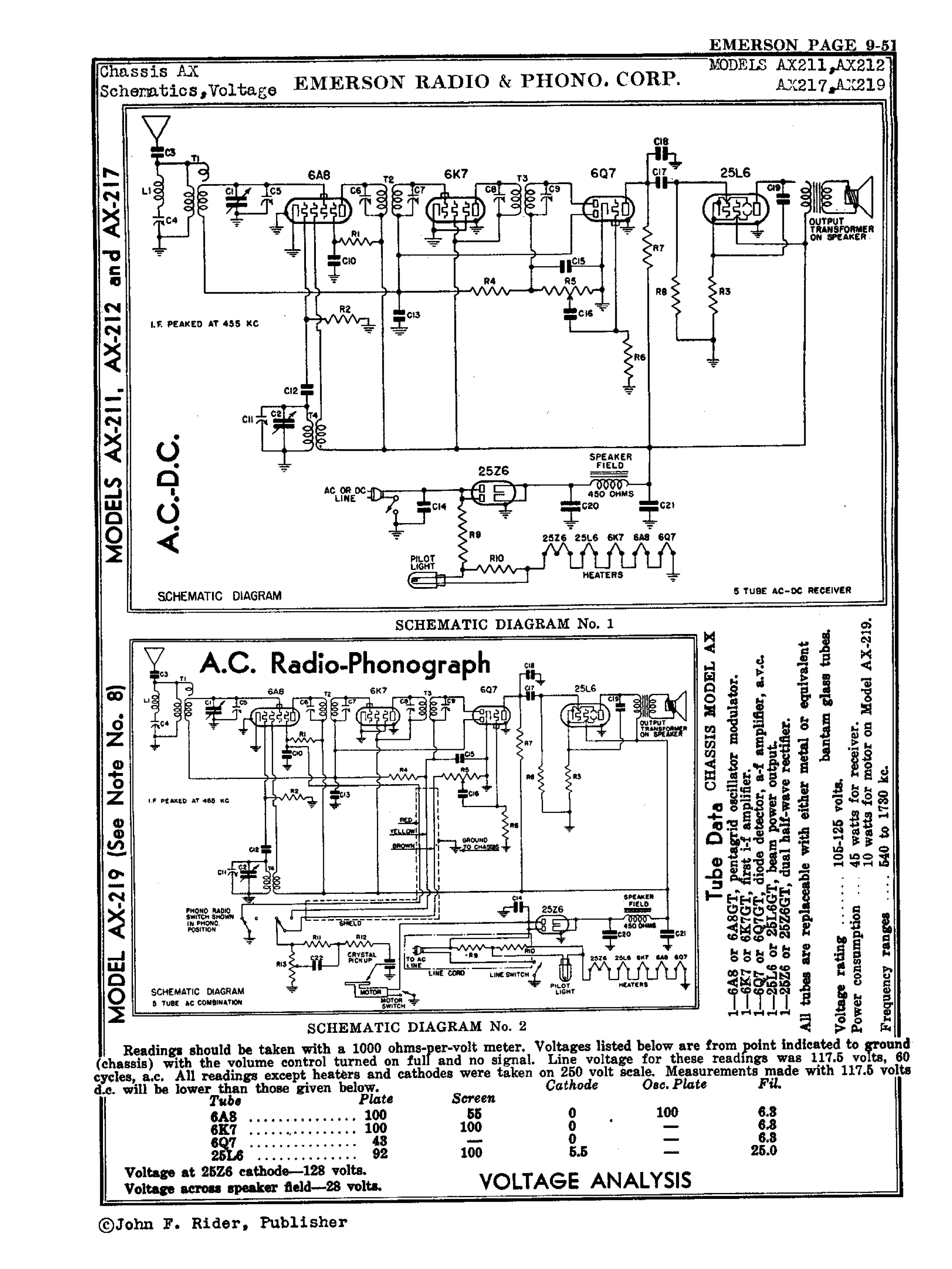

SCHEMATICS | Page1 | Page2 |
FROMFrom XXI Kutztown Radio Show, sept/2014
