RADIOSilvertone
MODEL4204
TECHNOLOGYTube
YEAR1954
MADE INUNITED STATES
WAVE BANDSBC/FM
COVERAGEAM 550 - 1600 Kc, FM 88 - 107 Mc.

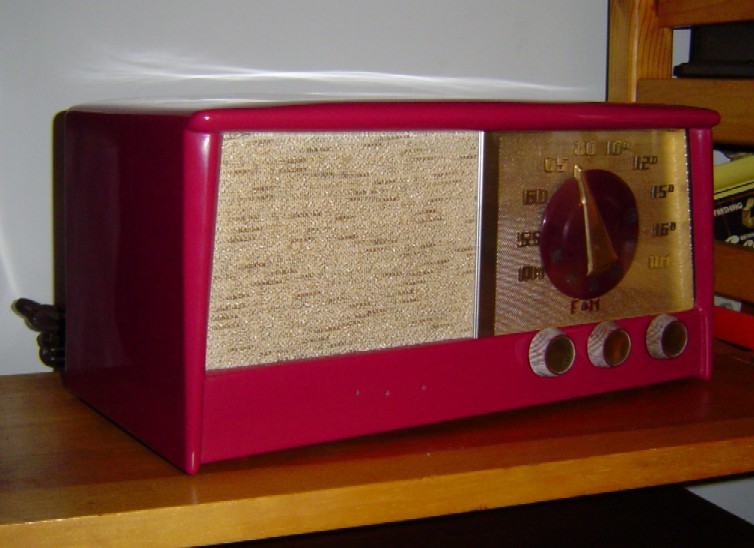

DESCRIPTIONRedish plastic trapezoidal cabinet, right front round dial, left cloth grill, 3 right lower knobs:on/off/volume, band switch, and dial.
CABINET STYLETable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-120 V
CONSUMPTION50 W
AC CYCLES50-60 Hz
CHASSISSerial No. 132.067

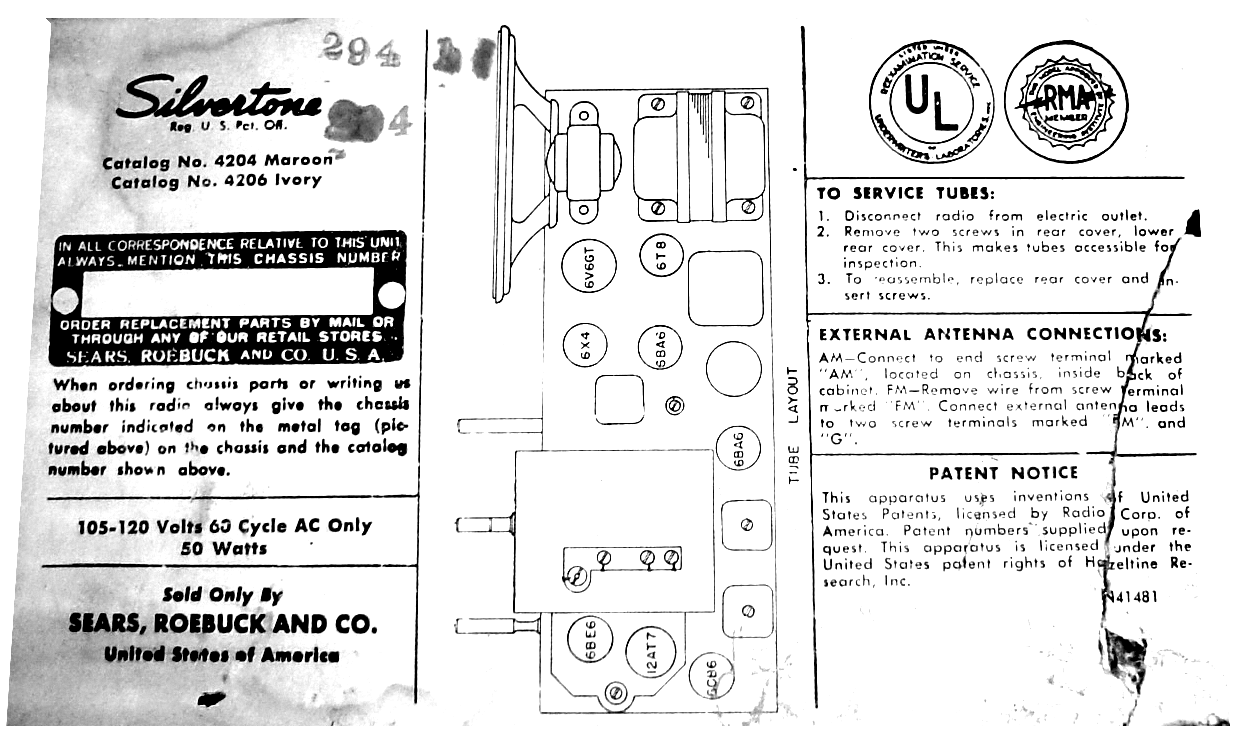

TUBES LOCATION
TUBE COMPLEMENT | 12AT7 | 6BA6 | 6BE6 | 6CB6 | 6T8 | 6V6 | 6X4 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 |
FROMCornell Marketplace ad, Aurora, NY.

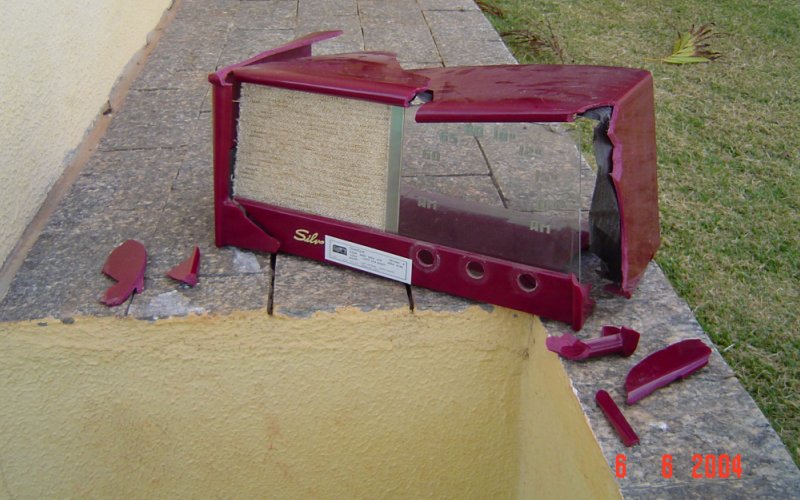

ADDITIONAL INFOFell-off from shelf and got a broken cabinet (See pictures). Restaured with plastic body car filler and car paint.
