| RADIO | Crosley |
| MODEL | Trirdyn |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1924 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC |
| COVERAGE | BC BC 550 - 1590 KHz |
| DESCRIPTION | Rectangular cabinet, lift top, 2 dial on front panel and 3 other knobs, 3 tubes. |
| CABINET STYLE | Table Low Profile |
| CABINET MATERIAL | Wood |
| DIAL LAMP - N° x TYPE | 0 x None |
| TONE | No |
| CIRCUIT | Regenerative |
| IF | Not applicable |
| POWER SUPPLY | DC Battery |
| VOLTS | A= 3 or 6 Volts, B = 22 1/2 and 90 Volts and C |
| CONSUMPTION | ? |
| AC CYCLES | Not applicable |
| CHASSIS | Special 3R3 |

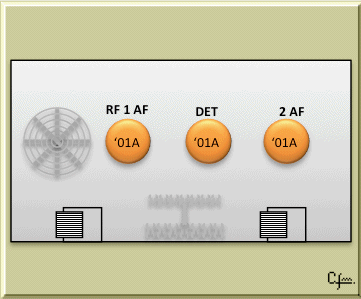

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 01A | 01A | 01A |
|

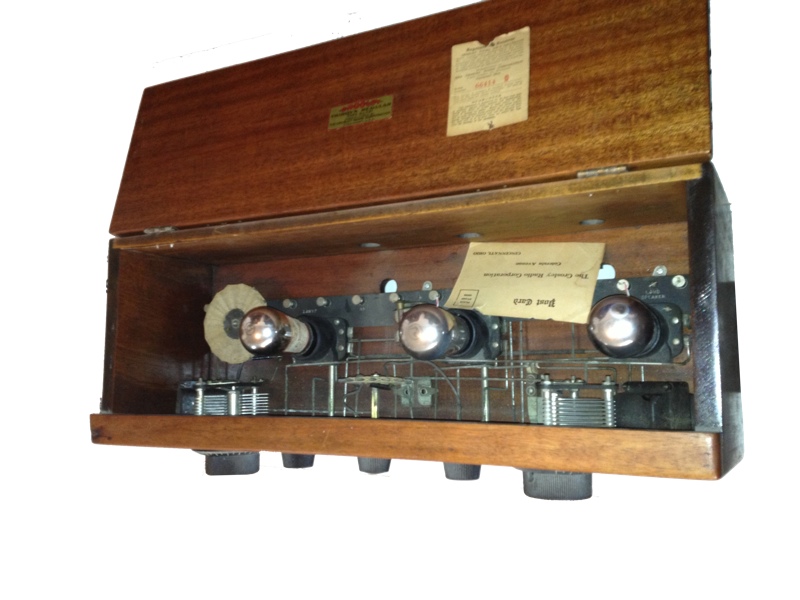

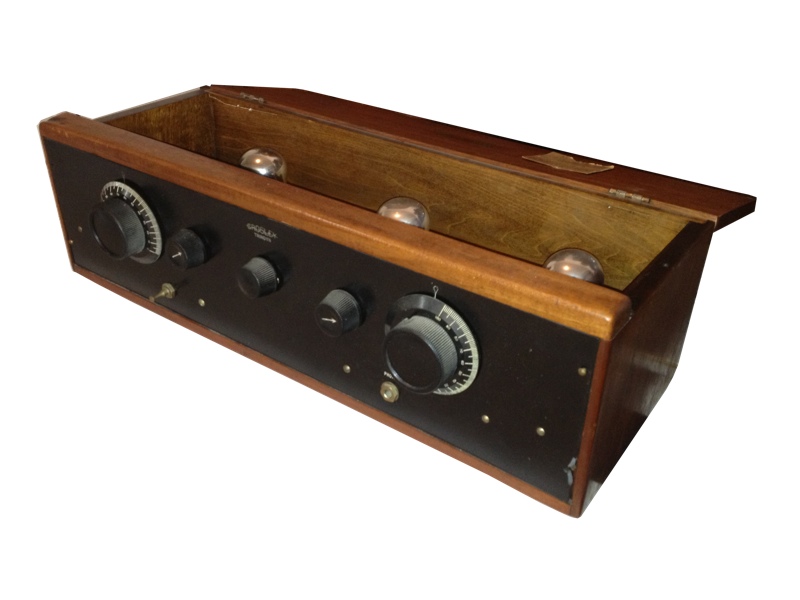

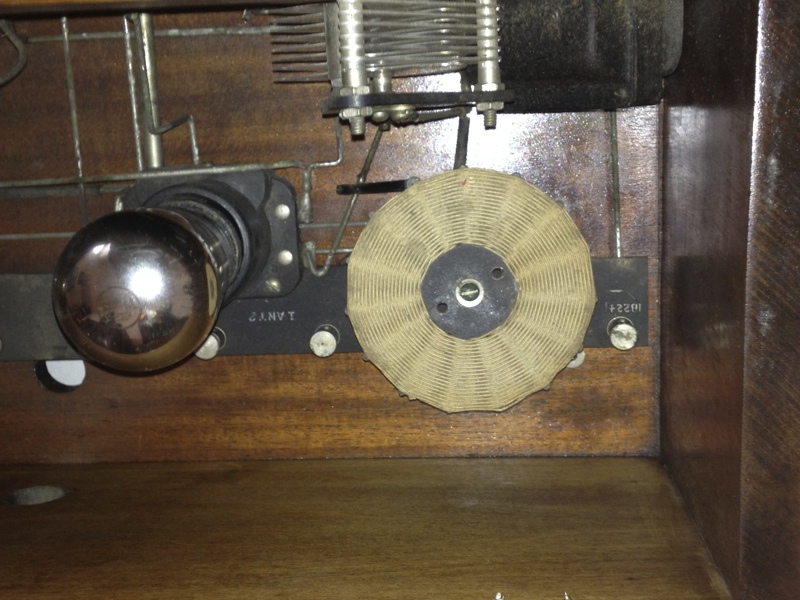

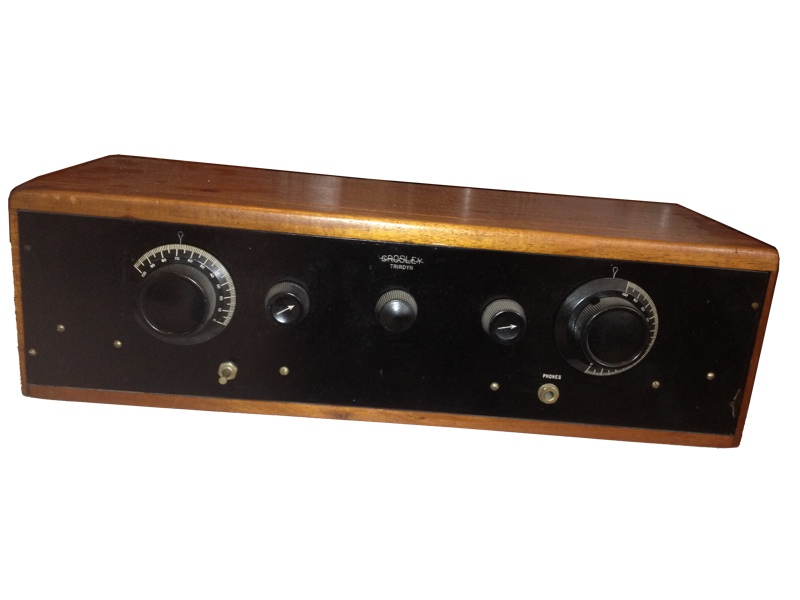

| PICTURES | (Click to enlarge image) |
|
|

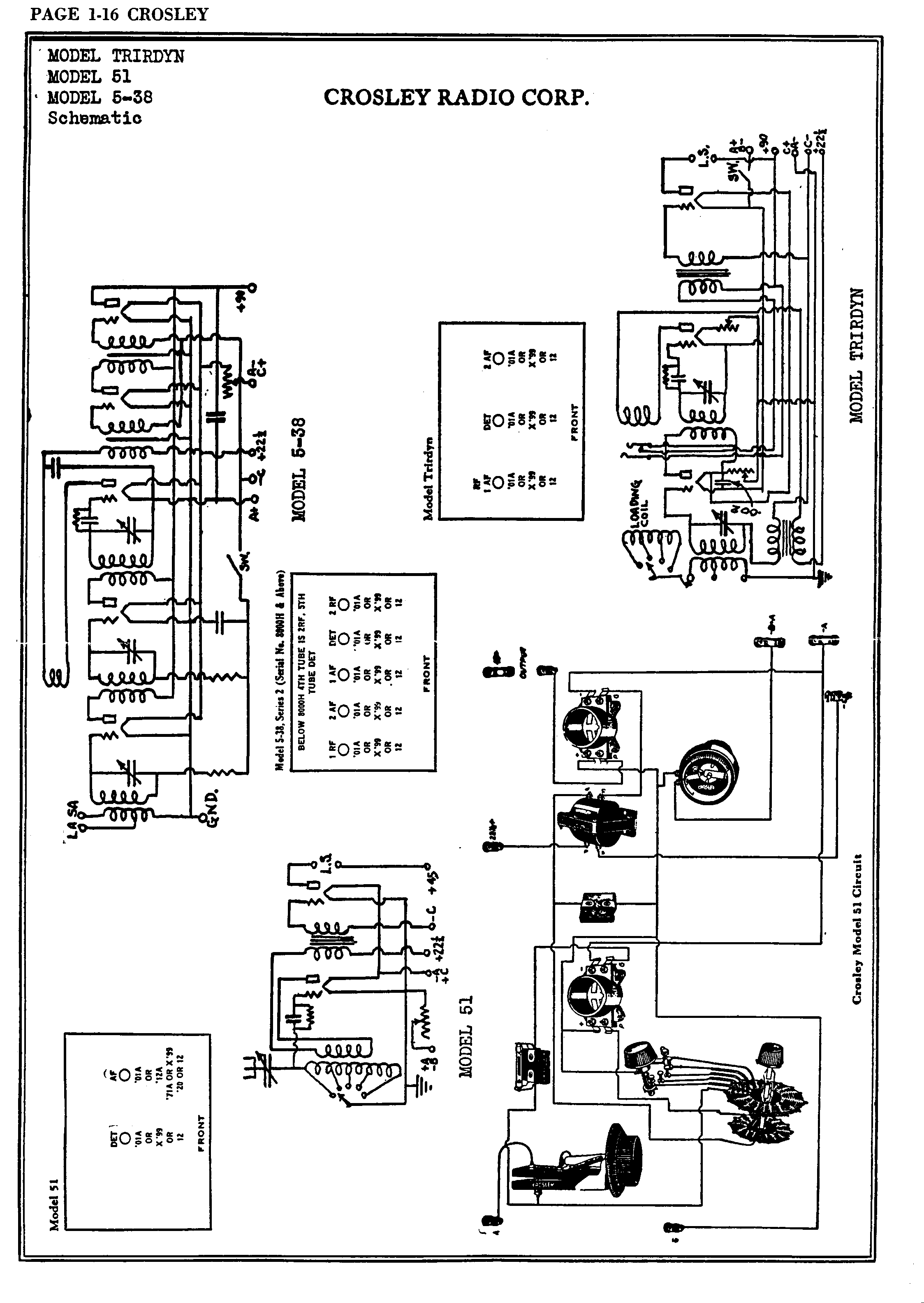

| SCHEMATICS |
| Page1
|
|
| FROM | From ebay US, judypjcc seller on May 15th, 2013. |
