RADIOGrebe
MODELMU-1
TECHNOLOGYTube
YEAR1924
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 545 - 1900 KHz
DESCRIPTIONRectangular table cabinet, three diamond-shaped dials, with thumbwheels, without chain and pilot lamp.
CABINET STYLETable
CABINET MATERIALWood - Mahogany
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITTRF Neutrodyne
IFNot applicable
POWER SUPPLYDC
VOLTS135V B+, 90V B+, -4.5V C, 6.0 V A+
CONSUMPTION?
AC CYCLESNot applicable
CHASSISEarly MU-1, Chassis Serial WHTD

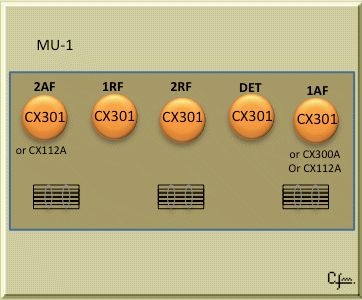

TUBES LOCATION
TUBE COMPLEMENT | 201A | 201A | 201A | 112A | 201A |

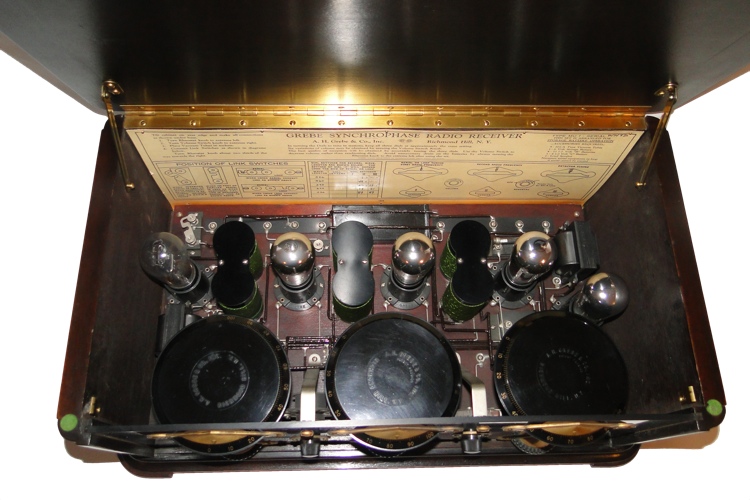

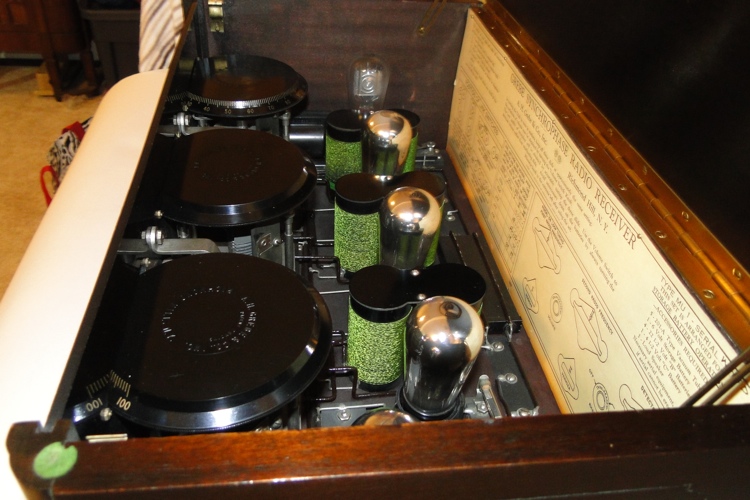

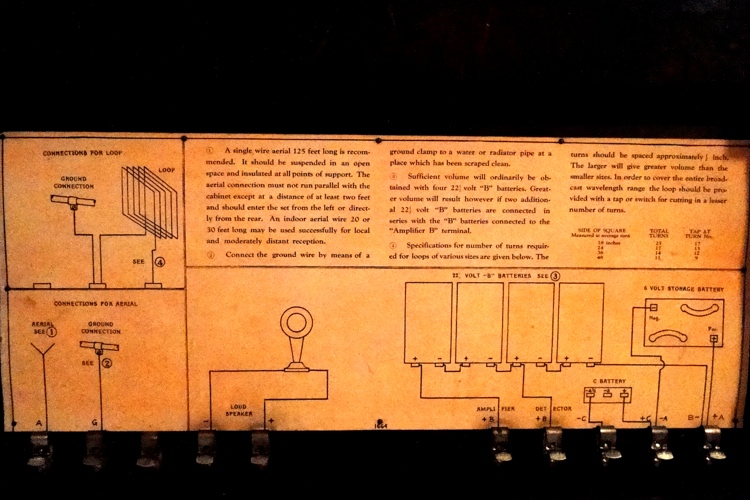

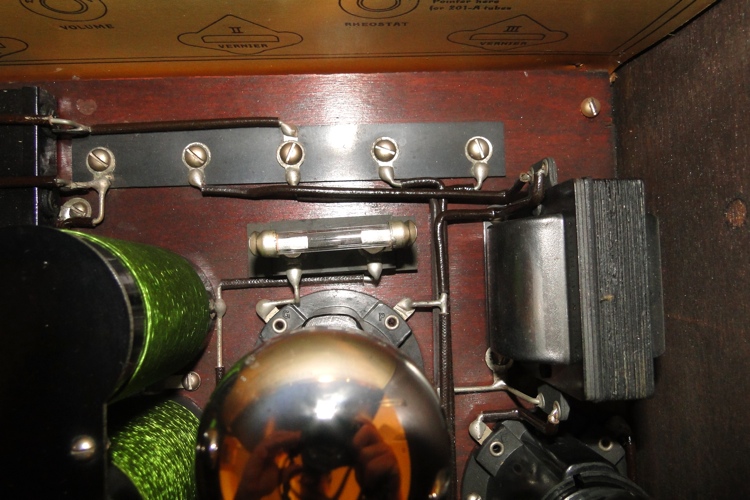

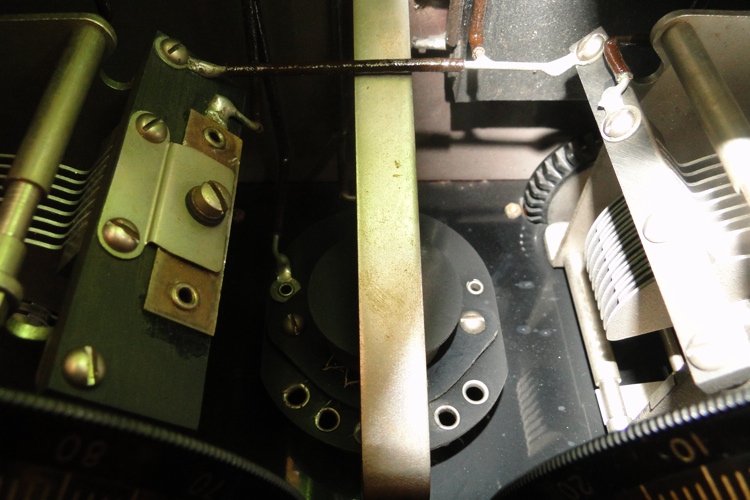

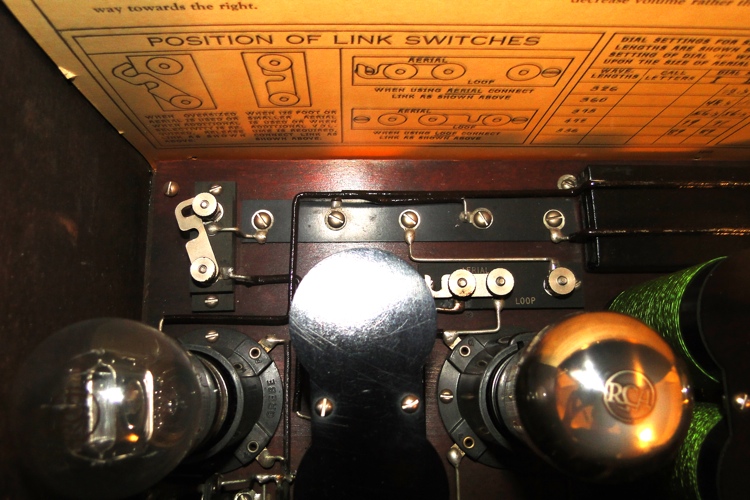

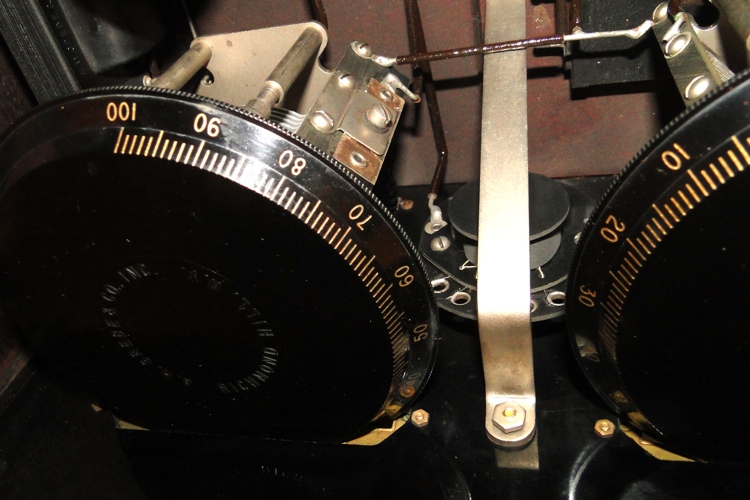

PICTURES(Click to enlarge image)

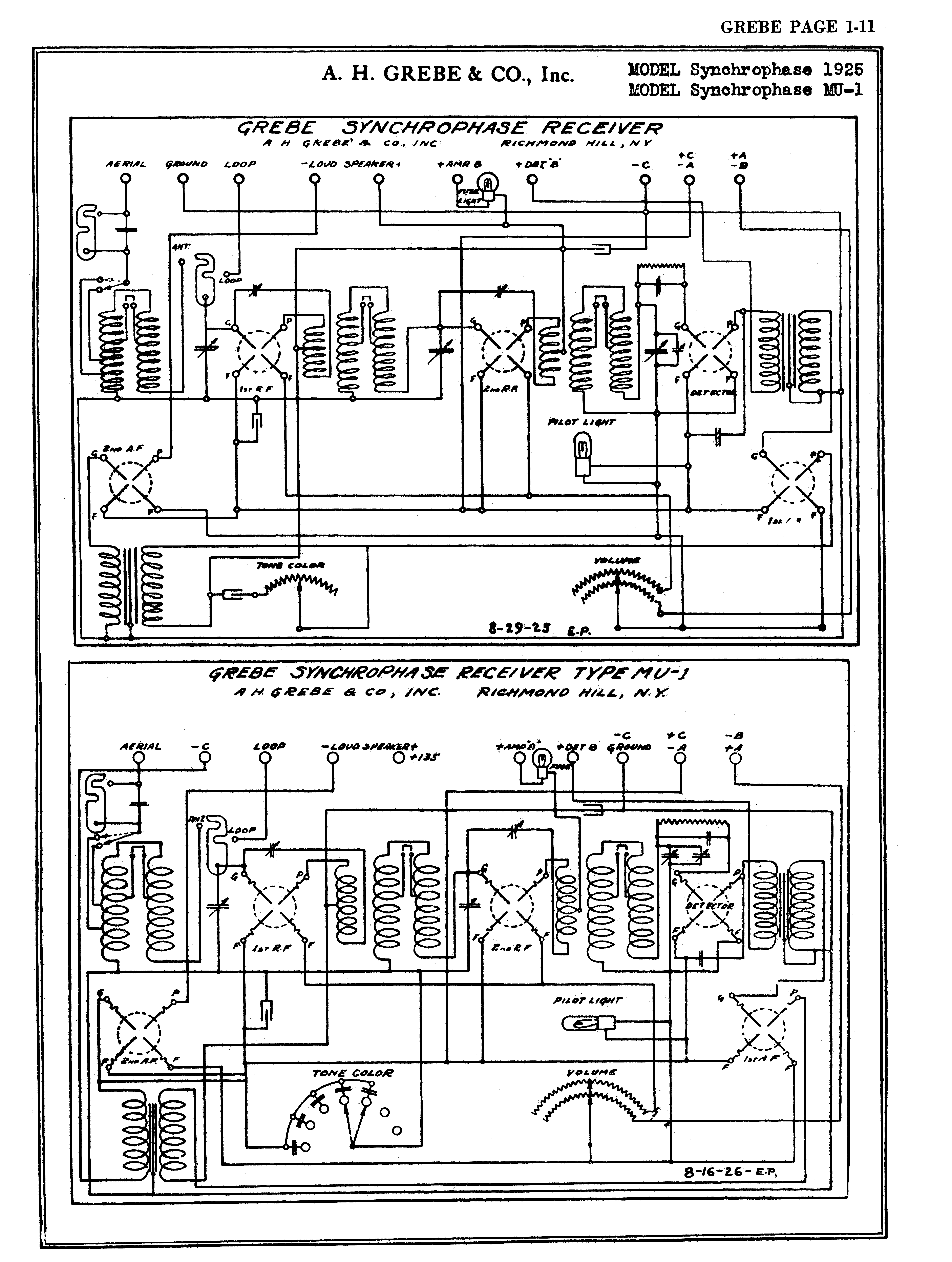

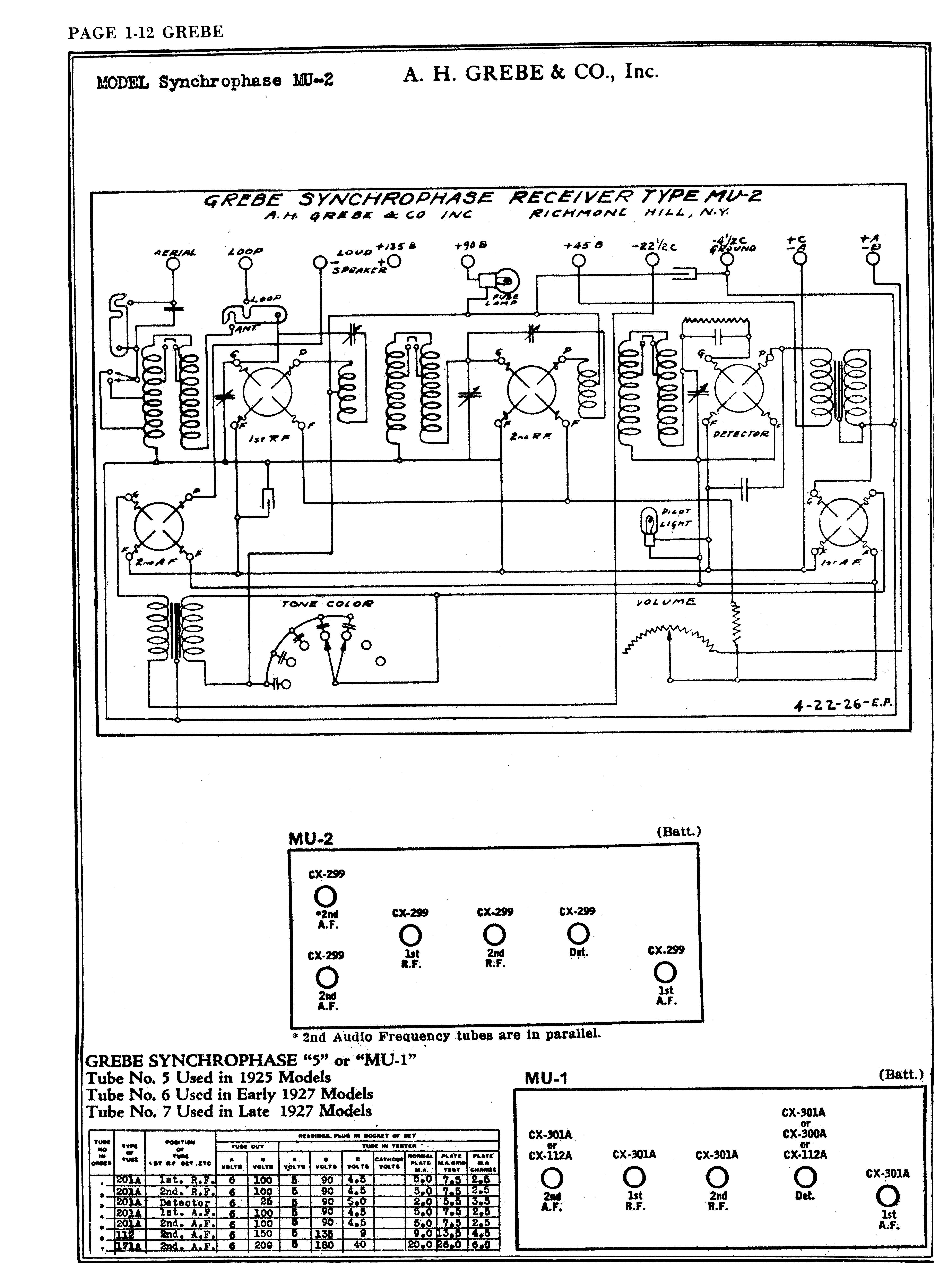

SCHEMATICS | Page1 | Page2 |
FROMFrom eBay, Dan (drummer1st), Jan 2013
