| RADIO | Philco |
| MODEL | 54 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1935 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/Police |
| COVERAGE | BC & Police 550 - 4800 KHz |
| DESCRIPTION | Flat top with vertical bars, center cloth grill with cut-outs as a owel, left on/off/volume knob and right dial knob, with one band knob on the back. |
| CABINET STYLE | Table |
| CABINET MATERIAL | Wood |
| DIAL LAMP - N° x TYPE | 1 x 40 |
| TONE | No |
| CIRCUIT | Superheterodyne |
| IF | 460 KC |
| POWER SUPPLY | AC/DC |
| VOLTS | 115 Volts |
| CONSUMPTION | 50 W |
| AC CYCLES | 25-60 Hz |
| CHASSIS | |

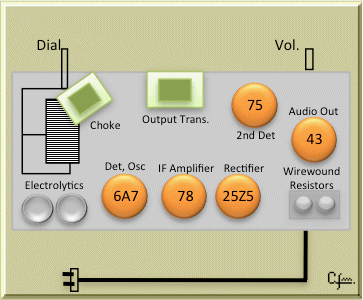

| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 6A7 | 78 | 75 | 43 | 25Z5 |
|
| PICTURES | (Click to enlarge image) |
|
|
| SCHEMATICS |
| Page1
| Page2
| Page3
| Page4
|
|
| FROM | eBay, Jan 2013 |
