RADIOTelefunken
MODELAllegretto Trp. II
TECHNOLOGYTube
YEAR1958
MADE INBRAZIL
WAVE BANDSBC/SW1/SW2
COVERAGEAM 520 -1610 KC, SW1 41 - 130 m, SW2 14 - 41 m
DESCRIPTIONLower front slanted slide rule dial, upper cloth grill,3 knobs (2 frontal, 1 right side): left on/off/volume and push/pull for tone knob, right tunning knob, and right side band switch knob.
CABINET STYLETable
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 46
TONE2 Positions
CIRCUITSuperheterodyne
IF472 KC
POWER SUPPLYAC
VOLTS110, 125, 220 V
CONSUMPTION?
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | AZ41 | EAF42 | ECH42 | EF41 | EL41 | EM11 |

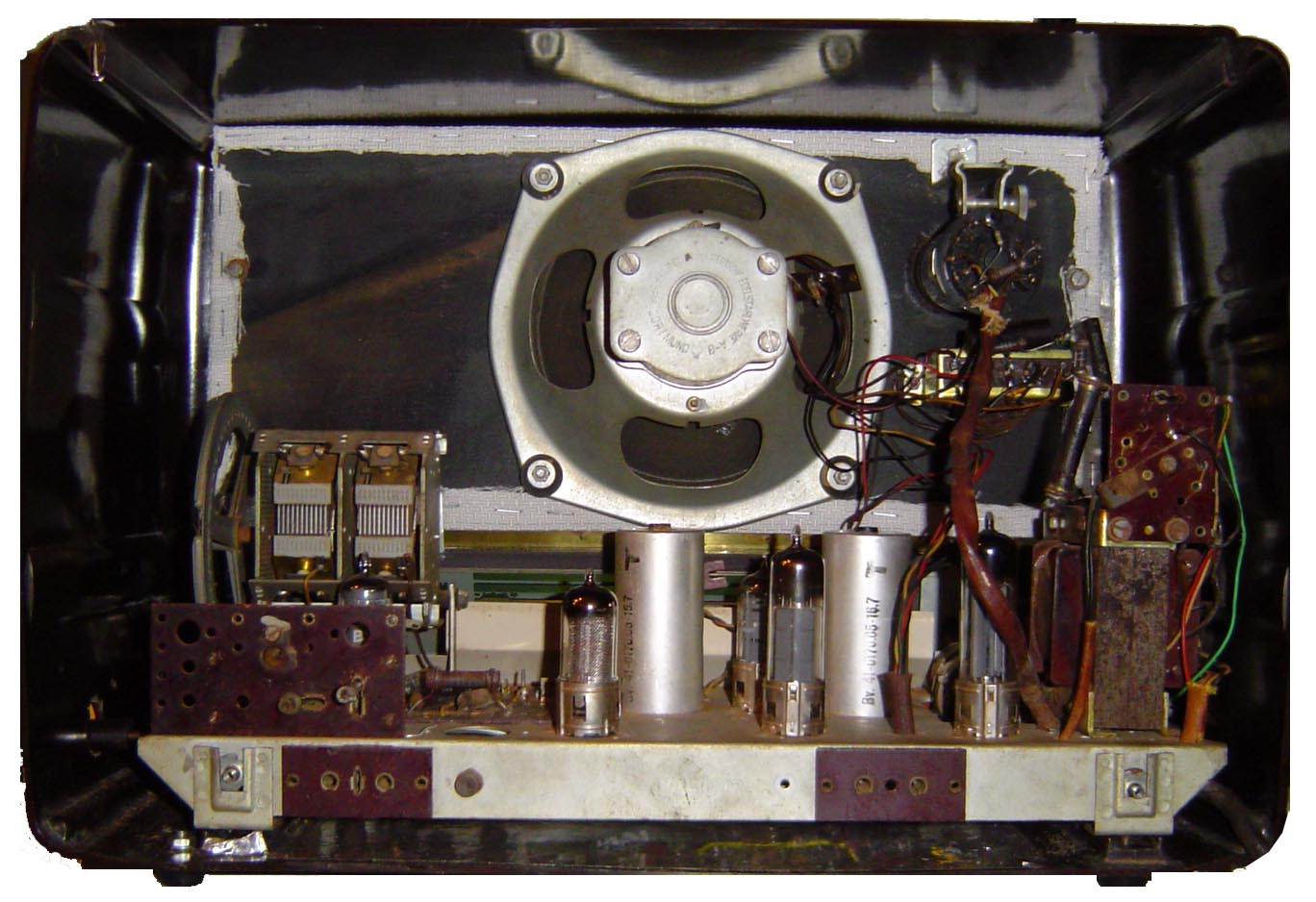

PICTURES(Click to enlarge image)

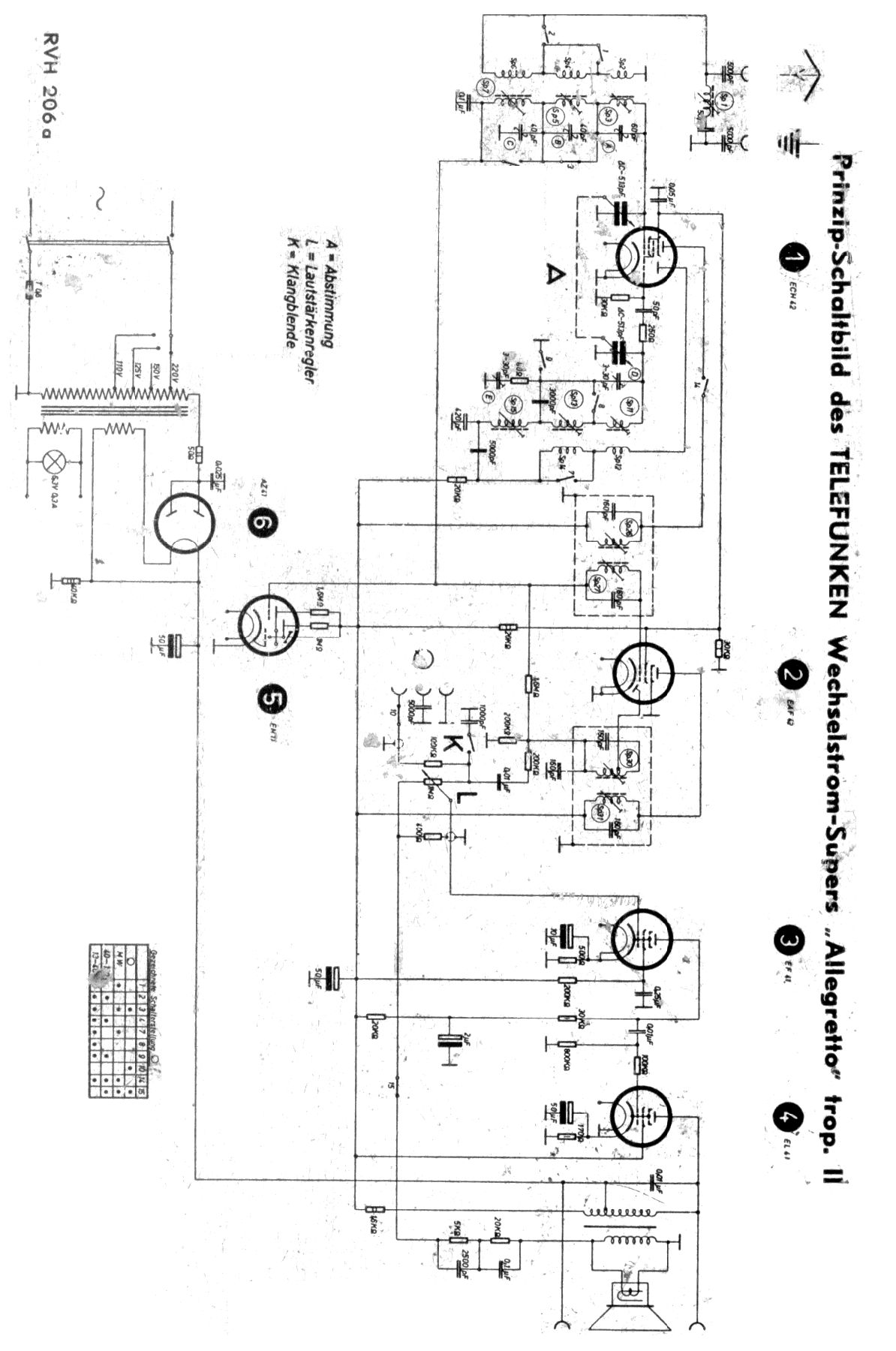

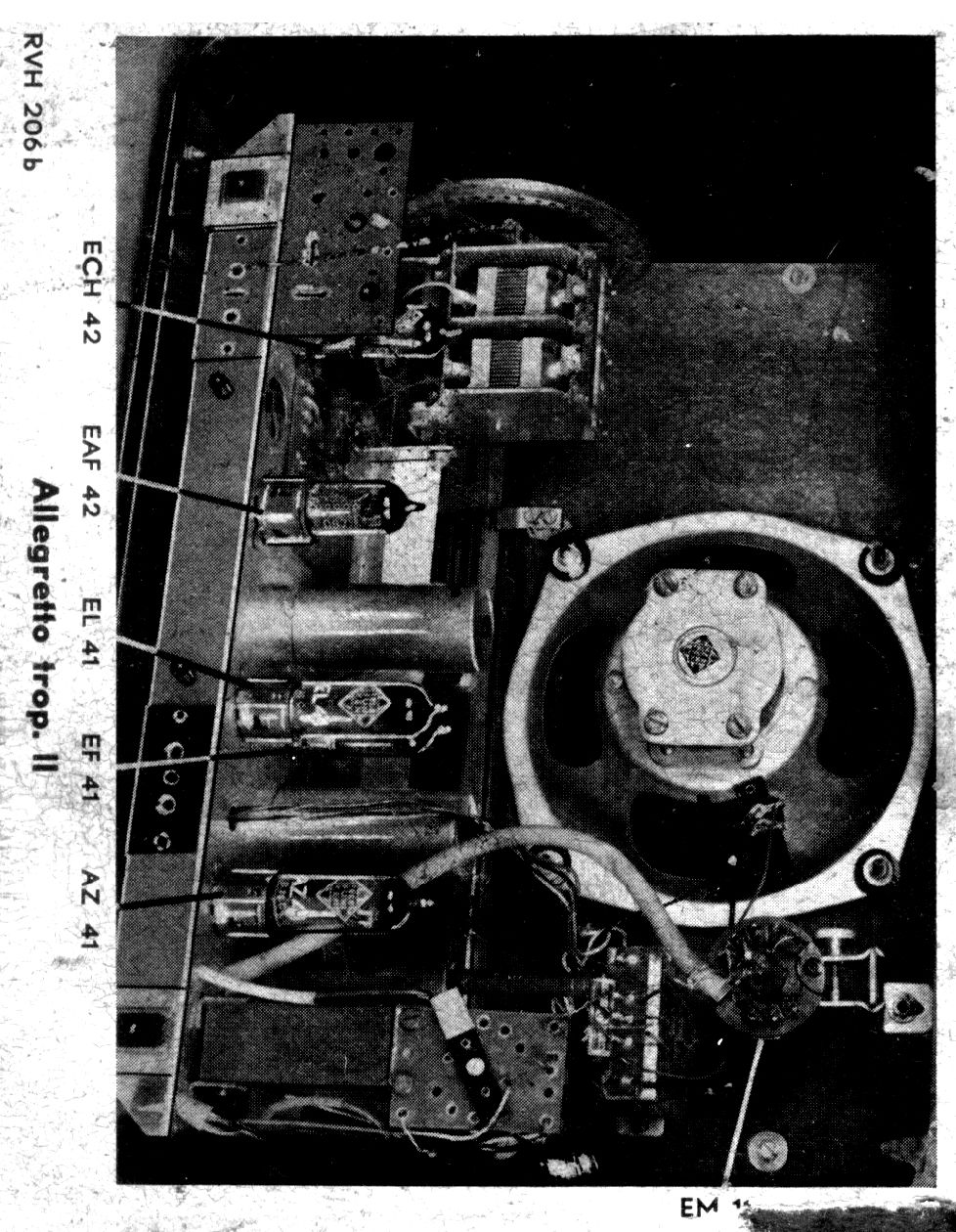

SCHEMATICS | Page1 | Page2 |
FROMGeraldo Tonon, Brasilia, DF.
