RADIOSilvertone
MODEL2003
TECHNOLOGYTube
YEAR1953
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 600 - 1640 Kc.

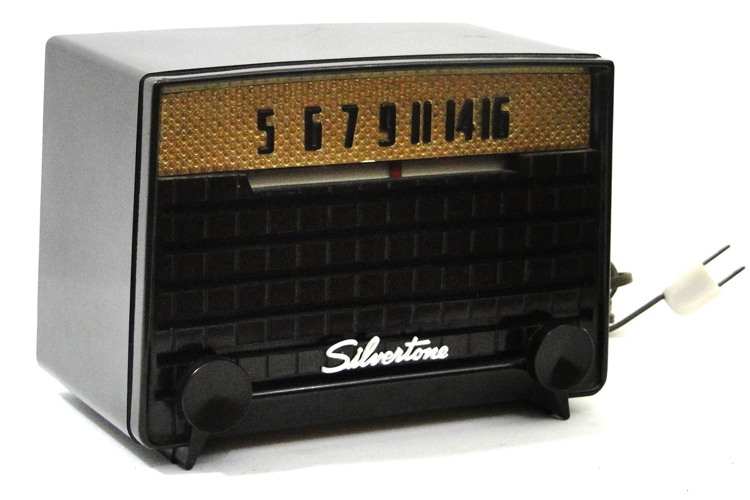

DESCRIPTIONSmall set, with upper front metal slide rule dial, checkered frontal grill, 2 frontal knobs, dark brown color.
CABINET STYLEMidget
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-120 V
CONSUMPTION?
AC CYCLES50-60 Hz
CHASSIS

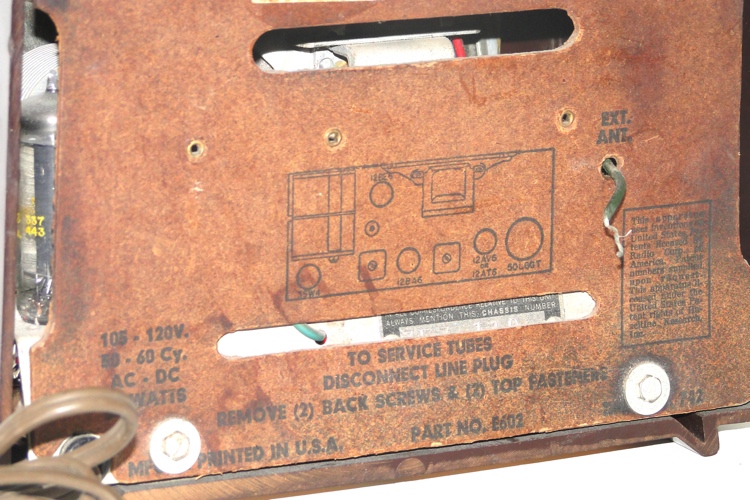

TUBES LOCATION
TUBE COMPLEMENT | 12BE6 | 12BA6 | 12AV6 | 50L6 | 35W4 |

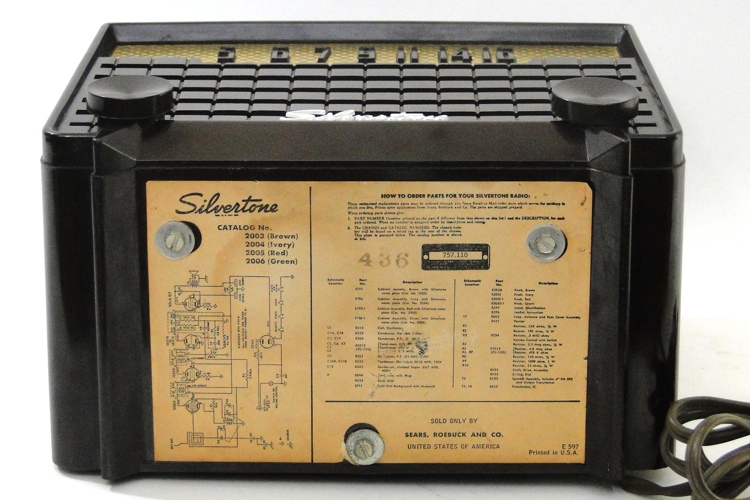

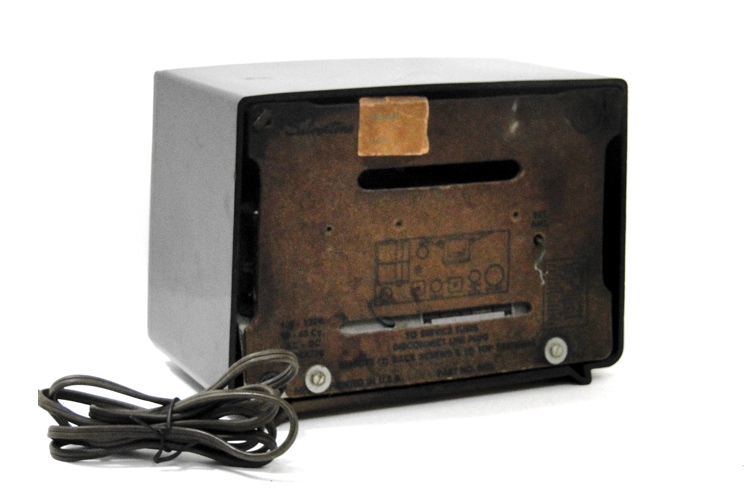

PICTURES(Click to enlarge image)

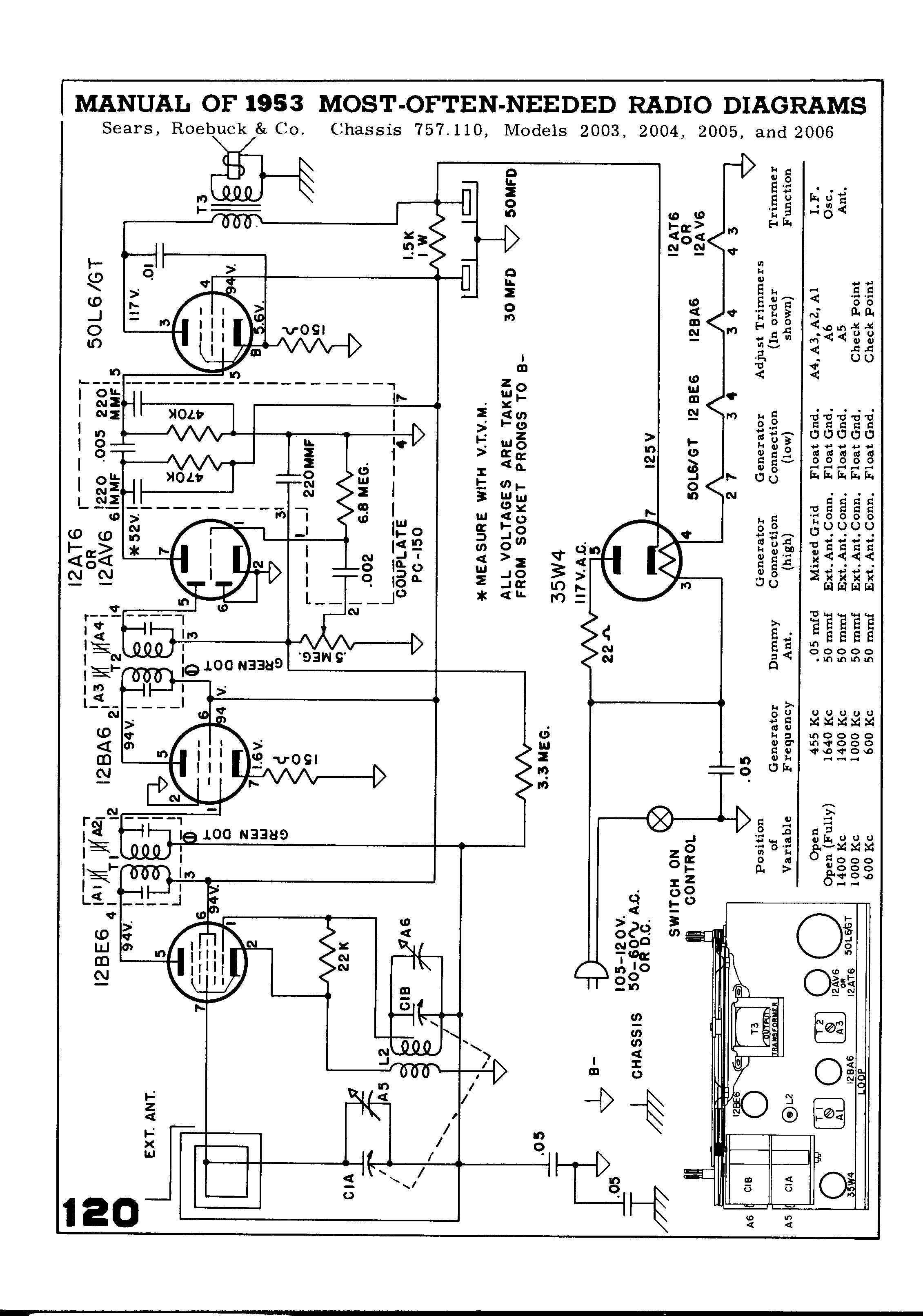

SCHEMATICS | Page1 |
FROMI bought this set in my first MAARC meeting at The Sully Station Community Center, Centreville, VA on April, 15th 2012.
