RADIOEmerson
MODEL510
TECHNOLOGYTube
YEAR1945
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1620 kHz

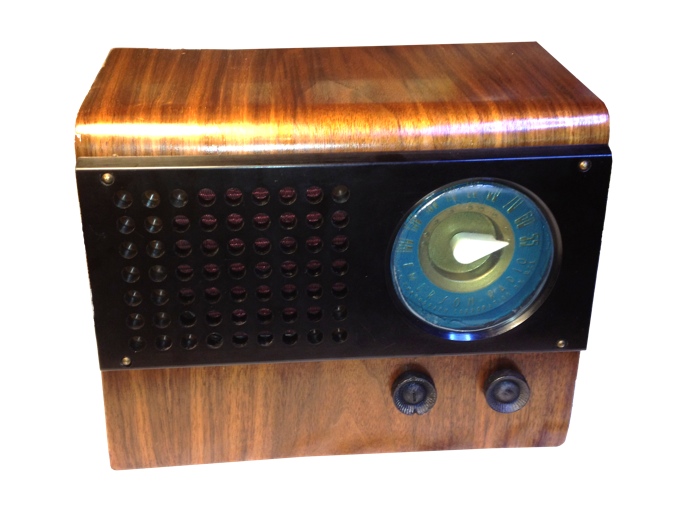

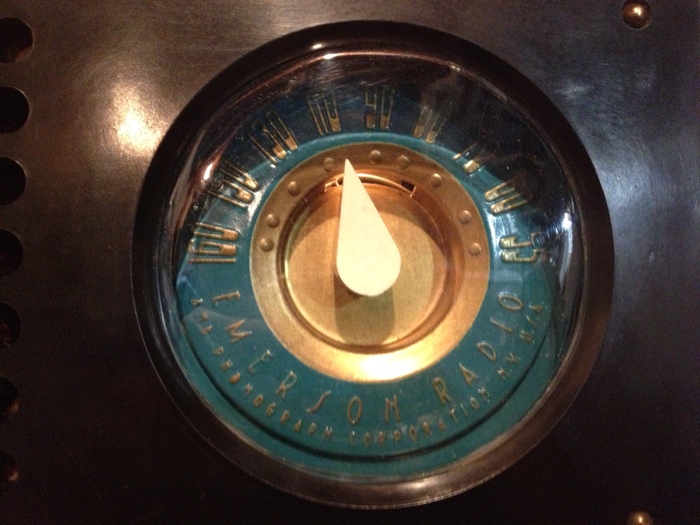

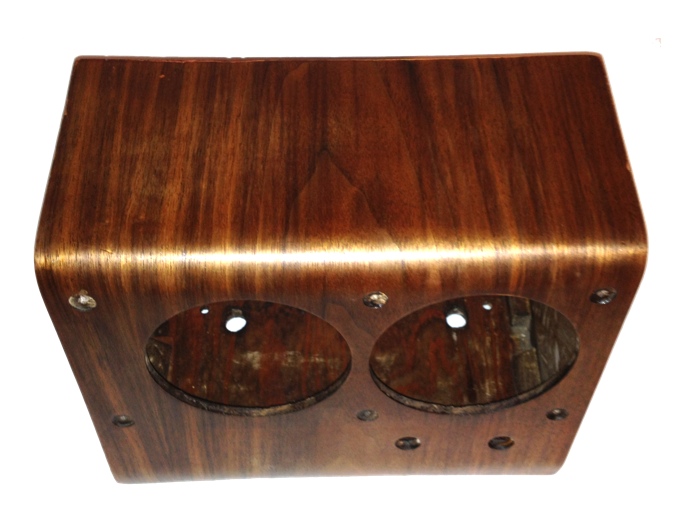

DESCRIPTIONWalnut cabinet, left front bakelite grill panel with round cut-outs, right front round dial 320º, built-in loop antenna.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC

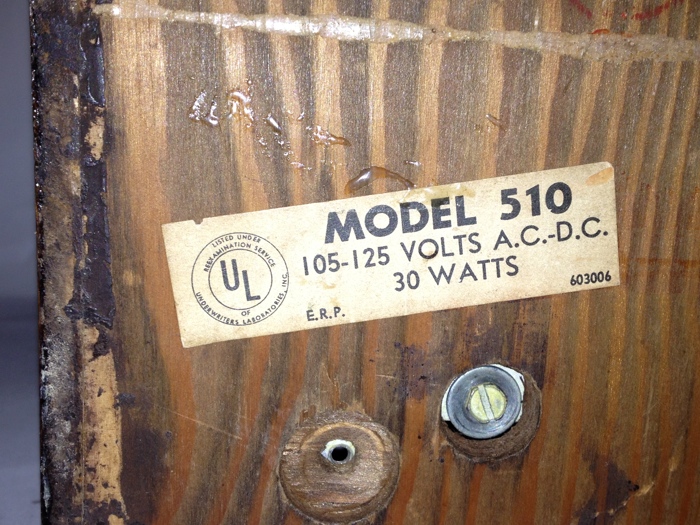

VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz

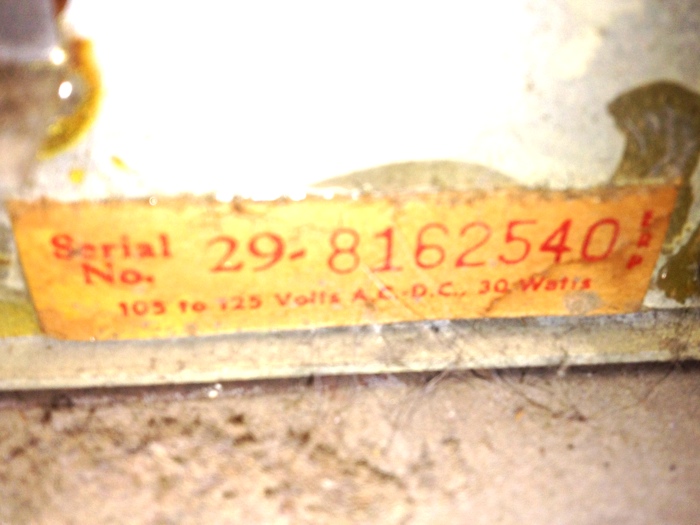

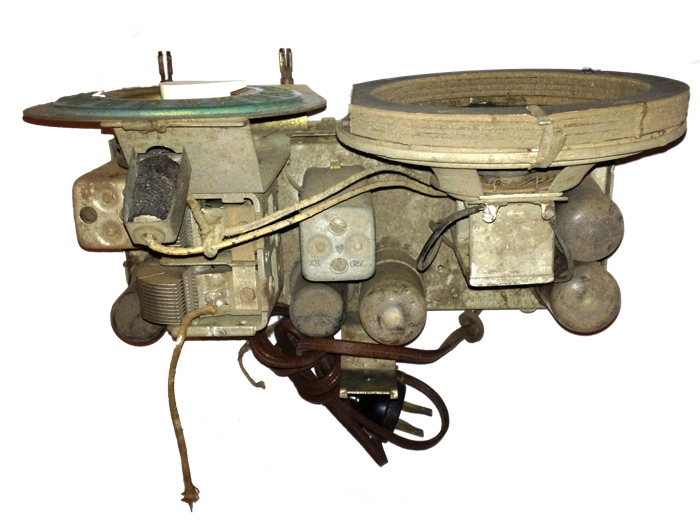

CHASSIS29-816254

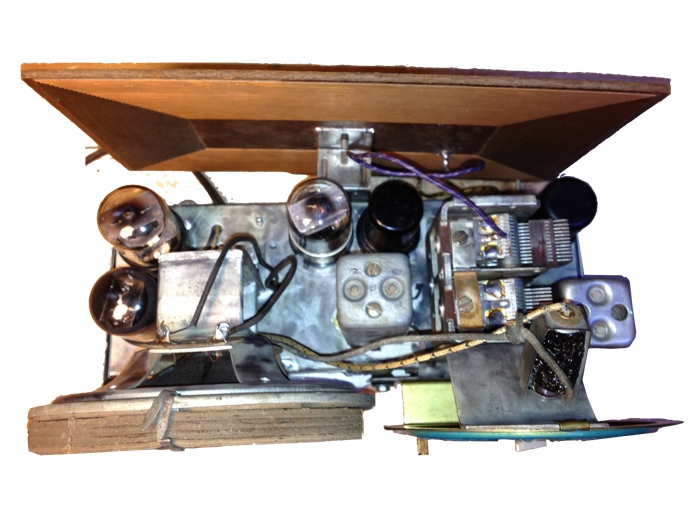

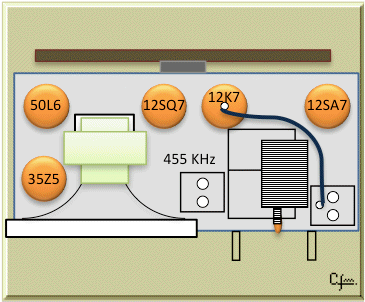

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom ebay, seller Nordnest, on Jan 03, 2013
