RADIORCA Victor
MODELRadiola 18 AR-936
TECHNOLOGYTube
YEAR1928
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550 - 1400 Kc

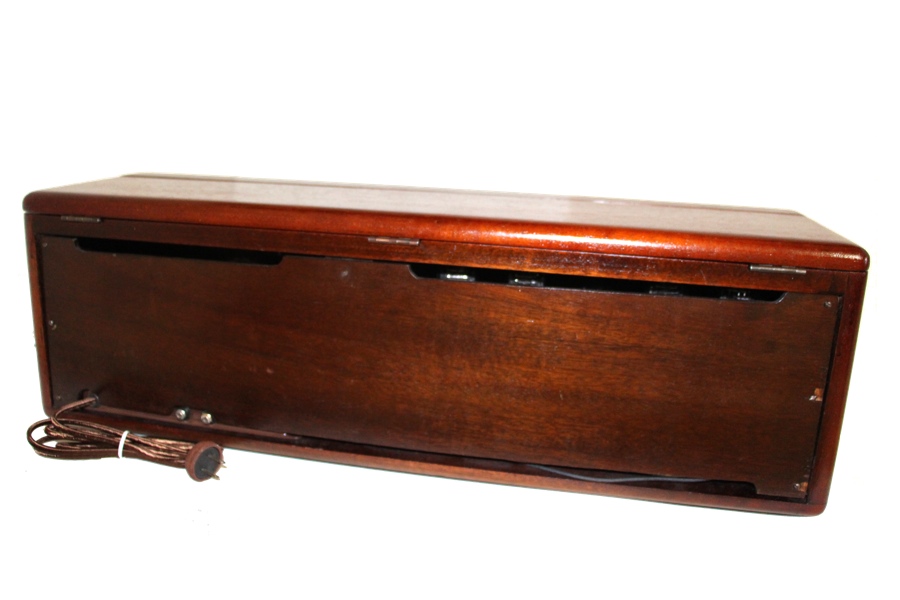

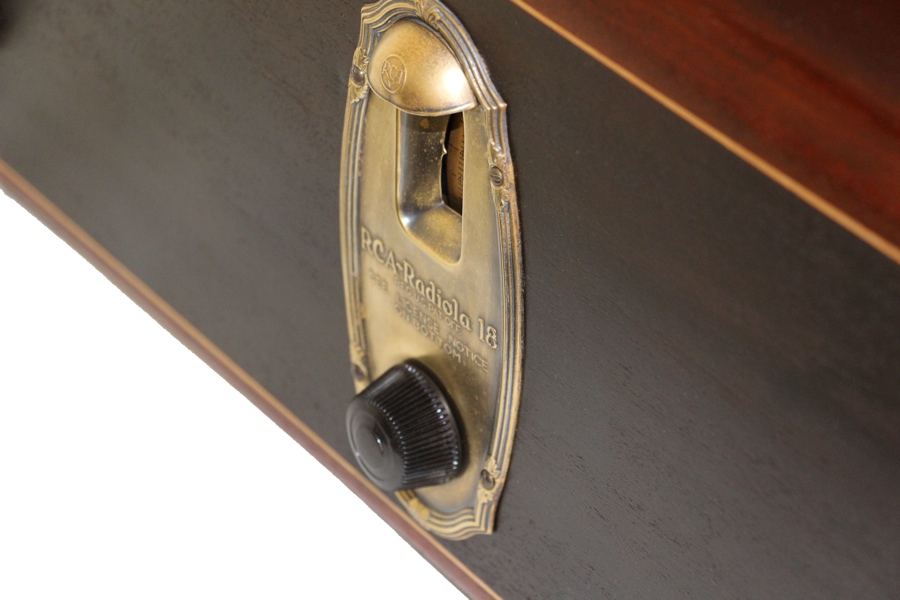

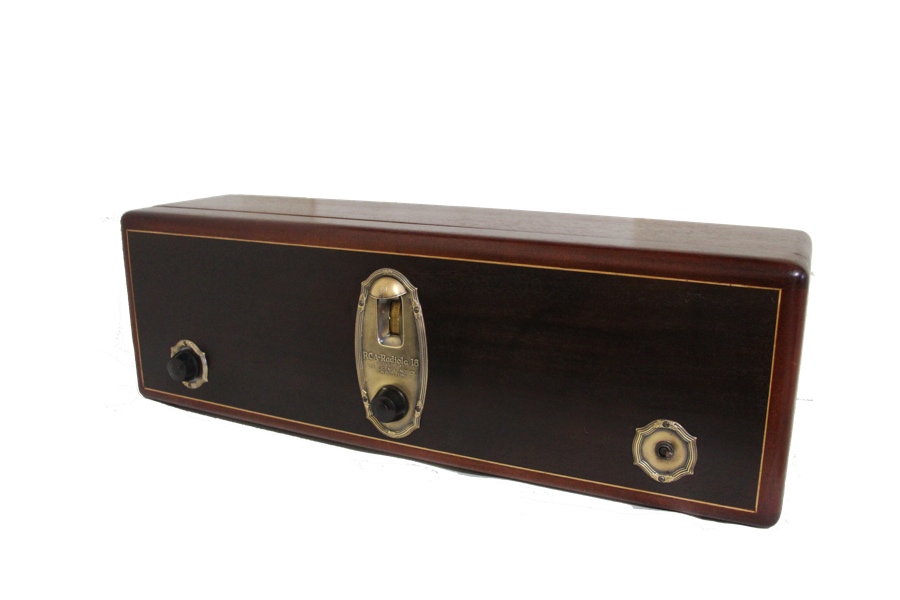

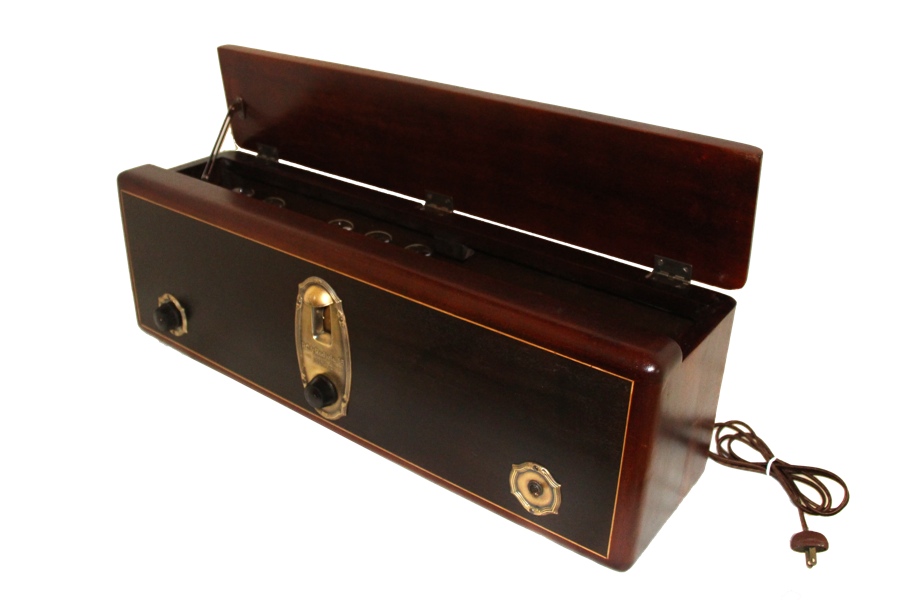

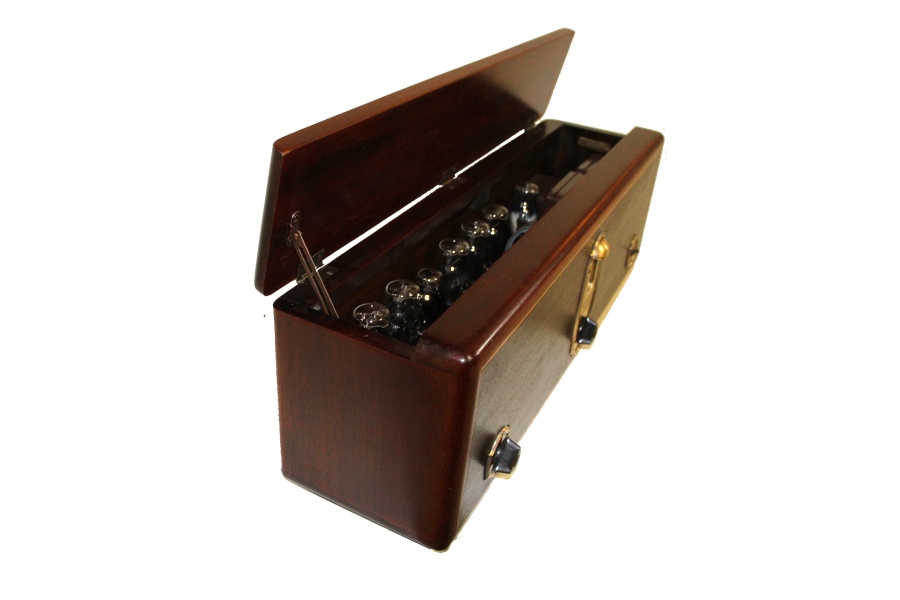

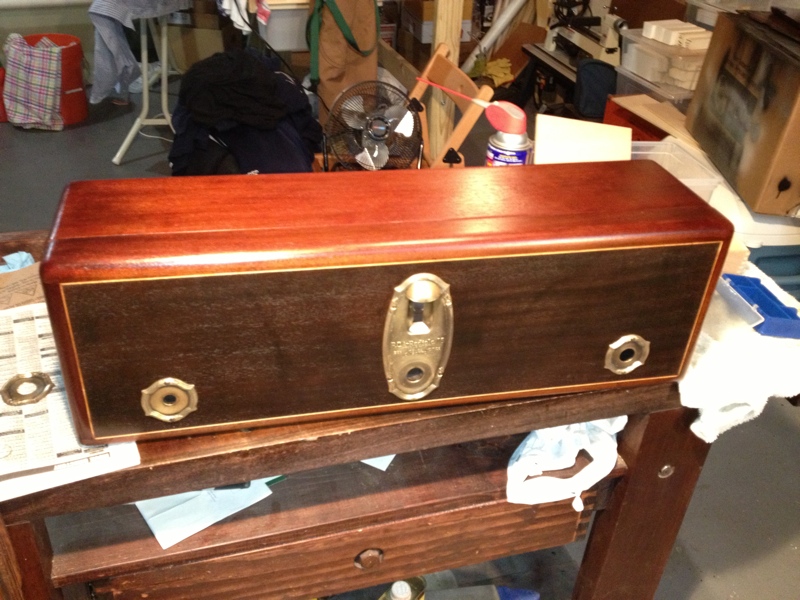

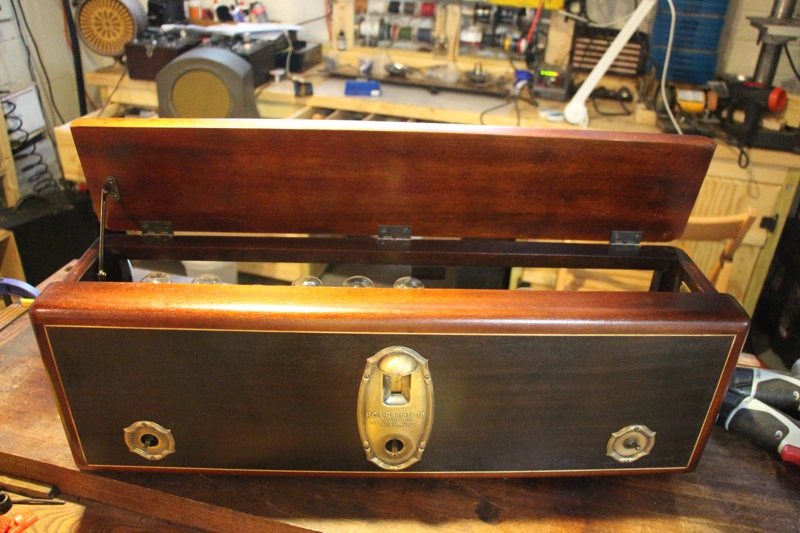

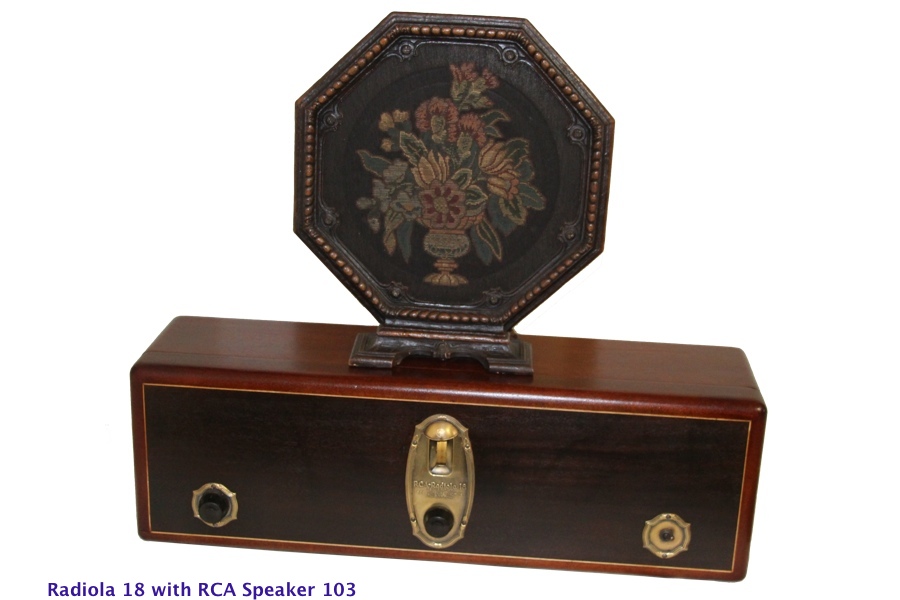

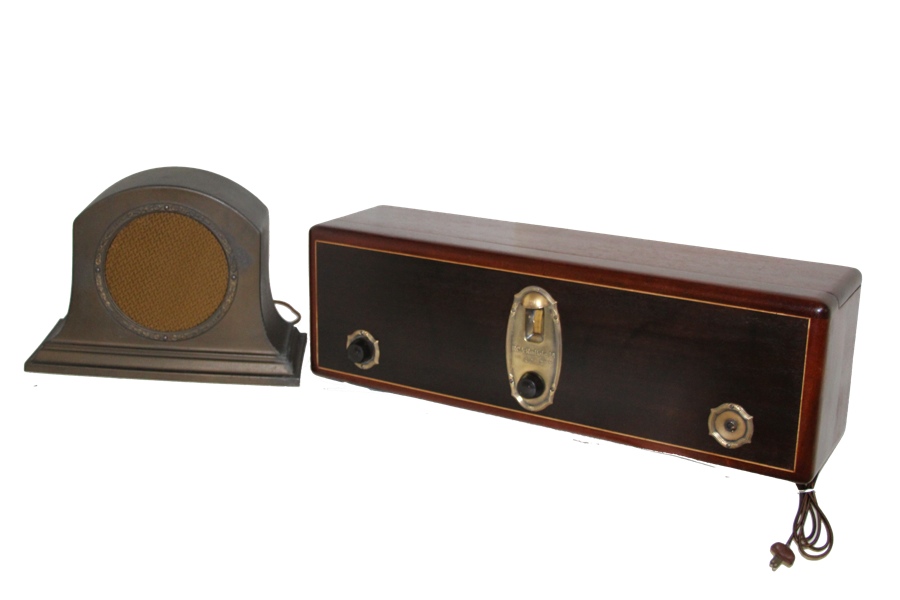

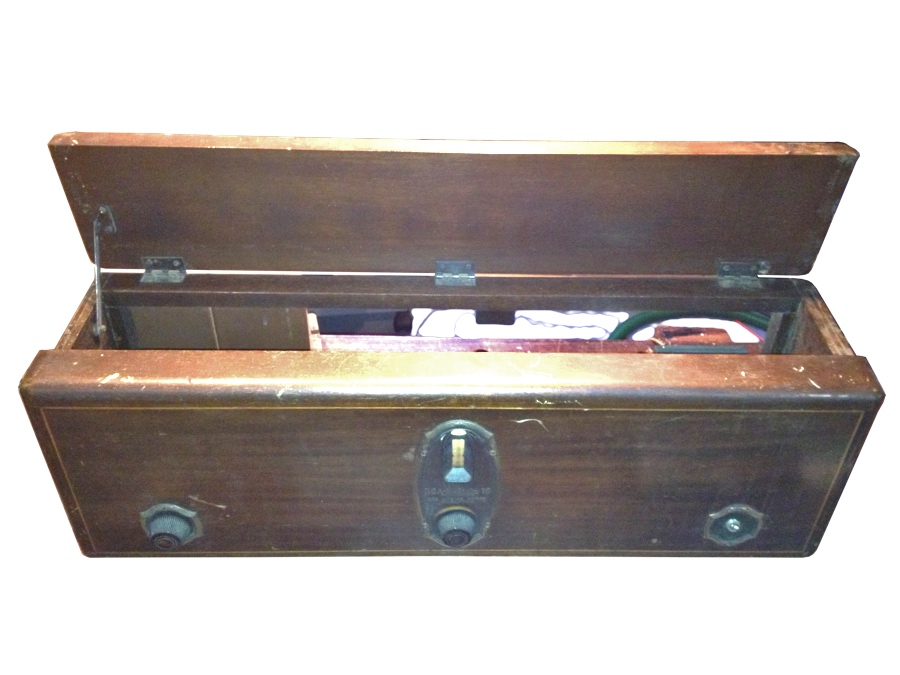

DESCRIPTIONA big and heavy box with 2 knobs, a left side volume and a central dial with a hood shielding the pilot lamp, and a right on/off switch.
CABINET STYLETable Low Profile

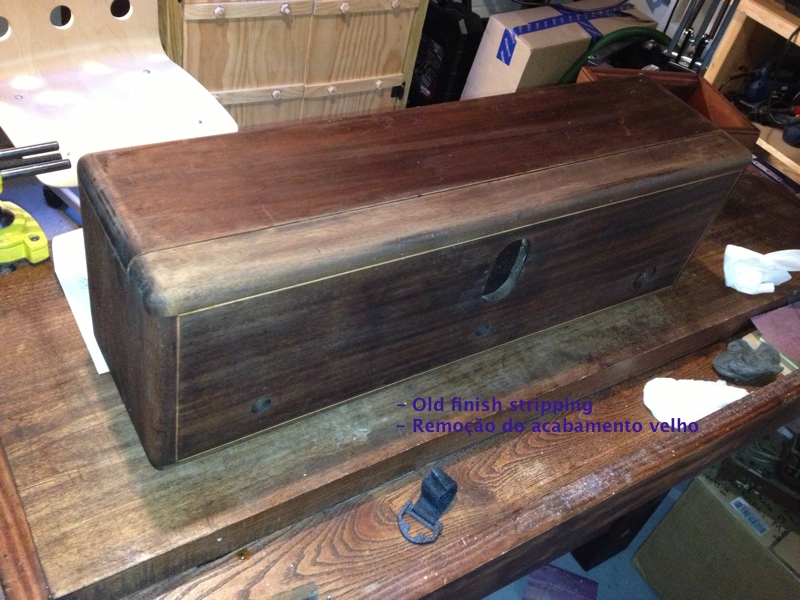

CABINET MATERIALWood - Walnut
DIAL LAMP - N° x TYPE1 x 40
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYAC
VOLTS110 - 120 Volts AC
CONSUMPTION?
AC CYCLES60 Hz

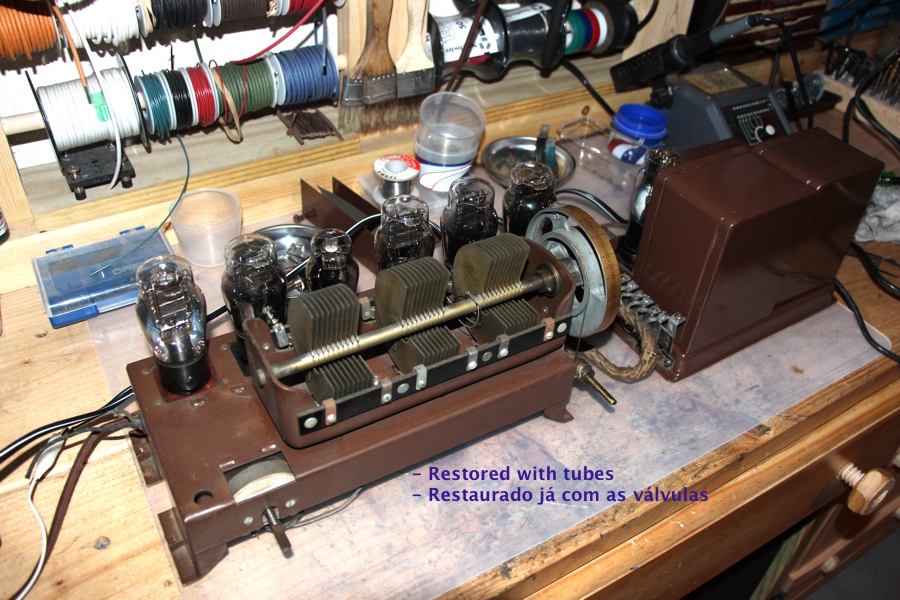

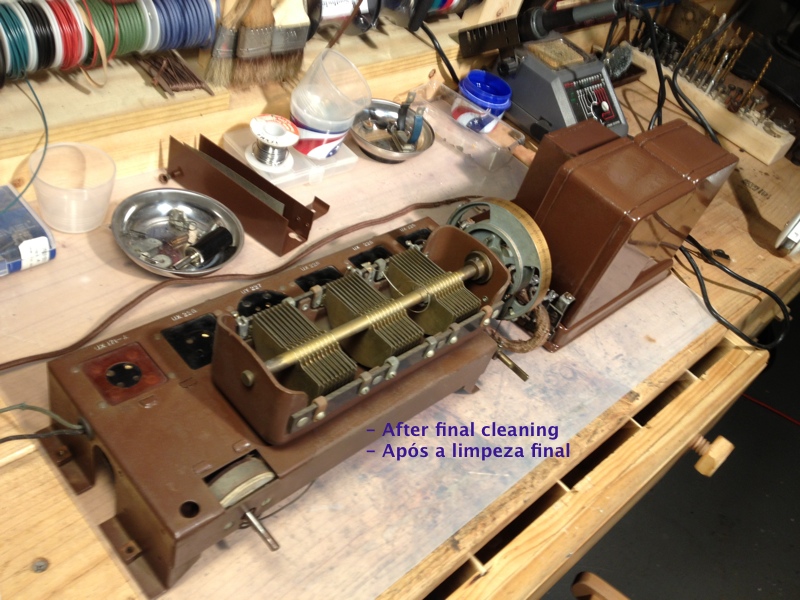

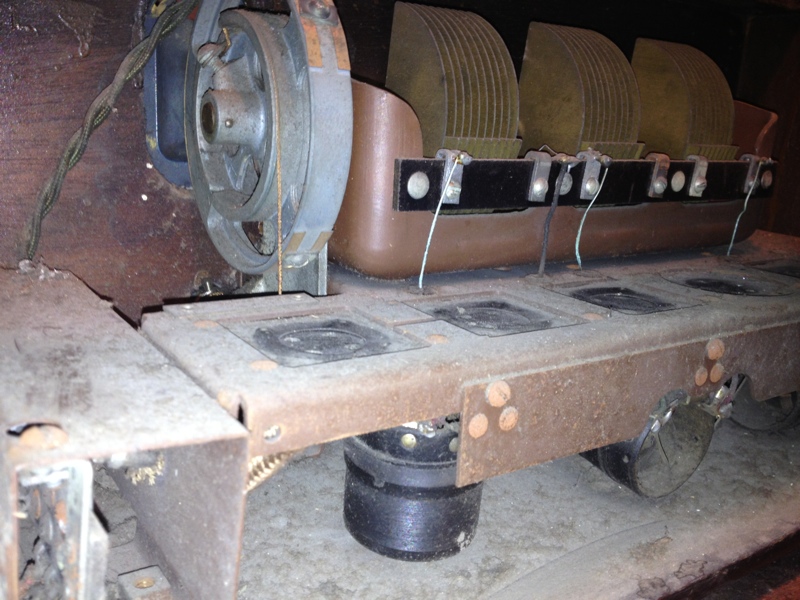

CHASSIS

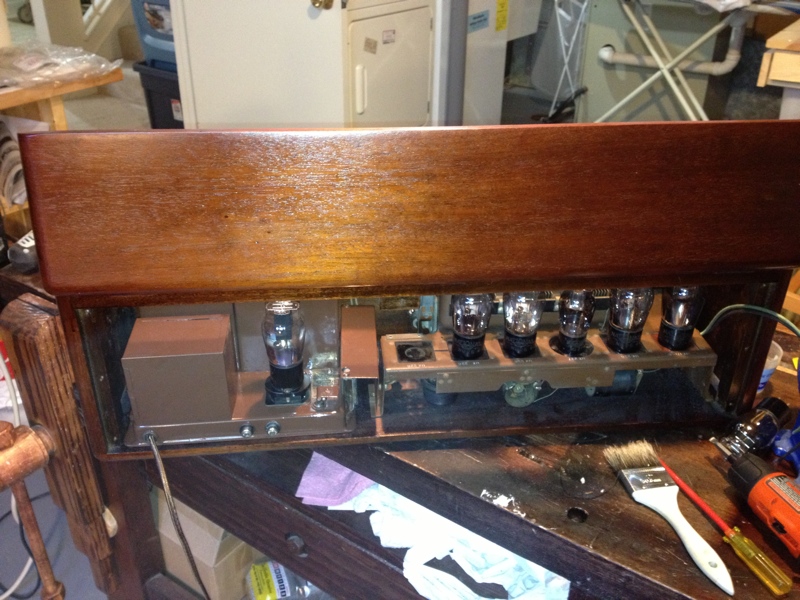

TUBES LOCATION

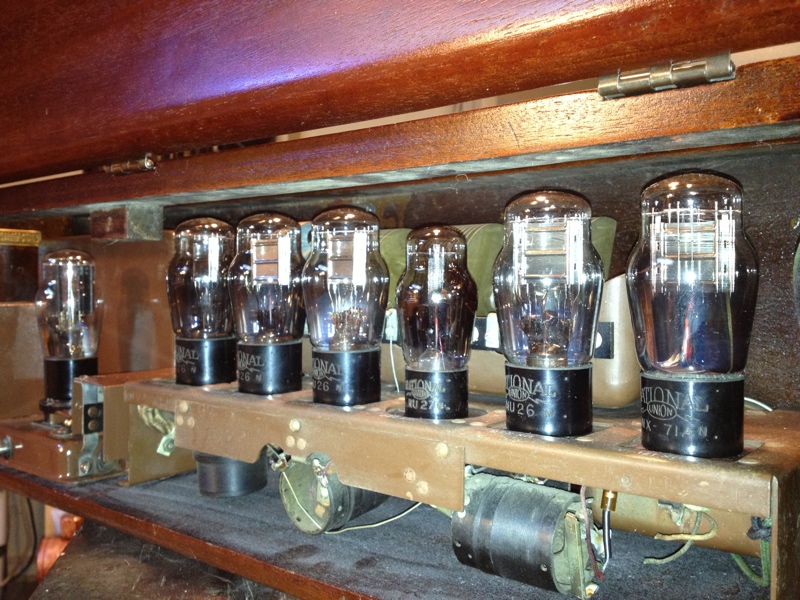

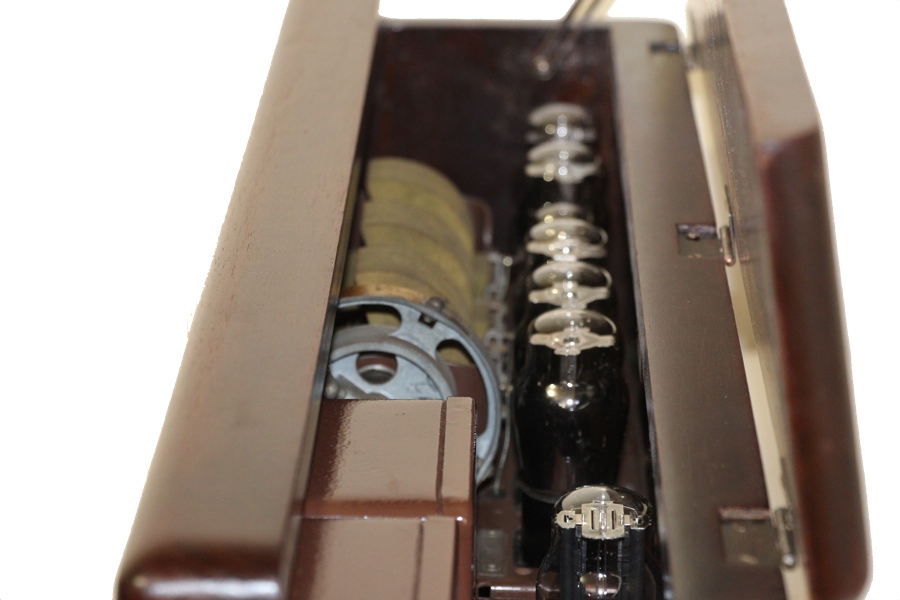

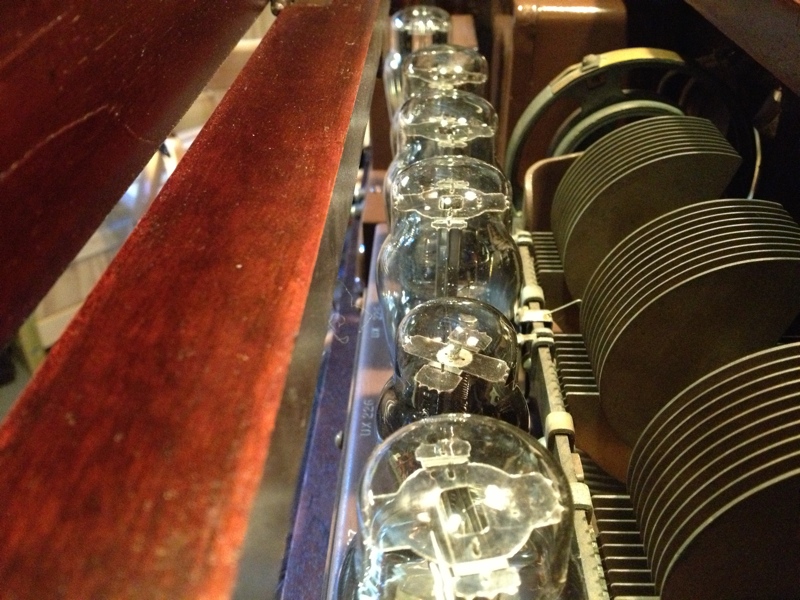

TUBE COMPLEMENT | 26 | 27 | 26 | 26 | 26 | 80 | 71A |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom some 2012 MAARC monthly meeting
ADDITIONAL INFOThere is a nice article regarding to its restoration at Nostalgia Air: http://www.nostalgiaair.org/References/Articles/Singles/Radiola18-2.htm
