RADIOAtwater Kent
MODEL20 Big Box
TECHNOLOGYTube
YEAR1924
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE550 - 1600 KHz

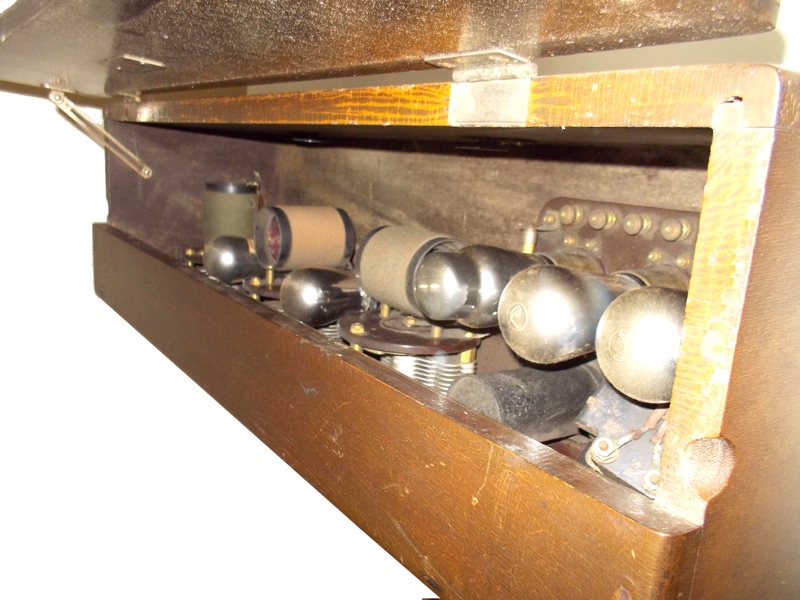

DESCRIPTIONRectangular case, 3 dials, metal front panel with AK logo, lift top.
CABINET STYLEBox
CABINET MATERIALWood
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYDC Battery
VOLTS6, 22.5, & 90 Volts
CONSUMPTION?
AC CYCLESNot applicable
CHASSIS4640
TUBES LOCATION

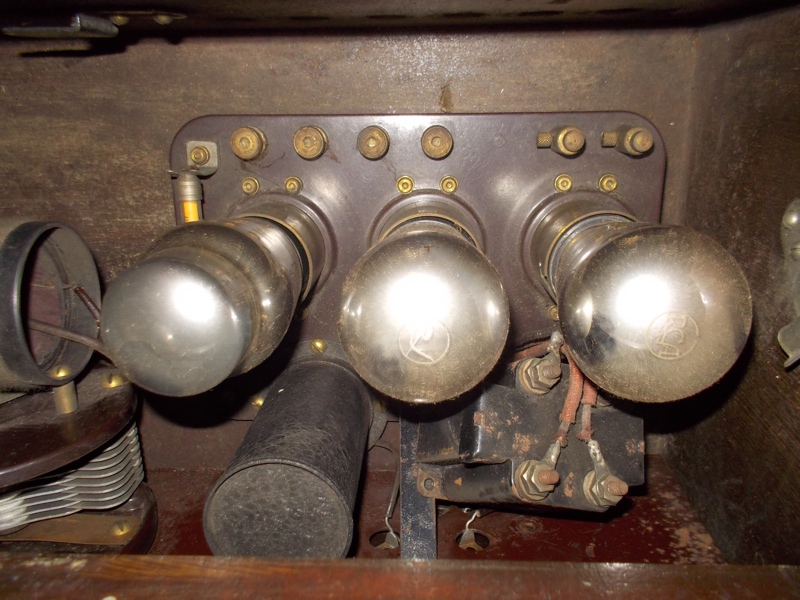

TUBE COMPLEMENT | 201A | 201A | 201A | 201A | 201A |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 |
FROMFrom MAARC monthly meeting flea market at The National Electronic Museum, January 19th, 2014
