RADIOAirline
MODEL04BR508A
TECHNOLOGYTube
YEAR1940
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE540 - 1650 Kc
DESCRIPTIONBakelite set with a lateral dial knob, 1 front volume control with on-off function and 4 pushbuttons.
CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF465 KC
POWER SUPPLYAC/DC
VOLTS105 - 120 Volts
CONSUMPTION46 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 35L6 | 35Z5 |

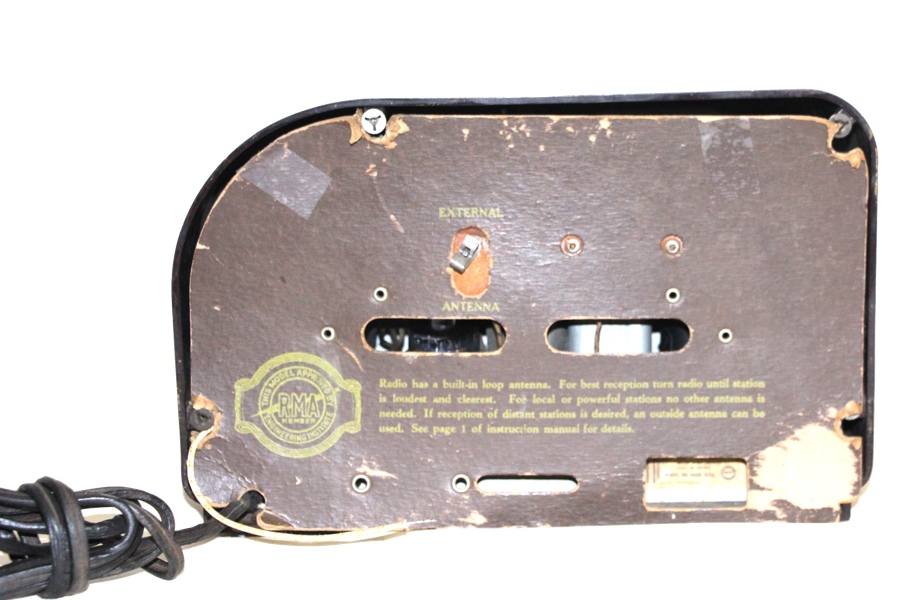

PICTURES(Click to enlarge image)

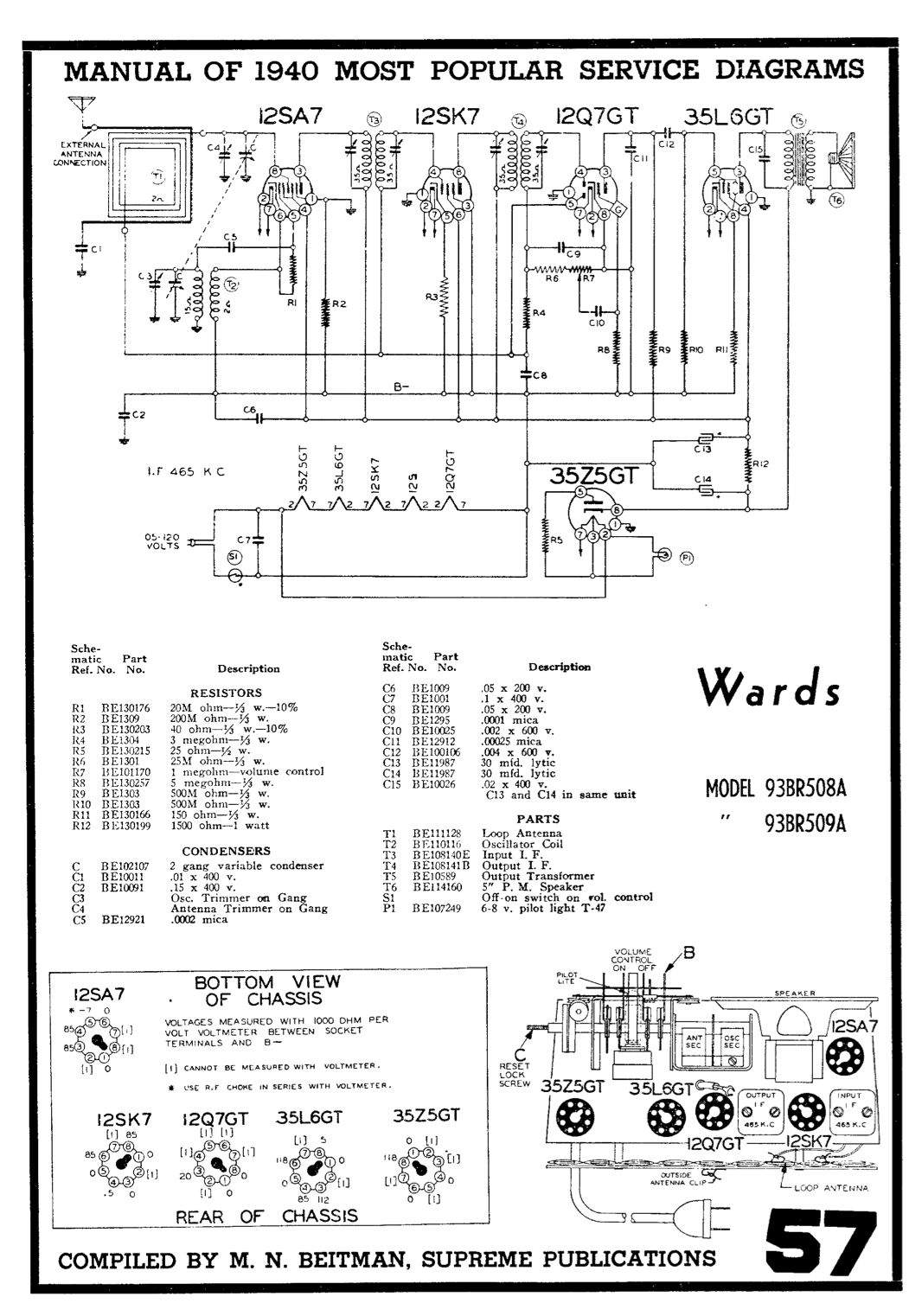

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom 2014 Radioactivity, James/Bill
