RADIONorthern Electric
MODELB4100
TECHNOLOGYTube
YEAR1947
MADE INCANADA
WAVE BANDSBC
COVERAGE540 - 1600 K.C.

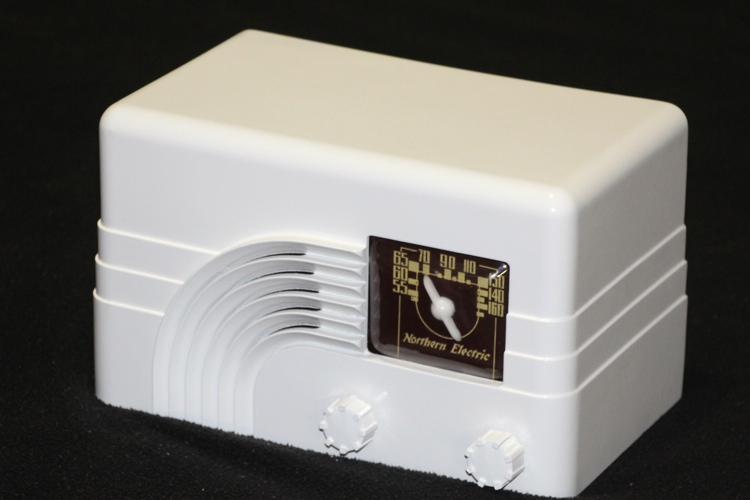

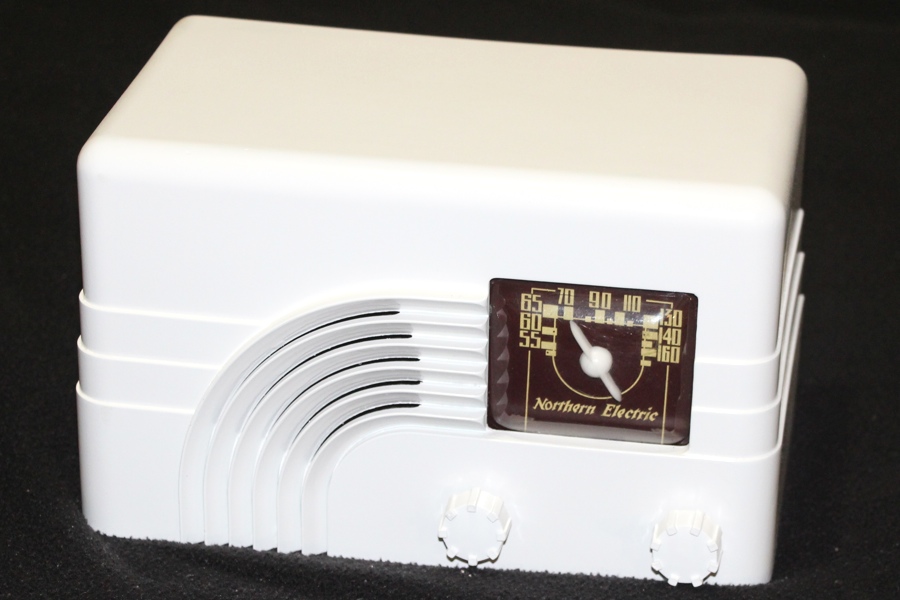

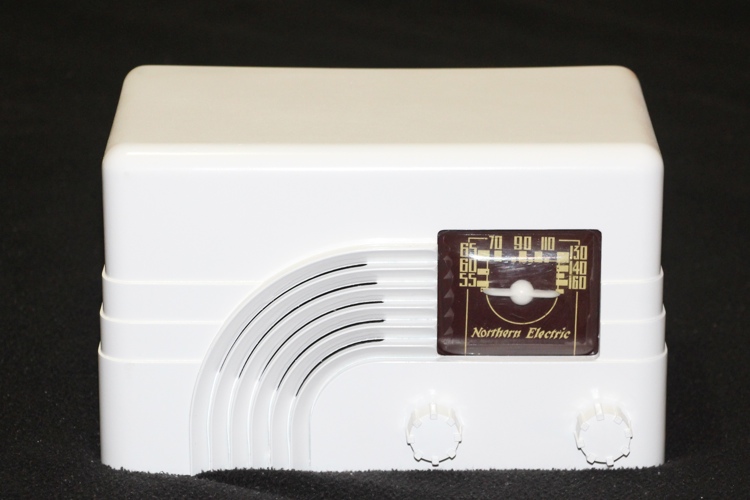

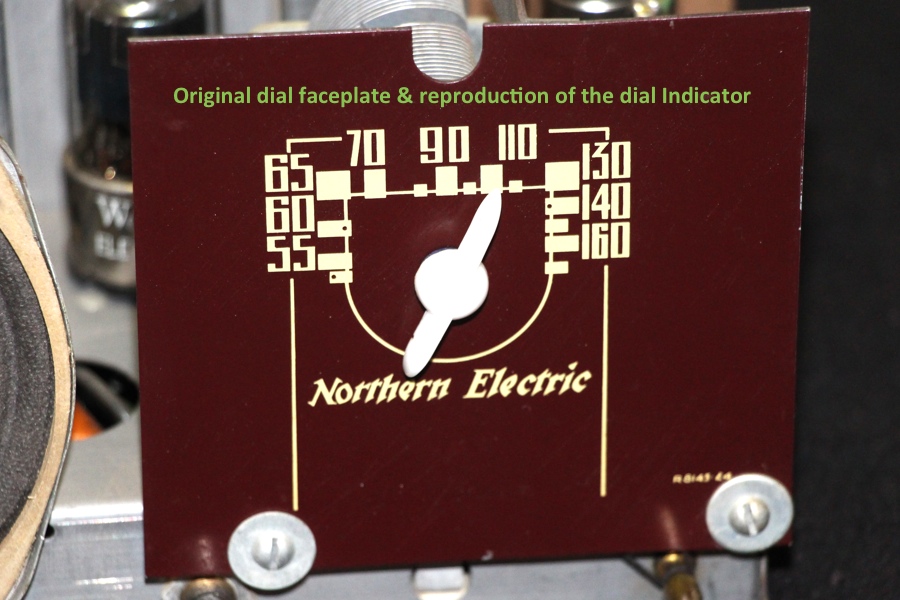

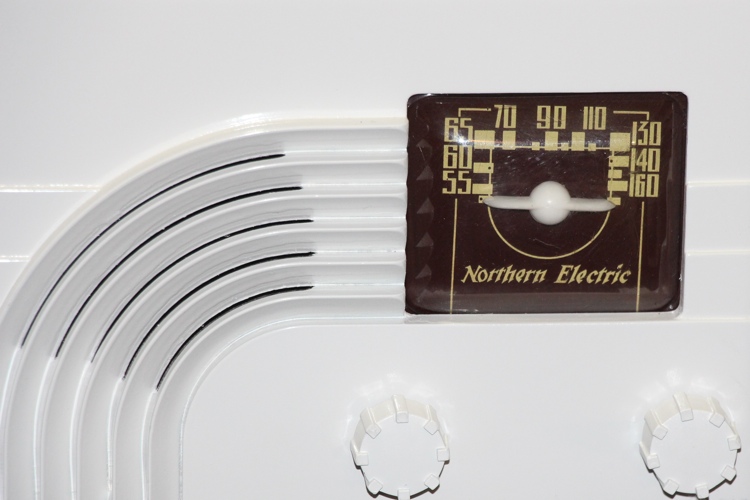

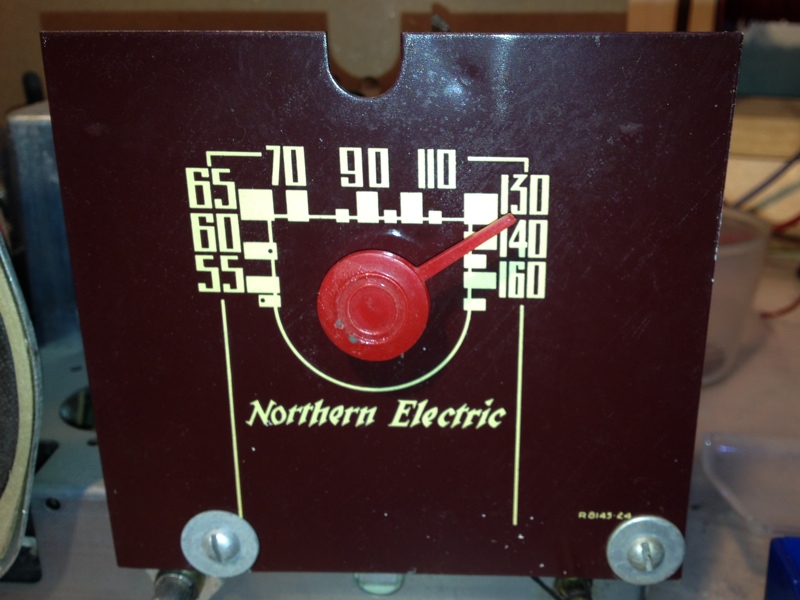

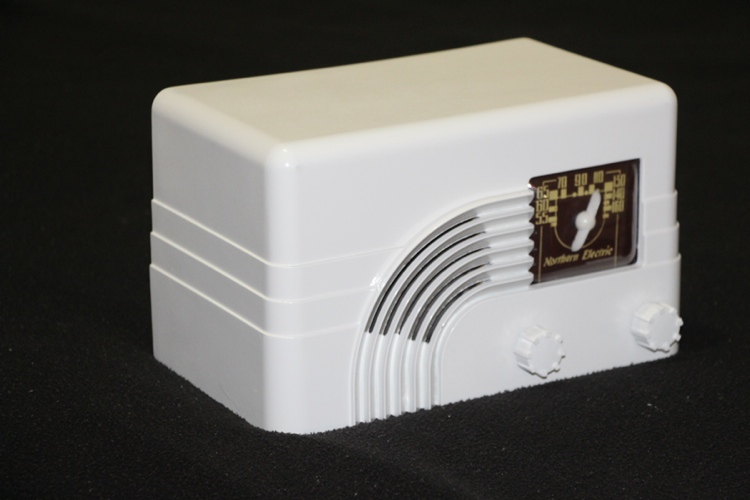

DESCRIPTIONRight front airplane dial, left rainbow grille, 2 knobs: on/off and volume on left and tuning on right.

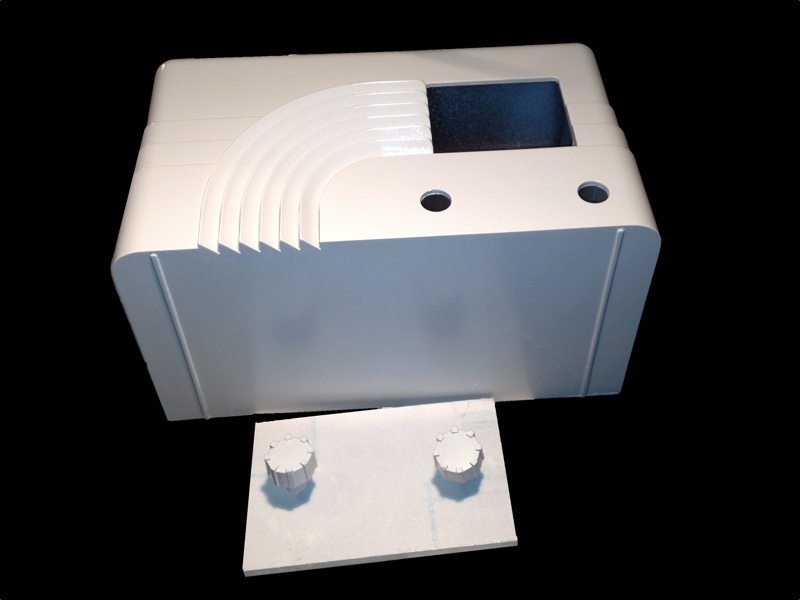

CABINET STYLEMantle
CABINET MATERIALBakelite
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYDC Battery
VOLTSA 1.5 Volts 250mA and B 90 Volts 10mA
CONSUMPTION?
AC CYCLESNot applicable

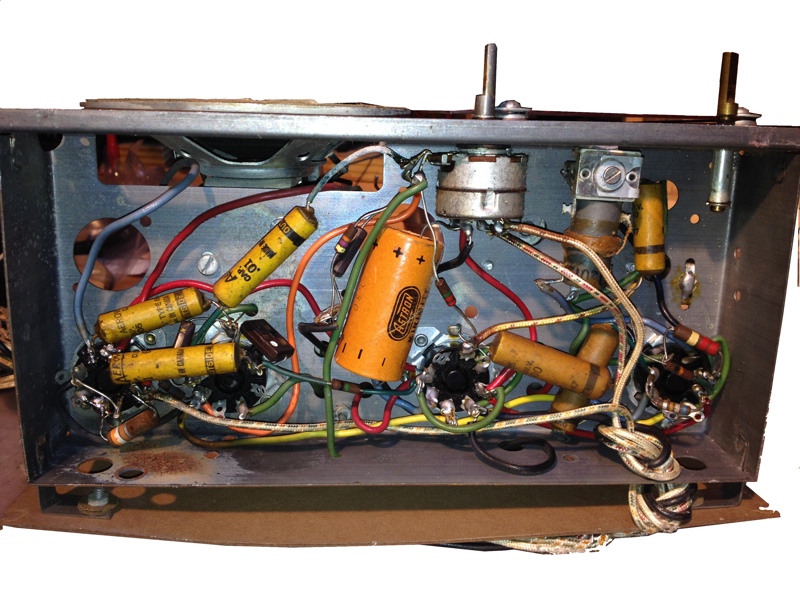

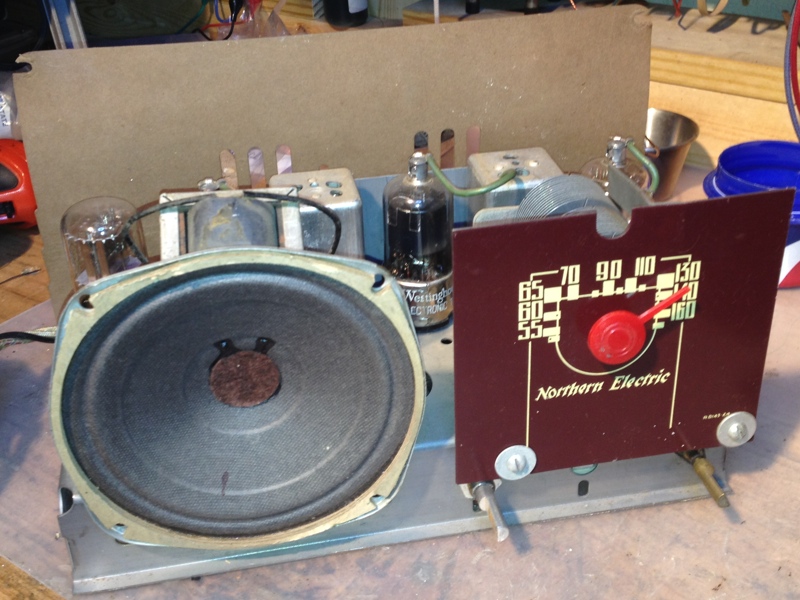

CHASSIS

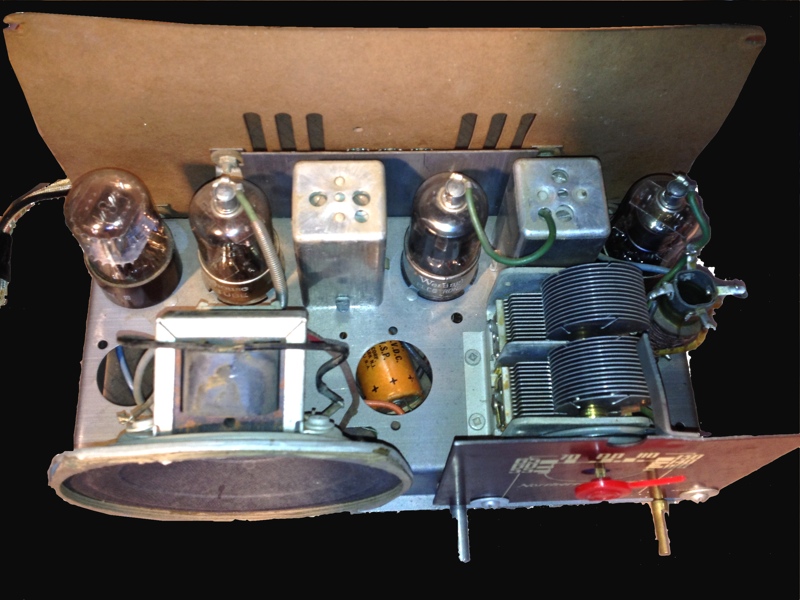

TUBES LOCATION
TUBE COMPLEMENT | 1A7 | 1N5 | 1H5 | 3Q5 |
PICTURES(Click to enlarge image)

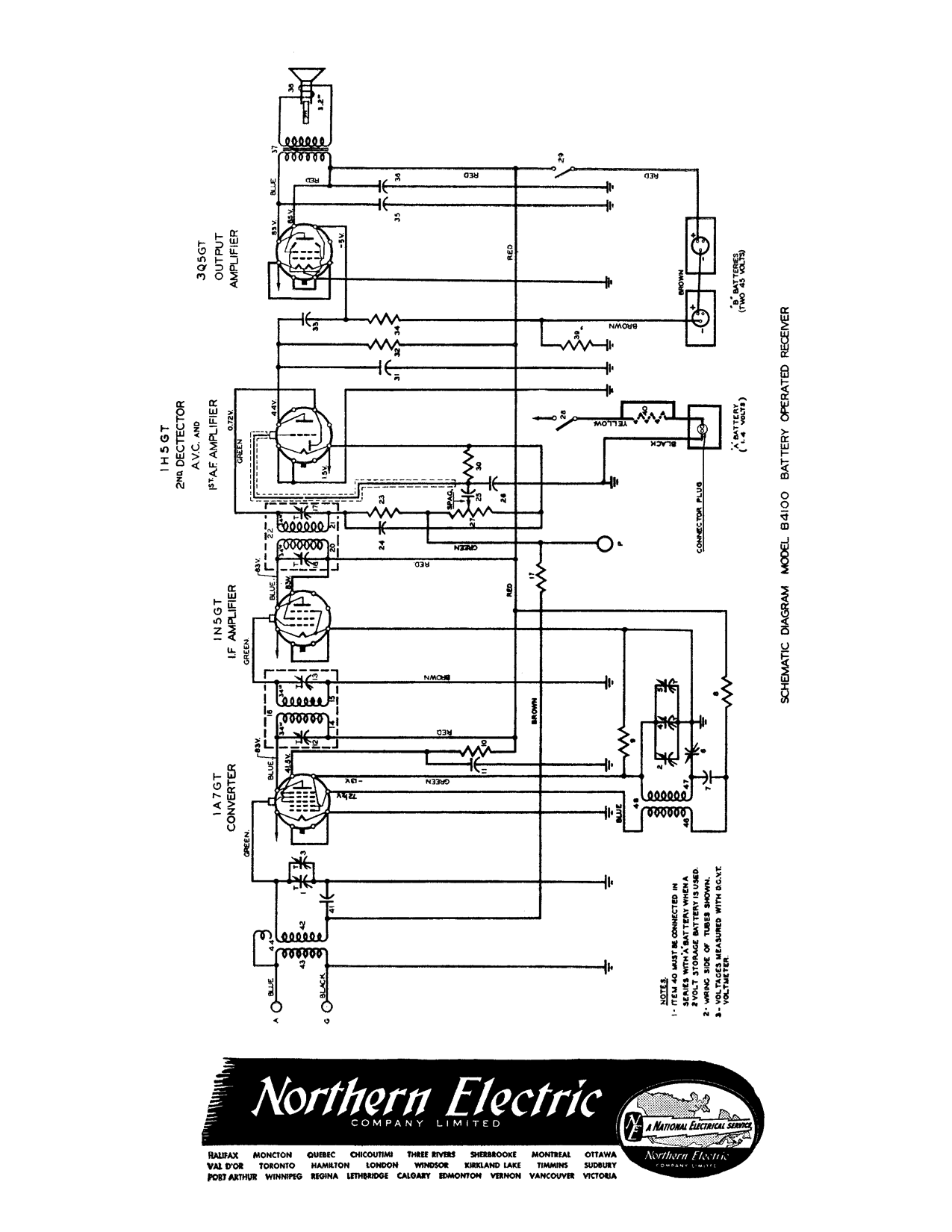

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom May 2014 MAARC monthly meeting.
ADDITIONAL INFOIt is a battery set also known as farm set.
