RADIOZenith
MODELA600
TECHNOLOGYTube
YEAR1957
MADE INUNITED STATES
WAVE BANDSBC/SW1-SW6
COVERAGEBC 540-1600 KC; SW1 4-9 MC; SW2 2-4 MC; SW3 17.4-18.2 MC; SW4 14.8-15.6 MC; SW5 11.5-12.1 MC; SW6 9.4-9.8 MC

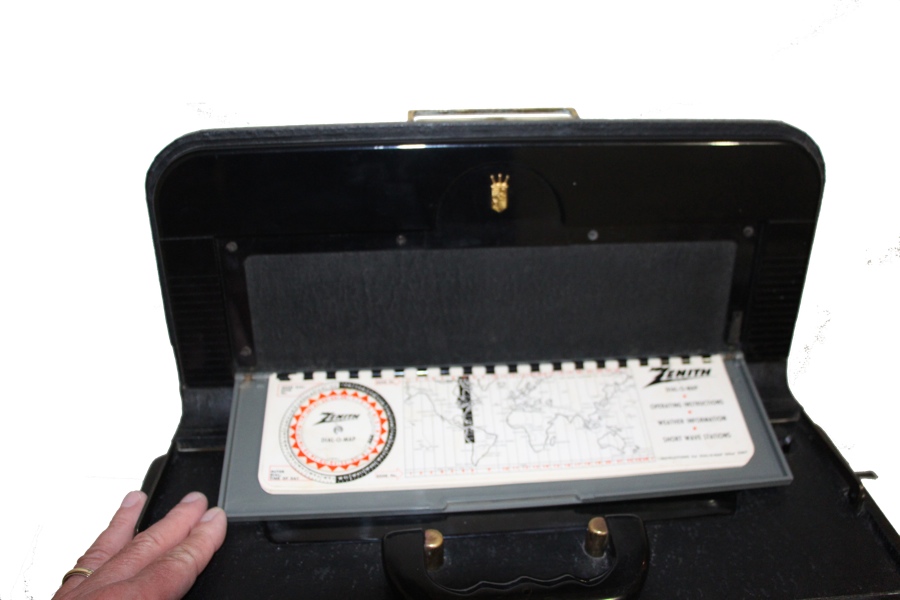

DESCRIPTIONInner multiband slide rule dial, left lattice grill, fold-up front, telescope antenna and handle.
CABINET STYLEPortable
CABINET MATERIALWood & Leatherette
DIAL LAMP - N° x TYPE1 x ?
TONE4 Positions
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC Battery
VOLTS110-220 V AC; 9 V and 90 V DC
CONSUMPTION10-20 W
AC CYCLES50-60 Hz
CHASSIS6A41

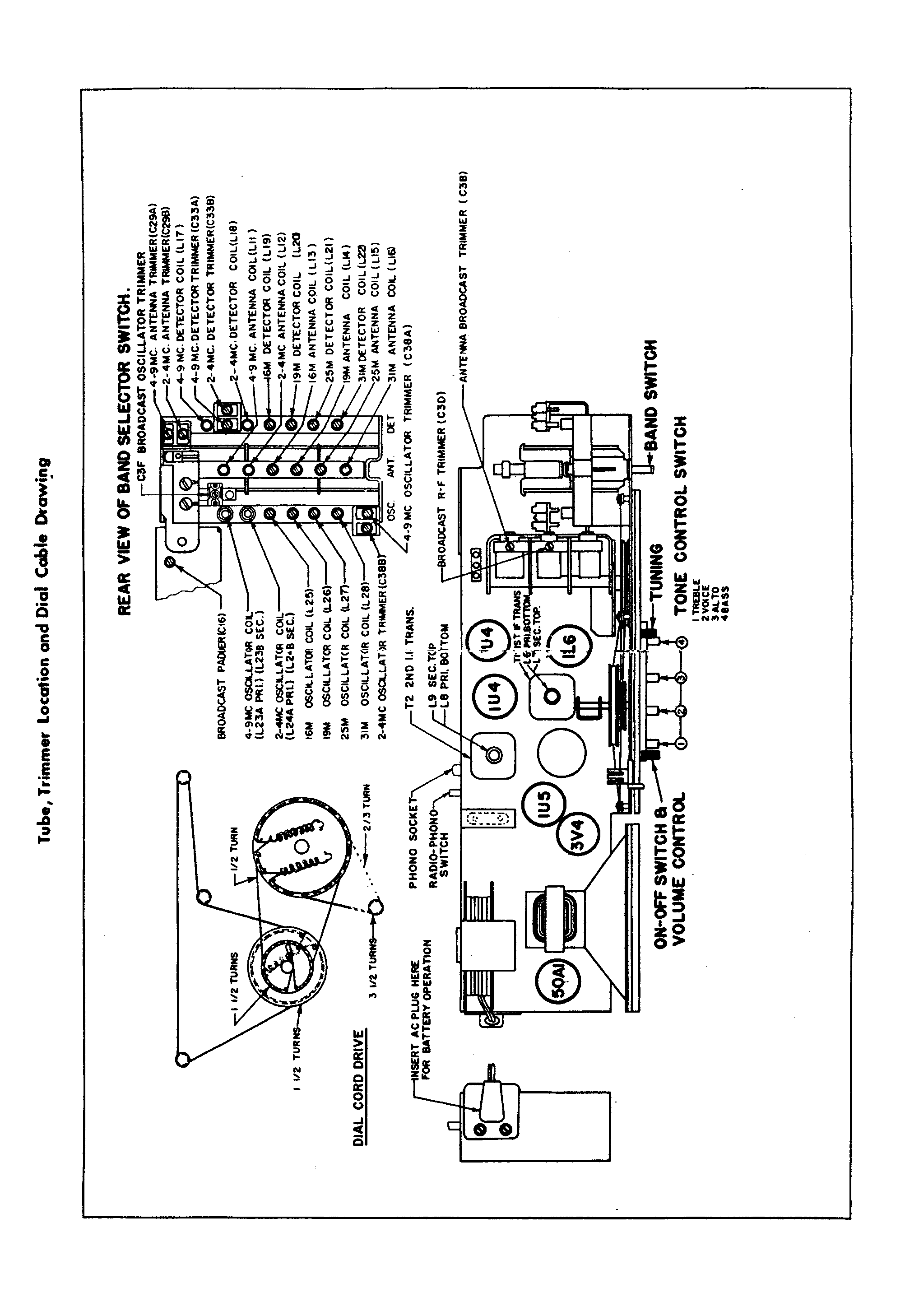

TUBES LOCATION
TUBE COMPLEMENT | 1U4 | 1L6 | 1U4 | 1U5 | 3V4 | 50A1 |

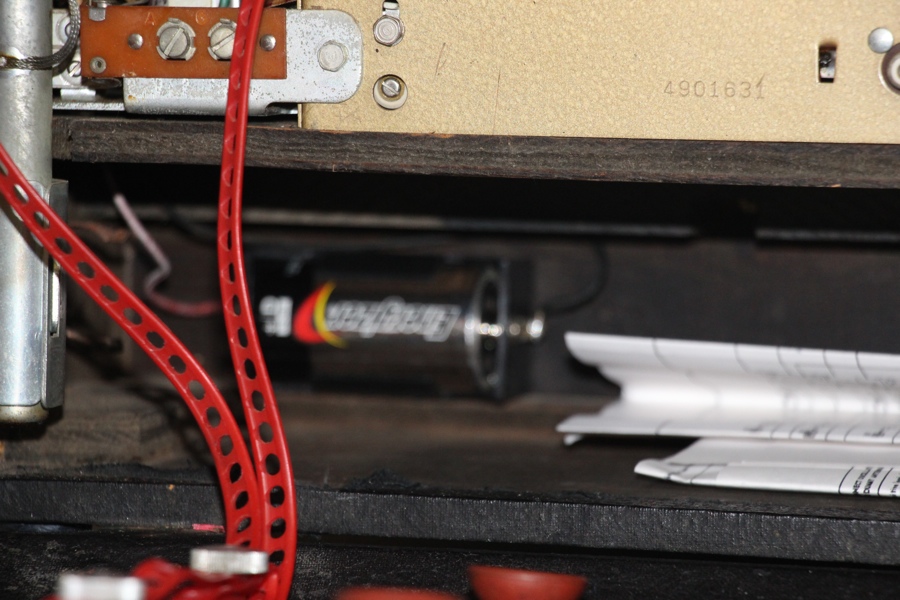

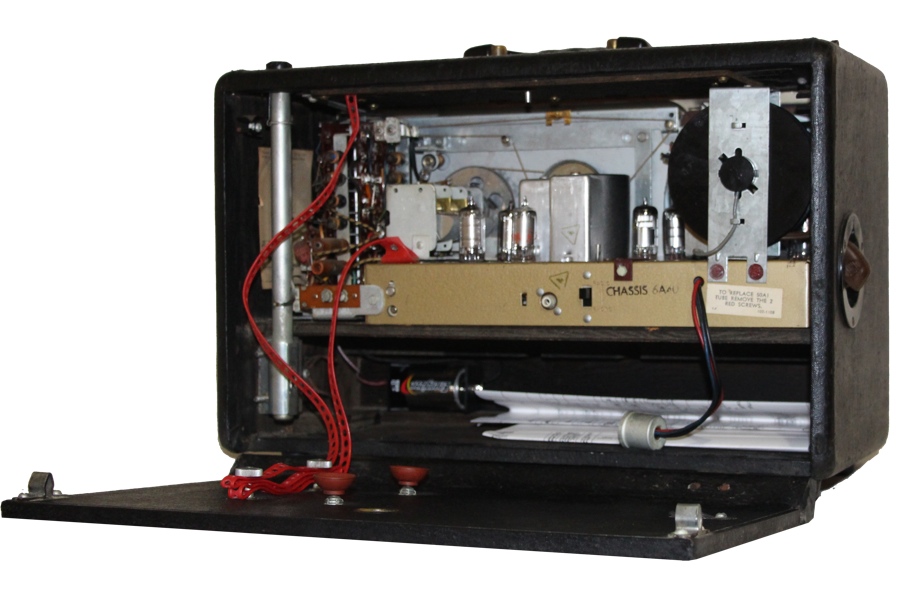

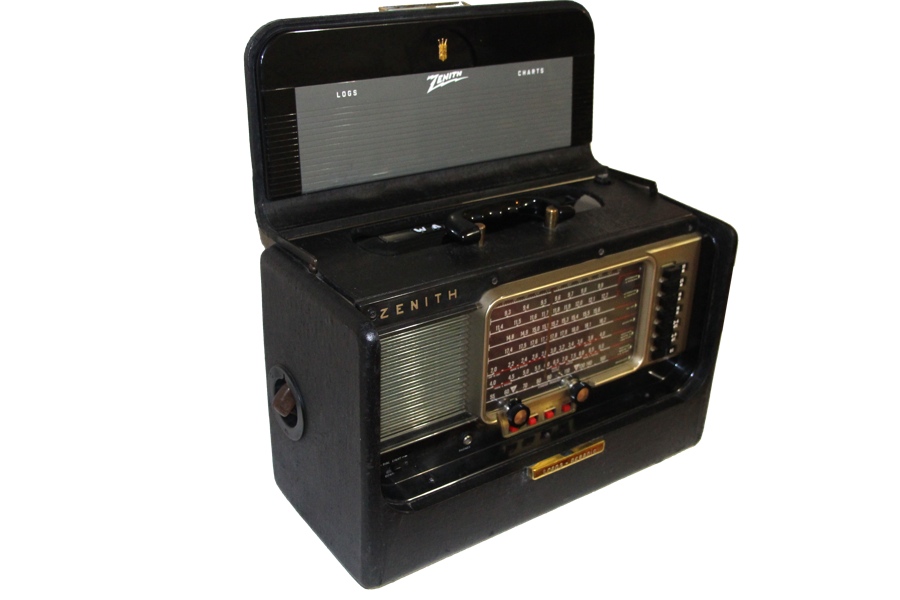

PICTURES(Click to enlarge image)

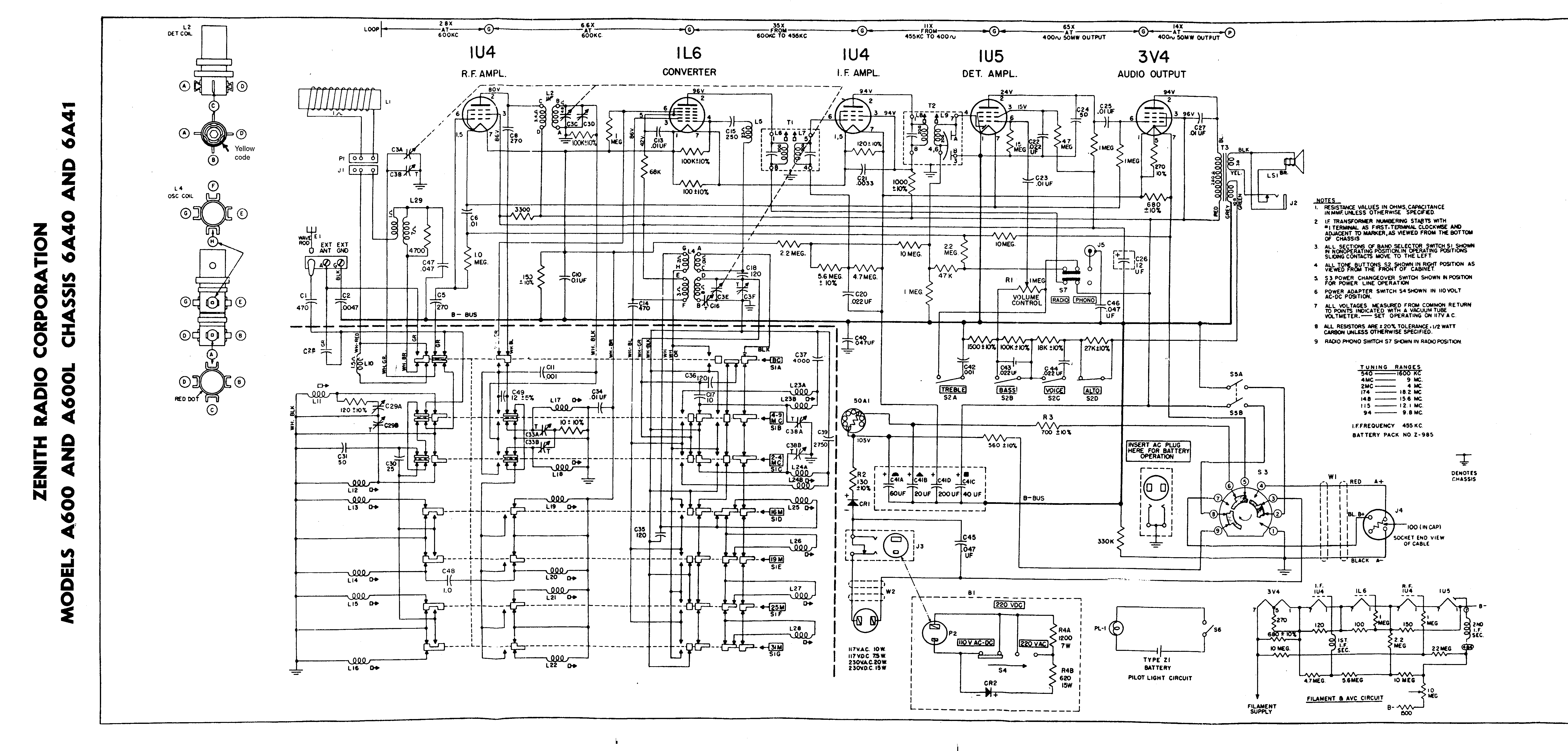

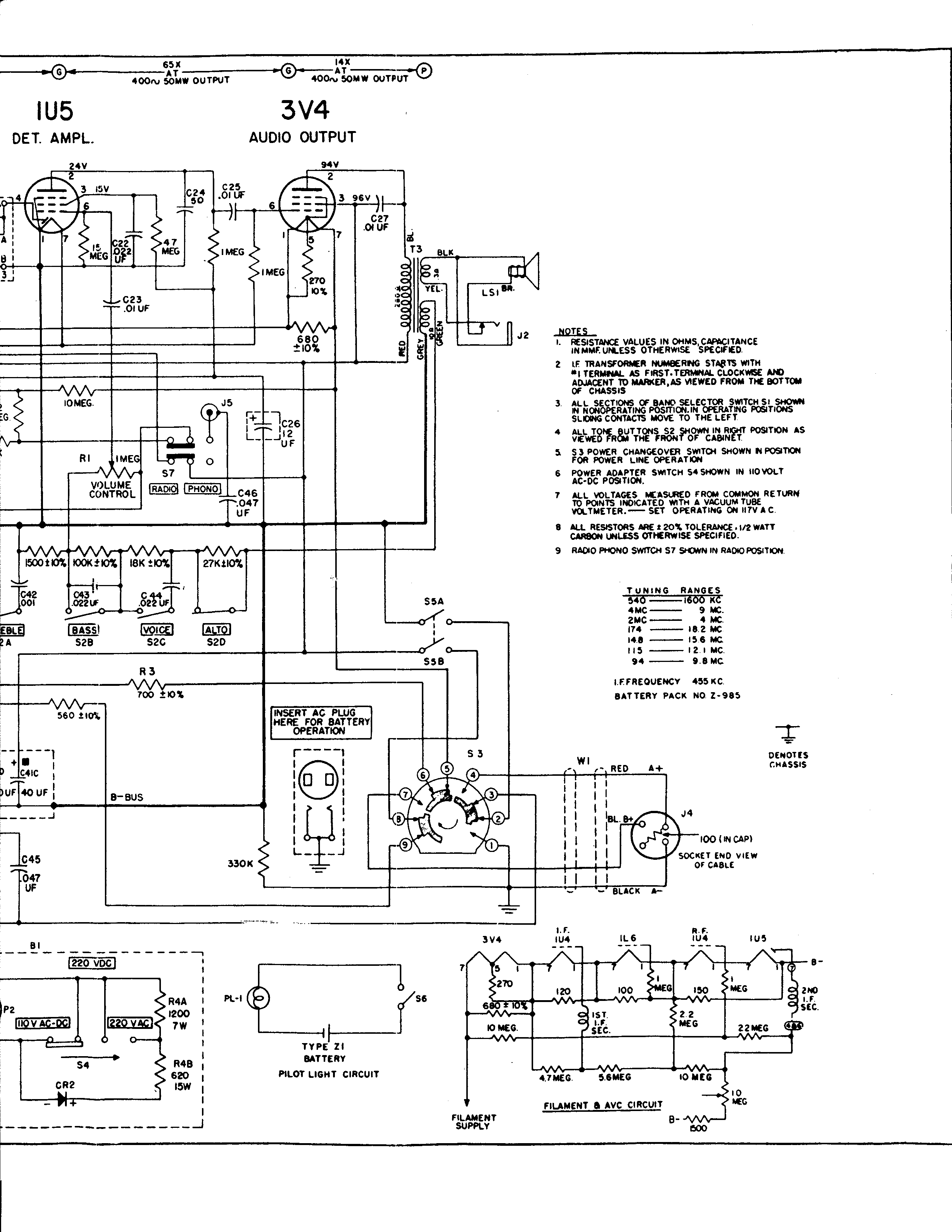

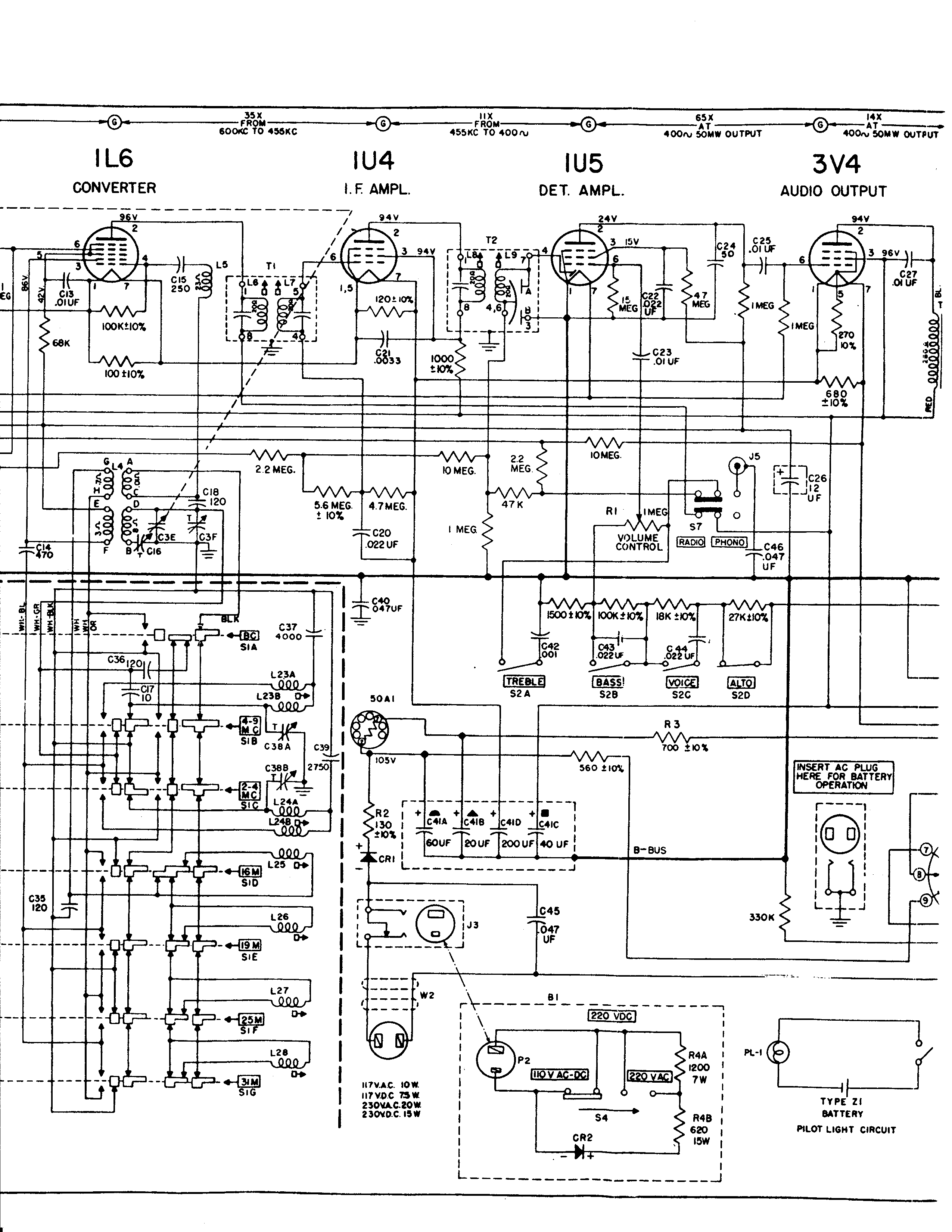

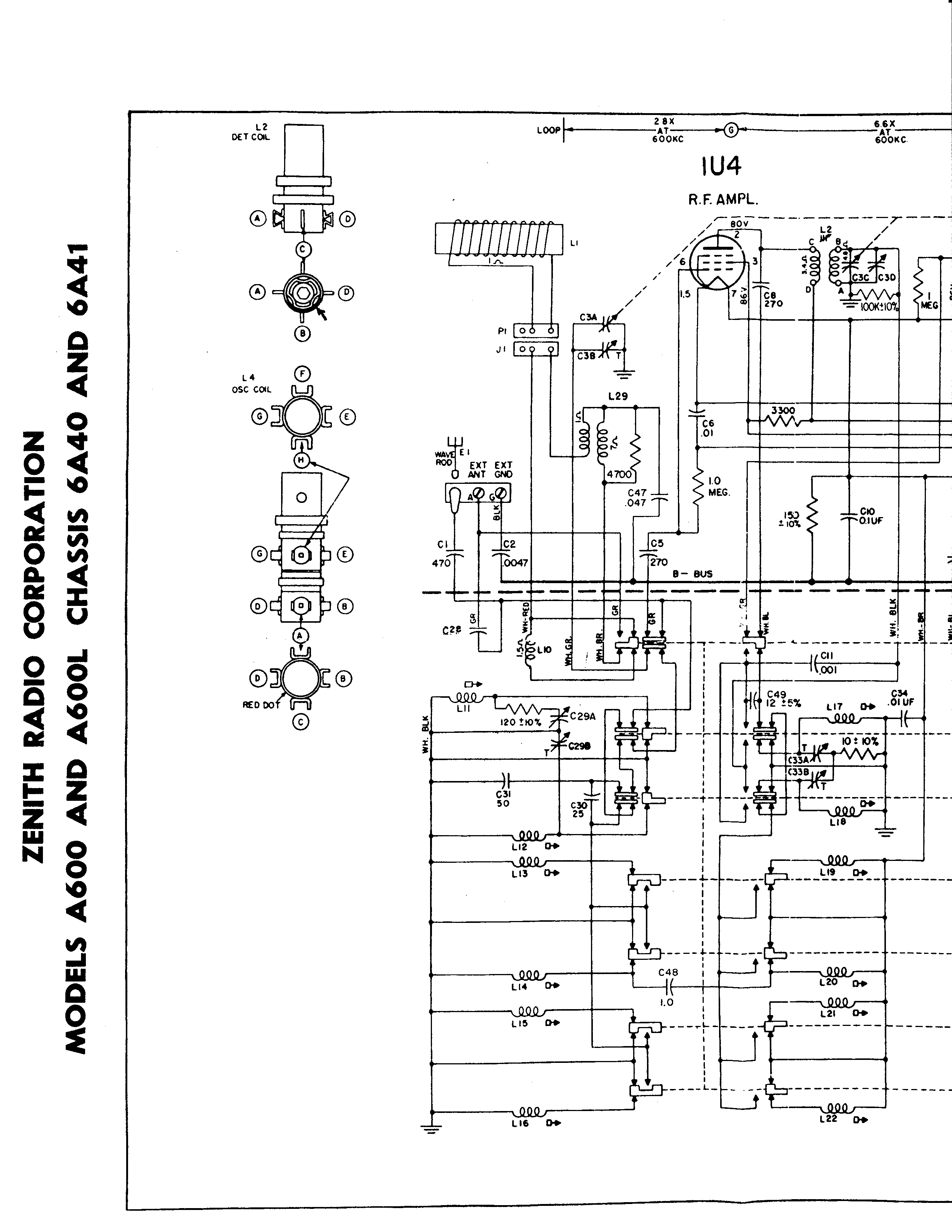

SCHEMATICS | Page1 | Page2 | Page3 | Page4 | Page5 | Page6 |
FROMFrom Radioactivity 2014 flea market
ADDITIONAL INFOI bought it completely restored and functional.
