RADIOPhilco
MODEL84
TECHNOLOGYTube
YEAR1934
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1740 KC

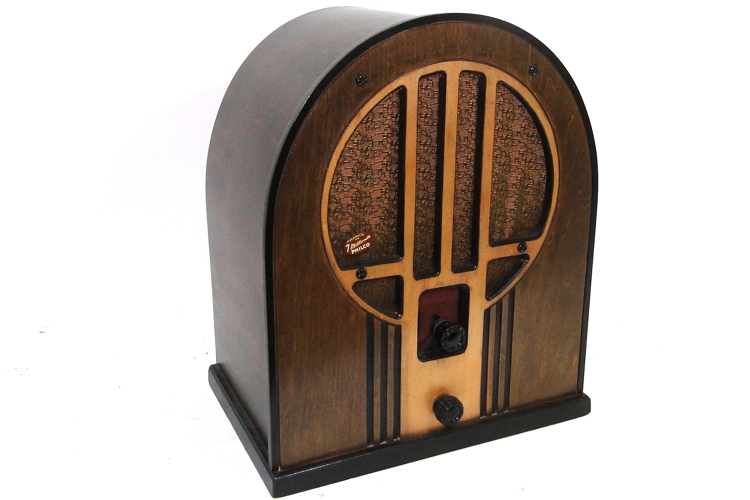

DESCRIPTIONCenter front window dial, upper cloth grill with cut-outs, an upper central dial knob and a lower central on/off/volume knob, two tone wood.
CABINET STYLECathedral
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 46
TONENo
CIRCUITSuperheterodyne
IF460 KC

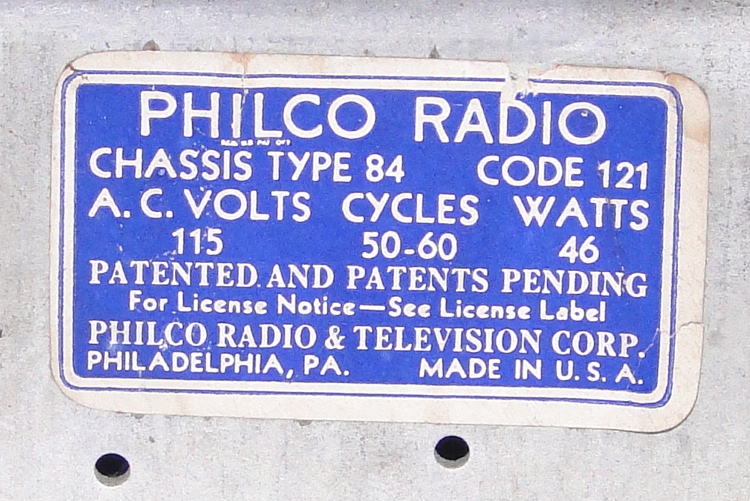

POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION46 W
AC CYCLES?
CHASSIS

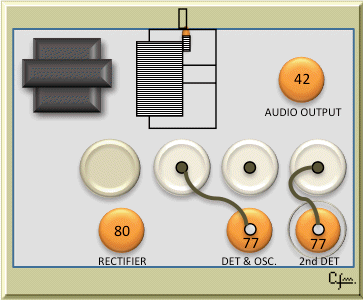

TUBES LOCATION
TUBE COMPLEMENT | 77 | 77 | 42 | 80 |
PICTURES(Click to enlarge image)

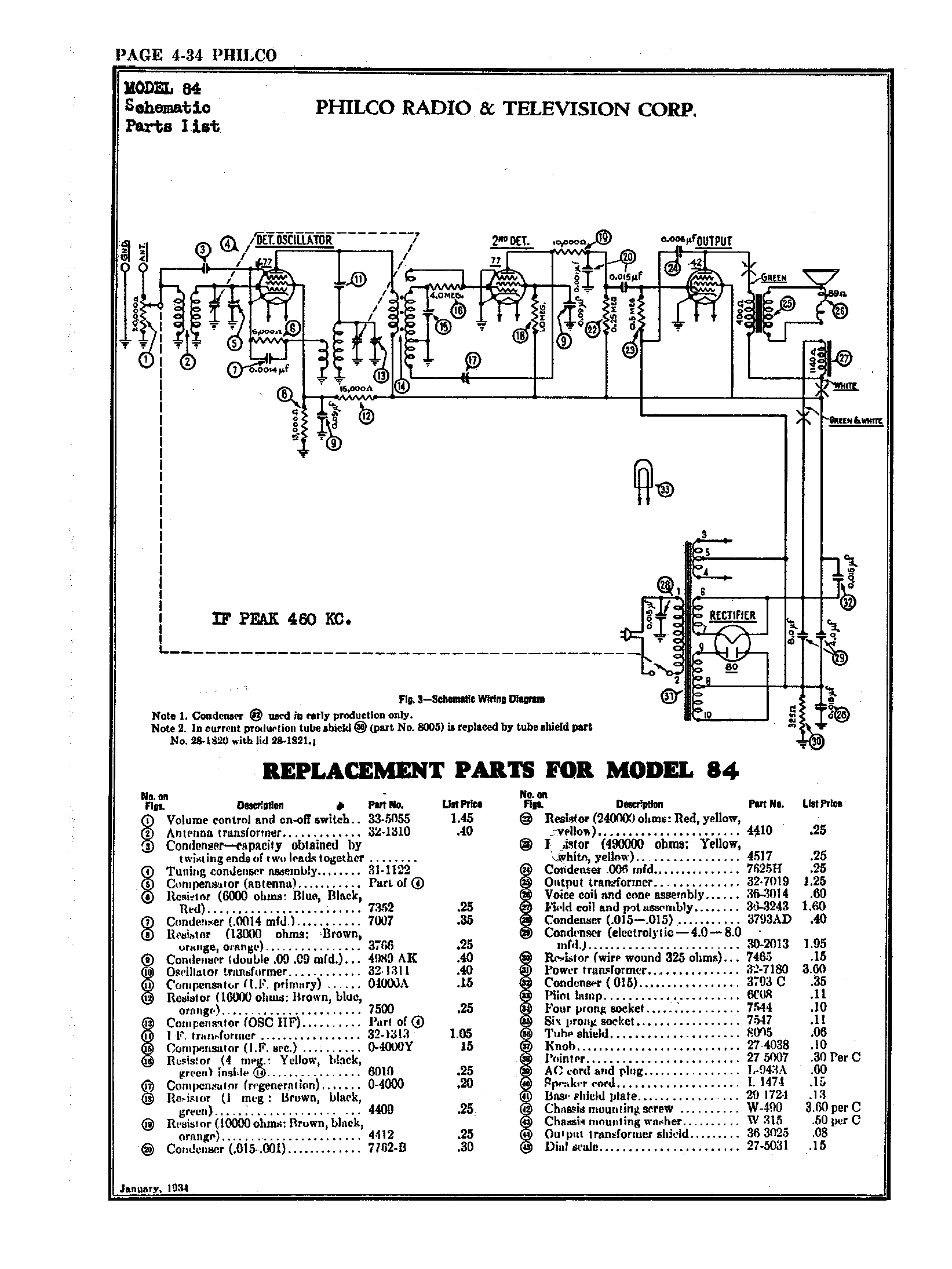

SCHEMATICS | Page1 | Page2 | Page3 |
FROMMAARC Radioactivity 2012 Flea Market. This set is a NOS, mint conditions.
