RADIOSilvertone
MODEL9006
TECHNOLOGYTube
YEAR1959
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1600 Kc.

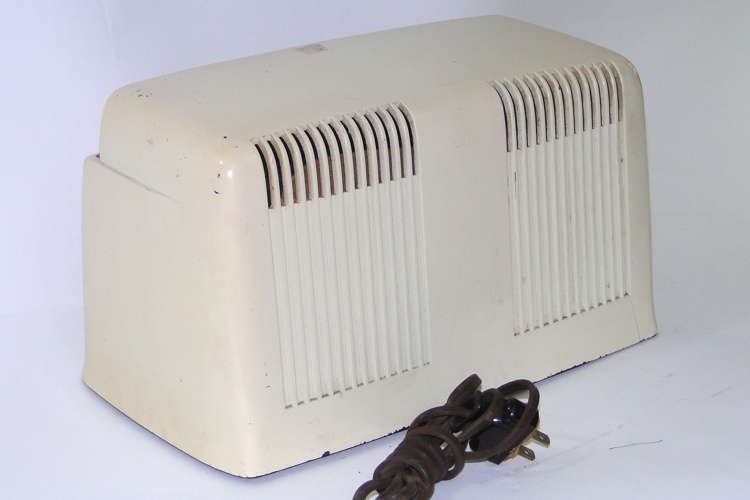

DESCRIPTIONTop slide rule dial with front and back vertical grill bars, 2 frontal knobs.
CABINET STYLETable
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105-125 V
CONSUMPTION35 W
AC CYCLES50-60 Hz
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

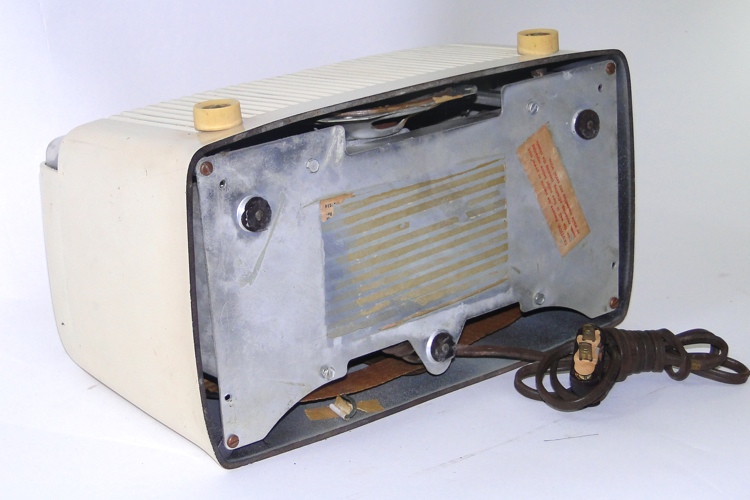

PICTURES(Click to enlarge image)
SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom ebay US.
