RADIOEmerson
MODELCF-255 Emersonette
TECHNOLOGYTube
YEAR1939
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1730 KHz
DESCRIPTION Very small set, right front vertical slide rule dial, left horizontal grill bars, 2 knobs left on/off volume and right dial, resistance line cord with pilot light section.
CABINET STYLEMidget
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE1 x 44
TONENo
CIRCUITTRF
IFNot applicable
POWER SUPPLYAC/DC
VOLTS105-125 Volts
CONSUMPTION40 W
AC CYCLES50-60 Hz
CHASSISCF 2353940
TUBES LOCATION

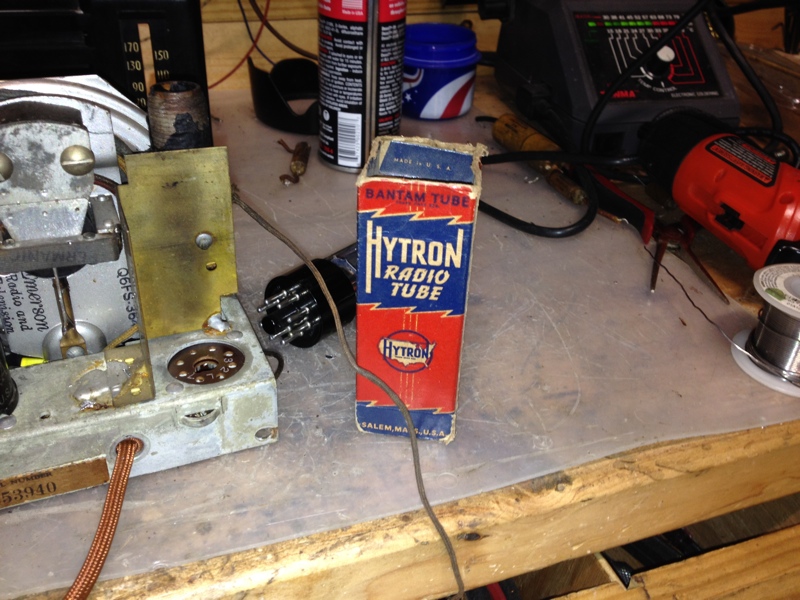

TUBE COMPLEMENT | 12B8 | 32L7 |
PICTURES(Click to enlarge image)
SCHEMATICS | Page1 |
FROMFrom Geoff at the MAARC February 2013 monthly meeting.
