RADIOZenith
MODEL5G500 Universal
TECHNOLOGYTube
YEAR1941
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 535 - 1620 KHz

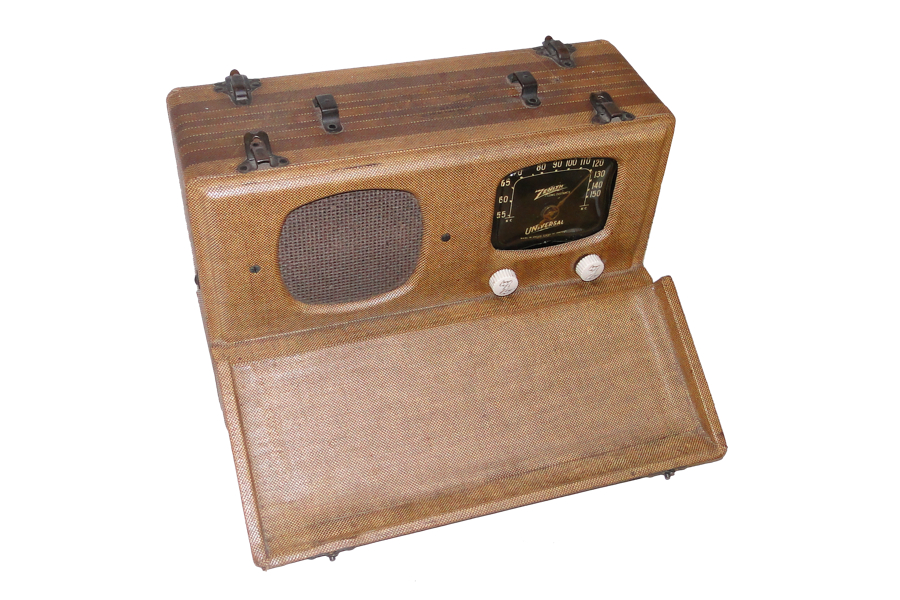

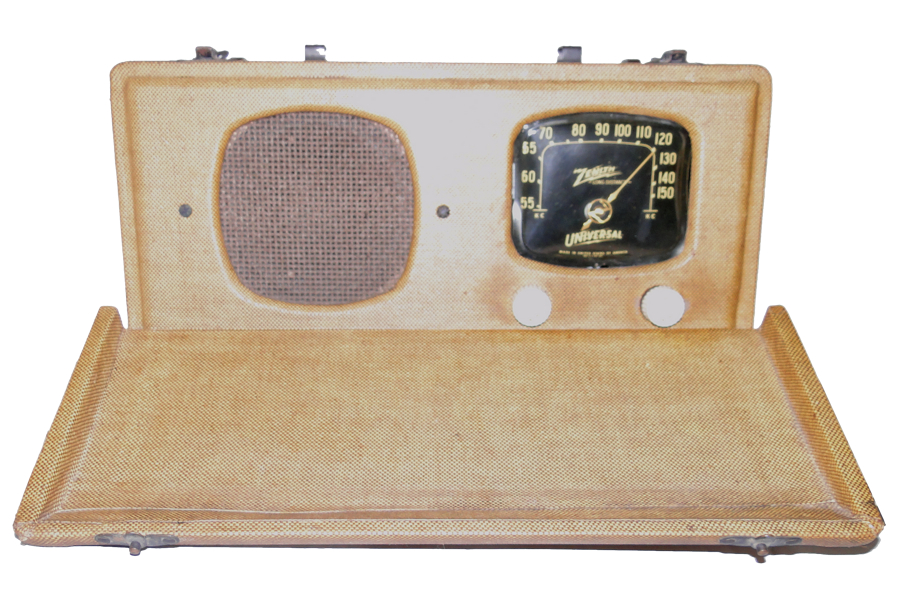

DESCRIPTIONCanvas covered, inner right black dial, left grill, 2 "Z" knobs, fold-down front lid, and handle.
CABINET STYLEPortable
CABINET MATERIALWood & Leatherette
DIAL LAMP - N° x TYPE0 x None
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC Battery
VOLTS117 Volts & Battery Pack No. 2675
CONSUMPTION20 W
AC CYCLES50-60 Hz
CHASSIS5A01

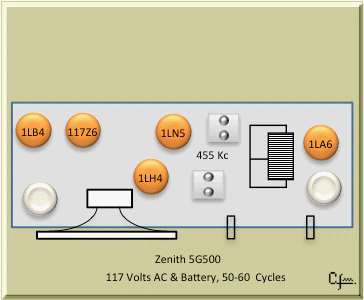

TUBES LOCATION
TUBE COMPLEMENT | 1LA6 | 1LN5 | 1LH4 | 1LB4 | 117Z6 |
PICTURES(Click to enlarge image)

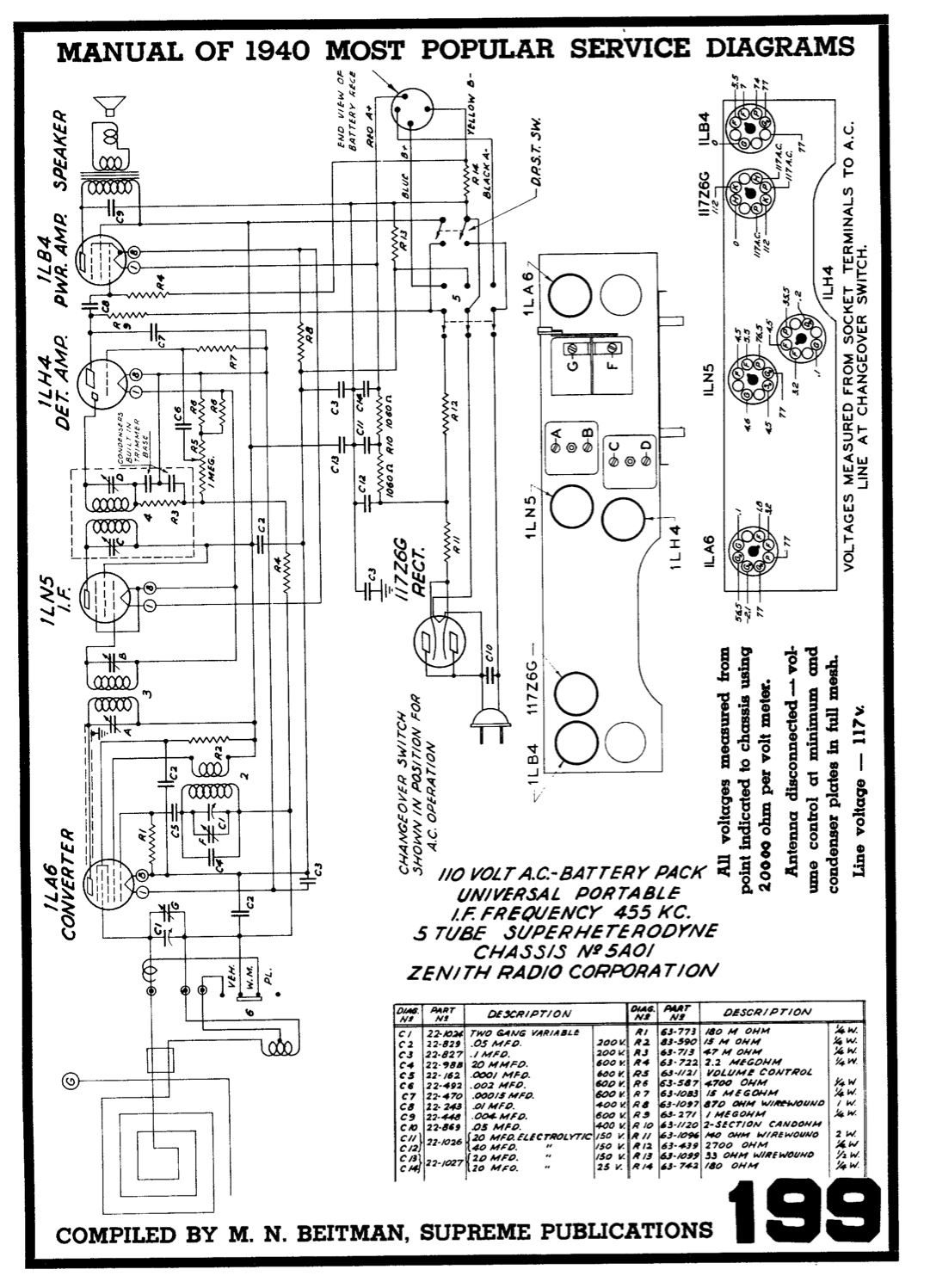

SCHEMATICS | Page1 |
FROMFrom MAARC Radioactivity auction on June 23, 2013.
