RADIOZenith
MODEL807
TECHNOLOGYTube
YEAR1934
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 538 - 1550 KHz; SW 5.61 - 17.85 MHz

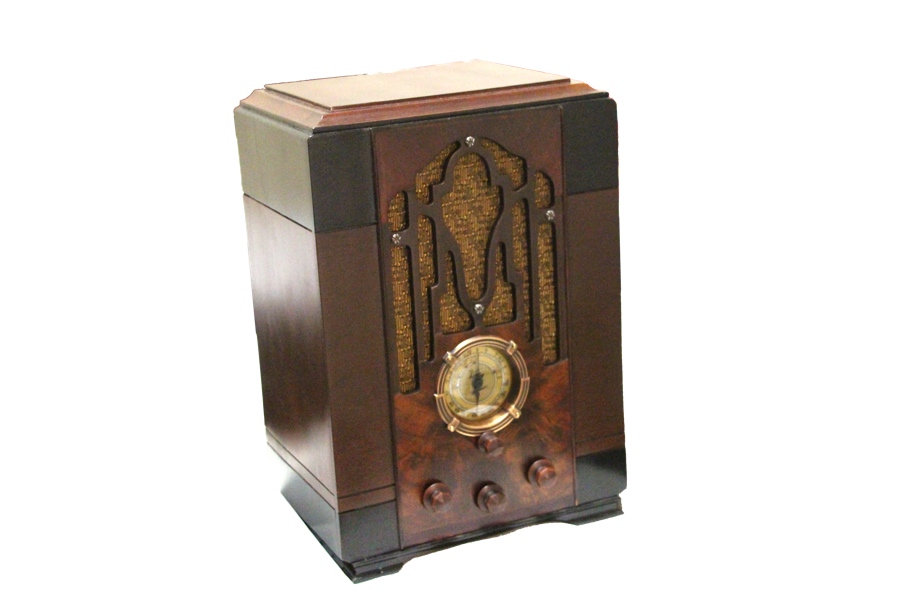

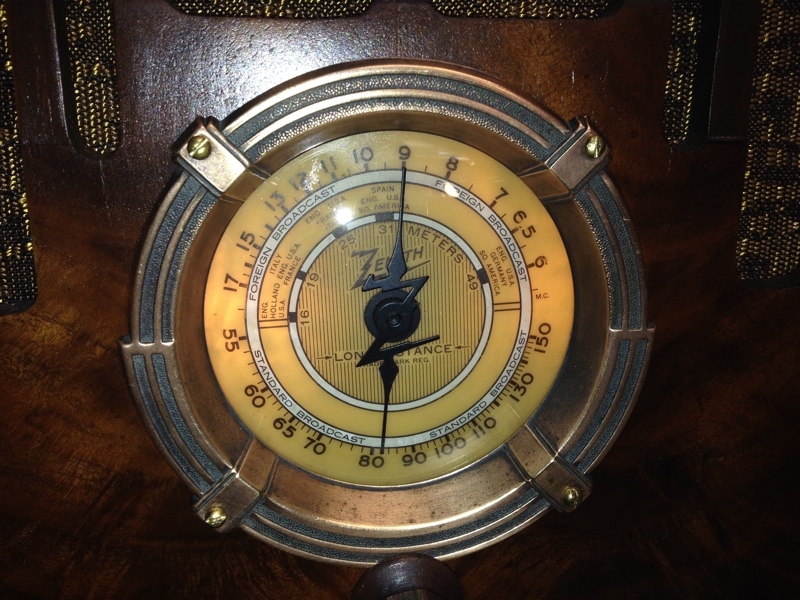

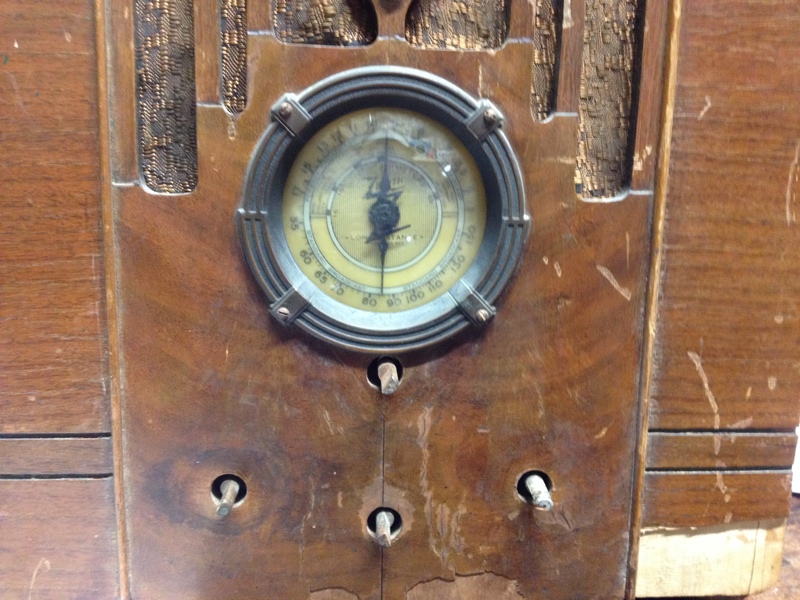

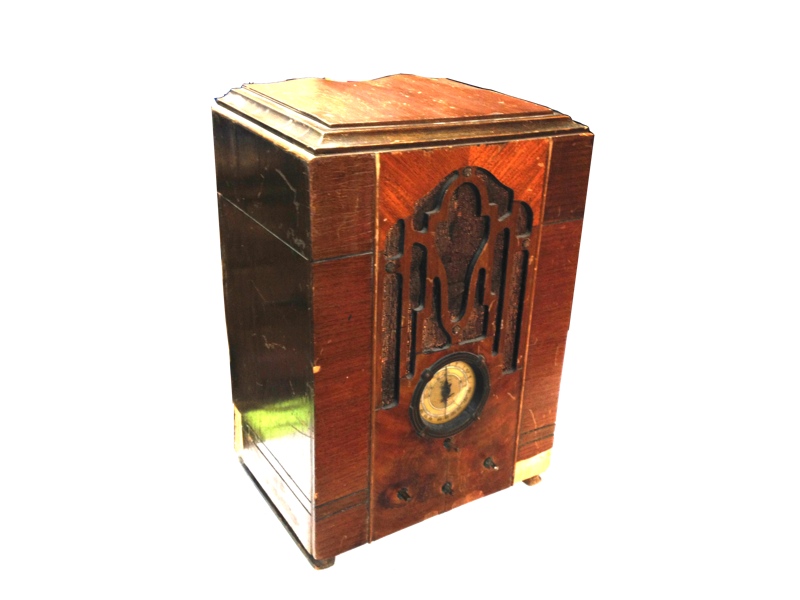

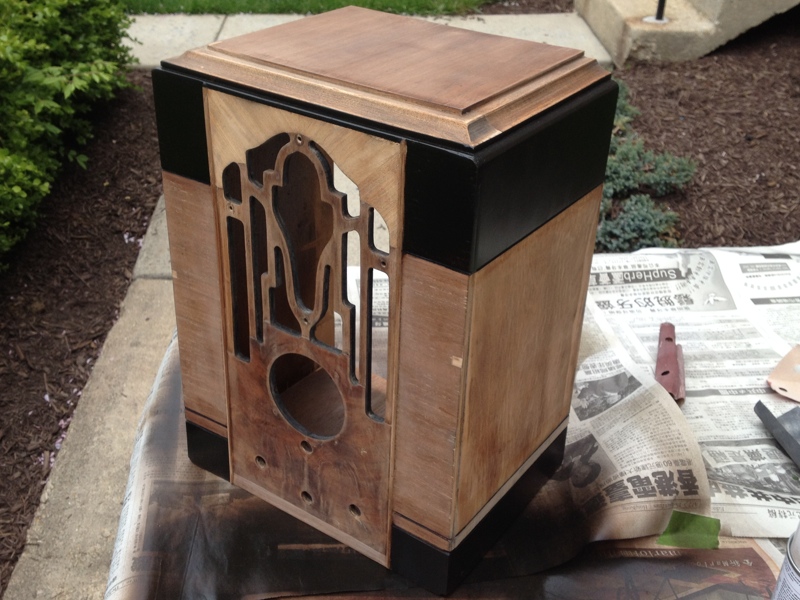

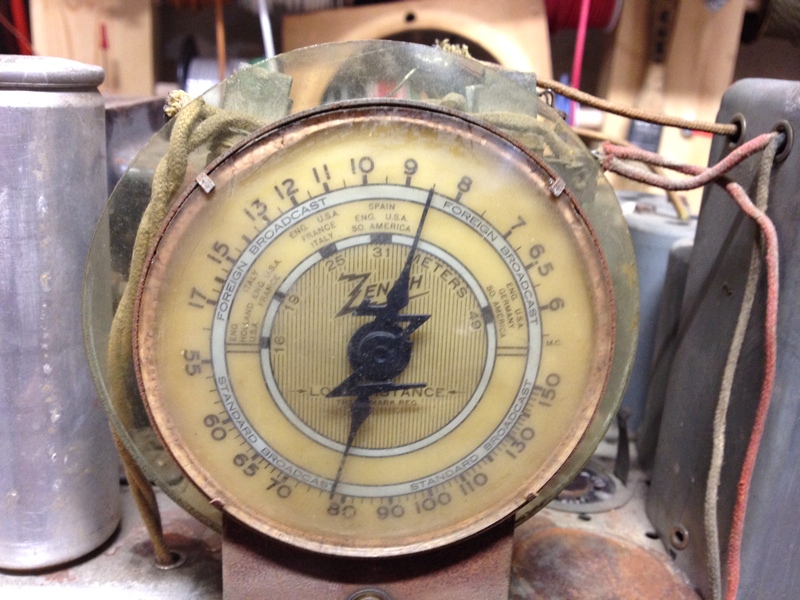

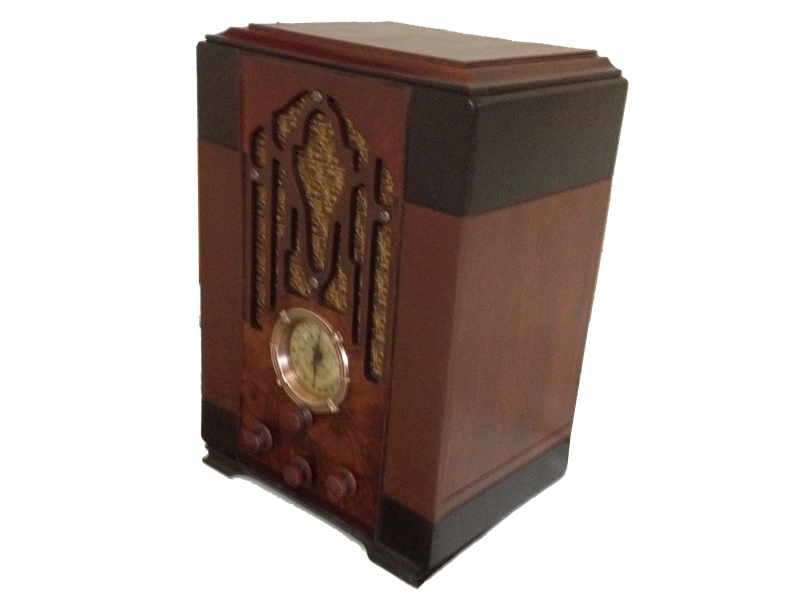

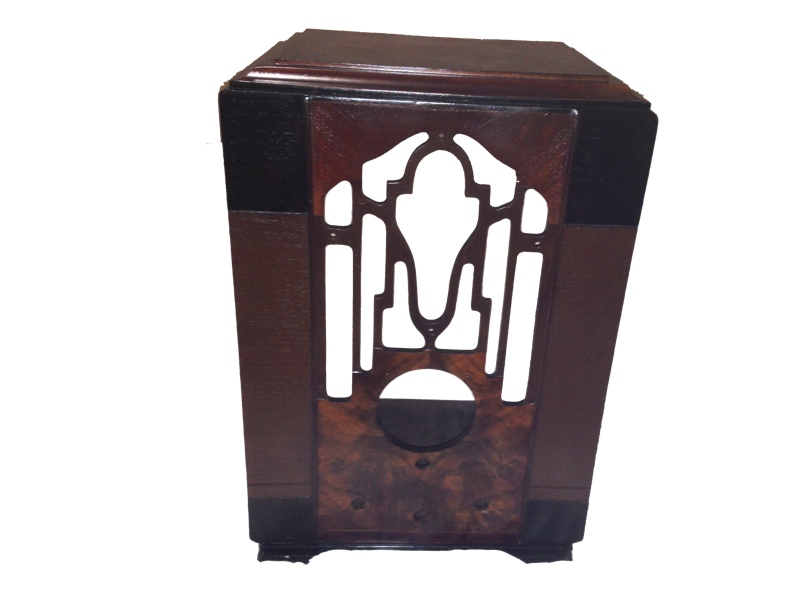

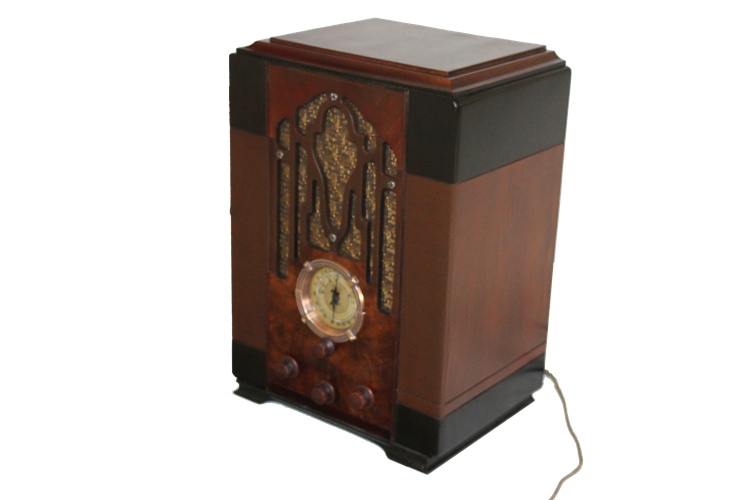

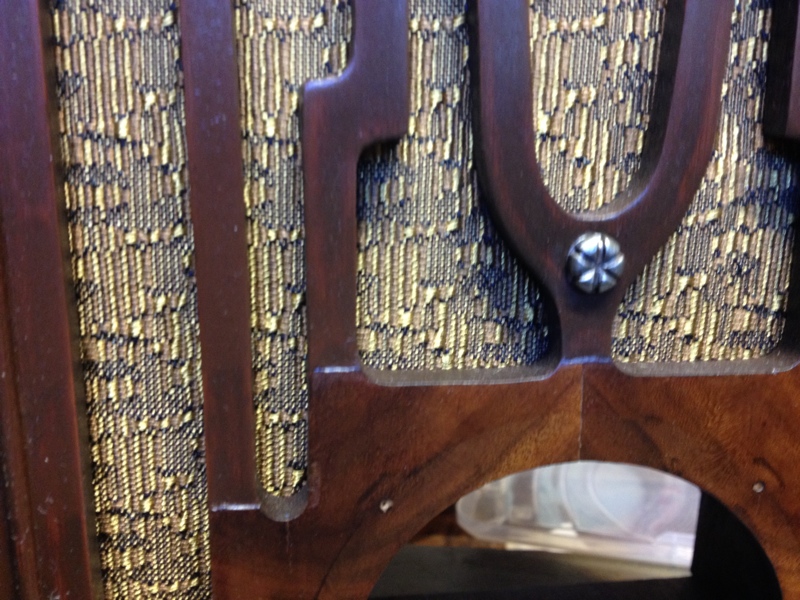

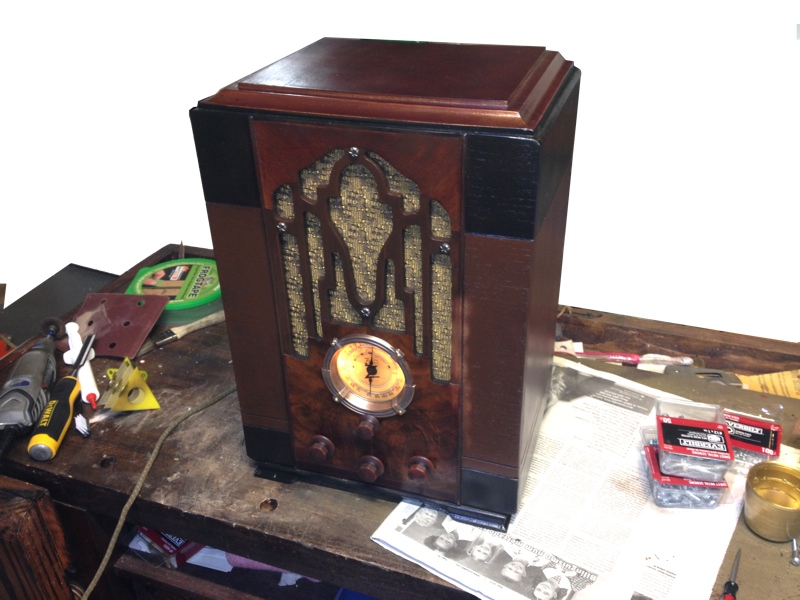

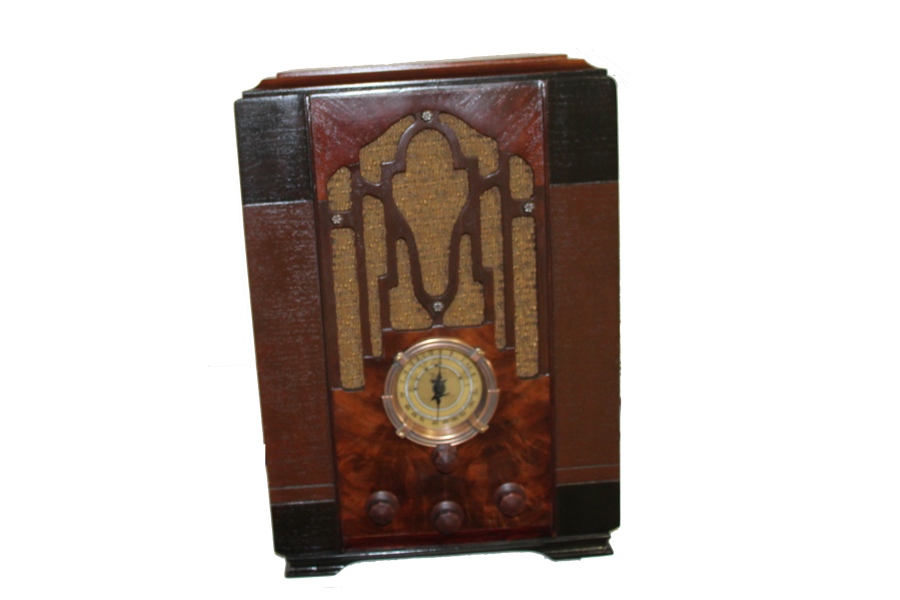

DESCRIPTIONWood cabinet with a middle front round dial, upper cloth grill with cut-outs and decorative fluting, 4 lower knobs.
CABINET STYLETombstone
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 47
TONE2 Positions
CIRCUITSuperheterodyne
IF252.5 KC
POWER SUPPLYAC

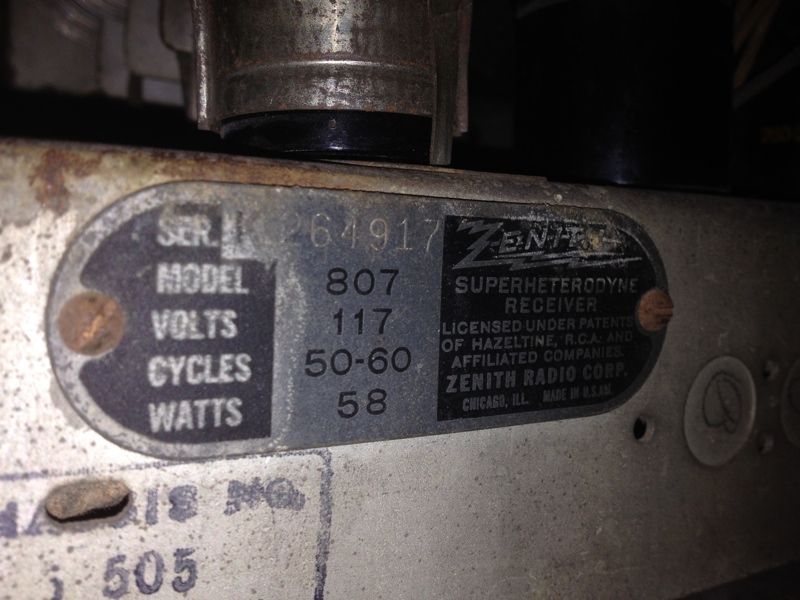

VOLTS117 Volts
CONSUMPTION58 W
AC CYCLES50-60 Hz

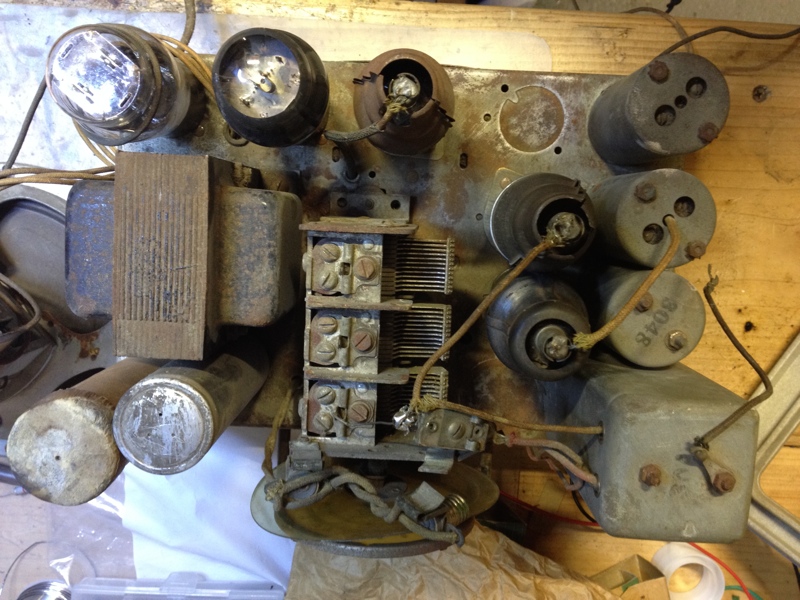

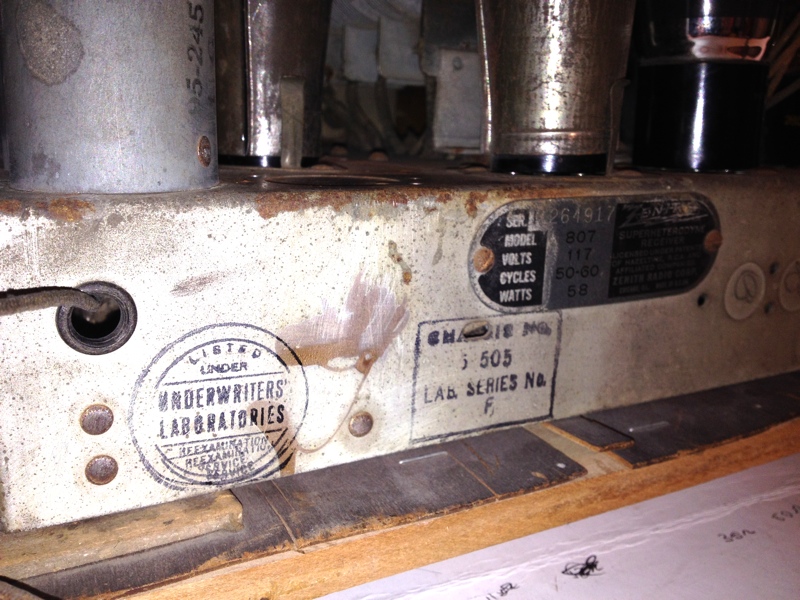

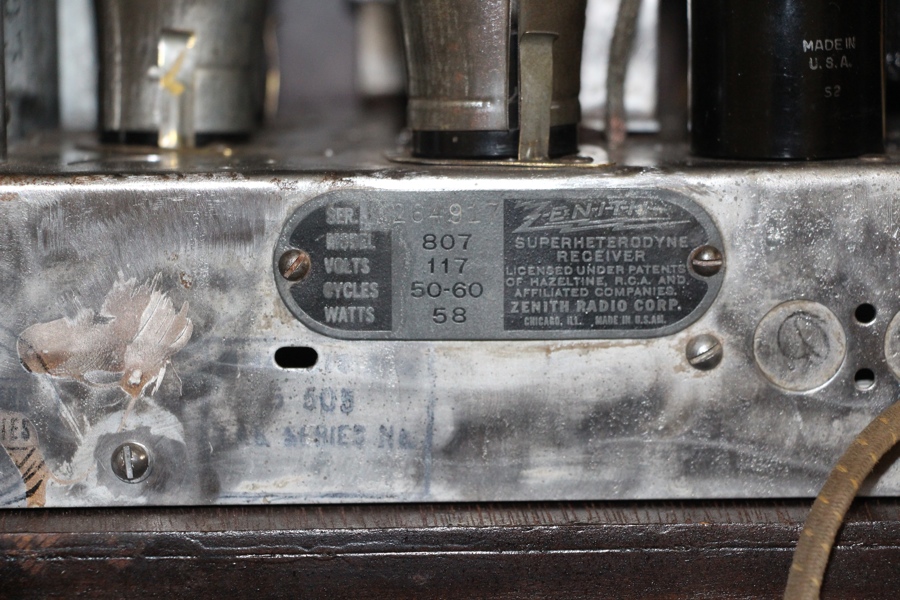

CHASSIS5506

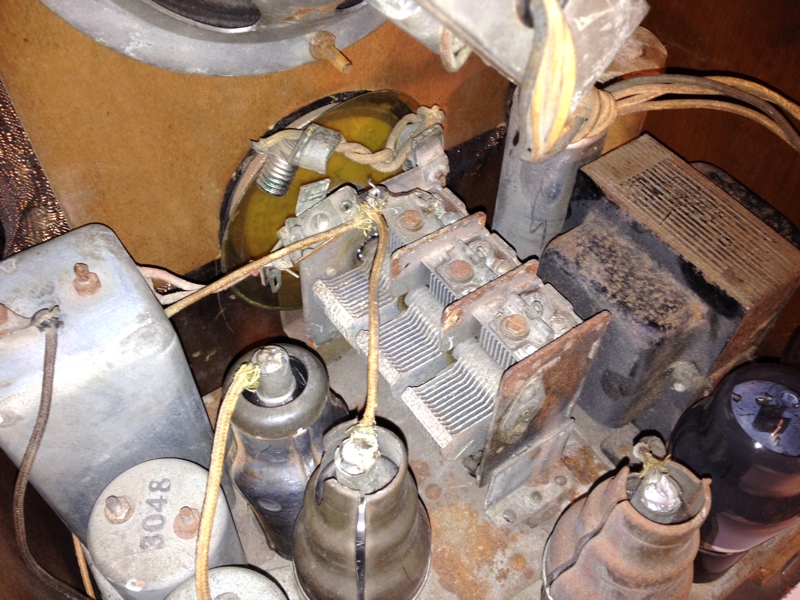

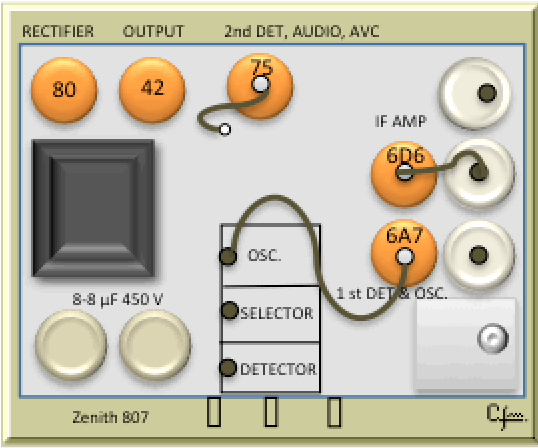

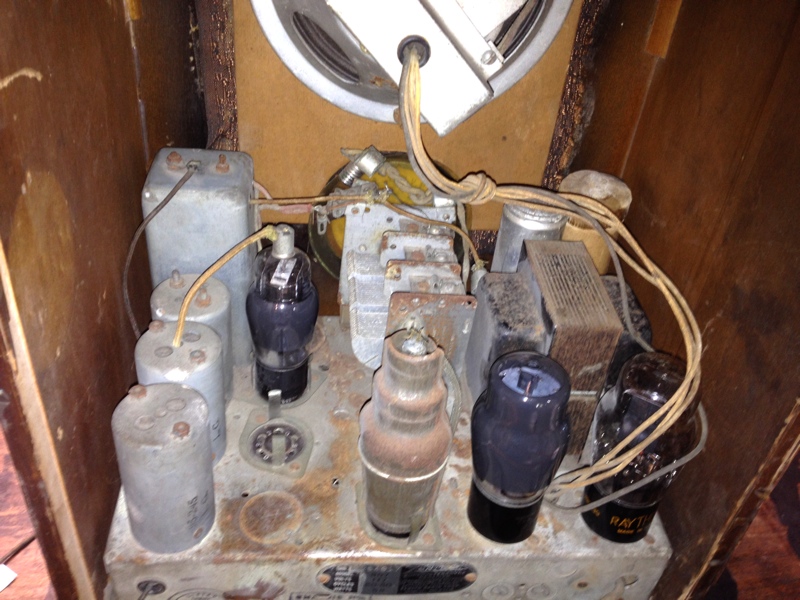

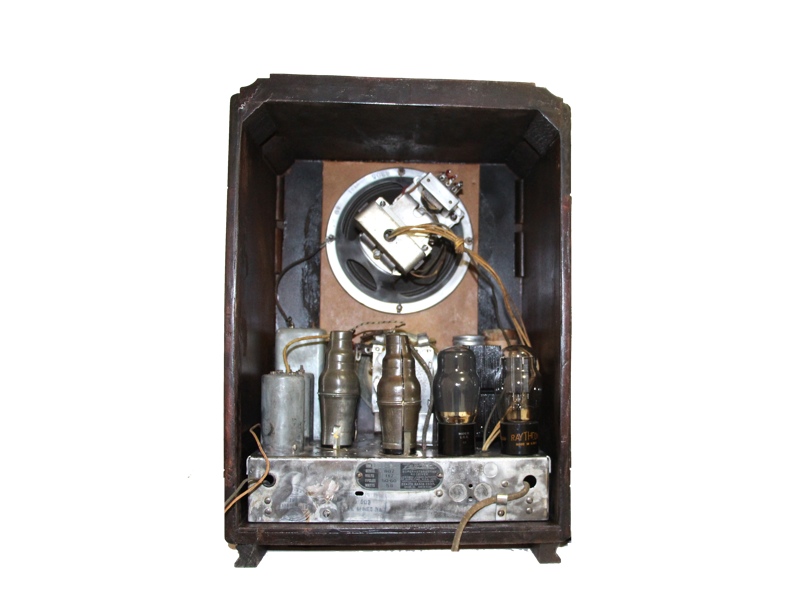

TUBES LOCATION

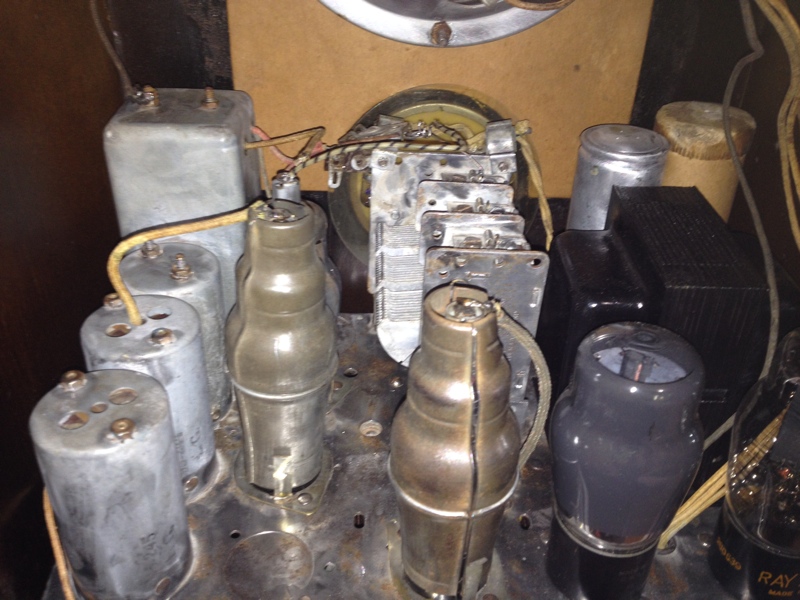

TUBE COMPLEMENT | 6A7 | 6D6 | 75 | 42 | 80 |

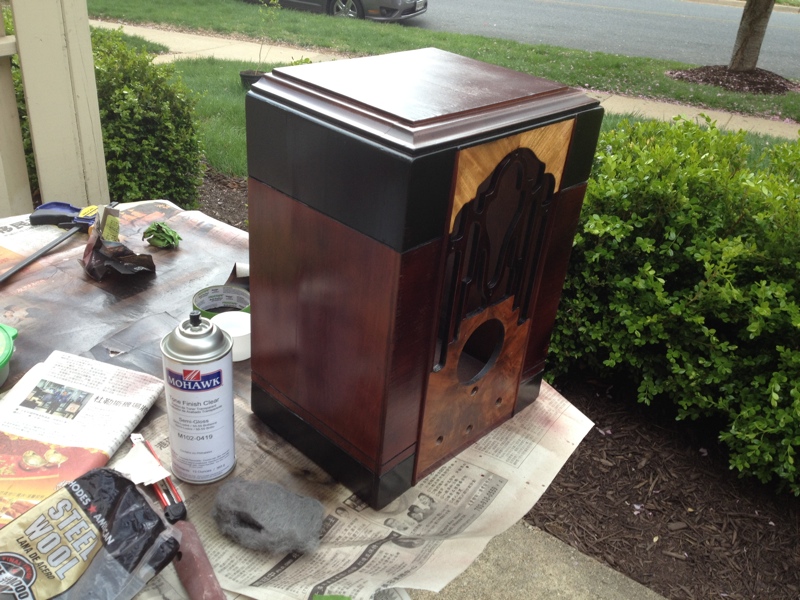

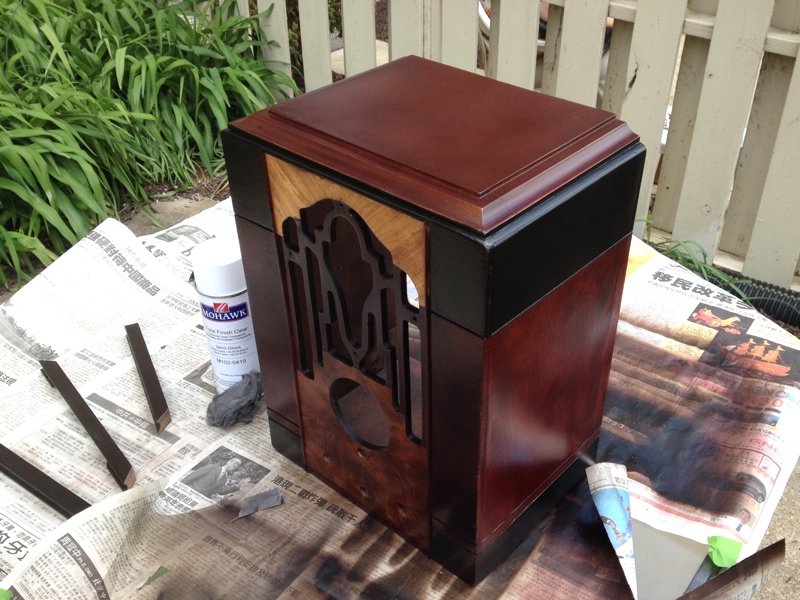

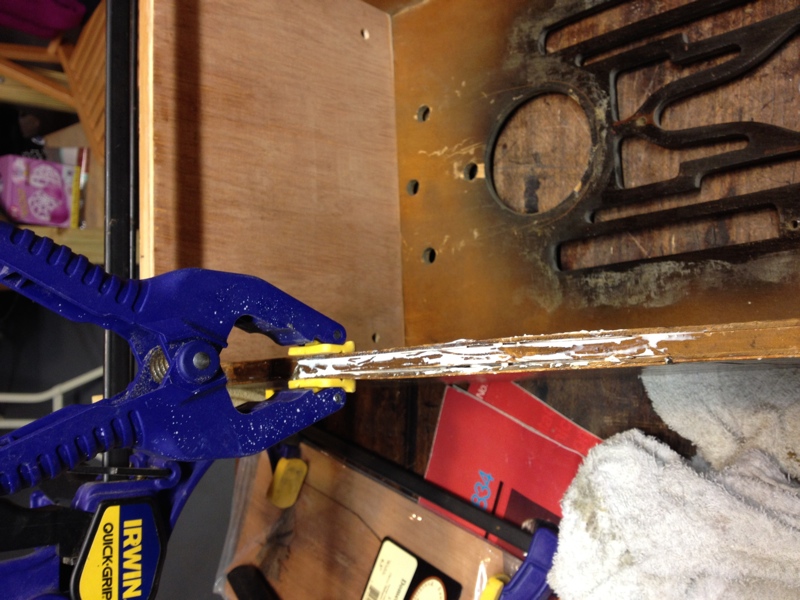

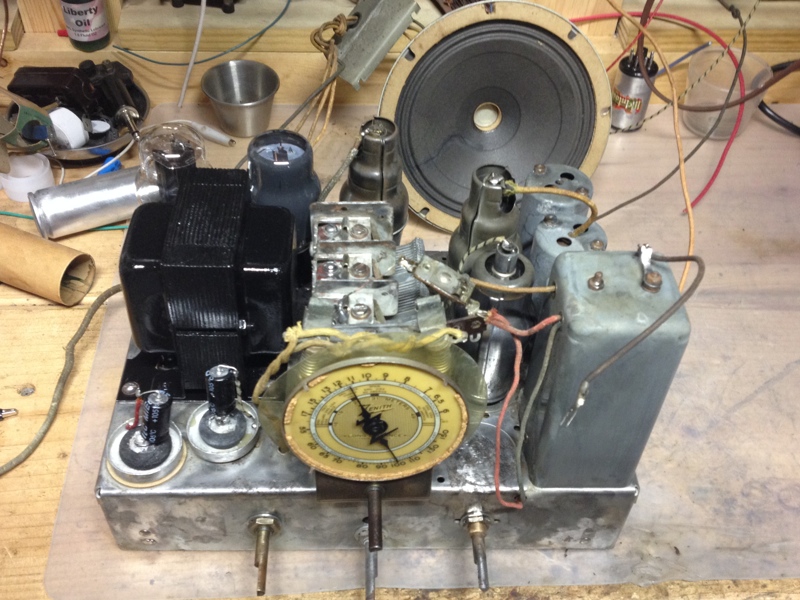

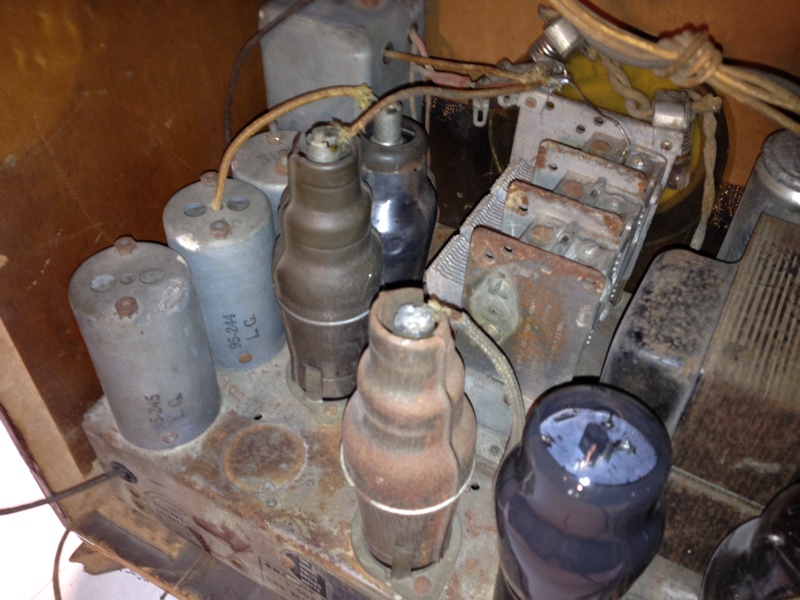

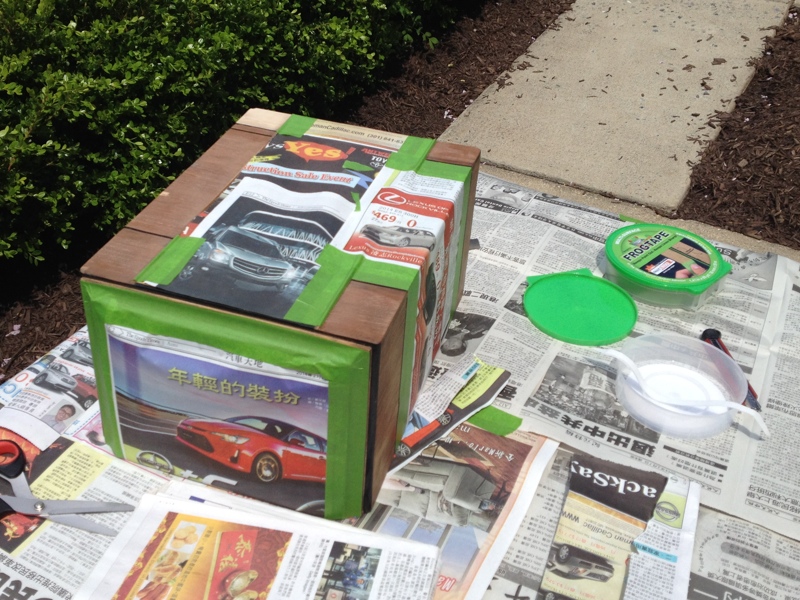

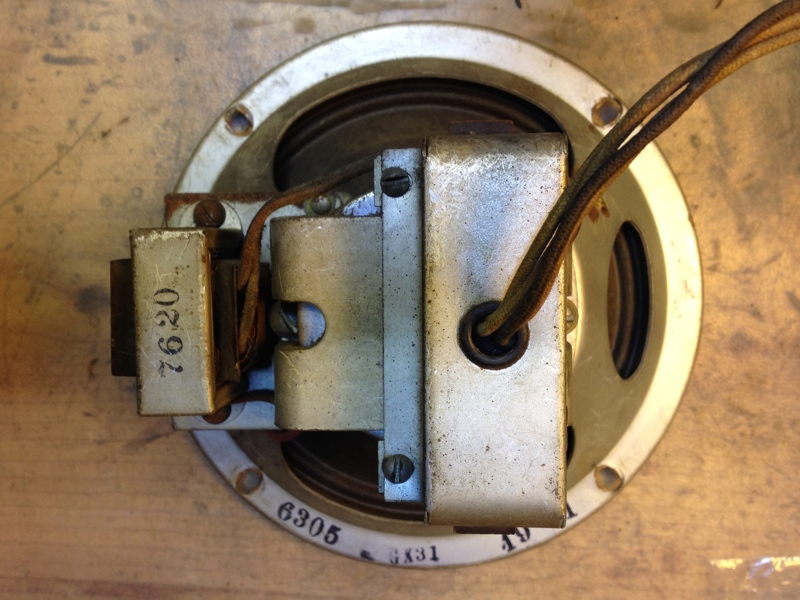

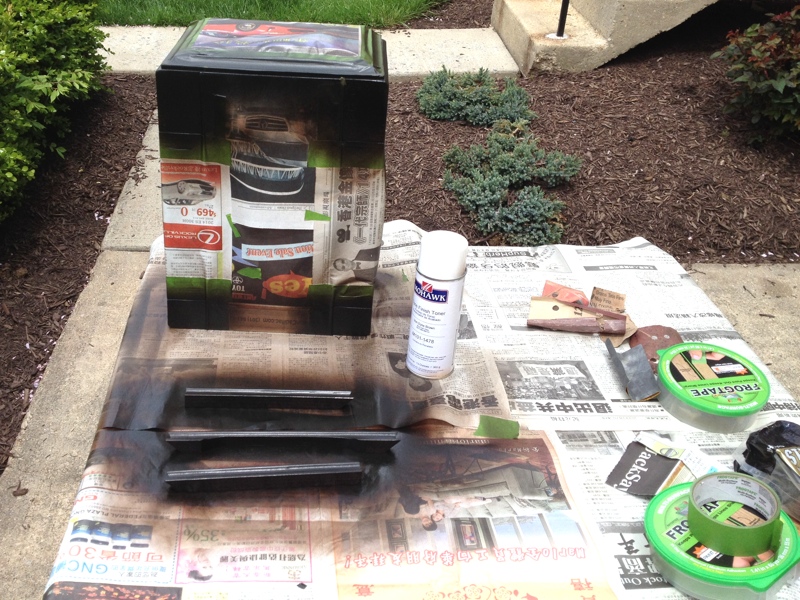

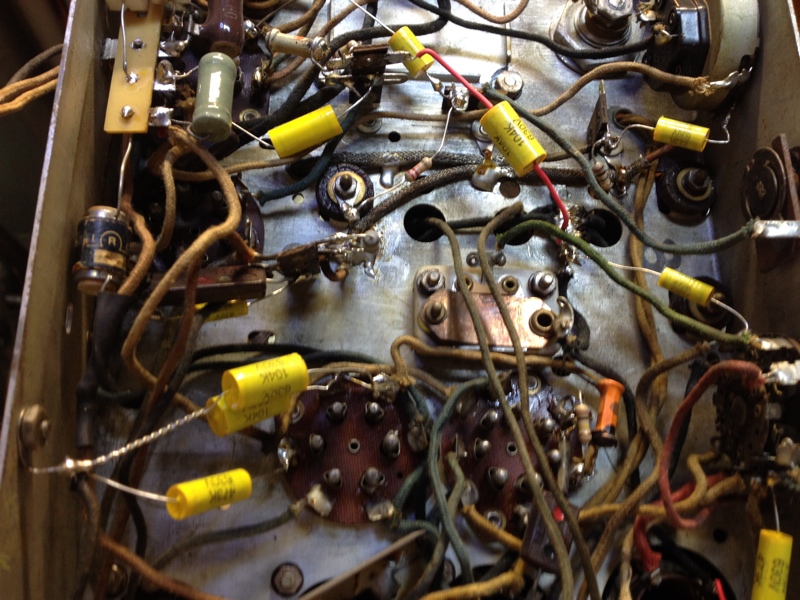

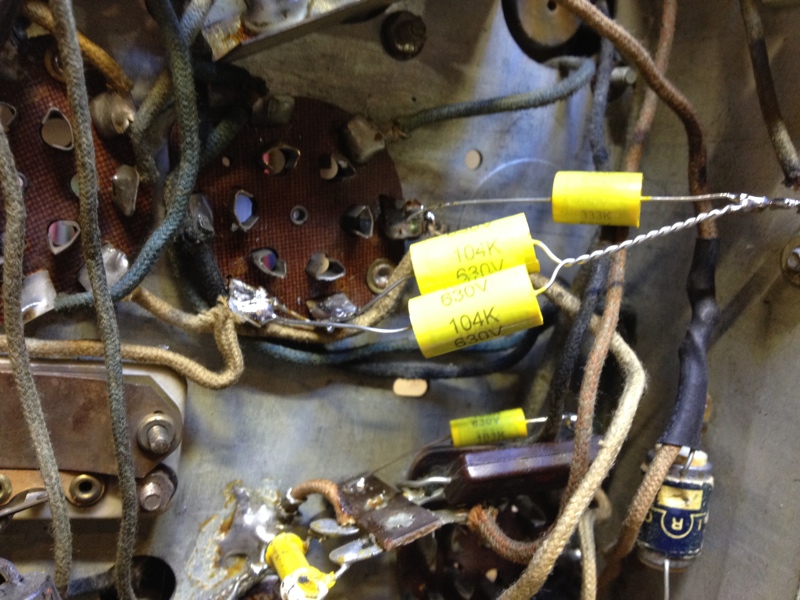

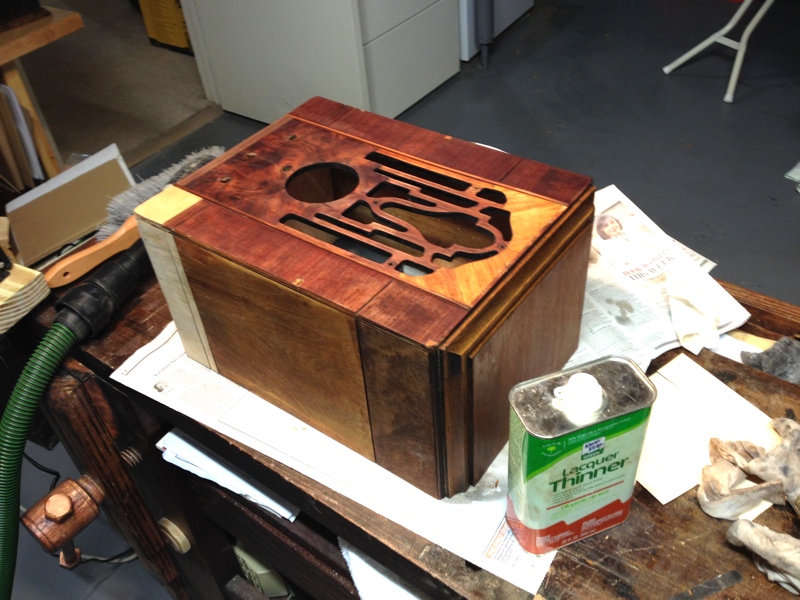

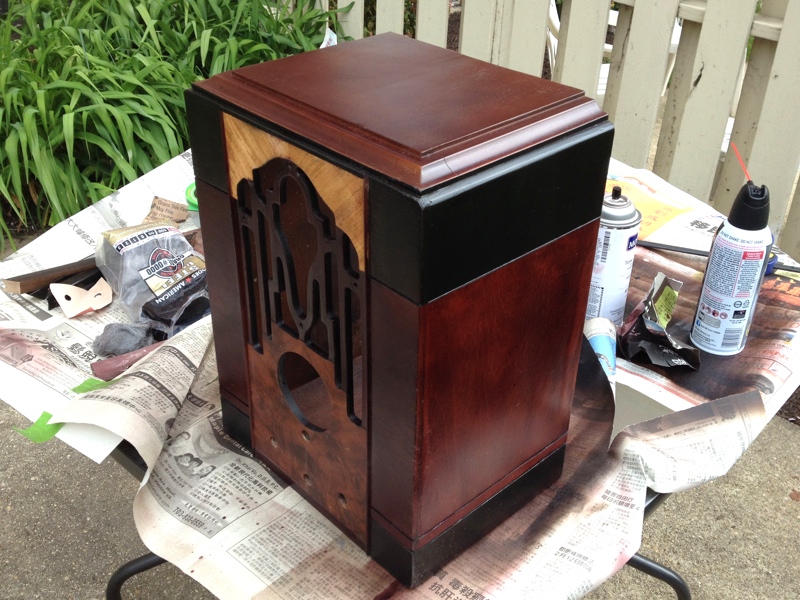

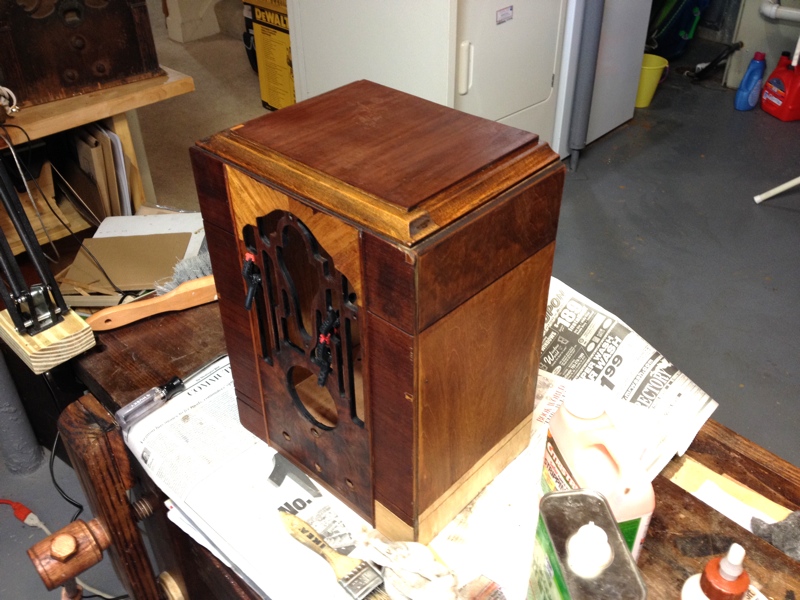

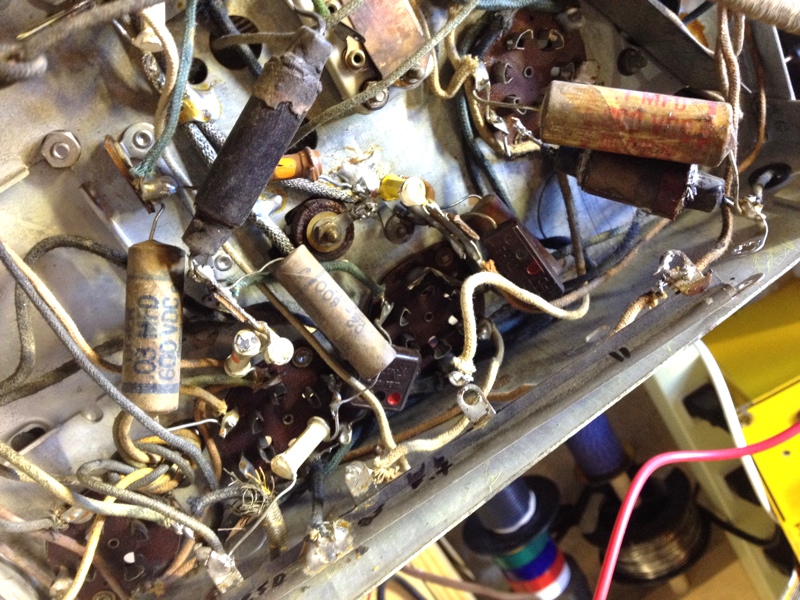

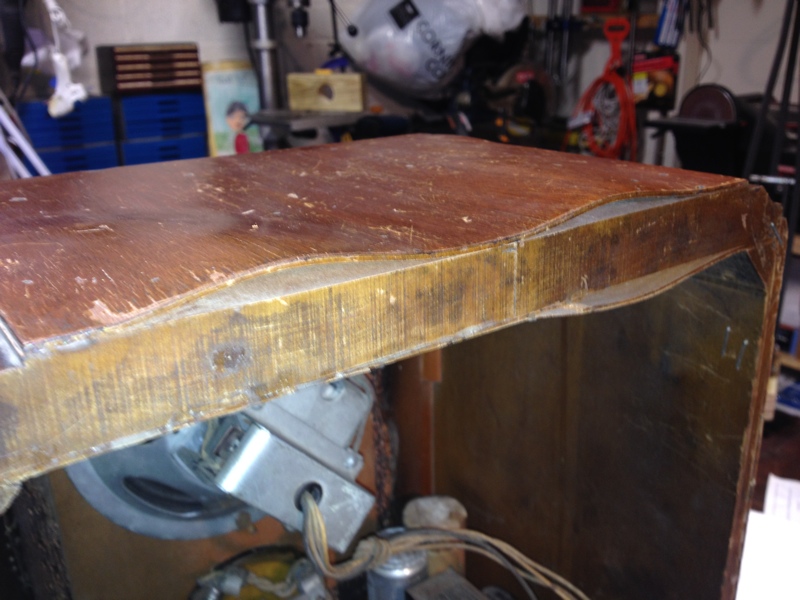

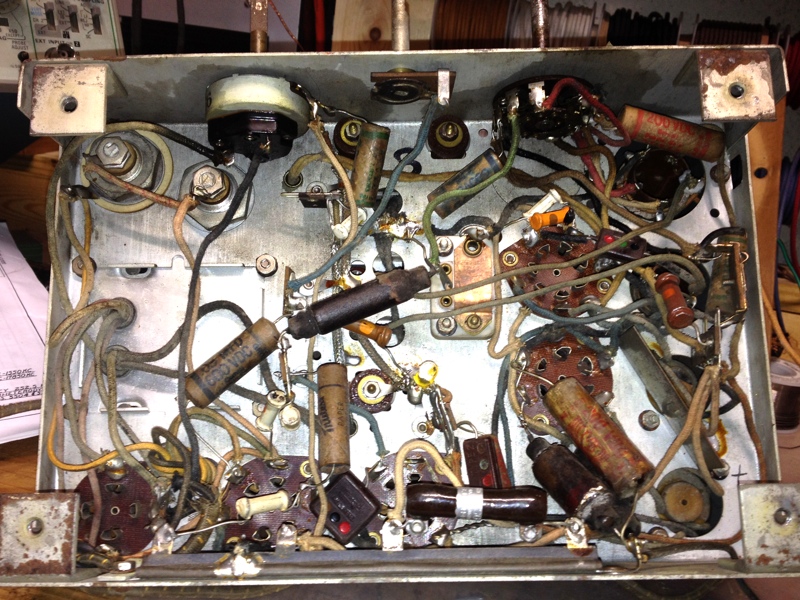

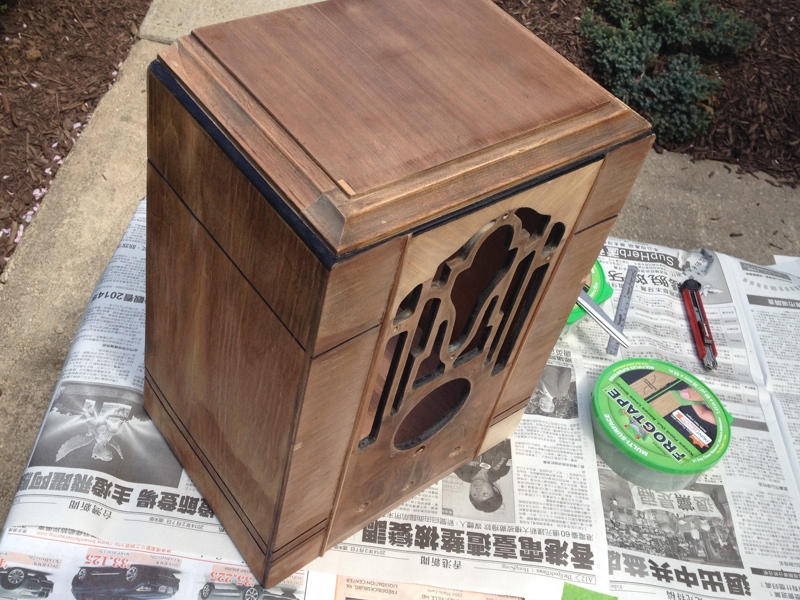

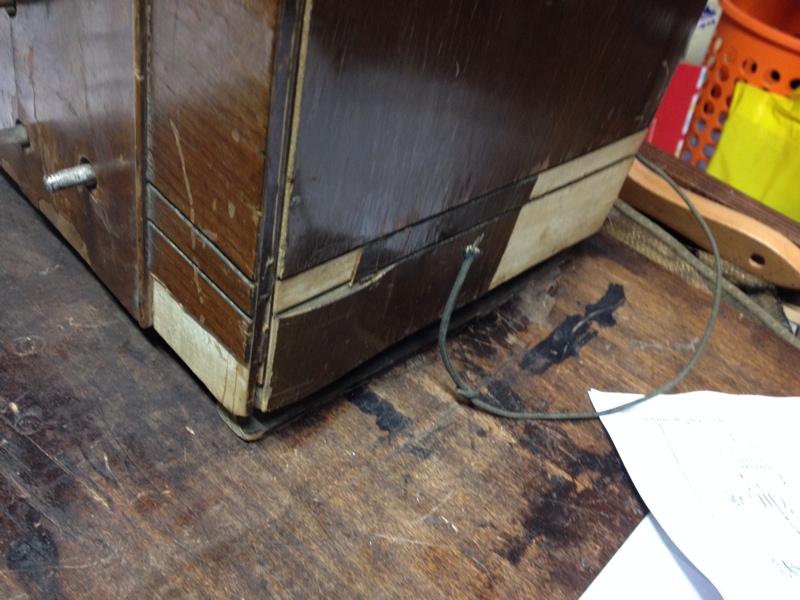

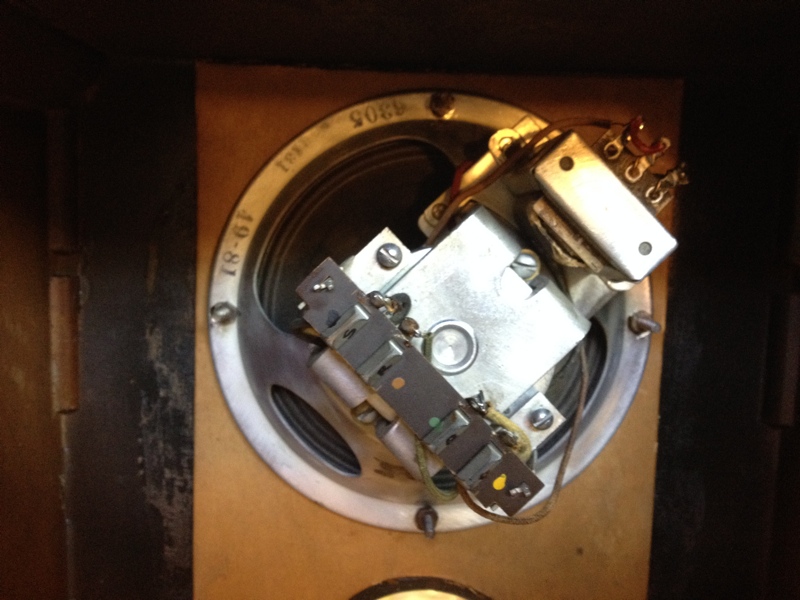

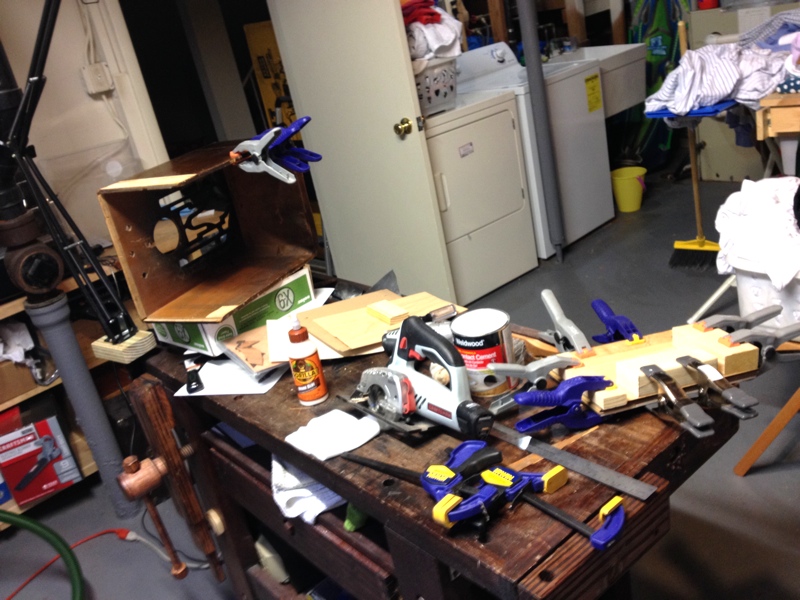

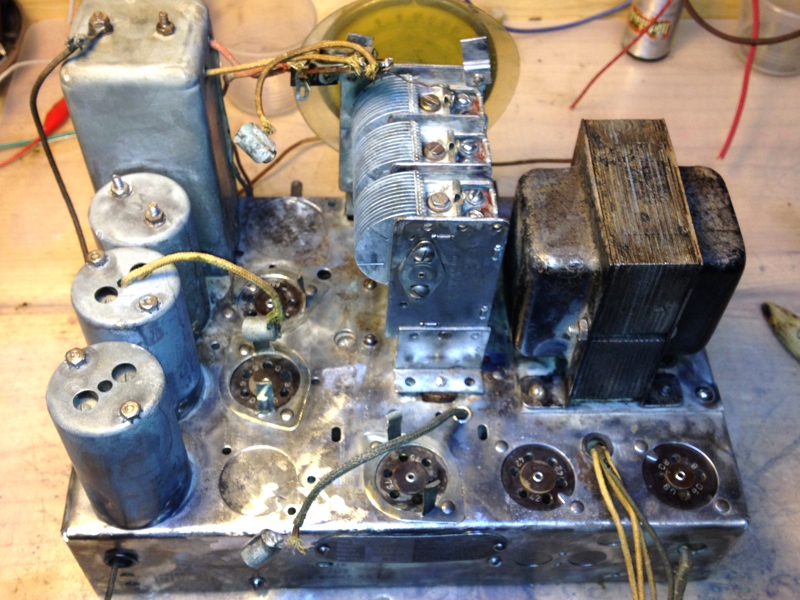

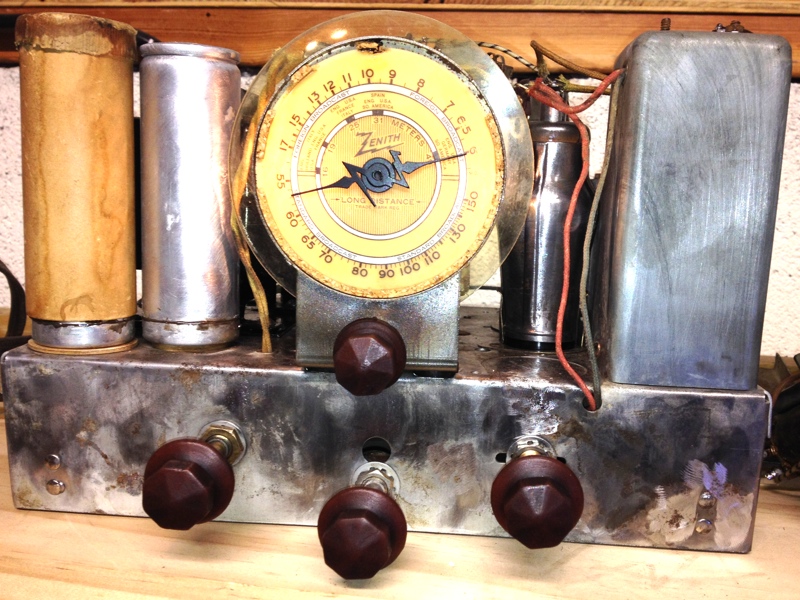

PICTURES(Click to enlarge image)

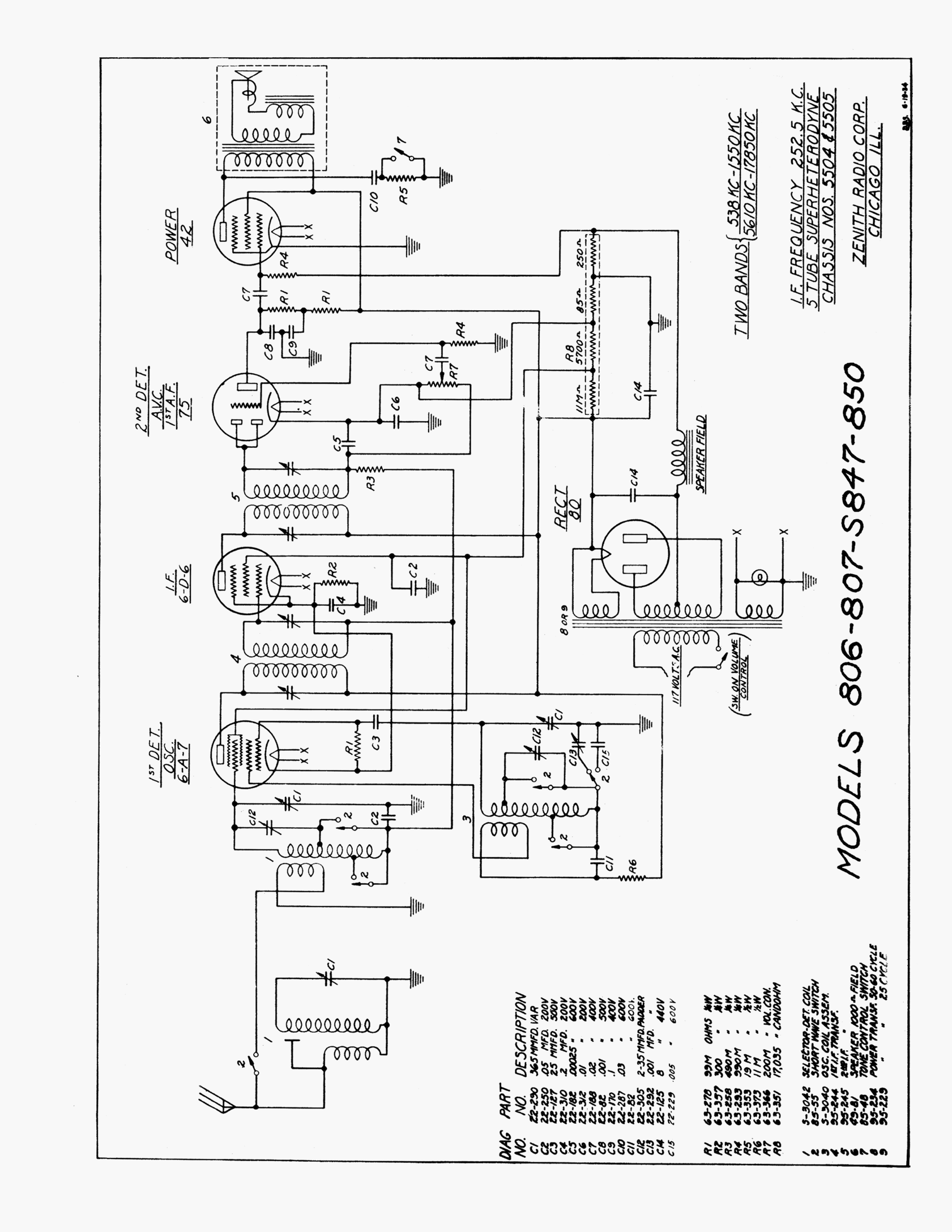

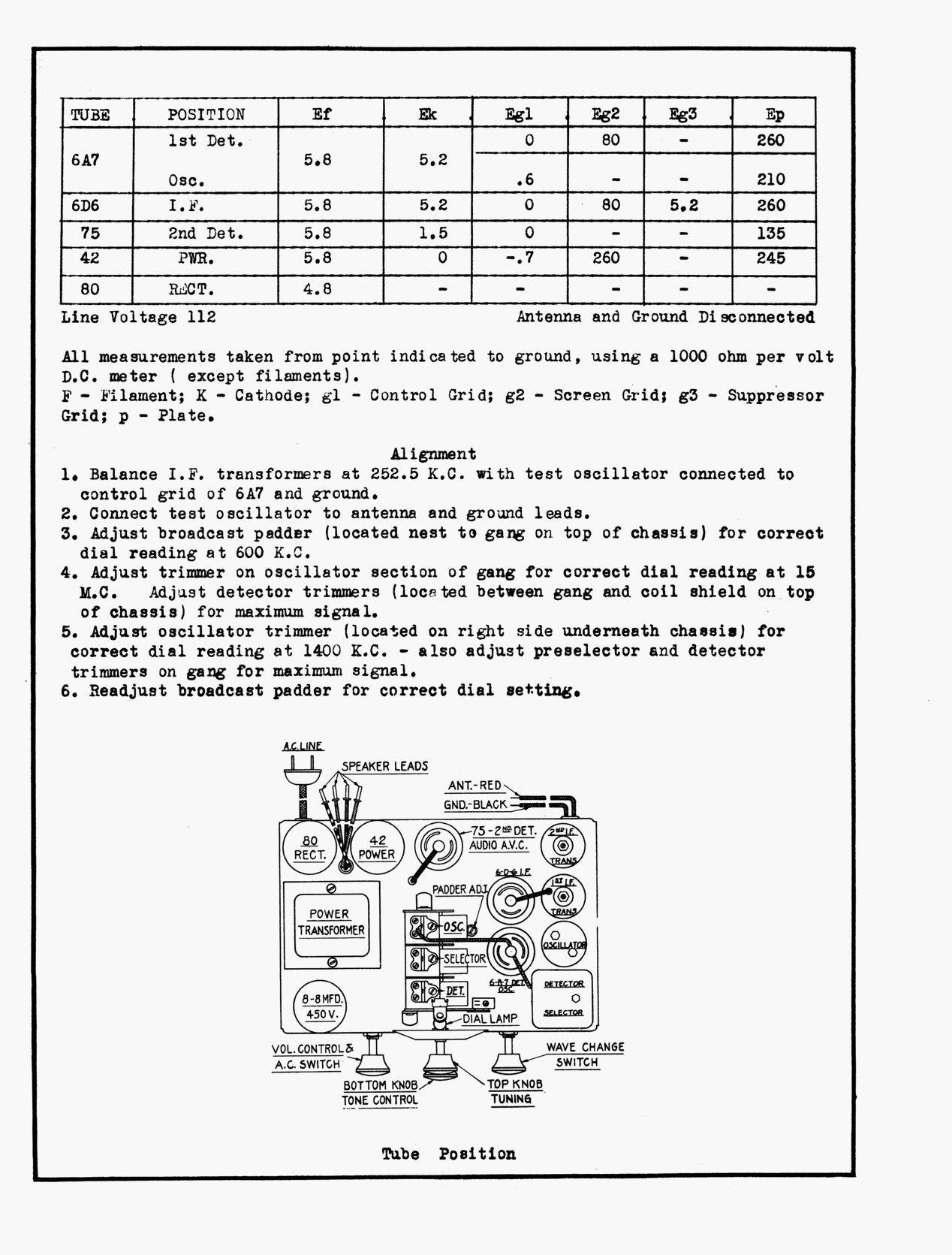

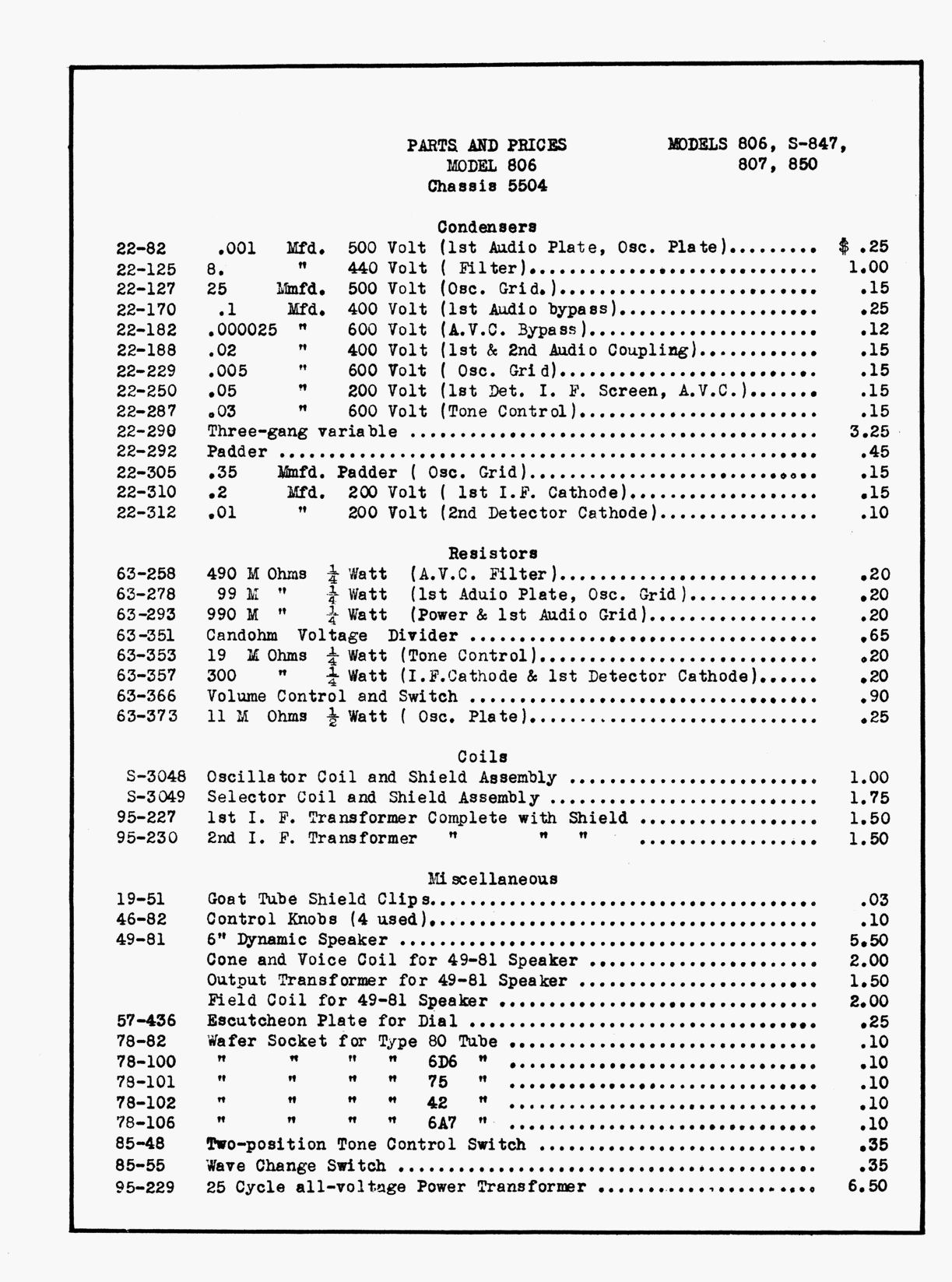

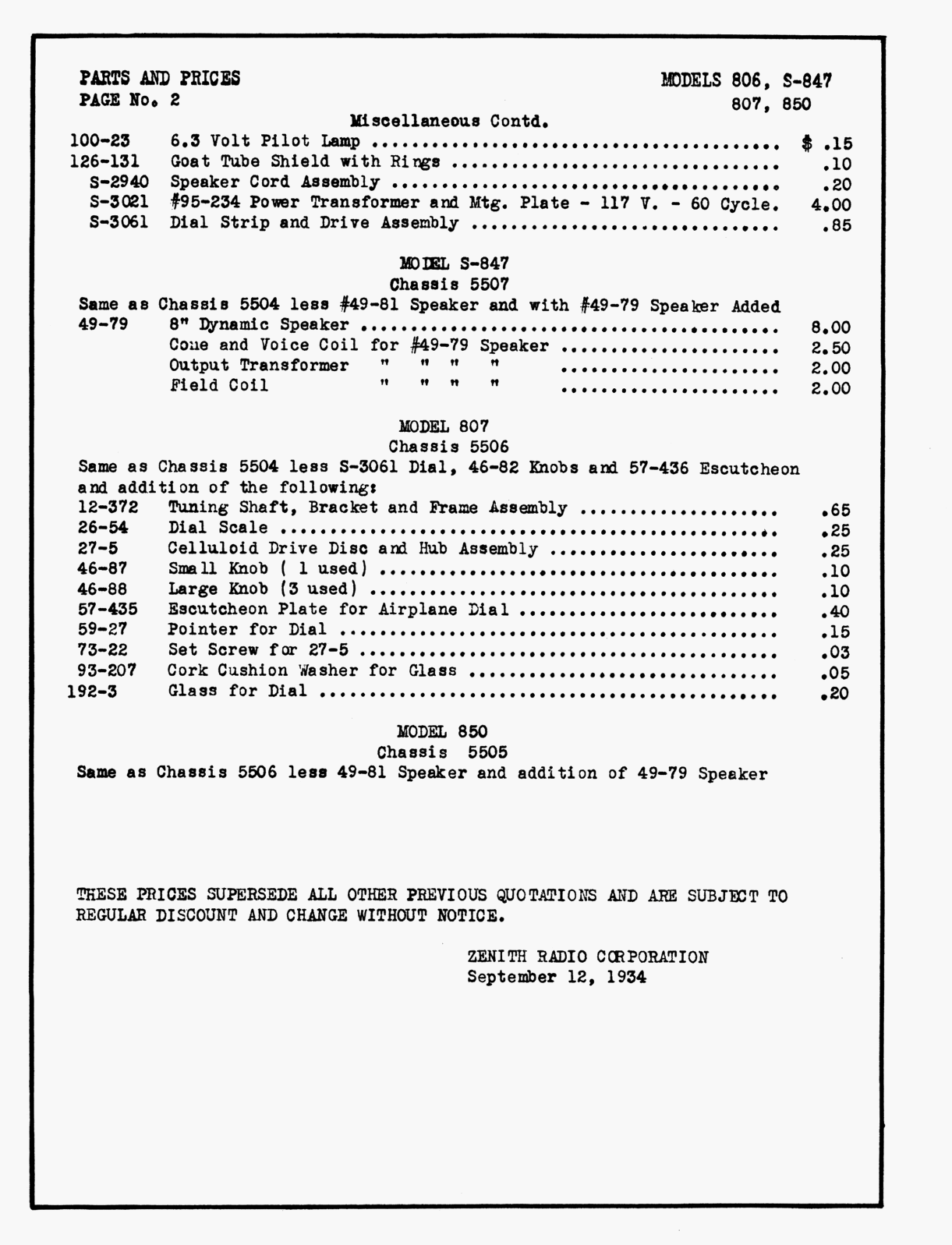

SCHEMATICS | Page1 | Page2 | Page3 | Page4 |
FROMFrom MAARC monthly meeting auction on December 17, 2013.
