RADIOBendix
MODEL110
TECHNOLOGYTube
YEAR1948
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1620 Kc

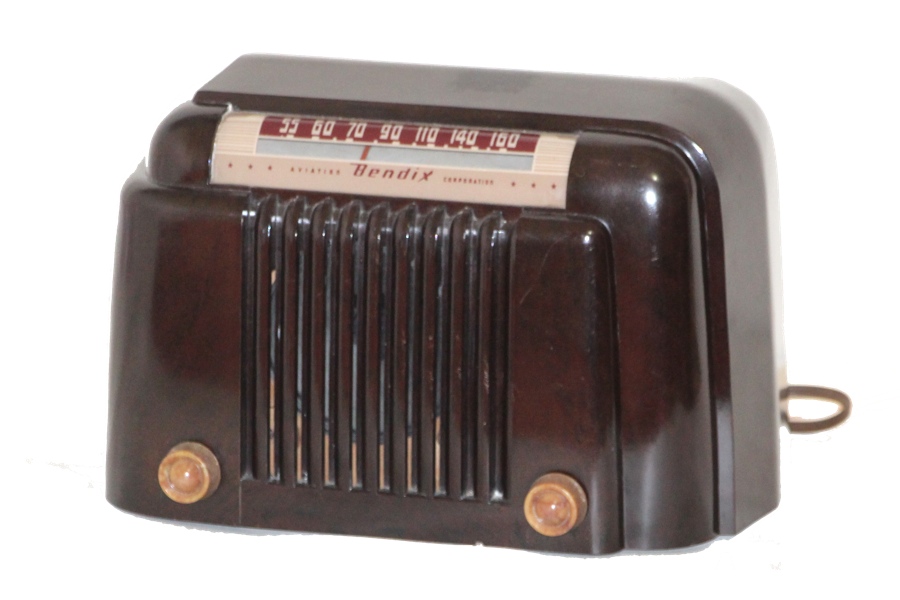

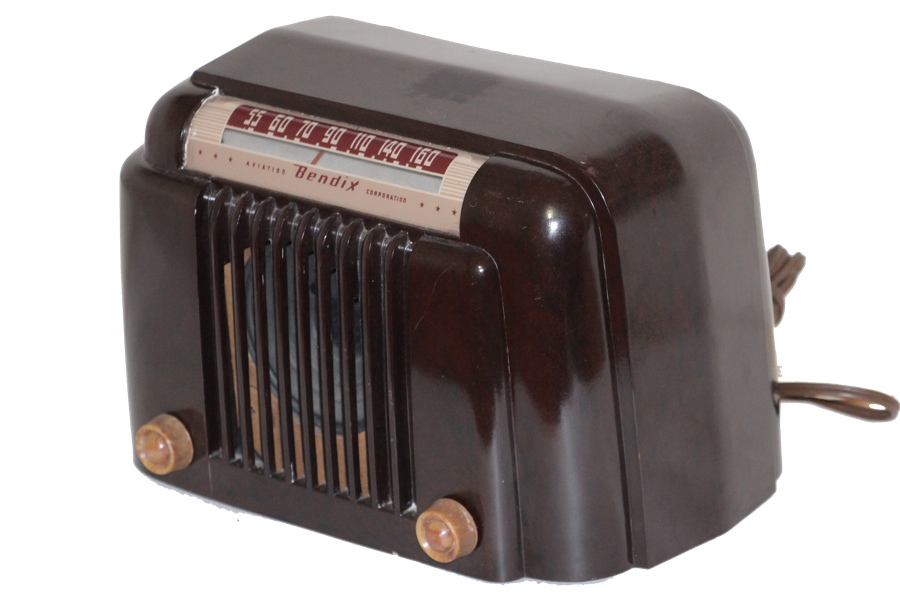

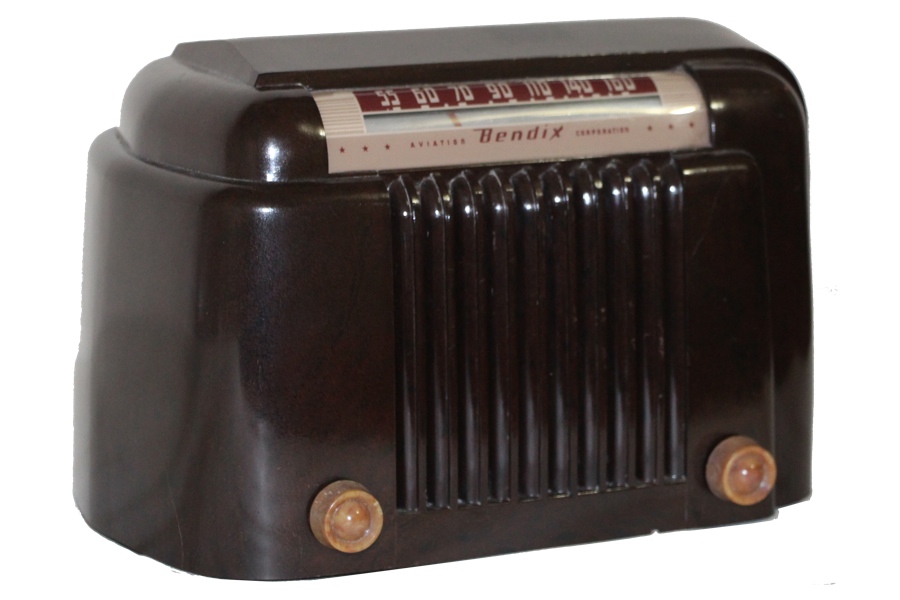

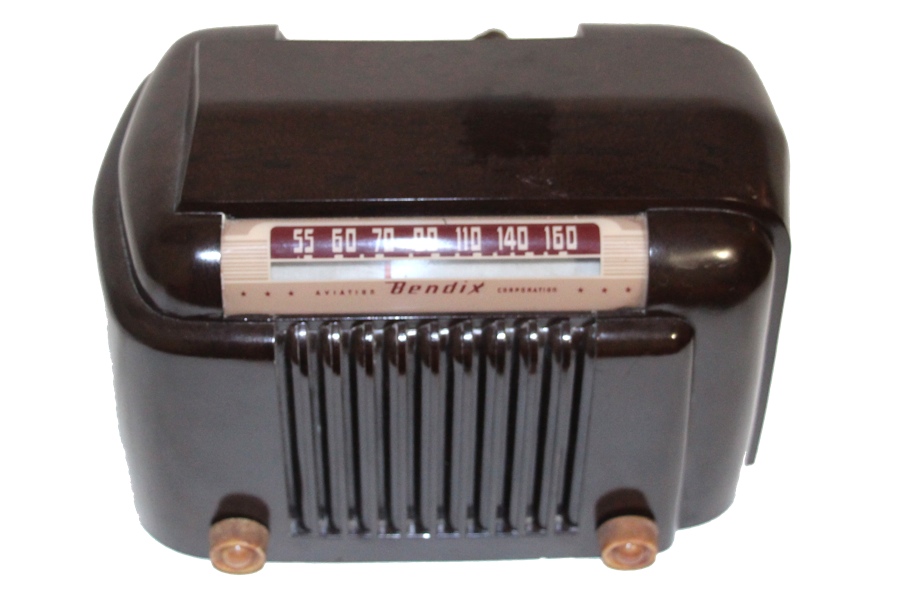

DESCRIPTIONBrown cabinet, upper front slide rule dial, lower vertical louvers, lower left on/off/volume knob and lower right tuning knob.
CABINET STYLEMantle
CABINET MATERIALPlastic
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION30 W
AC CYCLES50-60 Hz
CHASSIS

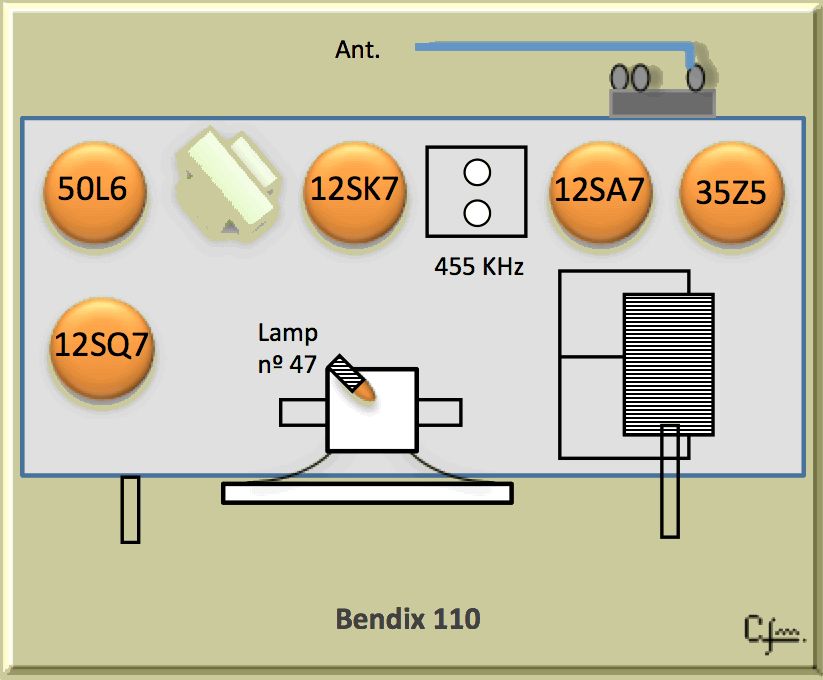

TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

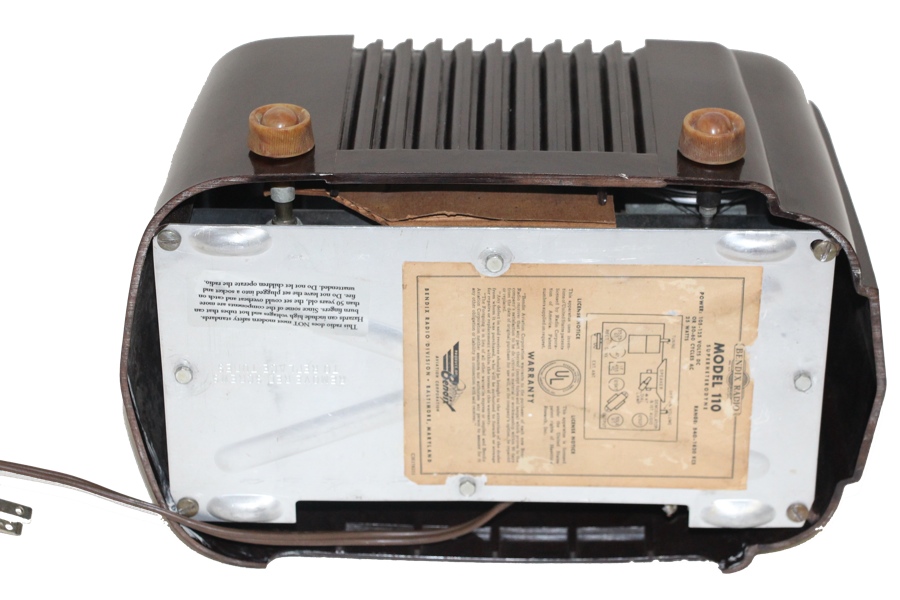

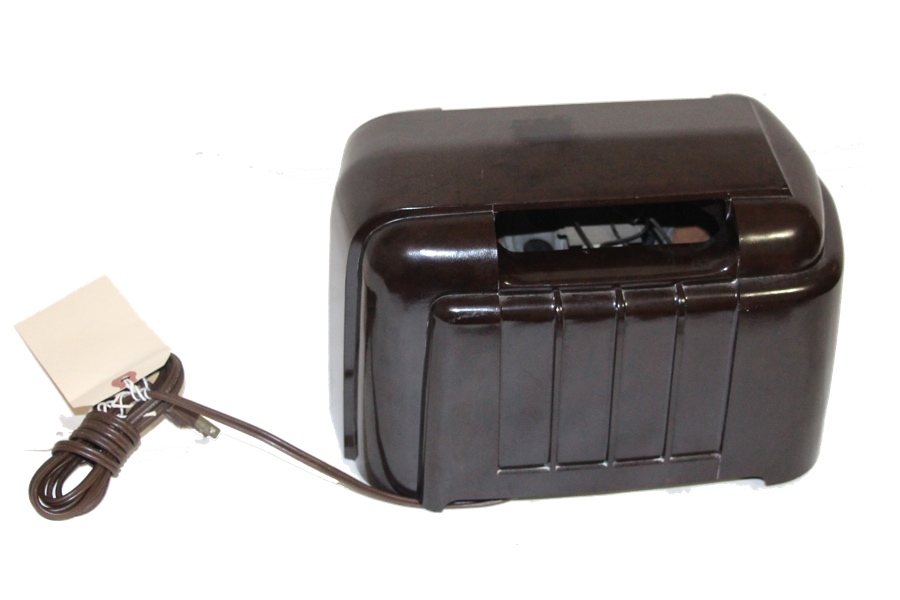

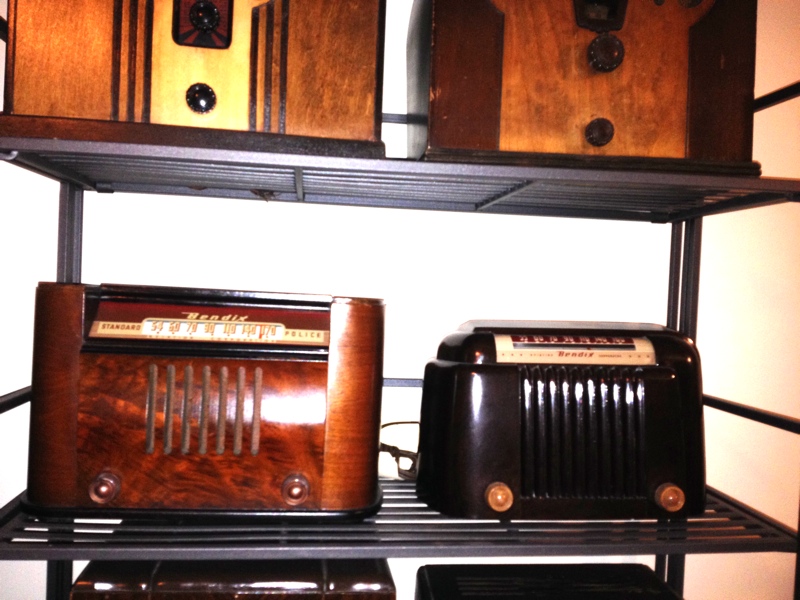

PICTURES(Click to enlarge image)

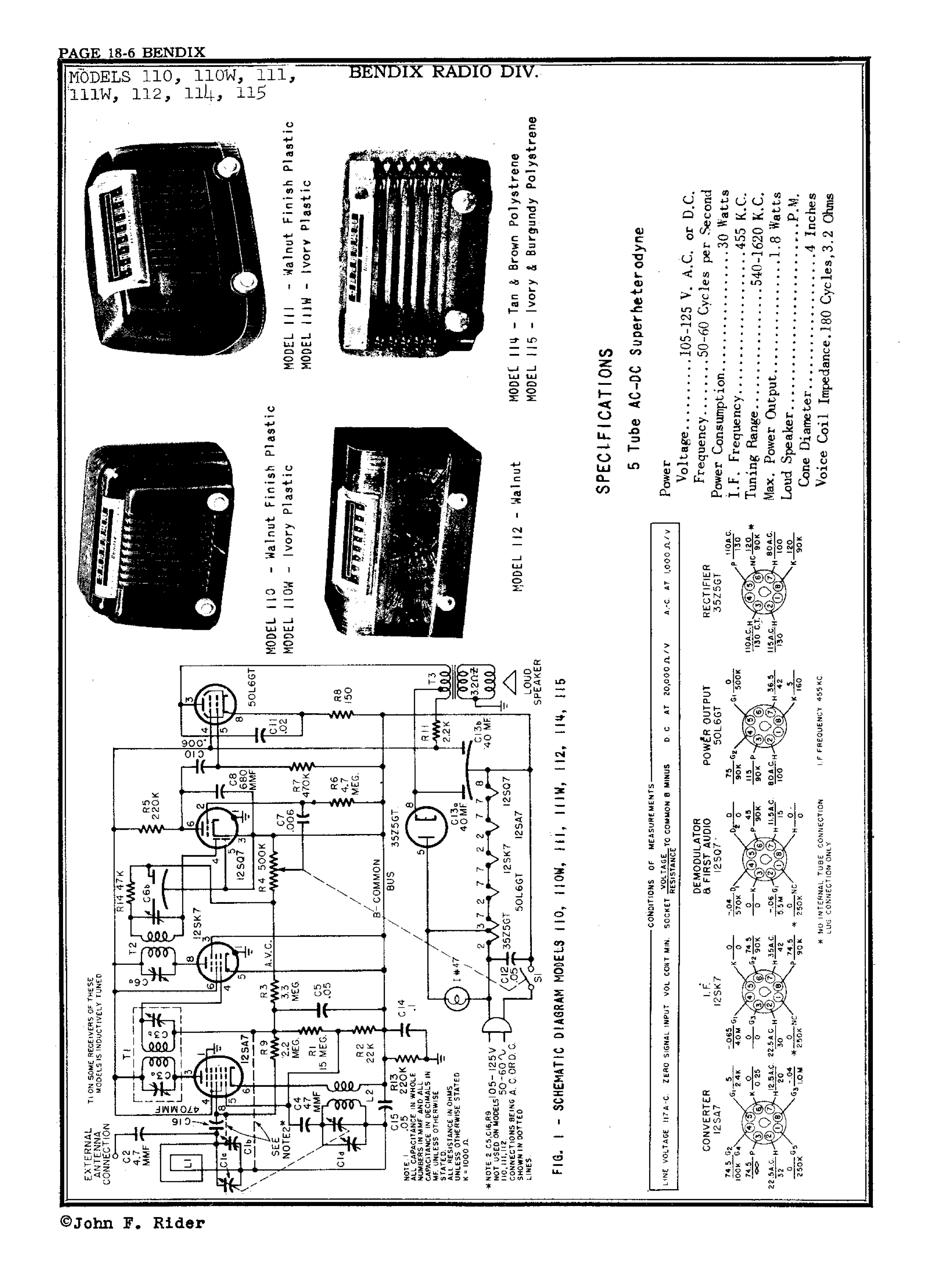

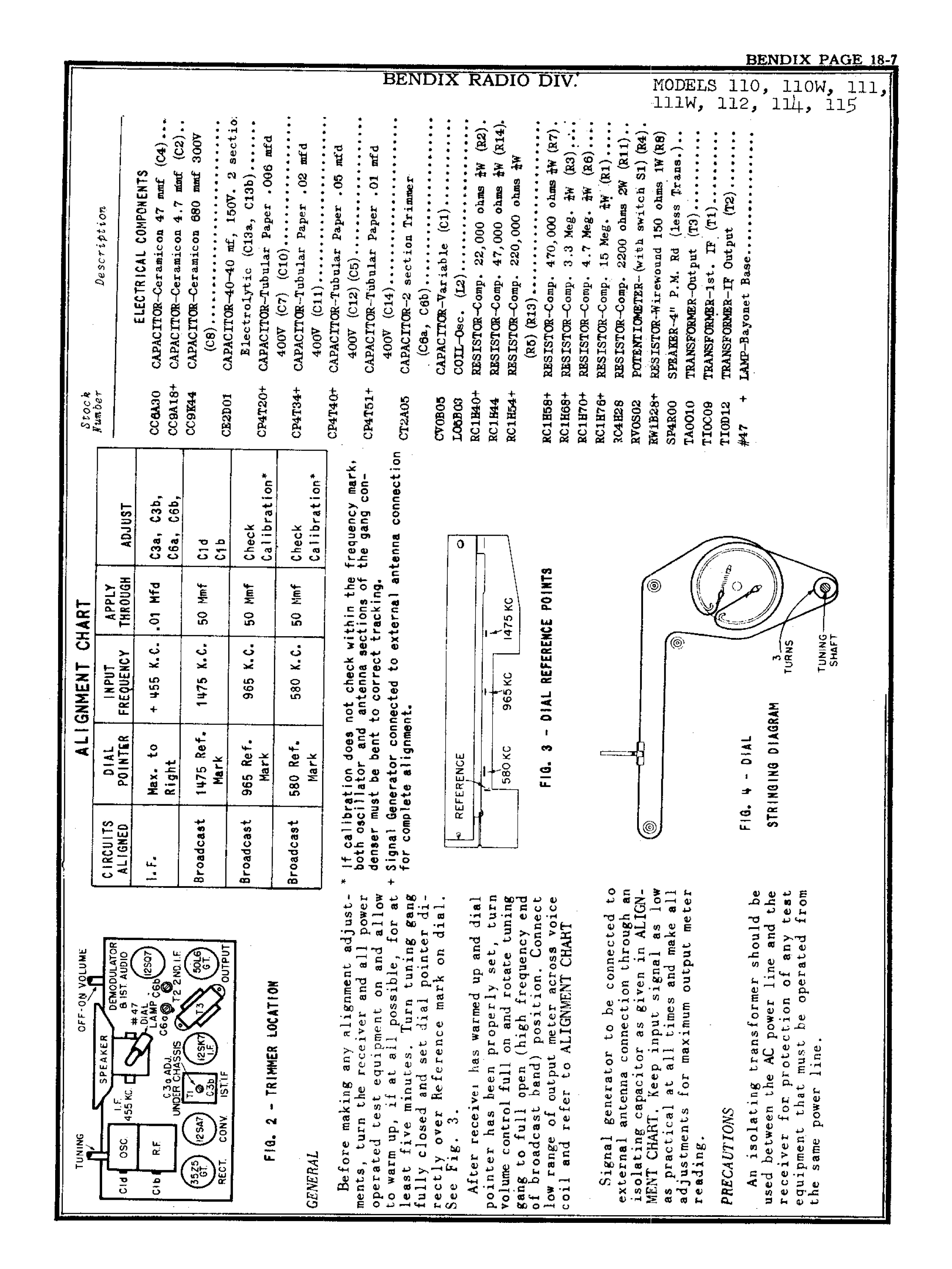

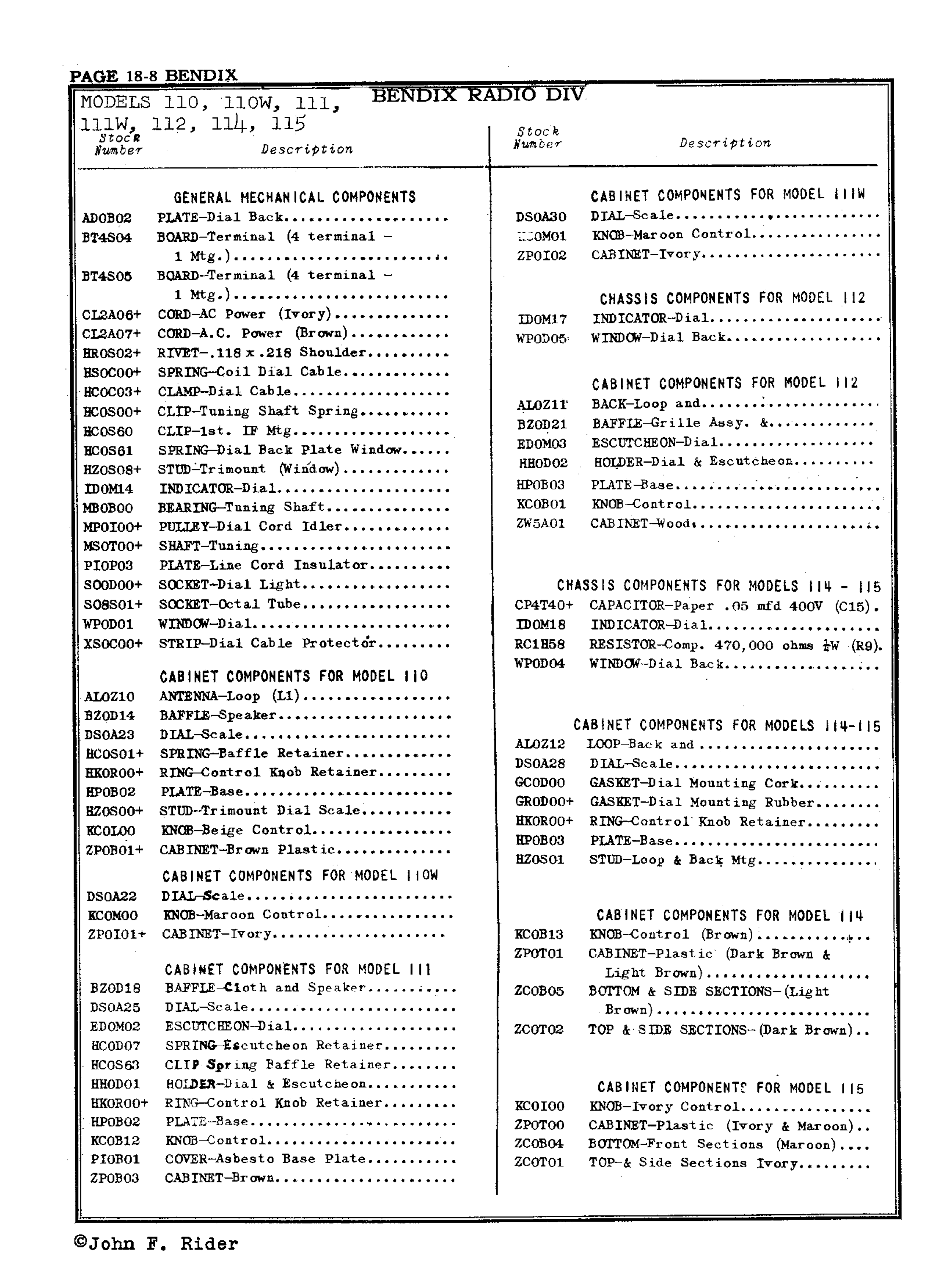

SCHEMATICS | Page1 | Page2 | Page3 |
FROMFrom 2014 MAARC RadioActivity (James)
