RADIOPhilco
MODEL80 Junior
TECHNOLOGYTube
YEAR1933
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 540 - 1740 KHz

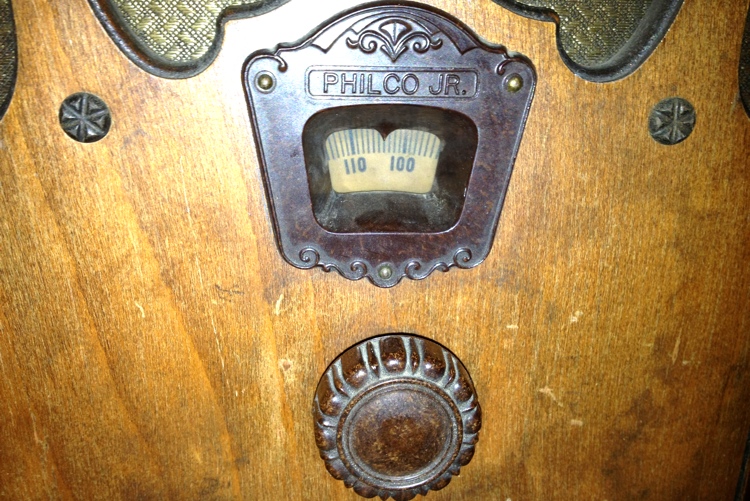

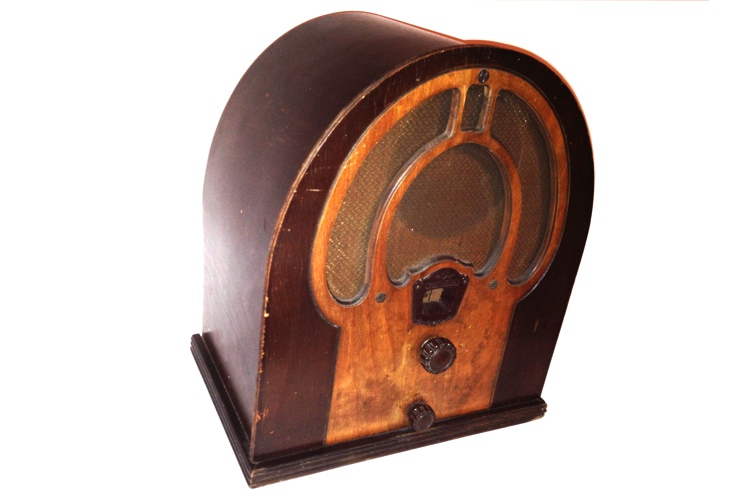

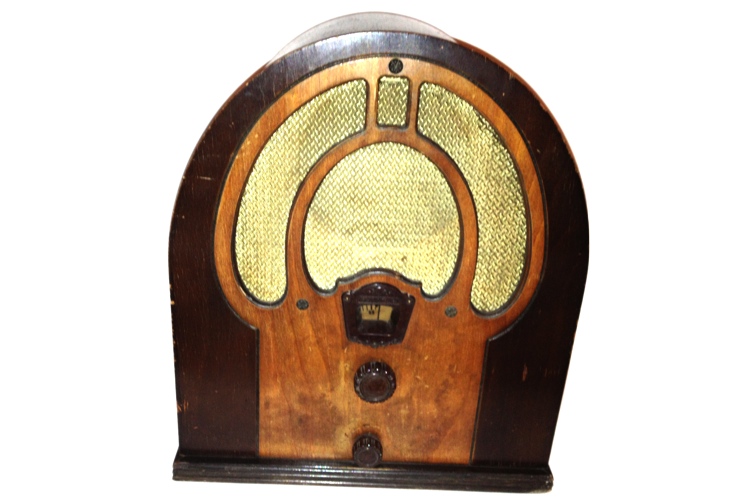

DESCRIPTIONCenter front window dial, upper cloth grill with cut-outs, an upper larger central dial knob and a lower central on/off/volume knob, two tone wood.
CABINET STYLECathedral
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 46
TONENo
CIRCUITSuperheterodyne
IF450 KC
POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION46 W
AC CYCLES50-60 Hz

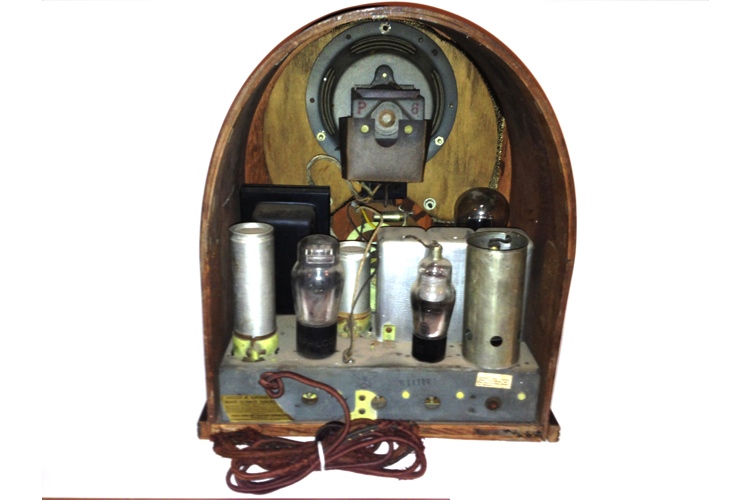

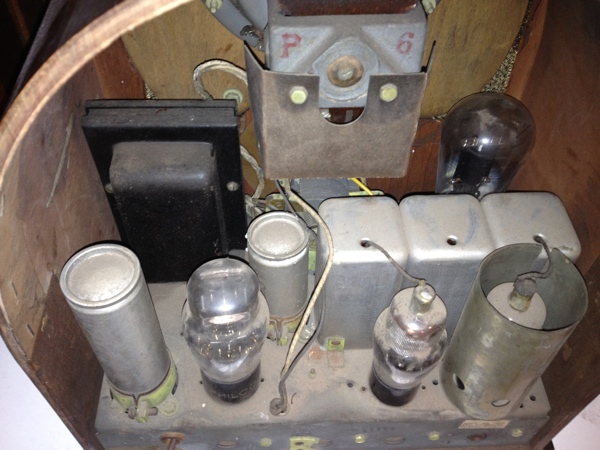

CHASSIS

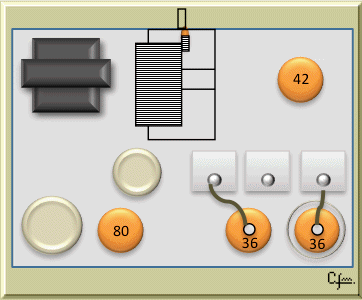

TUBES LOCATION
TUBE COMPLEMENT | 36 | 36 | 42 | 80 |
PICTURES(Click to enlarge image)

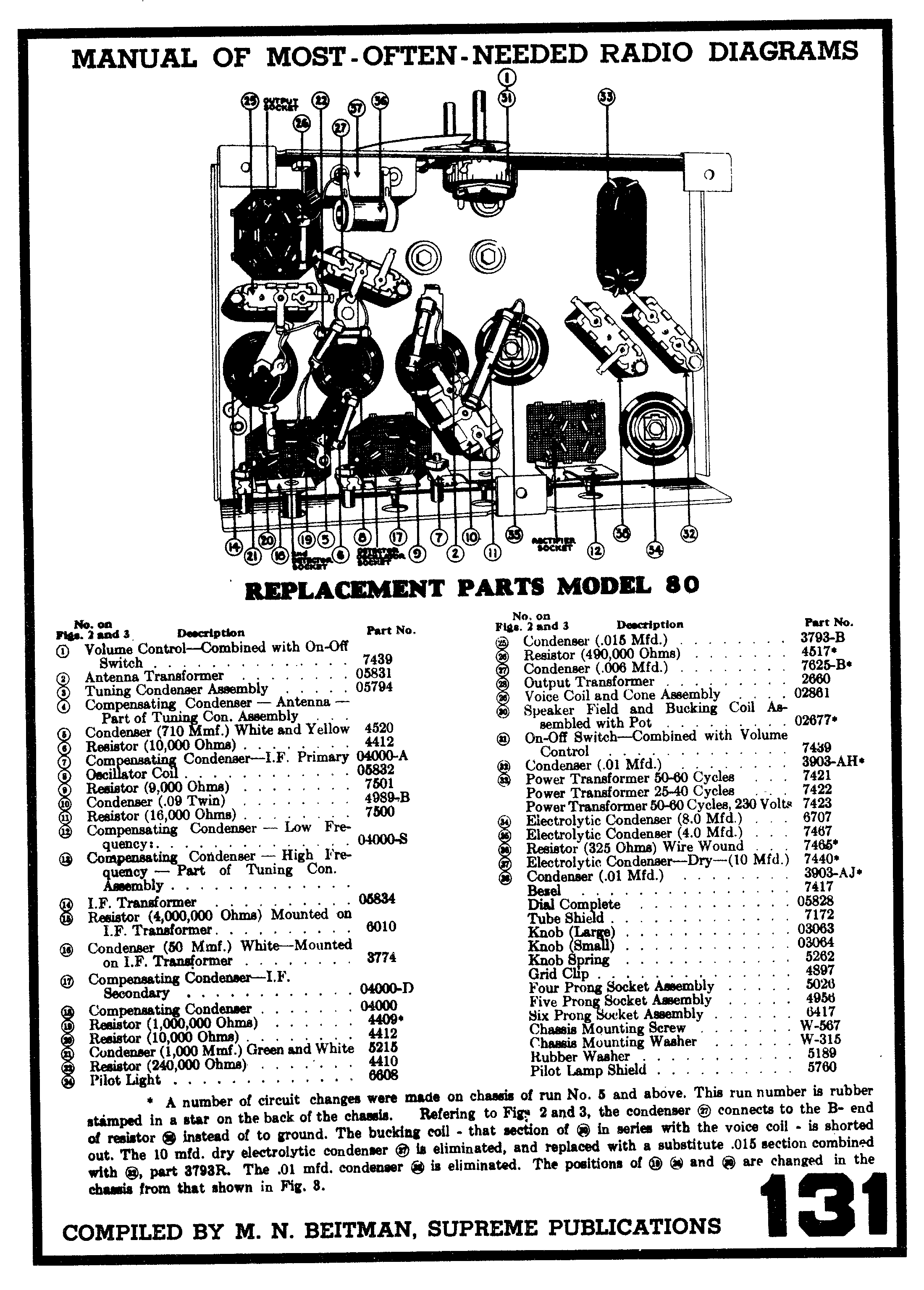

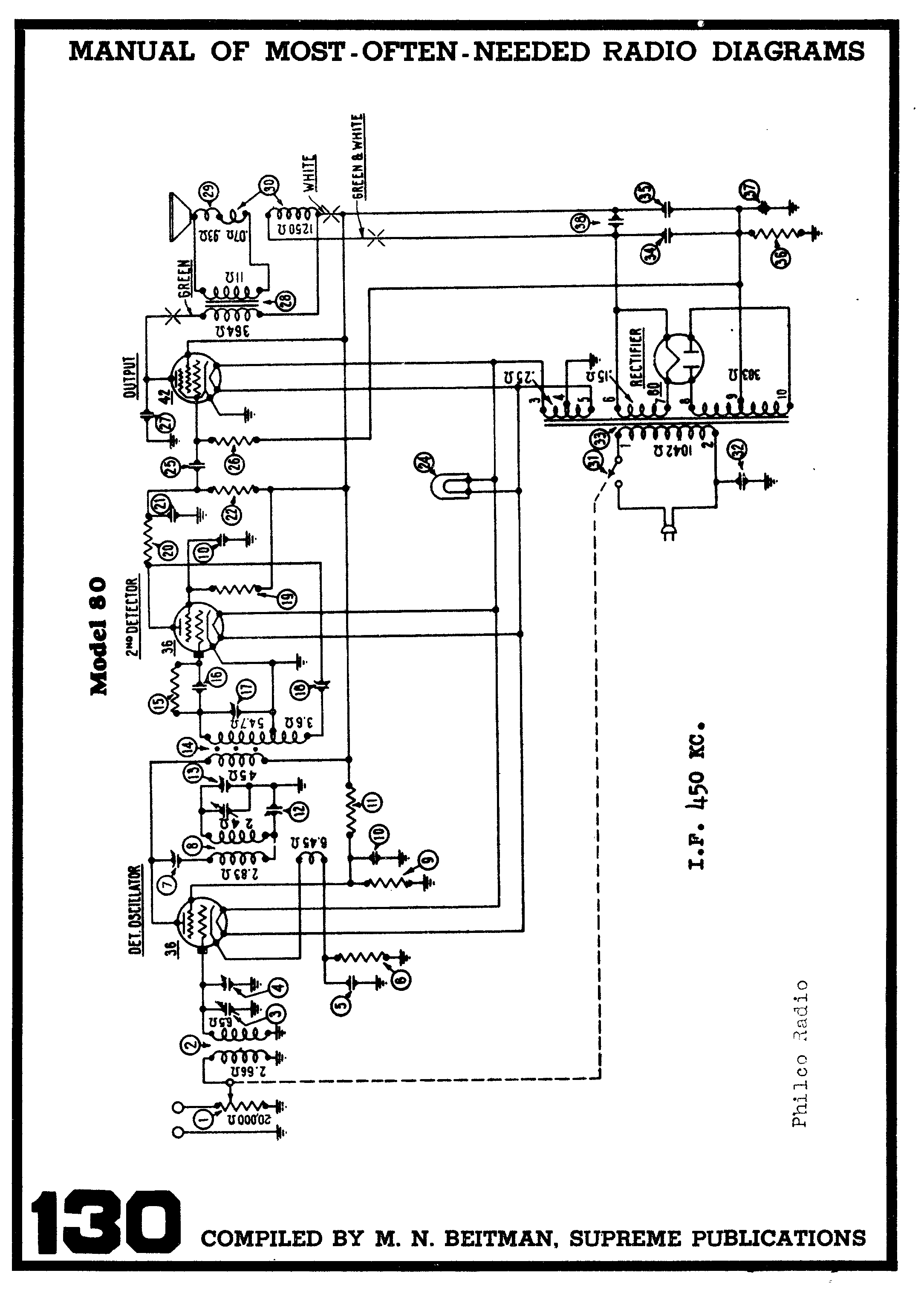

SCHEMATICS | Page1 | Page2 |
FROMeBay Oct, 2012.
