RADIOEmerson
MODELDB 301 White
TECHNOLOGYTube
YEAR1939
MADE INUNITED STATES
WAVE BANDSBC
COVERAGEBC 550 - 1550 KHz

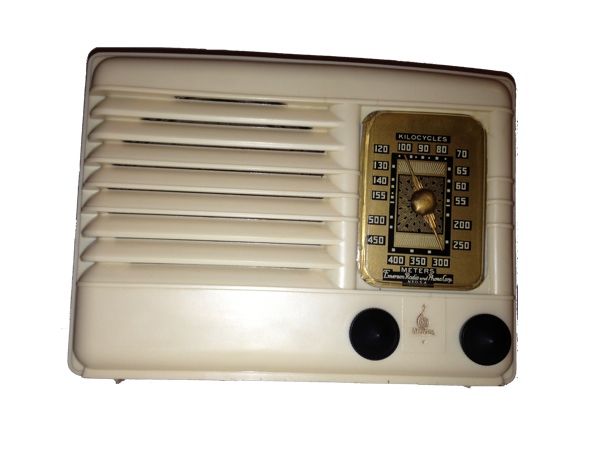

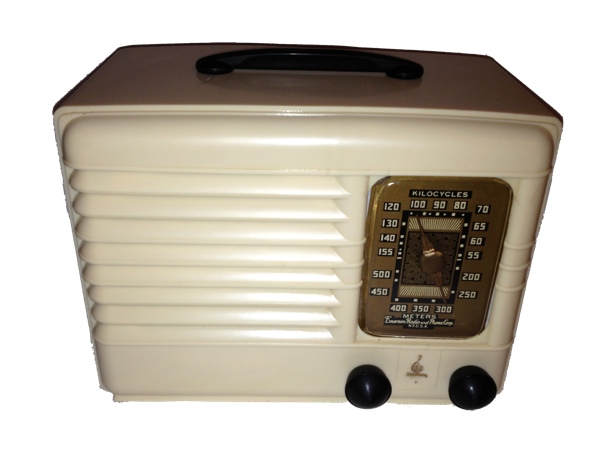

DESCRIPTIONRight front rectangular dial, left speaker grill with horizontal louvers, two right lower knobs with Emeson logo, and top handle.
CABINET STYLEMantle
CABINET MATERIALPlascon
DIAL LAMP - N° x TYPE1 x 47
TONENo
CIRCUITSuperheterodyne
IF455 KC
POWER SUPPLYAC/DC
VOLTS105 - 125 Volts
CONSUMPTION?
AC CYCLES50-60 Hz

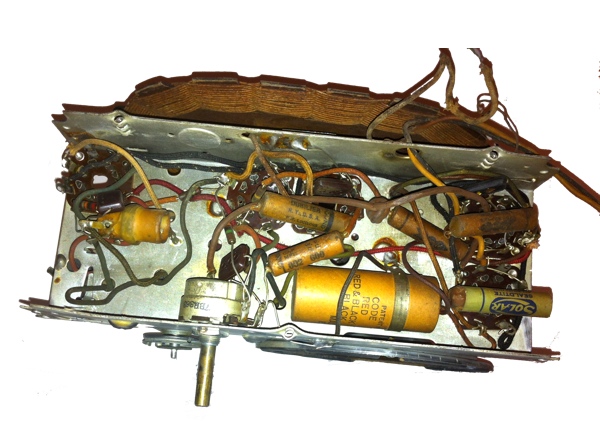

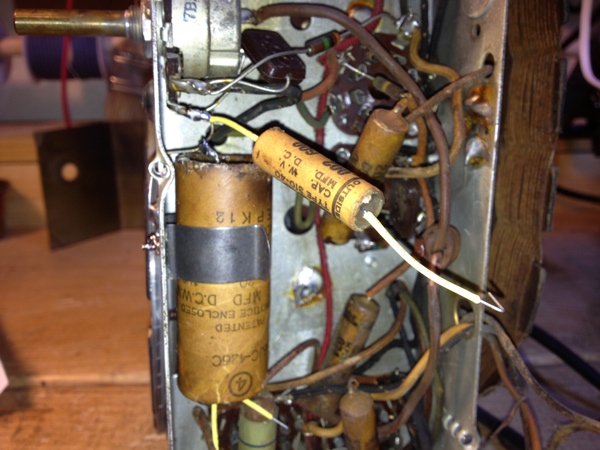

CHASSISModel DB
TUBES LOCATION
TUBE COMPLEMENT | 12SA7 | 12SK7 | 12SQ7 | 50L6 | 35Z5 |

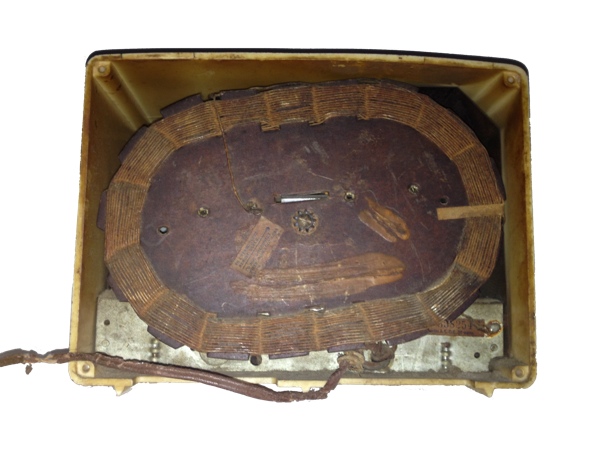

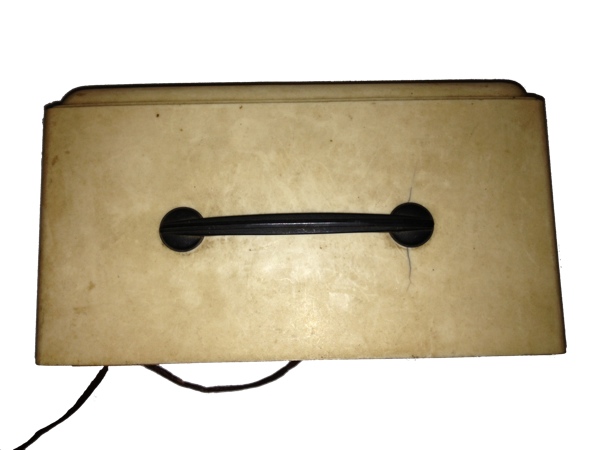

PICTURES(Click to enlarge image)

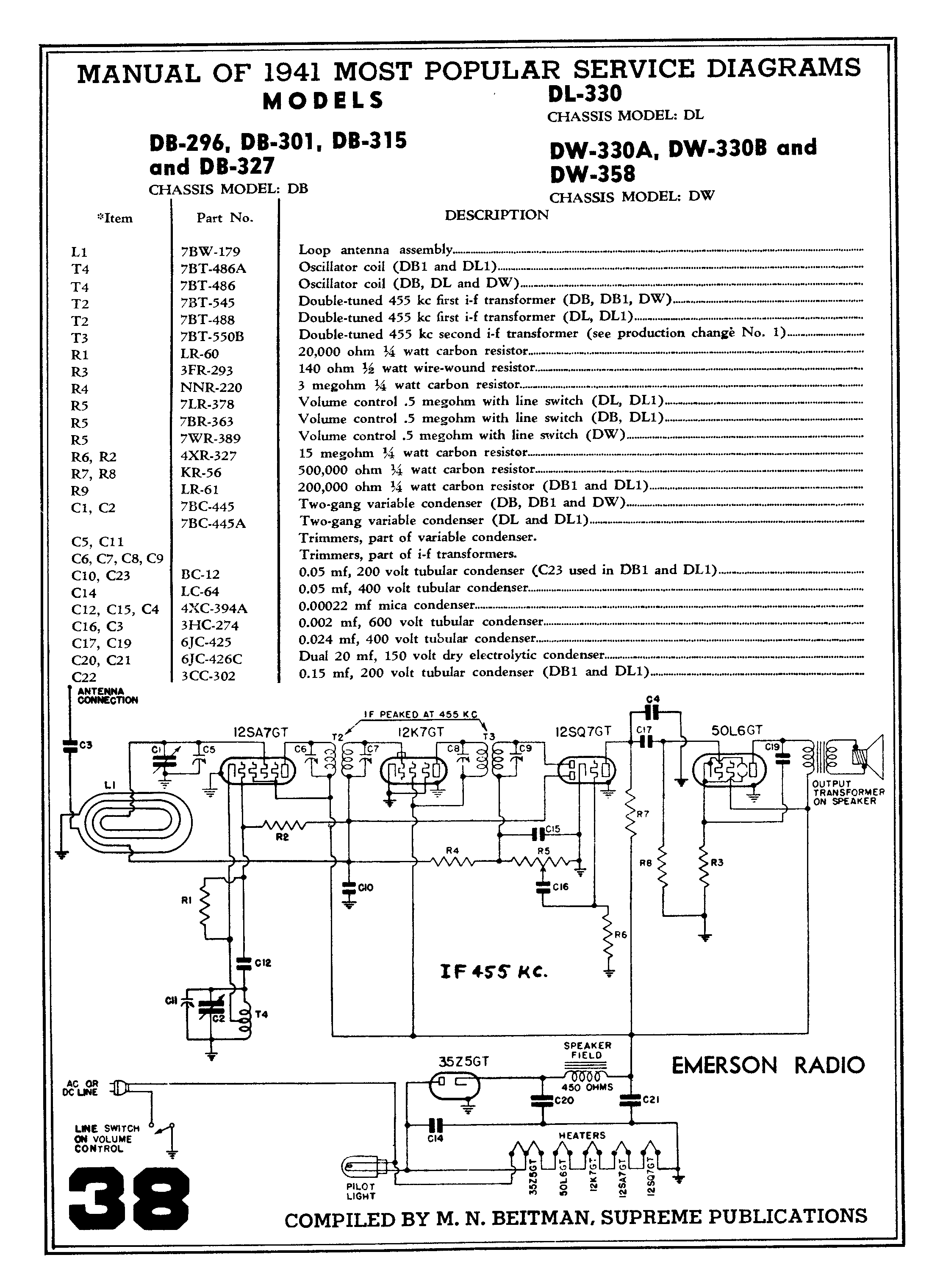

SCHEMATICS | Page1 |
FROMFrom eBay, Jan 2013
