RADIORCA Victor
MODELRadiola IIIA
TECHNOLOGYTube
YEAR1924
MADE INUNITED STATES
WAVE BANDSBC
COVERAGE480-1500 KHz

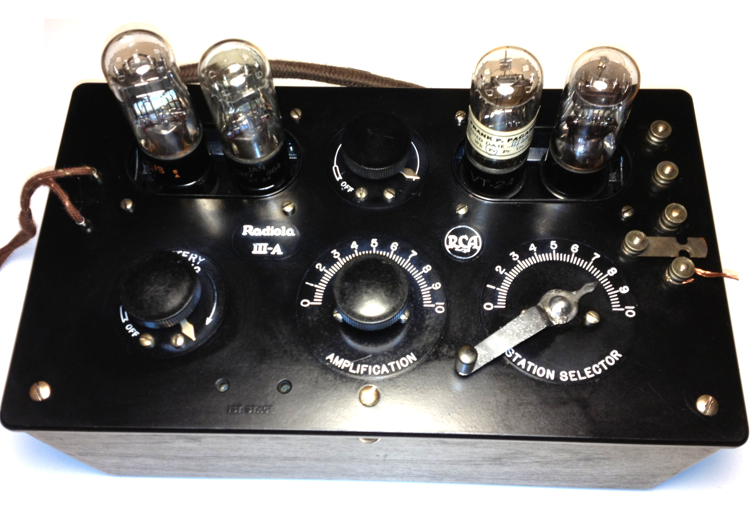

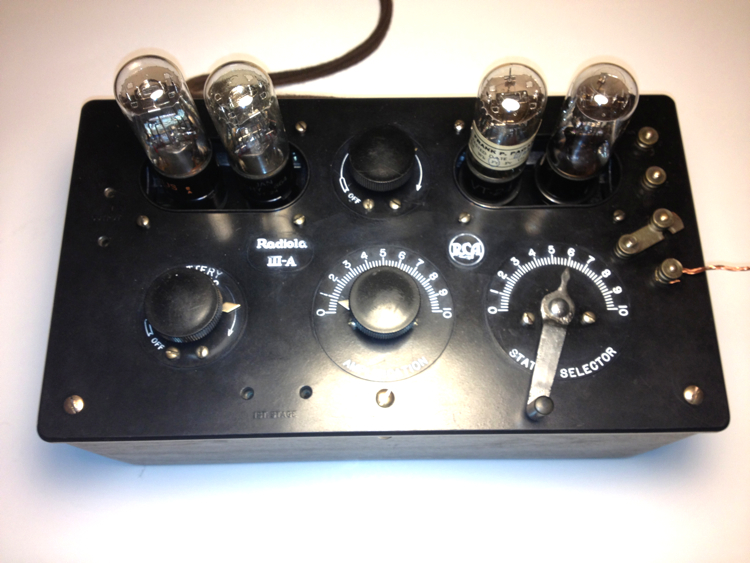

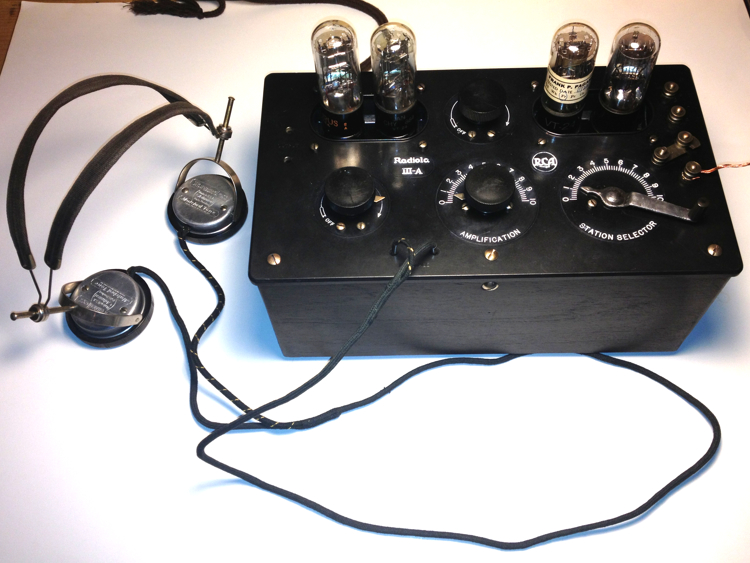

DESCRIPTIONThe Radiola III A is a battery-powered regenerative receiver, using four type WD-11 tubes. The first tube works as the detector, the second as the first audio amplifier, and the third and fourth as audio amplifier. It receives frequencies from ~ 480-1500 KHz, similar to the modern standard broadcast band. This is a small rectangle-shaped radio. This set was designed for use with headphones in first audio output and high impedance speakes, in the second audio output.
CABINET STYLETable Low Profile
CABINET MATERIALWood - Mahogany
DIAL LAMP - N° x TYPE0 x ?
TONENo
CIRCUITRegenerative
IFNot applicable
POWER SUPPLYDC Battery
VOLTS1.5, 22.5, and 85 Volts
CONSUMPTION?
AC CYCLESNot applicable
CHASSIS
TUBES LOCATION
TUBE COMPLEMENT | 864 | 864 | 864 | 864 |
PICTURES(Click to enlarge image)

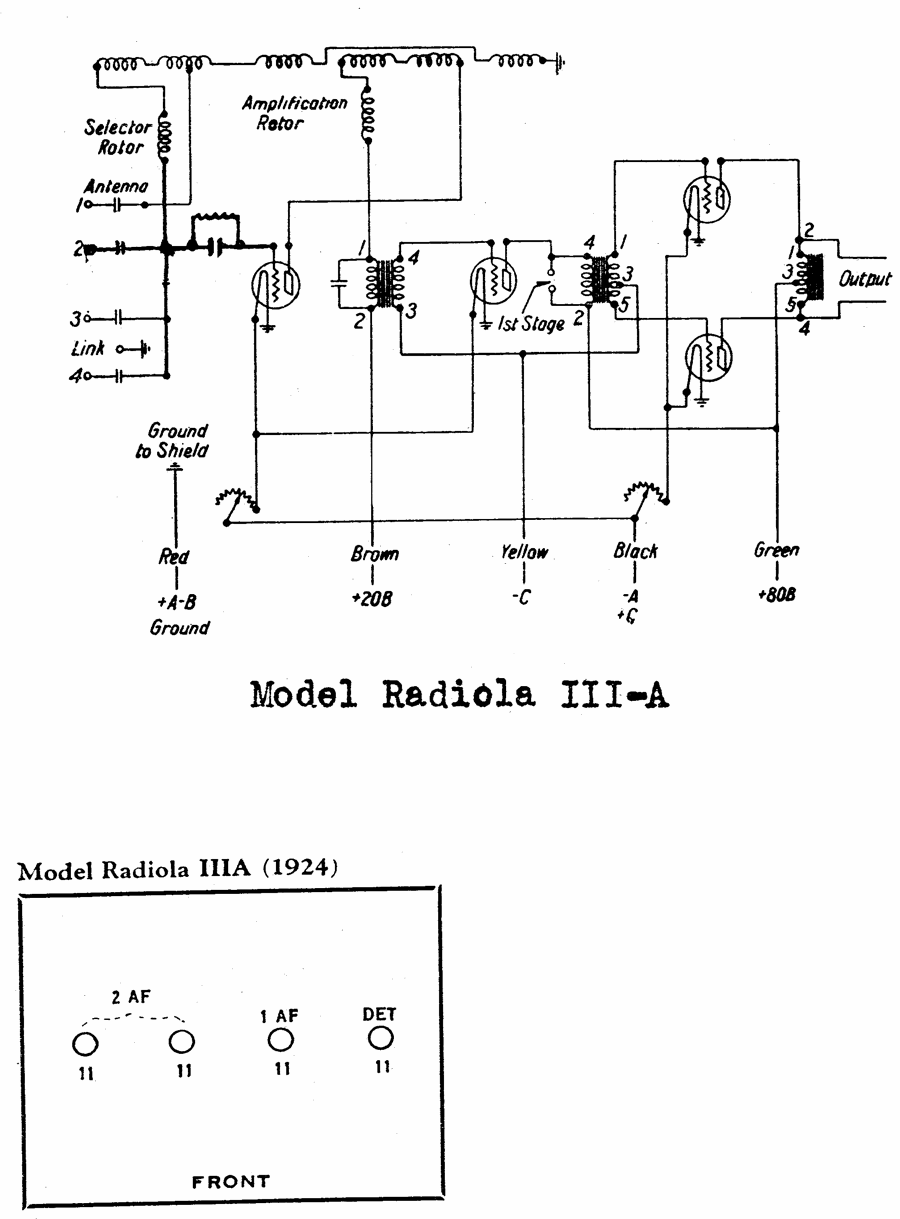

SCHEMATICS | Page1 |
FROMI bought this set from Bob in the 2012 MAARC Radioactivity, the Mid Atlantic Antique Radio Club annual spring event on June 21-23, 2012
