| RADIO | Stewart Warner |
| MODEL | 62TC16 |
| TECHNOLOGY | Tube |
|
|
|
| YEAR | 1946 |
| MADE IN | UNITED STATES |
| WAVE BANDS | BC/SW |
| COVERAGE | AM 550 - 1600 Kc, SW 9.35 - 9.88 Mc (31 m) |
| DESCRIPTION | Right front slide rule dial, left wraparound cloth grill with horizontal bars, 6 pushbuttons, 4 knobs. Slug tuner condenser. |
| CABINET STYLE | Table |
| CABINET MATERIAL | Wood |
| DIAL LAMP - N° x TYPE | 1 x 44 |
| TONE | 3 Positions |
| CIRCUIT | Superheterodyne |
| IF | 455 KC |
| POWER SUPPLY | AC |
| VOLTS | 117 V |
| CONSUMPTION | 55 W |
| AC CYCLES | 50-60 Hz |
| CHASSIS | No. 9023-D |
| TUBES LOCATION | |
|
| TUBE COMPLEMENT |
| 5Y3 | 6K6 | 6SA7 | 6SF7 | 6SK7 |
|
| SCHEMATICS |
| Page1

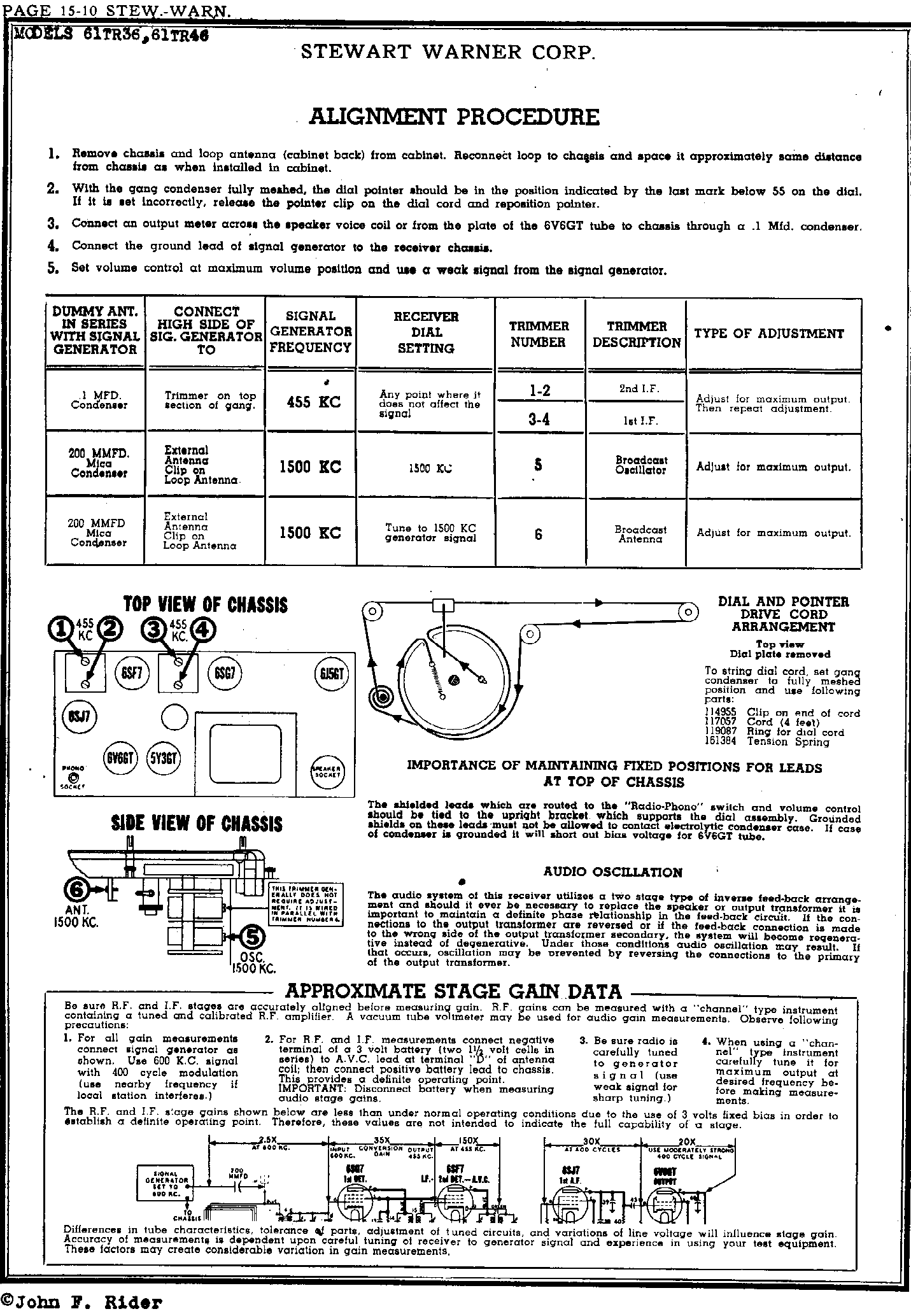

| Page2
| Page3
| Page4
| Page5
|
|
| FROM | Yard Sale, Ithaca, NY. |
