RADIOPhilco
MODEL38-10
TECHNOLOGYTube
YEAR1938
MADE INUNITED STATES
WAVE BANDSBC/SW
COVERAGEBC 540 - 1720 KHz; SW 5.7 - 18 MHz

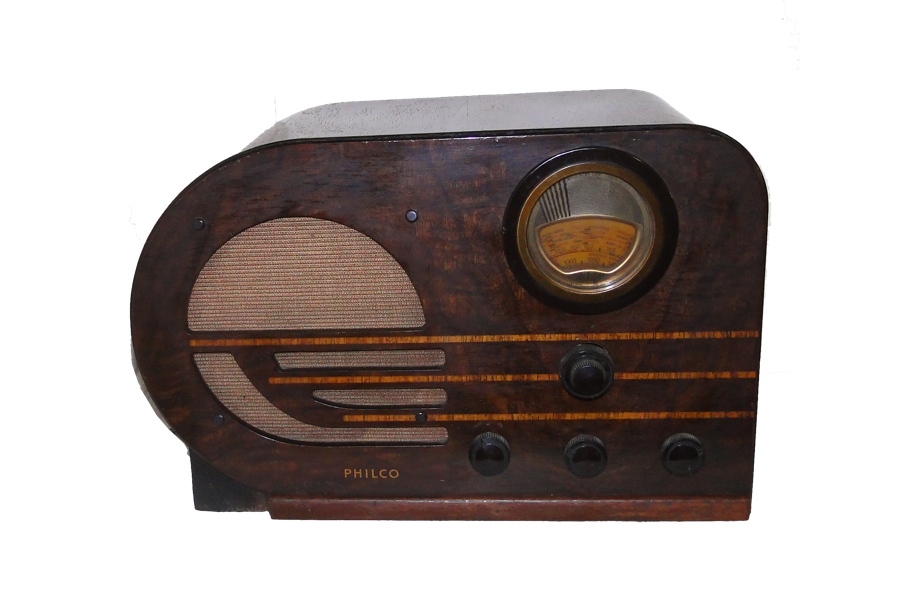

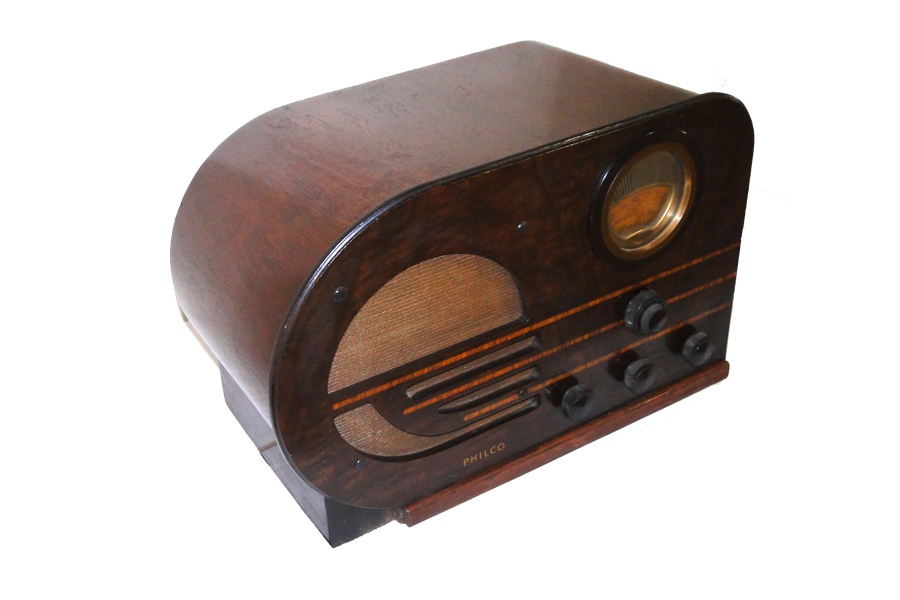

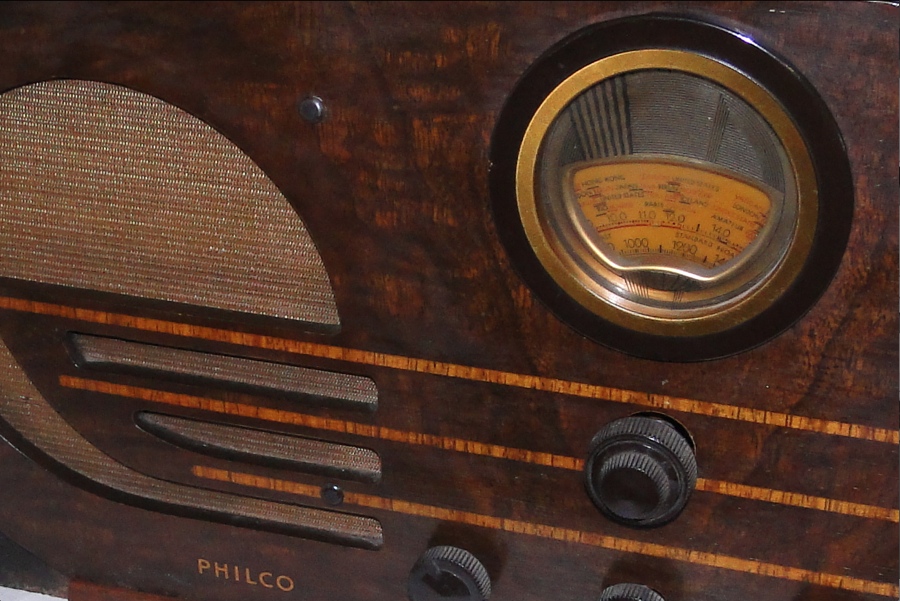

DESCRIPTIONBullet cabinet, with right front round dial, rounded left side, cloth grill with fancy cut-outs, 4 right front knobs.
CABINET STYLETable
CABINET MATERIALWood
DIAL LAMP - N° x TYPE1 x 44
TONE3 Positions
CIRCUITSuperheterodyne
IF470 KC
POWER SUPPLYAC
VOLTS115 Volts
CONSUMPTION60 W
AC CYCLES50-60 Hz

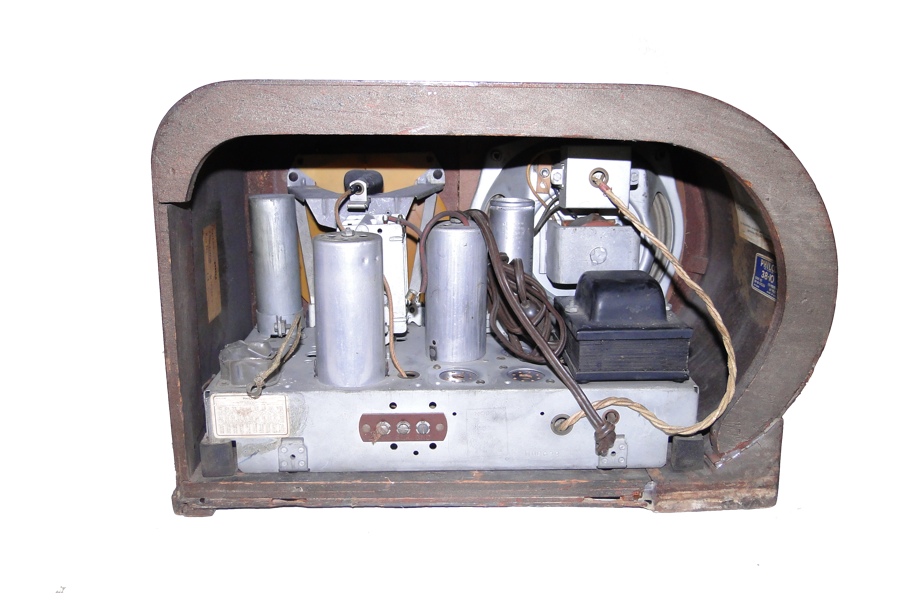

CHASSIS

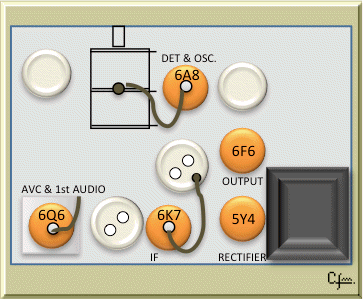

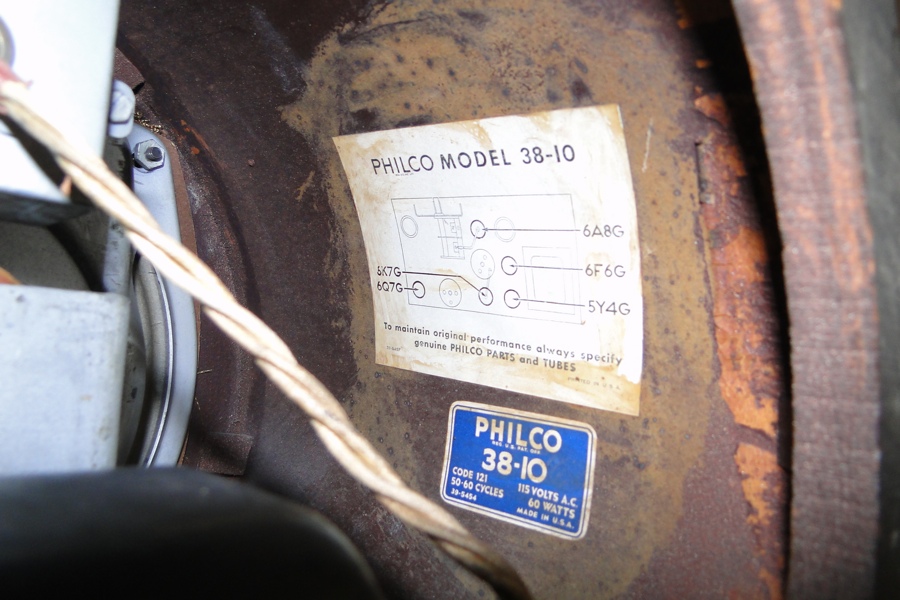

TUBES LOCATION
TUBE COMPLEMENT | 6A8 | 6K7 | 6Q7 | 6F6 | 5Y4 |
PICTURES(Click to enlarge image)

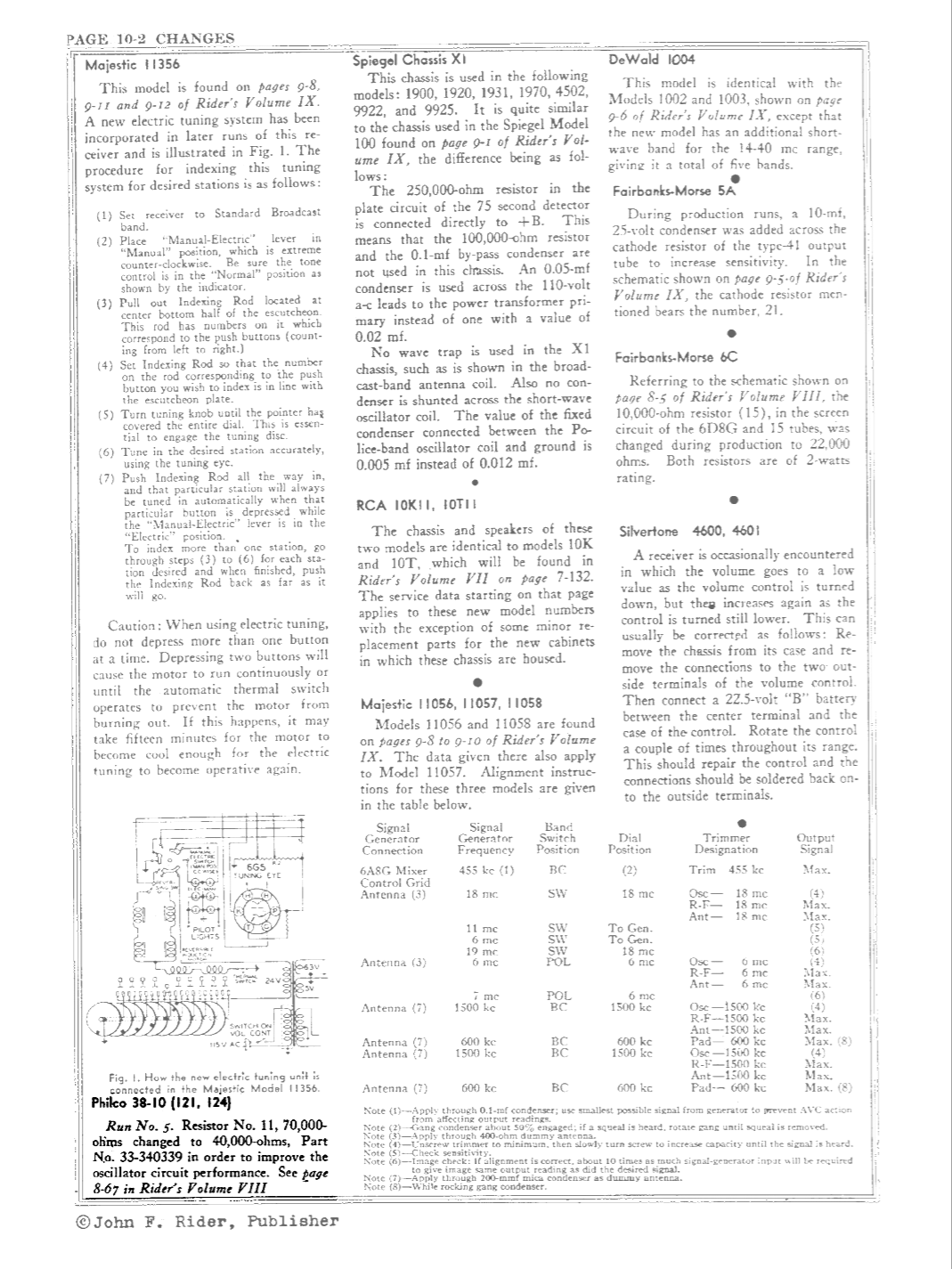

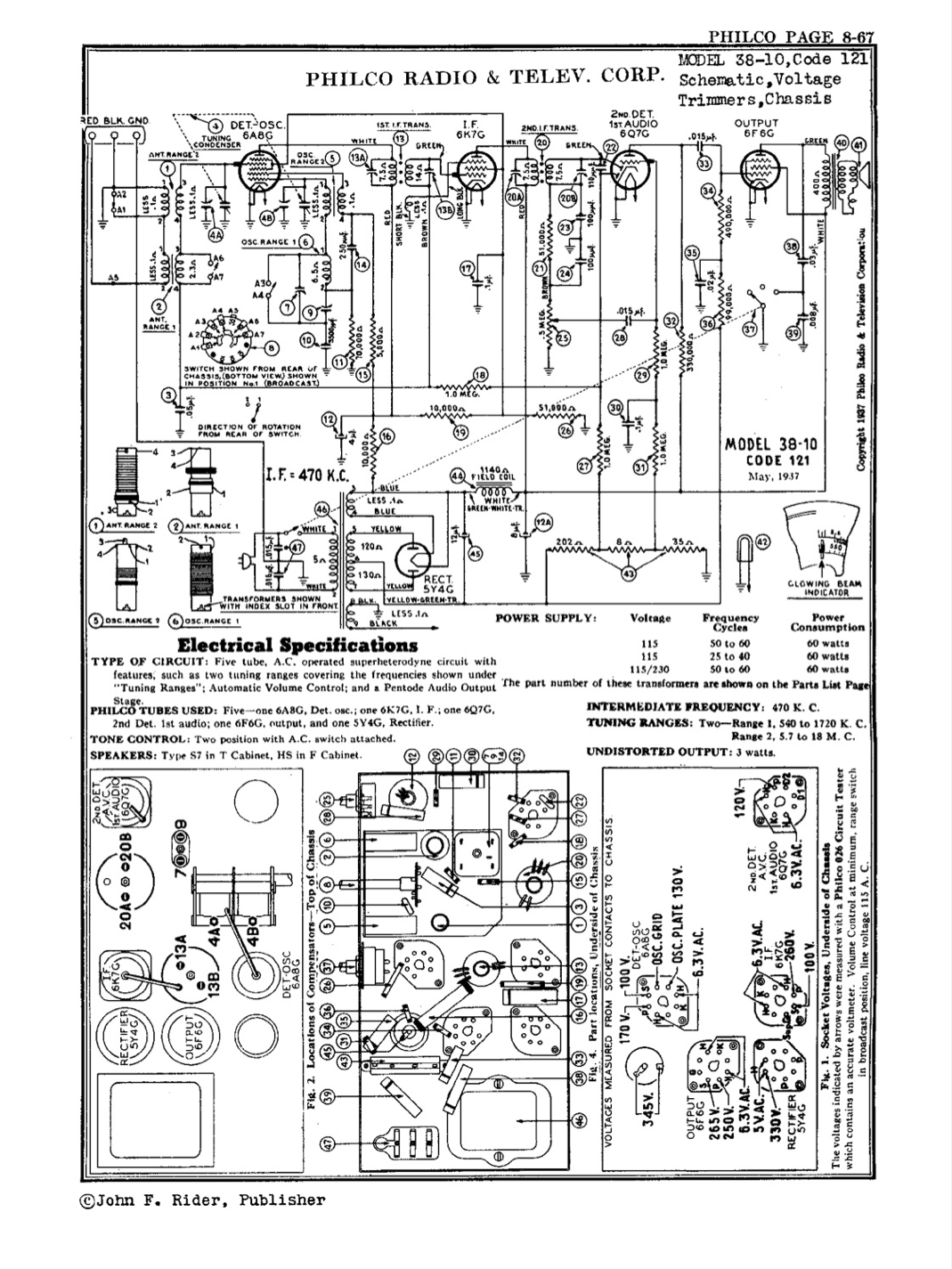

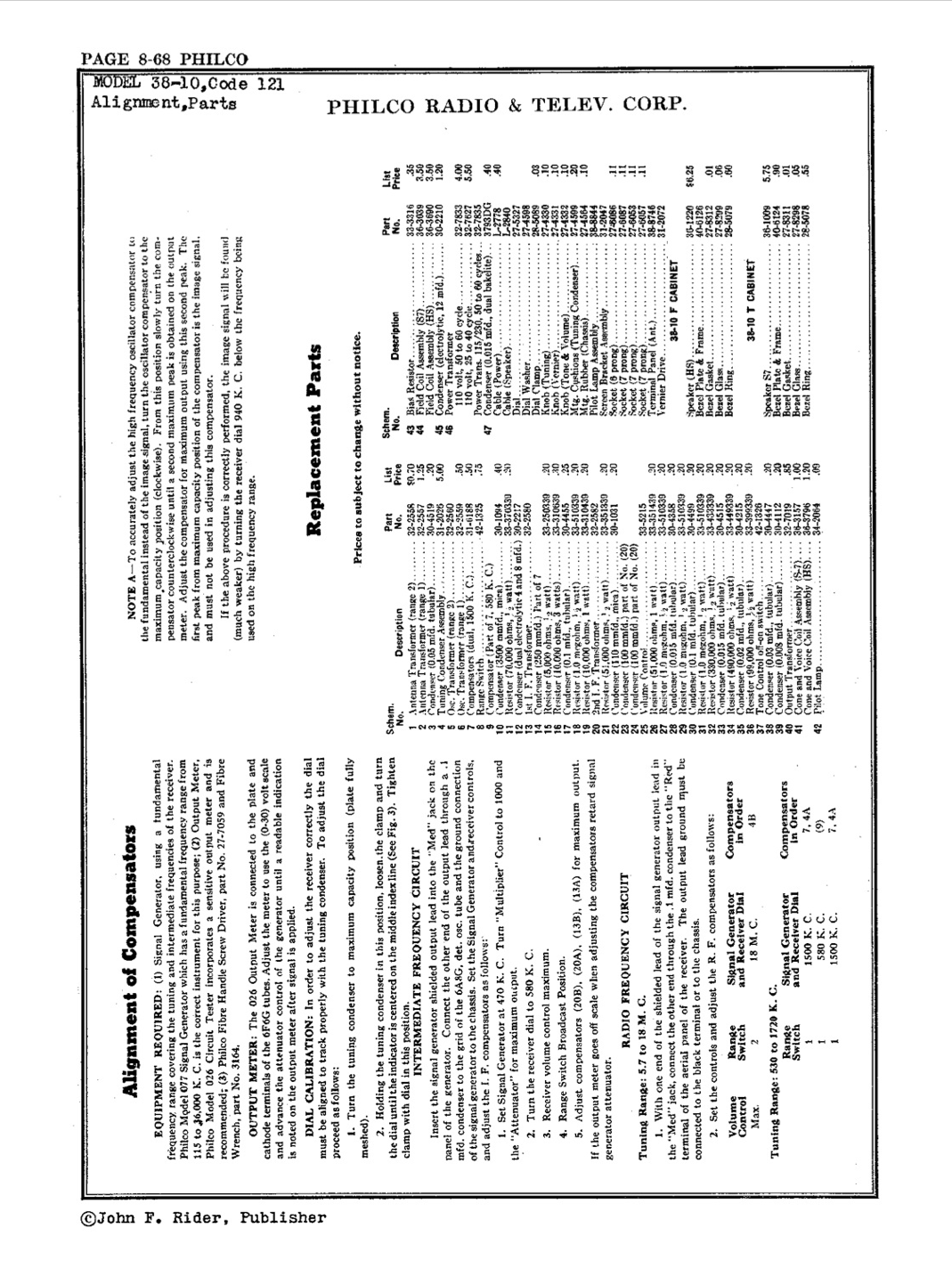

SCHEMATICS | Page1 | Page2 | Page3 |
FROM
ADDITIONAL INFOFrom MAARC RadioActivity 2013, June 21st, 2013
